Diagnostic Procedure with Diagnostic Trouble Code (DTC)
CN:DTC P1698 ENGINE TORQUE CONTROL CUT SIGNAL CIRCUIT MALFUNC-
TION (LOW INPUT)
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
ERATION, Clear Memory Mode.> and Inspection Mode
tion Mode.>.

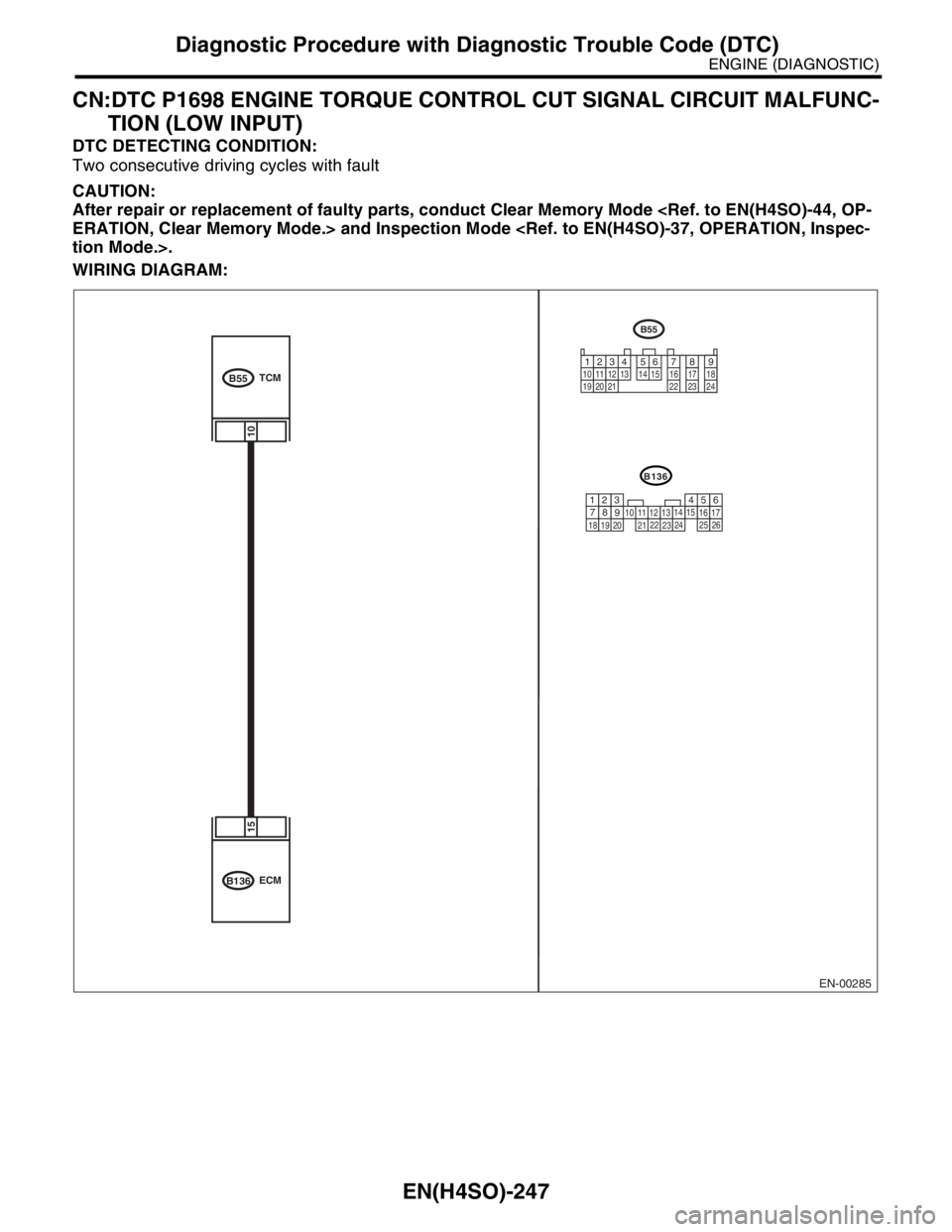

WIRING DIAGRAM:
EN-00285
B136
15
ECM
B55TCM
10
B55
B136
5
2
84
3923 20 211011
221617
24
2512136
261915
14
1
7
18
123410
11 12
19
20 21135614 1578916 17 18
22 23 24
Page 1346 of 2870

EN(H4SO)-248
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK OUTPUT SIGNAL FROM ECM.
1) Start the engine, and warm-up the engine.
2) Turn the ignition switch to OFF.
3) Turn the ignition switch to ON.
4) Measure the voltage between ECM and
chassis ground.
Connector & terminal
(B136) No. 15 (+) — Chassis ground (
−):Is the voltage more than 3 V? Repair the poor
contact in ECM
connector.Go to step 2.
2 CHECK HARNESS BETWEEN ECM AND
TCM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
TCM.
3) Measure the resistance of harness
between ECM and chassis ground.
Connector & terminal
(B136) No. 15 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 3.Repair ground
short circuit in har-
ness between
ECM and TCM
connector.
3 CHECK HARNESS BETWEEN ECM AND
TCM CONNECTOR.
Measure the resistance of harness between
TCM and ECM connector.
Connector & terminal
(B136) No. 15 — (B55) No. 10:Is the resistance less than 1
Ω?Repair the poor
contact in ECM or
TCM connector.Repair the open
circuit in harness
between ECM and
TCM connector.
Page 1347 of 2870
EN(H4SO)-249
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
CO:DTC P1699 ENGINE TORQUE CONTROL CUT SIGNAL CIRCUIT MALFUNC-
TION (HIGH INPUT)
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
ERATION, Clear Memory Mode.> and Inspection Mode
tion Mode.>.
WIRING DIAGRAM:
EN-00285
B136
15
ECM
B55TCM
10
B55
B136
5
2
84
3923 20 211011
221617
24
2512136
261915
14
1
7
18
123410
11 12
19
20 21135614 1578916 17 18
22 23 24
Page 1348 of 2870

EN(H4SO)-250
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK OUTPUT SIGNAL FROM ECM.
1) Start the engine, and warm-up the engine.
2) Turn the ignition switch to OFF.
3) Disconnect the connector from TCM.
4) Turn the ignition switch to ON.
5) Measure the voltage between ECM and
chassis ground.
Connector & terminal
(B136) No. 15 (+) — Chassis ground (
−):Is the voltage less than 3 V? Go to step 2.Repair battery
short circuit in har-
ness between
ECM and TCM
connector. After
repair, replace the
ECM.
FU(H4SO)-44,
Engine Control
Module (ECM).>
2 CHECK HARNESS BETWEEN ECM AND
TCM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Measure the voltage between ECM and
chassis ground.
Connector & terminal
(B136) No. 15 (+) — Chassis ground (
−):Is the voltage more than 10 V
by shaking the ECM harness
and connector?Repair the battery
short circuit in har-
ness between
ECM and TCM
connector. After
repair, replace the
ECM.
FU(H4SO)-44,
Engine Control
Module (ECM).>Contact the SUB-
ARU dealer.
N
OTE:
Inspection by DTM
is required, because
probable cause is
deterioration of mul-
tiple parts.
Page 1349 of 2870
EN(H4SO)-251
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
CP:DTC P1711 ENGINE TORQUE CONTROL SIGNAL #1 CIRCUIT MALFUNC-
TION
DTC DETECTING CONDITION:
TROUBLE SYMPTOM:
Excessive shift shock
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
ERATION, Clear Memory Mode.> and Inspection Mode
tion Mode.>.

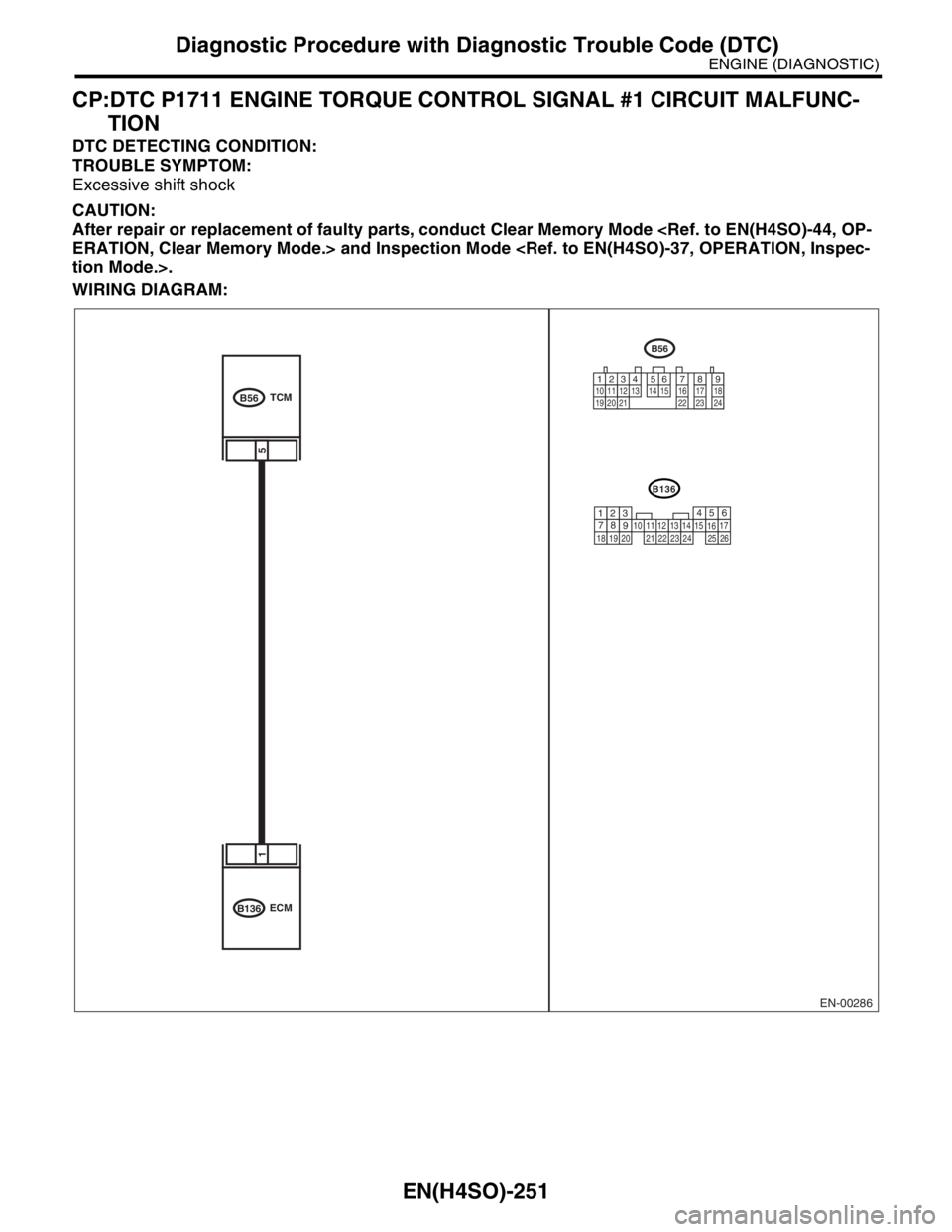

WIRING DIAGRAM:
EN-00286
B136
1
ECM
B56TCM
5
B56
1234
10 11 12
19 20 21135614 1578916 17 18
22 23 24
B136
5
2
84
3923 20 211011
221617
24
2512136
261915
14
1
7
18
Page 1350 of 2870

EN(H4SO)-252
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK INPUT SIGNAL FROM ECM.
1) Turn the ignition switch to ON.
2) Measure the voltage between ECM and
chassis ground.
Connector & terminal
(B136) No. 1 (+) — Chassis ground (
−):Is the voltage more than 4.5 V? Go to step 2.Go to step 4.
2 CHECK INPUT SIGNAL FROM ECM.
Measure the voltage between ECM and chas-
sis ground.
Connector & terminal
(B136) No. 1 (+) — Chassis ground (
−):Is the voltage more than 10 V? Repair battery
short circuit in har-
ness between
ECM and TCM
connector.Go to step 3.
3 CHECK POOR CONTACT.
Check poor contact in ECM connector.Is there poor contact in ECM
connector?Repair the poor
contact in ECM
connector.Replace the ECM.
FU(H4SO)-44,
Engine Control
Module (ECM).>
4 CHECK HARNESS BETWEEN ECM AND
TCM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
TCM.
3) Measure the resistance of harness
between TCM and ECM connector.
Connector & terminal
(B136) No. 1 — (B56) No. 5:Is the resistance less than 1
Ω?Go to step 5.Repair the open
circuit in harness
between ECM and
TCM connector.
5 CHECK HARNESS BETWEEN ECM AND
TCM CONNECTOR.
Measure the resistance of harness between
ECM and chassis ground.
Connector & terminal
(B136) No. 1 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 6.Repair ground
short circuit in har-
ness between
ECM and TCM
connector.
6 CHECK POOR CONTACT.
Check poor contact in TCM connector.Is there poor contact in TCM
connector?Repair poor con-
tact in TCM con-
nector.Replace the TCM.
Transmission Con-
trol Module
(TCM).>
Page 1351 of 2870
EN(H4SO)-253
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
CQ:DTC P1712 ENGINE TORQUE CONTROL SIGNAL #2 CIRCUIT MALFUNC-
TION
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
Excessive shift shock
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
ERATION, Clear Memory Mode.> and Inspection Mode
tion Mode.>.

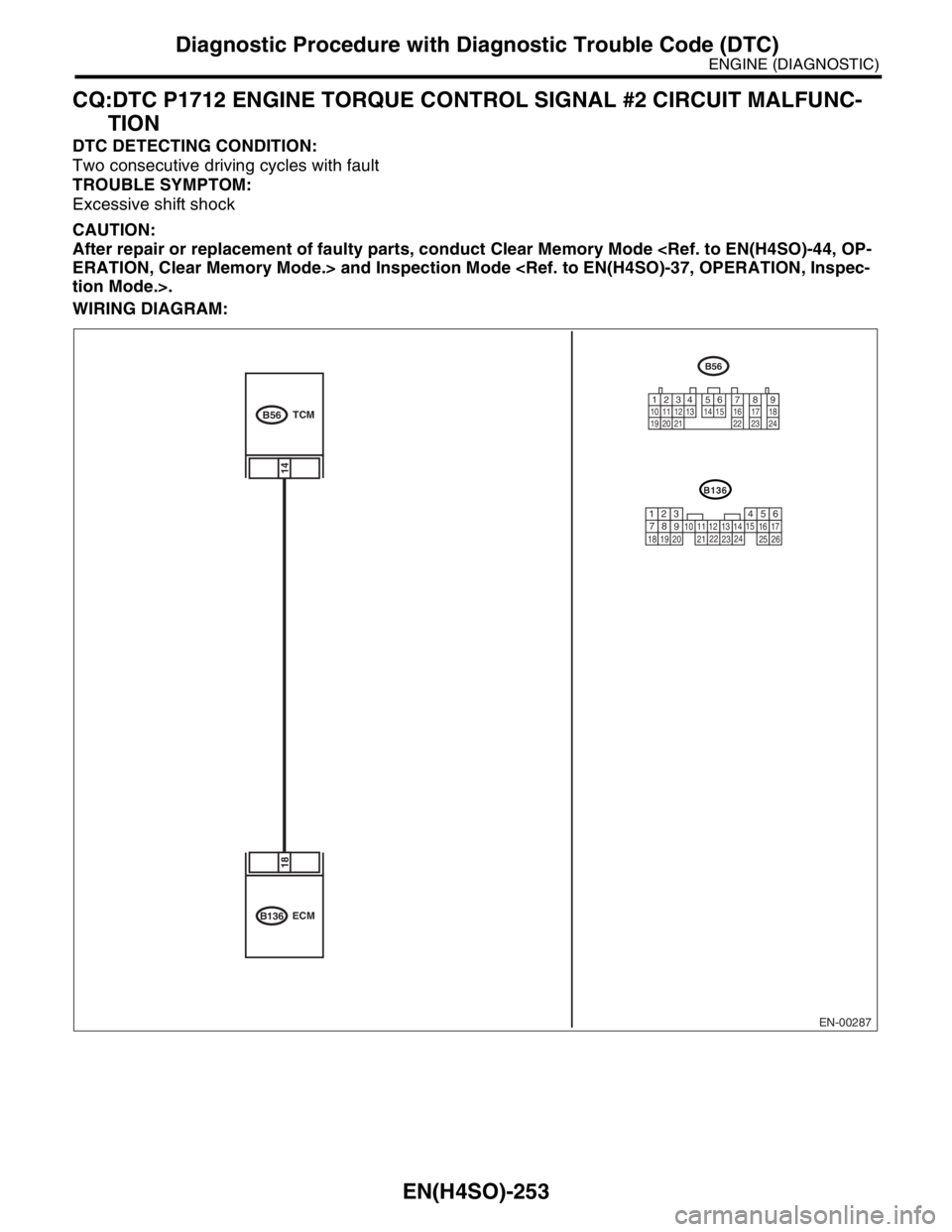

WIRING DIAGRAM:
EN-00287
B136
18
ECM
B56TCM
14
B56
B136
5
2
84
3923 20 211011
221617
24
2512136
261915
14
1
7
18
123410 11 12
19 20 21135614 1578916 17 18
22 23 24
Page 1352 of 2870

EN(H4SO)-254
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK INPUT SIGNAL FROM ECM.
1) Turn the ignition switch to ON.
2) Measure the voltage between ECM and
chassis ground.
Connector & terminal
(B136) No. 18 (+) — Chassis ground (
−):Is the voltage more than 4.5 V? Go to step 2.Go to step 4.
2 CHECK INPUT SIGNAL FROM ECM.
Measure the voltage between ECM and chas-
sis ground.
Connector & terminal
(B136) No. 18 (+) — Chassis ground (
−):Is the voltage more than 10 V? Repair battery
short circuit in har-
ness between
ECM and TCM
connector.Go to step 3.
3 CHECK POOR CONTACT.
Check poor contact in ECM connector. Is there poor contact in ECM
connector?Repair the poor
contact in ECM
connector.Replace the ECM.
FU(H4SO)-44,
Engine Control
Module (ECM).>
4 CHECK HARNESS BETWEEN ECM AND
TCM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
TCM.
3) Measure the resistance of harness
between TCM and ECM connector.
Connector & terminal
(B136) No. 18 — (B56) No. 14:Is the resistance less than 1
Ω?Go to step 5.Repair the open
circuit in harness
between ECM and
TCM connector.
5 CHECK HARNESS BETWEEN ECM AND
TCM CONNECTOR.
Measure the resistance of harness between
ECM and chassis ground.
Connector & terminal
(B136) No. 18 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 6.Repair ground
short circuit in har-
ness between
ECM and TCM
connector.
6 CHECK POOR CONTACT.
Check poor contact in TCM connector. Is there poor contact in TCM
connector?Repair poor con-
tact in TCM con-
nector.Replace the TCM.
Transmission Con-
trol Module
(TCM).>
