SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-11 ENGINE (DIAGNOSTIC) Electrical Component Location  SENSOR (1) Manifold absolute pressure sensor (4) Knock sensor (7) Mass air flow and intake air tem- perature sensor (2) Engine coolant

Page 1642 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-12 ENGINE (DIAGNOSTIC) Electrical Component Location (1) EN-00294 (2) EN-00295 (3) EN-00296EN-00297 (4) EN-00298 (5)EN-00299 (6) (7) EN-00300 (8) EN-00301

Page 1643 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-13 ENGINE (DIAGNOSTIC) Electrical Component Location (1) Front oxygen (A/F) sensor (3) Exhaust gas temperature sensor (5) Rear Oxygen Sensor (2) Precatalytic converter (4) Front catalytic c

Page 1644 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-14 ENGINE (DIAGNOSTIC) Electrical Component Location (1) EN-00303EN-00304 (3) (2) (4) EN-00305 (5) EN-00306 (6)EN-00307

Page 1645 of 2870

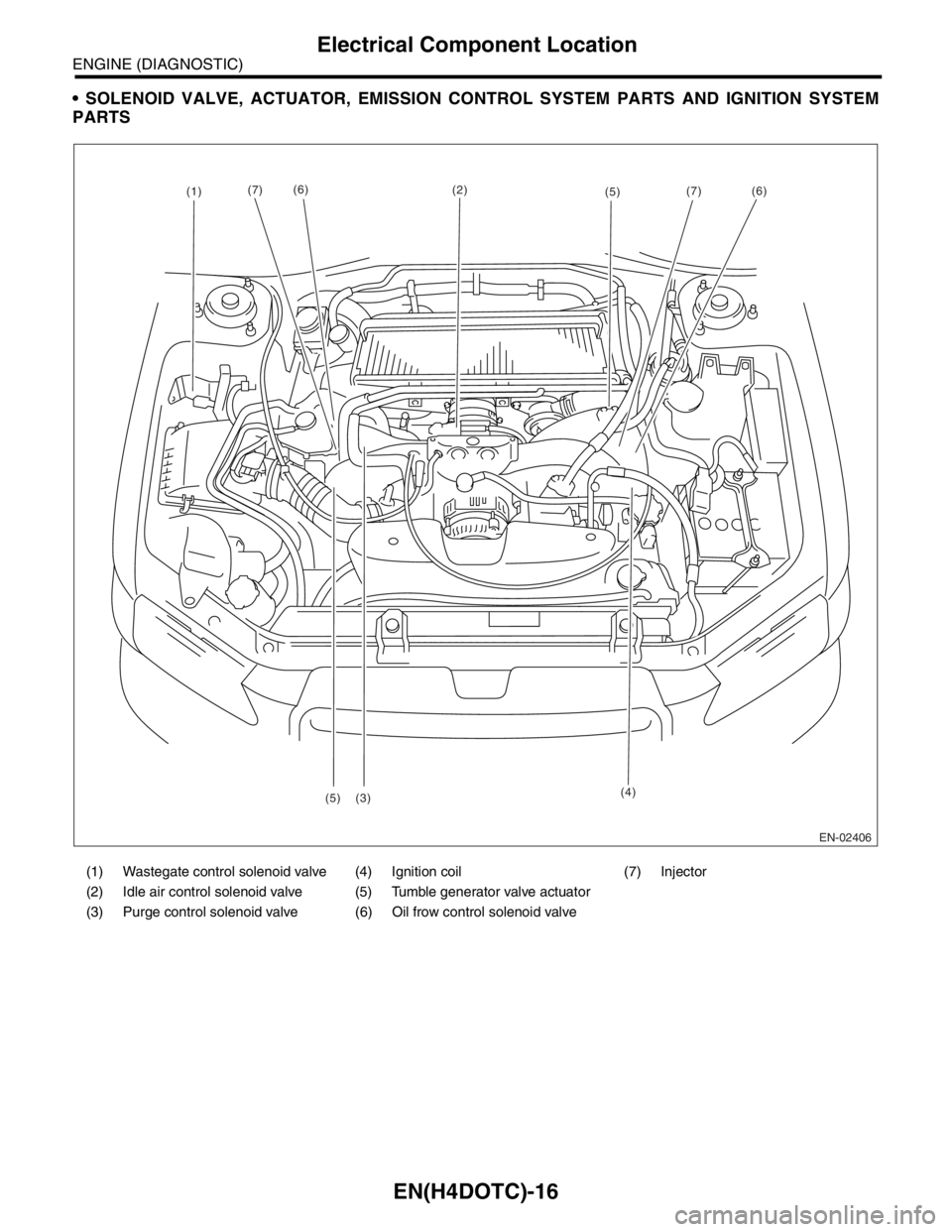

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-15 ENGINE (DIAGNOSTIC) Electrical Component Location  LHD MODEL  RHD MODEL (1) Fuel level sensor (2) Fuel sub level sensor EN-00308(2) (1) EN-00309(2) (1) EN-00310 (1)EN-00311 (2)

Page 1646 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-16 ENGINE (DIAGNOSTIC) Electrical Component Location  SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS (1) Wastegate control solenoid valve (4) Ignition co

Page 1647 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-17 ENGINE (DIAGNOSTIC) Electrical Component Location EN-00313(1)EN-00314 (2) EN-00315 (3) EN-00316(4) (5) EN-00317EN-02407 (6) EN-02408(7)

Page 1648 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4DOTC)-18 ENGINE (DIAGNOSTIC) Electrical Component Location  LHD MODEL  RHD MODEL (1) Fuel pump (4) Fuel pump relay (7) Radiator sub fan relay (2) Inhibitor switch (5) Fuel pump control unit (8)
