Page 1465 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-9 MECHANICAL General Description CrankshaftBend limit 0.035 mm (0.0014 in) Crank pin and crank jour- nalOut-of-roundness 0.005 mm (0.0002 in) or less Grinding limit 0.25 mm (0.0098 in) Cran

Page 1466 of 2870

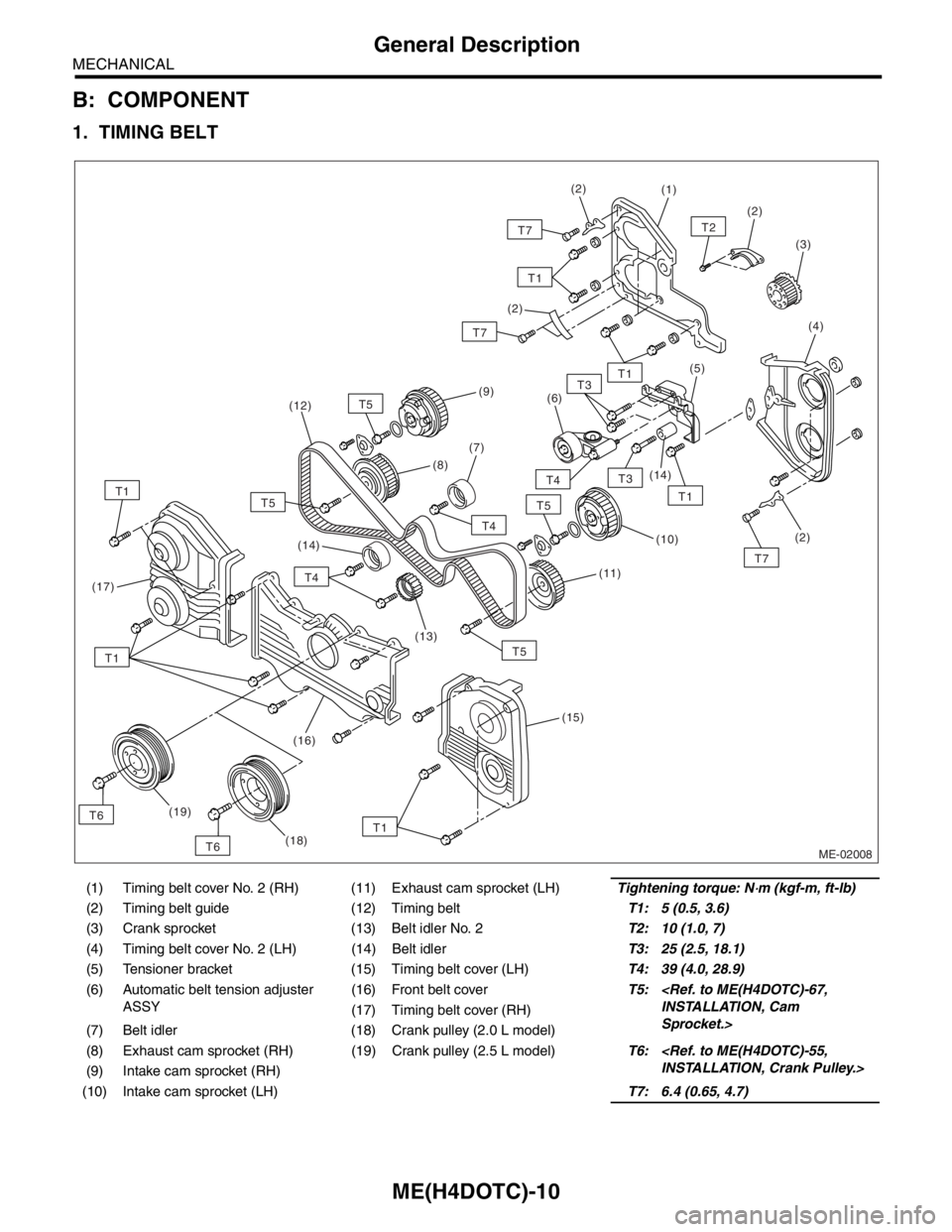

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-10 MECHANICAL General Description B: COMPONENT 1. TIMING BELT (1) Timing belt cover No. 2 (RH) (11) Exhaust cam sprocket (LH)Tightening torque: N⋅m (kgf-m, ft-lb) (2) Timing belt guide (1

Page 1467 of 2870

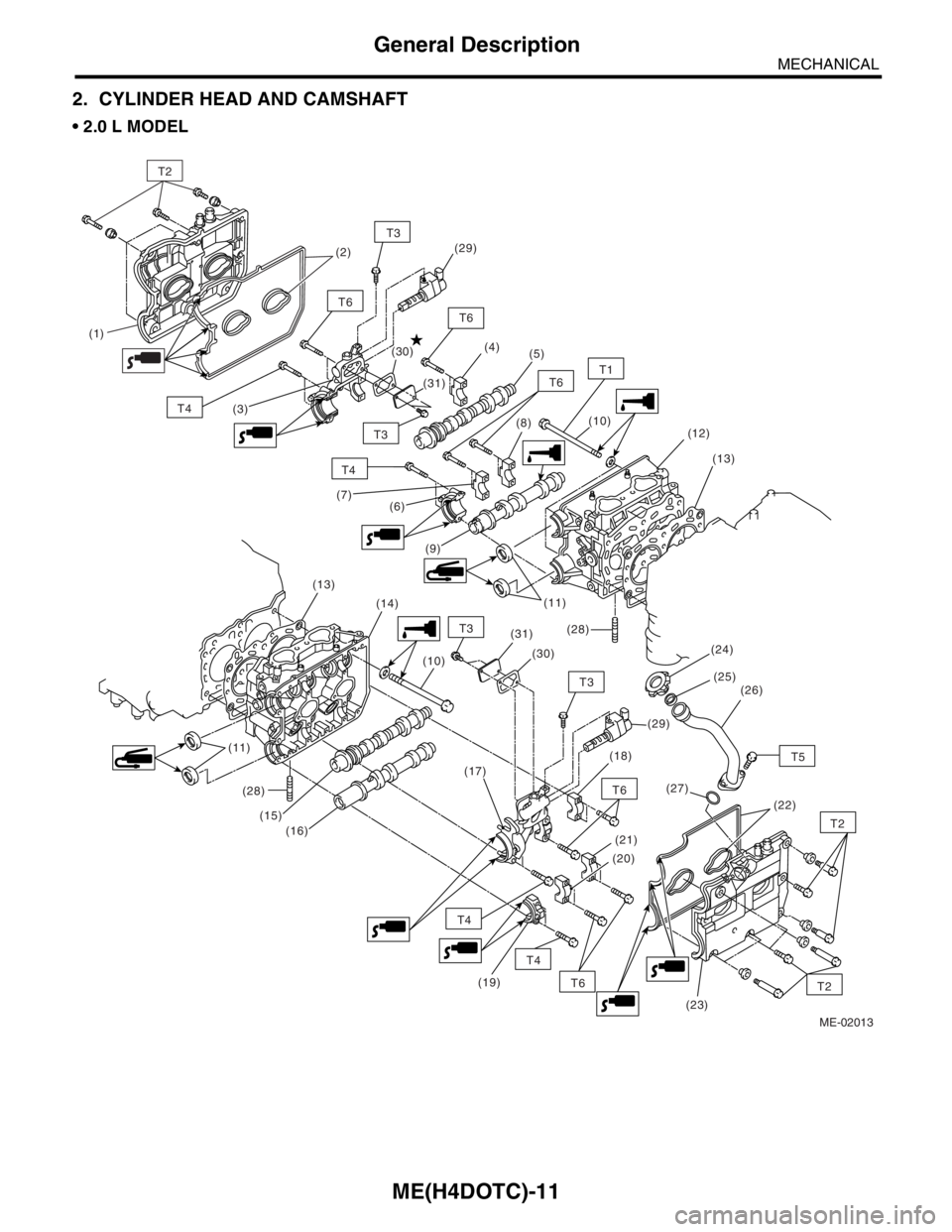

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-11 MECHANICAL General Description 2. CYLINDER HEAD AND CAMSHAFT  2.0 L MODEL ME-02013 T4 T5 T2 T2 T1 (3) (7) (6) (9)(10) (12) (13) (28) (24) (25) (26) (23) (19)(20) (28) (15) (16) (11) (17

Page 1468 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-12 MECHANICAL General Description (1) Rocker cover (RH) (15) Intake camshaft (LH) (29) Oil flow control solenoid valve (2) Rocker cover gasket (RH) (16) Exhaust camshaft (LH) (30) Gasket (3

Page 1469 of 2870

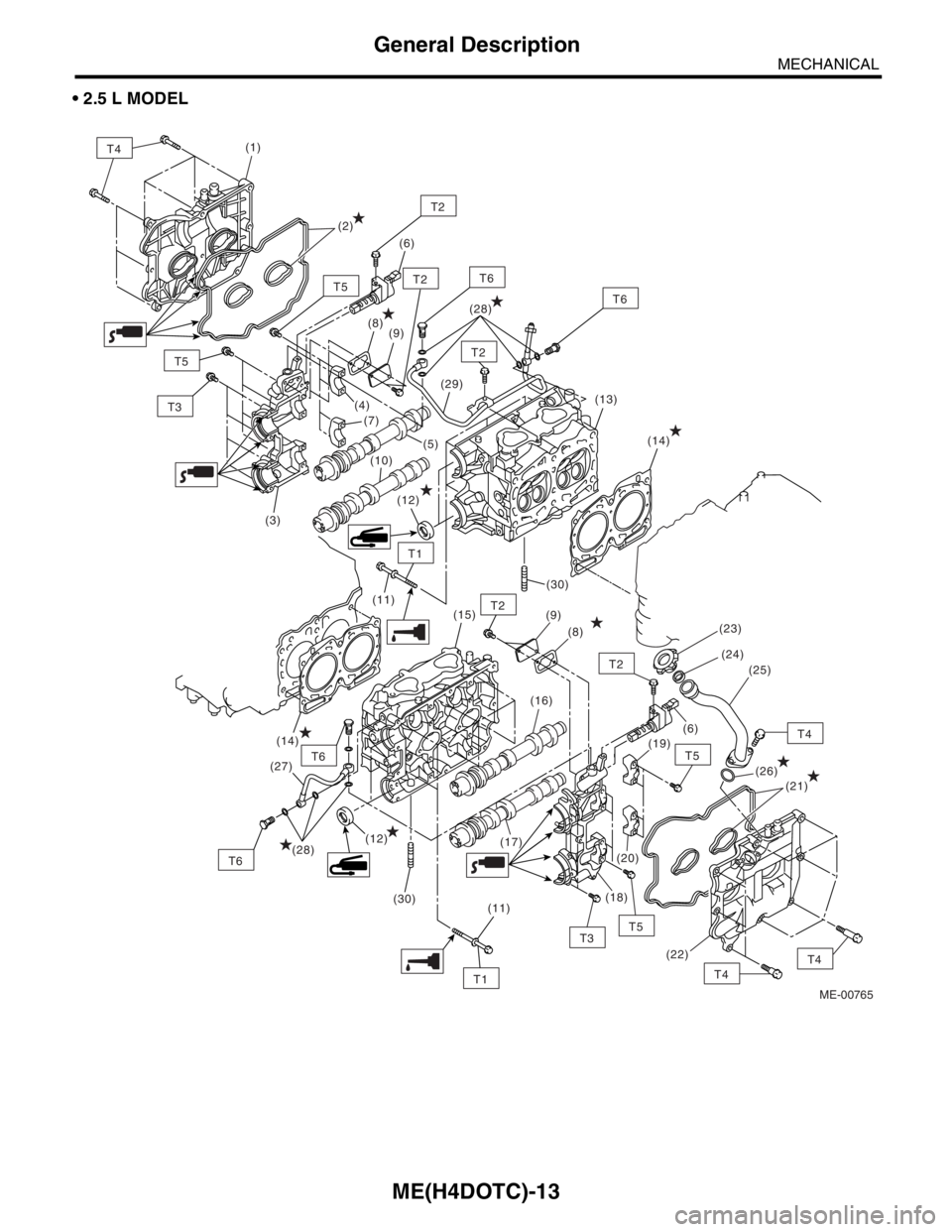

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-13 MECHANICAL General Description  2.5 L MODEL T4(1) ME-00765 T3 T3 T5 T5 T5 T5 T4 T1 (3)(7)(6) (9) (8) (10) (12)(29) (13) (26) (23) (24) (21) (20)(6) (16) (17) (18) (9) (25) (8) (19) (15)

Page 1470 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-14 MECHANICAL General Description (1) Rocker cover (RH) (15) Cylinder head (LH) (29) Oil pipe (RH) (2) Rocker cover gasket (RH) (16) Intake camshaft (LH) (30) Stud bolt (3) Camshaft cap (Fr

Page 1471 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-15 MECHANICAL General Description 3. CYLINDER HEAD AND VALVE ASSEMBLY (1) Exhaust valve (5) Intake valve oil seal (9) Valve lifter (2) Intake valve (6) Valve spring (10) Exhaust valve oil s

Page 1472 of 2870

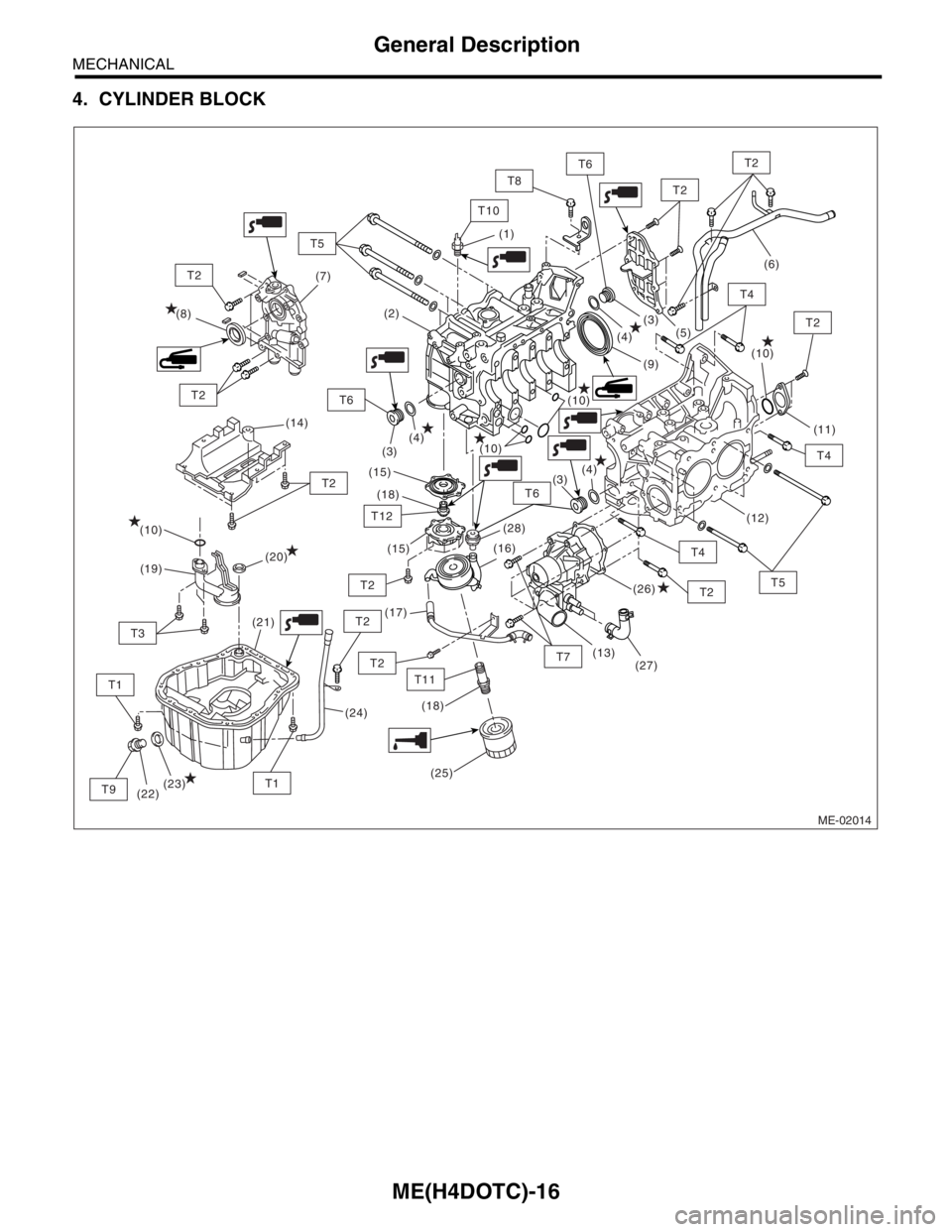

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-16 MECHANICAL General Description 4. CYLINDER BLOCK ME-02014 (14) T2 T6 T7 T2 T2 T2 T2 T8 T5 T4 T5 T4 T2 T6 T6 T2 T11 T12 T10 T1 T1 T3 T9 T2 T2 T2 (9) (8)(7)(6) (15)(10) (10) (10)(11) (12)
