Page 873 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4SO)-4 MECHANICAL General Description Piston pinOuter diameter mm (in) 22.994 — 23.000 (0.9053 — 0.9055) Standard clearance between piston and piston pin mm (in) 0.004 — 0.008 (0.0002 — 0.

Page 874 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4SO)-5 MECHANICAL General Description CrankshaftBend limit mm (in) 0.035 (0.0014) Crank pin and crank journalmm (in)Out-of-roundness 0.020 (0.0008) or less Grinding limit 0.250 (0.0098) Crank pin

Page 875 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4SO)-6 MECHANICAL General Description B: COMPONENT 1. TIMING BELT (1) Timing belt cover No. 2 (RH) (9) Automatic belt tension adjuster ASSYTightening torque: N⋅m (kgf-m, ft-lb) (2) Timing belt

Page 876 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4SO)-7 MECHANICAL General Description 2. CYLINDER HEAD AND CAMSHAFT (1) Rocker cover (RH) (11) Cylinder head (LH)Tightening torque: N⋅m (kgf-m, ft-lb) (2) Intake valve rocker ASSY (12) Camshaft

Page 877 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4SO)-8 MECHANICAL General Description 3. VALVE ROCKER ASSEMBLY (1) Intake valve rocker arm (5) Rocker shaft spacerTightening torque: N⋅m (kgf-m, ft-lb) (2) Valve rocker nut (6) Intake rocker sha

Page 878 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4SO)-9 MECHANICAL General Description 4. CYLINDER HEAD AND VALVE ASSEMBLY (1) Exhaust valve (4) Valve spring seat (7) Retainer (2) Intake valve (5) Intake valve oil seal (8) Retainer key (3) Valve

Page 879 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4SO)-10 MECHANICAL General Description 5. CYLINDER BLOCK  MODEL WITHOUT ATF WARMER (1) Oil pressure switch (15) Oil filter connectorTightening torque: N⋅m (kgf-m, ft-lb) (2) Cylinder block (RH)

Page 880 of 2870

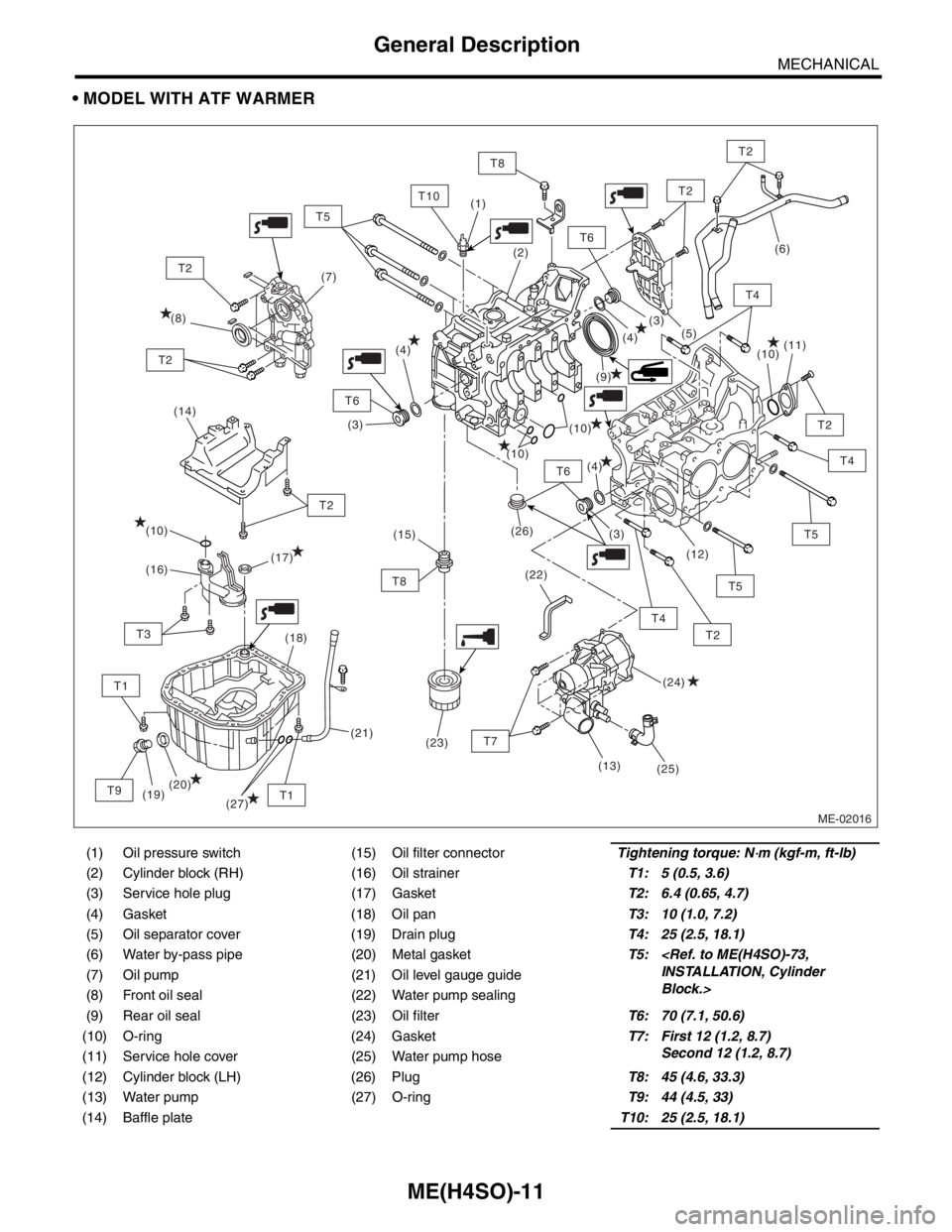

SUBARU FORESTER 2004 Service Repair Manual ME(H4SO)-11 MECHANICAL General Description  MODEL WITH ATF WARMER (1) Oil pressure switch (15) Oil filter connectorTightening torque: N⋅m (kgf-m, ft-lb) (2) Cylinder block (RH) (16) Oil strainerT1:
