Page 297 of 2870
WW-9
WIPER AND WASHER SYSTEM
Wiper Blade
4. Wiper Blade
A: REMOVAL
While pushing the locking clip (A) up, pull out the
blade from arm to arrow direction.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Confirm that the clip is locked securely.
C: DISASSEMBLY
Pull on side (A) of the wiper rubber stopper and re-
move the rubber from the blade assembly.
D: ASSEMBLY
1. METAL TYPE
1) Insert the wiper rubber onto the blade so that the
stopper is in the position shown.2) Make sure the wiper rubber is securely fastened
to the pull stopper (A).
WW-00008
WW-00009
WW-00049
WW-00037
Page 298 of 2870
WW-10
WIPER AND WASHER SYSTEM
Wiper Blade
2. RESIN TYPE
1) Insert the wiper rubber through the claw (B).
2) Insert the wiper rubber top until it protrudes about
20 mm (0.79 in) from the stopper (D).3) Insert the wiper rubber into the claw (A).
E: INSPECTION
1) When the wiper does not perform well, inspect
the following:
Make sure the movable part of the blade assem-
bly moves smoothly.
Make sure the wiper rubber is not deformed or
damaged.
2) Replace with a new part if damage is found.
WW-00193 ABCD
(A) 20 mm (0.79 in)
WW-00198
A
B
WW-00199
D (A)
A
WW-00147
Page 299 of 2870

WW-11
WIPER AND WASHER SYSTEM
Washer Tank and Motor
5. Washer Tank and Motor
A: REMOVAL
1) Open the hood.
2) Disconnect the ground cable from battery.
3) Remove the two bolts, hose and connector, and
then remove the tank.
4) For the model with headlight washer, proceed to
step 5) and 6).
5) Lift the washer tank, and then disconnect the con-
nector from headlight washer motor. Disconnect
washer hoses.
6) Disconnect the washer hose from the motor, and
then detach the washer tank.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
6.0 N·m (0.61 kgf-m, 4.4 ft-lb)
C: DISASSEMBLY
1) Remove bolt, and then pull out washer motor
from tank. (Model with headlight washer)
2) Pull out the washer motor from tank.
D: ASSEMBLY
1) Assemble in the reverse order of disassembly.
2) Confirm that water does not leak from installa-
tion area of motor.
E: INSPECTION
Apply battery voltage to the connector terminal of
the washer motor and make sure the motor oper-
ates.
WW-00011
WW-00098
WW-00099
WW-00100
WW-00012
WW-00013
Page 300 of 2870
WW-12
WIPER AND WASHER SYSTEM
Front Wiper Arm
6. Front Wiper Arm
A: REMOVAL
1) Open the hood.
2) Remove the cap.
3) Loosen the nut to remove arm.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Operate the wiper once.
3) Align the wiper blade to ceramic print point mark
(A) of front window panel.
Tightening torque:
Refer to COMPONENT in General Descrip-
tion.
NENT, General Description.>
C: ADJUSTMENT
Operate the wiper once. Align the wiper blade to
ceramic print point mark (A) of front window panel.
WW-00047
WW-00048
(A)
WW-00048
(A)
Page 301 of 2870

WW-13
WIPER AND WASHER SYSTEM
Front Wiper Motor and Link
7. Front Wiper Motor and Link
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the cowl panel.
AL, Cowl Panel.>
3) Disconnect the connector of motor.
4) Loosen the bolts and nuts to remove wiper link.
5) Loosen the bolts and nuts to remove motor.
B: INSTALLATION
1) Install the wiper link to the vehicle, and then con-
nect the motor connector.
2) Connect the battery ground cable to battery.
3) To confirm that the motor is at auto stop position,
connect the harness to motor and turn the wiper
switch ON/OFF once.
4) Disconnect the ground cable from battery.
5) Tighten the nut where rod (A) and link plate (B) is
aligned in a straight line.6) Install in the reverse order of removal.
Tightening torque:
Refer to COMPONENT in General Descrip-
tion.
NENT, General Description.>
C: INSPECTION
1) When the battery is connected to wiper motor
connectors and confirm that motor operates at low
speed.
2) When the battery is connected to terminal of
connectors and confirm that motor operates at high
speed.
3) Connect the battery to terminals of connector,
and remove the terminal connection with motor ro-
tated at low speed, and stop the wiper motor
through operation.
WW-00050
WW-00051
WW-00052
(A)
(B)
WW-00224
32
541
32
541
WW-00225
WW-00226
32
541
Page 302 of 2870
WW-14
WIPER AND WASHER SYSTEM
Front Wiper Motor and Link
4) Connect the battery and confirm that the motor
stops at automatic stop position after the motor op-
erates at low speed again.
WW-00227
32
541
Page 303 of 2870
WW-15
WIPER AND WASHER SYSTEM
Front Washer Nozzle
8. Front Washer Nozzle
A: REMOVAL
1) Remove the washer hose from the washer noz-
zle.
2) Open the clips on the underside of the hood with
a thin screwdriver or other tool, and remove the
washer nozzle.
B: INSTALLATION
1) Install in the reverse order of removal.
NOTE:
Hoses have rib as eyemark for twist-proof.
2) Adjust the position of the washer liquid sprayer.
Nozzle.>
C: INSPECTION
Make sure the nozzle and hose are not clogged.
Check hoses for twist or fold.
D: ADJUSTMENT
NOTE:
It is not necessary to adjust the washer injection
position because of spreading nozzle type.
WW-00023
Page 304 of 2870
WW-16
WIPER AND WASHER SYSTEM
Rear Wiper Arm

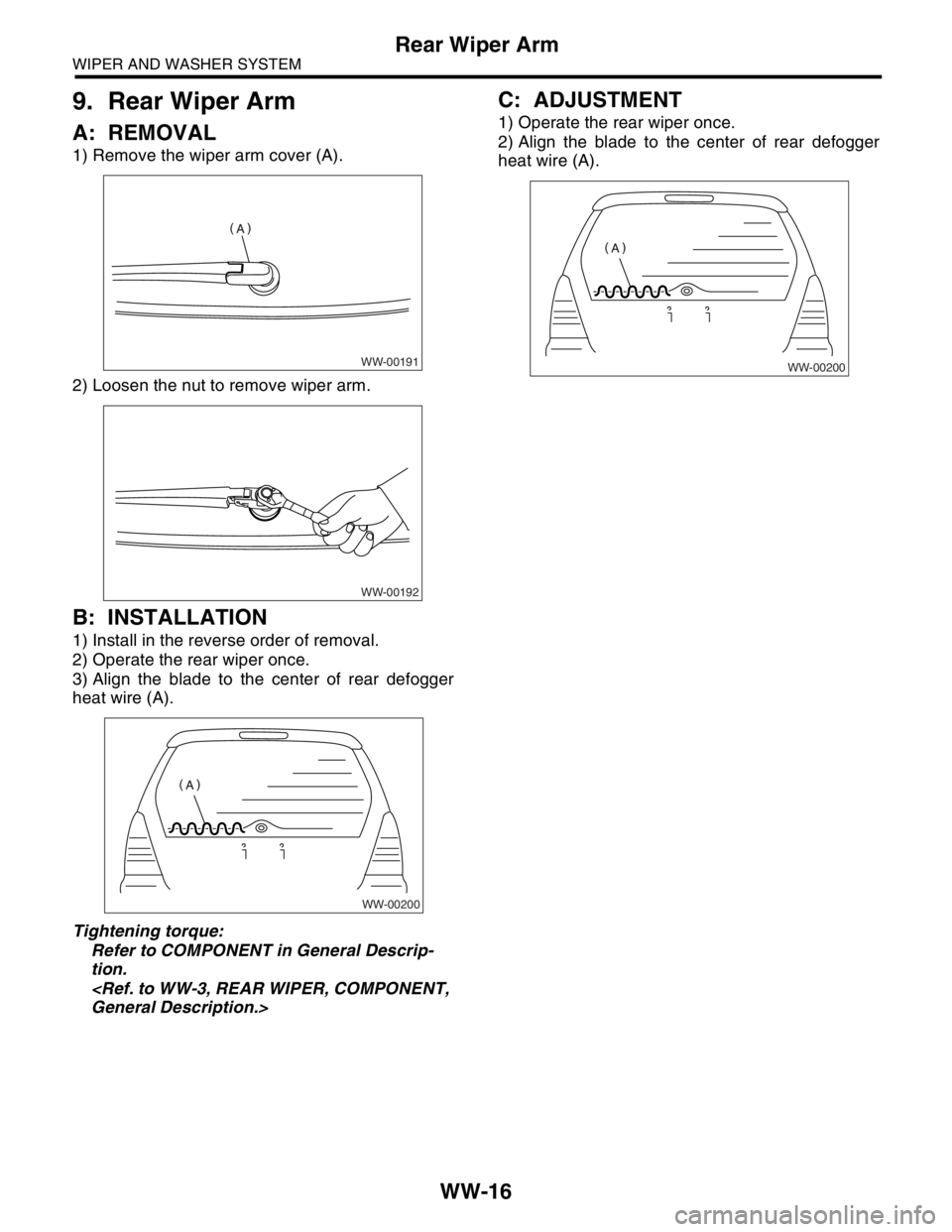

9. Rear Wiper Arm
A: REMOVAL
1) Remove the wiper arm cover (A).
2) Loosen the nut to remove wiper arm.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Operate the rear wiper once.
3) Align the blade to the center of rear defogger
heat wire (A).
Tightening torque:
Refer to COMPONENT in General Descrip-
tion.
General Description.>
C: ADJUSTMENT
1) Operate the rear wiper once.
2) Align the blade to the center of rear defogger
heat wire (A).
WW-00191
WW-00192
WW-00200
WW-00200
