Page 2649 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT(H4DOTC)-73
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
2 CHECK HARNESS CONNECTOR BETWEEN
TCM AND TRANSMISSION.
Measure the resistance of harness be

Page 2650 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT(H4DOTC)-74
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
7 CHECK OUTPUT SIGNAL FROM TCM US-
ING SUBARU SELECT MONITOR.
1) Connect the connectors to TC

4AT(H4DOTC)-74
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
7 CHECK OUTPUT SIGNAL FROM TCM US-
ING SUBARU SELECT MONITOR.
1) Connect the connectors to TCM and trans-
mission.
2) Connect the Subaru Select Monitor to data
link connector.
3) Start the engine and turn Subaru Select
Monitor switch to ON.
4) Warm-up the transmission until ATF tem-
perature is above 80°C (176°F).
N
OTE:
If ambient temperature is below 0°C (32°F),
drive the vehicle until ATF reaches its operating
temperature.
5) Stop the engine and turn ignition switch to
ON (engine OFF).
6) Shift the select lever to “P” or “N” range.
7) Read the data of low clutch duty solenoid
using Subaru Select Monitor.
Low clutch duty solenoid is indicated in “%”.Is the value 100%? Go to step 8.Go to step 9.
8 CHECK OUTPUT SIGNAL FROM TCM US-
ING SUBARU SELECT MONITOR.
1) Turn the ignition switch to ON (engine
OFF).
2) Shift the select lever to “D” range.
3) Read the data of low clutch duty solenoid.Is the value 0%? Even if the POWER
indicator light was
blinking, the circuit
has returned to a
normal condition at
this time. A tempo-
rary poor contact of
the connector or
harness may be the
cause. Repair the
harness or connec-
tor in transmission.Go to step 9.
9 CHECK POOR CONTACT.Is there poor contact in low
clutch duty solenoid circuit?Repair the poor
contactReplace the TCM.
Transmission Con-
trol Module
(TCM).>
10 CHECK LOW CLUTCH DUTY SOLENOID (IN
TRANSMISSION).
1) Remove the transmission connector from
bracket.
2) Drain the ATF.
CAUTION:
Do not drain the ATF until it cools down.
3) Remove the oil pan, and disconnect con-
nector from low clutch duty solenoid.
4) Measure the resistance between low clutch
duty solenoid connector and transmission
ground.
Connector & terminal
(AT12) No. 2 — Transmission ground:Is the resistance 2.0 — 4.5 Ω? Go to step 11.Replace the con-
trol valve body.
Control Valve
Body.>
11 CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND LOW CLUTCH DUTY
SOLENOID.
Measure the resistance of harness between
low clutch duty solenoid and transmission con-
nector.
Connector & terminal
(T4) No. 4 — (AT12) No. 2:Is the resistance less than 1
Ω?Go to step 12.Repair the open
circuit in harness
between low clutch
duty solenoid and
transmission con-
nector. Step Check Yes No

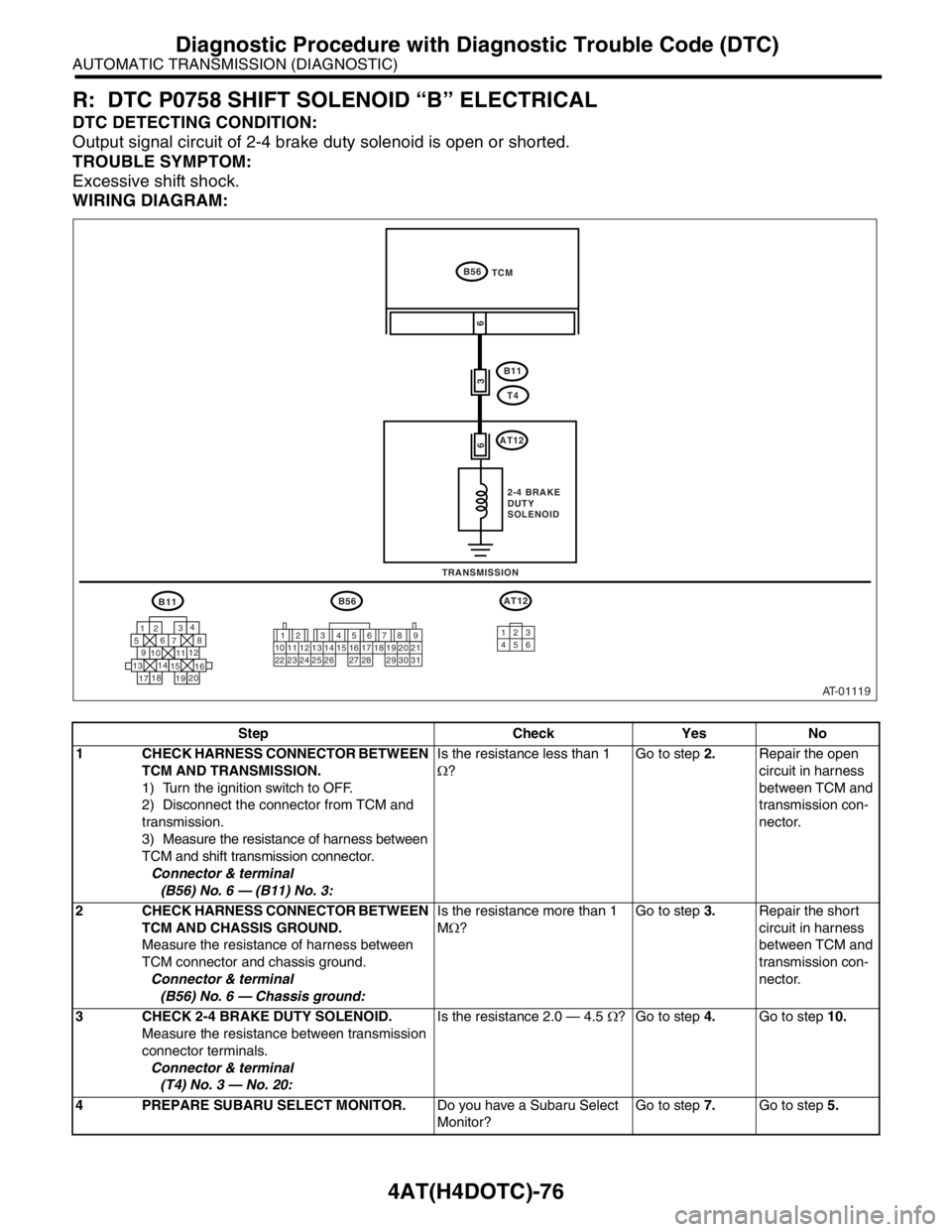

Page 2651 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT(H4DOTC)-75
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
12 CHECK HARNESS CONNECTOR BETWEEN
TRANSMISSION AND LOW CLUTCH DUTY
SOLENOID.
Measure the r

Page 2652 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT(H4DOTC)-76
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
R: DTC P0758 SHIFT SOLENOID “B” ELECTRICAL
DTC DETECTING CONDITION:
Output signal circuit

Page 2653 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT(H4DOTC)-77
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
5 CHECK OUTPUT SIGNAL FROM TCM.
1) Connect all connectors.
2) Start the engine and warm-up th

4AT(H4DOTC)-77
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
5 CHECK OUTPUT SIGNAL FROM TCM.
1) Connect all connectors.
2) Start the engine and warm-up the engine
until ATF temperature is above 80°C (176°F).
N
OTE:
If ambient temperature is below 0°C (32°F),
drive the vehicle until ATF reaches its operating
temperature.
3) Turn the ignition switch to ON (engine OFF).
4) Shift the select lever to “N” range.
5) Measure the voltage between TCM con-
nector and chassis ground.
Connector & terminal
(B56) No. 6 (+) — Chassis ground (
−):Is the voltage more than 10.5
V?Go to step 6.Go to step 9.
6 CHECK OUTPUT SIGNAL FROM TCM.
1) Shift the select lever to “2” range.
2) Turn the HOLD switch to ON.
3) Measure the voltage between TCM con-
nector and chassis ground.
Connector & terminal
(B56) No. 6 (+) — Chassis ground (
−):Is the voltage less than 1 V? Even if the POWER
indicator light was
blinking, the circuit
has returned to a
normal condition at
this time. A tempo-
rary poor contact of
the connector or
harness may be the
cause. Repair the
harness or connec-
tor in TCM and
transmission.Go to step 9.
7 CHECK OUTPUT SIGNAL FROM TCM US-
ING SUBARU SELECT MONITOR.
1) Connect all connectors.
2) Connect the Subaru Select Monitor to data
link connector.
3) Start the engine and turn Subaru Select
Monitor switch to ON.
4) Warm-up the transmission until ATF tem-
perature is above 80°C (176°F).
N
OTE:
If ambient temperature is below 0°C (32°F),
drive the vehicle until ATF reaches its operating
temperature.
5) Stop the engine and turn ignition switch to
ON (engine OFF).
6) Shift the select lever to “N” range.
7) Read the data of 2-4 brake duty solenoid
using Subaru Select Monitor.
2-4 brake duty solenoid is indicated in “%”.Is the value 100%? Go to step 8.Go to step 9.
8 CHECK OUTPUT SIGNAL FROM TCM US-
ING SUBARU SELECT MONITOR.
1) Shift the select lever to “2” range.
2) Turn the HOLD switch to ON.Is the value 0%? Even if the POWER
indicator light was
blinking, the circuit
has returned to a
normal condition at
this time. A tempo-
rary poor contact of
the connector or
harness may be the
cause. Repair the
harness or connec-
tor in TCM and
transmission.Go to step 9. Step Check Yes No

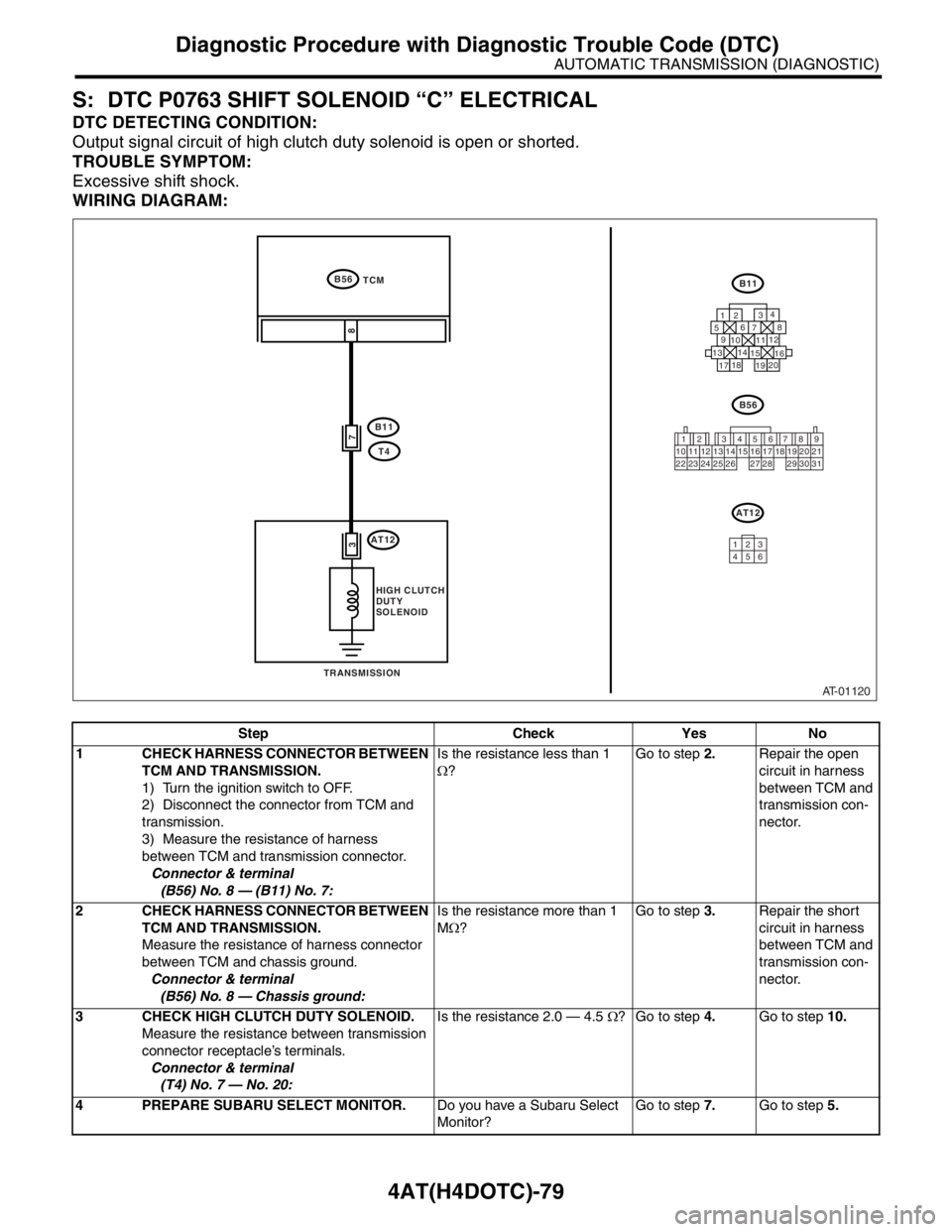

Page 2654 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT(H4DOTC)-78
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
9 CHECK POOR CONTACT.Is there poor contact in 2-4
brake duty solenoid circuit?Repair the poo

Page 2655 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT(H4DOTC)-79
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
S: DTC P0763 SHIFT SOLENOID “C” ELECTRICAL
DTC DETECTING CONDITION:
Output signal circuit

Page 2656 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT(H4DOTC)-80
AUTOMATIC TRANSMISSION (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
5 CHECK OUTPUT SIGNAL FROM TCM.
1) Connect the connectors to TCM and trans-
mission.
2) Lift-
