SUBARU FORESTER 2004 Service Repair Manual EN(H4SO)-223
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No

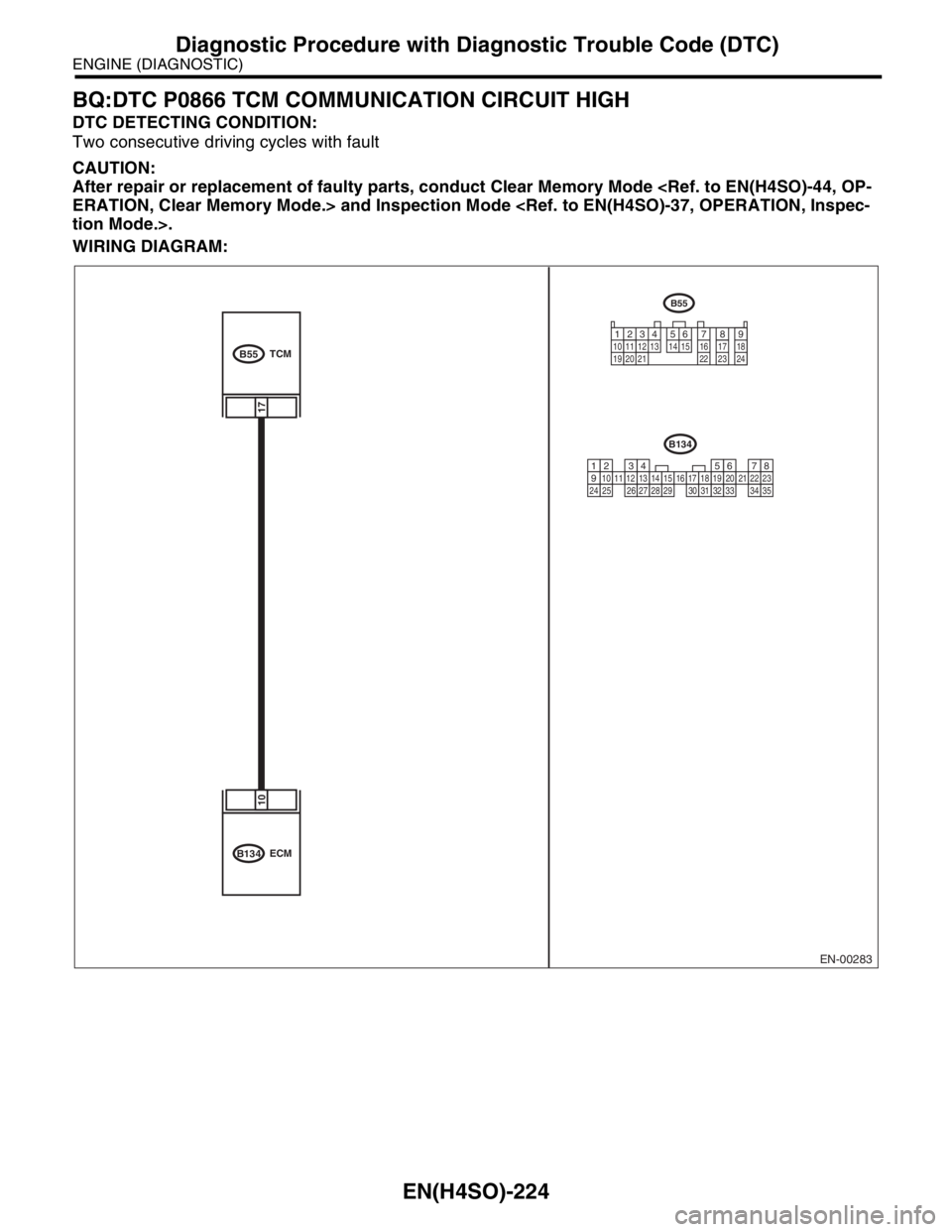

1 CHECK HARNESS BETWEEN ECM AND
TCM CONNECTOR.
1) Turn the ignition switch to ON.
2) Measure

Page 1322 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4SO)-224
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BQ:DTC P0866 TCM COMMUNICATION CIRCUIT HIGH
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault

Page 1323 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4SO)-225
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK HARNESS BETWEEN ECM AND
TCM CONNECTOR.
1) Turn the ignition switch to ON.
2) Measure

Page 1324 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4SO)-226
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BR:DTC P1110 ATMOSPHERIC PRESSURE SENSOR CIRCUIT MALFUNCTION
(LOW INPUT)
DTC DETECTING CONDITION:
Immediately

Page 1325 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4SO)-227
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BT:DTC P1134 A/F SENSOR MICRO-COMPUTER PROBLEM
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTIO

Page 1326 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4SO)-228
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Inspect the DTC
using “List o

Page 1327 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4SO)-229
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BU:DTC P1137 O2 SENSOR CIRCUIT (LAMBDA=1) (BANK 1 SENSOR 1)
DTC DETECTING CONDITION:
Immediately at fault recog

Page 1328 of 2870

SUBARU FORESTER 2004 Service Repair Manual EN(H4SO)-230
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Inspect the DTC
using “List o

EN(H4SO)-230
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK ANY OTHER DTC ON DISPLAY.Is any other DTC displayed? Inspect the DTC
using “List of Diag-
nostic Trouble
Code (DTC)”.
EN(H4SO)-72, List
of Diagnostic Trou-
ble Code (DTC).>Go to step 2.
2 CHECK FRONT (A/F) OXYGEN SENSOR DA-
TA.
1) Start the engine.
2) While observing the Subaru Select Monitor
or OBD-II general scan tool screen, warm-up
the engine until coolant temperature is above
70°C (160°F).
If the engine is already warmed-up, operate at
idle speed for at least 1 minute.
3) Read the data of front oxygen (A/F) sensor
signal at idling using Subaru Select Monitor or
OBD-II general scan tool.
NOTE:
Subaru Select Monitor
For detailed operation procedure, refer to the
“READ CURRENT DATA FOR ENGINE”. to EN(H4SO)-29, Subaru Select Monitor.>
OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the voltage 0.85 — 1.15 V? Go to step 3.Go to step 4.
3 CHECK FRONT (A/F) OXYGEN SENSOR DA-
TA.
Race the engine at speeds from idling to 5,000
rpm for a total of 5 cycles.
N
OTE:
Normally the air fuel ratio be rich at racing.
To increase engine speed to 5,000 rpm,
slowly depress accelerator pedal, taking
approximately 5 seconds, and quickly release
accelerator pedal to decrease engine speed.Is the voltage more than 1.1 V? Go to step 6.Go to step 4.
4 CHECK HARNESS BETWEEN ECM AND
FRONT OXYGEN (A/F) SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and
front oxygen (A/F) sensor connector.
3) Measure the resistance between ECM and
front oxygen (A/F) sensor.
Connector & terminal
(B136) No. 13 — (B18) No. 1:
(B136) No. 22 — (B18) No. 2:Is the resistance less than 5
Ω?Go to step 5.Repair open circuit
between ECM and
front oxygen (A/F)
sensor.
5 CHECK HARNESS BETWEEN ECM AND
FRONT OXYGEN (A/F) SENSOR.
Measure the resistance between ECM and
chassis ground.
Connector & terminal
(B136) No. 13 — Chassis ground:
(B136) No. 22 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 6.Repair ground
short circuit
between ECM and
front oxygen (A/F)
sensor.
