Page 161 of 2870

SUBARU FORESTER 2004 Service Repair Manual AB-29
AIRBAG SYSTEM (DIAGNOSTIC)
Airbag Connector
5. FRONT SUB-SENSOR AND SIDE AIR-
BAG SENSOR
1) How to disconnect:
Holding outer part (A), pull it in the direction of the
arrow.
CAUTION:
When pullin

Page 162 of 2870

SUBARU FORESTER 2004 Service Repair Manual AB-30
AIRBAG SYSTEM (DIAGNOSTIC)
Airbag Warning Light Illumination Pattern
7. Airbag Warning Light Illumi-
nation Pattern
A: INSPECTION
Keep the ignition switch to ON, and confirm that the
airbag warn

Page 163 of 2870

SUBARU FORESTER 2004 Service Repair Manual AB-31
AIRBAG SYSTEM (DIAGNOSTIC)
Read Diagnostic Trouble Code (DTC)
8. Read Diagnostic Trouble
Code (DTC)
A: OPERATION
1) Turn the ignition switch to ON.
2) Connect the ground terminal to diagnosis c

Page 164 of 2870

SUBARU FORESTER 2004 Service Repair Manual AB-32
AIRBAG SYSTEM (DIAGNOSTIC)
Inspection Mode
9. Inspection Mode
A: OPERATION
Recreate the circumstance by referring to the con-
ditions described in the checklist.

Page 165 of 2870

SUBARU FORESTER 2004 Service Repair Manual AB-33
AIRBAG SYSTEM (DIAGNOSTIC)
Clear Memory Mode
10.Clear Memory Mode
A: OPERATION
1) Turn the ignition switch to ON.
2) Connect the ground terminal (ground, terminal
“A”) to diagnosis connector

Page 166 of 2870

SUBARU FORESTER 2004 Service Repair Manual AB-34
AIRBAG SYSTEM (DIAGNOSTIC)
Airbag Warning Light Failure
11.Airbag Warning Light Failure
A: AIRBAG WARNING LIGHT REMAINS ON.
DIAGNOSIS:
Airbag warning light unit is faulty.
Airbag control mo

Page 167 of 2870

SUBARU FORESTER 2004 Service Repair Manual AB-35
AIRBAG SYSTEM (DIAGNOSTIC)
Airbag Warning Light Failure
1. LHD MODEL

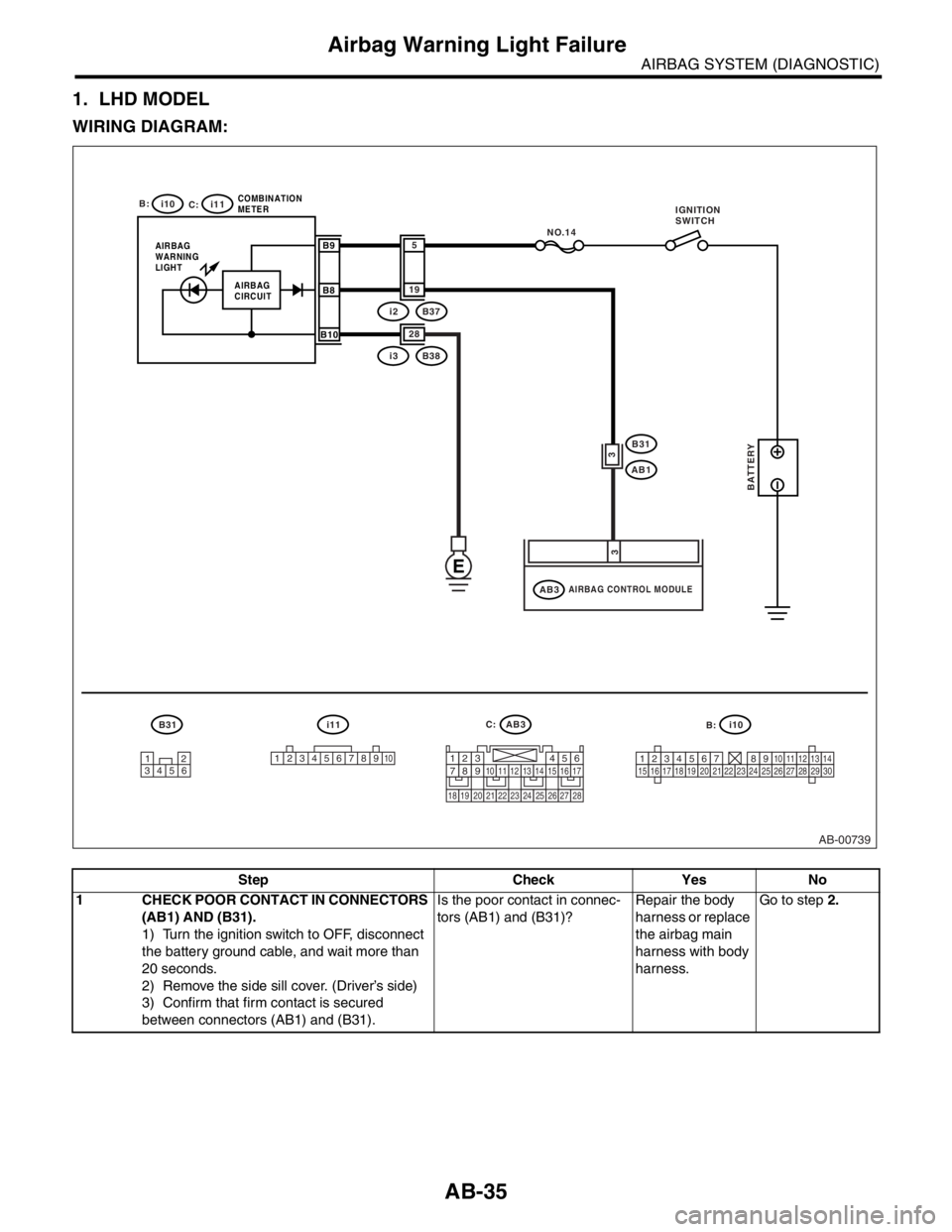

WIRING DIAGRAM:
Step Check Yes No
1 CHECK POOR CONTACT IN CONNECTORS
(AB1) AND (B31).
1) Turn the ignition switch to OFF, d

Page 168 of 2870

SUBARU FORESTER 2004 Service Repair Manual AB-36
AIRBAG SYSTEM (DIAGNOSTIC)
Airbag Warning Light Failure
2 CHECK AIRBAG WARNING LIGHT.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2

AB-36
AIRBAG SYSTEM (DIAGNOSTIC)
Airbag Warning Light Failure
2 CHECK AIRBAG WARNING LIGHT.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Connect the connector (1T) in test harness
T to body harness connector (B31).
3) Connect the connector (1M) in test harness
M to connector (2T) in test harness T.
4) Connect the battery ground cable and turn
the ignition switch to ON.
5) Connect the connectors, (3M) and (4M) in
test harness M.Is the airbag warning light
turned off?Go to step 4.Go to step 3.
3 CHECK BODY HARNESS.
Check the body harness.
N
OTE:
After problem has been eliminated, disconnect
the connectors (3M) and (4M).Is the anything unusual to body
harness? Repair the body
harness.Replace the com-
bination meter
printed circuit.
Combination
Meter Assembly.>
4 CHECK POOR CONTACT.
Confirm that firm contact is secured between
the airbag control module and the connector
(AB3). ule.>Is the poor contact in connec-
tor (AB3)?Replace the airbag
main harness with
body harness or
replace the airbag
control module.
Airbag Control
Module.>Go to step 5.
5 CHECK AIRBAG MAIN HARNESS.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Connect the connector (AB1) to (B31).
3) Disconnect the connectors (AB2) and
(AB30).
4) Remove the glove box and disconnect the
connectors (AB4).
5) Disconnect the connector (AB3) from the
airbag control module, and connect the con-
nector (1R) in test harness R. Airbag Control Module.>
6) Connect the battery ground cable and turn
the ignition switch to ON.
7) Connect the connectors (5R) and (6R) in
test harness R.
N
OTE:
After problem has been eliminated, disconnect
the connectors (5R) and (6R).Is the airbag warning light
turned off?Go to step 6.Replace the airbag
main harness with
body harness.
6 CHECK GROUNDING CIRCUIT.
1) Turn the ignition switch to OFF, disconnect
the battery ground cable, and wait more than
20 seconds.
2) Disconnect the connector (AB3) from the
airbag control module.
3) Connect the connector (1R) in test harness
R to body harness connector (AB3).
4) Measure the resistance between connector
(2R) in test harness R and the chassis ground.
Connector & terminal
(2R) No. 10 — Chassis ground:
(2R) No. 11 — Chassis ground: Is the resistance less than 10
Ω?Replace the airbag
control module.
Airbag Control
Module.>Repair the body-
grounding circuit. Step Check Yes No
