Page 377 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-11 BODY STRUCTURE Datum Dimensions 3. Datum Dimensions A: MEASUREMENT Refer to LOCATION for details on measurement points. <Ref. to BS-3, LOCATION, Datum Points.> NOTE:  Using a tram tracking gaug

Page 378 of 2870

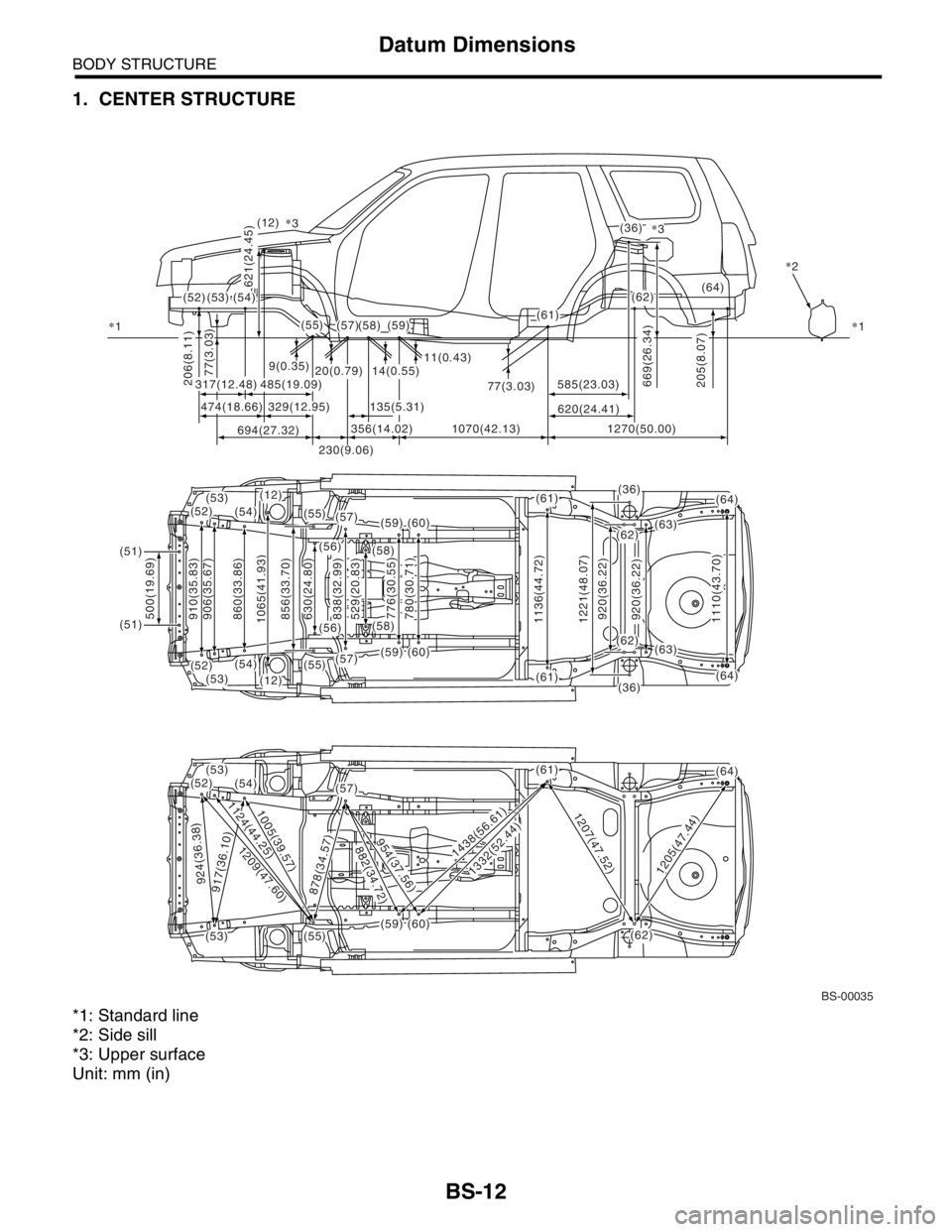

SUBARU FORESTER 2004 Service Repair Manual BS-12 BODY STRUCTURE Datum Dimensions 1. CENTER STRUCTURE *1: Standard line *2: Side sill *3: Upper surface Unit: mm (in) BS-00035 (54)(53)(52) (55)(59)(57)(58) (12) (52) (52) (55) (55) (56) (56) (57)

Page 379 of 2870

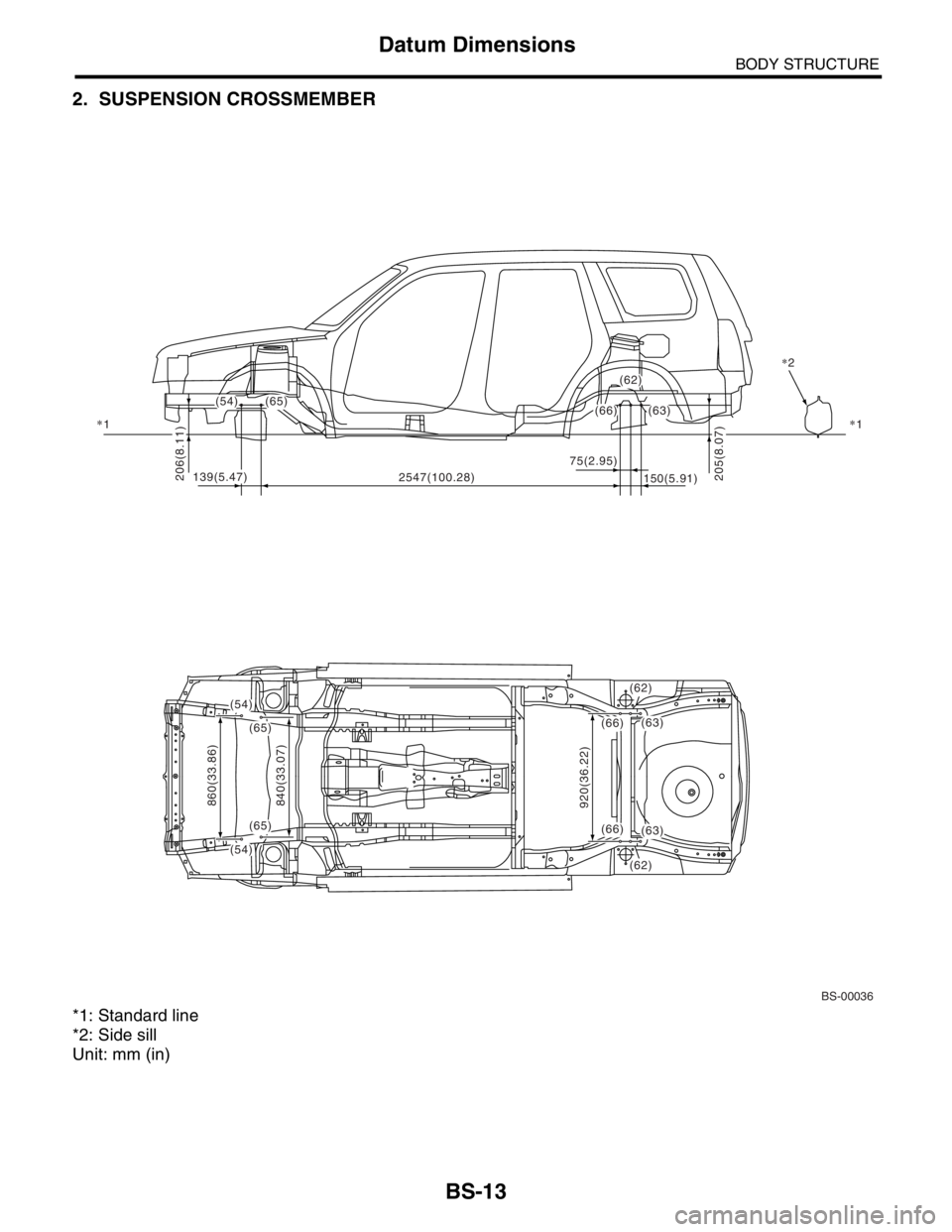

SUBARU FORESTER 2004 Service Repair Manual BS-13 BODY STRUCTURE Datum Dimensions 2. SUSPENSION CROSSMEMBER *1: Standard line *2: Side sill Unit: mm (in) BS-00036 (54) (54) (65) (65) (54) (66)(63)2 75(2.95) 150(5.91) 2547(100.28) 860(33.86) 840

Page 380 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-14 BODY STRUCTURE Datum Dimensions 3. FRONT STRUCTURE Unit: mm (in) Point to point Dimension Point to point Dimension (1) to (11) 822 (32.36) (7) LH to (15) LH 1,067 (42.01) (2) RH to (11) 842 (33.

Page 381 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-15 BODY STRUCTURE Datum Dimensions Unit: mm (in) Point to point Dimension Point to point Dimension (16) RH to (20) RH 980 (38.58) (30) LH to (33) LH 796 (31.34) (16) LH to (20) LH 980 (38.58) (31)

Page 382 of 2870

SUBARU FORESTER 2004 Service Repair Manual BS-16 BODY STRUCTURE Datum Dimensions 4. REAR STRUCTURE Unit: mm (in) Point to point Dimension Point to point Dimension (18) RH to (18) LH 1,449 (57.05) (41) RH to (43) RH 794 (31.26) (19) RH to (19)

Page 383 of 2870

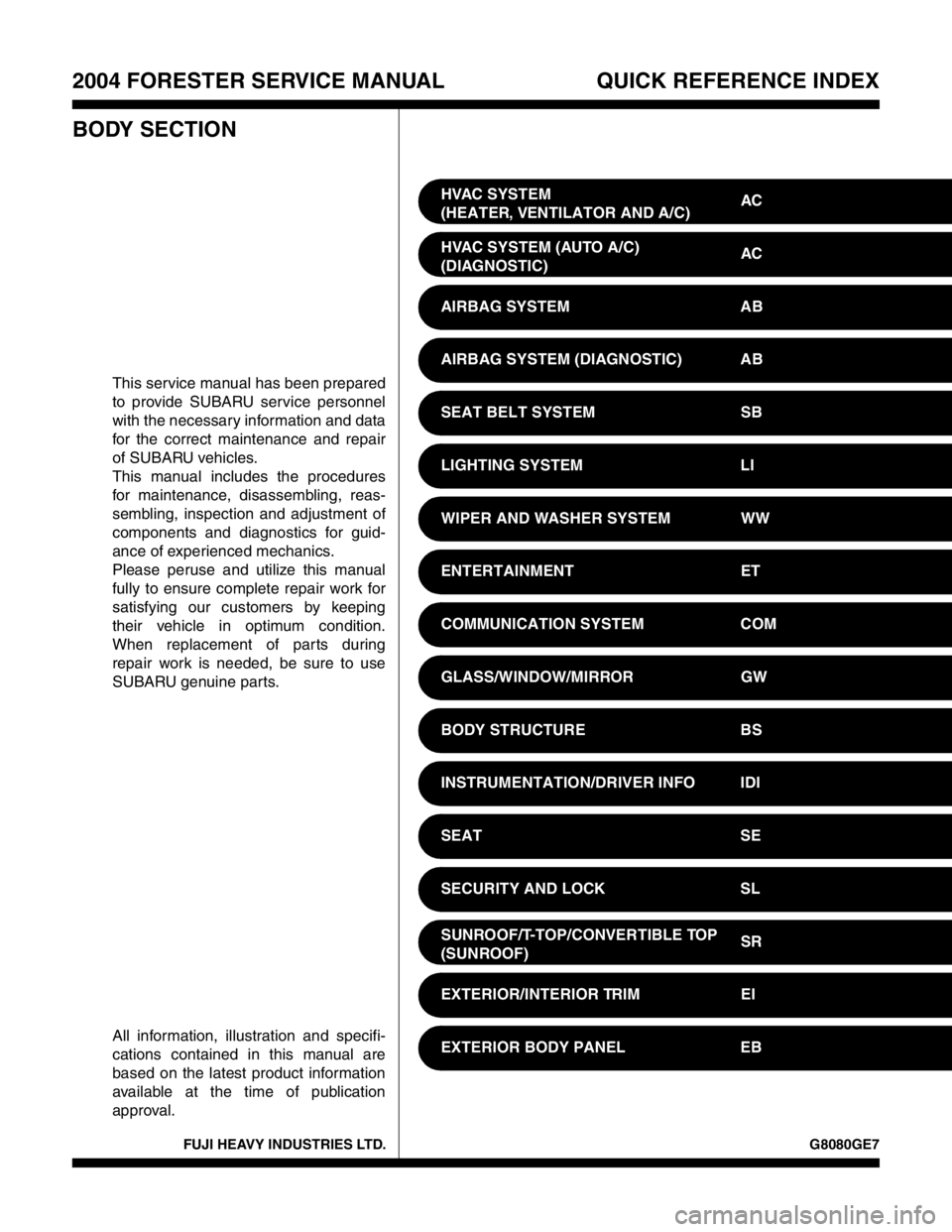

SUBARU FORESTER 2004 Service Repair Manual FUJI HEAVY INDUSTRIES LTD. G8080GE7 2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX BODY SECTION This service manual has been prepared to provide SUBARU service personnel with the necessary informa

Page 384 of 2870

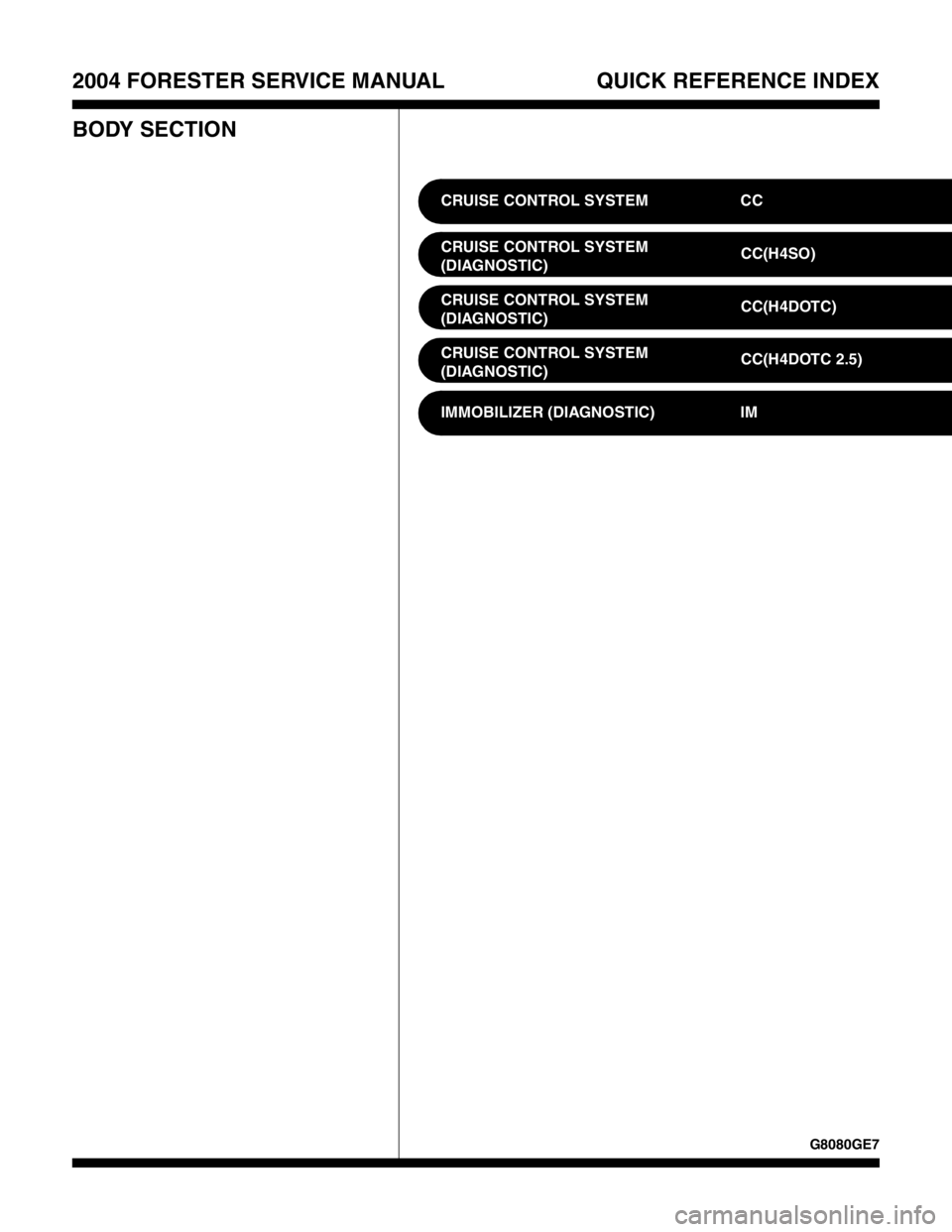

SUBARU FORESTER 2004 Service Repair Manual 2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX BODY SECTION G8080GE7 CRUISE CONTROL SYSTEM CC CRUISE CONTROL SYSTEM (DIAGNOSTIC)CC(H4SO) CRUISE CONTROL SYSTEM (DIAGNOSTIC)CC(H4DOTC) CRUISE CONTROL
