Page 2321 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT-9 AUTOMATIC TRANSMISSION General Description 4. CONTROL VALVE AND HARNESS ROUTING A Non-turbo model B Turbo model (1) Stay (11) Accumulator piston (23) 2-4 brake duty solenoid (2) Transmission har

Page 2322 of 2870

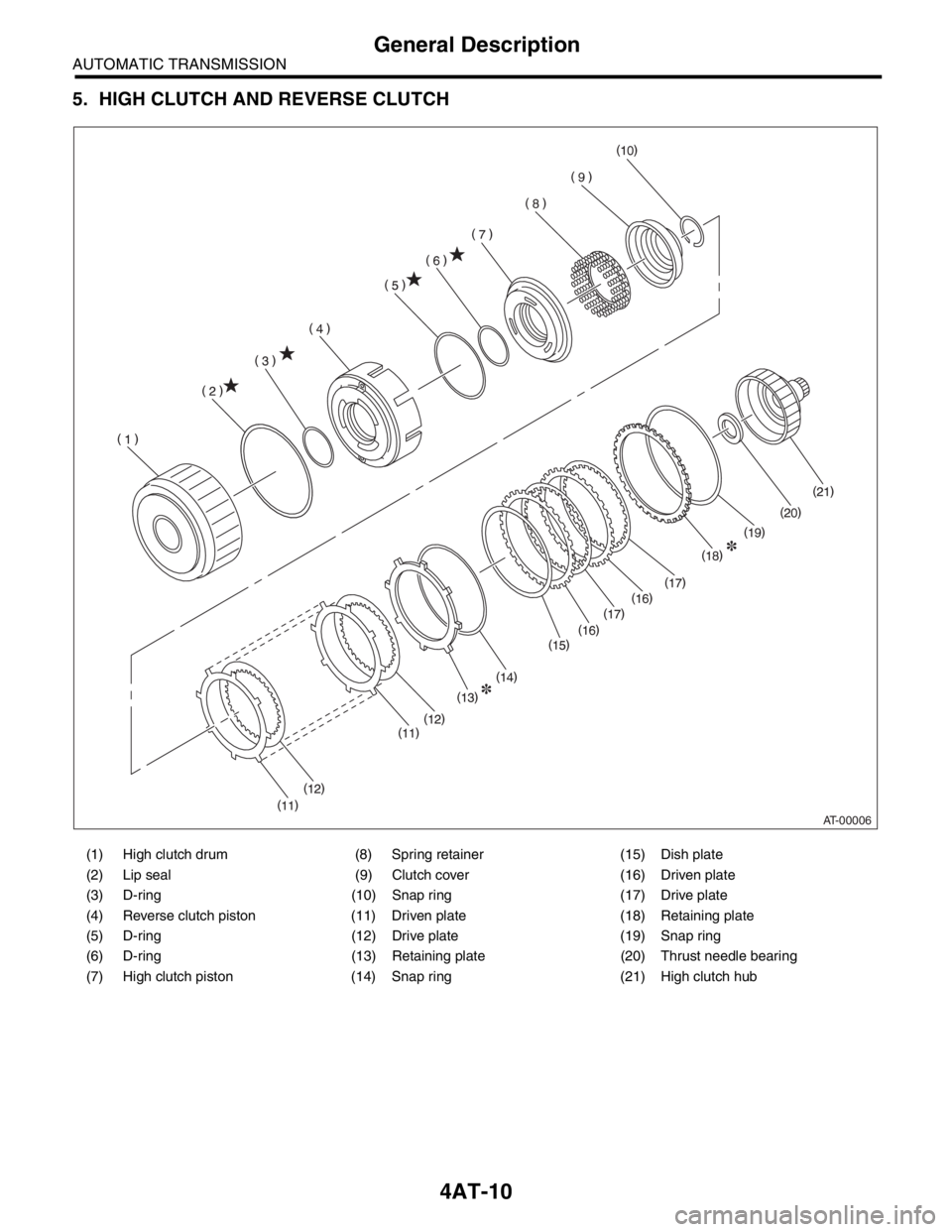

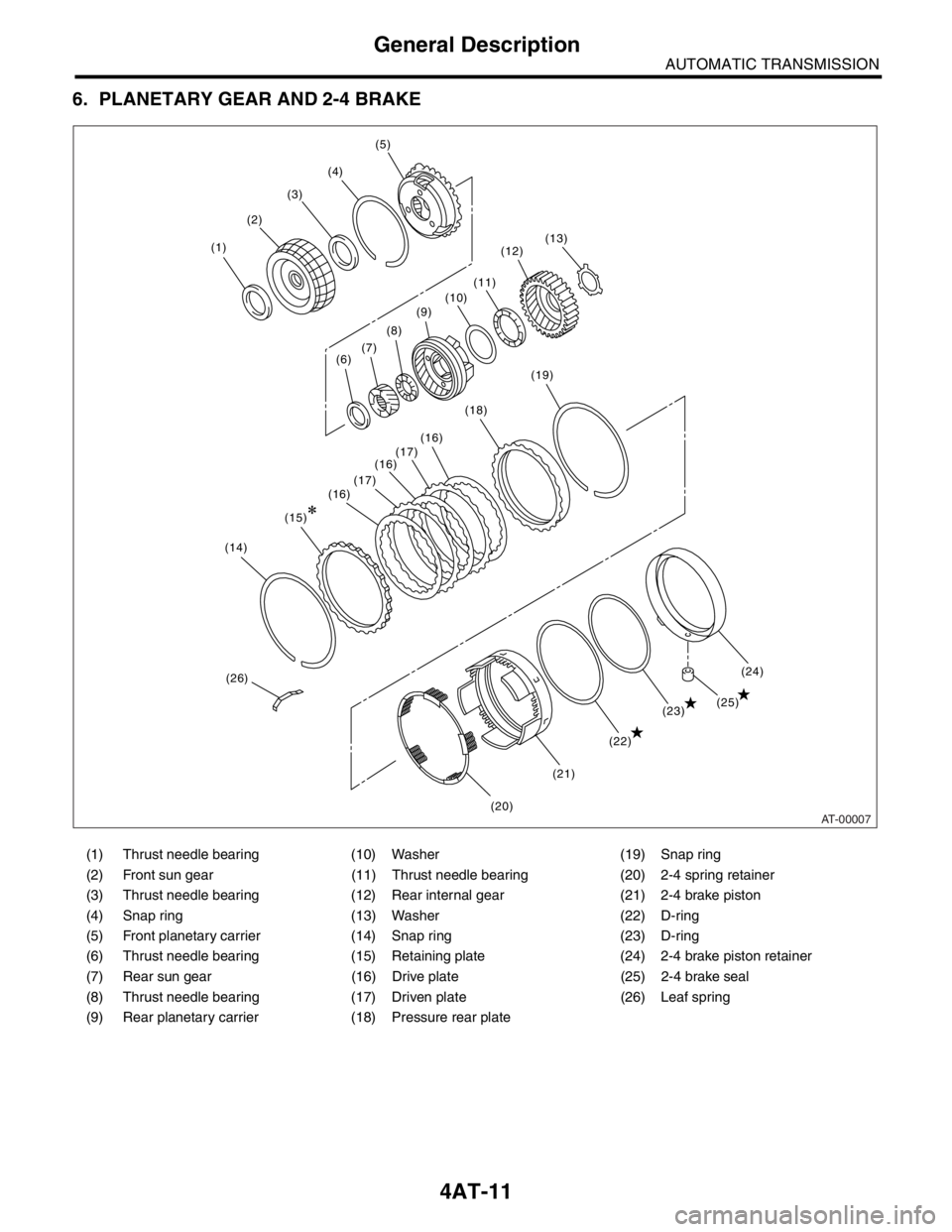

SUBARU FORESTER 2004 Service Repair Manual 4AT-10 AUTOMATIC TRANSMISSION General Description 5. HIGH CLUTCH AND REVERSE CLUTCH (1) High clutch drum (8) Spring retainer (15) Dish plate (2) Lip seal (9) Clutch cover (16) Driven plate (3) D-ring

Page 2323 of 2870

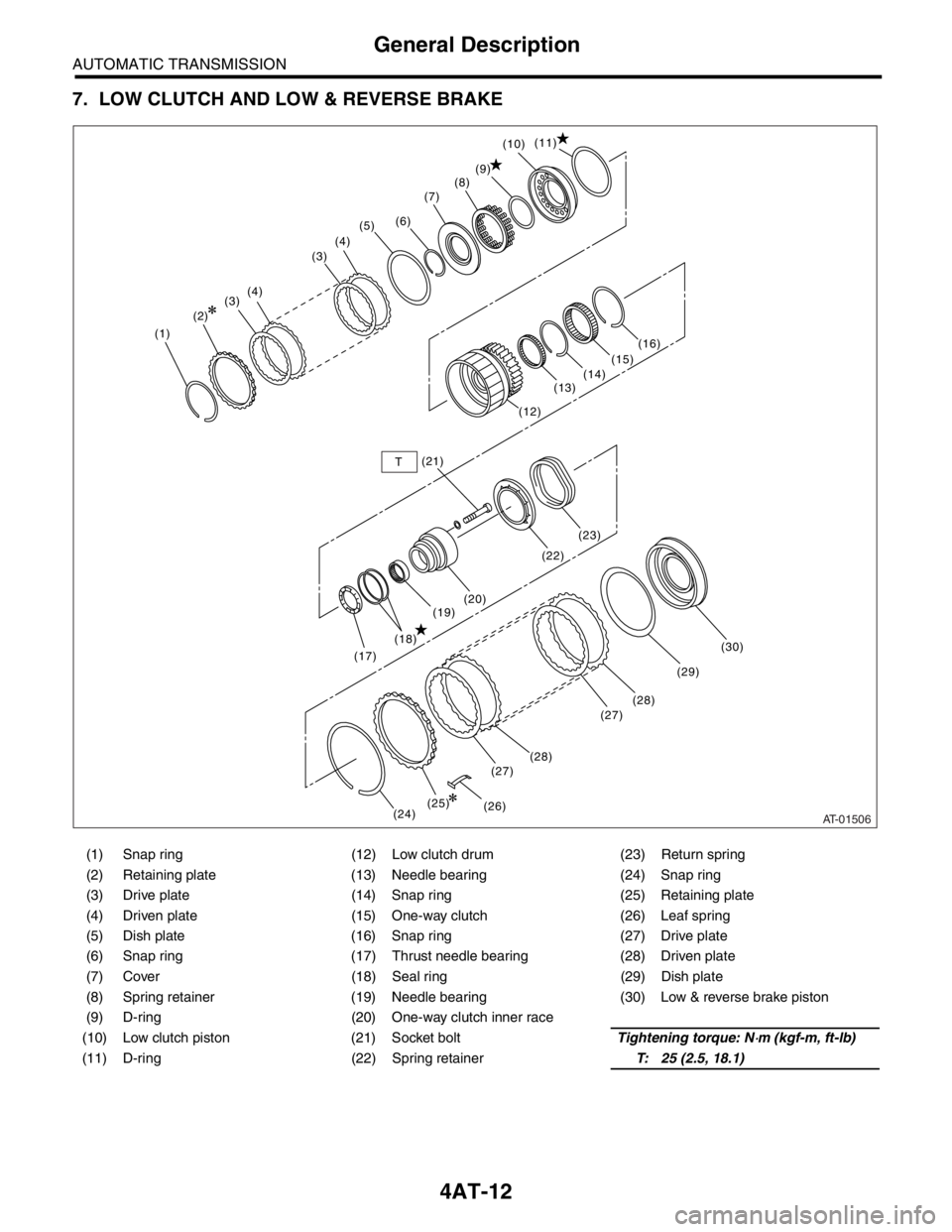

SUBARU FORESTER 2004 Service Repair Manual 4AT-11 AUTOMATIC TRANSMISSION General Description 6. PLANETARY GEAR AND 2-4 BRAKE (1) Thrust needle bearing (10) Washer (19) Snap ring (2) Front sun gear (11) Thrust needle bearing (20) 2-4 spring ret

Page 2324 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT-12 AUTOMATIC TRANSMISSION General Description 7. LOW CLUTCH AND LOW & REVERSE BRAKE (1) Snap ring (12) Low clutch drum (23) Return spring (2) Retaining plate (13) Needle bearing (24) Snap ring (3)

Page 2325 of 2870

SUBARU FORESTER 2004 Service Repair Manual 4AT-13 AUTOMATIC TRANSMISSION General Description 8. REDUCTION GEAR (1) Seal ring (6) Snap ringTightening torque: N⋅m (kgf-m, ft-lb) (2) Ball bearing (7) Ball bearingT: 100 (10.2, 73.8) (3) Reductio

Page 2326 of 2870

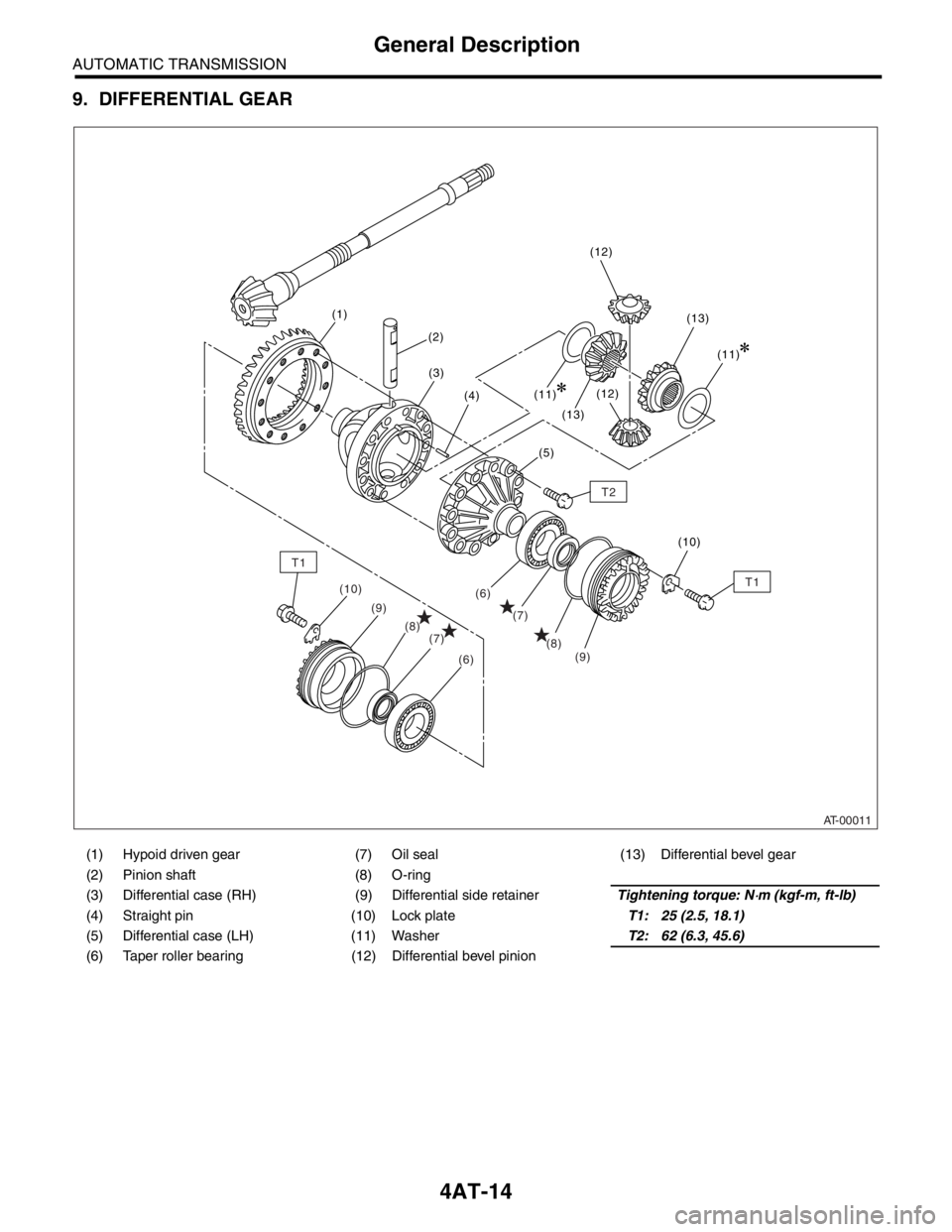

SUBARU FORESTER 2004 Service Repair Manual 4AT-14 AUTOMATIC TRANSMISSION General Description 9. DIFFERENTIAL GEAR (1) Hypoid driven gear (7) Oil seal (13) Differential bevel gear (2) Pinion shaft (8) O-ring (3) Differential case (RH) (9) Diffe

Page 2327 of 2870

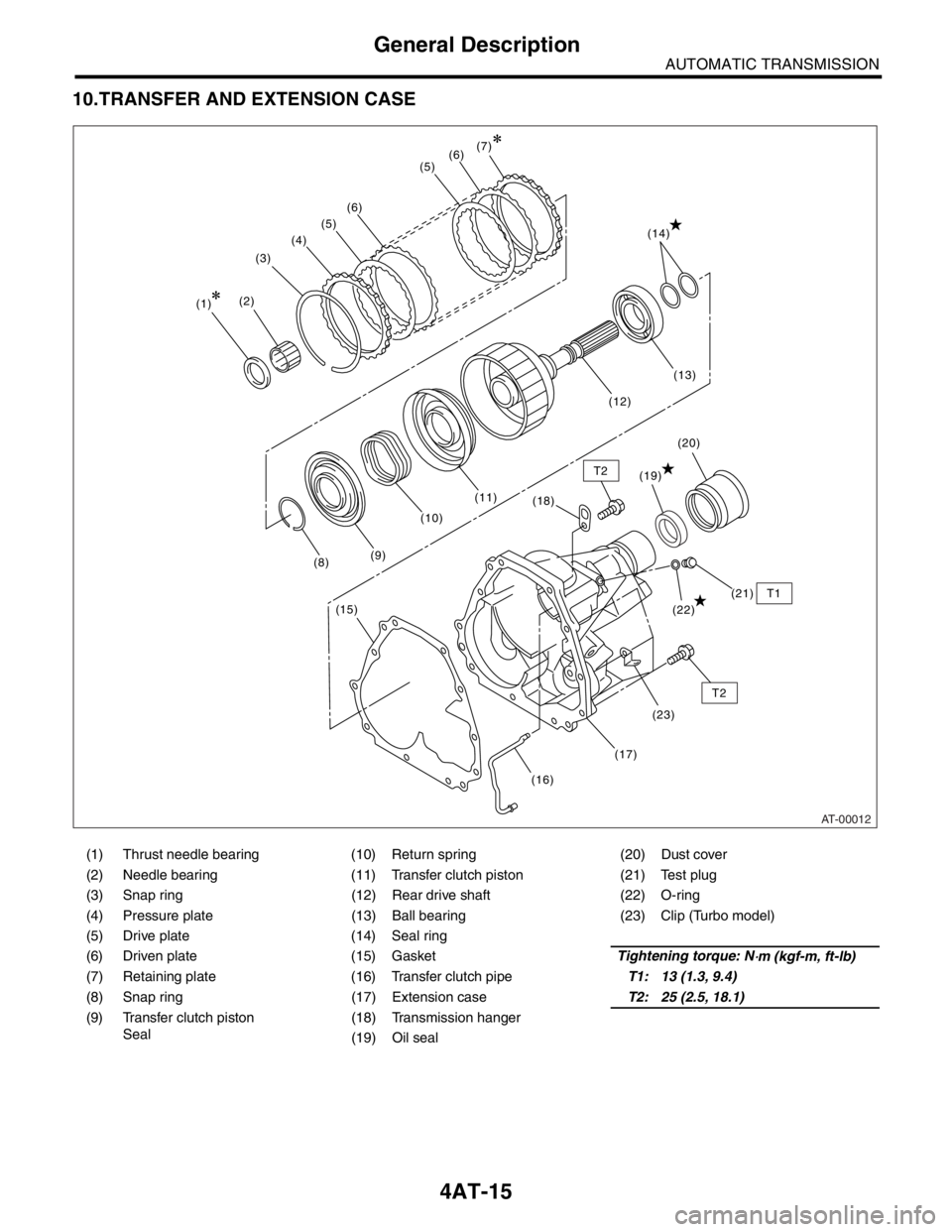

SUBARU FORESTER 2004 Service Repair Manual 4AT-15 AUTOMATIC TRANSMISSION General Description 10.TRANSFER AND EXTENSION CASE (1) Thrust needle bearing (10) Return spring (20) Dust cover (2) Needle bearing (11) Transfer clutch piston (21) Test p

Page 2328 of 2870

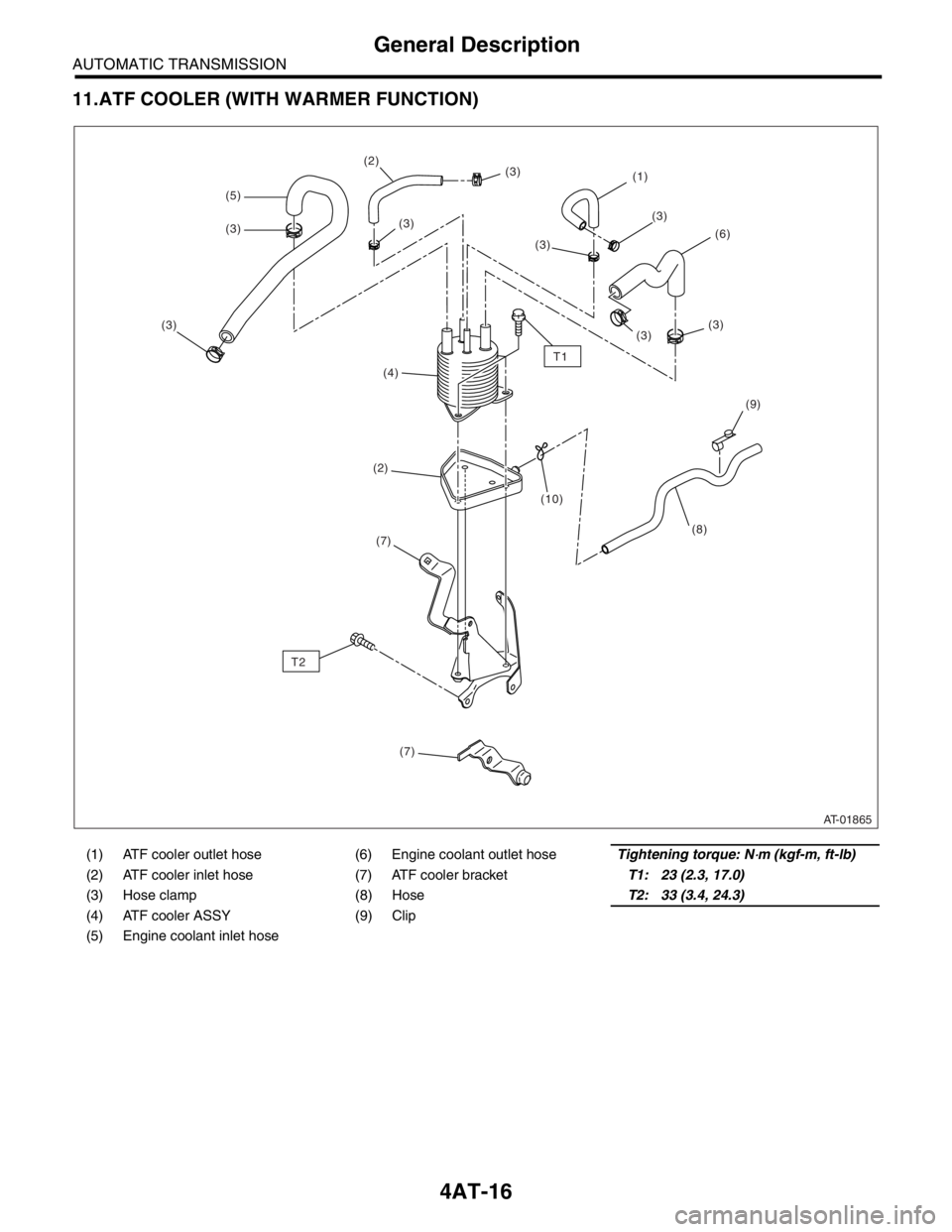

SUBARU FORESTER 2004 Service Repair Manual 4AT-16 AUTOMATIC TRANSMISSION General Description 11.ATF COOLER (WITH WARMER FUNCTION) (1) ATF cooler outlet hose (6) Engine coolant outlet hoseTightening torque: N⋅m (kgf-m, ft-lb) (2) ATF cooler i
