Page 969 of 2870

SUBARU FORESTER 2004 Service Repair Manual EXHAUST EX(H4SO) Page 1. General Description ....................................................................................2 2. Front Exhaust Pipe................................................

Page 970 of 2870

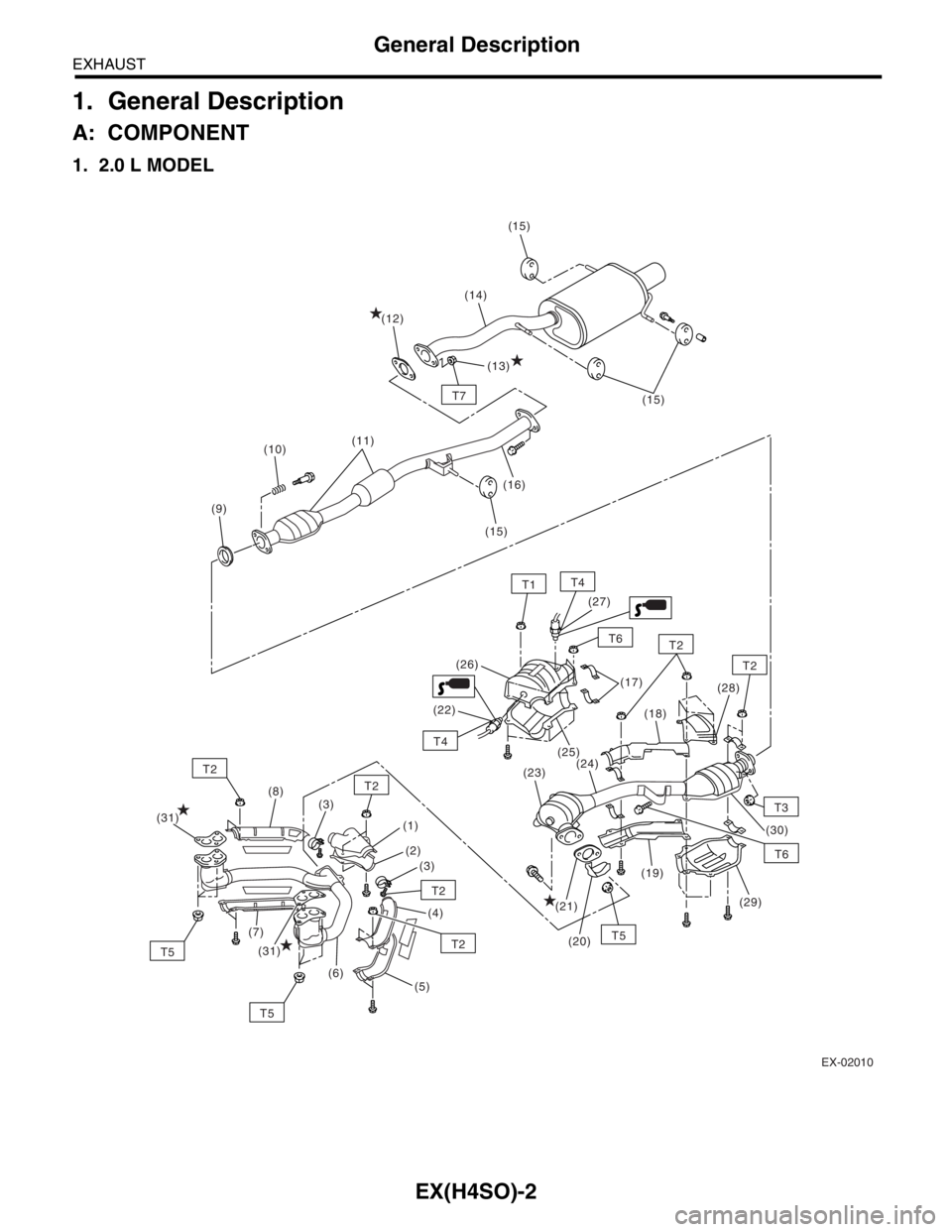

SUBARU FORESTER 2004 Service Repair Manual EX(H4SO)-2 EXHAUST General Description 1. General Description A: COMPONENT 1. 2.0 L MODEL EX-02010 T7 T2 T2 T3 T6 T5 T5 T2 T2 T2(15) (15) (15) (18)(28) (29)(30) (20) (21)(19) (23) (1) (2) (3) (3) (4)

Page 971 of 2870

SUBARU FORESTER 2004 Service Repair Manual EX(H4SO)-3 EXHAUST General Description (1) Front exhaust pipe upper cover CTR(14) Muffler (28) Rear catalytic converter upper cover (15) Cushion rubber (2) Front exhaust pipe lower cover CTR(16) Re

Page 972 of 2870

SUBARU FORESTER 2004 Service Repair Manual EX(H4SO)-4 EXHAUST General Description 2. 2.5 L MODEL EX-02011 T7 T1 T6T2 T6 T3 T5 T5 T4 T4 T2 T2 T2 T6 (19) (19)(19) (33) (34) (28) (24) (25)(27)(29) (31) (32) (30) (26) (1) (2) (3) (3) (4) (5) (6) (

Page 973 of 2870

SUBARU FORESTER 2004 Service Repair Manual EX(H4SO)-5 EXHAUST General Description (1) Front exhaust pipe upper cover CTR(15) Rear exhaust upper cover (31) Front catalytic converter upper cover (16) Rear exhaust lower cover (2) Front exhaust

Page 974 of 2870

SUBARU FORESTER 2004 Service Repair Manual EX(H4SO)-6 EXHAUST General Description B: CAUTION  Wear working clothing, including a cap, protec- tive goggles, and protective shoes during opera- tion.  Remove contamination including dirt and cor

Page 975 of 2870

SUBARU FORESTER 2004 Service Repair Manual EX(H4SO)-7 EXHAUST Front Exhaust Pipe 2. Front Exhaust Pipe A: REMOVAL 1) Disconnect the ground cable from battery. 2) Disconnect the front oxygen (A/F) sensor con- nector. 3) Disconnect the rear oxyg

Page 976 of 2870

SUBARU FORESTER 2004 Service Repair Manual EX(H4SO)-8 EXHAUST Front Exhaust Pipe 9) Remove the front and center exhaust pipe as- sembly from vehicle. CAUTION:  Be careful not to let the front and center ex- haust pipe assembly fall off when r
