Page 857 of 2870

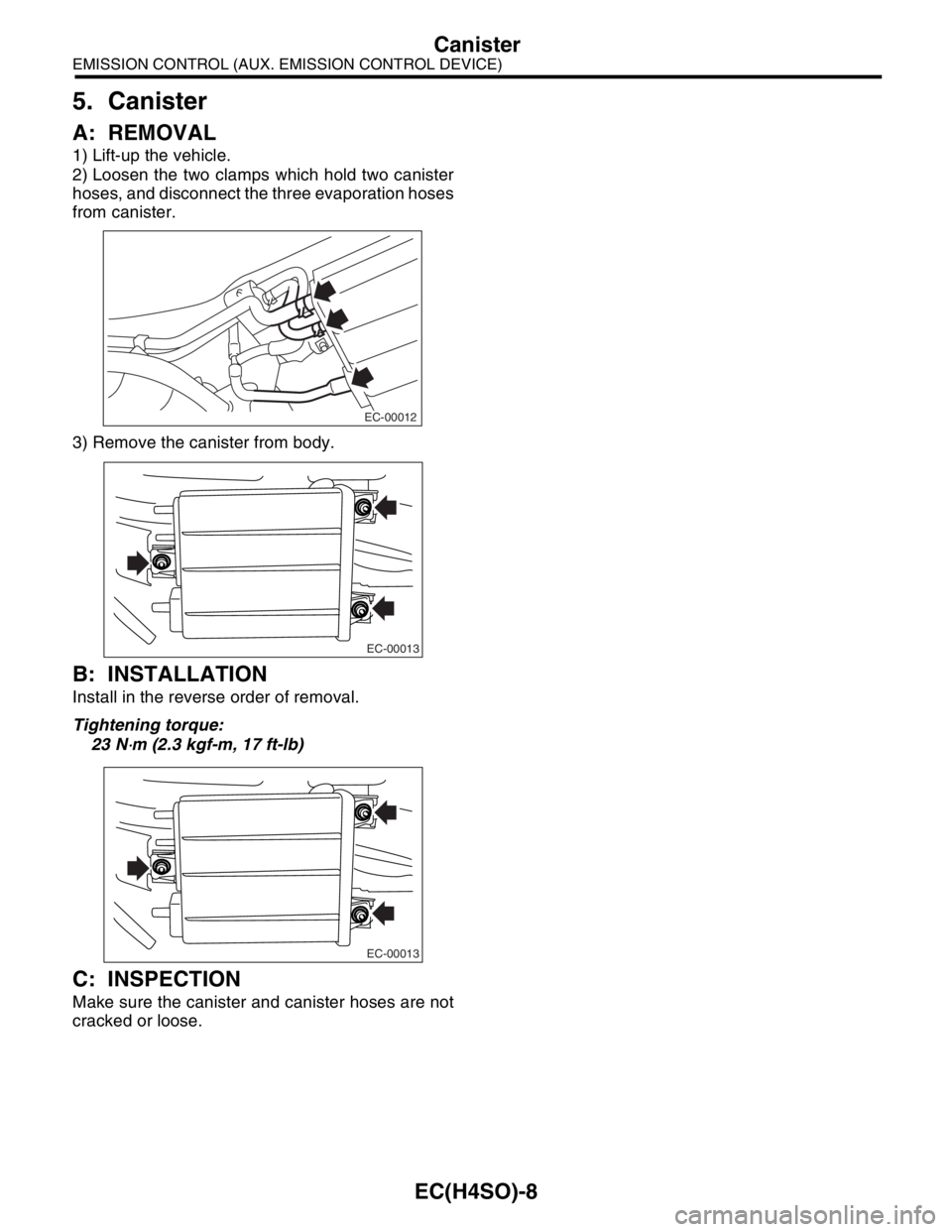

SUBARU FORESTER 2004 Service Repair Manual EC(H4SO)-8 EMISSION CONTROL (AUX. EMISSION CONTROL DEVICE) Canister 5. Canister A: REMOVAL 1) Lift-up the vehicle. 2) Loosen the two clamps which hold two canister hoses, and disconnect the three evap

Page 858 of 2870

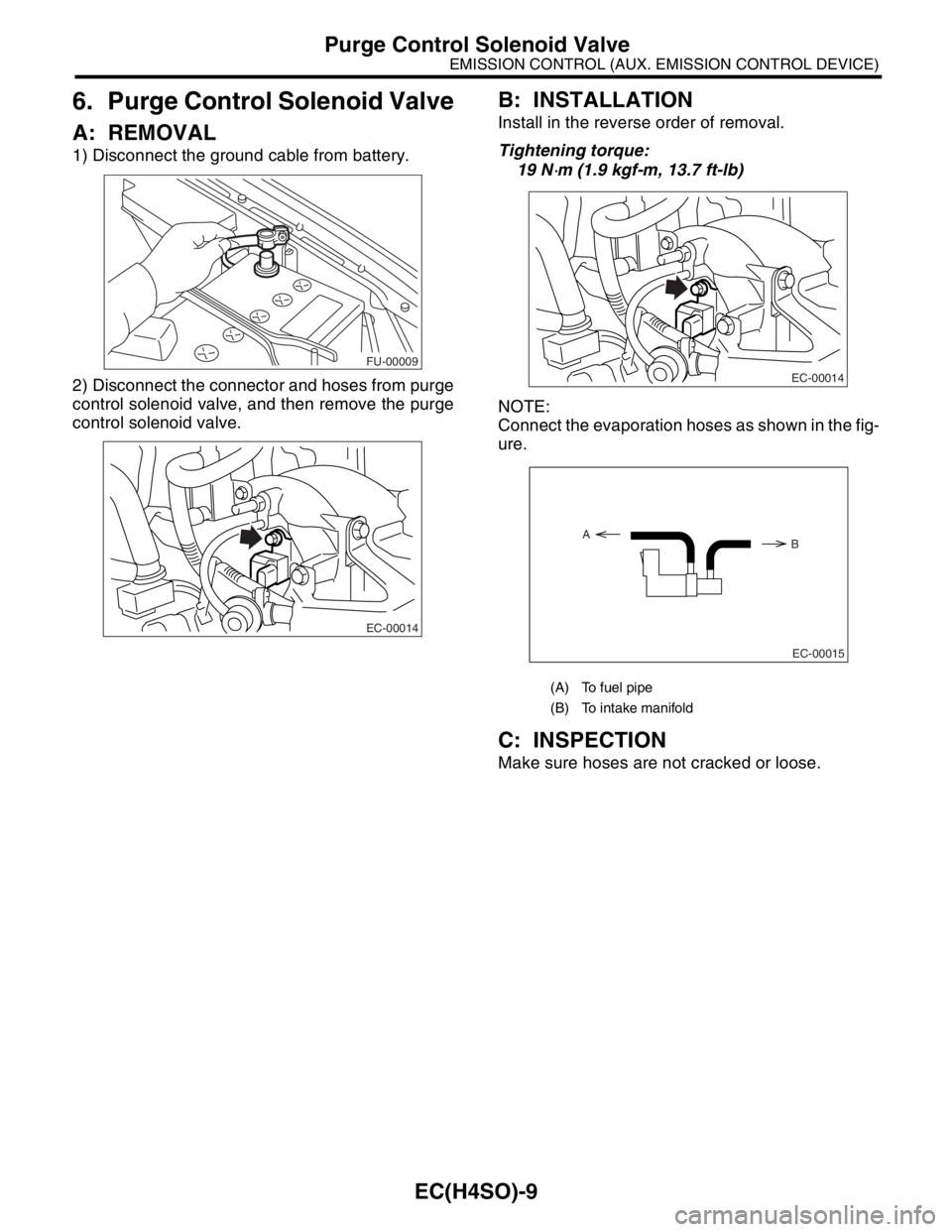

SUBARU FORESTER 2004 Service Repair Manual EC(H4SO)-9 EMISSION CONTROL (AUX. EMISSION CONTROL DEVICE) Purge Control Solenoid Valve 6. Purge Control Solenoid Valve A: REMOVAL 1) Disconnect the ground cable from battery. 2) Disconnect the connec

Page 859 of 2870

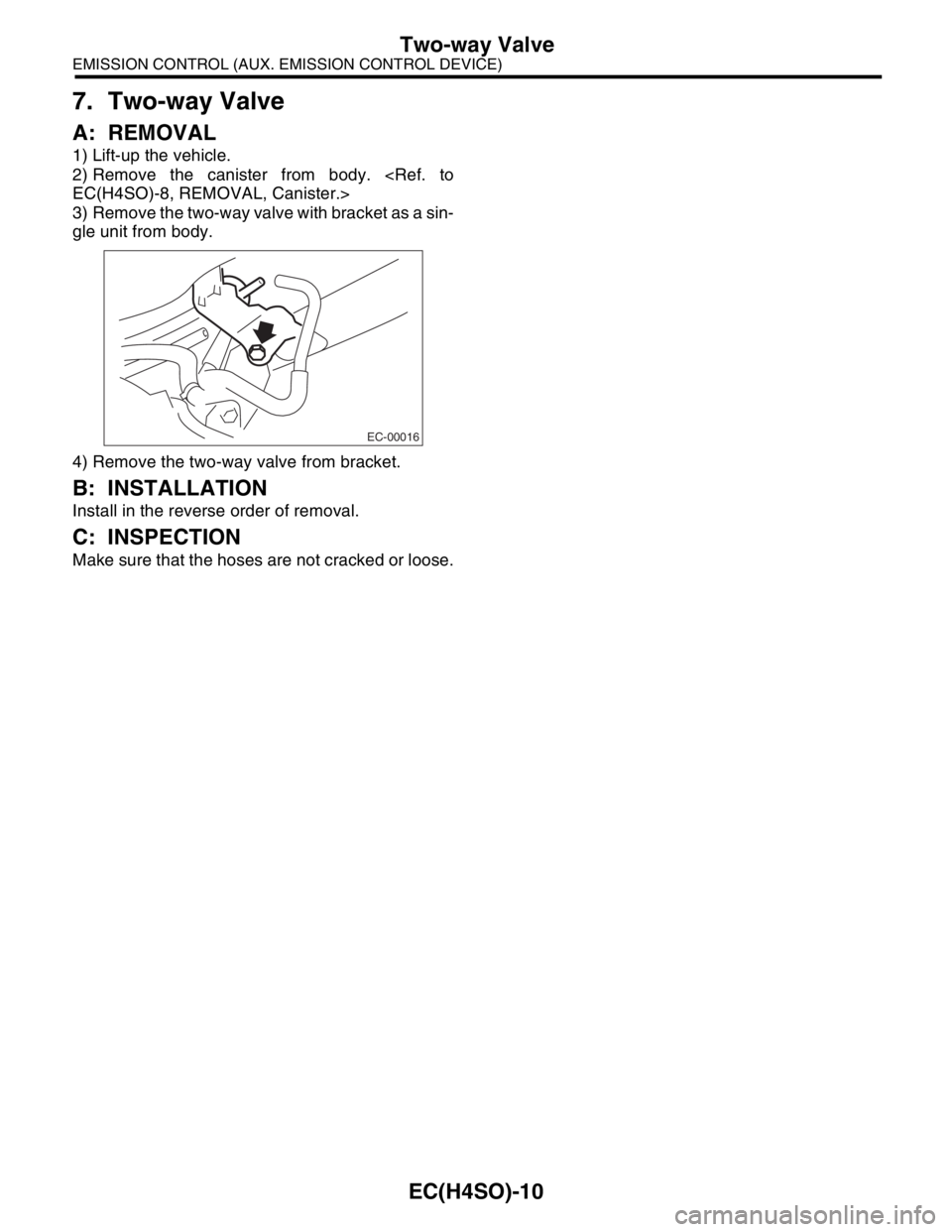

SUBARU FORESTER 2004 Service Repair Manual EC(H4SO)-10 EMISSION CONTROL (AUX. EMISSION CONTROL DEVICE) Two-way Valve 7. Two-way Valve A: REMOVAL 1) Lift-up the vehicle. 2) Remove the canister from body. <Ref. to EC(H4SO)-8, REMOVAL, Canister.>

Page 860 of 2870

SUBARU FORESTER 2004 Service Repair Manual FUJI HEAVY INDUSTRIES LTD. G8080GE2 2004 FORESTER SERVICE MANUAL QUICK REFERENCE INDEX ENGINE SECTION 1 This service manual has been prepared to provide SUBARU service personnel with the necessary inf

Page 861 of 2870

SUBARU FORESTER 2004 Service Repair Manual INTAKE (INDUCTION) IN(H4SO) Page 1. General Description ....................................................................................2 2. Air Cleaner Element ...................................

Page 862 of 2870

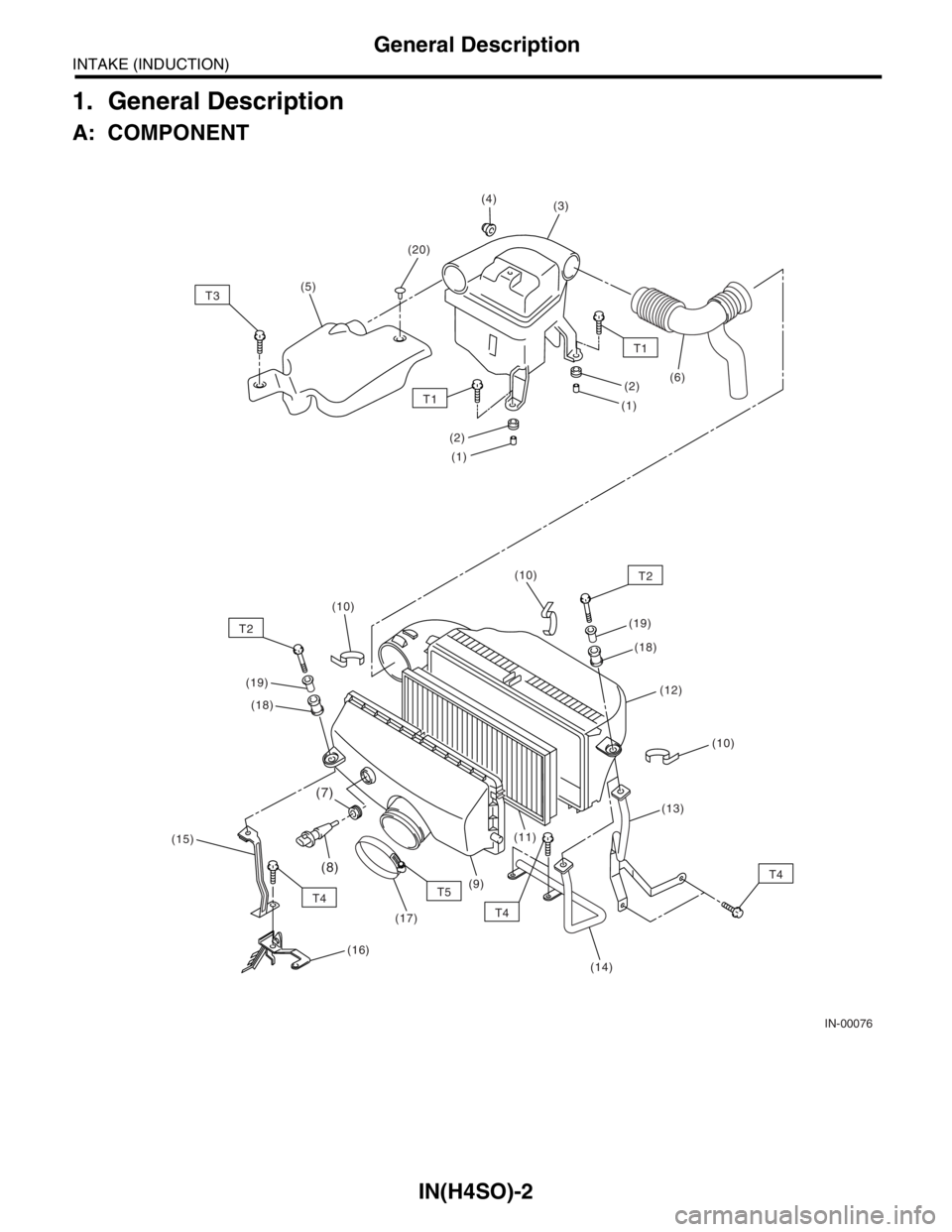

SUBARU FORESTER 2004 Service Repair Manual IN(H4SO)-2 INTAKE (INDUCTION) General Description 1. General Description A: COMPONENT IN-00076 T2 T2 T4 T4T4T5 T3 (6) (19) (19)(18) (18) (15)(11) (17) (16)(9)(12) (10) (10) (10) (13) (14) (3) (5) (4)

Page 863 of 2870

SUBARU FORESTER 2004 Service Repair Manual IN(H4SO)-3 INTAKE (INDUCTION) General Description (1) Spacer (10) Clip (19) Spacer (2) Bushing (11) Air cleaner element (20) Clip (3) Resonator chamber (12) Air cleaner case B (4) Cushion (13) Stay L

Page 864 of 2870

SUBARU FORESTER 2004 Service Repair Manual IN(H4SO)-4 INTAKE (INDUCTION) General Description B: CAUTION  Wear working clothing, including a cap, protec- tive goggles, and protective shoes during opera- tion.  Remove contamination including d
