Page 985 of 2870

SUBARU FORESTER 2004 Service Repair Manual CO(H4SO)-2 COOLING General Description 1. General Description A: SPECIFICATION ModelNon-turbo Turbo Cooling system Electric fan+Forced engine coolant circulation system Total engine coolant capacity2(

Page 986 of 2870

SUBARU FORESTER 2004 Service Repair Manual CO(H4SO)-3 COOLING General Description ★1: For option code, refer to ID section. <Ref. to ID-2, Identification.> RadiatorType Down flow, pressure type Core dimensions Width×Height×Thickness691.5×

Page 987 of 2870

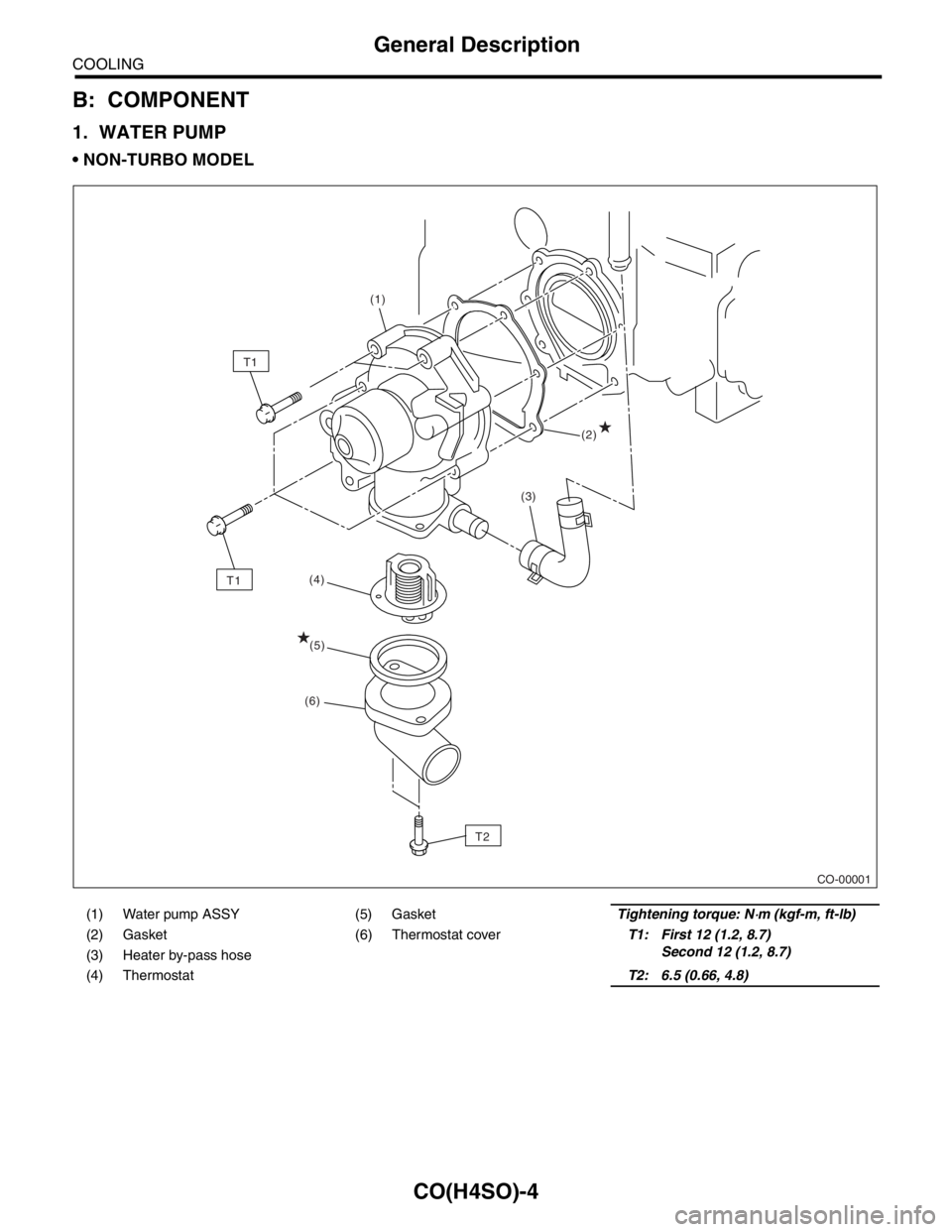

SUBARU FORESTER 2004 Service Repair Manual CO(H4SO)-4 COOLING General Description B: COMPONENT 1. WATER PUMP  NON-TURBO MODEL (1) Water pump ASSY (5) GasketTightening torque: N⋅m (kgf-m, ft-lb) (2) Gasket (6) Thermostat coverT1: First 12 (1

Page 988 of 2870

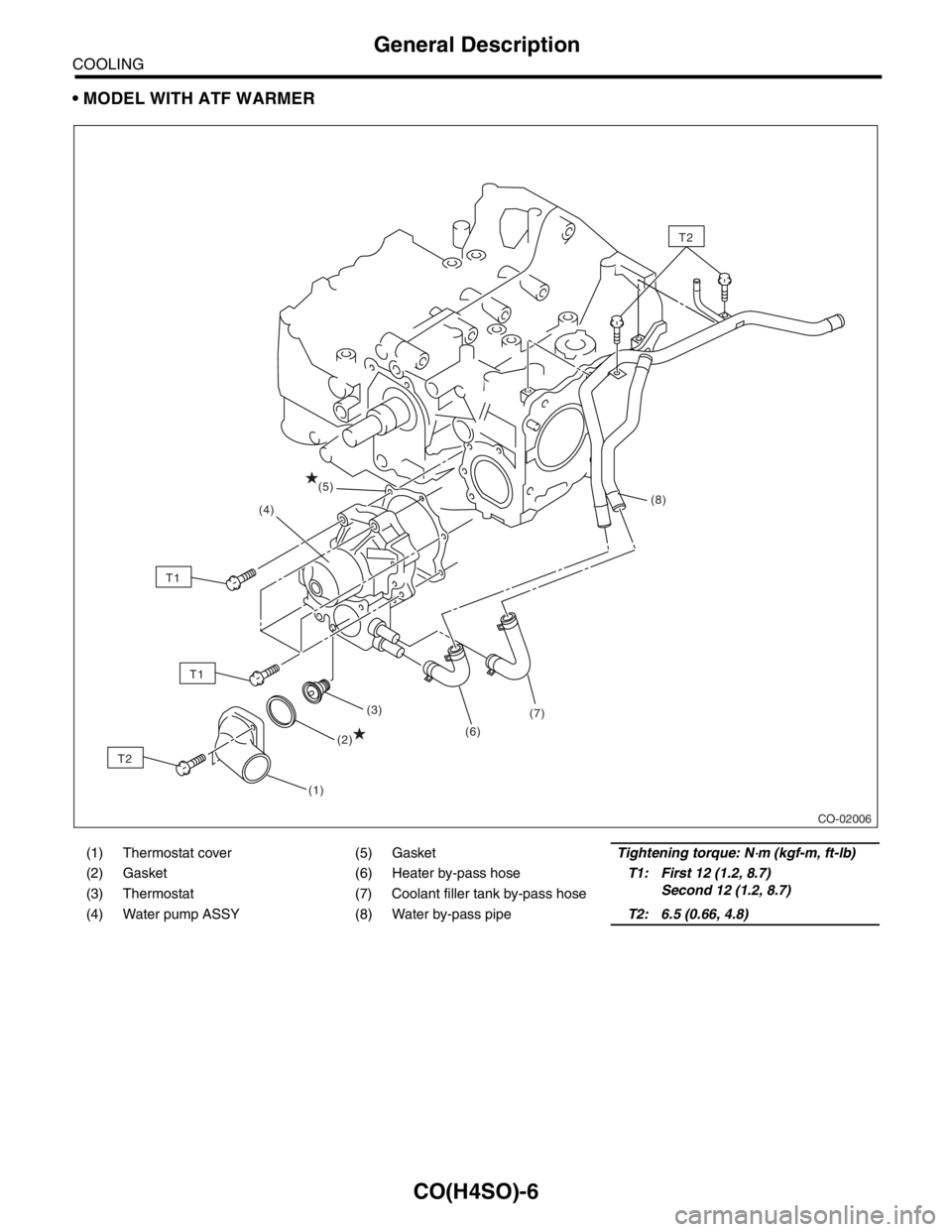

SUBARU FORESTER 2004 Service Repair Manual CO(H4SO)-5 COOLING General Description  TURBO MODEL (1) Thermostat cover (5) GasketTightening torque: N⋅m (kgf-m, ft-lb) (2) Gasket (6) Heater by-pass hoseT1: First 12 (1.2, 8.7) Second 12 (1.2, 8.

Page 989 of 2870

SUBARU FORESTER 2004 Service Repair Manual CO(H4SO)-6 COOLING General Description  MODEL WITH ATF WARMER (1) Thermostat cover (5) GasketTightening torque: N⋅m (kgf-m, ft-lb) (2) Gasket (6) Heater by-pass hoseT1: First 12 (1.2, 8.7) Second 1

Page 990 of 2870

SUBARU FORESTER 2004 Service Repair Manual CO(H4SO)-7 COOLING General Description 2. RADIATOR AND RADIATOR FAN  NON-TURBO MODEL (1) Radiator lower cushion (11) Radiator sub fan (21) Radiator outlet hose (2) Radiator (12) Radiator sub fan moto

Page 991 of 2870

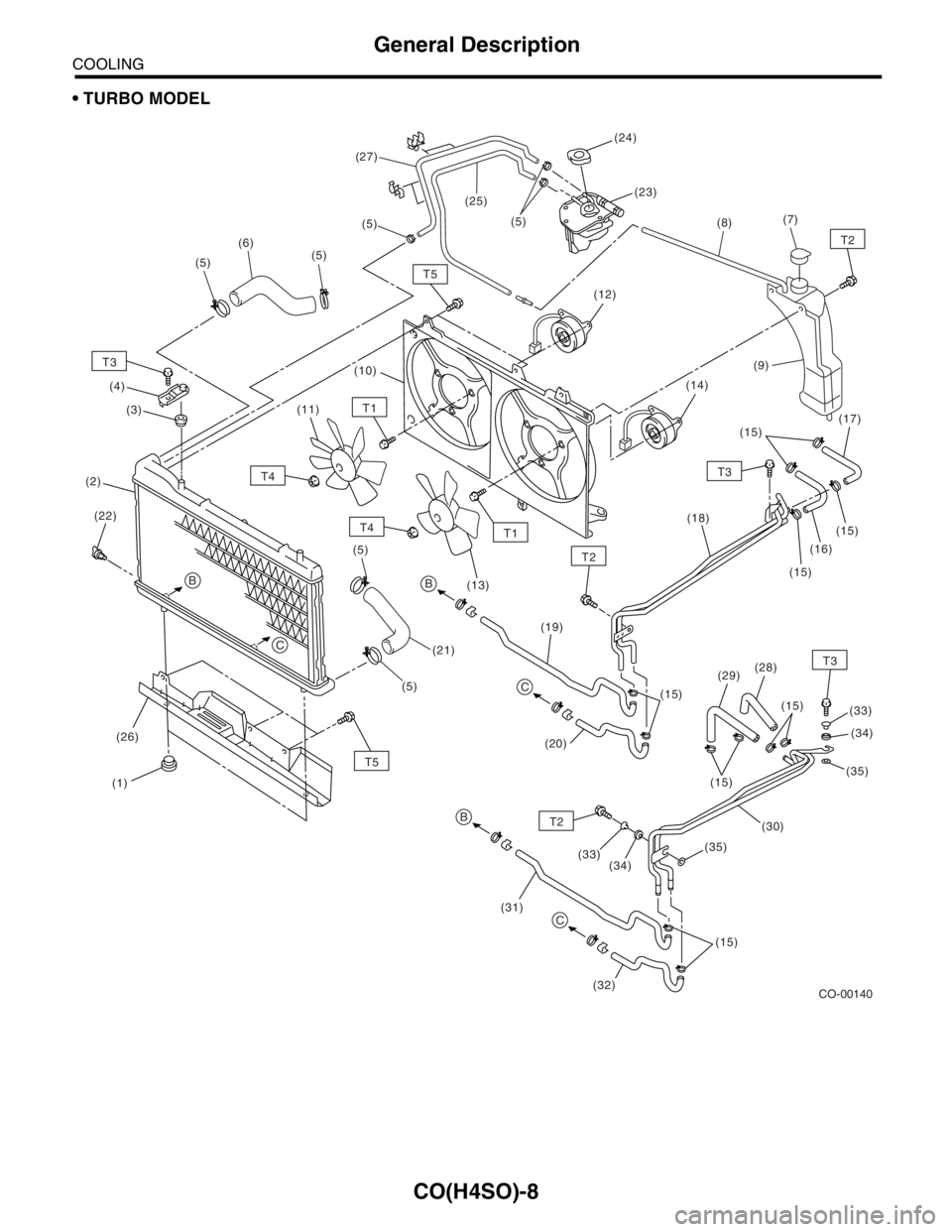

SUBARU FORESTER 2004 Service Repair Manual CO(H4SO)-8 COOLING General Description  TURBO MODEL CO-00140 (9) (1)(10)(8) (2) T3 T2 T4(14) (20) (22)(3) (4) (19)(7) (12) (11) (13) T5 T5 T1 T1 (5) (5)(5)(5) (5)(6) (21) (27) (25)(24) (23) (26) (5)

Page 992 of 2870

SUBARU FORESTER 2004 Service Repair Manual CO(H4SO)-9 COOLING General Description (1) Radiator lower cushion (18) ATF pipe (AT model) (31) Oil cooler inlet hose B (MT model with oil cooler) (2) Radiator (19) ATF inlet hose B (AT model) (3) Ra
