ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK CURRENT DATA.
1) Start the engine.
2) Read the data of exhaust temperature sen-
sor signal using Subaru Select Monitor or
OBD-II general scan tool.
N
OTE:
Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA SHOWN ON DIS-
PLAY FOR ENGINE”.
33, Subaru Select Monitor.>
OBD-II general scan tool
For detailed operation procedures, refer to the
OBD-II General Scan Tool Operation Manual.Is the temperature less than
372°C (702°F)?Go to step 2.Repair the poor
contact.
N
OTE:
In this case repair
the following:
Poor contact of
exhaust tempera-
ture sensor
Poor contact in
ECM
Poor contact in
joint connector
2 CHECK HARNESS BETWEEN EXHAUST
TEMPERATURE SENSOR AND ECM CON-
NECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from exhaust
temperature sensor.
3) Measure the voltage between exhaust tem-
perature sensor connector and engine ground.
Connector & terminal
(B279) No. 1 (+) — Engine ground (
−):Is the voltage more than 10 V? Repair battery
short circuit in har-
ness between
ECM and exhaust
temperature sen-
sor connector.Go to step 3.
3 CHECK HARNESS BETWEEN EXHAUST
TEMPERATURE SENSOR AND ECM CON-
NECTOR.
1) Turn the ignition switch to ON.
2) Measure the voltage between exhaust tem-
perature sensor connector and engine ground.
Connector & terminal
(B279) No. 1 (+) — Engine ground (
−):Is the voltage more than 10 V? Repair battery
short circuit in har-
ness between
ECM and exhaust
temperature sen-
sor connector.Go to step 4.
4 CHECK HARNESS BETWEEN EXHAUST
TEMPERATURE SENSOR AND ECM CON-
NECTOR.
Measure the voltage between exhaust temper-
ature sensor connector and engine ground.
Connector & terminal
(B279) No. 1 (+) — Engine ground (
−):Is the voltage more than 4 V? Go to step 5.Repair the har-
ness and connec-
tor.
NOTE:
In this case repair
the following:
Open circuit in
harness between
ECM and exhaust
temperature sen-
sor connector
Poor contact of
exhaust tempera-
ture sensor con-
nector
Poor contact in
ECM connector.
Poor contact in
joint connector
Page 1858 of 2870
EN(H4DOTC)-225
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BO:DTC P0558 GENERATOR CIRCUIT LOW INPUT
NOTE:
Refer to DTC P0559 for diagnostic procedure.
CUIT HIGH INPUT, Diagnostic Procedure with Diagnostic Trouble Code (DTC).>
5 CHECK HARNESS BETWEEN EXHAUST
TEMPERATURE SENSOR AND ECM CON-
NECTOR.
1) Turn the ignition switch to OFF.
2) Measure the resistance of harness
between exhaust temperature sensor connec-
tor and engine ground.
Connector & terminal
(B279) No. 2 — Engine ground:Is the resistance less than 5
Ω?Replace the
exhaust tempera-
ture sensor.
to FU(H4DOTC)-
49, Exhaust Tem-
perature Sensor.>Repair the har-
ness and connec-
tor.
N
OTE:
In this case repair
the following:
Open circuit in
harness between
ECM and exhaust
temperature sen-
sor connector
Poor contact of
exhaust tempera-
ture sensor con-
nector
Poor contact in
ECM connector.
Poor contact in
joint connector Step Check Yes No
Page 1859 of 2870
EN(H4DOTC)-226
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BP:DTC P0559 GENERATOR CIRCUIT HIGH INPUT
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
ERATION, Clear Memory Mode.> and Inspection Mode .

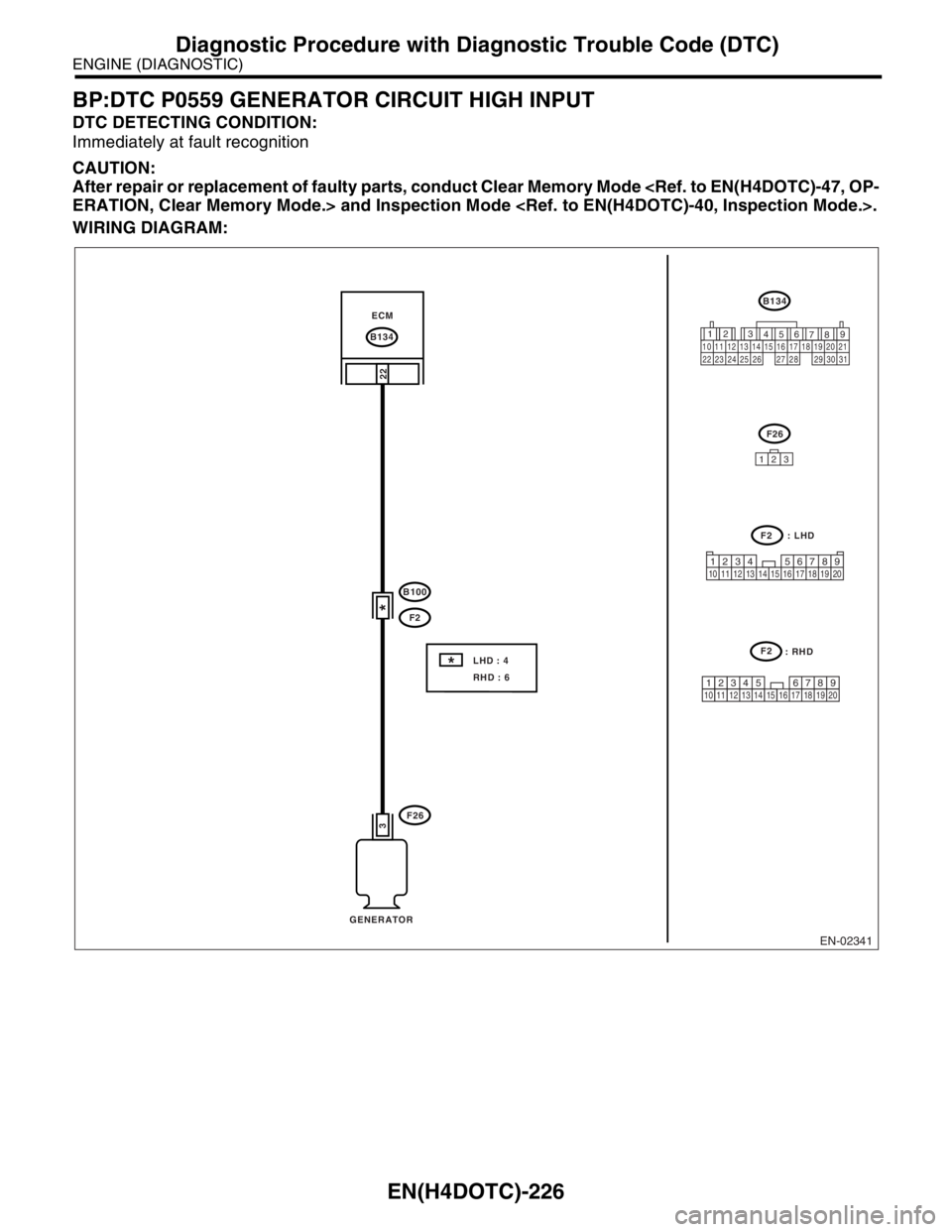

WIRING DIAGRAM:
EN-02341
B100
B134
F2
LHD : 4
RHD : 6
F26
B134
F26 ECM
GENERATOR
22
*
*
3
12
789 56 3
410 11 1219 20 21
29 30 31 13 14 15 1617
27 2818
22 23 24 25 26
123
F2
F2: LHD
: RHD
1234 5678910 11 12 13 14 15 16 17 18 19 20
2345 678911 12 13 14 17 18 19 201101516
Page 1860 of 2870
EN(H4DOTC)-227
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK HARNESS BETWEEN GENERATOR
AND ECM CONNECTOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from generator
and ECM.
3) Measure the resistance of harness
between generator connector and engine
ground.
Connector & terminal
(F26) No. 3 — Engine ground:Is the resistance more than 1
MΩ?Go to step 2.Repair ground
short circuit in har-
ness between
ECM and purge
control solenoid
valve connector.
2 CHECK HARNESS BETWEEN GENERATOR
AND ECM CONNECTOR.
Measure the resistance of harness between
ECM and generator.
Connector & terminal
(B134) No. 22 — (F26) No. 3:Is the resistance less than 1
Ω?Repair poor con-
tact connector.Repair open circuit
in harness
between ECM and
generator connec-
tor.
N
OTE:
In this case repair
the following:
Open circuit in
harness between
ECM and genera-
tor connector
Poor contact in
coupling connector
Page 1861 of 2870
EN(H4DOTC)-228
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BQ:DTC P0600 SERIAL COMMUNICATION LINK
DTC DETECTING CONDITION:
Immediately at fault recognition
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
ERATION, Clear Memory Mode.> and Inspection Mode .

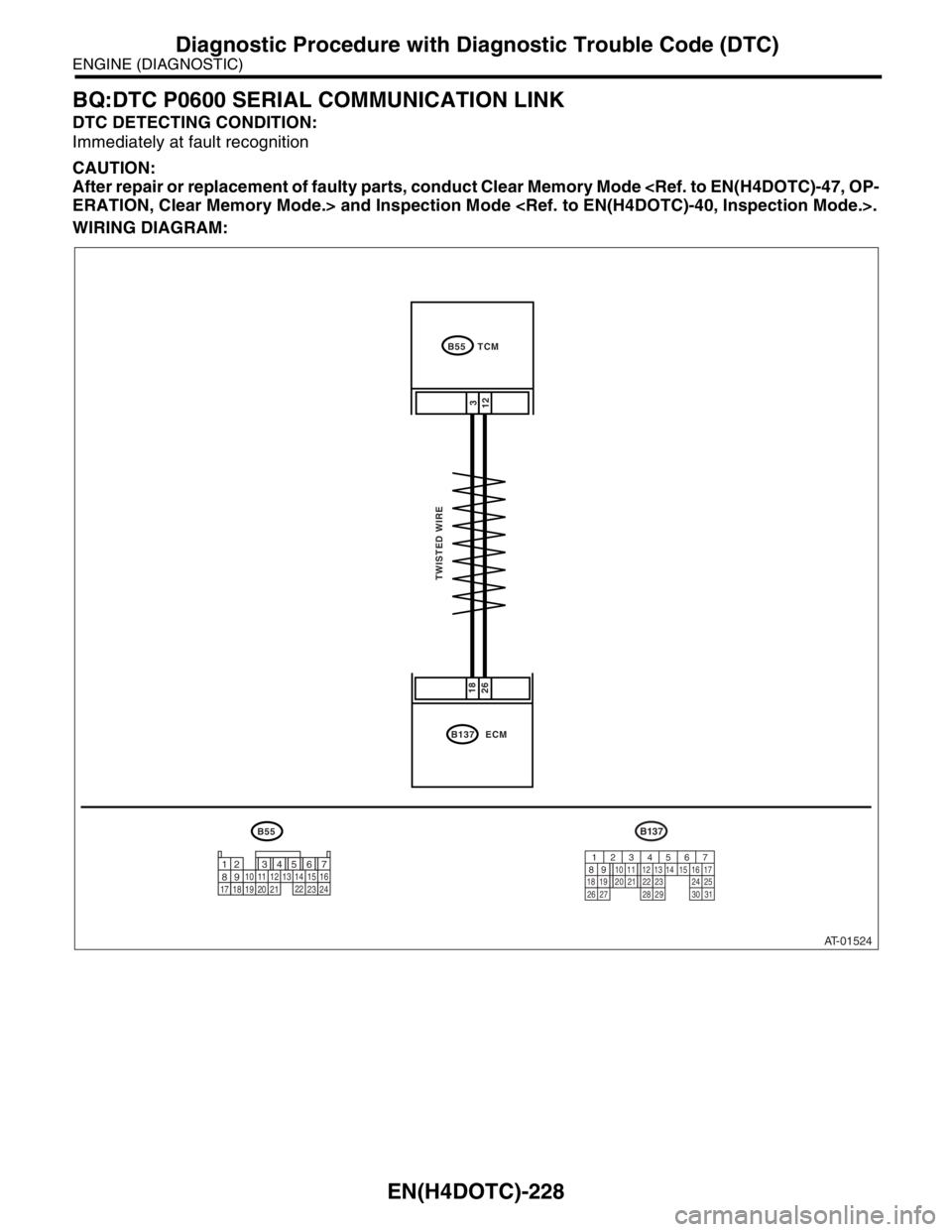

WIRING DIAGRAM:
AT-01524
18
263
12
B55
B137
ECM
B55 TCM
B137
12
7
8956 3410 11 12
19 20 2113 14 15 16
17 1822
23
24
567
82 1
94 310
22 23 11 12 13 14 15
24 25
2616 17
18 19 20 21
27 28 29 30 31
TWISTED WIRE
Page 1862 of 2870

EN(H4DOTC)-229
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
Step Check Yes No
1 CHECK HARNESS BETWEEN ECM AND
TCM.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM.
3) Disconnect the connector from TCM.
4) Measure the resistance between connec-
tors of ECM and TCM.
Connector & terminal
(B137) No. 18 — (B55) No. 3:
(B137) No. 26 — (B54) No. 12:Is the resistance less than 1
Ω?Go to step 2.Repair the har-
ness connector.
2 CHECK HARNESS BETWEEN ECM AND
TCM.
Measure the resistance between ECM connec-
tor and chassis ground.
Connector & terminal
(B137) No. 18 — Chassis ground:
(B137) No. 26 — Chassis ground:Is the resistance more than 1
MΩ?Go to step 3.Repair the har-
ness connector.
3 CHECK HARNESS BETWEEN ECM AND
TCM.
Measure the resistance of ECM connectors.
Connector & terminal
(B137) No. 18 — (B137) No. 26:Is the resistance more than 1
MΩ?Go to step 4.Repair the har-
ness connector.
4 CHECK AT SYSTEM STATUS.
Check the AT using Subaru Select Monitor.Does the Subaru Select Moni-
tor display DTC P1718?Inspect the AT sys-
tem.Replace the ECM.
FU(H4DOTC)-50,
Engine Control
Module (ECM).>
Page 1863 of 2870

EN(H4DOTC)-230
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
BR:DTC P0604 INTERNAL CONTROL MODULE READ ONLY MEMORY (ROM)
ERROR
DTC DETECTING CONDITION:
Immediately at fault recognition
TROUBLE SYMPTOM:
Engine does not start.
Engine stalls.
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode
ERATION, Clear Memory Mode.> and Inspection Mode .
WIRING DIAGRAM:
LHD model
EN-02312
F74
B72
34
12
BATTERYIGNITION
SWITCH MAIN RELAY
SBF-4SBF-1
SBF-5
B72 TO FRONT OXYGEN (A/F) SENSOR
D16 D7
B12
A6
A7
B4
B1
D1
D2
A34B5
D6
B19
D14
No.11
B61F44
B47
B100
F2
E3 F60 1 2 3 5 6 4
ECM
EE
14
B134
B137 B135 A :
B :
C :B136
D :
14
7
3412
56
123
4
56
78
9
1011 12
1314 15 16
F60B47
B137
F2
B100F2
11
10
20
8
9 13
14
3
15
16
B135
F44
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35
12345678
34
12 8910 11
12 13 14 15 16 17 18 19 20 21 22 23 2456 71234 5678910 11 12 13 14 15 16 17 18 19 20
567
82 1
94 310
22 23 11 12 13 14 15
24 25
2616 17
18 19 20 21
27 28 29 30 31
F74 B200
MT
MT
B134
56 7
82 1
94 310
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31
B136
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35
Page 1864 of 2870

EN(H4DOTC)-231
ENGINE (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
RHD model
Step Check Yes No
1 CHECK ANY OTHER DTC ON DISPLAY.Does the Subaru Select Moni-
tor or OBD-II general scan tool
indicate DTC P0604?Replace the ECM.
FU(H4DOTC)-50,
Engine Control
Module (ECM).>Temporary poor
contact occurs.
B72B136
34
12
BATTERYIGNITION
SWITCH MAIN RELAY
SBF-4SBF-1
SBF-5
B72 DATA LINK CONNECTOR
D16 B4
B1
A6
A7
D7
B12
D1
D2
C19B5
B6
B19
D14
No.11B47
E2 B21 1 2 3 5 6 4
ECM
14
B134
B135
B136 A :
B :
C :
B137
D :
15
3
16 14 13
3412
56
123
4
56
78
9
1011 12
1314 15 16
B134B21
B47B135B137
EN-02313
E
E E
567
82 1
94 310
24 22 23 2511 12 13 14 15
26 27
2816 17 18 19
20 21
29 30 31 32 33 34 35
567
82 1
94 310
22 23 11 12 13 14 15
24 25
2616 17
18 19 20 21
27 28 29 30 31
A34
MTMT
56
782 1
94 310
24 22 23 2511 12 13
1415
26 27
2816
17 18 19 20 21
33 34 29
32 30
31 35
56 7
82 1
94 310
24 22 23 25 11 12 13 14 15
26 27
2816 17
18 19 20 21
33 34 29
32 30 31
D :
