SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-17 MECHANICAL General Description (1) Oil pressure switch (15) AdapterTightening torque: N⋅m (kgf-m, ft-lb) (2) Cylinder block (RH) (16) Oil coolerT1: 5 (0.5, 3.6) (3) Service hole plug (

Page 1474 of 2870

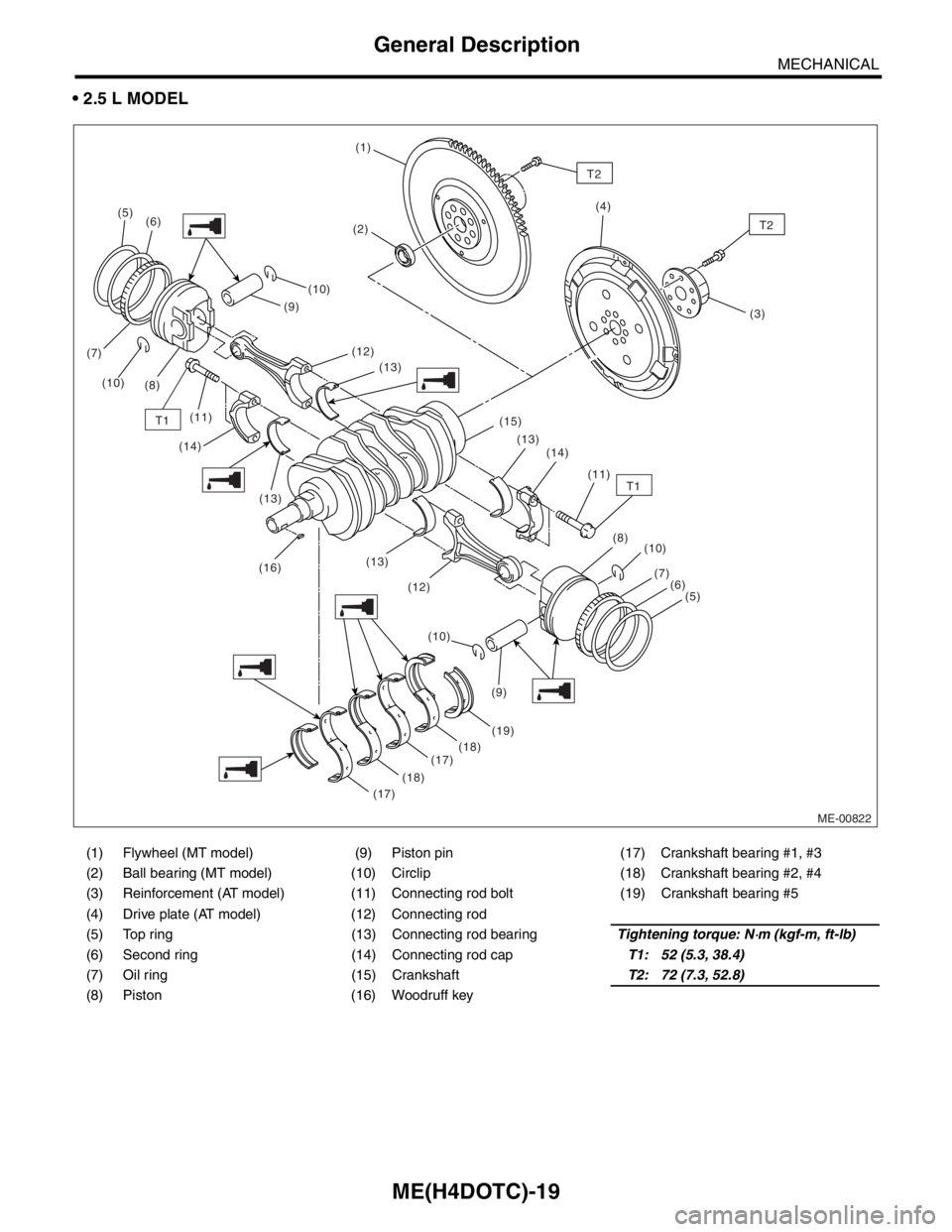

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-18 MECHANICAL General Description 5. CRANKSHAFT AND PISTON  2.0 L MODEL (1) Flywheel (MT model) (9) Piston pin (17) Crankshaft bearing #1, #3 (2) Ball bearing (MT model) (10) Circlip (18)

Page 1475 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-19 MECHANICAL General Description  2.5 L MODEL (1) Flywheel (MT model) (9) Piston pin (17) Crankshaft bearing #1, #3 (2) Ball bearing (MT model) (10) Circlip (18) Crankshaft bearing #2, #4

Page 1476 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-20 MECHANICAL General Description 6. ENGINE MOUNTING  2.0 L MODEL (1) Front cushion rubberTightening torque: N⋅m (kgf-m, ft-lb) T1: 34 (3.5, 25.3) T2: 85 (8.7, 62.7) ME-00407 T1T1 T2 T2

Page 1477 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-21 MECHANICAL General Description  2.5 L MODEL (1) Heat shield cover (3) Front engine mounting bracketTightening torque: N⋅m (kgf-m, ft-lb) (2) Front cushion rubber T1: 35 (3.6, 25.8) T2

Page 1478 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-22 MECHANICAL General Description C: CAUTION  Wear working clothing, including a cap, protec- tive goggles, and protective shoes during opera- tion.  Remove contamination including dirt a

Page 1479 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-23 MECHANICAL General Description D: PREPARATION TOOL 1. SPECIAL TOOL ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 498267600 CYLINDER HEAD TABLE Used for replacing valve guides.  Used fo

Page 1480 of 2870

SUBARU FORESTER 2004 Service Repair Manual ME(H4DOTC)-24 MECHANICAL General Description 398744300 PISTON GUIDE Used for installing piston in cylinder for 2.0 L engine. 498747300 PISTON GUIDE Used for installing piston in cylinder for 2.5 L e
