Page 1441 of 2870

SUBARU FORESTER 2004 Service Repair Manual IN(H4DOTC)-2 INTAKE (INDUCTION) General Description 1. General Description A: COMPONENT 1. AIR CLEANER (1) Mass air flow and intake air tem- perature sensor(7) Air cleaner lower case (14) Cushion (8)

Page 1442 of 2870

SUBARU FORESTER 2004 Service Repair Manual IN(H4DOTC)-3 INTAKE (INDUCTION) General Description 2. INTAKE DUCT (1) Clamp (5) Air by-pass hose CTightening torque: N⋅m (kgf-m, ft-lb) (2) PCV hose ASSY (6) Intake ductT1: 19 (1.9, 13.7) (3) Air b

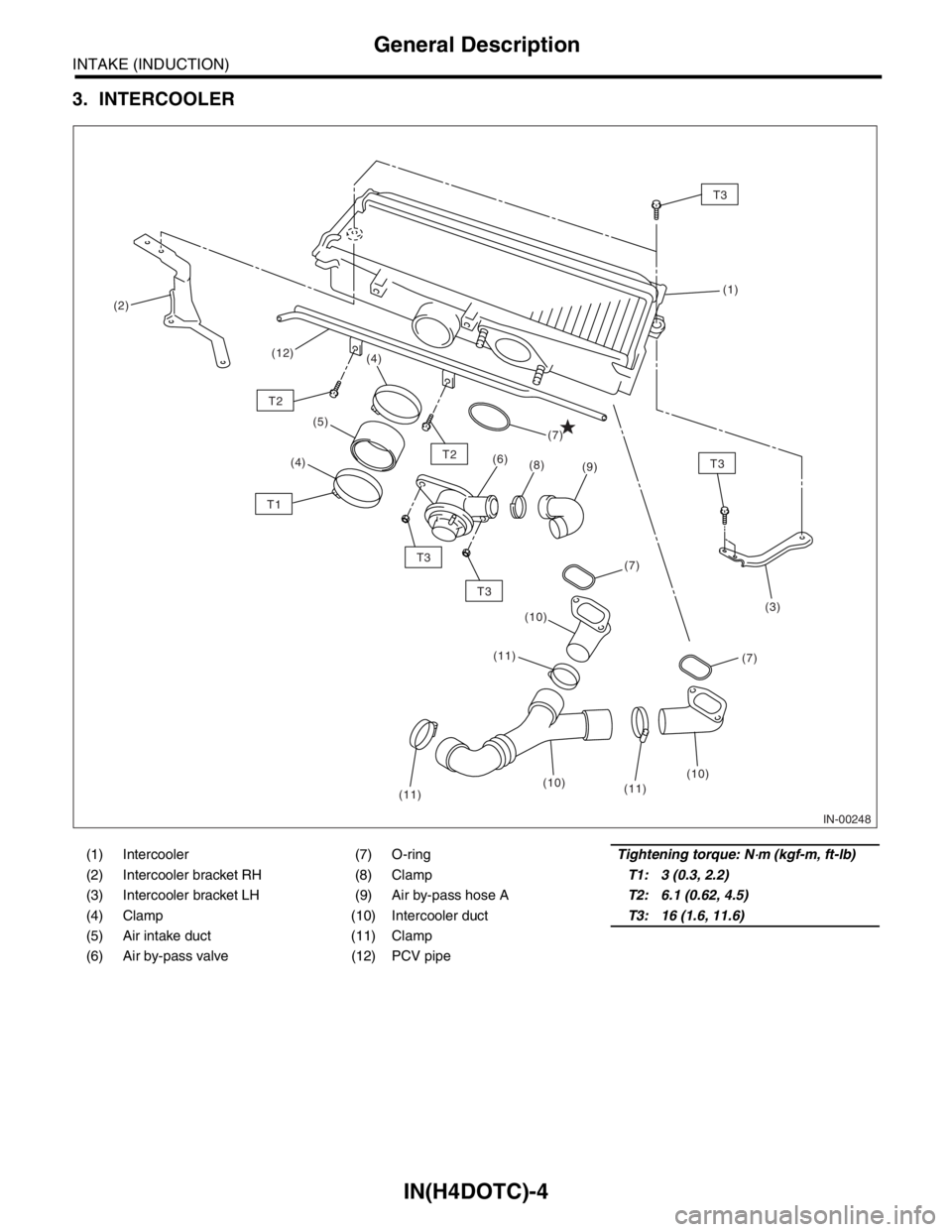

Page 1443 of 2870

SUBARU FORESTER 2004 Service Repair Manual IN(H4DOTC)-4 INTAKE (INDUCTION) General Description 3. INTERCOOLER (1) Intercooler (7) O-ringTightening torque: N⋅m (kgf-m, ft-lb) (2) Intercooler bracket RH (8) ClampT1: 3 (0.3, 2.2) (3) Intercoole

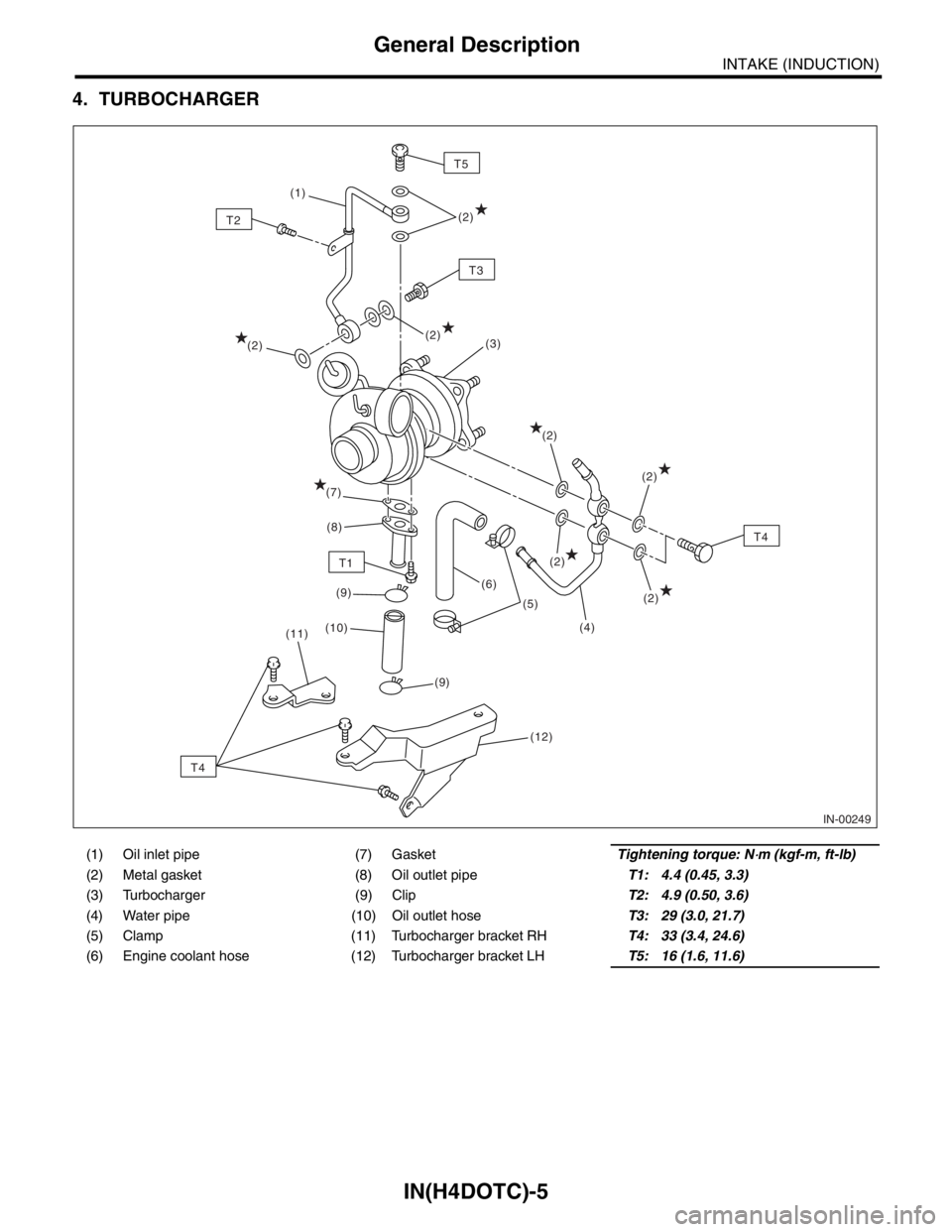

Page 1444 of 2870

SUBARU FORESTER 2004 Service Repair Manual IN(H4DOTC)-5 INTAKE (INDUCTION) General Description 4. TURBOCHARGER (1) Oil inlet pipe (7) GasketTightening torque: N⋅m (kgf-m, ft-lb) (2) Metal gasket (8) Oil outlet pipeT1: 4.4 (0.45, 3.3) (3) Tur

Page 1445 of 2870

SUBARU FORESTER 2004 Service Repair Manual IN(H4DOTC)-6 INTAKE (INDUCTION) General Description B: CAUTION  Wear working clothing, including a cap, protec- tive goggles, and protective shoes during opera- tion.  Remove contamination including

Page 1446 of 2870

SUBARU FORESTER 2004 Service Repair Manual IN(H4DOTC)-7 INTAKE (INDUCTION) Air Cleaner 2. Air Cleaner A: REMOVAL 1) Disconnect the ground cable from battery. 2) Disconnect the connector from mass air flow sensor. 3) Loosen the clamp (A) which

Page 1447 of 2870

SUBARU FORESTER 2004 Service Repair Manual IN(H4DOTC)-8 INTAKE (INDUCTION) Air Intake Duct 3. Air Intake Duct A: REMOVAL Remove the bolts which install air intake duct on the front side of body. B: INSTALLATION Install in the reverse order of

Page 1448 of 2870

SUBARU FORESTER 2004 Service Repair Manual IN(H4DOTC)-9 INTAKE (INDUCTION) Intake Duct 4. Intake Duct A: REMOVAL 1) Disconnect the ground cable from battery. 2) Remove the intake manifold. <Ref. to FU(H4DOTC)-14, REMOVAL, Intake Manifold.> or
