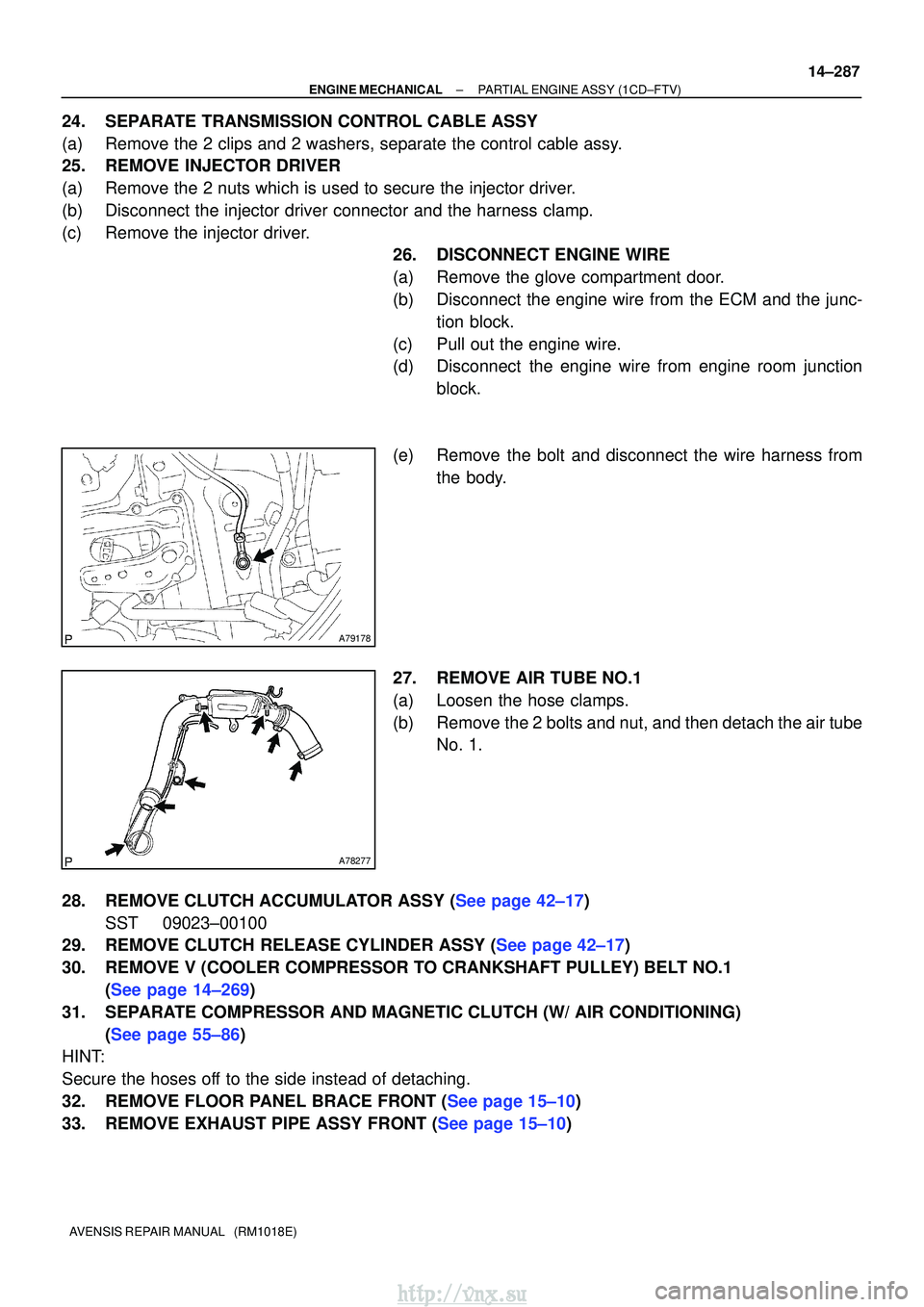

Page 657 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79178 A78277 ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) 14±287 AVENSIS REPAIR MANUAL (RM1018E) 24.SEPARATE TRANSMISSION CONTROL CABLE ASSY (a)Remove the 2 clips and 2 washers, separate the

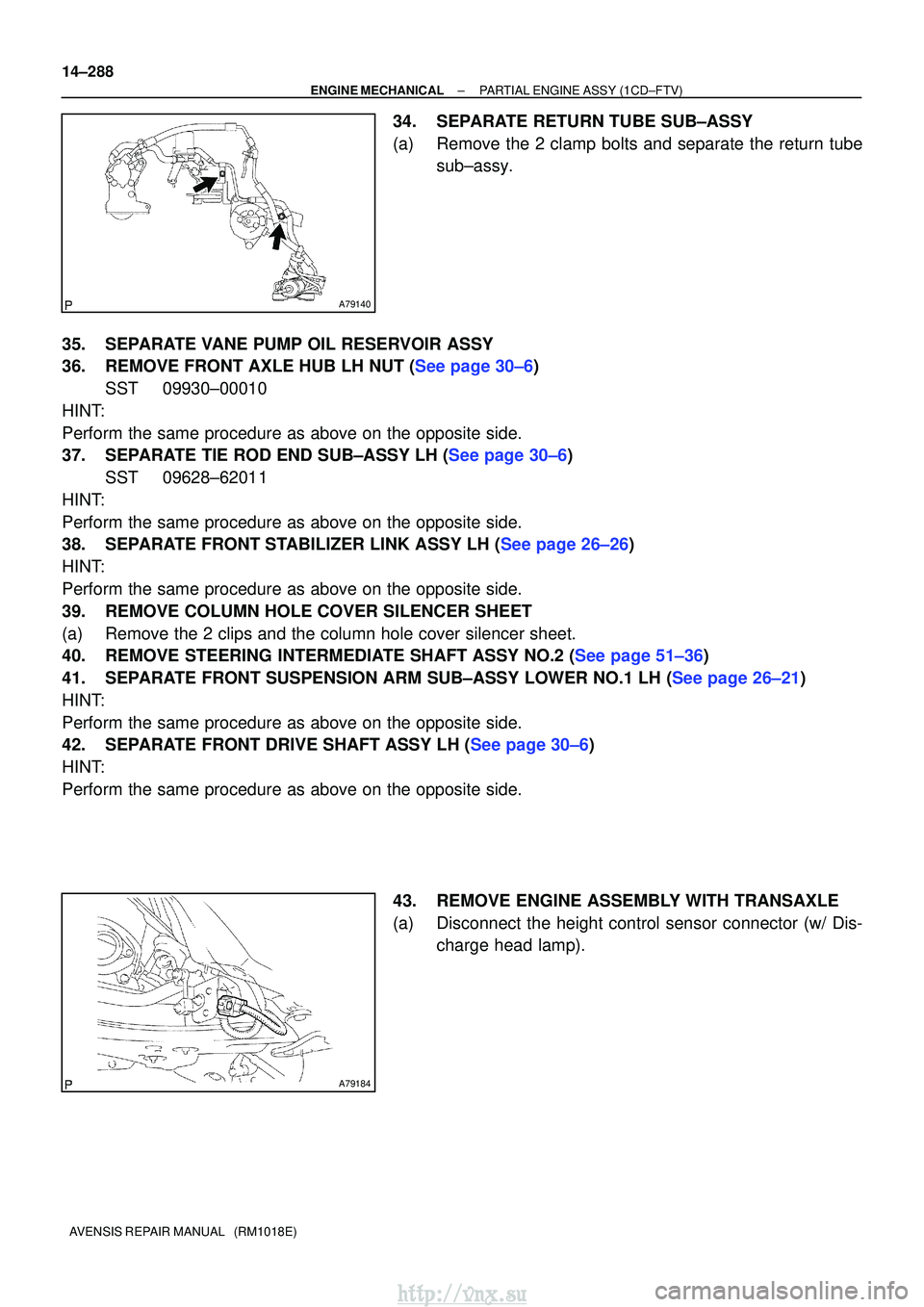

Page 658 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79140 A79184 14±288 ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 34.SEPARATE RETURN TUBE SUB±ASSY (a)Remove the 2 clamp bolts and separate the return tube sub

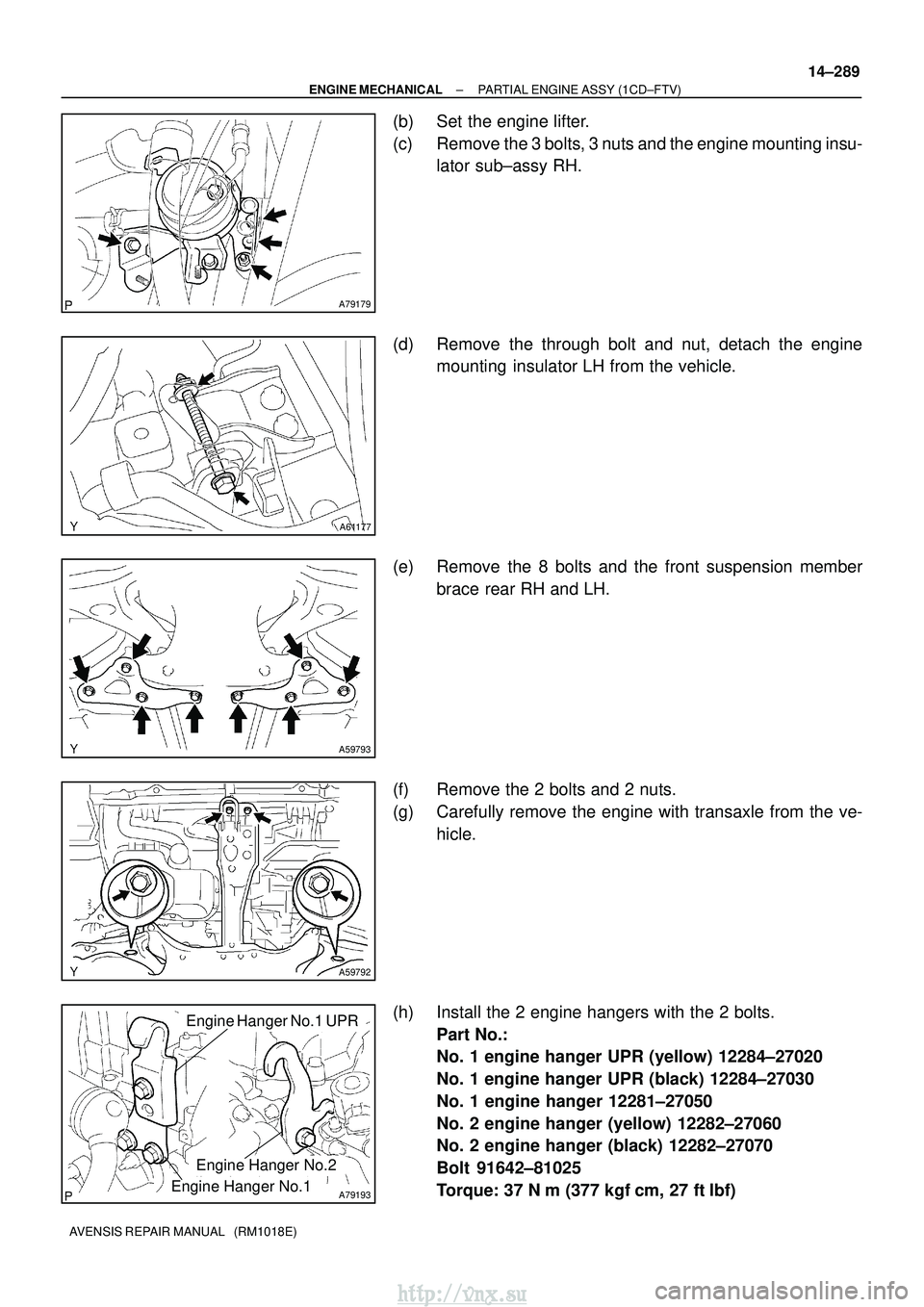

Page 659 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79179 A61177 A59793 A59792 A79193 Engine Hanger No.1 UPR Engine Hanger No.2 Engine Hanger No.1 ± ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD±FTV) 14±289 AVENSIS REPAIR MANUAL (RM1018E) (b) Set th

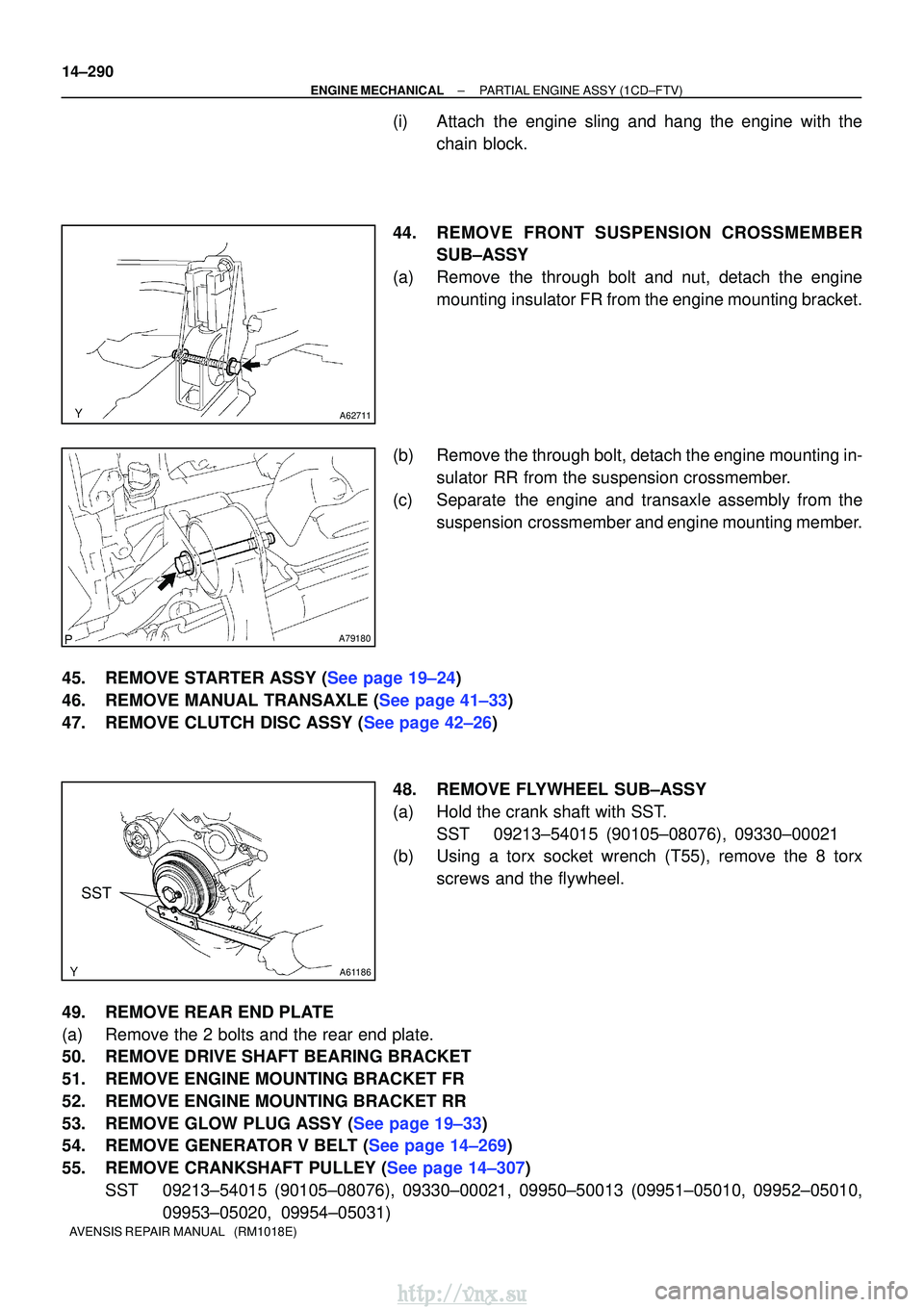

Page 660 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A62711 A79180 A61186 SST 14±290 ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) (i)Attach the engine sling and hang the engine with the chain block. 44.REMOVE FRON

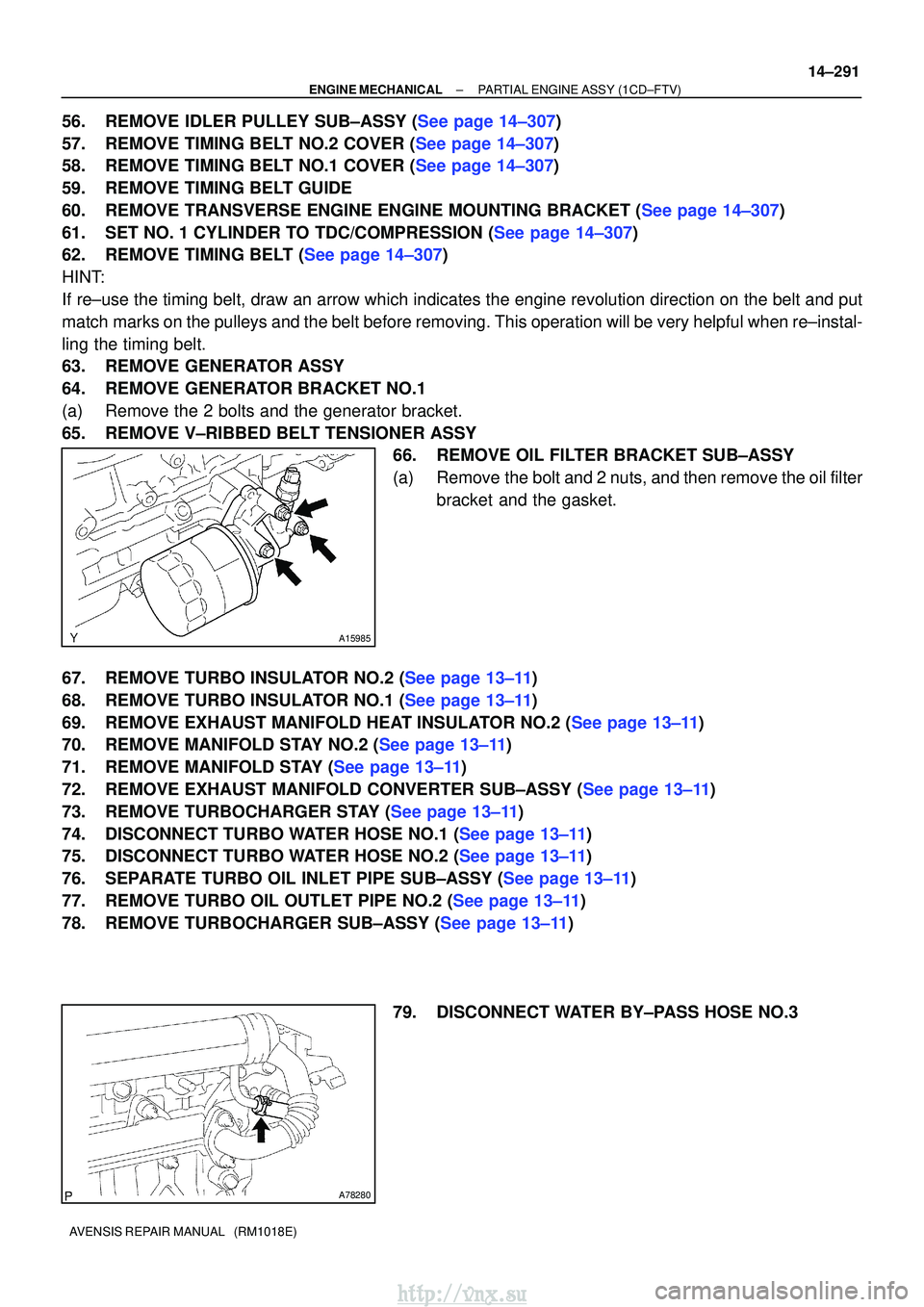

Page 661 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A15985 A78280 ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) 14±291 AVENSIS REPAIR MANUAL (RM1018E) 56.REMOVE IDLER PULLEY SUB±ASSY (See page 14±307) 57.REMOVE TIMING BELT NO.2 COVER (See page

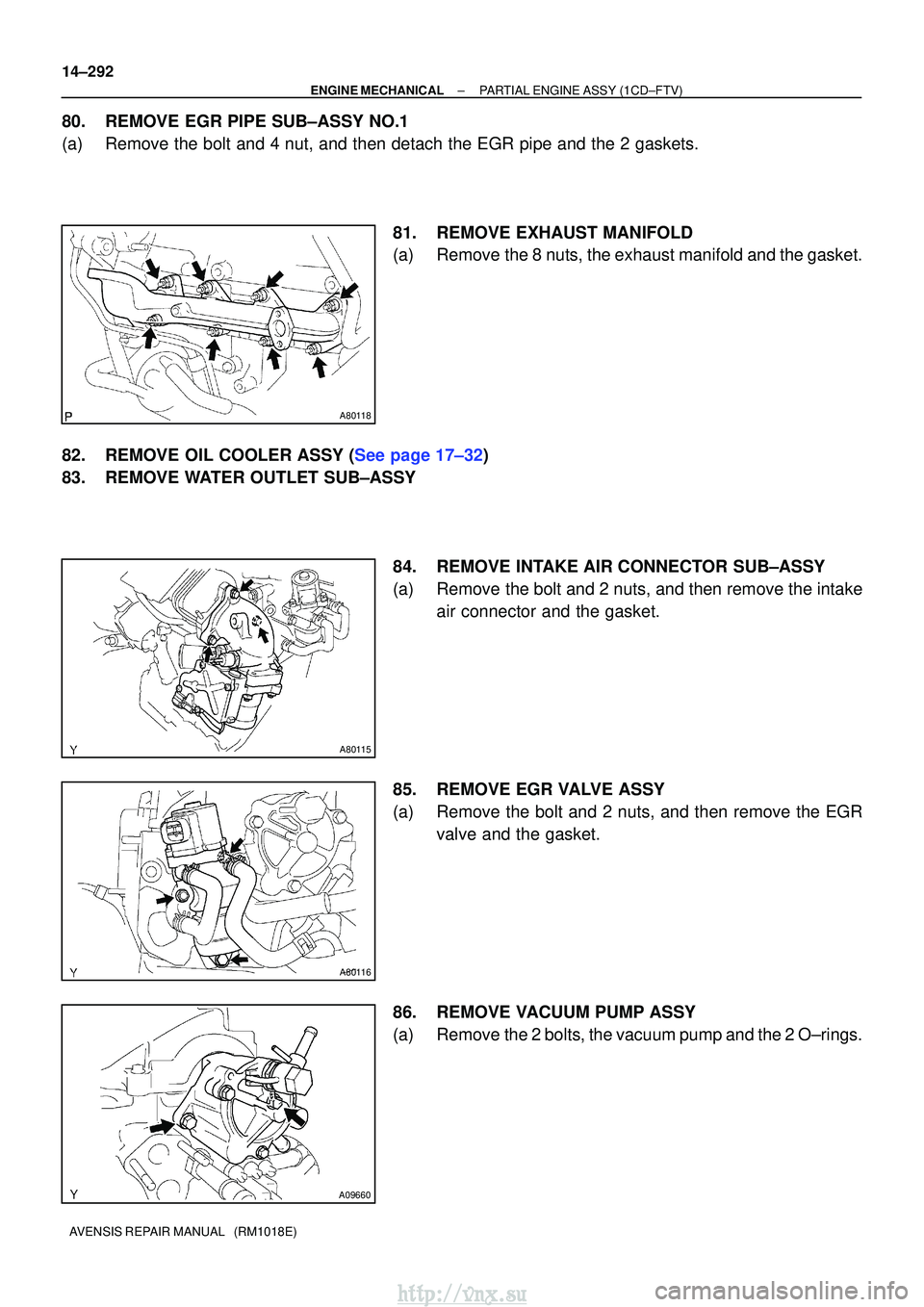

Page 662 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A80118 A80115 A80116 A09660 14±292 ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 80.REMOVE EGR PIPE SUB±ASSY NO.1 (a)Remove the bolt and 4 nut, and then detach

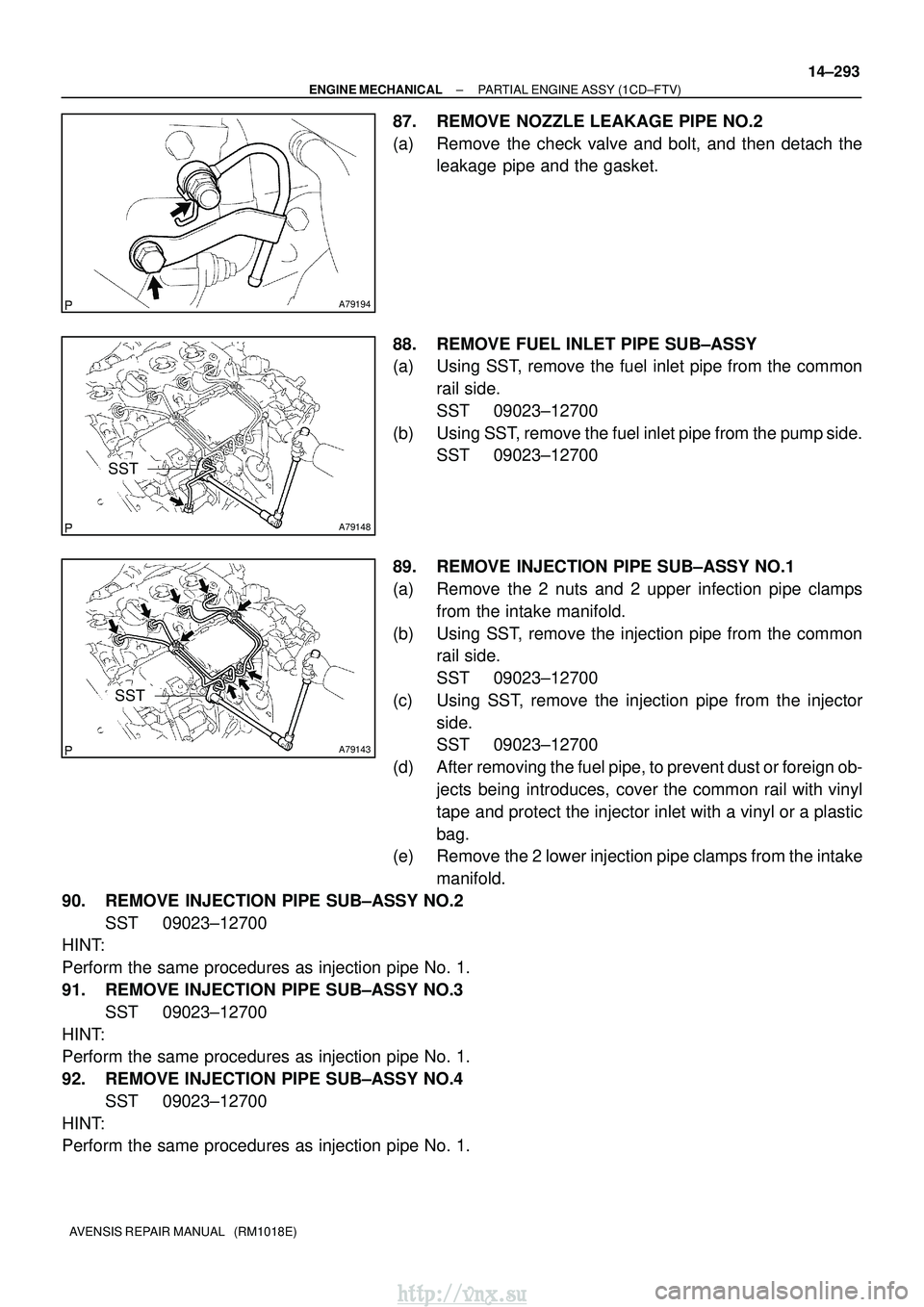

Page 663 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79194 A79148 SST A79143 SST ± ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD±FTV) 14±293 AVENSIS REPAIR MANUAL (RM1018E) 87. REMOVE NOZZLE LEAKAGE PIPE NO.2 (a) Remove the check valve and bolt, and

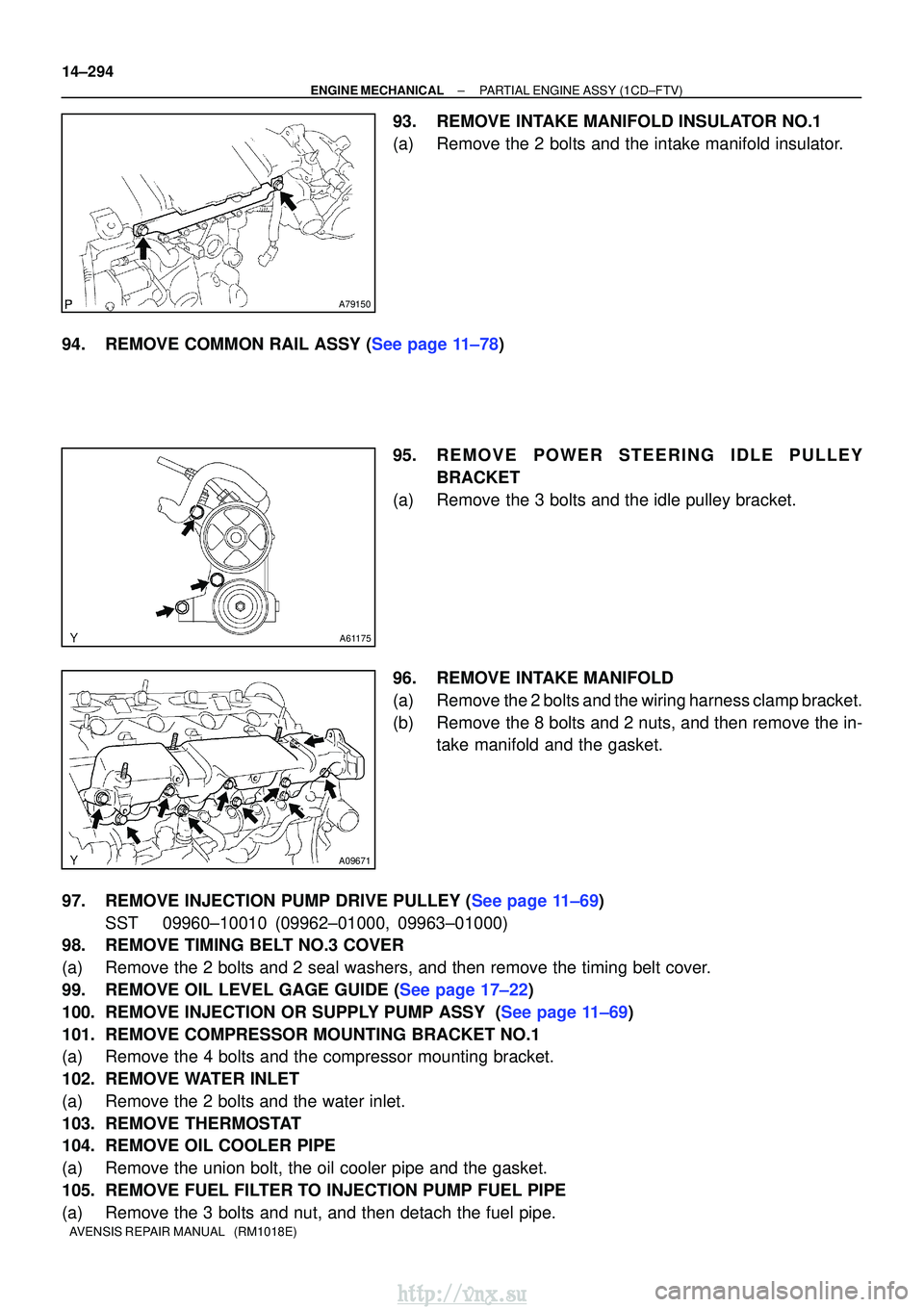

Page 664 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79150 A61175 A09671 14±294 ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 93.REMOVE INTAKE MANIFOLD INSULATOR NO.1 (a)Remove the 2 bolts and the intake manifold
