Page 1217 of 2234

Q01060
D30059
1CD±FTV Engine Type:Others:
Flywheel Side
SST(s)
D26323
SST(s)
Matchmarks
7
1 (Temporally), 4
3
6
2.5 8
D00205
SST(s)
42±28
±
CLUTCH CLUTCH UNIT (MTM)
AVENSIS REPAIR MANUAL (RM1018E)

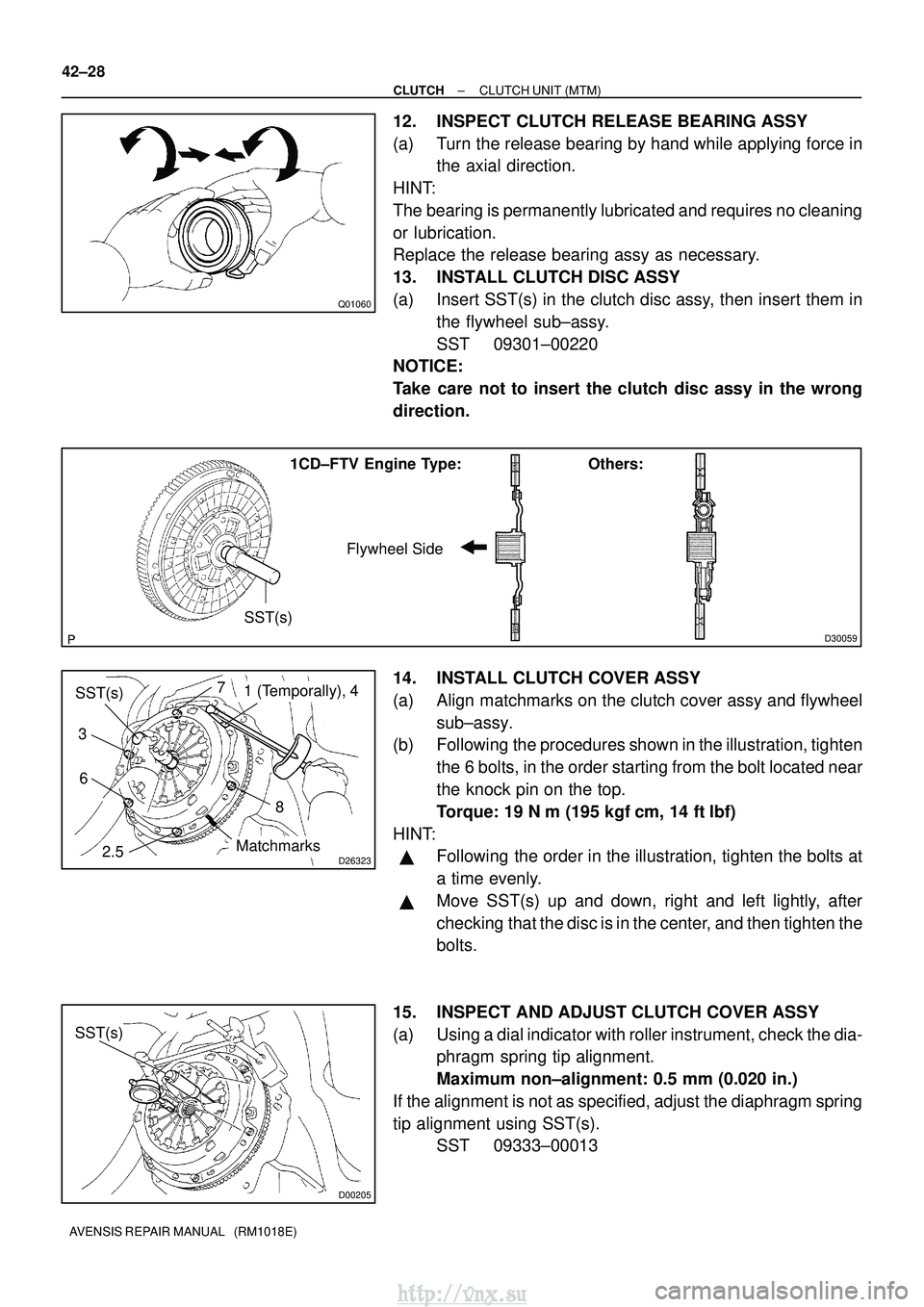

12. INSPECT CLUTCH RELEASE BEARING ASSY
(a) Turn the release bearing by hand while applying force in the axial direction.
HINT:
The bearing is permanently lubricated and requires no cleaning
or lubrication.
Replace the release bearing assy as necessary.
13. INSTALL CLUTCH DISC ASSY
(a) Insert SST(s) in the clutch disc assy, then insert them in the flywheel sub±assy.
SST 09301±00220
NOTICE:
Take care not to insert the clutch disc assy in the wrong
direction.
14. INSTALL CLUTCH COVER ASSY
(a) Align matchmarks on the clutch cover assy and flywheel
sub±assy.
(b) Following the procedures shown in the illustration, tighten
the 6 bolts, in the order starting from the bolt located near
the knock pin on the top.
Torque: 19 N m (195 kgf cm, 14 ftlbf)
HINT:
Following the order in the illustration, tighten the bolts at
a time evenly.
Move SST(s) up and down, right and left lightly, after
checking that the disc is in the center, and then tighten the
bolts.
15. INSPECT AND ADJUST CLUTCH COVER ASSY
(a) Using a dial indicator with roller instrument, check the dia- phragm spring tip alignment.
Maximum non±alignment: 0.5 mm (0.020 in.)
If the alignment is not as specified, adjust the diaphragm spring
tip alignment using SST(s). SST 09333±00013
http://vnx.su
Page 1218 of 2234

D26819
EXCEPT 1CD±FTV Engine Type:
1CD±FTV Engine Type:
Release Hub Grease
±
CLUTCH CLUTCH UNIT (MTM)
42±29
AVENSIS REPAIR MANUAL (RM1018E)

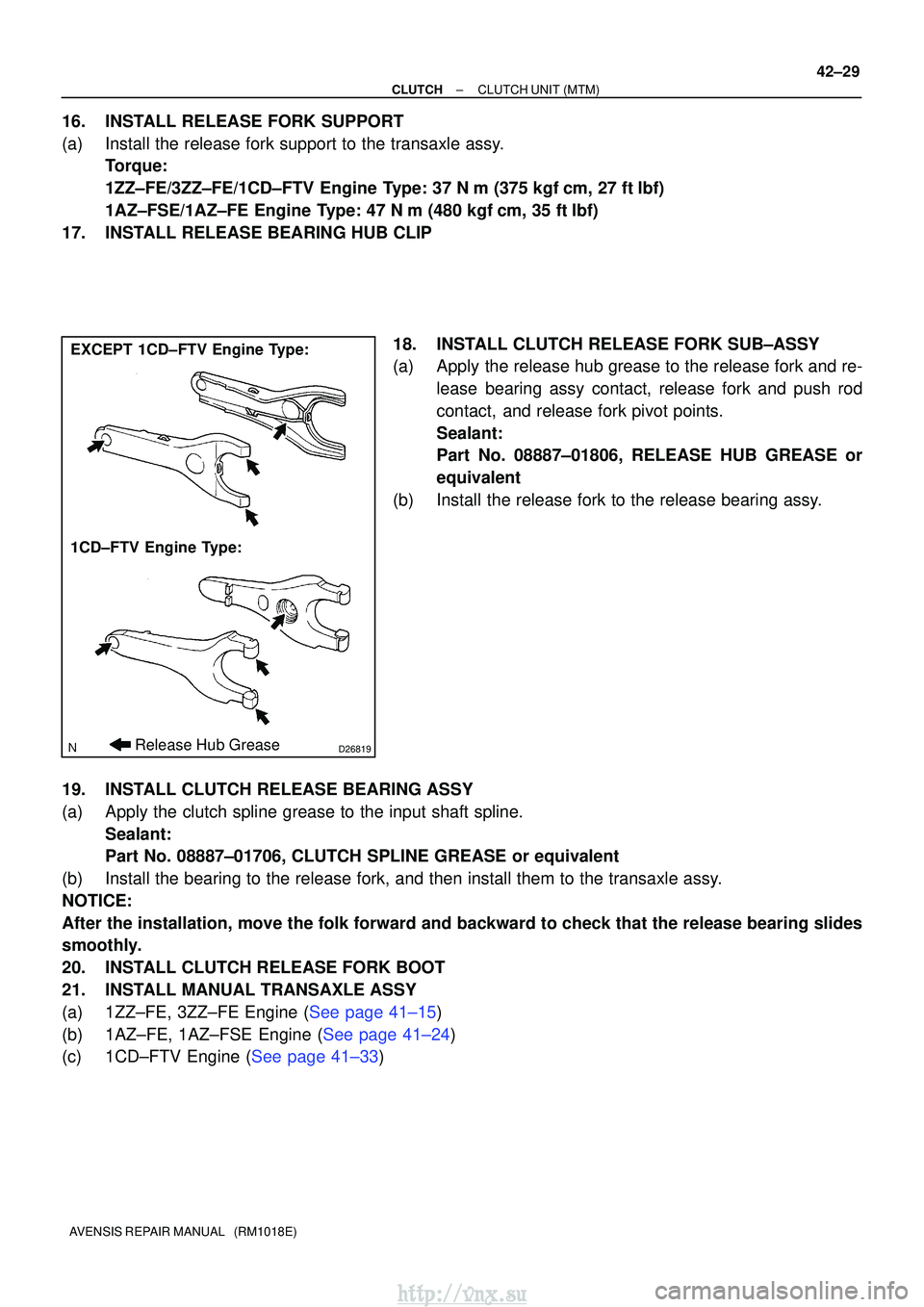

16. INSTALL RELEASE FORK SUPPORT
(a) Install the release fork support to the transaxle assy.
Torque:
1ZZ±FE/3ZZ±FE/1CD±FTV Engine Type: 37 N m (375 kgfcm, 27 ftlbf)
1AZ±FSE/1AZ±FE Engine Type: 47 N m (480 kgf cm, 35 ftlbf)
17. INSTALL RELEASE BEARING HUB CLIP
18. INSTALL CLUTCH RELEASE FORK SUB±ASSY
(a) Apply the release hub grease to the release fork and re-lease bearing assy contact, release fork and push rod
contact, and release fork pivot points.
Sealant:
Part No. 08887±01806, RELEASE HUB GREASE or
equivalent
(b) Install the release fork to the release bearing assy.
19. INSTALL CLUTCH RELEASE BEARING ASSY
(a) Apply the clutch spline grease to the input shaft spline. Sealant:
Part No. 08887±01706, CLUTCH SPLINE GREASE or equivalent
(b) Install the bearing to the release fork, and then install them to the tr\
ansaxle assy.
NOTICE:
After the installation, move the folk forward and backward to check that\
the release bearing slides
smoothly.
20. INSTALL CLUTCH RELEASE FORK BOOT
21. INSTALL MANUAL TRANSAXLE ASSY
(a)1ZZ±FE, 3ZZ±FE Engine (See page 41±15)
(b)1AZ±FE, 1AZ±FSE Engine (See page 41±24)
(c)1CD±FTV Engine (See page 41±33)
http://vnx.su
Page 1219 of 2234

5006Z±01
50±20
±
STEERING COLUMN POWER STEERING ECU ASSY
AVENSIS REPAIR MANUAL (RM1018E)

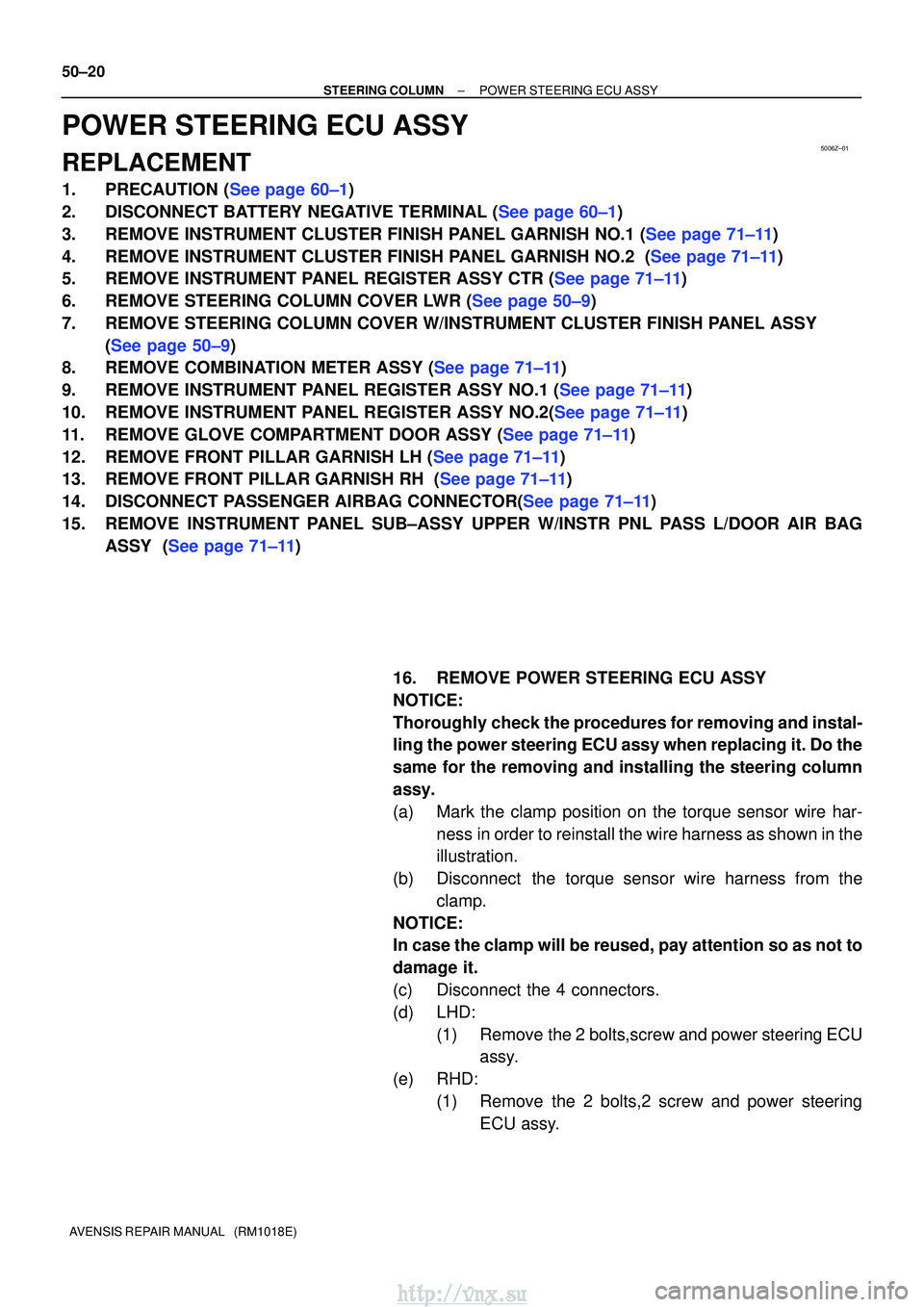

POWER STEERING ECU ASSY
REPLACEMENT
1.PRECAUTION (See page 60±1)
2.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
3.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 (See page 71±11)
4.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (See page 71±11)
5.REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (See page 71±11)
6.REMOVE STEERING COLUMN COVER LWR (See page 50±9)
7. REMOVE STEERING COLUMN COVER W/INSTRUMENT CLUSTER FINISH PANEL ASSY (See page 50±9)
8.REMOVE COMBINATION METER ASSY (See page 71±11)
9.REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1 (See page 71±11)
10.REMOVE INSTRUMENT PANEL REGISTER ASSY NO.2(See page 71±11)
11.REMOVE GLOVE COMPARTMENT DOOR ASSY (See page 71±11)
12.REMOVE FRONT PILLAR GARNISH LH (See page 71±11)
13.REMOVE FRONT PILLAR GARNISH RH (See page 71±11)
14.DISCONNECT PASSENGER AIRBAG CONNECTOR(See page 71±11)
15. REMOVE INSTRUMENT PANEL SUB±ASSY UPPER W/INSTR PNL PASS L/DOOR AIR BAG
ASSY (See page 71±11)
16. REMOVE POWER STEERING ECU ASSY
NOTICE:
Thoroughly check the procedures for removing and instal-
ling the power steering ECU assy when replacing it. Do the
same for the removing and installing the steering column
assy.

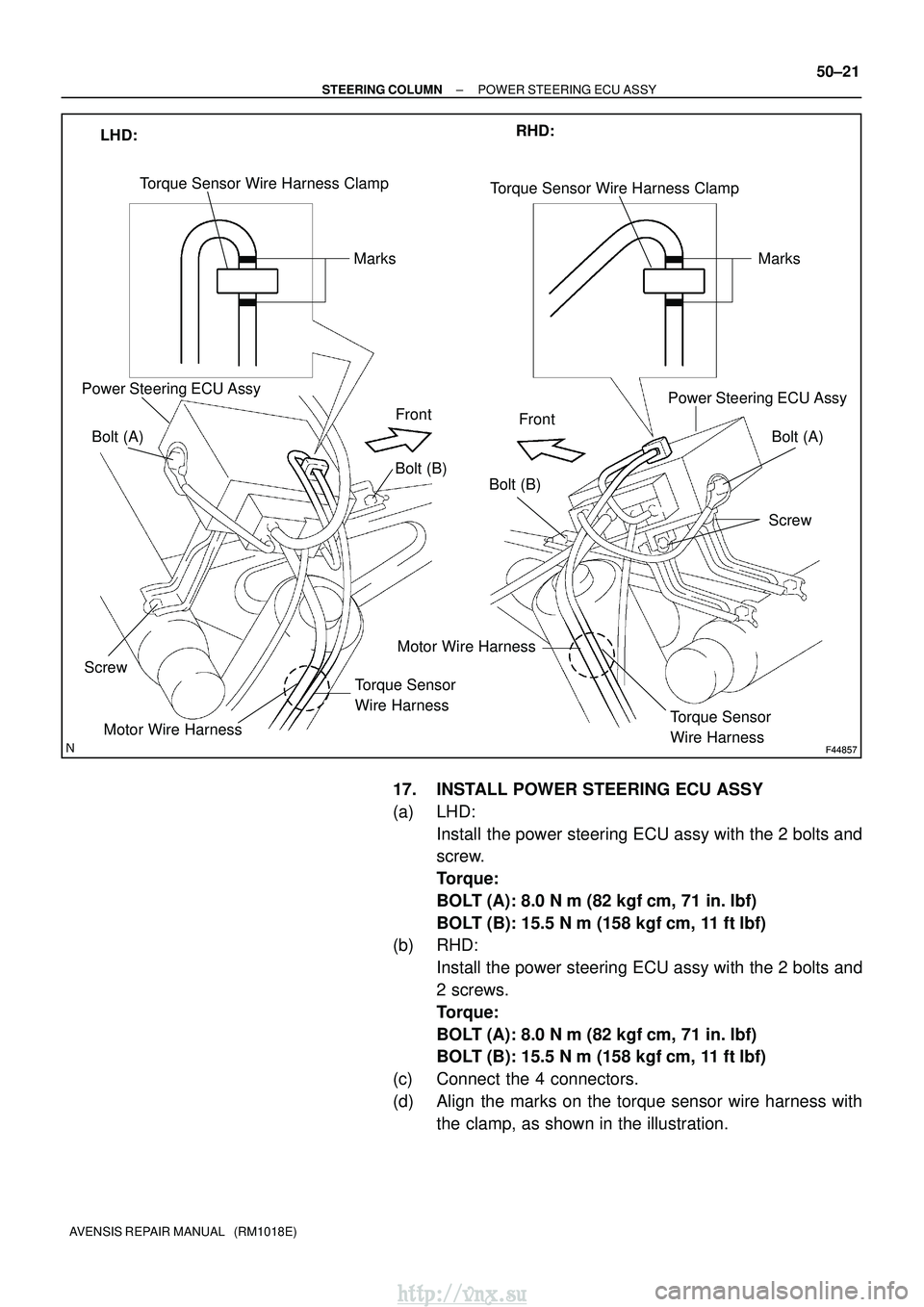

(a) Mark the clamp position on the torque sensor wire har-ness in order to reinstall the wire harness as shown in the
illustration.
(b) Disconnect the torque sensor wire harness from the clamp.
NOTICE:
In case the clamp will be reused, pay attention so as not to
damage it.
(c) Disconnect the 4 connectors.
(d) LHD: (1) Remove the 2 bolts,screw and power steering ECUassy.
(e) RHD: (1) Remove the 2 bolts,2 screw and power steeringECU assy.
http://vnx.su
Page 1220 of 2234
F44857F44857
LHD:RHD:
Torque Sensor Wire Harness Clamp
Marks
Power Steering ECU Assy
Front
Motor Wire Harness
Torque Sensor
Wire Harness
Front
Torque Sensor
Wire Harness
Motor Wire Harness
Power Steering ECU Assy
Torque Sensor Wire Harness Clamp
Marks
Bolt (A)
Bolt (B)
Screw Screw
Bolt (B) Bolt (A)
±
STEERING COLUMN POWER STEERING ECU ASSY
50±21
AVENSIS REPAIR MANUAL (RM1018E)
17. INSTALL POWER STEERING ECU ASSY
(a) LHD:
Install the power steering ECU assy with the 2 bolts and
screw.
Torque:
BOLT (A): 8.0 N m (82 kgfcm, 71 in. lbf)
BOLT (B): 15.5 N m (158 kgf cm, 11 ftlbf)
(b) RHD:
Install the power steering ECU assy with the 2 bolts and
2 screws.
Torque:
BOLT (A): 8.0 N m (82 kgfcm, 71 in. lbf)
BOLT (B): 15.5 N m (158 kgf cm, 11 ftlbf)
(c) Connect the 4 connectors.
(d) Align the marks on the torque sensor wire harness with the clamp, as shown in the illustration.
http://vnx.su
Page 1221 of 2234
50±22
±
STEERING COLUMN POWER STEERING ECU ASSY
AVENSIS REPAIR MANUAL (RM1018E)

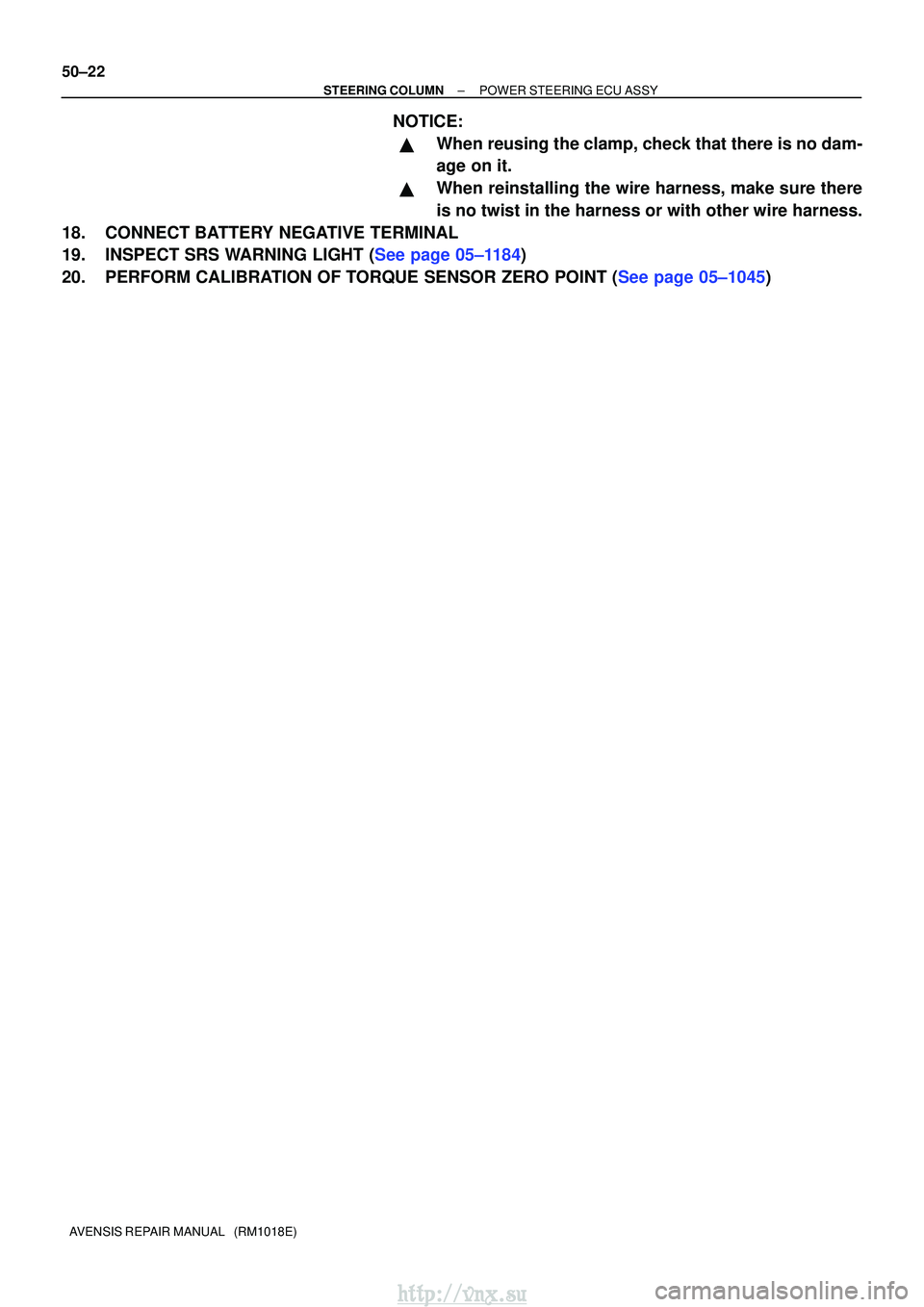

NOTICE:
When reusing the clamp, check that there is no dam-
age on it.
When reinstalling the wire harness, make sure there
is no twist in the harness or with other wire harness.
18. CONNECT BATTERY NEGATIVE TERMINAL
19.INSPECT SRS WARNING LIGHT (See page 05±1184)
20.PERFORM CALIBRATION OF TORQUE SENSOR ZERO POINT (See page 05±1045)
http://vnx.su
Page 1222 of 2234

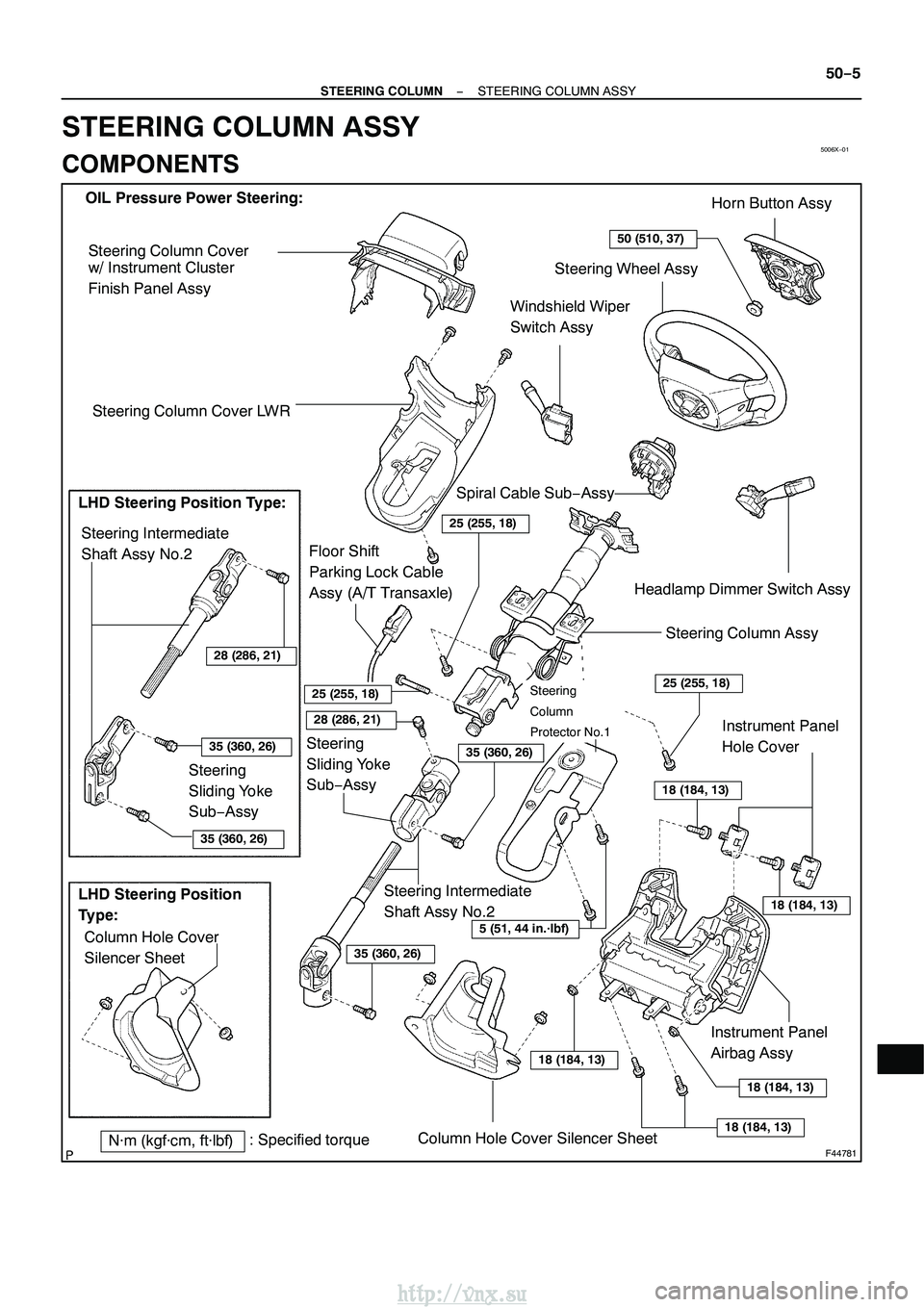

5006X−01
Steering
Column
Protector No.1
F44781
Horn Button Assy
Steering Wheel Assy
Spiral Cable Sub −Assy
Steering Column Cover
Headlamp Dimmer Switch AssySteering Column Assy
Steering
Sliding Yoke
Sub− Assy
Steering Intermediate
Shaft Assy No.2
Column Hole Cover Silencer Sheet
Steering Column Cover LWR
Windshield Wiper
Switch Assy
N
m (kgf cm, ftlbf): Specified torque
OIL Pressure Power Steering:
Steering Intermediate
Shaft Assy No.2
Steering
Sliding Yoke
Sub−Assy
35 (360, 26)
Column Hole Cover
Silencer Sheet
LHD Steering Position Type:
LHD Steering Position
Type: w/ Instrument Cluster
Finish Panel Assy
Floor Shift
Parking Lock Cable
Assy (A/T Transaxle)
Instrument Panel
Hole Cover
5 (51, 44 in.
lbf)
18 (184, 13)
18 (184, 13)
Instrument Panel
Airbag Assy
18 (184, 13)
18 (184, 13)
18 (184, 13)
25 (255, 18)
50 (510, 37)
35 (360, 26)
35 (360, 26)
28 (286, 21)
35 (360, 26)
28 (286, 21)
25 (255, 18)
25 (255, 18)
−
STEERING COLUMN STEERING COLUMN ASSY
50−5
STEERING COLUMN ASSY
COMPONENTS
http://vnx.su
Page 1223 of 2234

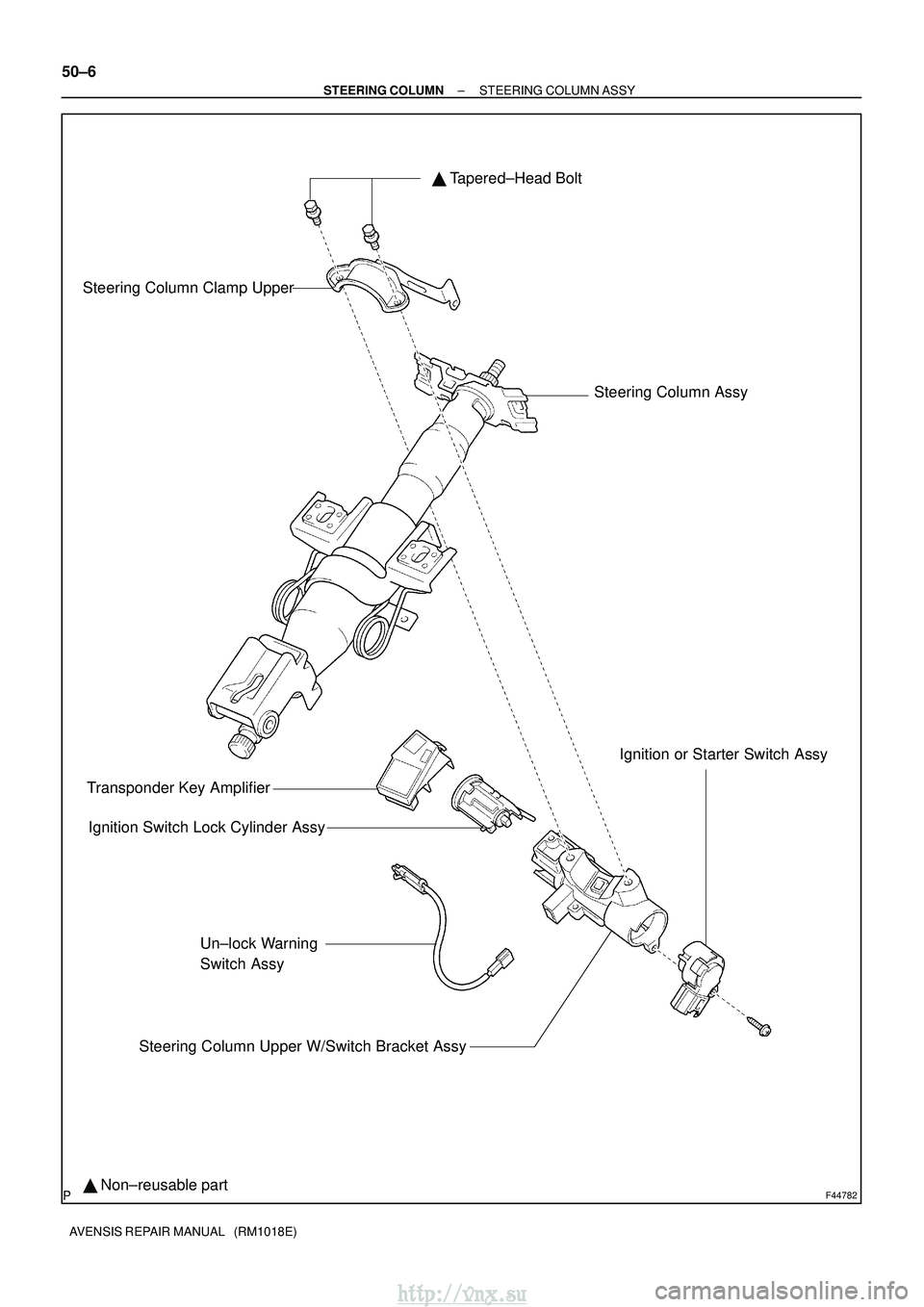

F44782
Transponder Key Amplifier
Tapered±Head Bolt
Steering Column Clamp Upper
Ignition or Starter Switch Assy
Un±lock Warning
Switch Assy
Steering Column Upper W/Switch Bracket Assy
Ignition Switch Lock Cylinder Assy
Non±reusable part
Steering Column Assy
50±6
±
STEERING COLUMN STEERING COLUMN ASSY
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su
Page 1224 of 2234

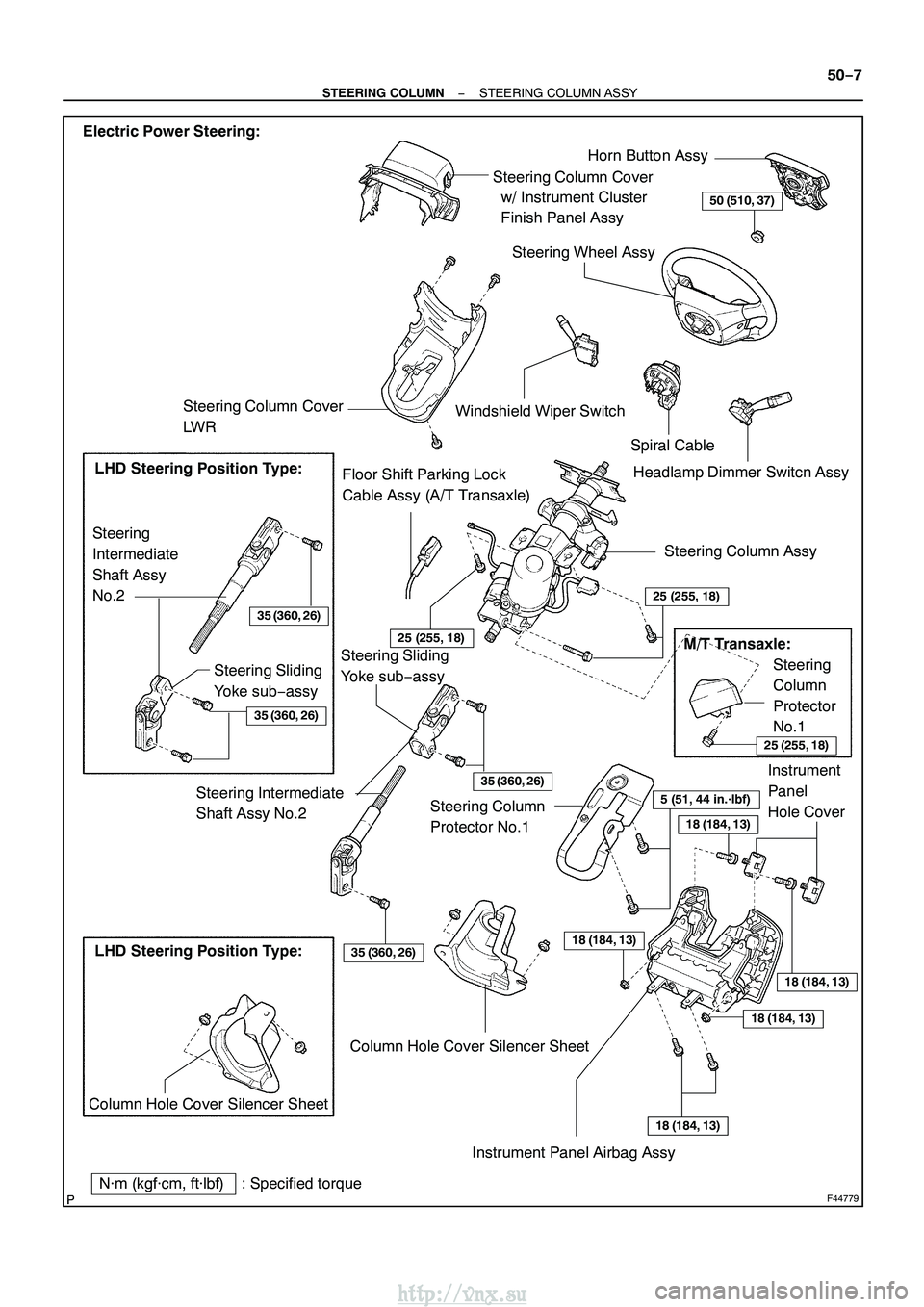

F44779
Horn Button Assy
Steering Wheel Assy
Headlamp Dimmer Switcn Assy
Spiral Cable
Windshield Wiper Switch Steering Column Cover
Steering Column Assy
Steering
Intermediate
Shaft Assy
No.2
Steering Sliding
Yoke sub−assy
Column Hole Cover Silencer Sheet
N m (kgf cm, ftlbf): Specified torque Steering Sliding
Yoke sub
−assy
Steering Intermediate
Shaft Assy No.2
LHD Steering Position Type:
Electric Power Steering:
35 (360, 26)
35 (360, 26)
35 (360, 26)
Column Hole Cover Silencer Sheet
Steering Column Cover
LW R
Floor Shift Parking Lock
Cable Assy (A/T Transaxle)
Instrument Panel Airbag Assy
18 (184, 13)
Steering
Column
Protector
No.1
Instrument
Panel
Hole Cover
18 (184, 13)
18 (184, 13)
5 (51, 44 in.
lbf)
25 (255, 18)
18 (184, 13)
18 (184, 13)
LHD Steering Position Type: w/ Instrument Cluster
Finish Panel Assy
50 (510, 37)
25 (255, 18)
Steering Column
Protector No.1
35 (360, 26)
M/T Transaxle:25 (255, 18)
−
STEERING COLUMN STEERING COLUMN ASSY
50−7
