190AA±01
A62753
SST
1 ± BSST
1 ± A
A62754SST 2
A62755
SST
1 ± A
A62756
SST
1 ± A
SST
1 ± B
19±10
±
STARTING & CHARGING GENERATOR ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)
OVERHAUL

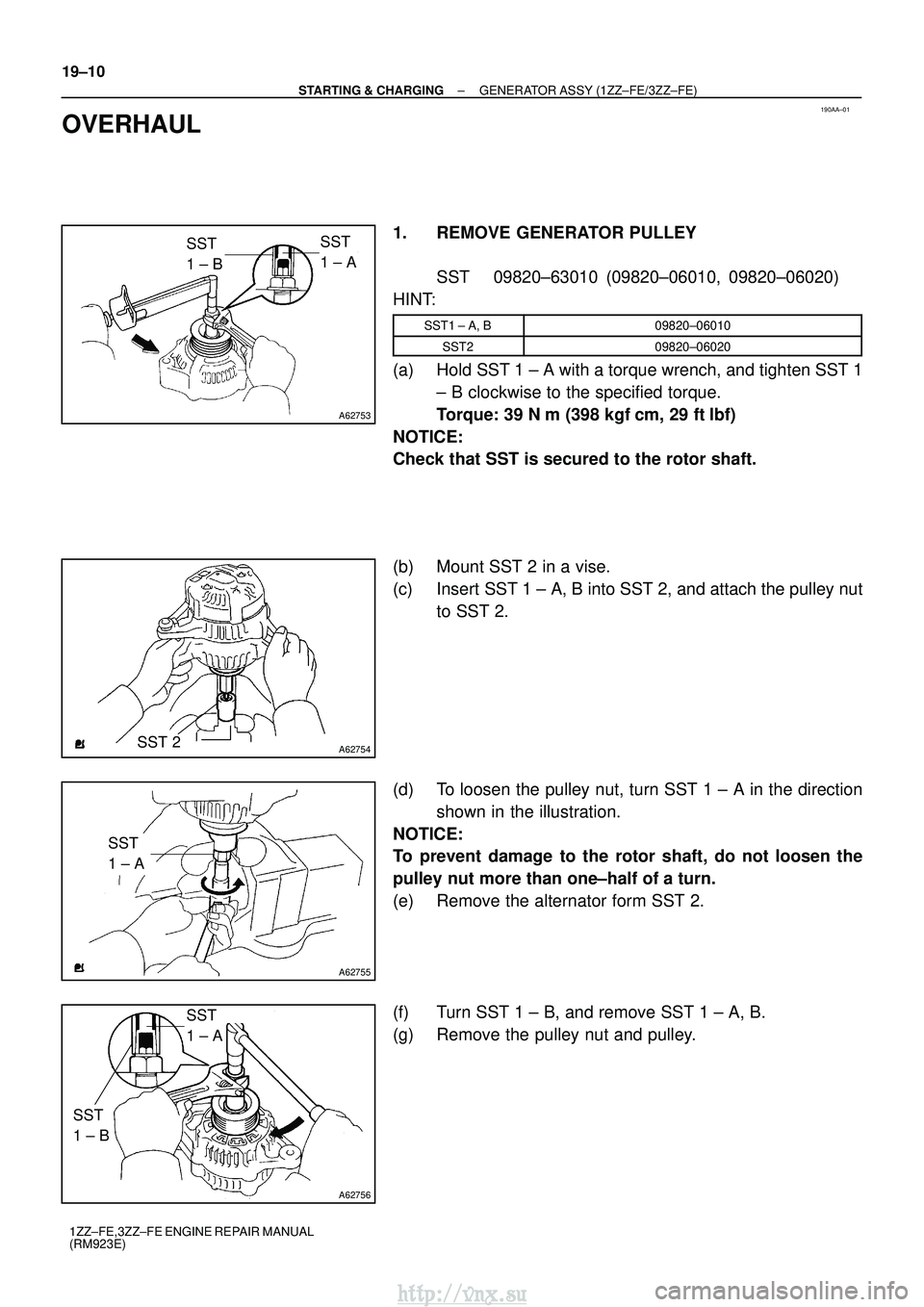

1. REMOVE GENERATOR PULLEY SST 09820±63010 (09820±06010, 09820±06020)
HINT:
SST1 ± A, B09820±06010
SST209820±06020
(a) Hold SST 1 ± A with a torque wrench, and tighten SST 1 ± B clockwise to the specified torque.
Torque: 39 N m (398 kgf cm, 29 ftlbf)
NOTICE:
Check that SST is secured to the rotor shaft.
(b) Mount SST 2 in a vise.
(c) Insert SST 1 ± A, B into SST 2, and attach the pulley nut to SST 2.
(d) To loosen the pulley nut, turn SST 1 ± A in the direction shown in the illustration.
NOTICE:
To prevent damage to the rotor shaft, do not loosen the
pulley nut more than one±half of a turn.
(e) Remove the alternator form SST 2.
(f) Turn SST 1 ± B, and remove SST 1 ± A, B.
(g) Remove the pulley nut and pulley.
http://vnx.su
Page 842 of 2234

A62757
SST
A62881
FB
A62882
E F
±
STARTING & CHARGING GENERATOR ASSY (1ZZ±FE/3ZZ±FE)
19±11
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

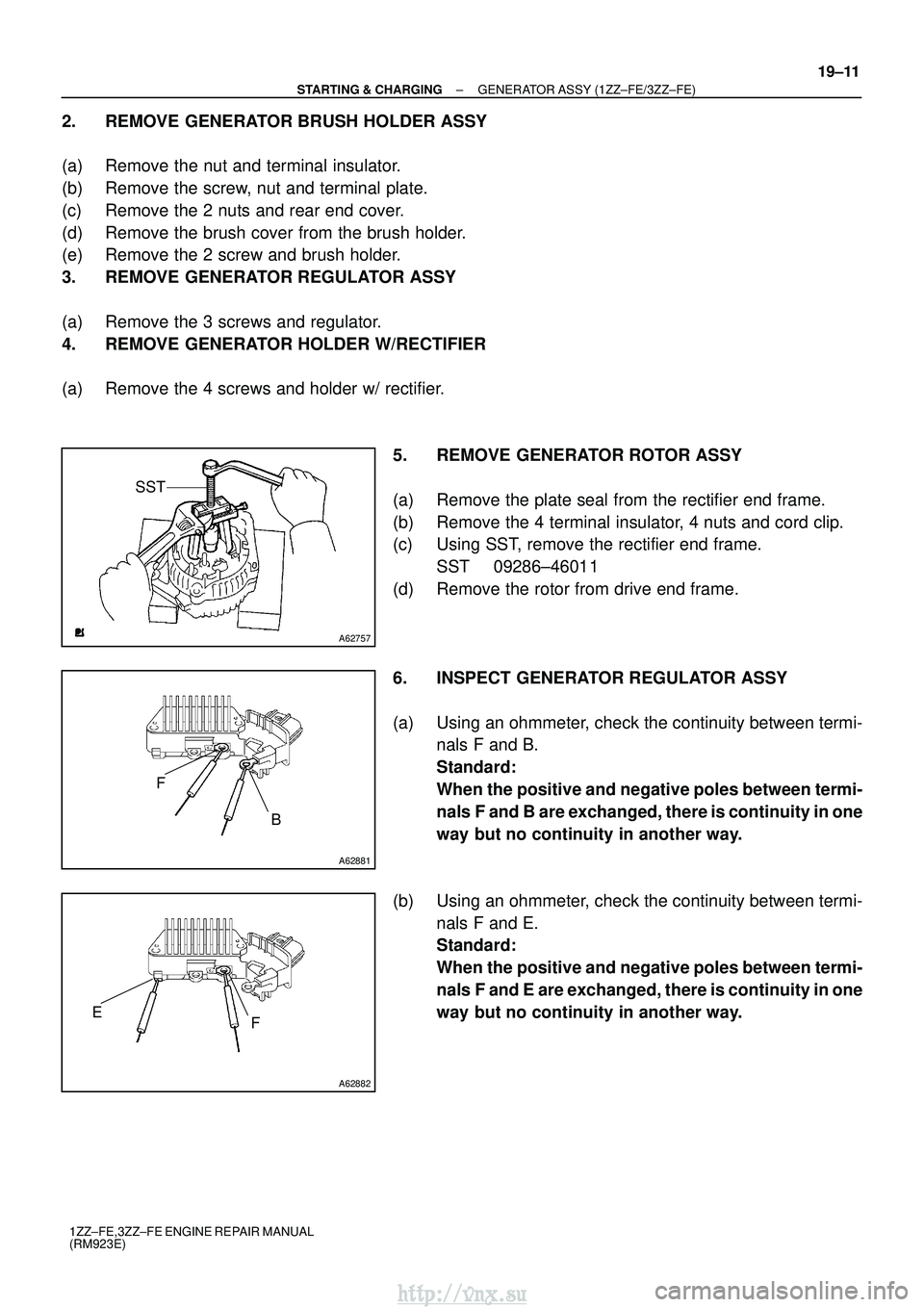

2. REMOVE GENERATOR BRUSH HOLDER ASSY
(a) Remove the nut and terminal insulator.
(b) Remove the screw, nut and terminal plate.
(c) Remove the 2 nuts and rear end cover.
(d) Remove the brush cover from the brush holder.
(e) Remove the 2 screw and brush holder.
3. REMOVE GENERATOR REGULATOR ASSY
(a) Remove the 3 screws and regulator.
4. REMOVE GENERATOR HOLDER W/RECTIFIER
(a) Remove the 4 screws and holder w/ rectifier.
5. REMOVE GENERATOR ROTOR ASSY
(a) Remove the plate seal from the rectifier end frame.
(b) Remove the 4 terminal insulator, 4 nuts and cord clip.
(c) Using SST, remove the rectifier end frame.SST 09286±46011
(d) Remove the rotor from drive end frame.
6. INSPECT GENERATOR REGULATOR ASSY
(a) Using an ohmmeter, check the continuity between termi- nals F and B.
Standard:
When the positive and negative poles between termi-
nals F and B are exchanged, there is continuity in one
way but no continuity in another way.
(b) Using an ohmmeter, check the continuity between termi- nals F and E.
Standard:
When the positive and negative poles between termi-
nals F and E are exchanged, there is continuity in one
way but no continuity in another way.
http://vnx.su
Page 843 of 2234

A62758
Slip Ring
A62759
Slip Ring
Rotor
A62760
A62761
B
P4
E
P2P1
B
P1 P2 P3P4
E
A62762
19±12
±
STARTING & CHARGING GENERATOR ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

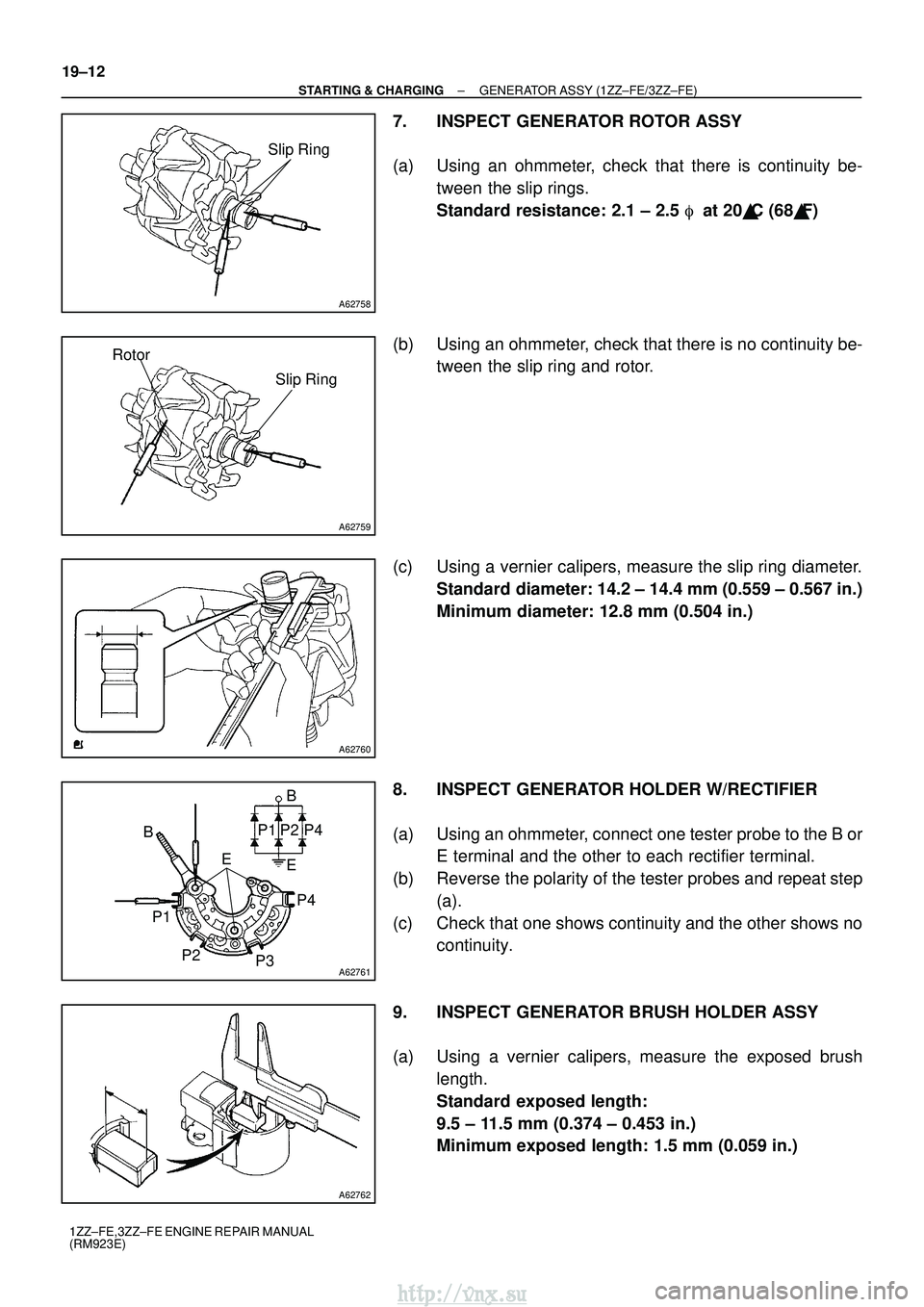

7. INSPECT GENERATOR ROTOR ASSY
(a) Using an ohmmeter, check that there is continuity be- tween the slip rings.
Standard resistance: 2.1 ± 2.5 at 20 C (68 F)
(b) Using an ohmmeter, check that there is no continuity be- tween the slip ring and rotor.
(c) Using a vernier calipers, measure the slip ring diameter. Standard diameter: 14.2 ± 14.4 mm (0.559 ± 0.567 in.)
Minimum diameter: 12.8 mm (0.504 in.)
8. INSPECT GENERATOR HOLDER W/RECTIFIER
(a) Using an ohmmeter, connect one tester probe to the B or E terminal and the other to each rectifier terminal.
(b) Reverse the polarity of the tester probes and repeat step (a).
(c) Check that one shows continuity and the other shows no continuity.
9. INSPECT GENERATOR BRUSH HOLDER ASSY
(a) Using a vernier calipers, measure the exposed brush length.
Standard exposed length:
9.5 ± 11.5 mm (0.374 ± 0.453 in.)
Minimum exposed length: 1.5 mm (0.059 in.)
http://vnx.su
Page 844 of 2234
B00219
B00211
Socket Wrench
29
A62763
A
A
A B
Cord Clip
A62764Protrusion
±
STARTING & CHARGING GENERATOR ASSY (1ZZ±FE/3ZZ±FE)
19±13
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

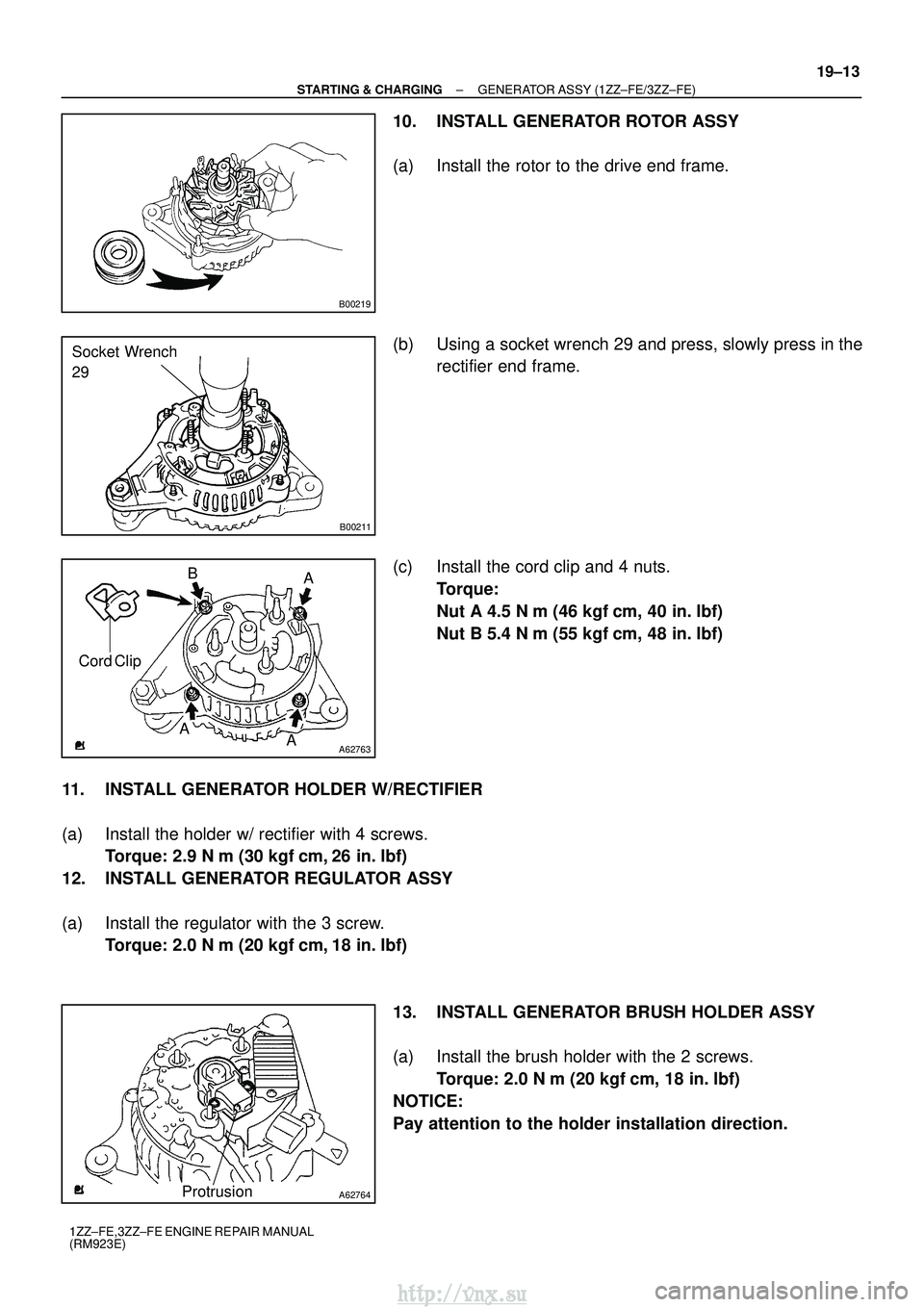

10. INSTALL GENERATOR ROTOR ASSY
(a) Install the rotor to the drive end frame.
(b) Using a socket wrench 29 and press, slowly press in the
rectifier end frame.
(c) Install the cord clip and 4 nuts. Torque:
Nut A 4.5 N m (46 kgfcm, 40 in. lbf)
Nut B 5.4 N m (55 kgfcm, 48 in. lbf)
11. INSTALL GENERATOR HOLDER W/RECTIFIER
(a) Install the holder w/ rectifier with 4 screws. Torque: 2.9 N m (30 kgf cm, 26 in. lbf)
12. INSTALL GENERATOR REGULATOR ASSY
(a) Install the regulator with the 3 screw. Torque: 2.0 N m (20 kgf cm, 18 in. lbf)
13. INSTALL GENERATOR BRUSH HOLDER ASSY
(a) Install the brush holder with the 2 screws. Torque: 2.0 N m (20 kgf cm, 18 in. lbf)
NOTICE:
Pay attention to the holder installation direction.
http://vnx.su
Page 845 of 2234

A62753
SST
1 ± BSST
1 ± A
A62754SST 2
A62765
SST
1 ± A
19±14
±
STARTING & CHARGING GENERATOR ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)
(b) Install the rear end cover with the 2 nuts. Torque: 4.4 N m (45 kgf cm, 39 in. lbf)
(c) Install the terminal plate with the screw and nut.
Torque:
Bolt 3.9 N m (40 kgf cm, 35 in. lbf)
Nut 4.4 N m (45 kgfcm, 39 in. lbf)
(d) Install the terminal insulator withe the nut.
Torque: 4.1 N m (42 kgf cm, 36 in. lbf)

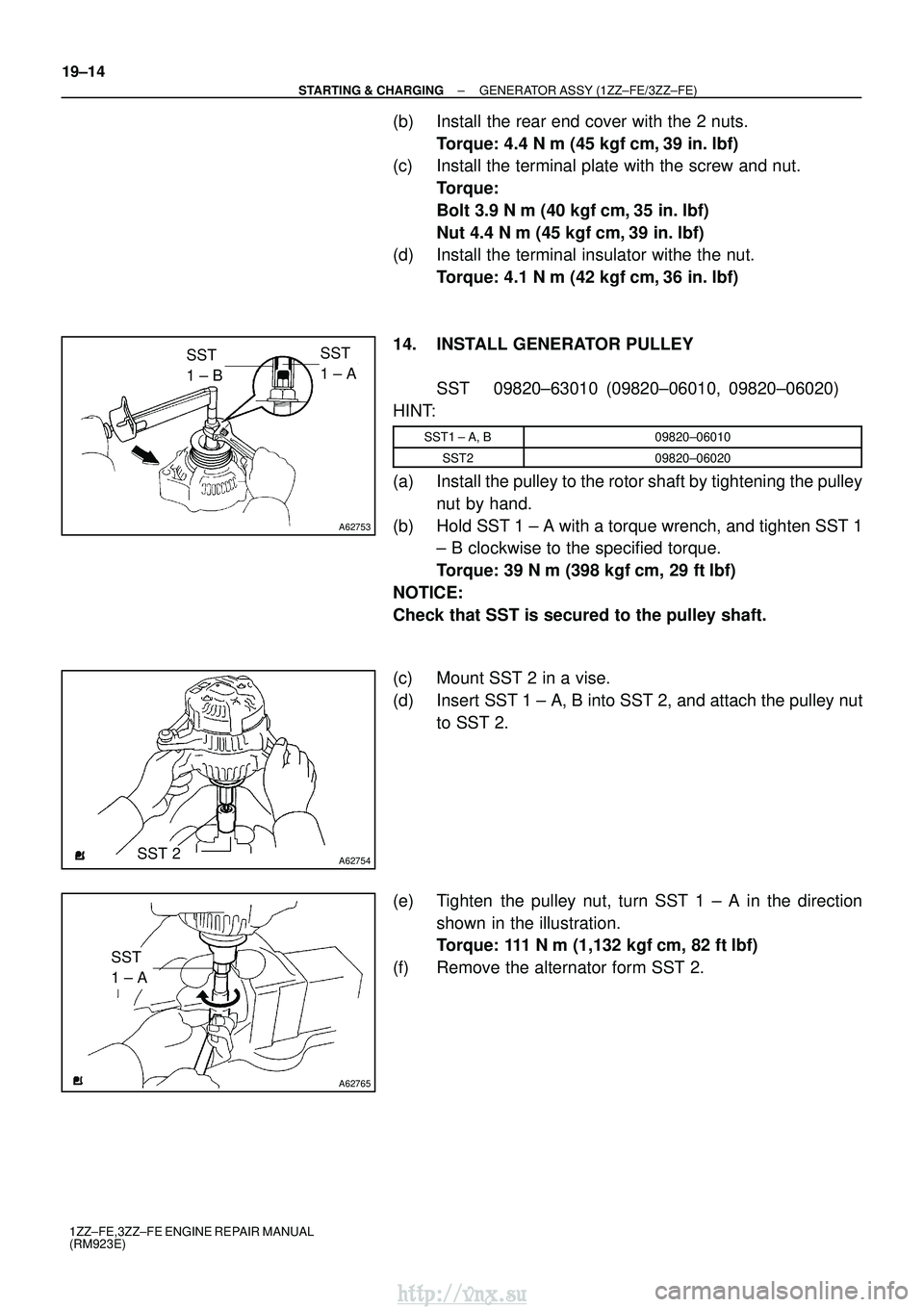

14. INSTALL GENERATOR PULLEY SST 09820±63010 (09820±06010, 09820±06020)
HINT:
SST1 ± A, B09820±06010
SST209820±06020
(a) Install the pulley to the rotor shaft by tightening the pulley nut by hand.
(b) Hold SST 1 ± A with a torque wrench, and tighten SST 1 ± B clockwise to the specified torque.
Torque: 39 N m (398 kgf cm, 29 ftlbf)
NOTICE:
Check that SST is secured to the pulley shaft.
(c) Mount SST 2 in a vise.
(d) Insert SST 1 ± A, B into SST 2, and attach the pulley nut to SST 2.
(e) Tighten the pulley nut, turn SST 1 ± A in the direction shown in the illustration.
Torque: 111 N m (1,132 kgfcm, 82 ft lbf)
(f) Remove the alternator form SST 2.
http://vnx.su
Page 846 of 2234
A62756
SST
1 ± A
SST
1 ± B
±
STARTING & CHARGING GENERATOR ASSY (1ZZ±FE/3ZZ±FE)
19±15
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

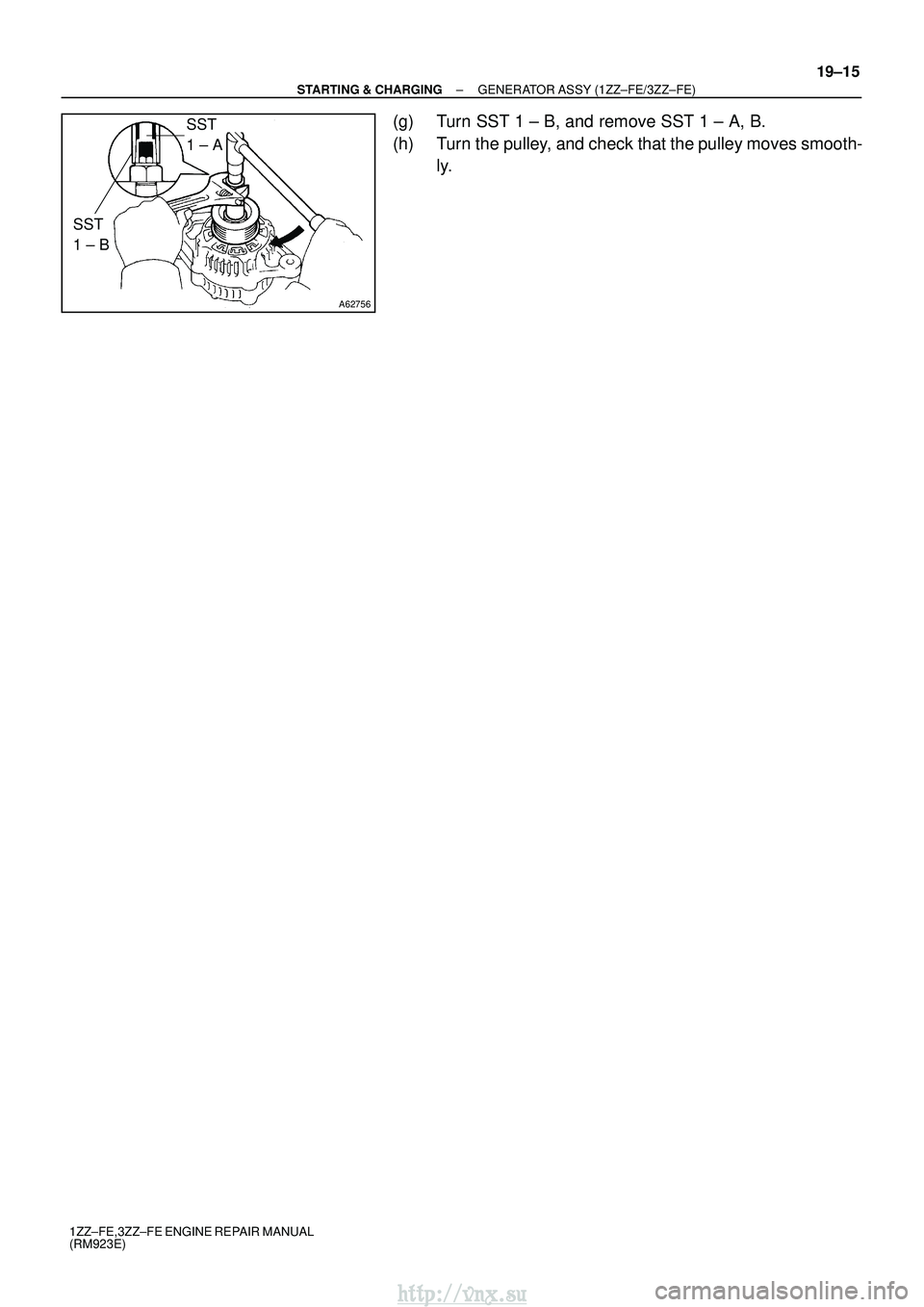

(g) Turn SST 1 ± B, and remove SST 1 ± A, B.
(h) Turn the pulley, and check that the pulley moves smooth-
ly.
http://vnx.su
Page 847 of 2234
190A8±01
A62216
Starter Commutator End Frame AssyStarter Brush Holder Assy Starter Yoke Assy
Starter Pinion Drive Lever Starter Armature Assy
Starter Clutch Sub±assy
Planet Carrier Shaft Sub±assy
Snap Ring
Starter Pinion Stop Collar
Starter Drive Housing Assy
Magnet Starter Switch Assy
9.8 (100, 7)
8.3 (85, 73 in. lbf)
1.5 (15, 13 in. lbf)
5.9 (60, 52 in. lbf)
N´m (kgf´cm, ft´lbf)
: Specified torque
±
STARTING & CHARGING STARTER ASSY (1ZZ±FE/3ZZ±FE)
19±1
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)

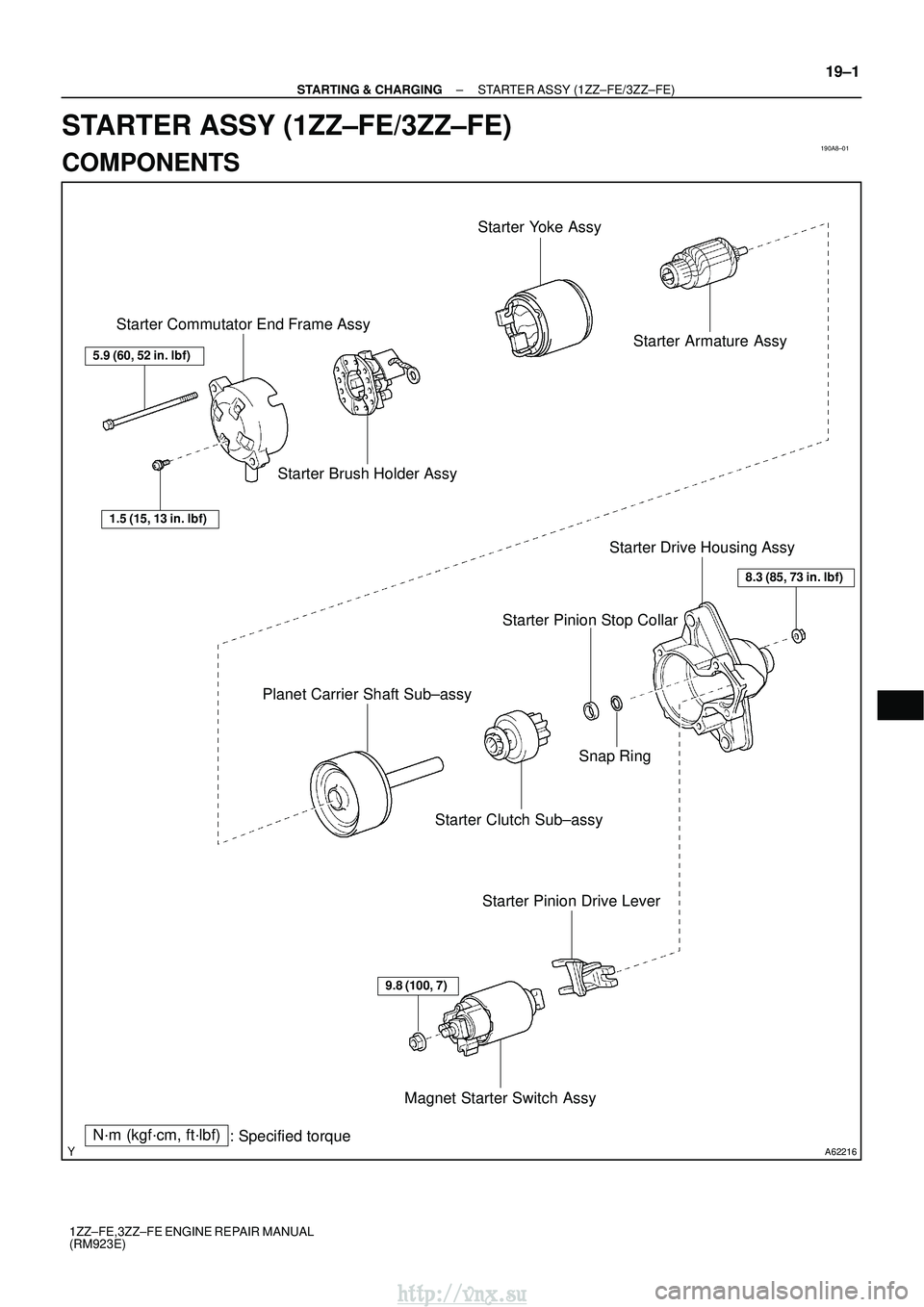

STARTER ASSY (1ZZ±FE/3ZZ±FE)
COMPONENTS
http://vnx.su
Page 848 of 2234

1900P±02
A37086
A34019
ST0728
A62220
19±2
±
STARTING & CHARGING STARTER ASSY (1ZZ±FE/3ZZ±FE)
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)
OVERHAUL

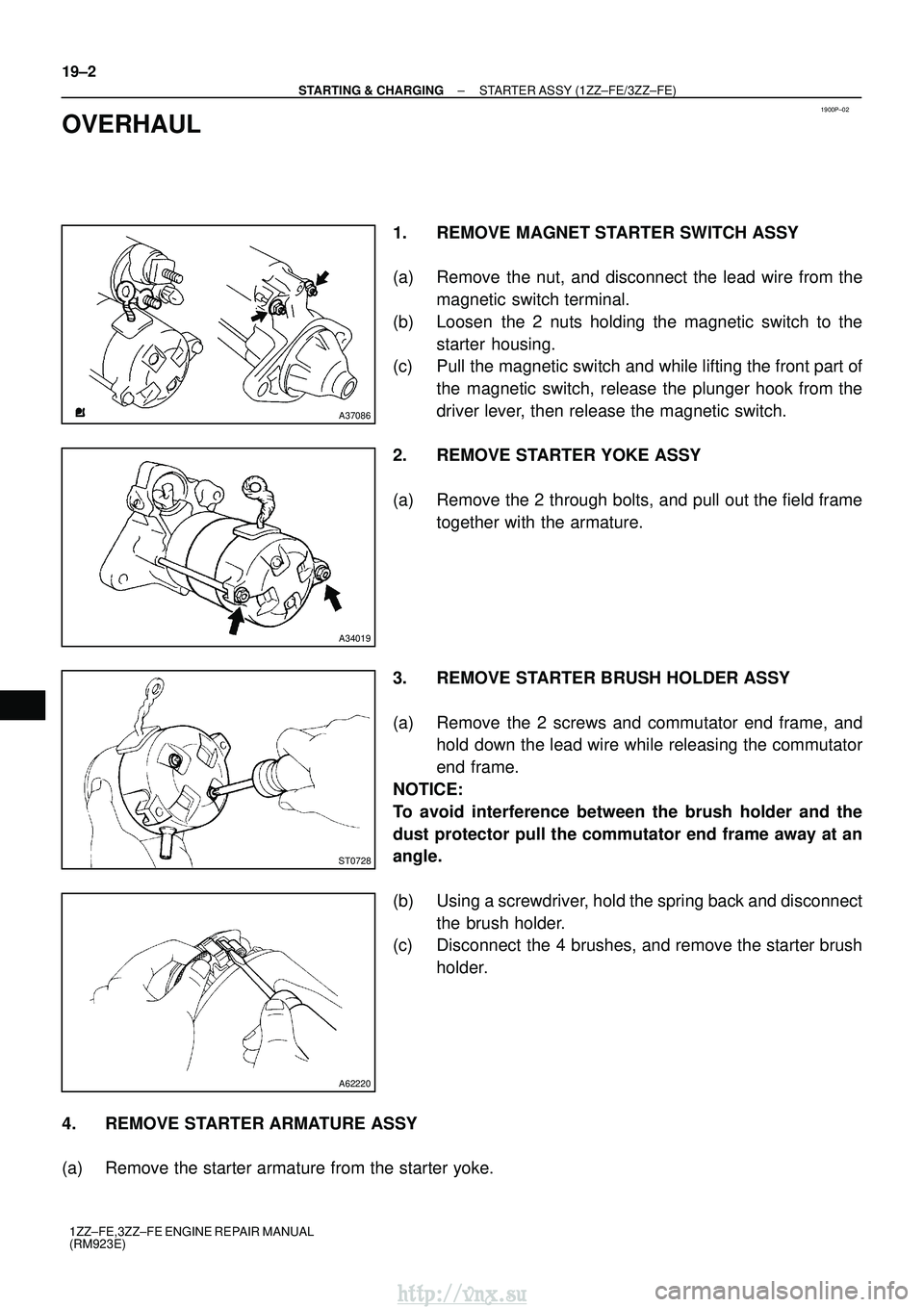

1. REMOVE MAGNET STARTER SWITCH ASSY
(a) Remove the nut, and disconnect the lead wire from the magnetic switch terminal.
(b) Loosen the 2 nuts holding the magnetic switch to the starter housing.
(c) Pull the magnetic switch and while lifting the front part of
the magnetic switch, release the plunger hook from the
driver lever, then release the magnetic switch.
2. REMOVE STARTER YOKE ASSY
(a) Remove the 2 through bolts, and pull out the field frame together with the armature.
3. REMOVE STARTER BRUSH HOLDER ASSY
(a) Remove the 2 screws and commutator end frame, and hold down the lead wire while releasing the commutator
end frame.
NOTICE:
To avoid interference between the brush holder and the
dust protector pull the commutator end frame away at an
angle.
(b) Using a screwdriver, hold the spring back and disconnect the brush holder.
(c) Disconnect the 4 brushes, and remove the starter brush
holder.
4. REMOVE STARTER ARMATURE ASSY
(a) Remove the starter armature from the starter yoke.
