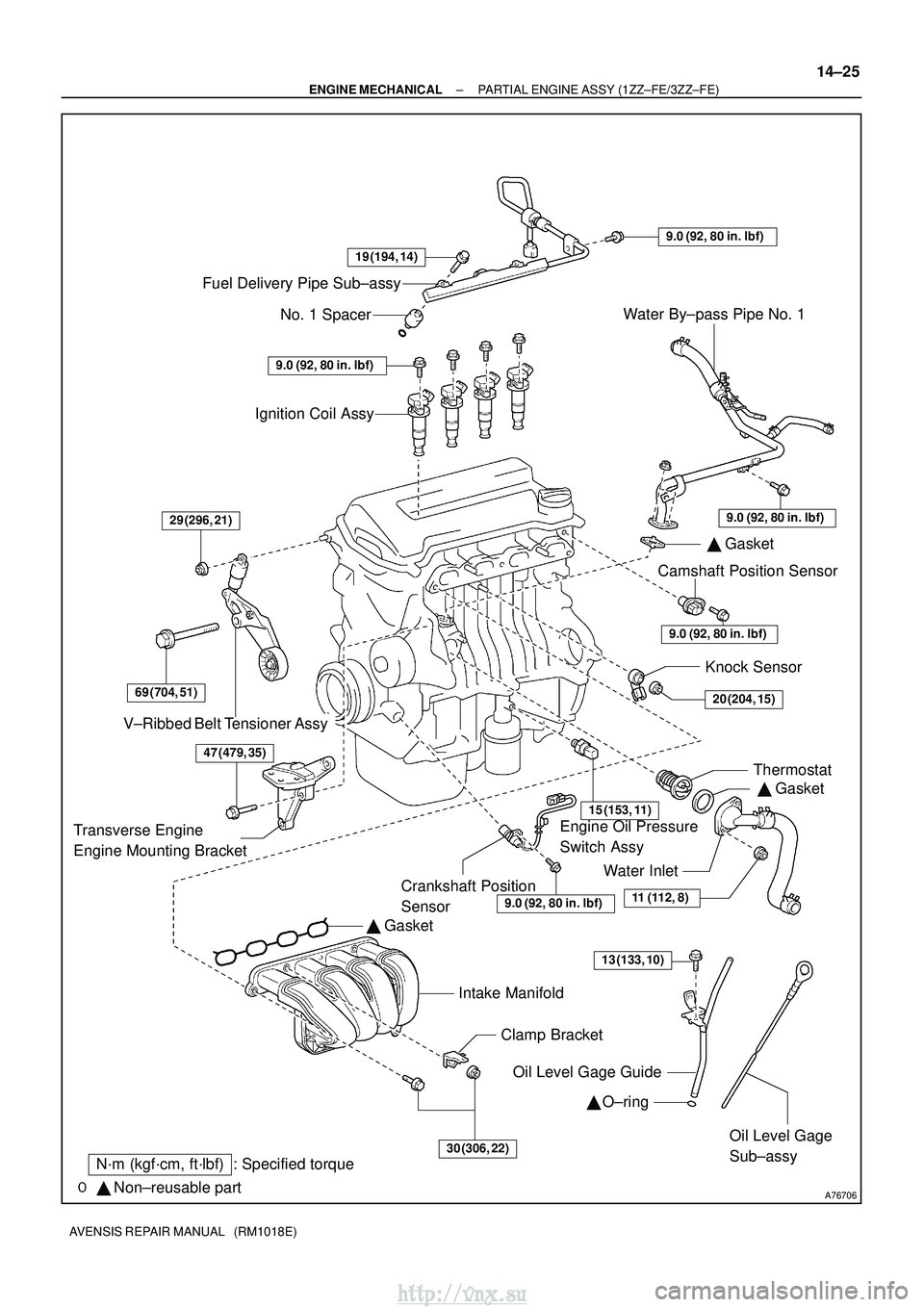

TOYOTA AVENSIS 2003 Service Repair Manual A76706 Fuel Delivery Pipe Sub±assyNo. 1 Spacer Ignition Coil Assy V±Ribbed Belt Tensioner Assy  Gasket Intake ManifoldClamp BracketOil Level Gage Guide  O±ring Oil Level Gage Sub±assy Crankshaf

Page 682 of 2234

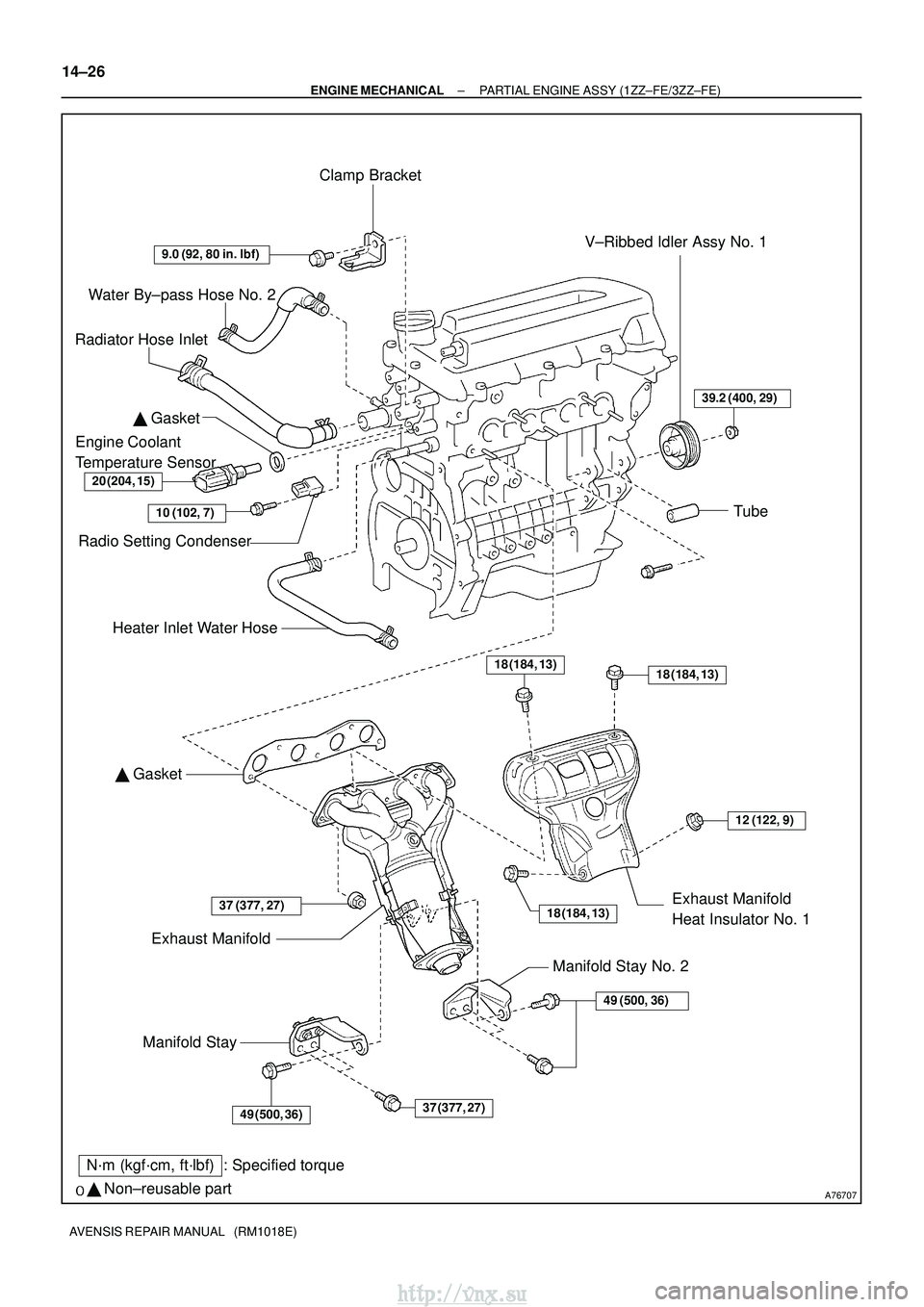

TOYOTA AVENSIS 2003 Service Repair Manual A76707 Water By±pass Hose No. 2 Radiator Hose Inlet Heater Inlet Water Hose Gasket Exhaust Manifold Manifold Stay Exhaust Manifold Heat Insulator No. 1  Gasket Engine Coolant Temperature Sensor

Page 683 of 2234

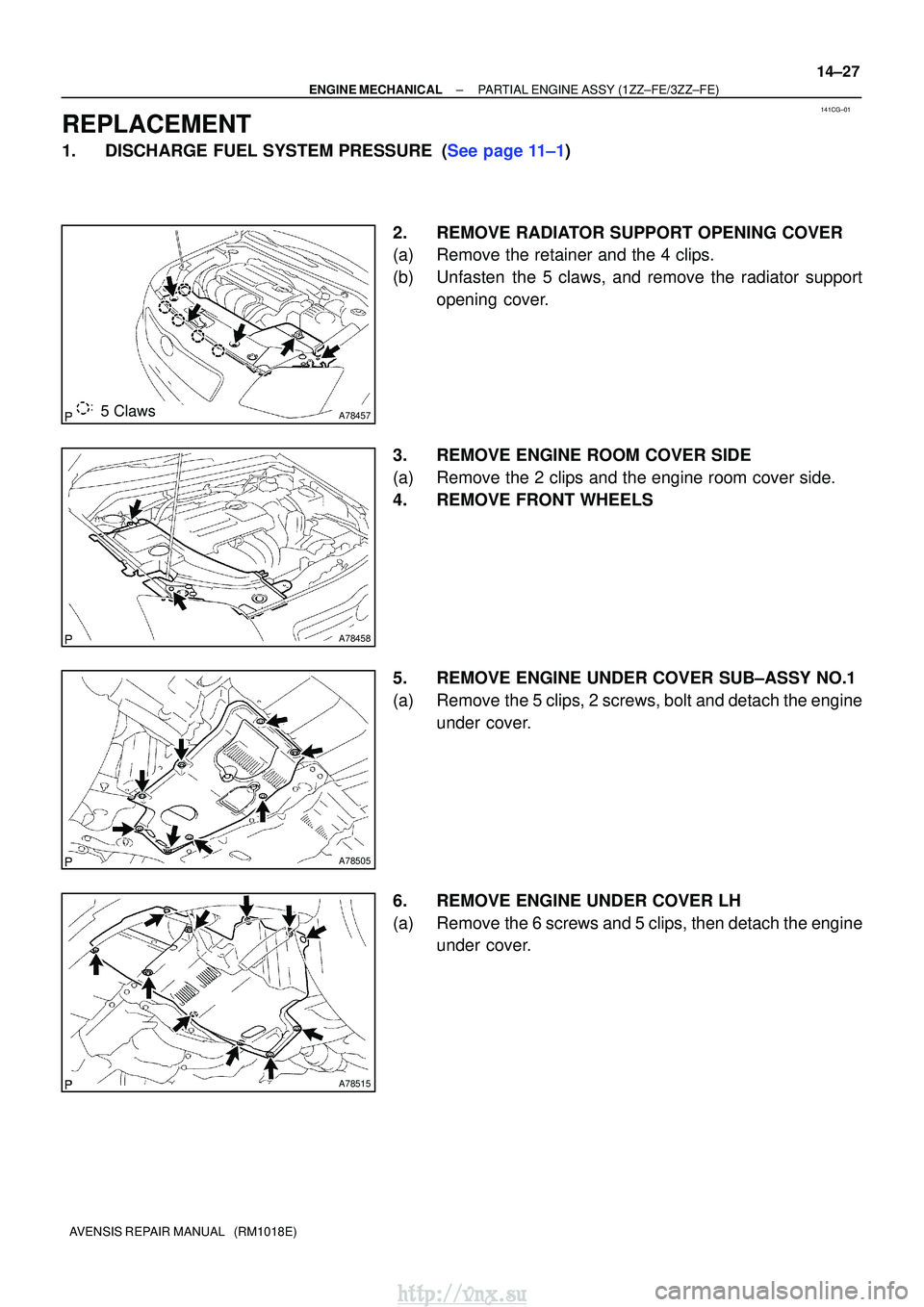

TOYOTA AVENSIS 2003 Service Repair Manual 141CG±01 A784575 Claws A78458 A78505 A78515 ± ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE) 14±27 AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT 1.DISCHARGE FUEL SYSTEM PRESSURE (See page

Page 684 of 2234

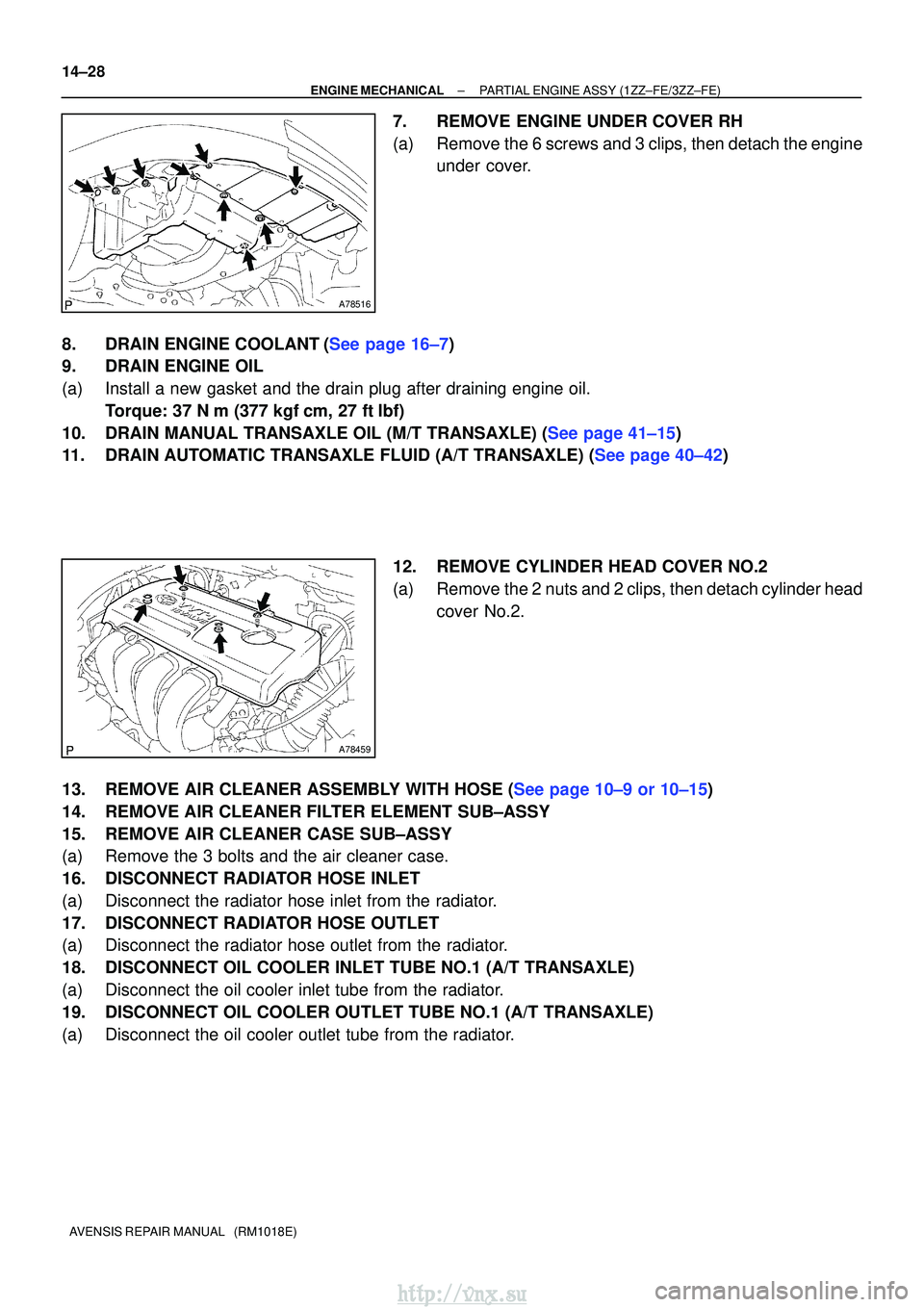

TOYOTA AVENSIS 2003 Service Repair Manual A78516 A78459 14±28 ± ENGINE MECHANICALPARTIAL ENGINE ASSY(1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 7.REMOVE ENGINE UNDER COVER RH (a)Remove the 6 screws and 3 clips, then detach the engin

Page 685 of 2234

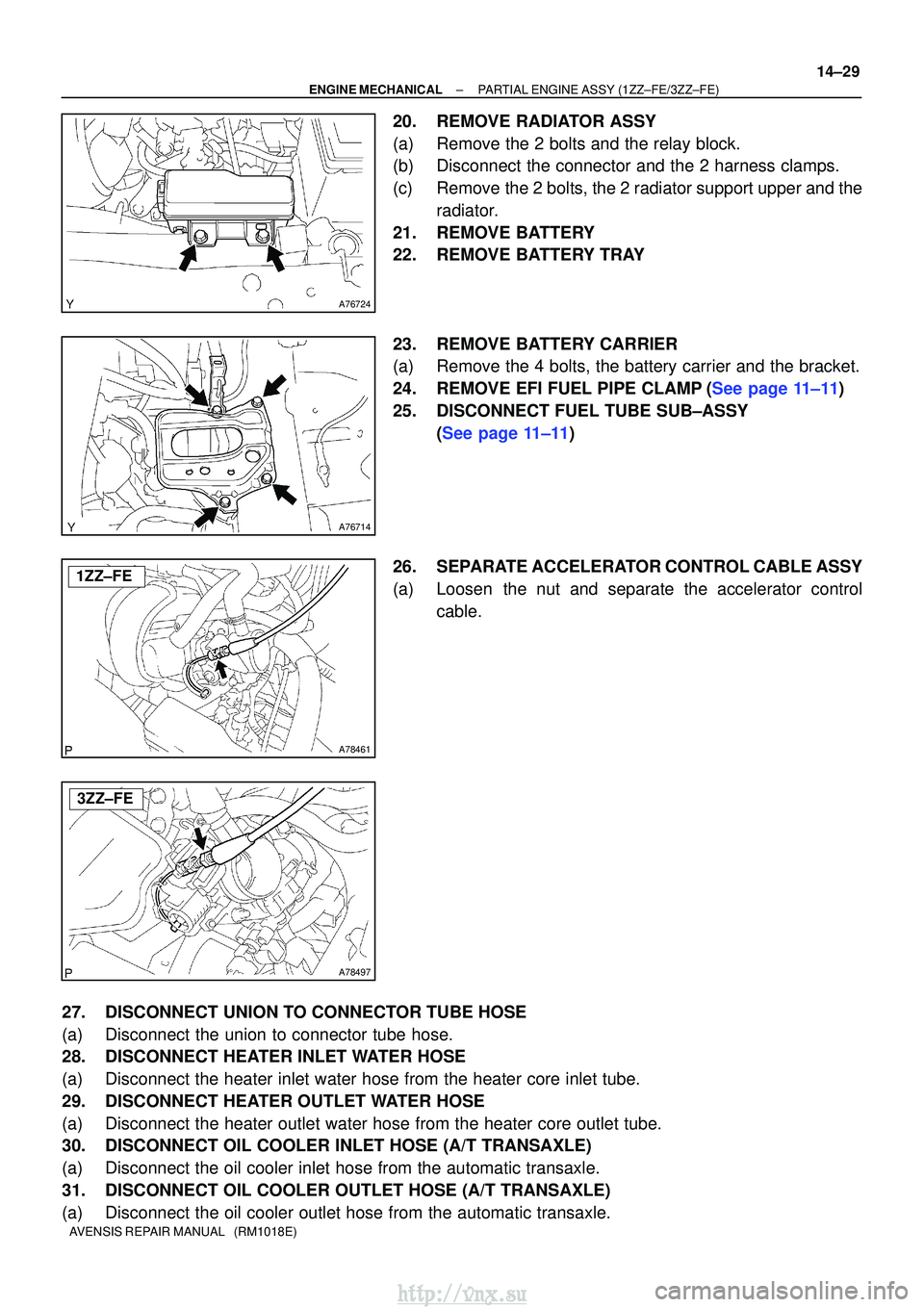

TOYOTA AVENSIS 2003 Service Repair Manual A76724 A76714 A78461 1ZZ±FE A78497 3ZZ±FE ± ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE) 14±29 AVENSIS REPAIR MANUAL (RM1018E) 20. REMOVE RADIATOR ASSY (a) Remove the 2 bolts and the

Page 686 of 2234

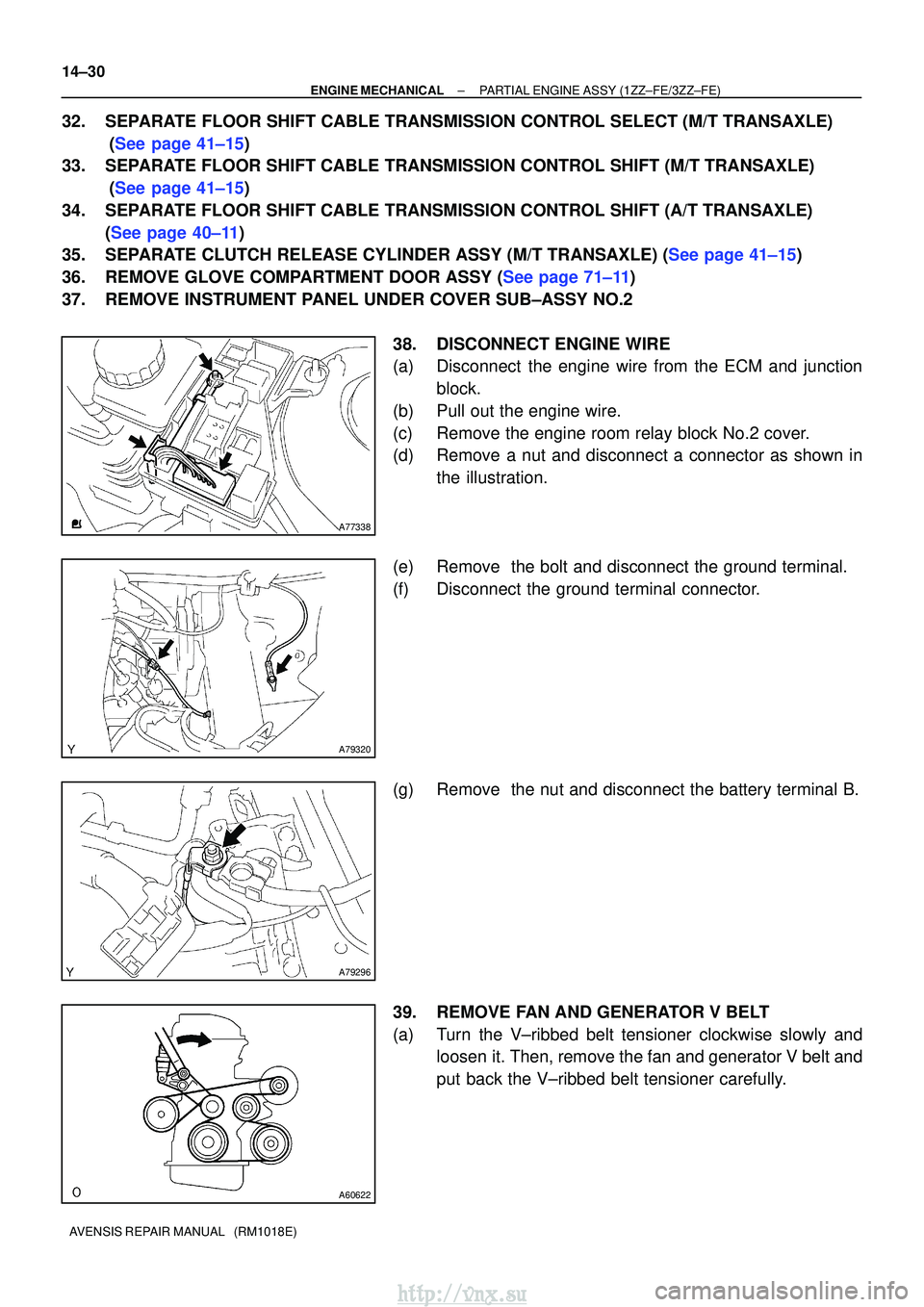

TOYOTA AVENSIS 2003 Service Repair Manual A77338 A79320 A79296 A60622 14±30 ± ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 32. SEPARATE FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT (M/T TRANSAXL

Page 687 of 2234

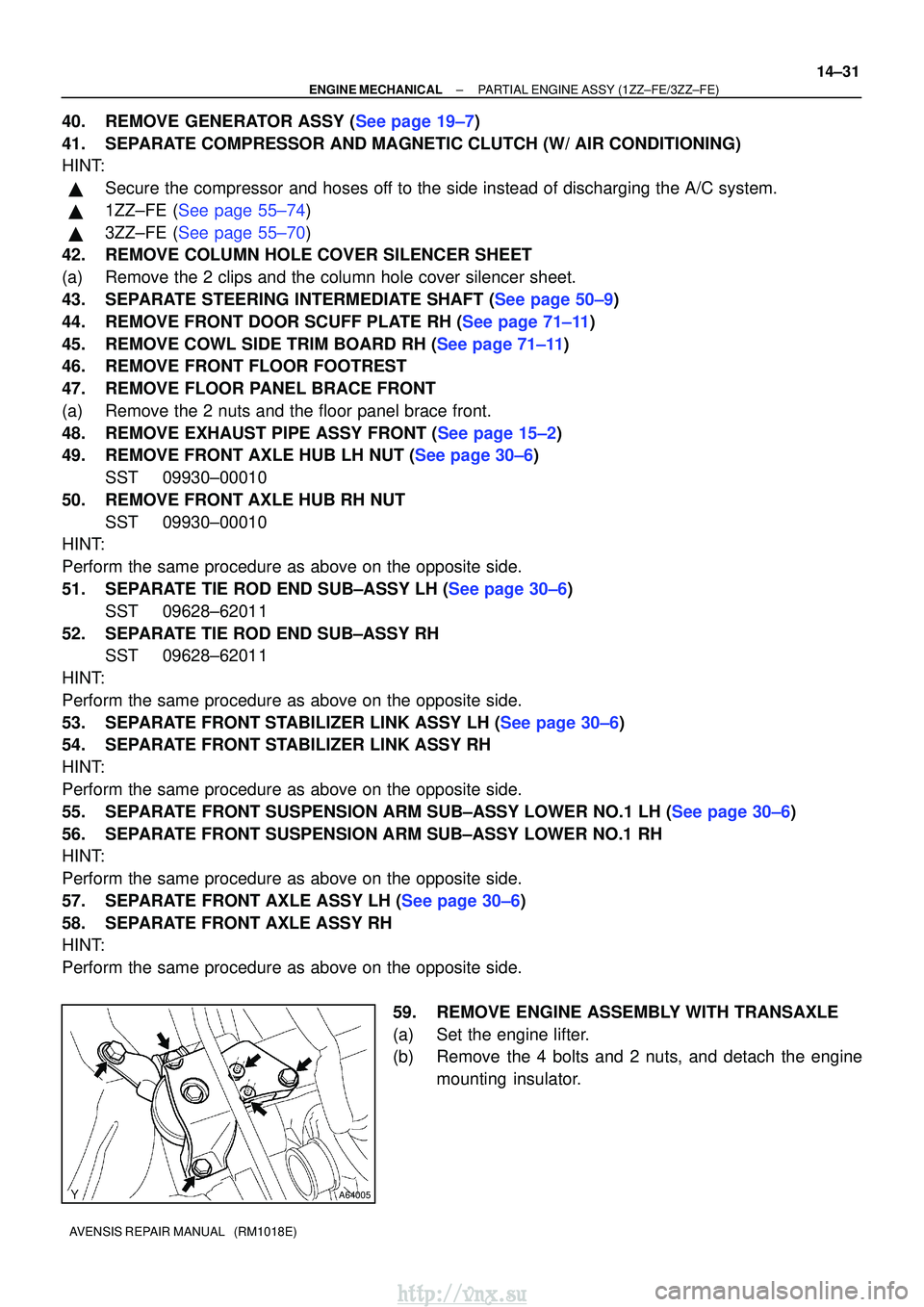

TOYOTA AVENSIS 2003 Service Repair Manual A64005 ± ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE) 14±31 AVENSIS REPAIR MANUAL (RM1018E) 40.REMOVE GENERATOR ASSY (See page 19±7) 41. SEPARATE COMPRESSOR AND MAGNETIC CLUTCH (W/ AIR

Page 688 of 2234

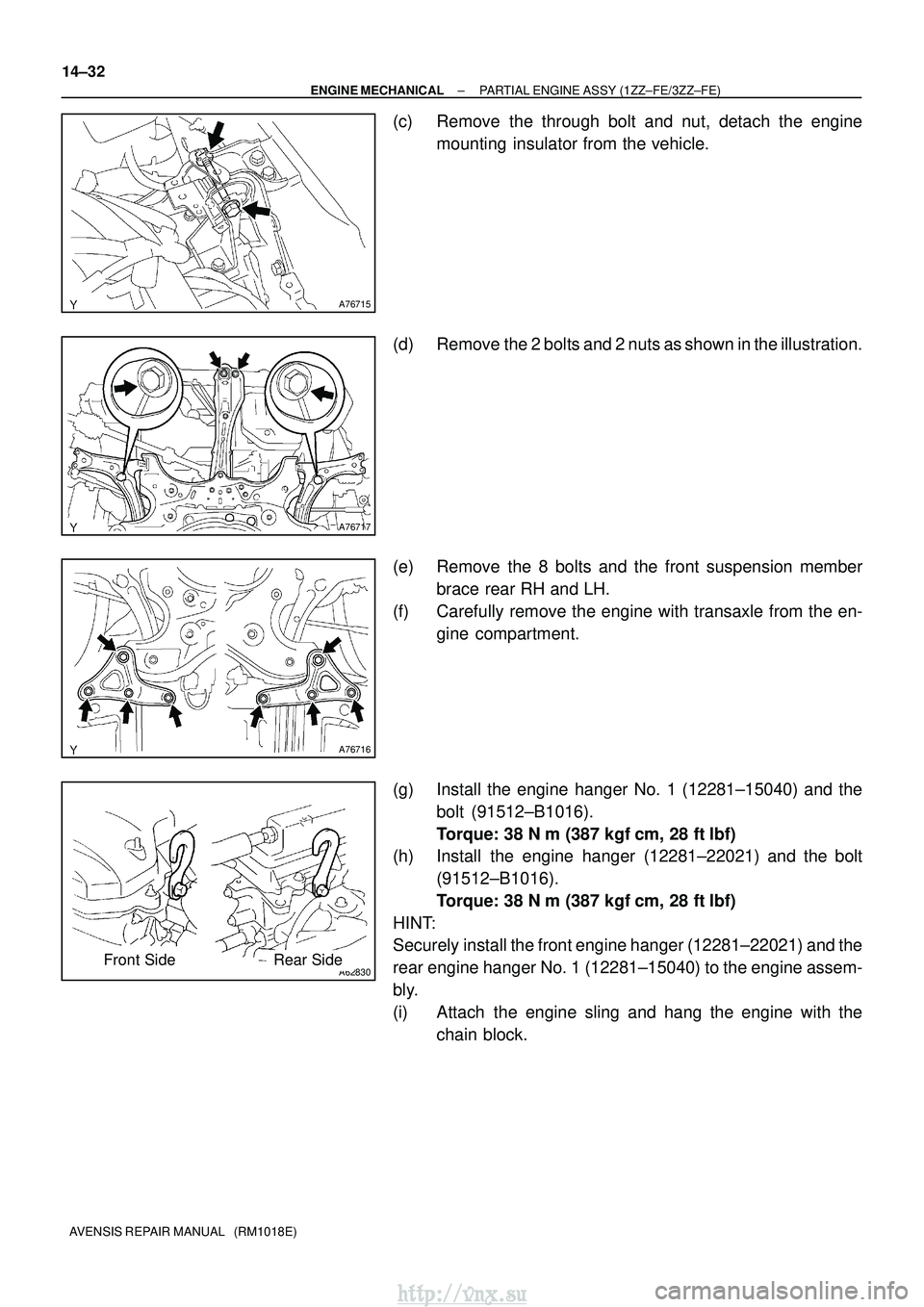

TOYOTA AVENSIS 2003 Service Repair Manual A76715 A76717 A76716 A62830Front SideRear Side 14±32 ± ENGINE MECHANICAL PARTIAL ENGINE ASSY (1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) (c) Remove the through bolt and nut, detach the engin
