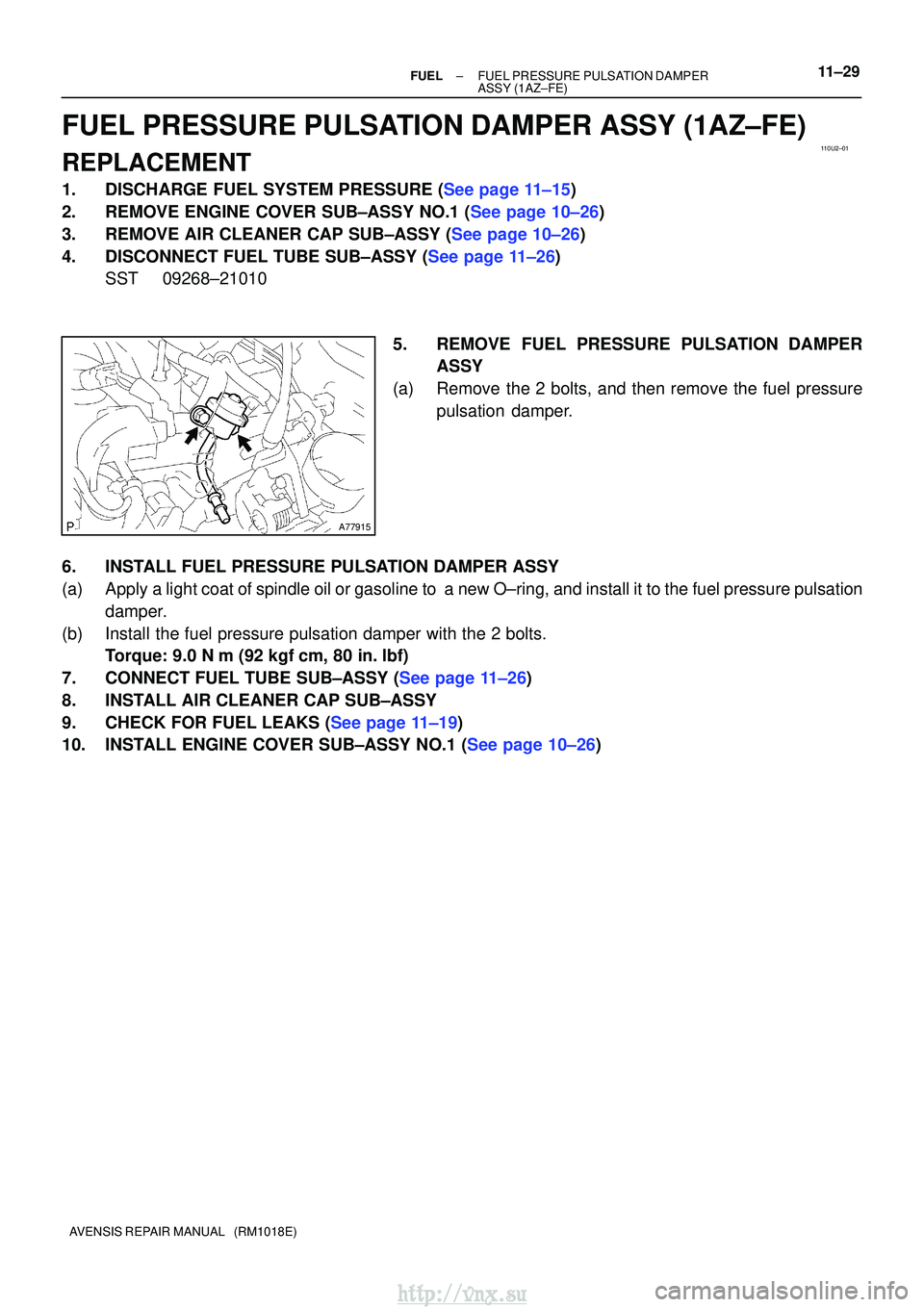

TOYOTA AVENSIS 2003 Service Repair Manual 110U2±01 A77915 ± FUELFUEL PRESSURE PULSATION DAMPER ASSY(1AZ±FE)11±29 AVENSIS REPAIR MANUAL (RM1018E) FUEL PRESSURE PULSATION DAMPER ASSY(1AZ±FE) REPLACEMENT 1.DISCHARGE FUEL SYSTEM PRESSURE (

Page 330 of 2234

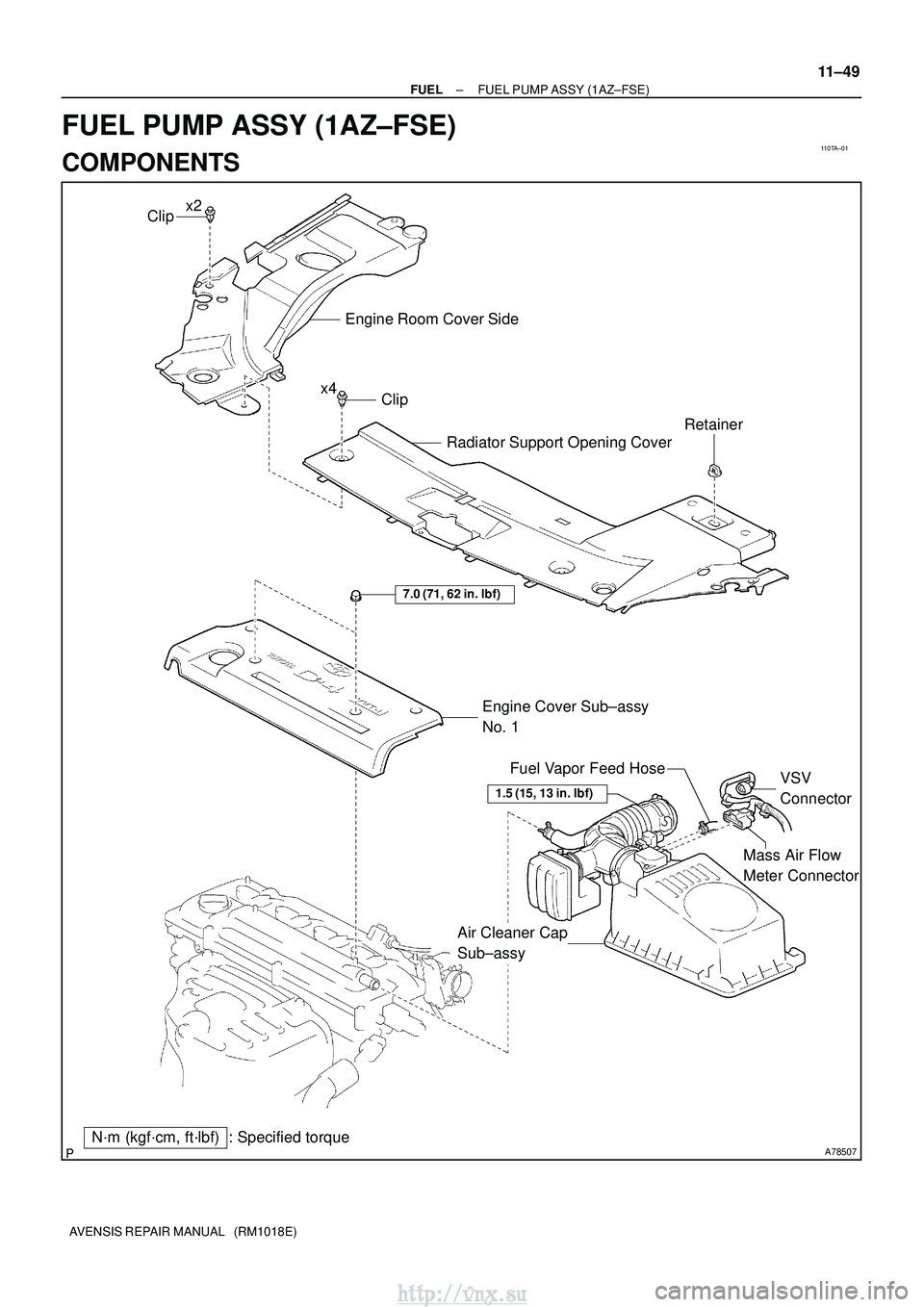

TOYOTA AVENSIS 2003 Service Repair Manual 110TA±01 A78507 Mass Air Flow Meter Connector N´m (kgf´cm, ft´lbf) : Specified torqueEngine Cover Sub±assy No. 1 7.0 (71, 62 in. lbf) Air Cleaner Cap Sub±assy VSV Connector Fuel Vapor Feed

Page 331 of 2234

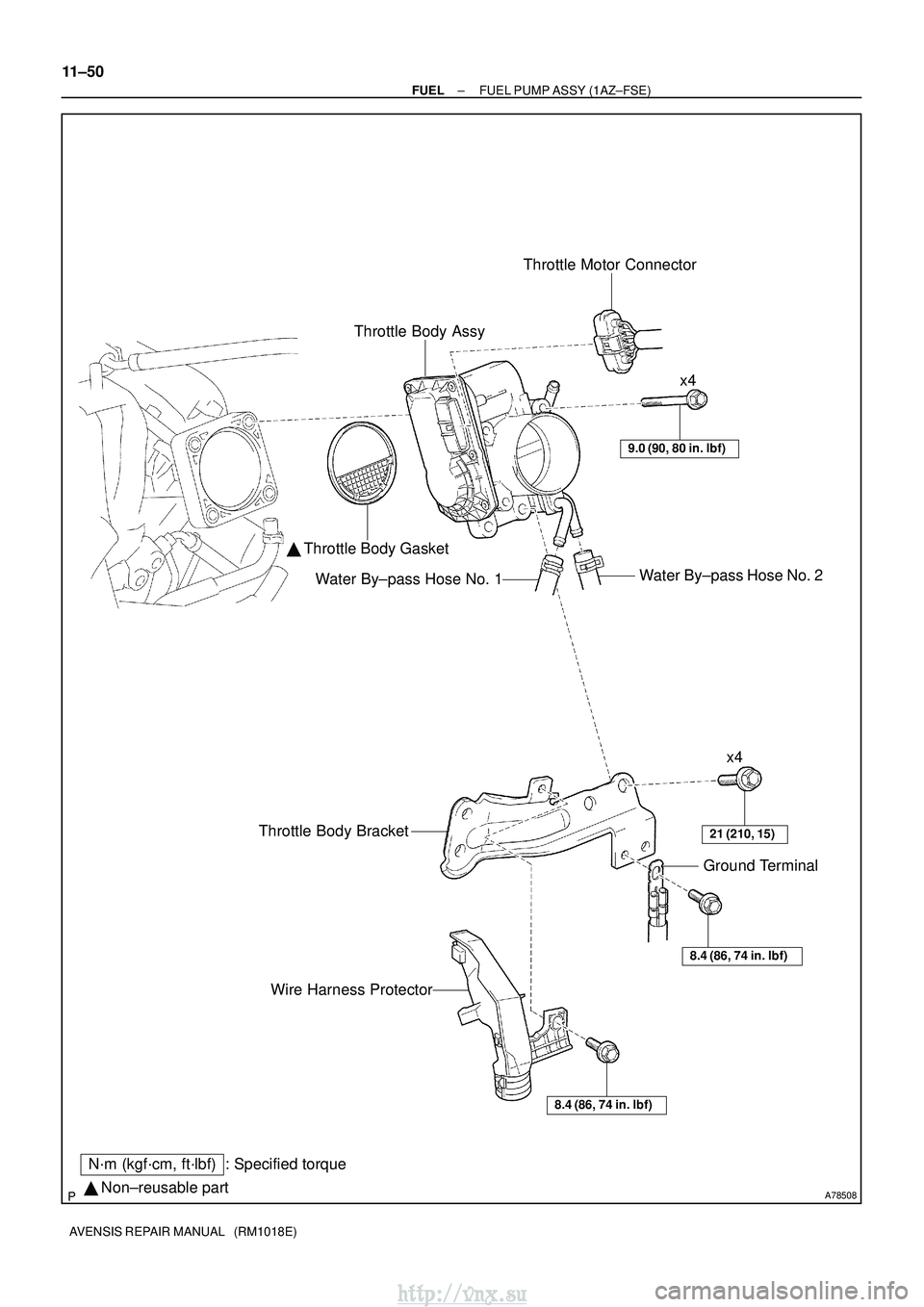

TOYOTA AVENSIS 2003 Service Repair Manual A78508 Non±reusable part N´m (kgf´cm, ft´lbf) : Specified torque Throttle Body Assy Throttle Motor Connector  Throttle Body Gasket Water By±pass Hose No. 2 Water By±pass Hose No. 1 9.0 (90, 8

Page 332 of 2234

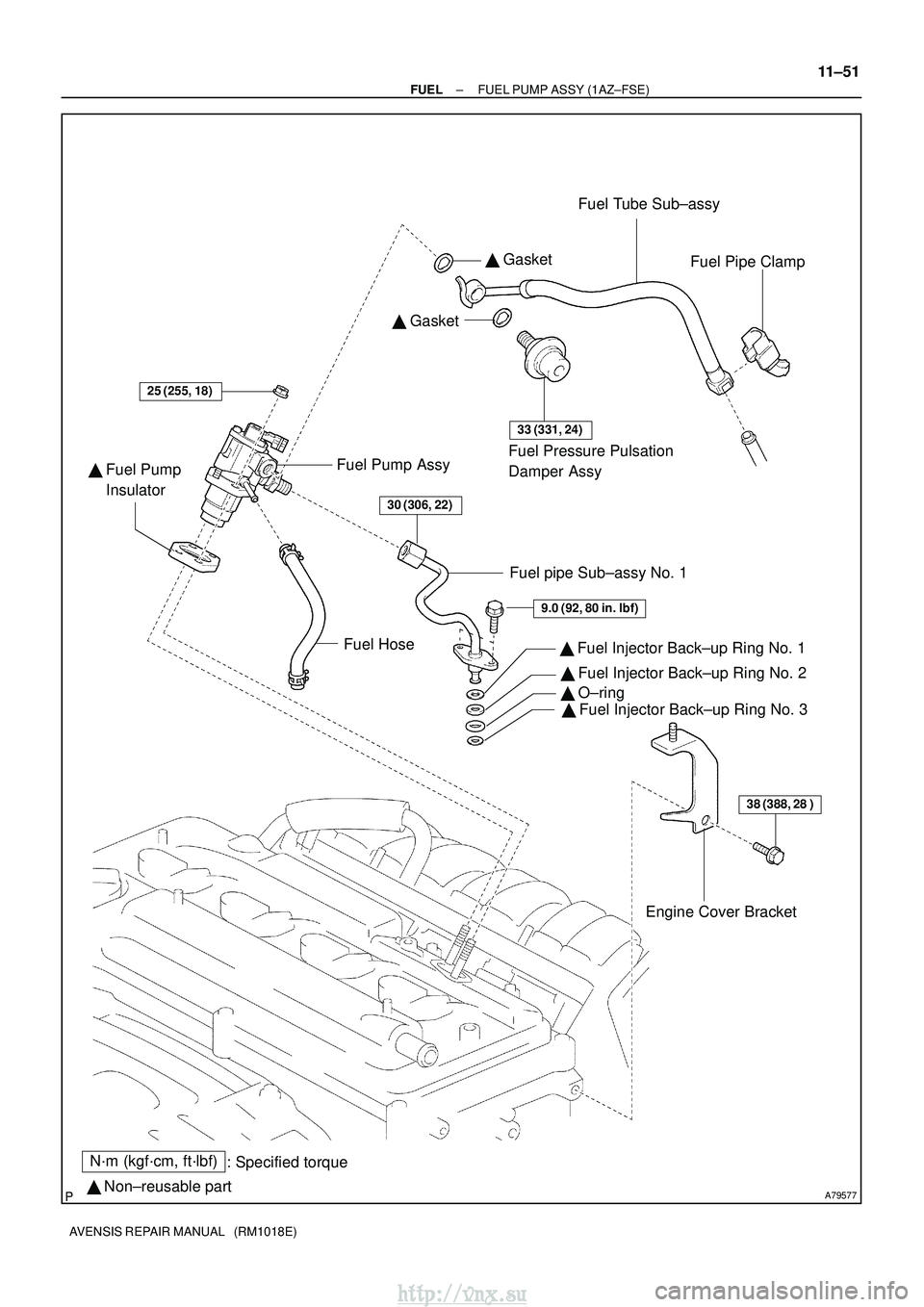

TOYOTA AVENSIS 2003 Service Repair Manual A79577 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part  Gasket  Gasket Fuel Tube Sub±assy Fuel Pipe Clamp Fuel Pressure Pulsation Damper Assy Fuel Pump Assy  Fuel Pump Ins

Page 333 of 2234

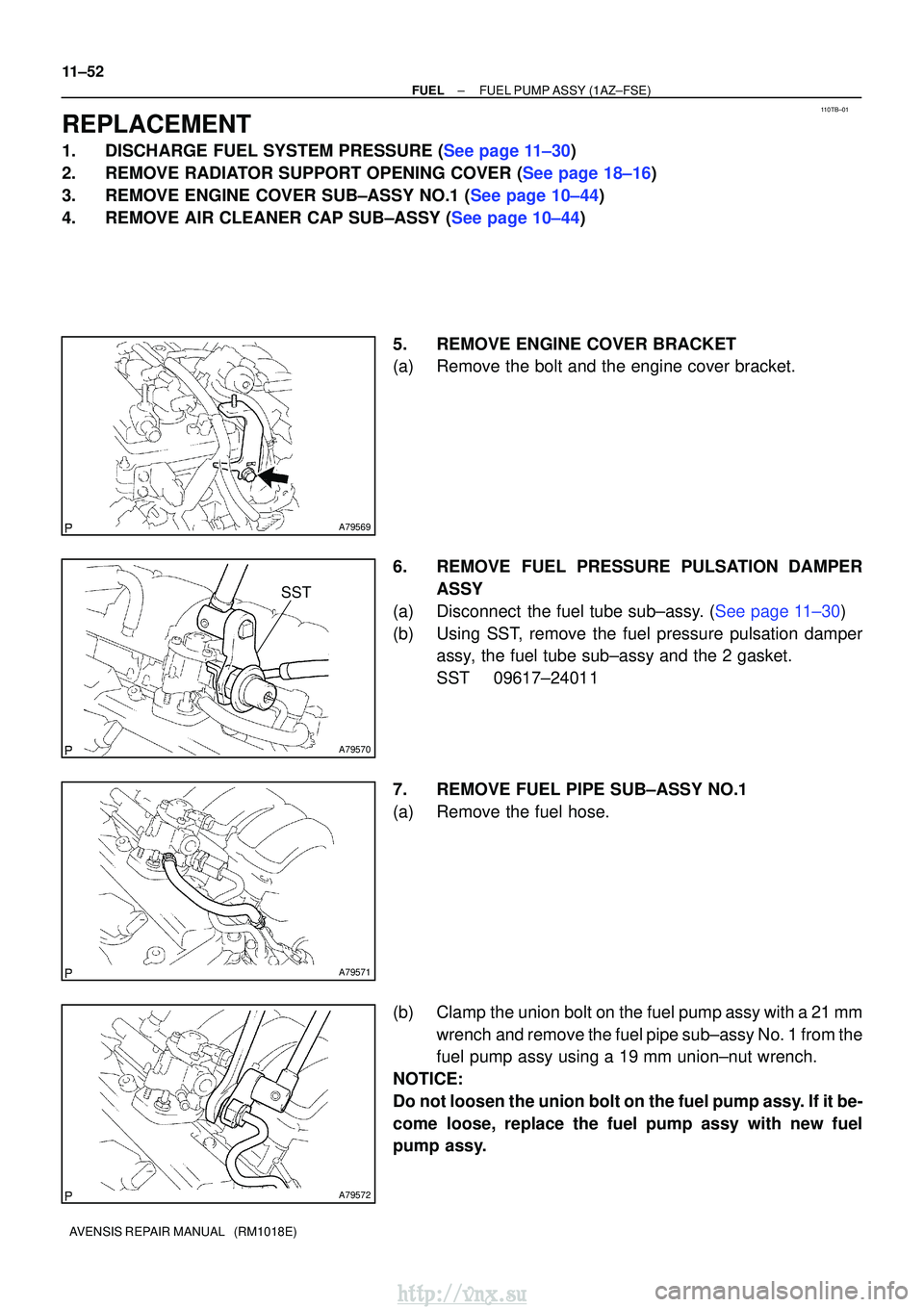

TOYOTA AVENSIS 2003 Service Repair Manual 110TB±01 A79569 A79570 SST A79571 A79572 11±52 ± FUELFUEL PUMP ASSY(1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT 1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±30) 2.REMOVE RADIATOR SUPP

Page 334 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79573 A79574 A79834 ± FUEL FUEL PUMP ASSY (1AZ±FSE) 11±53 AVENSIS REPAIR MANUAL (RM1018E) (c) Remove the 2 bolts first, then remove the fuel pipe sub± assy No. 1 from the fuel delivery pipe sub

Page 335 of 2234

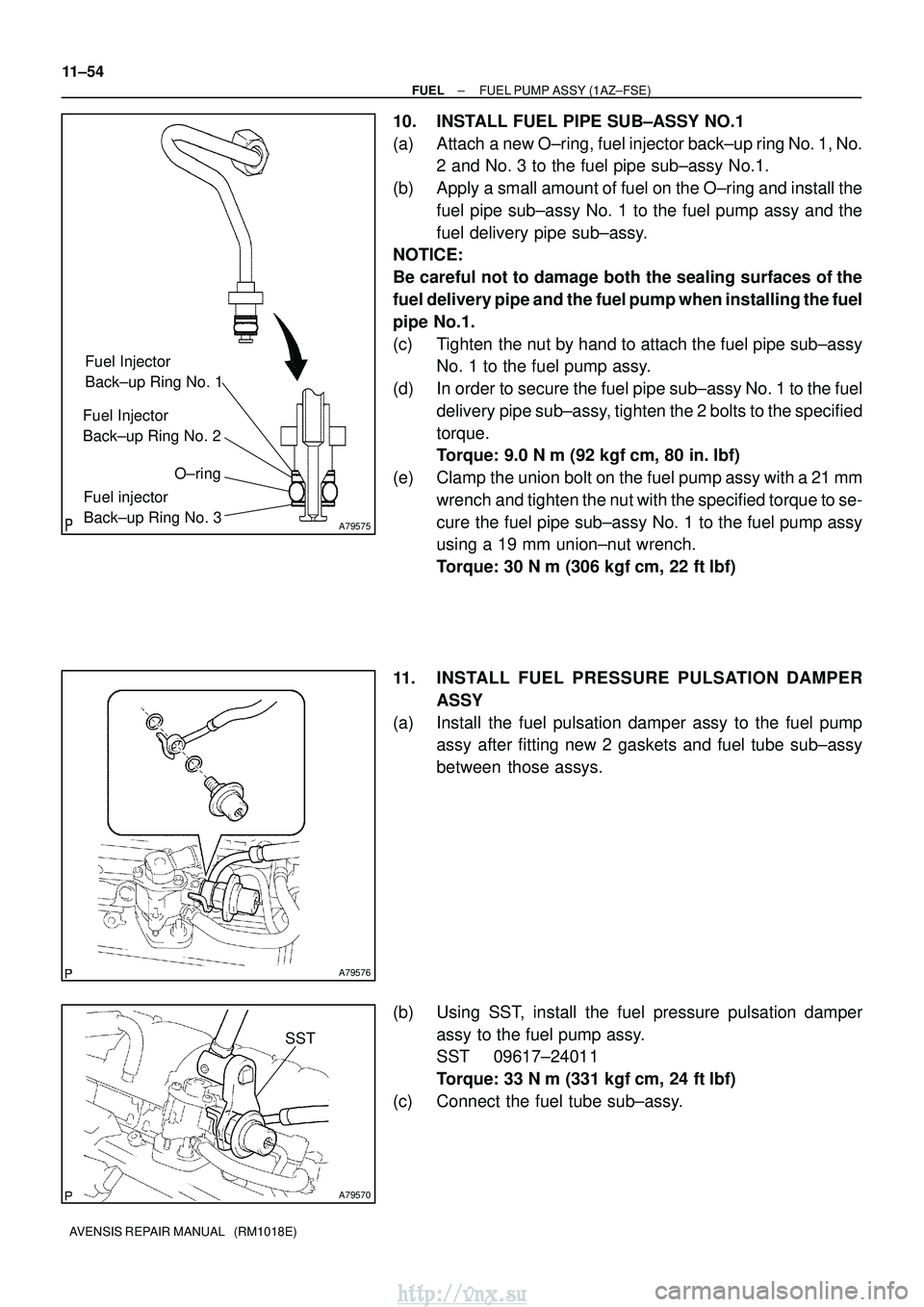

TOYOTA AVENSIS 2003 Service Repair Manual A79575 Fuel Injector Back±up Ring No. 1 Fuel Injector Back±up Ring No. 2 O±ring Fuel injector Back±up Ring No. 3 A79576 A79570 SST 11±54 ± FUEL FUEL PUMP ASSY (1AZ±FSE) AVENSIS REPAIR MANUAL

Page 336 of 2234

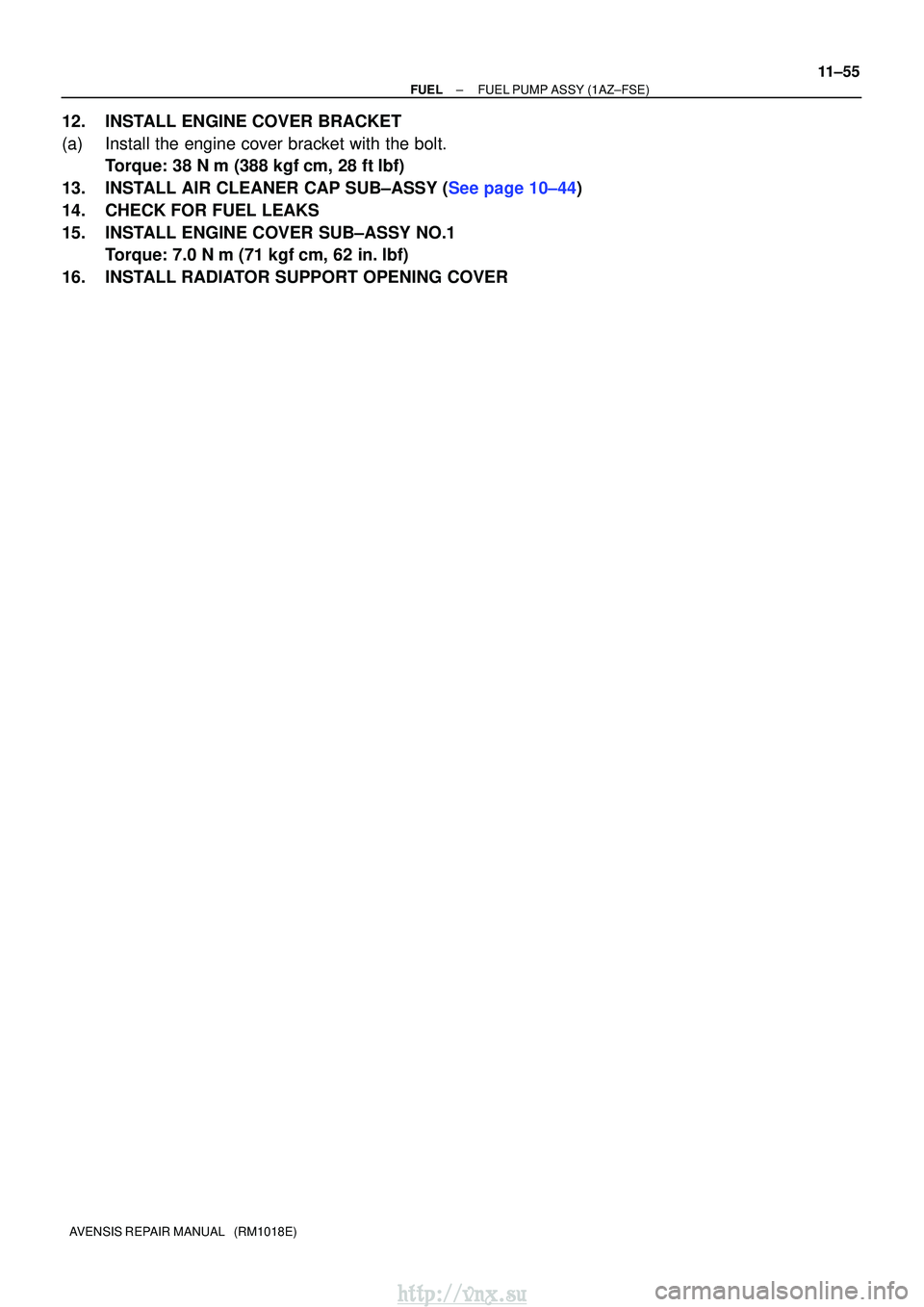

TOYOTA AVENSIS 2003 Service Repair Manual ± FUELFUEL PUMP ASSY(1AZ±FSE) 11±55 AVENSIS REPAIR MANUAL (RM1018E) 12.INSTALL ENGINE COVER BRACKET (a)Install the engine cover bracket with the bolt. Torque: 38 N m (388 kgfcm, 28 ftlbf) 13.I
