Page 1497 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 650T3±01
I35231
I35231
AB
A
65±28
±

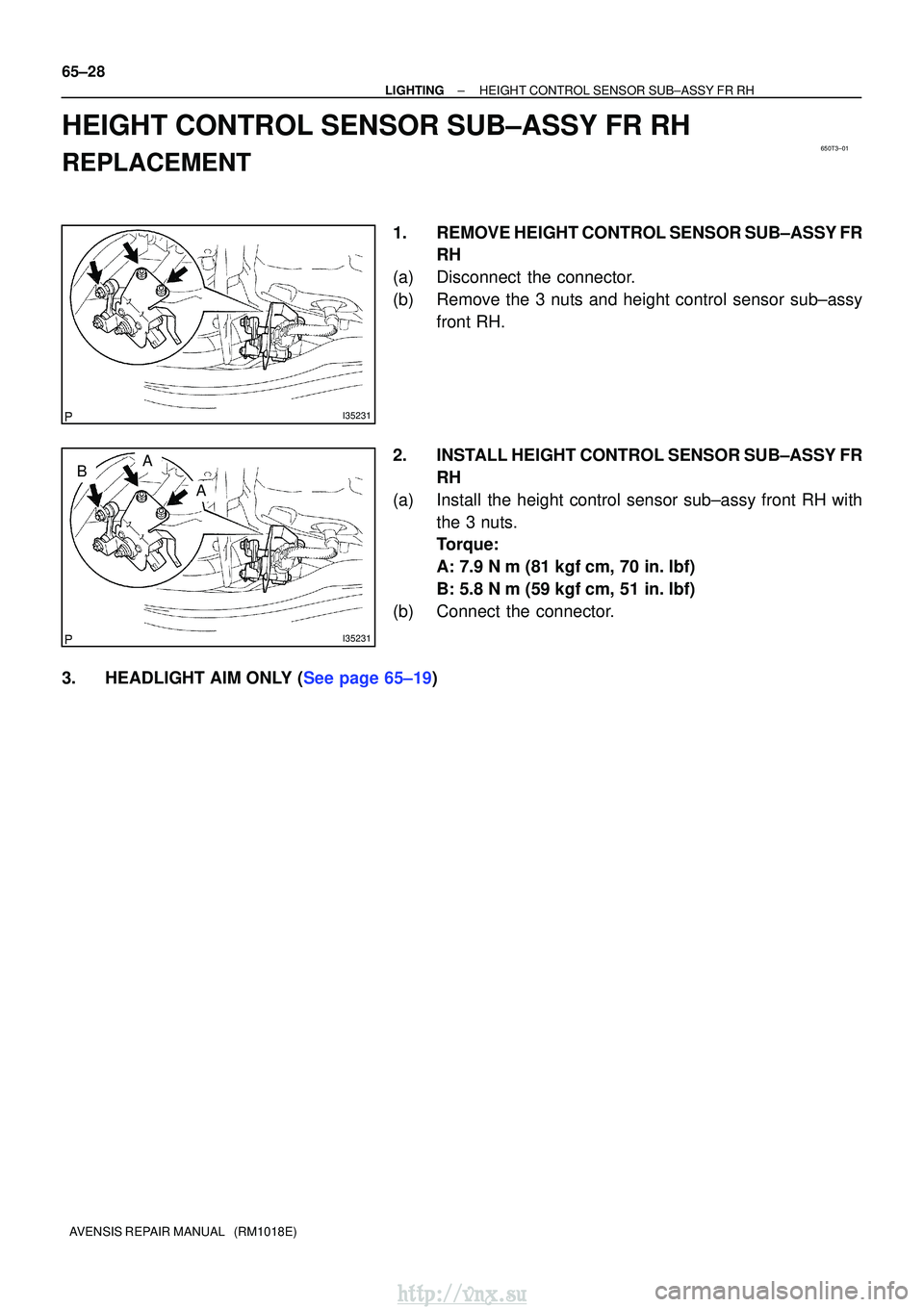

LIGHTINGHEIGHT CONTROL SENSOR SUB±ASSY FR RH
AVENSIS REPAIR MANUAL (RM1018E)
HEIGHT CONTROL SENSOR SUB±ASSY FR RH
REPLACEMENT
1.REMOVE HEIGHT CONTROL SENSOR

Page 1498 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 650T4±01
I35240
I35240
A
B
A
±

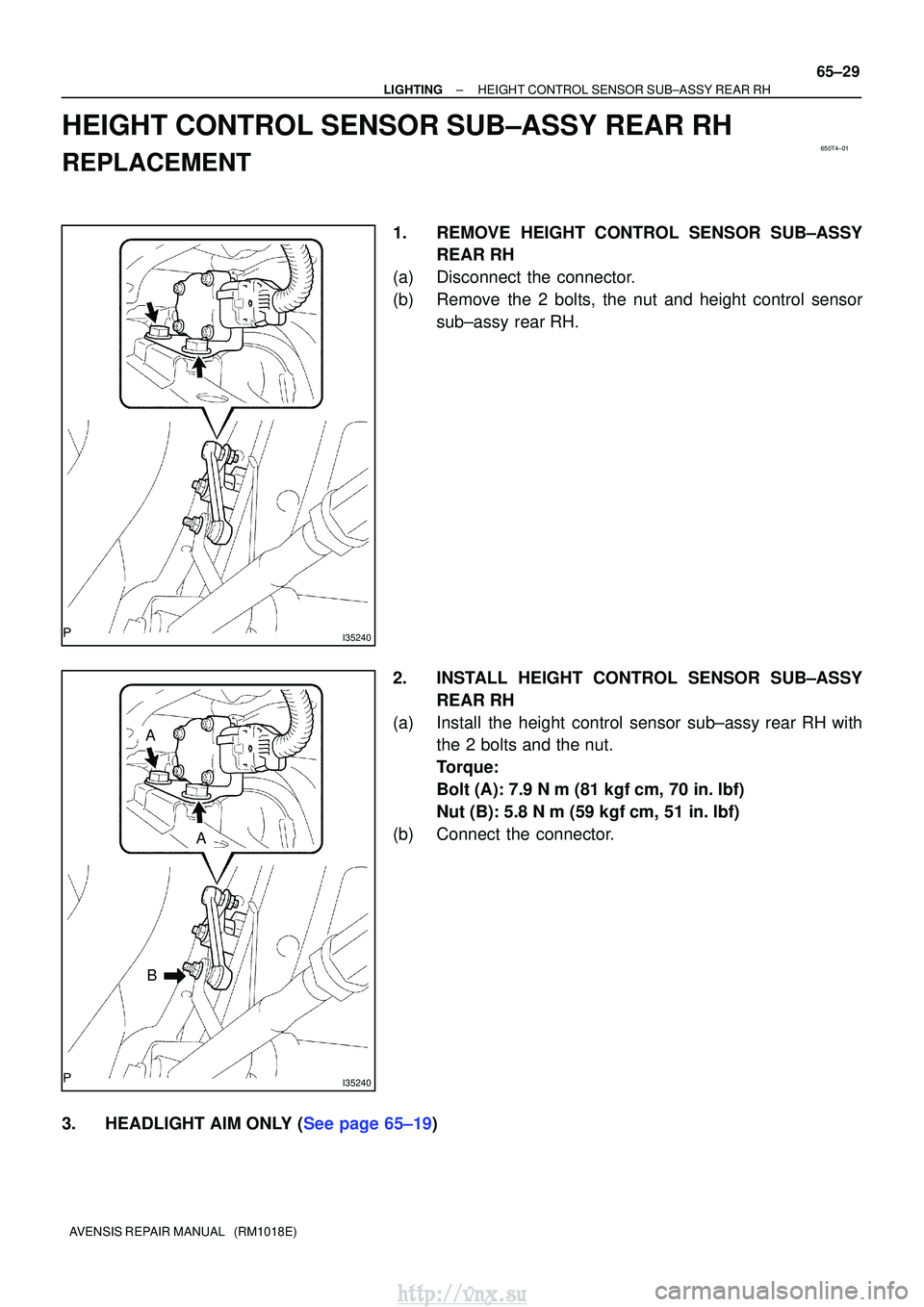

LIGHTINGHEIGHT CONTROL SENSOR SUB±ASSY REAR RH
65±29
AVENSIS REPAIR MANUAL (RM1018E)
HEIGHT CONTROL SENSOR SUB±ASSY REAR RH
REPLACEMENT
1.REMOVE HEIGHT CONTROL SE

Page 1499 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 650T0±02
E60618
±
LIGHTINGLICENSE PLATE LAMP ASSY
65±25
AVENSIS REPAIR MANUAL (RM1018E)

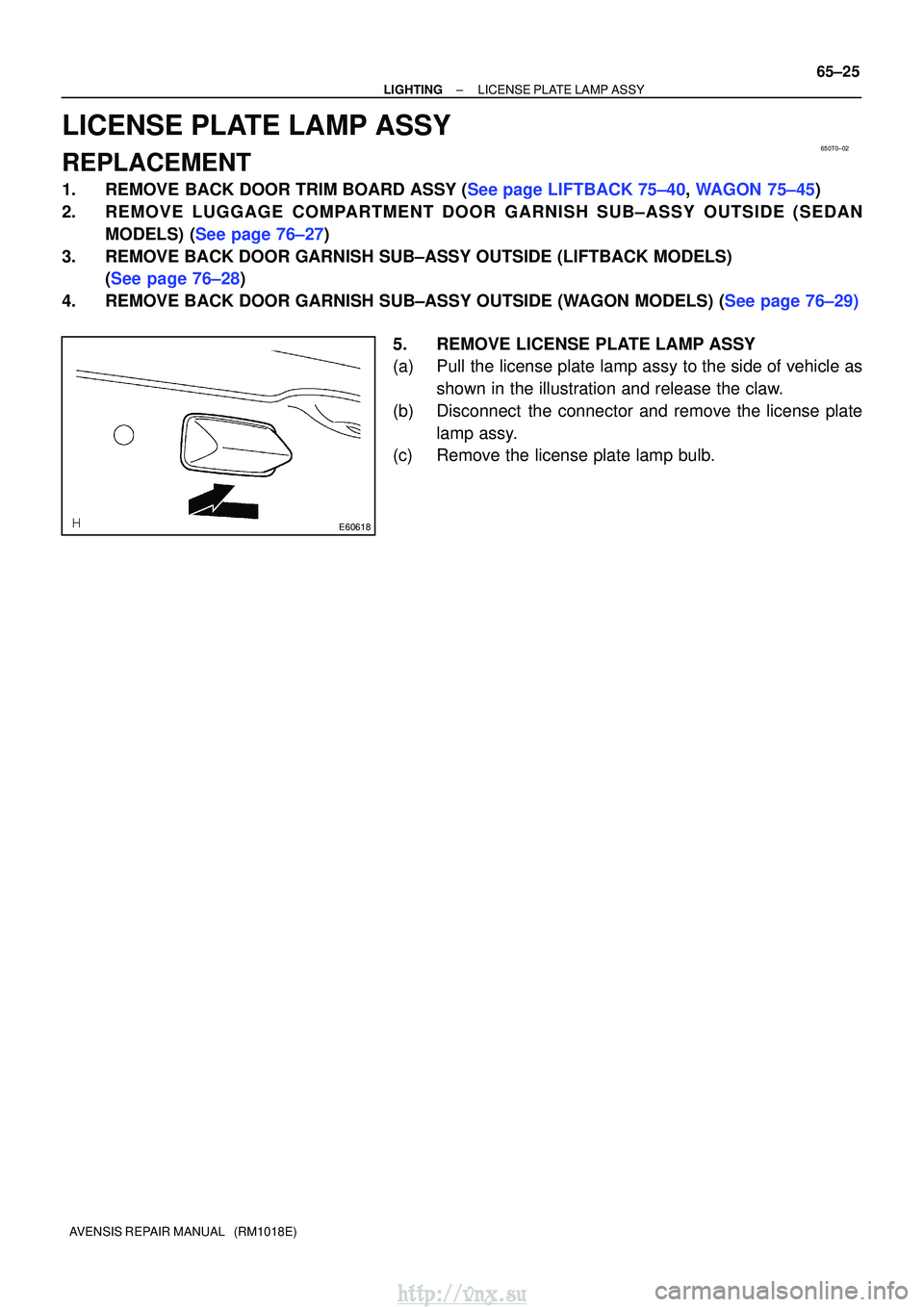

LICENSE PLATE LAMP ASSY
REPLACEMENT
1.REMOVE BACK DOOR TRIM BOARD ASSY (See page LIFTBACK 75±40, WAGON 75�

Page 1500 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 650NC±02
±
LIGHTING LIGHTING SYSTEM
65±1
AVENSIS REPAIR MANUAL (RM1018E)
LIGHTING SYSTEM

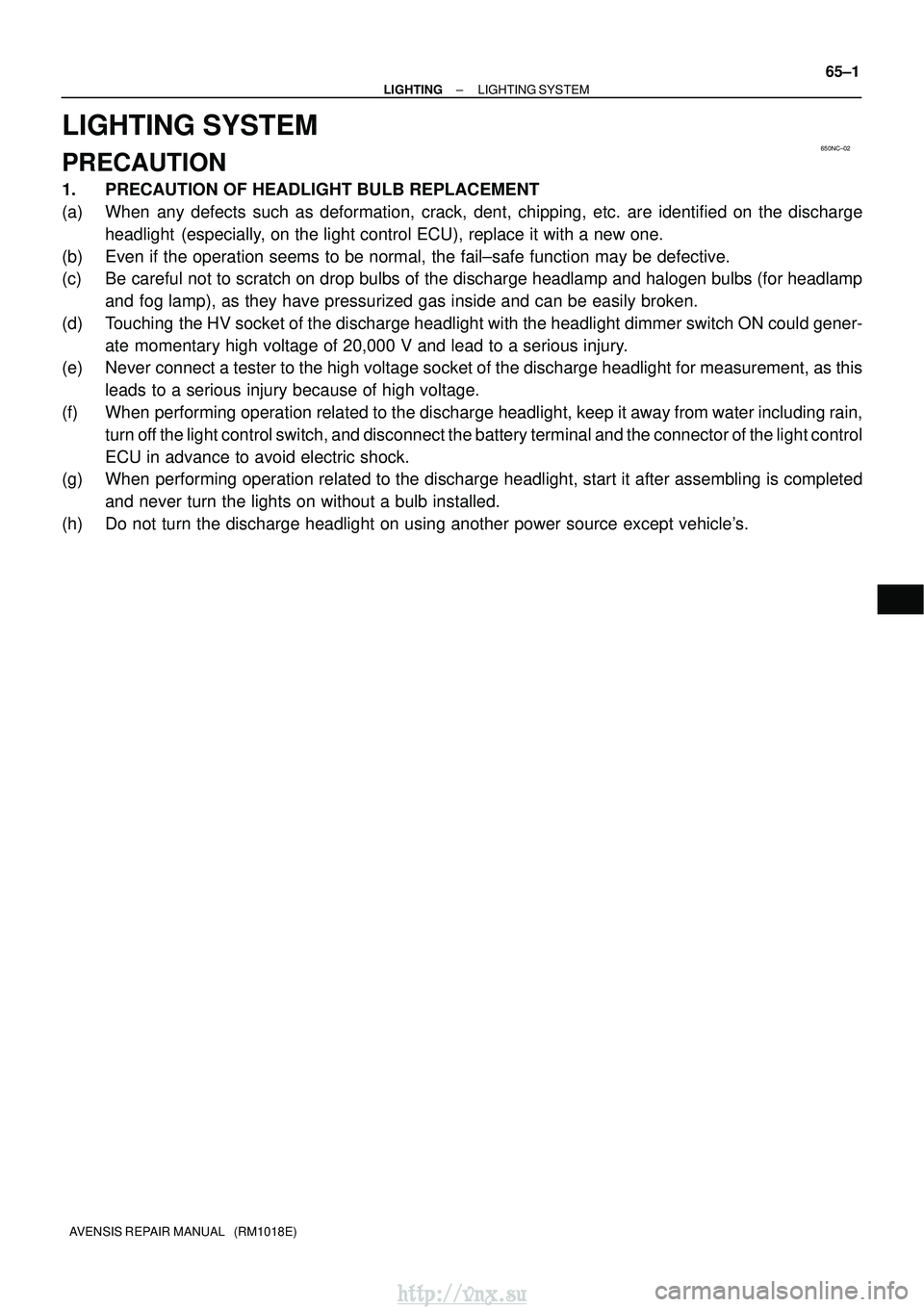

PRECAUTION
1. PRECAUTION OF HEADLIGHT BULB REPLACEMENT
(a) When any defects such as deformation, crack, de

Page 1501 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 650SQ±01
65±2
±
LIGHTING LIGHTING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

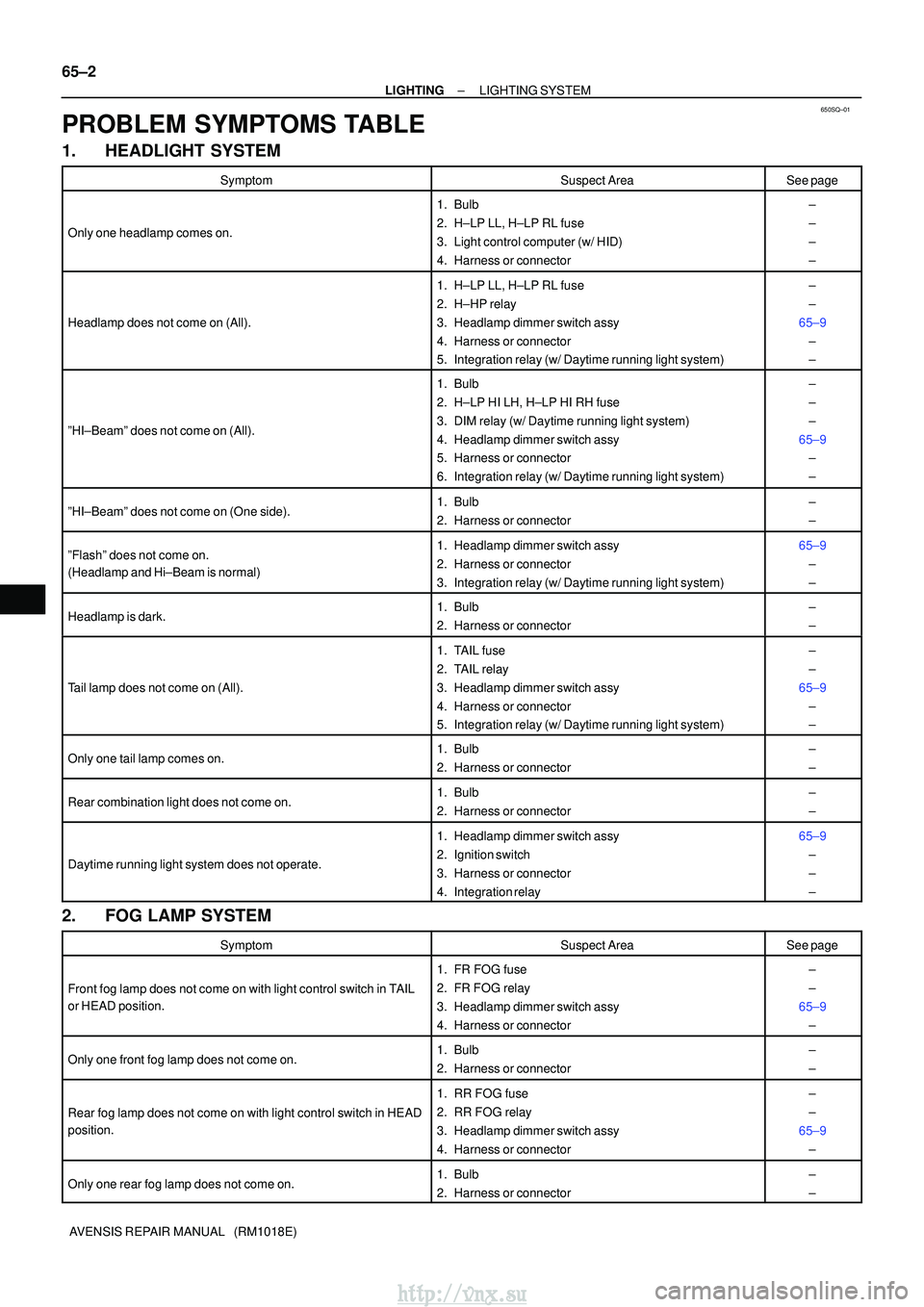

PROBLEM SYMPTOMS TABLE
1. HEADLIGHT SYSTEM
SymptomSuspect AreaSee page
Only one headlamp comes on.
1. Bulb
2. H±LP LL, H�

650SQ±01
65±2
±
LIGHTING LIGHTING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
1. HEADLIGHT SYSTEM
SymptomSuspect AreaSee page
Only one headlamp comes on.
1. Bulb
2. H±LP LL, H±LP RL fuse
3. Light control computer (w/ HID)
4. Harness or connector±
±
±
±
Headlamp does not come on (All).
1. H±LP LL, H±LP RL fuse
2. H±HP relay
3. Headlamp dimmer switch assy
4. Harness or connector
5. Integration relay (w/ Daytime running light system)±
±
65±9 ±
±
ºHI±Beamº does not come on (All).
1. Bulb
2. H±LP HI LH, H±LP HI RH fuse
3. DIM relay (w/ Daytime running light system)
4. Headlamp dimmer switch assy
5. Harness or connector
6. Integration relay (w/ Daytime running light system)±
±
±
65±9 ±
±
ºHI±Beamº does not come on (One side).1. Bulb
2. Harness or connector±
±
ºFlashº does not come on.
(Headlamp and Hi±Beam is normal)1. Headlamp dimmer switch assy
2. Harness or connector
3. Integration relay (w/ Daytime running light system)65±9
±
±
Headlamp is dark.1. Bulb
2. Harness or connector±
±
Tail lamp does not come on (All).
1. TAIL fuse
2. TAIL relay
3. Headlamp dimmer switch assy
4. Harness or connector
5. Integration relay (w/ Daytime running light system)±
±
65±9 ±
±
Only one tail lamp comes on.1. Bulb
2. Harness or connector±
±
Rear combination light does not come on.1. Bulb
2. Harness or connector±
±
Daytime running light system does not operate.
1. Headlamp dimmer switch assy
2. Ignition switch
3. Harness or connector
4. Integration relay65±9±
±
±
2. FOG LAMP SYSTEM
SymptomSuspect AreaSee page
Front fog lamp does not come on with light control switch in TAIL
or HEAD position.
1. FR FOG fuse
2. FR FOG relay
3. Headlamp dimmer switch assy
4. Harness or connector±
±
65±9 ±
Only one front fog lamp does not come on.1. Bulb
2. Harness or connector±
±
Rear fog lamp does not come on with light control switch in HEAD
position.
1. RR FOG fuse
2. RR FOG relay
3. Headlamp dimmer switch assy
4. Harness or connector±
±
65±9 ±
Only one rear fog lamp does not come on.1. Bulb
2. Harness or connector±
±
http://vnx.su

Page 1502 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual ±
LIGHTING LIGHTING SYSTEM
65±3
AVENSIS REPAIR MANUAL (RM1018E)

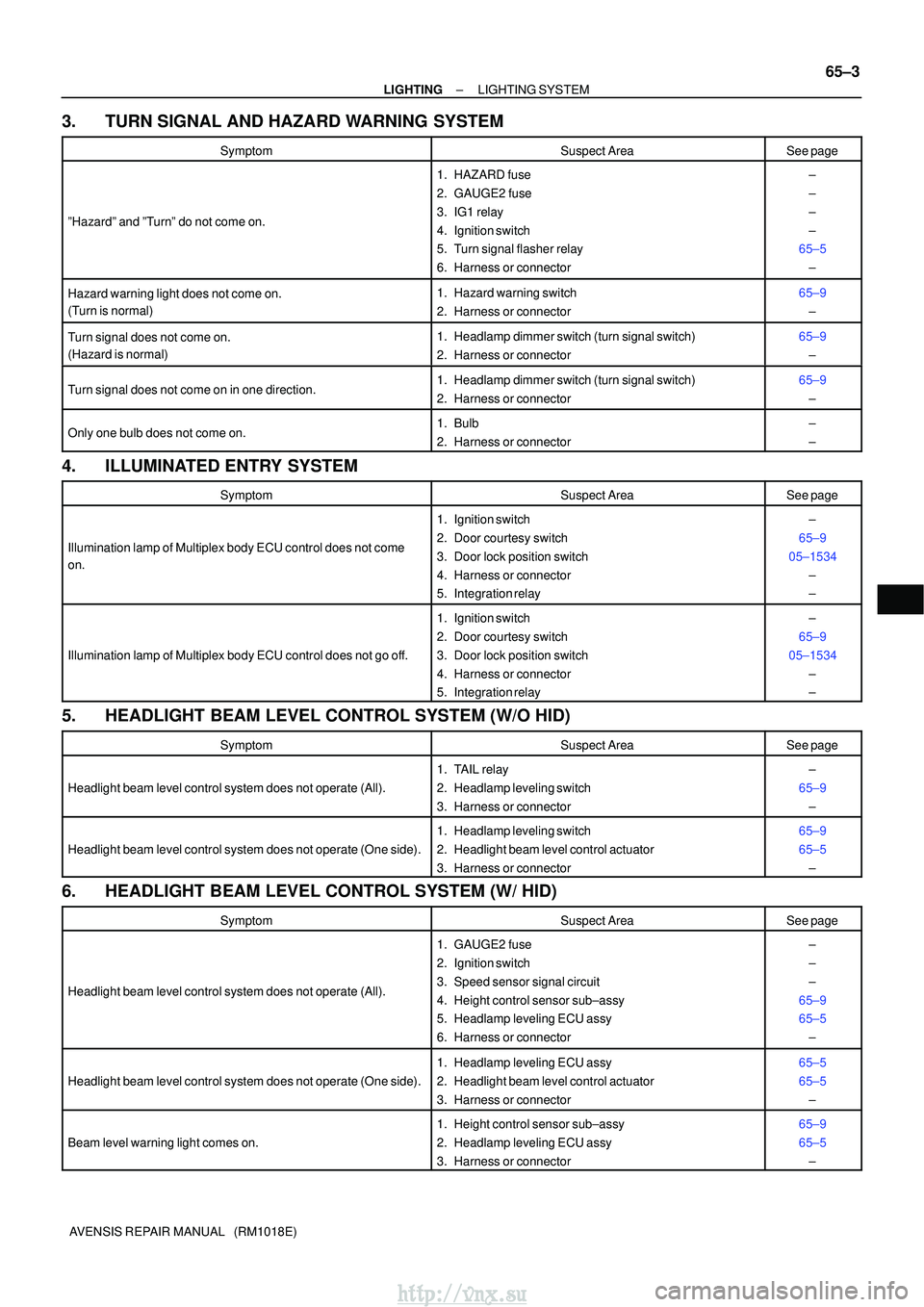

3. TURN SIGNAL AND HAZARD WARNING SYSTEM
SymptomSuspect AreaSee page
ºHazardº and ºTurnº do not come on.
1. HAZARD fuse
2. GAUGE

±
LIGHTING LIGHTING SYSTEM
65±3
AVENSIS REPAIR MANUAL (RM1018E)
3. TURN SIGNAL AND HAZARD WARNING SYSTEM
SymptomSuspect AreaSee page
ºHazardº and ºTurnº do not come on.
1. HAZARD fuse
2. GAUGE2 fuse
3. IG1 relay
4. Ignition switch
5. Turn signal flasher relay
6. Harness or connector±
±
±
±
65±5
±
Hazard warning light does not come on.
(Turn is normal)1. Hazard warning switch
2. Harness or connector65±9±
Turn signal does not come on.
(Hazard is normal)1. Headlamp dimmer switch (turn signal switch)
2. Harness or connector65±9±
Turn signal does not come on in one direction.1. Headlamp dimmer switch (turn signal switch)
2. Harness or connector65±9±
Only one bulb does not come on.1. Bulb
2. Harness or connector±
±
4. ILLUMINATED ENTRY SYSTEM
SymptomSuspect AreaSee page
Illumination lamp of Multiplex body ECU control does not come
on.
1. Ignition switch
2. Door courtesy switch
3. Door lock position switch
4. Harness or connector
5. Integration relay±
65±9
05±1534 ±
±
Illumination lamp of Multiplex body ECU control does not go off.
1. Ignition switch
2. Door courtesy switch
3. Door lock position switch
4. Harness or connector
5. Integration relay±
65±9
05±1534 ±
±
5. HEADLIGHT BEAM LEVEL CONTROL SYSTEM (W/O HID)
SymptomSuspect AreaSee page
Headlight beam level control system does not operate (All).
1. TAIL relay
2. Headlamp leveling switch
3. Harness or connector±
65±9 ±
Headlight beam level control system does not operate (One side).
1. Headlamp leveling switch
2. Headlight beam level control actuator
3. Harness or connector65±9
65±5±
6. HEADLIGHT BEAM LEVEL CONTROL SYSTEM (W/ HID)
SymptomSuspect AreaSee page
Headlight beam level control system does not operate (All).
1. GAUGE2 fuse
2. Ignition switch
3. Speed sensor signal circuit
4. Height control sensor sub±assy
5. Headlamp leveling ECU assy
6. Harness or connector±
±
±
65±9
65±5 ±
Headlight beam level control system does not operate (One side).
1. Headlamp leveling ECU assy
2. Headlight beam level control actuator
3. Harness or connector65±5
65±5±
Beam level warning light comes on.
1. Height control sensor sub±assy
2. Headlamp leveling ECU assy
3. Harness or connector65±9
65±5±
http://vnx.su

Page 1503 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 65±4
±
LIGHTING LIGHTING SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

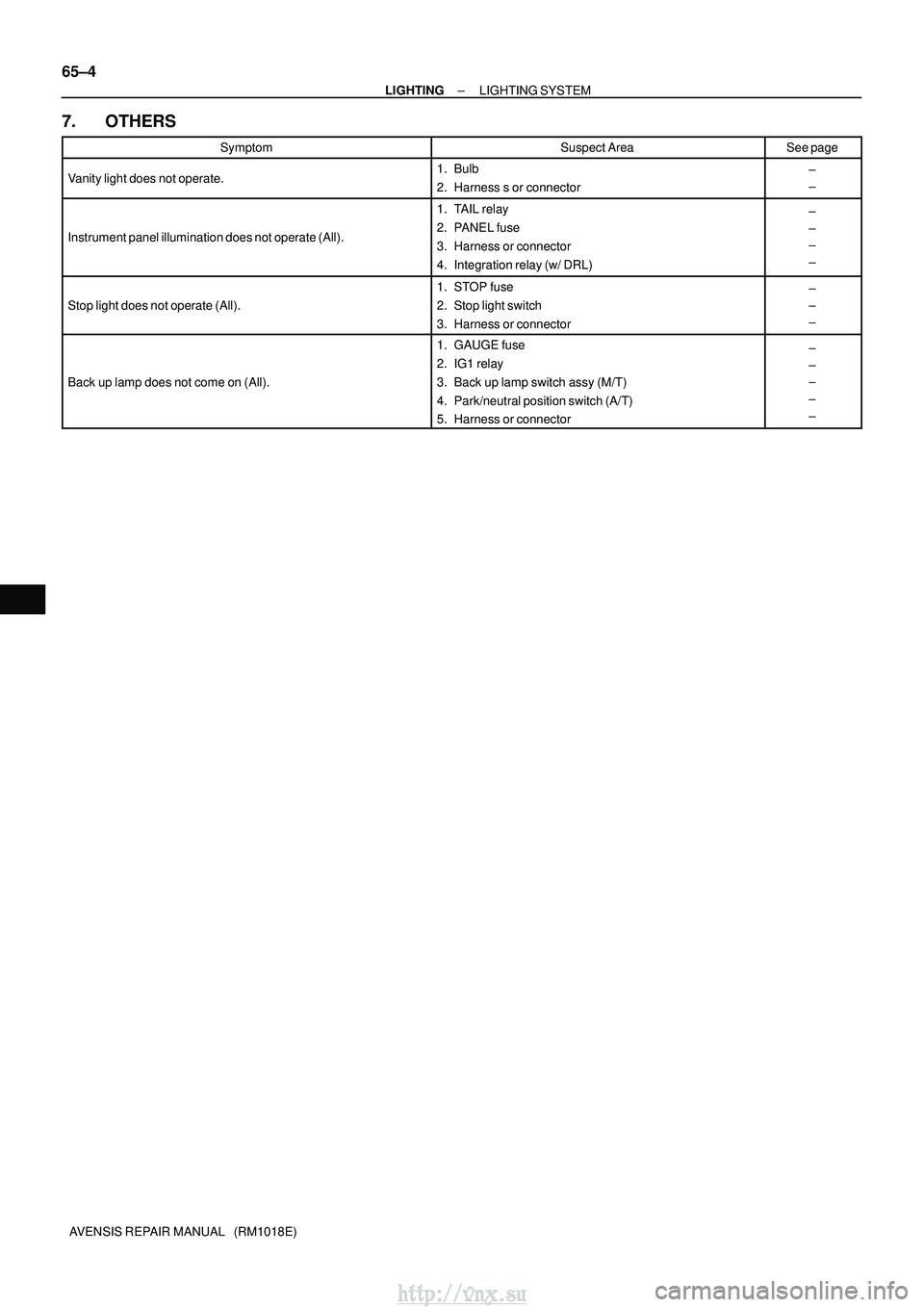

7. OTHERS
SymptomSuspect AreaSee page
Vanity light does not operate.1. Bulb
2. Harness s or connector±
±
Instrument panel illumina

Page 1504 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 650ND±02
E15683
±
LIGHTING LIGHTING SYSTEM
65±5
AVENSIS REPAIR MANUAL (RM1018E)

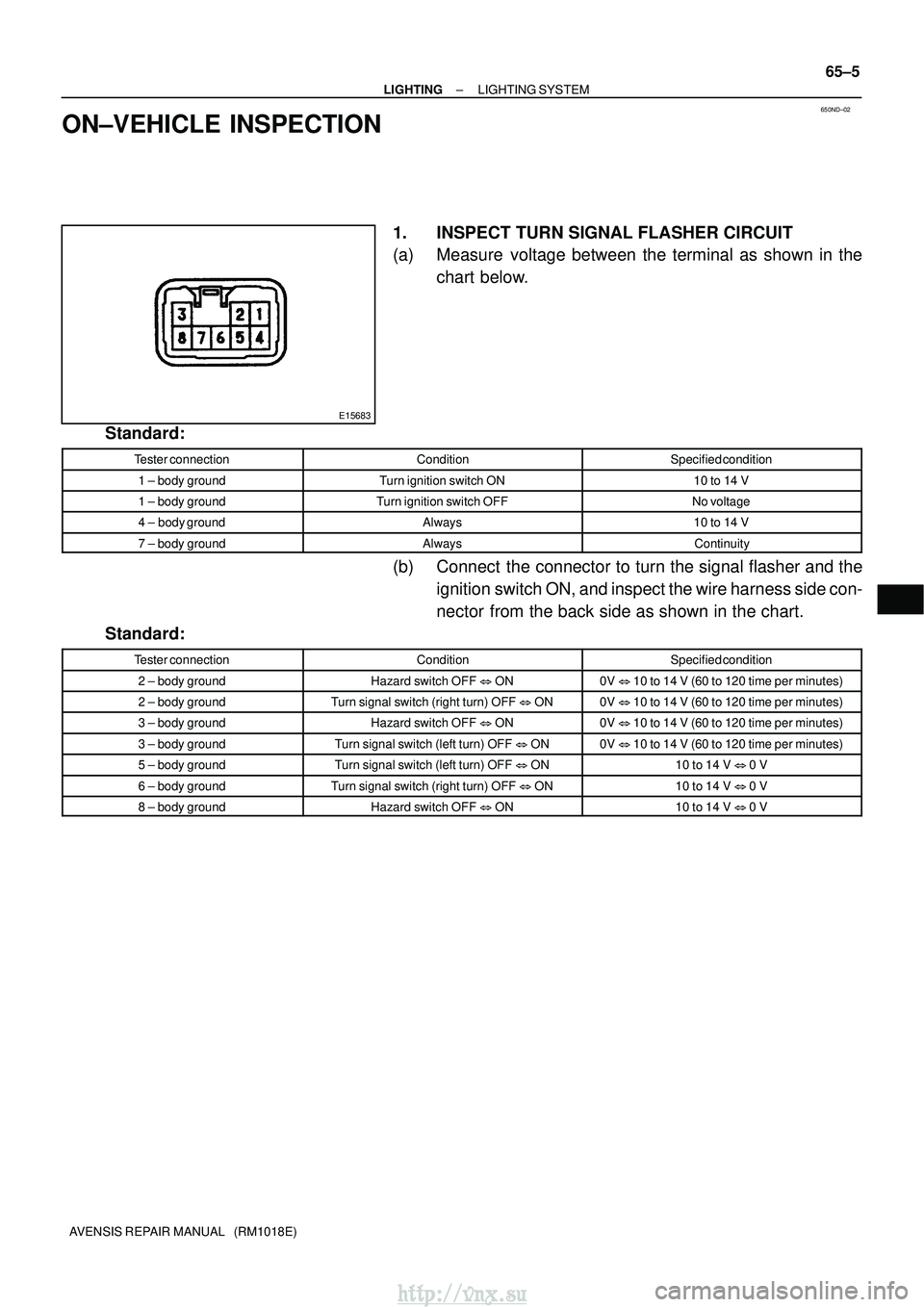

ON±VEHICLE INSPECTION
