Page 2137 of 2234

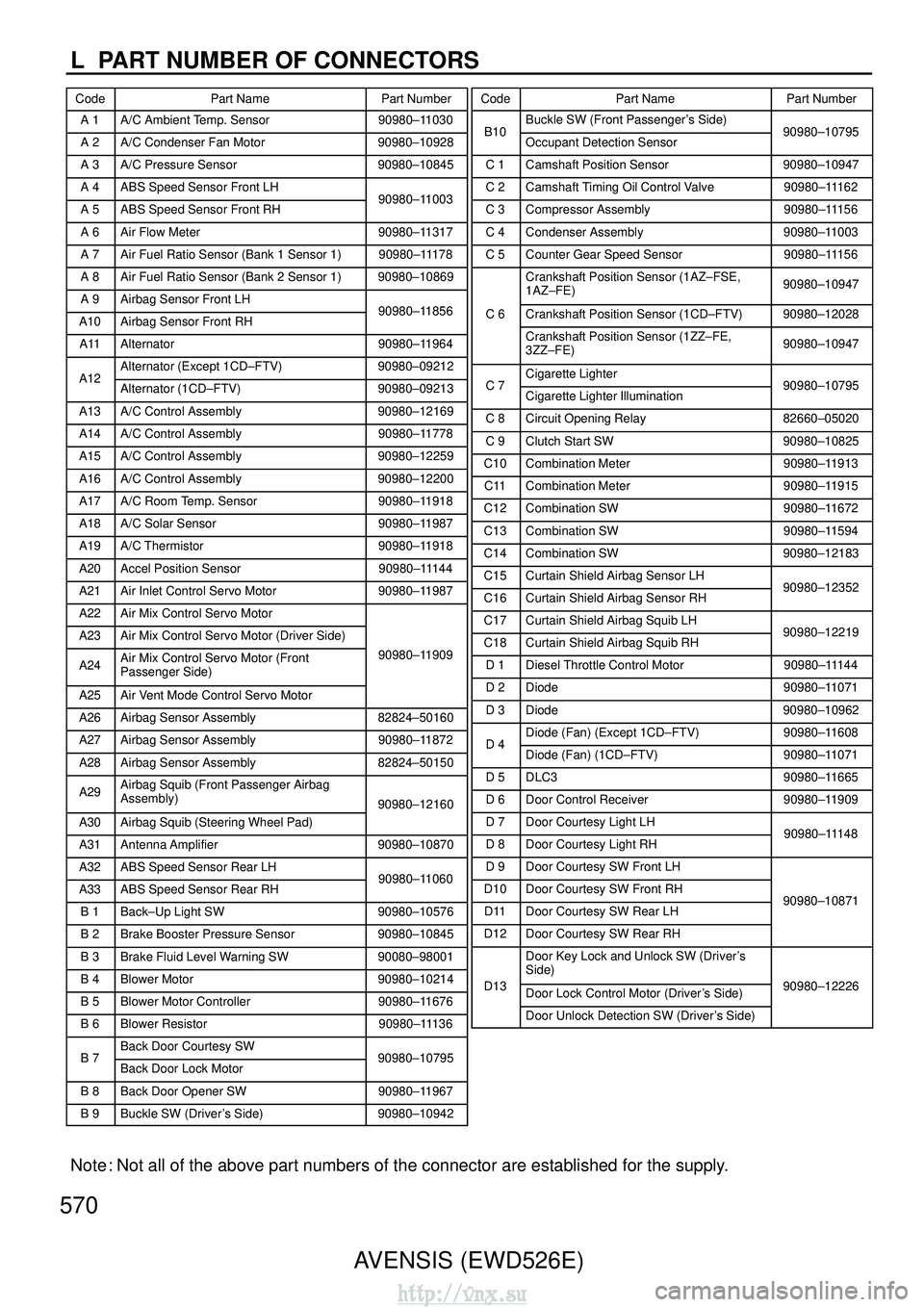

$TOYOTA AVENSIS 2003 Service Repair Manual L PART NUMBER OF CONNECTORS CodePart Name Part NumberCodePart Name Part Number AVENSIS (EWD526E) Note : Not all of the above part numbers of the connector are established for t\ he supply. 570 A 1A/C$

L PART NUMBER OF CONNECTORS
CodePart Name Part NumberCodePart Name Part Number
AVENSIS (EWD526E)
Note : Not all of the above part numbers of the connector are established for t\
he supply.
570
A 1A/C Ambient Temp. Sensor90980–11030
A 2A/C Condenser Fan Motor90980–10928
A 3A/C Pressure Sensor90980–10845
A 4ABS Speed Sensor Front LH
A 5ABS Speed Sensor Front RH90980–11003
A 6Air Flow Meter90980–11317
A 7Air Fuel Ratio Sensor (Bank 1 Sensor 1)90980–11178
A 8Air Fuel Ratio Sensor (Bank 2 Sensor 1)90980–10869
A 9Airbag Sensor Front LH
A10Airbag Sensor Front RH90980–11856
A11Alternator90980–11964
Alternator (Except 1CD–FTV)90980–09212A12Alternator (1CD–FTV)90980–09213
A13A/C Control Assembly90980–12169
A14A/C Control Assembly90980–11778
A15A/C Control Assembly90980–12259
A16A/C Control Assembly90980–12200
A17A/C Room Temp. Sensor90980–11918
A18A/C Solar Sensor90980–11987
A19A/C Thermistor90980–11918
A20Accel Position Sensor90980–11144
A21Air Inlet Control Servo Motor90980–11987
A22Air Mix Control Servo Motor
A23Air Mix Control Servo Motor (Driver Side)
A24Air Mix Control Servo Motor (Front
Passenger Side)90980–11909
A25Air Vent Mode Control Servo Motor
A26Airbag Sensor Assembly82824–50160
A27Airbag Sensor Assembly90980–11872
A28Airbag Sensor Assembly82824–50150
A29Airbag Squib (Front Passenger Airbag
Assembly)
90980–12160
A30Airbag Squib (Steering Wheel Pad)
A31Antenna Amplifier90980–10870
A32ABS Speed Sensor Rear LH
A33ABS Speed Sensor Rear RH90980–11060
B 1Back–Up Light SW90980–10576
B 2Brake Booster Pressure Sensor90980–10845
B 3Brake Fluid Level Warning SW90080–98001
B 4Blower Motor90980–10214
B 5Blower Motor Controller90980–11676
B 6Blower Resistor90980–11136
Back Door Courtesy SWB 7Back Door Lock Motor90980–10795
B 8Back Door Opener SW90980–11967
B 9Buckle SW (Driver’s Side)90980–10942
Buckle SW (Front Passenger’s Side)B10Occupant Detection Sensor90980–10795
C 1Camshaft Position Sensor90980–10947
C 2Camshaft Timing Oil Control Valve90980–11162
C 3Compressor Assembly90980–11156
C 4Condenser Assembly90980–11003
C 5Counter Gear Speed Sensor90980–11156
Crankshaft Position Sensor (1AZ–FSE,
1AZ–FE)90980–10947
C 6Crankshaft Position Sensor (1CD–FTV)90980–12028
Crankshaft Position Sensor (1ZZ–FE,
3ZZ–FE)90980–10947
Cigarette LighterC 7Cigarette Lighter Illumination90980–10795
C 8Circuit Opening Relay82660–05020
C 9Clutch Start SW90980–10825
C10Combination Meter90980–11913
C11Combination Meter90980–11915
C12Combination SW90980–11672
C13Combination SW90980–11594
C14Combination SW90980–12183
C15Curtain Shield Airbag Sensor LH
C16Curtain Shield Airbag Sensor RH90980–12352
C17Curtain Shield Airbag Squib LH
C18Curtain Shield Airbag Squib RH90980–12219
D 1Diesel Throttle Control Motor90980–11144
D 2Diode90980–11071
D 3Diode90980–10962
Diode (Fan) (Except 1CD–FTV)90980–11608D 4Diode (Fan) (1CD–FTV)90980–11071
D 5DLC390980–11665
D 6Door Control Receiver90980–11909
D 7Door Courtesy Light LH
D 8Door Courtesy Light RH90980–11148
D 9Door Courtesy SW Front LH
D10Door Courtesy SW Front RH
D11Door Courtesy SW Rear LH90980–10871
D12Door Courtesy SW Rear RH
Door Key Lock and Unlock SW (Driver’s
Side)
D13Door Lock Control Motor (Driver’s Side)90980–12226
Door Unlock Detection SW (Driver’s Side)
http://vnx.su

Page 2138 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual L
CodePart Name Part NumberCodePart Name Part Number
AVENSIS (EWD526E) 571
Door Key Lock and Unlock SW (Driver
’s
Side)
Door Lock Control Motor (Driver ’s Side)D14Door Unlock Detection SW (Driver

L
CodePart Name Part NumberCodePart Name Part Number
AVENSIS (EWD526E) 571
Door Key Lock and Unlock SW (Driver
’s
Side)
Door Lock Control Motor (Driver ’s Side)D14Door Unlock Detection SW (Driver ’s Side)
Double Lock Motor (Driver ’s Side)
Double Lock Position SW (Driver ’s Side)
D15Door Lock Control Motor (Front
Passenger ’s Side)
90980–12226
Door Lock Control Motor (Front
Passenger ’s Side)
Door Unlock Detection SW (Front
Passenger ’s Side)
D16Double Lock Motor (Front Passenger ’s
Side)
Double Lock Position SW (Front
Passenger ’s Side)
Door Lock Control SWD17Power Window Master SW90980–12200
D18Door Lock Motor Rear LH
Door Lock Motor Rear LH
Door Unlock Detection SW Rear LHD19Double Lock Motor Rear LH
Double Lock Position SW Rear LH
D20Door Lock Motor Rear RH90980–12226
Door Lock Motor Rear RH
Door Unlock Detection SW Rear RHD21Double Lock Motor Rear RH
Double Lock Position SW Rear RH
E 1ECT Solenoid90980–11658
EFI Water Temp. Sensor (Except 1AZ–FE)90980–10737E 2EFI Water Temp. Sensor (1AZ–FE)90980–10735
E 3EGR Valve Control Motor90980–11144
E 4Electronic Driver Unit90980–11592
Electronic Driver Unit (1AZ–FSE)90980–11024E 5Electronic Driver Unit (1CD–FTV)90980–11593
E 6Engine Hood Courtesy SW90980–10554
E 7Engine Oil Level Sensor90980–11235
E 8ECT Pattern Select SW90980–11013
Engine and ECT ECU (A/T)E 9Engine ECU (M/T)90980–12142
Engine and ECT ECU (A/T)E10Engine ECU (M/T)90980–12146
Engine and ECT ECU (A/T)E11Engine ECU (M/T)90980–12143
Engine and ECT ECU (A/T)E12Engine ECU (M/T)90980–12145
Engine and ECT ECU (A/T)E13Engine ECU (M/T)90980–12144
E14EPS ECU90980–12300
E15EPS ECU90980–12290
F 1Front Clearance Light LH
F 2Front Clearance Light RH90980–11149
F 3Front Fog Light LH
F 4Front Fog Light RH90980–11660
F 5Front Side Turn Signal Light LH
F 6Front Side Turn Signal Light RH90980–11162
Front Turn Signal Light LHF 7Headlight Control ECU LH
Front Turn Signal Light LHF 8Headlight LH (Low)
Front Turn Signal Light RH90980–10942
F 9Headlight Control ECU RH
Front Turn Signal Light RHF10Headlight RH (Low)
F11Front Washer Motor90080–98117
F12Front Window Deicer90980–11155
F13Front Wiper Motor90980–11599
F14Fuel Filter Warning SW90980–11002
F15Fuel Heater90980–10928
Fuel Pressure Sensor (1AZ–FSE)90980–11451F16Fuel Pressure Sensor (1CD–FTV)90980–11194
F17Fuel Pump90080–98001
F18Fuel Temp. Sensor90980–10737
Front Passenger ’s Seat Belt Warning Light
F19Rear Window Defogger SW90980–11989
Security Indicator Light
F20Front Wiper Deicer SW90980–10797
F21Front Door Speaker LH
F22Front Door Speaker RH90080–98157
F23Fuel Lid Opener Motor90080–98313
F24Fuel Lid Opener SW90980–11013
Fuel PumpF25Fuel Sender90980–11077
G 1Glow Plug99141–13006
G 2Glow Plug Relay90980–11569
G 3Glove Box Light90980–11098
H 1Headlight Beam Level Control Actuator LH
H 2Headlight Beam Level Control Actuator RH90980–11016
H 3Headlight Cleaner Control Relay90980–10939
H 4Headlight Cleaner Motor90080–98116
H 5Headlight LH (High)
H 6Headlight RH (High)90980–11314
http://vnx.su

Page 2139 of 2234

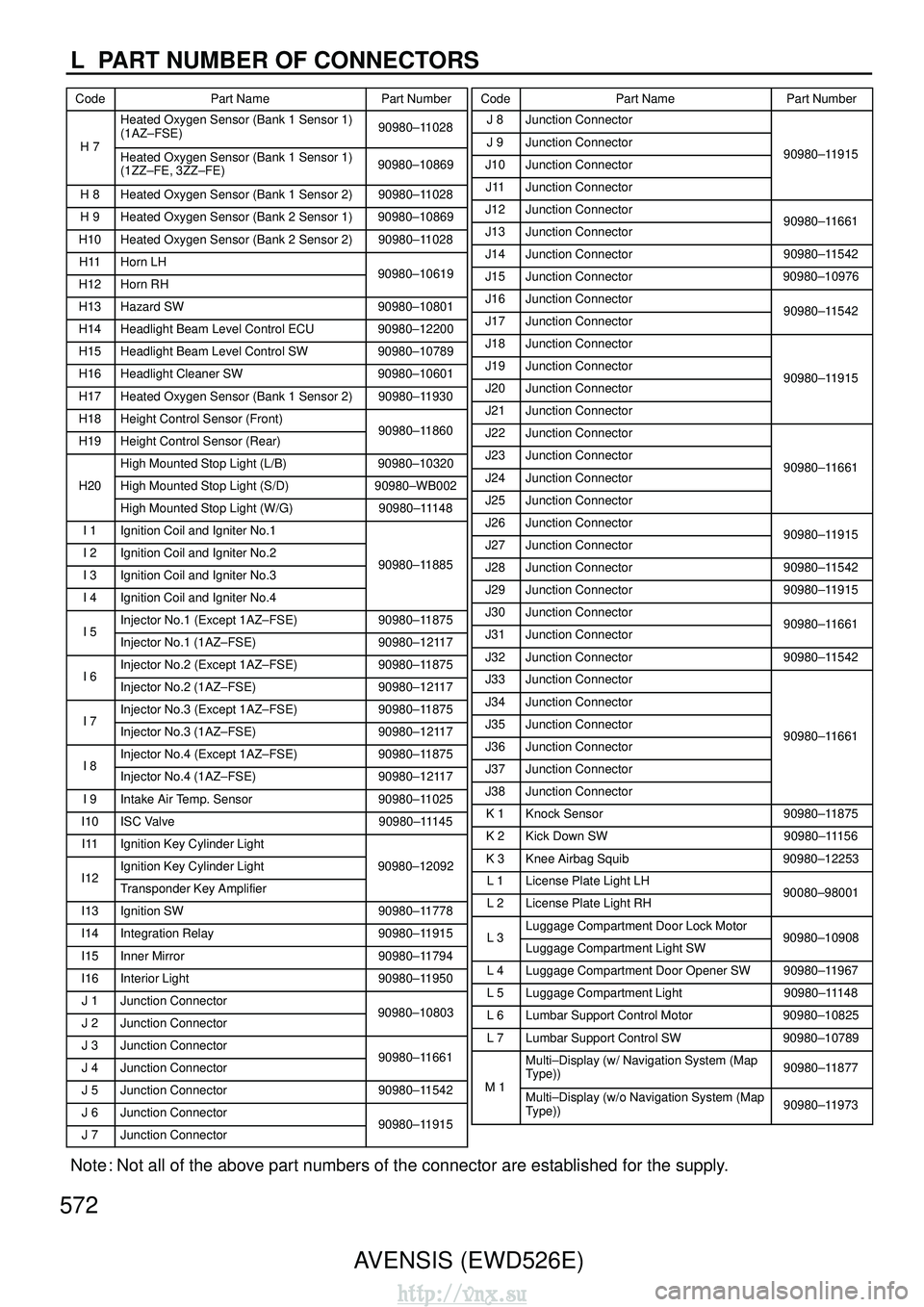

L PART NUMBER OF CONNECTORS
CodePart Name Part NumberCodePart Name Part Number
AVENSIS (EWD526E)
Note : Not all of the above part numbers of the connector are established for t\
he supply.
572
Heated Oxygen Sensor (Bank 1 Sensor 1)
(1AZ–FSE)90980–11028
H 7Heated Oxygen Sensor (Bank 1 Sensor 1)
(1ZZ–FE, 3ZZ–FE)90980–10869
H 8Heated Oxygen Sensor (Bank 1 Sensor 2)90980–11028
H 9Heated Oxygen Sensor (Bank 2 Sensor 1)90980–10869
H10Heated Oxygen Sensor (Bank 2 Sensor 2)90980–11028
H11Horn LH
H12Horn RH90980–10619
H13Hazard SW90980–10801
H14Headlight Beam Level Control ECU90980–12200
H15Headlight Beam Level Control SW90980–10789
H16Headlight Cleaner SW90980–10601
H17Heated Oxygen Sensor (Bank 1 Sensor 2)90980–11930
H18Height Control Sensor (Front)
H19Height Control Sensor (Rear)90980–11860
High Mounted Stop Light (L/B)90980–10320
H20High Mounted Stop Light (S/D)90980–WB002
High Mounted Stop Light (W/G)90980–11148
I 1Ignition Coil and Igniter No.1
I 2Ignition Coil and Igniter No.2
I 3Ignition Coil and Igniter No.390980–11885
I 4Ignition Coil and Igniter No.4
Injector No.1 (Except 1AZ–FSE)90980–11875I 5Injector No.1 (1AZ–FSE)90980–12117
Injector No.2 (Except 1AZ–FSE)90980–11875I 6Injector No.2 (1AZ–FSE)90980–12117
Injector No.3 (Except 1AZ–FSE)90980–11875I 7Injector No.3 (1AZ–FSE)90980–12117
Injector No.4 (Except 1AZ–FSE)90980–11875I 8Injector No.4 (1AZ–FSE)90980–12117
I 9Intake Air Temp. Sensor90980–11025
I10ISC Valve90980–11145
I11Ignition Key Cylinder Light
Ignition Key Cylinder Light90980–12092I12Transponder Key Amplifier
I13Ignition SW90980–11778
I14Integration Relay90980–11915
I15Inner Mirror90980–11794
I16Interior Light90980–11950
J 1Junction Connector
J 2Junction Connector90980–10803
J 3Junction Connector
J 4Junction Connector90980–11661
J 5Junction Connector90980–11542
J 6Junction Connector
J 7Junction Connector90980–11915
J 8Junction Connector
J 9Junction Connector
J10Junction Connector90980–11915
J11Junction Connector
J12Junction Connector
J13Junction Connector90980–11661
J14Junction Connector90980–11542
J15Junction Connector90980–10976
J16Junction Connector
J17Junction Connector90980–11542
J18Junction Connector
J19Junction Connector
J20Junction Connector90980–11915
J21Junction Connector
J22Junction Connector
J23Junction Connector
J24Junction Connector90980–11661
J25Junction Connector
J26Junction Connector
J27Junction Connector90980–11915
J28Junction Connector90980–11542
J29Junction Connector90980–11915
J30Junction Connector
J31Junction Connector90980–11661
J32Junction Connector90980–11542
J33Junction Connector
J34Junction Connector
J35Junction Connector
J36Junction Connector90980–11661
J37Junction Connector
J38Junction Connector
K 1Knock Sensor90980–11875
K 2Kick Down SW90980–11156
K 3Knee Airbag Squib90980–12253
L 1License Plate Light LH
L 2License Plate Light RH90080–98001
Luggage Compartment Door Lock MotorL 3Luggage Compartment Light SW90980–10908
L 4Luggage Compartment Door Opener SW90980–11967
L 5Luggage Compartment Light90980–11148
L 6Lumbar Support Control Motor90980–10825
L 7Lumbar Support Control SW90980–10789
Multi–Display (w/ Navigation System (Map
Type))90980–11877
M 1Multi–Display (w/o Navigation System (Map
Type))90980–11973
http://vnx.su

Page 2140 of 2234

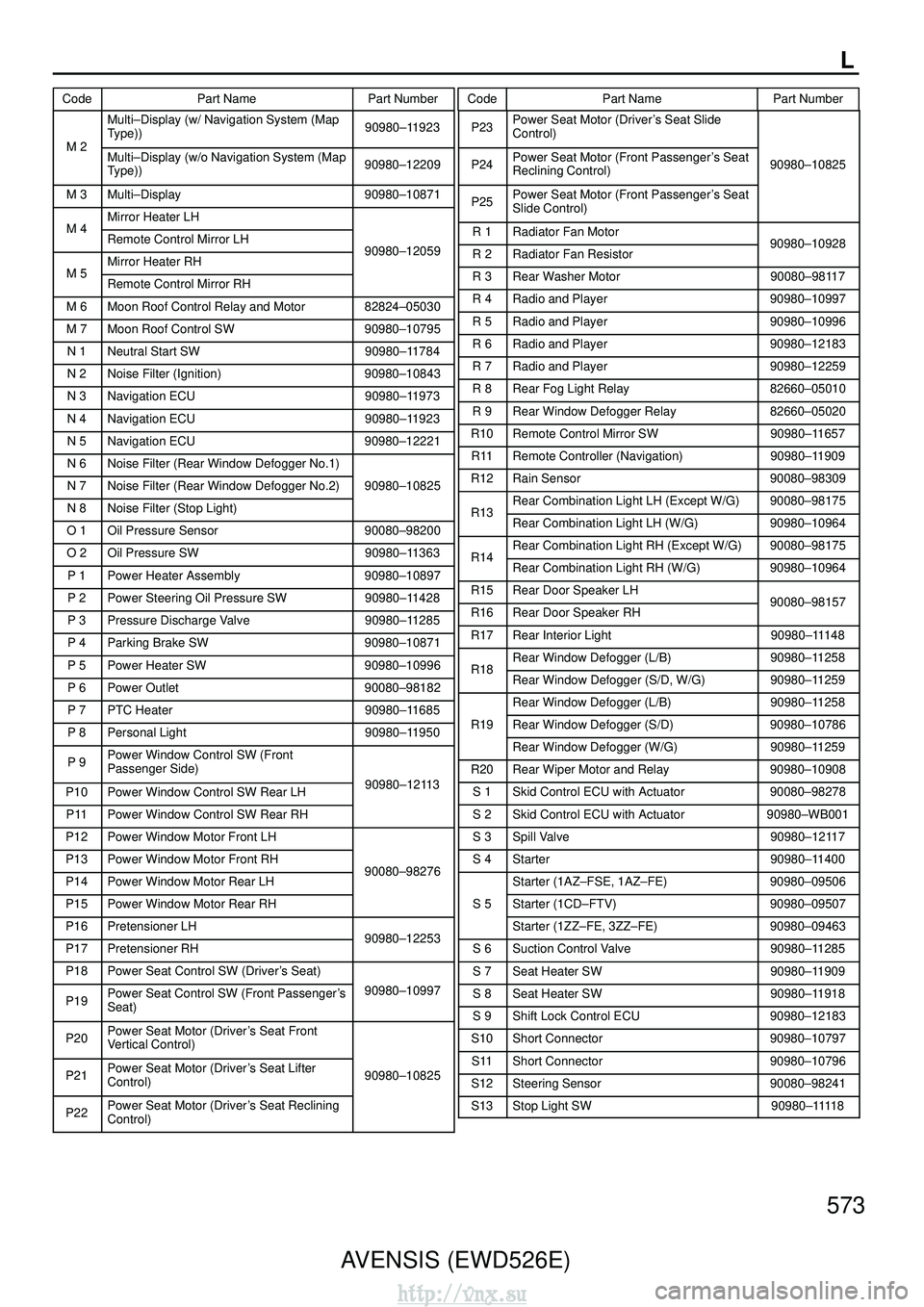

TOYOTA AVENSIS 2003 Service Repair Manual L
CodePart Name Part NumberCodePart Name Part Number
AVENSIS (EWD526E) 573
Multi–Display (w/ Navigation System (Map
Type))90980–11923
M 2Multi–Display (w/o Navigation System (Map
Type))90980–1

L
CodePart Name Part NumberCodePart Name Part Number
AVENSIS (EWD526E) 573
Multi–Display (w/ Navigation System (Map
Type))90980–11923
M 2Multi–Display (w/o Navigation System (Map
Type))90980–12209
M 3Multi–Display90980–10871
Mirror Heater LHM 4Remote Control Mirror LH
Mirror Heater RH90980–12059
M 5Remote Control Mirror RH
M 6Moon Roof Control Relay and Motor82824–05030
M 7Moon Roof Control SW90980–10795
N 1Neutral Start SW90980–11784
N 2Noise Filter (Ignition)90980–10843
N 3Navigation ECU90980–11973
N 4Navigation ECU90980–11923
N 5Navigation ECU90980–12221
N 6Noise Filter (Rear Window Defogger No.1)
N 7Noise Filter (Rear Window Defogger No.2)90980–10825
N 8Noise Filter (Stop Light)
O 1Oil Pressure Sensor90080–98200
O 2Oil Pressure SW90980–11363
P 1Power Heater Assembly90980–10897
P 2Power Steering Oil Pressure SW90980–11428
P 3Pressure Discharge Valve90980–11285
P 4Parking Brake SW90980–10871
P 5Power Heater SW90980–10996
P 6Power Outlet90080–98182
P 7PTC Heater90980–11685
P 8Personal Light90980–11950
P 9Power Window Control SW (Front
Passenger Side)
P10Power Window Control SW Rear LH90980–12113
P11Power Window Control SW Rear RH
P12Power Window Motor Front LH
P13Power Window Motor Front RH
P14Power Window Motor Rear LH90080–98276
P15Power Window Motor Rear RH
P16Pretensioner LH
P17Pretensioner RH90980–12253
P18Power Seat Control SW (Driver
’s Seat)
P19Power Seat Control SW (Front Passenger ’s
Seat)90980–10997
P20Power Seat Motor (Driver ’s Seat Front
Vertical Control)
P21Power Seat Motor (Driver ’s Seat Lifter
Control)90980–10825
P22Power Seat Motor (Driver ’s Seat Reclining
Control)
P23Power Seat Motor (Driver ’s Seat Slide
Control)
P24Power Seat Motor (Front Passenger ’s Seat
Reclining Control)90980–10825
P25Power Seat Motor (Front Passenger ’s Seat
Slide Control)
R 1Radiator Fan Motor
R 2Radiator Fan Resistor90980–10928
R 3Rear Washer Motor90080–98117
R 4Radio and Player90980–10997
R 5Radio and Player90980–10996
R 6Radio and Player90980–12183
R 7Radio and Player90980–12259
R 8Rear Fog Light Relay82660–05010
R 9Rear Window Defogger Relay82660–05020
R10Remote Control Mirror SW90980–11657
R11Remote Controller (Navigation)90980–11909
R12Rain Sensor90080–98309
Rear Combination Light LH (Except W/G)90080–98175R13Rear Combination Light LH (W/G)90980–10964
Rear Combination Light RH (Except W/G)90080–98175R14Rear Combination Light RH (W/G)90980–10964
R15Rear Door Speaker LH
R16Rear Door Speaker RH90080–98157
R17Rear Interior Light90980–11148
Rear Window Defogger (L/B)90980–11258R18Rear Window Defogger (S/D, W/G)90980–11259
Rear Window Defogger (L/B)90980–11258
R19Rear Window Defogger (S/D)90980–10786
Rear Window Defogger (W/G)90980–11259
R20Rear Wiper Motor and Relay90980–10908
S 1Skid Control ECU with Actuator90080–98278
S 2Skid Control ECU with Actuator90980–WB001
S 3Spill Valve90980–12117
S 4Starter90980–11400
Starter (1AZ–FSE, 1AZ–FE)90980–09506
S 5Starter (1CD–FTV)90980–09507
Starter (1ZZ–FE, 3ZZ–FE)90980–09463
S 6Suction Control Valve90980–11285
S 7Seat Heater SW90980–11909
S 8Seat Heater SW90980–11918
S 9Shift Lock Control ECU90980–12183
S10Short Connector90980–10797
S11Short Connector90980–10796
S12Steering Sensor90080–98241
S13Stop Light SW90980–1111 8
http://vnx.su

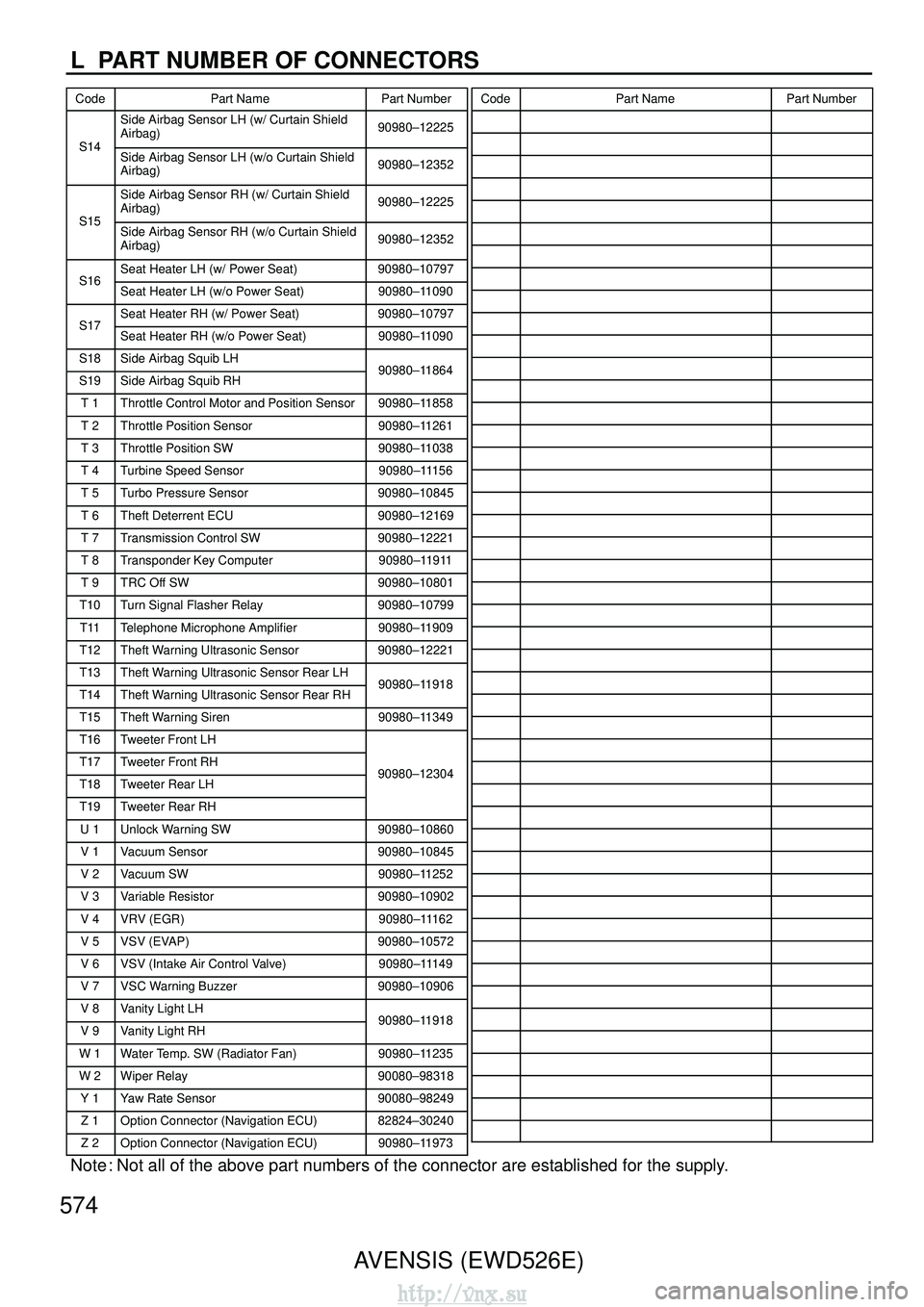

Page 2141 of 2234

Page 2142 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual L
CodePart Name Part NumberCodePart Name Part Number
AVENSIS (EWD526E) 575
http://vnx.su

Page 2143 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual AVENSIS (EWD526E)
580 M OVERALL ELECTRICAL WIRING DIAGRAM
1 23
4
1 AVENSIS (
C ont. ne xt pa ge )
B–G
4B
1
1 4D
1 1
AM1 IG1 ACC
3
2 13
5
10A GAUGE1
IJLeft Kick Panel
140A ALT
120A ALT
(
1AZ–F

AVENSIS (EWD526E)
580 M OVERALL ELECTRICAL WIRING DIAGRAM
1 23
4
1 AVENSIS (
C ont. ne xt pa ge )
B–G
4B
1
1 4D
1 1
AM1 IG1 ACC
3
2 13
5
10A GAUGE1
IJLeft Kick Panel
140A ALT
120A ALT
(
1AZ–FSE, 1AZ–FE )
100A ALT (
1ZZ–FE, 3ZZ–FE )
40A MAIN W–B
W–B
G–Y
B–G
(
∗ 1 )
G–R B–G
FL MAIN
3. 0WBattery IG1
Relay
1 2
3 2
3
W
1
2
1ED1
(
∗ 1 )
B–G
( ∗ 1 )
B–L B–L
(
∗ 2 )
(∗ 2 )
(
∗ 2 ) (
∗ 1 )
I13
DH
1D H
5DN 1
1 DA
9
6
W–R
25A AM1
7. 5A ECU–B 2
25 E
W–L
M ultiplex C ommunication System
(
LHD )
Power Source
∗ 1 : Gasoline
∗ 2 : 1CD–FTV
Ignition SW
4A
1
1A
1
3
30A DCC
1
1
2
B–W
B
B
B–G( ∗ 1 )
(
∗ 2 )
( ∗ 2 )
4IE4
B–W
B–W
22IG
23 B Integration Relay
I14
(
A )
1
25A DOOR
B
21 ACC
7. 5A RAD NO. 1
DH
3
2
G
G
CD
3
10 CC
W–R
W–R
DB
16
W–R
CF
9
(
∗ 4 )
DK
6W–B
6 6
W–R 7. 5A DOME
1 2
1
2
1 2
5
3
TAIL Relay
15 INTB
7. 5A PANEL
DB
19 DJ
9
G–W
∗ 3 : w/ Daytime Running Light
(
∗ 3 )
(∗ 3 )
DB
4
GR
DB
7R–W
B A
W–R
(
∗ 4 )
W–L (
∗ 3 )
∗
4 : w/ Wireless Door Lock
R–W
W–RW–B GR
EF
D C
13
TRLY
IO Instrument Panel
Reinforcement RH
IL
Behind the
Combination Meter W–B
W–B
(∗ 1 )
(
∗ 2 )
AVENSIS (EWD526E)
581M
5
67
8
1 AVENSIS (
C ont' d )
(
C ont. ne xt pa ge )
DIM
M ultiplex C ommunication System (
LHD )
R–Y
Headlight Cleaner
SW< 28–4> < 30–4> H–LP Relay
22
2 1 5
3
22 W–L
R–Y
W–L
14 A
R–L
Headlight Beam Level
Control ECU< 24–3>
15 IC2 2A
R–Y
HRLY
R–Y
EA
DBJunction
ConnectorJ 3 (
A )
, J 4 (
B )
12 T
Taillight System
< 14–1> W–R
CA
CA
CB
CA
R–Y R–Y
( ∗ 6 )
(
∗ 3 ∗5 )
Junction
ConnectorJ 6 (
A )
, J 7 (
B )
D 6Door Control
Receiver
IC2
7
(
∗ 4 ) G–Y
L–W
( ∗ 4 ) W–B
IC2
16
2
3
1
(∗ 4 )
(
∗ 4 )
16 A A
7
PRG RDA
L–W
G–Y
14 TOUT
20P/W
Moon Roof System
< 32–2>
Power Window System
< 33–3>
DB
12 DA
5
ECT and A/T Indicator System
< 10–2> < 12–2>
SNOW
8
DA
14
W–G
IC3
1 21 A
W–G
OBD2
15 A
LG
FRLY
Turn Signal Flasher Relay
< 15–3>
9A
L–R
BKL
IC2
12
Illumination System
< 19–3>
DJ
6
DIM
Relay
22
1 2 5
3
22
6IB1
W–R
W–R
R–L
R–B
R–Y
(
∗ 3 )
( ∗ 3 )
(∗ 8 )
(
∗ 3 ) (
∗ 3 ) (
∗ 3 )
( ∗ 3 )
(
∗ 3 ) (
∗ 3 )
(
∗ 3 )
(
∗ 3 )
(
∗ 3 )
(
∗ 3 )
Integration RelayI14 (
A )
C
D
E F
R–W
GR
W–B
W–R
W–R
(
∗ 4 )
W–L (
∗ 3 )
A
B W–R
B A
R–B
( ∗ 3 )
(
∗ 3 )
GR
D
F
C
E W–B
R–W
W–R
L–R
Airbag Sensor Assembly
< 22–11>
W–B
G
∗
6 : ∗ 3 w/ HID
∗ 5 : w/ Headlight Cleaner
∗
4 : w/ Wireless Door Lock
(
∗ 3 )
W–R
R–Y
DB
(∗ 3 )
A/C Control
Assembly
<48–8><49–8>
∗
3 : w/ Daytime Running Light
∗ 8 : ∗ 3 Power Heater (
Electrical Type )
(∗ 4 )
(
∗ 4 )
DLC3
<5–19><6–15><7–14><8–15>
GROUND
PRG RDA
(
∗ 3 )
(
∗ 3 )
(
A/T ) W–R
5
+B
(
∗ 4 )
AVENSIS (EWD526E)
582 M OVERALL ELECTRICAL WIRING DIAGRAM
9 10 11
12
1 AVENSIS (
C ont' d )
(
C ont. ne xt pa ge )
M ultiplex C ommunication S ystem (
LHD )
OFF DA
13 A
18 H
HUHL
HT
EL
Low
Head
High
Dimmer S W
Tail
R–Y R–Y
W–B
Flash
(∗ 7 )
Light
Control SW
28
GRW–R ( ∗ 3 ) (
∗ 3 )
2
1
(
∗ 3 )
R
2 15A
H–LP LH 15A
H–LP RH
2
22
( ∗ 3 )
(∗ 3 )
( ∗ 3 )(
∗3 )
(
∗ 3 )(
∗3 )
( ∗ 3 )
(
∗ 3 ) 2
10A
H–LP
HI LH 10A
H–LP
HI RH
22
2
33 2
EC Engine Compartment Left
EB2
(
∗ 3 )
2
2 11
11 R–B
R–W
W–B
W–B
W–B
W–B W–B
W–B
R
R–B R–Y
R–L
R–L
H 6
H 5Headlight LH
(
High )
Headlight RH
(
High )
R–L
W–B
IL
Behind the
Combination Meter BA
AEAE
R–Y R–Y
R–Y
( ∗ 6 )
(
∗ 6 )
(∗ 6 )
IE1
10
(
∗ 3 )
(
∗ 3 )
(
∗ 3 )
(∗ 2 ∗3 )
(
∗ 3 )
R–Y Headlight Cleaner
Relay< 28–4>
( ∗ 6 )
Junction Connector
J 6(
A )
, J 7 (
B )3IC3
R–Y
HF
6A
R–W
9IC3
R–W
HU
BE
A
DA D
Engine Compartment Right
Headlight Control ECU LHF 7
( ∗ 7 )
(
∗ 6 )(
∗6 )
( ∗ 7 )
A A 2
1
R–B
W–B
Headlight Control ECU RH
F 9
(
∗ 7 )
(
∗ 6 )(
∗6 )
( ∗ 7 )
(
∗ 3 )
(∗ 3 )
W–B
W–B
W–B
Junction
Connector
J 2
G
W–B
F
W–B Integration Relay
I14
(
A )
R–W (
∗ 3 )
B
W–B A
C
E
D
GR
W–R R–W
( ∗ 3 )
A R–B
W–R
D B
F
C
E W–B
R–W
W–R (
∗ 3 ) ∗
7 : ∗ 3 w/o HID
∗
6 : ∗ 3 w/ HID
∗ 3 : w/ Daytime Running Light
( ∗ 4 )
(
∗ 4 )
∗
4 : w/ Wireless Door Lock
1 2
Headlight LH (
Low )F 82
1Headlight RH (
Low )F10
HF
16 13 7 8
Combination SW
C12
J 8(
A )
, J 9 (
B )Junction Connector
GR
GR
AF BHJunction ConnectorJ 3 (
A )
, J 4 (
B )
∗
1 : Gasoline
∗ 2 : 1CD–FTV
IO Instrument Panel
Reinforcement RH
(
∗ 1 ∗3 )
W–B
Engine
Compartment
Right
EA
W–B
ED
Engine
Compartment
Left W–B
AVENSIS (EWD526E)
583M
13
14 15
16
1 AVENSIS (
C ont' d )
(
C ont. ne xt pa ge )
M ultiplex C ommunication System (
LHD )
(
∗ 3 )
F W–B
W–B8CD 2 1
2
1
Integration Relay
I14
(
A )
2
4
3
Vanity Light LHV 8Vanity Light RHV 9Personal LightP 8
DK
7 6
LP
W–G
Ignition Key
Cylinder Light
I11(
A )
, I12 (
B )6B (
∗ 9 )
6A
(
∗ 10 )
2A (
∗ 10 )
2B (
∗ 9 )
DA
1
W–G W–G
W–B
W–B
W–B
W–B
BH
AFBHBH
4ID1
AF
W–R
W–R W–R
W–R
W–R
W–R
W–R
W–R W–R
A
W–R
W–B B
B
R–W
(
∗ 3 )
W–R R–W
D W–B
A
E
C
GR
W–R
20 B
2A
GR
5B
W–B
7CD
CD
6
R–W
21 B
R–W
Right Kick Panel
IP
CK
6
CA
6
W–B
Door
BEAN
I/F
14 A 22 A 11 A
1IC1 10 IC1
P
P–B P–B P
MPX1
MPX2
13 A
P
MPX+ MPX–
9A
10 B 20 B 29 A
P–B
( ∗ 12 )
CPU (
∗ 13 )
( ∗ 12 )
( ∗ 13 )A/C Control AssemblyA13 (
A )
, A15 (
B )
, A16 (
C )
MPX1 MPX2
18 B
23 A 21 A 29 A (
∗ 11 )
( ∗ 2 )
( 1AZ–FSE )
( ∗ 11 )
Engine ECU (
M/T )
Engine and ECT ECU
(
A/T )E 9(
A )
, E10 (
B )
29 B (
1AZ–FSE )
20 A (
∗ 2 )
P
W–R
A6
( ∗ 3 )
High Beam
W–B
W–B
W–B
( ∗ 4 )
(
∗ 4 ) ILL+ ILL–
W–R
Seat Belt
( ∗ 15 )
7
(
∗ 14 )
G–Y
IM1
14
(
∗ 14 )
W–B
G–Y
Under the Right
Center Pillar
BV
W–B
F19Front Passenger' s Seat Belt
Warning Light
4
R–W
(∗ 14 )
8
B10
6
(
∗ 14 )
L–R
3
1
(
∗ 15 )
Buzzer
( ∗ 14 ) (
∗ 14 )
Combination MeterC10 (
A )
, C11 (
B )12 B
R–W
PBLT
24 A
3C
L–R
7CA
R–W
( ∗ 14 )
∗13 : Automatic A/C
∗
9 : w/ Engine Immobiliser System
∗ 12 : Except Automatic A/C
∗
2 : 1CD–FTV
∗ 11 : 1AZ–FE, 1ZZ–FE, 3ZZ–FE
∗
10 : w/o Engine Immobiliser System
∗
3 : w/ Daytime Running Light
∗ 4 : w/ Wireless Door Lock
∗ 14 : Except 1AZ–FE
∗ 15 : Except 1AZ–FE, Latin America, Argentina, CIS
(
∗ 14 )
(∗ 15 )
CH
9
W–B
( ∗ 14 )
BU Under the Right
Center PillarW–B
Junction ConnectorJ10
(
A )
, J11 (
B )
C
W–B
( ∗ 3 )
IG
E PBEW B–PBEW
Buckle SW (
Front Passenger' s Side )
Occupant Detection Sensor
AVENSIS (EWD526E)
584 M OVERALL ELECTRICAL WIRING DIAGRAM
17 18 19
20
1 AVENSIS (
C ont' d )
(
C ont. ne xt pa ge )
M ultiplex C ommunication S ystem (
LHD )
Y
( ∗ 9 )
1Door Courtesy SW
Rear RHD12
W–G
1Door Courtesy SW
Rear LHD11
W–G
1Door Courtesy SW
Front RHD10
R
1Door Courtesy SW
Front LHD 9
R
IC2
4
IM1
18
14 IC2 9 IM1 DM
13
DM
12
DC
9
BD ABAB 16
RCTY
DB
13 17
DCTY
R
W–G W–G W–G
R R
R
DK
2
W–G Junction
Connector
J10
(
A )
, J11 (
B )
I16
DB
2 9
PCTY
R
11 IL1
10 IL1 2
1
AF BHAF
AF
RW –RW –R
D 8
R
11 IA1
10 IA1 2
1
RW
–RW –R
D 7
B
R–Y
(
S/D )
11 ID1
W–R
W–B
W–R
W–R432
Junction
Connector
J 6 (
A )
, J 7 (
B )
R
5IC2W–R
BH
B
1
2
W–R
B
Diode
D 3
Integration RelayI14
(
A )
A W–R
W–B
B 2
L 5Luggage
Compartment Light
(
S/D )
1J32Junction
Connector
A
A
W–R
R–Y
1A LGCY
R–Y
R–Y R–Y
A
(S/D )(
S/D)
(∗ 16 )
Instrument Panel
Reinforcement RH IO
W–B
ADA
6
DA
8 19
KSW
Y Y
1 2
Transponder Key Computer
<9–4>
Junction
ConnectorJ16
Unlock Warning SWU 1
W–B
Y
∗ 16 : L/B, W/G
Transponder Key Computer
<9–4>
( ∗ 9 )
R
DB
R–Y(
∗ 16 )
A
2 1
(
∗ 16 )
W–R
R17Rear Interior Light
(
S/D )
∗
9 : w/ Engine Immobiliser System
C W–B
( ∗ 3 ) A
W–B
( ∗ 3 )
∗
3 : w/ Daytime Running Light
∗
2 : 1CD–FTV
∗
1 : Gasoline
W–B
IL
Behind the
Combination Meter A
(
∗ 1 )
( ∗ 2 )
Door Courtesy
Light LH
Door Courtesy
Light RH Interior Light
AVENSIS (EWD526E)
585M
21
22 23
24
1 AVENSIS (
C ont' d )
M ultiplex C ommunication S ystem (
LHD )
IM2
IC1
7
1
IC1
17
L–B
IM2
17
L–Y (
S/D )
L–R (
∗ 16 )
Left Kick Panel
IJ ∗
16 : L/B, W/G
L–R
LG W–BW–B
16 IC1
L–R
L–B
L
D13
Lock Unlock
CA
4
G–W
BR–W
G–W
BR–W
D20
ACT–
ACT+
LSWD
UL2
L2
DB
20
Door Lock Motor
Rear LH Door Lock Motor
Rear RH
3
2
DA
D18
29 DA DB
10
L–R L
LG L–B
L–R
L–B
L–R
L–B
L–R
L–B
L–R
LG L
L–R
L–B
L–R
L–B
L–R
L–B
L–R
L–B
L–R
W–B
5
8 1
4
1
4
1
4
1
4
8
10
9
13W–B
7
7 CK
11
7CC
8CC
CJ
7
6DM
7DM
4DJ
1DJ
A3
5A
A4
BC111BC1
2
IL1
2
IL1
7
BA1
11
BA1
2
IA1
2
IA1
7
IA2
18
IA2
1
IA2
2
IA2
3
IA2
4 2CB
D15
11 10
UL1
L1
Right Side of
the Back DoorBX
Lower Back
Panel Left
BA
BA 2
3 4 M 6BE2
7BE2 3BG2
4BG2 5BF2
BD2
6
6BF2 BD2
7
(
∗ 16 )
L–B
LACT
BDSU
4
3DM A
10
(L/B )
( W/G )
(
L/B )
( W/G )
LL L
L L
L–B
W–B
L
L
L–B
W–BW–B W–B
( L/B )(
L/B)
(
W/G )
(
W/G )
( L/B )(
L/B)
(
W/G )
(
W/G )
B 8Back Door Courtesy SWB 7
(
∗ 16 ) (
∗ 16 )
(∗ 16 )
(
∗ 16 )
( ∗ 16 )
R–Y
A
B R–Y
(
S/D ) Integration Relay
I14
(
A )
(
∗ 16 )
A
A
(
∗ 16 )
W–B
(
W/G )(
W/G)
( L/B )
(
L/B ) R–Y
R–Y
R–Y R–Y
(
W/G )
(
L/B )
12 A
BDCY
R–Y
( ∗ 16 )
8BD2
BF2
2
BG2
5
BE2
8
2
1
(∗ 16 )
R–Y
BA
W–B
( ∗ 16 )
IA1
9
J32Junction
Connector
AA BSBC
W–B
W–B
( S/D )(
S/D)
AB 1 2
L–B
( S/D ) Luggage Compartment Door Opener SW
L 4
W–B
( S/D )
AB
L
( S/D )
L 3
M
L
( S/D ) L–B
( S/D )
R–Y (
∗ 16 )
A
R–Y
( S/D )
Back Door Lock Motor
Junction
ConnectorJ30(
A )
, J31 (
B )
3 12
1Door Lock Control SWD17
Junction ConnectorJ33 (
A )
, J34 (
B )
3BG1
2BE1
4BF1
BD1
2
W–B
W–B
W–B W–B W–B
( L/B )
( W/G )(
W/G)
(
L/B )
(
∗ 16 )
(
L/B )
( W/G )
Luggage Compartment Door Lock Motor
Luggage Compartment Light SW
Back Door Opener SW
Door Lock
Control Motor
(Front Passenger' s Side )
Door Key Lock and Unlock SW
(
Driver' s Side )
Door Unlock Detection SW
( Driver' s Side )
Door Lock Control Motor
(
Driver' s Side )
http://vnx.su

Page 2144 of 2234

Load next 8 pages

Page: < prev 1-10 ... 2105-2112 2113-2120 2121-2128 2129-2136 2137-2144 2145-2152 2153-2160 2161-2168 2169-2176 ... 2240 next >

stop start navigation system android auto child lock remote control airbag off
