Page 1145 of 2234

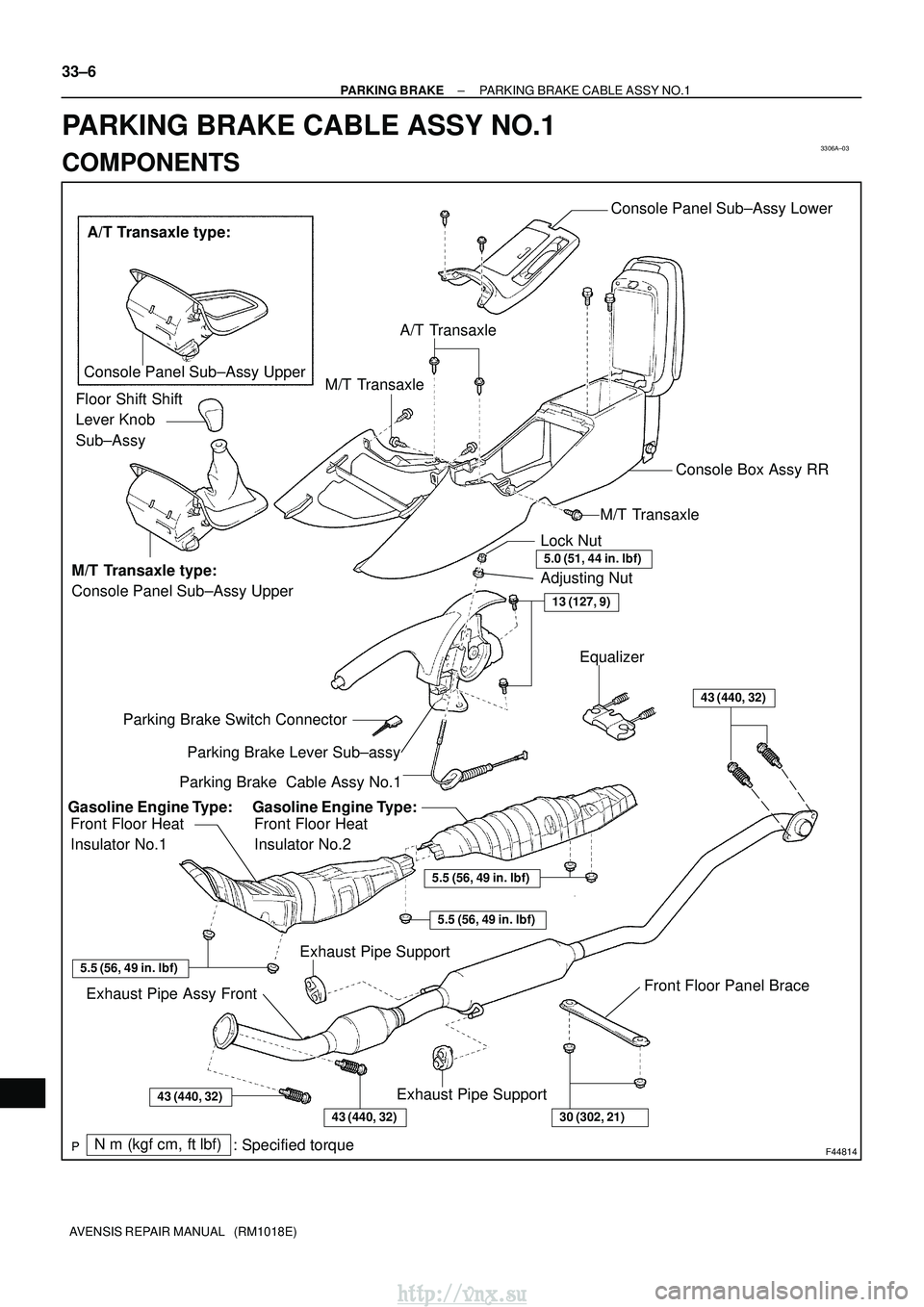

TOYOTA AVENSIS 2003 Service Repair Manual 3306A±03 F44814 Parking Brake Lever Sub±assy Parking Brake Switch Connector Lock Nut 5.0 (51, 44 in. lbf) Adjusting Nut Parking Brake Cable Assy No.1 Equalizer Front Floor Heat Insulator No.1 Fro

Page 1146 of 2234

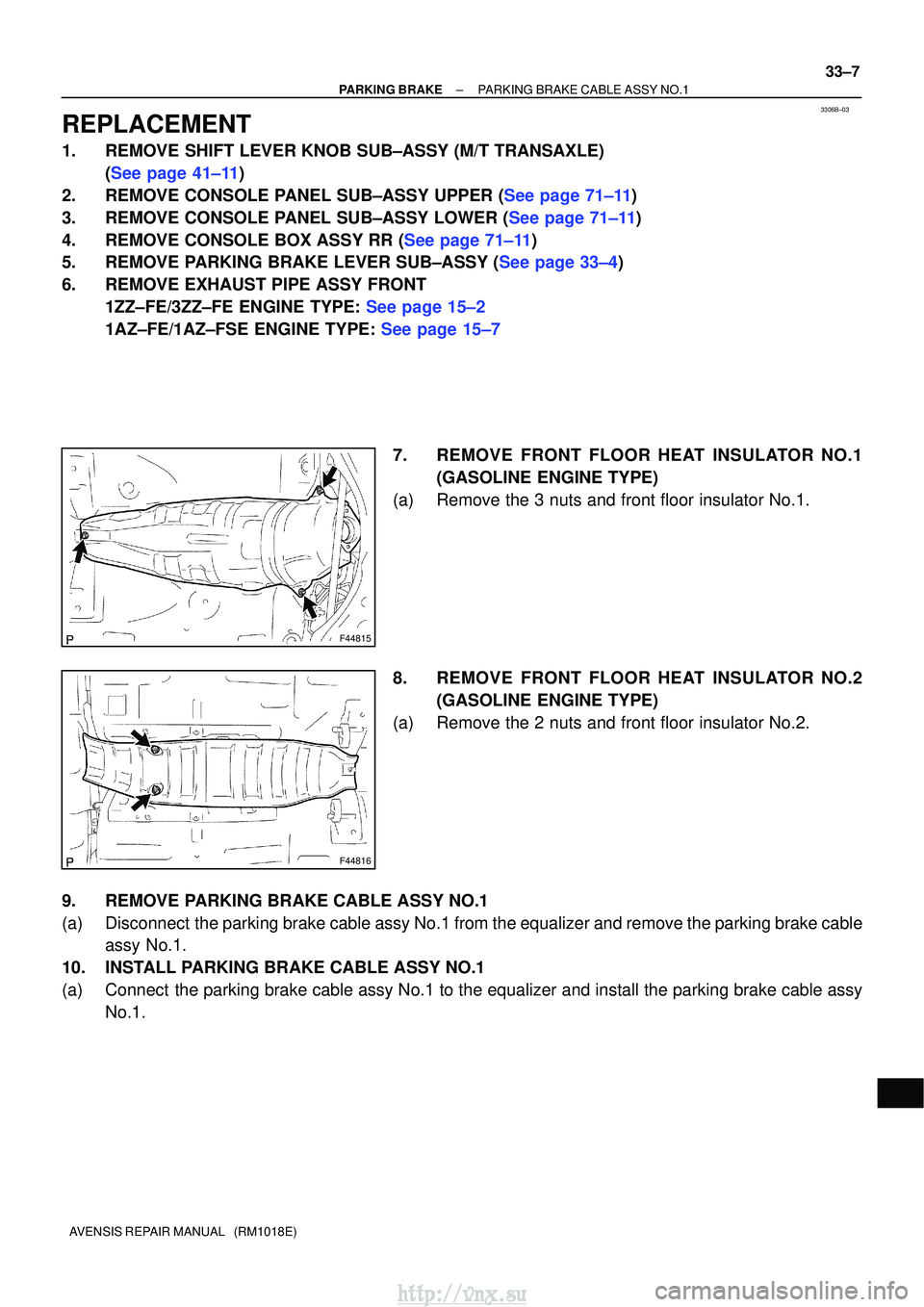

TOYOTA AVENSIS 2003 Service Repair Manual 3306B±03 F44815 F44816 ± PARKING BRAKE PARKING BRAKE CABLE ASSY NO.1 33±7 AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT 1. REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) (See page 41±11) 2.REMO

Page 1147 of 2234

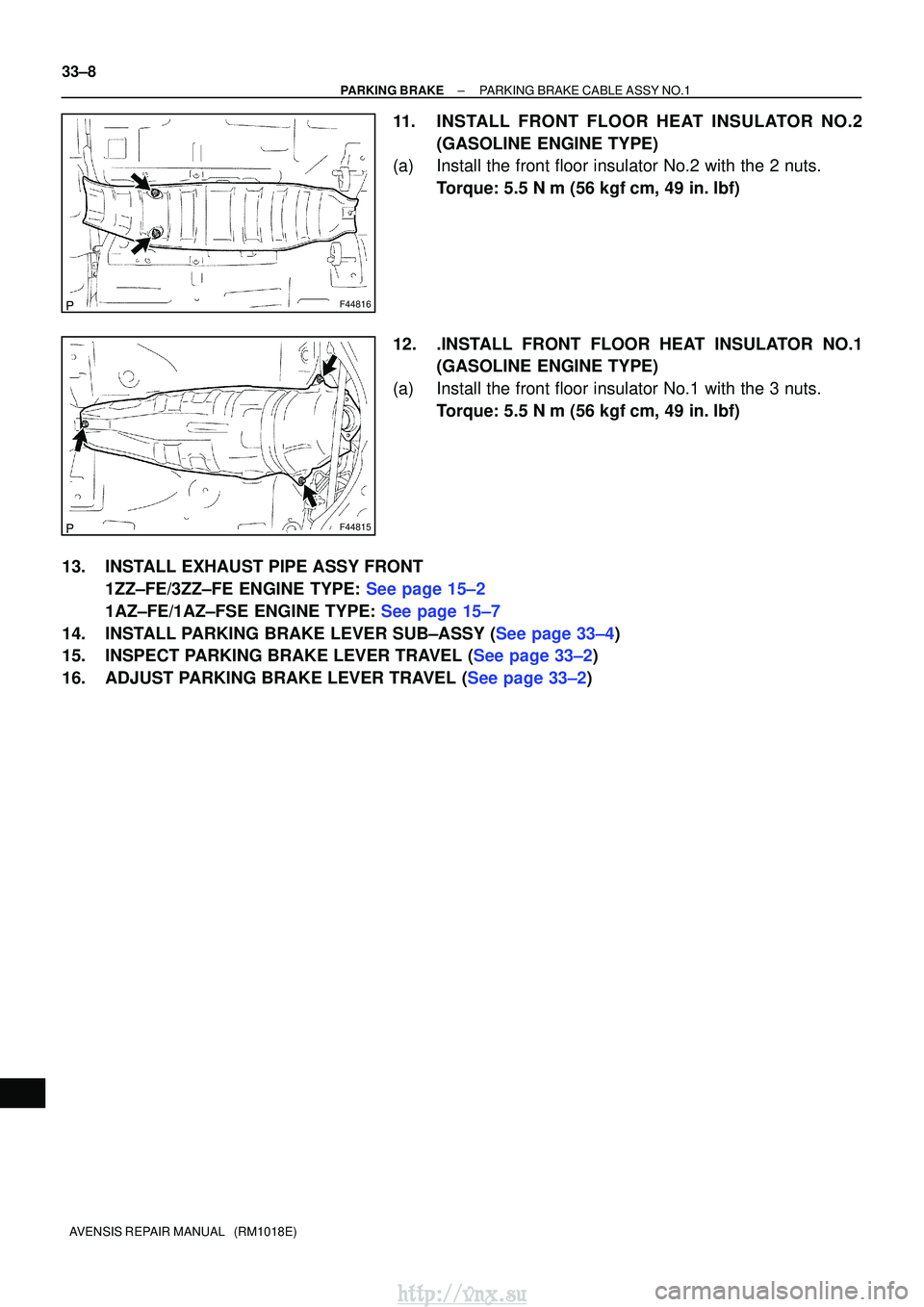

TOYOTA AVENSIS 2003 Service Repair Manual F44816 F44815 33±8 ± PARKING BRAKE PARKING BRAKE CABLE ASSY NO.1 AVENSIS REPAIR MANUAL (RM1018E) 11. INSTALL FRONT FLOOR HEAT INSULATOR NO.2 (GASOLINE ENGINE TYPE) (a) Install the front floor insu

Page 1148 of 2234

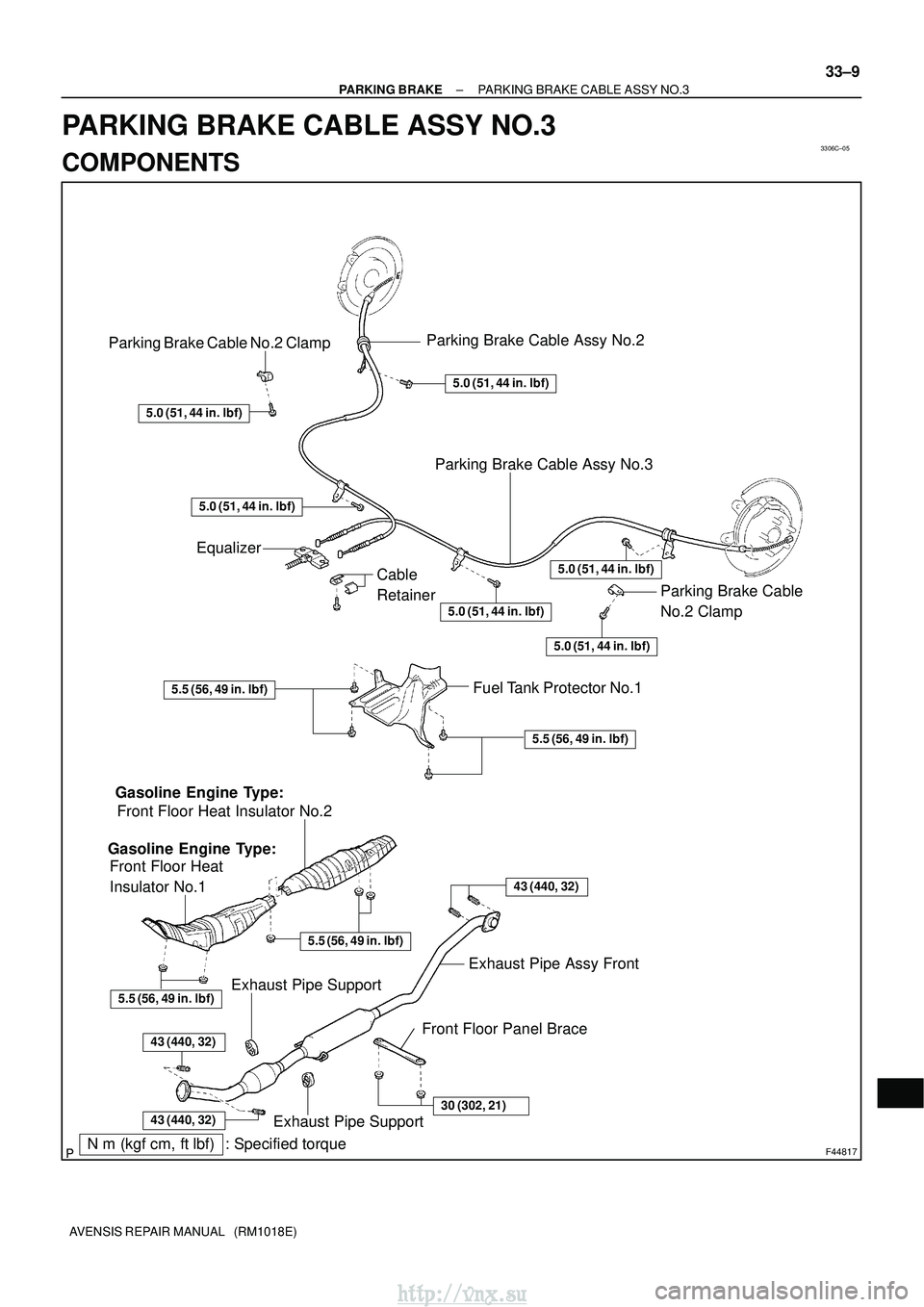

TOYOTA AVENSIS 2003 Service Repair Manual 3306C±05 F44817 Parking Brake Cable Assy No.2Parking Brake Cable Assy No.3 Equalizer Front Floor Heat Insulator No.1 Front Floor Heat Insulator No.2 Fuel Tank Protector No.1 Exhaust Pipe Support Cab

Page 1149 of 2234

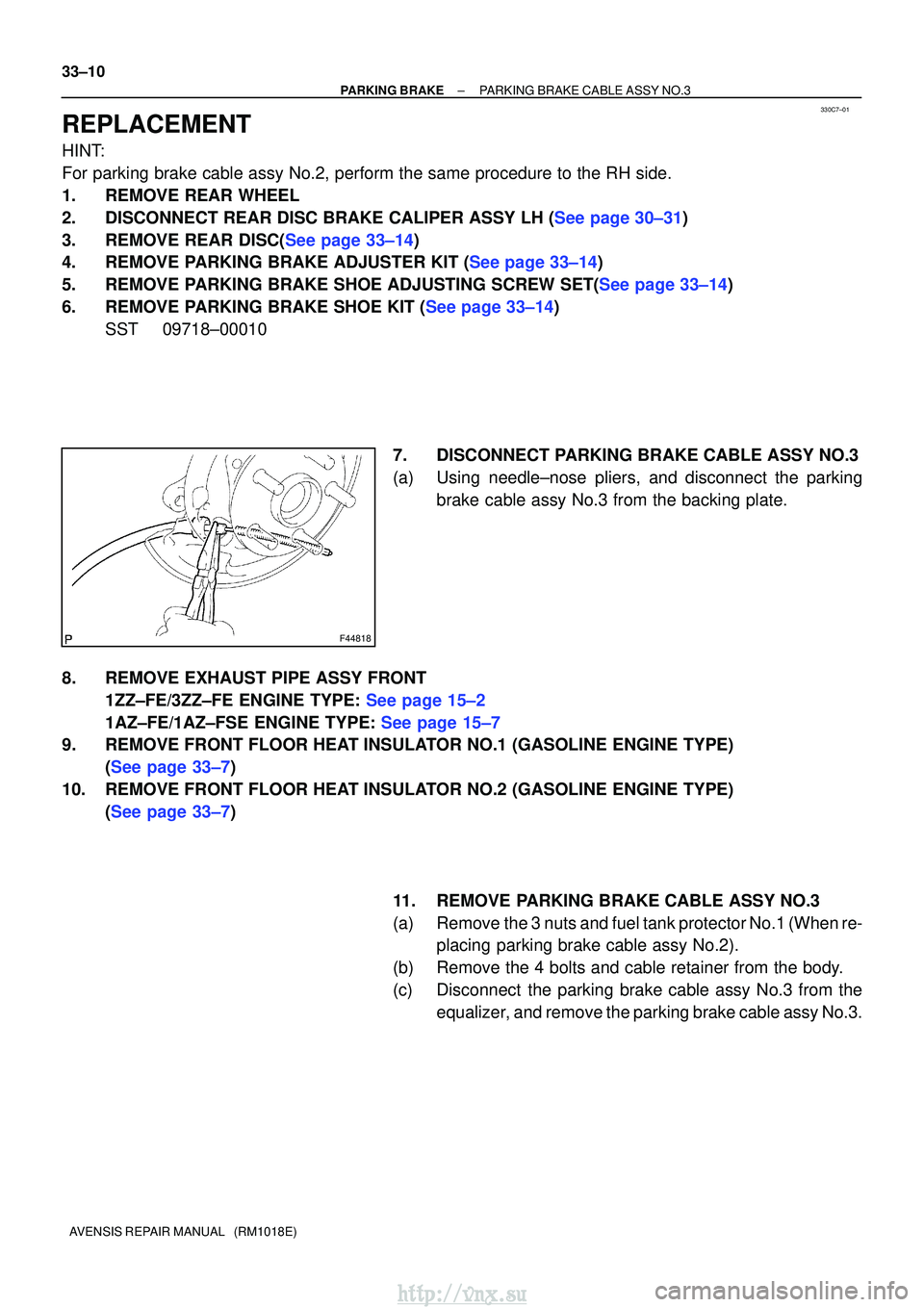

TOYOTA AVENSIS 2003 Service Repair Manual 330C7±01 F44818 33±10 ± PARKING BRAKE PARKING BRAKE CABLE ASSY NO.3 AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT HINT: For parking brake cable assy No.2, perform the same procedure to the RH sid\

Page 1150 of 2234

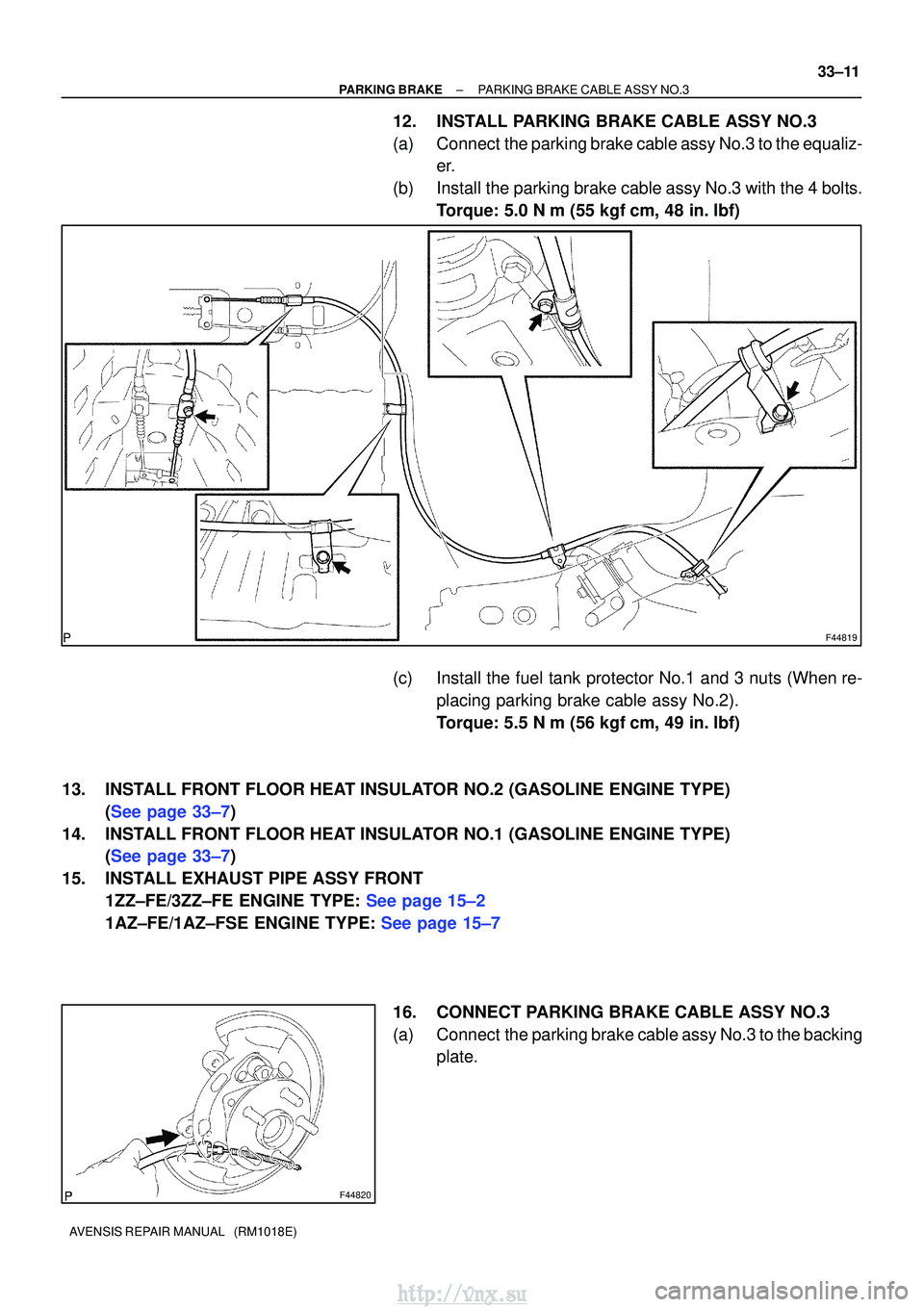

TOYOTA AVENSIS 2003 Service Repair Manual F44819 F44820 ± PARKING BRAKE PARKING BRAKE CABLE ASSY NO.3 33±11 AVENSIS REPAIR MANUAL (RM1018E) 12. INSTALL PARKING BRAKE CABLE ASSY NO.3 (a) Connect the parking brake cable assy No.3 to the eq

Page 1151 of 2234

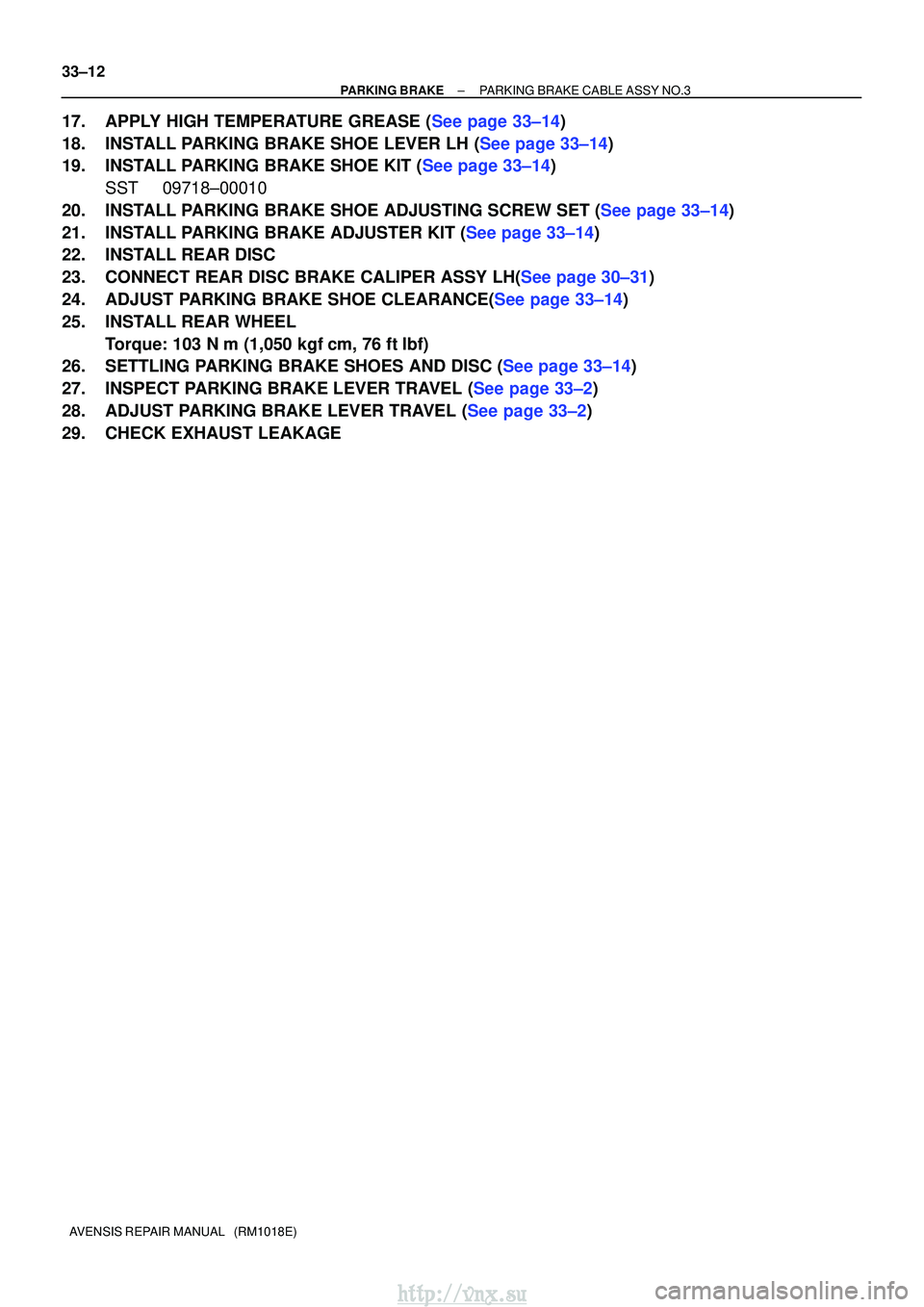

TOYOTA AVENSIS 2003 Service Repair Manual 33±12 ± PARKING BRAKE PARKING BRAKE CABLE ASSY NO.3 AVENSIS REPAIR MANUAL (RM1018E) 17.APPLY HIGH TEMPERATURE GREASE (See page 33±14) 18.INSTALL PARKING BRAKE SHOE LEVER LH (See page 33±14) 19.I

Page 1152 of 2234

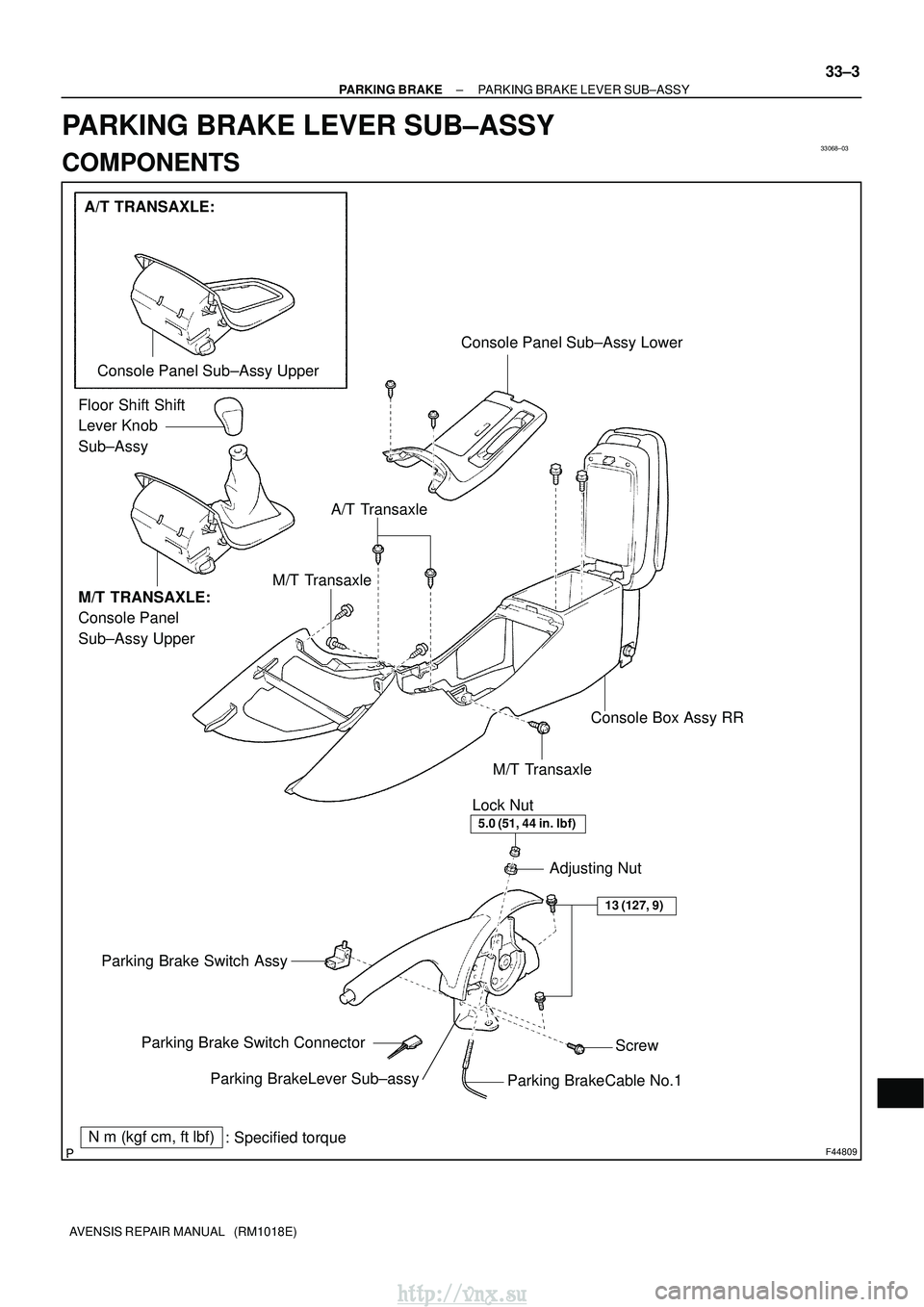

TOYOTA AVENSIS 2003 Service Repair Manual 33068±03 F44809 Console Box Assy RR Lock Nut Adjusting Nut Parking BrakeLever Sub±assy Parking Brake Switch Assy Parking Brake Switch Connector Parking BrakeCable No.1 N m (kgf cm, ftlbf) : Speci
