TOYOTA AVENSIS 2003 Service Repair Manual B50515
SST
B50511
SSTBattery
B50514
SST
B65506
61±10
±
SEAT BELT FRONT SEAT BELT
AVENSIS REPAIR MANUAL (RM1018E)

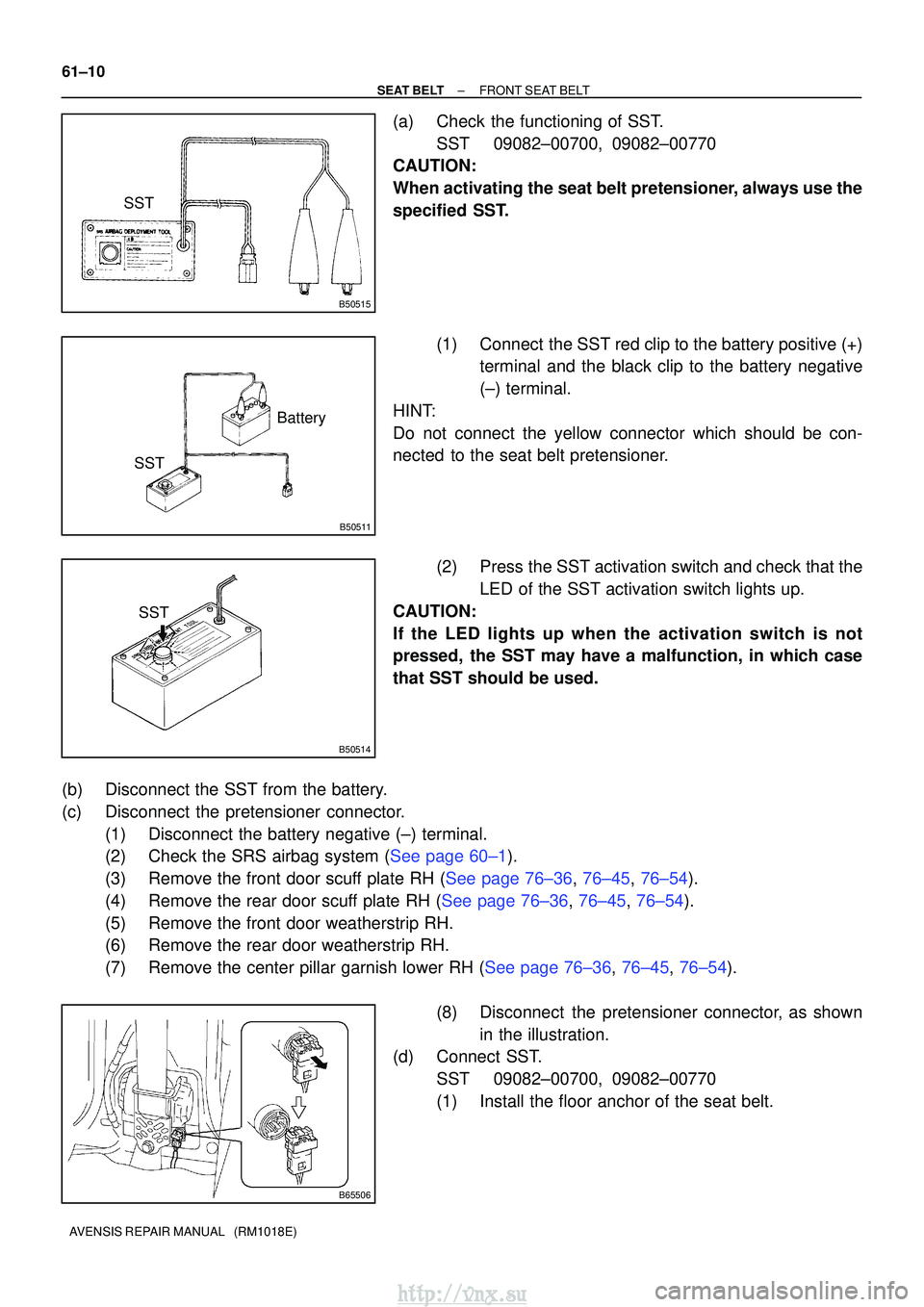

(a) Check the functioning of SST. SST 09082±00700, 09082±00770
CAUTION:
When acti

Page 1466 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B51763
SST
SST
B50513
10 m or more
±
SEAT BELT FRONT SEAT BELT
61±11
AVENSIS REPAIR MANUAL (RM1018E)

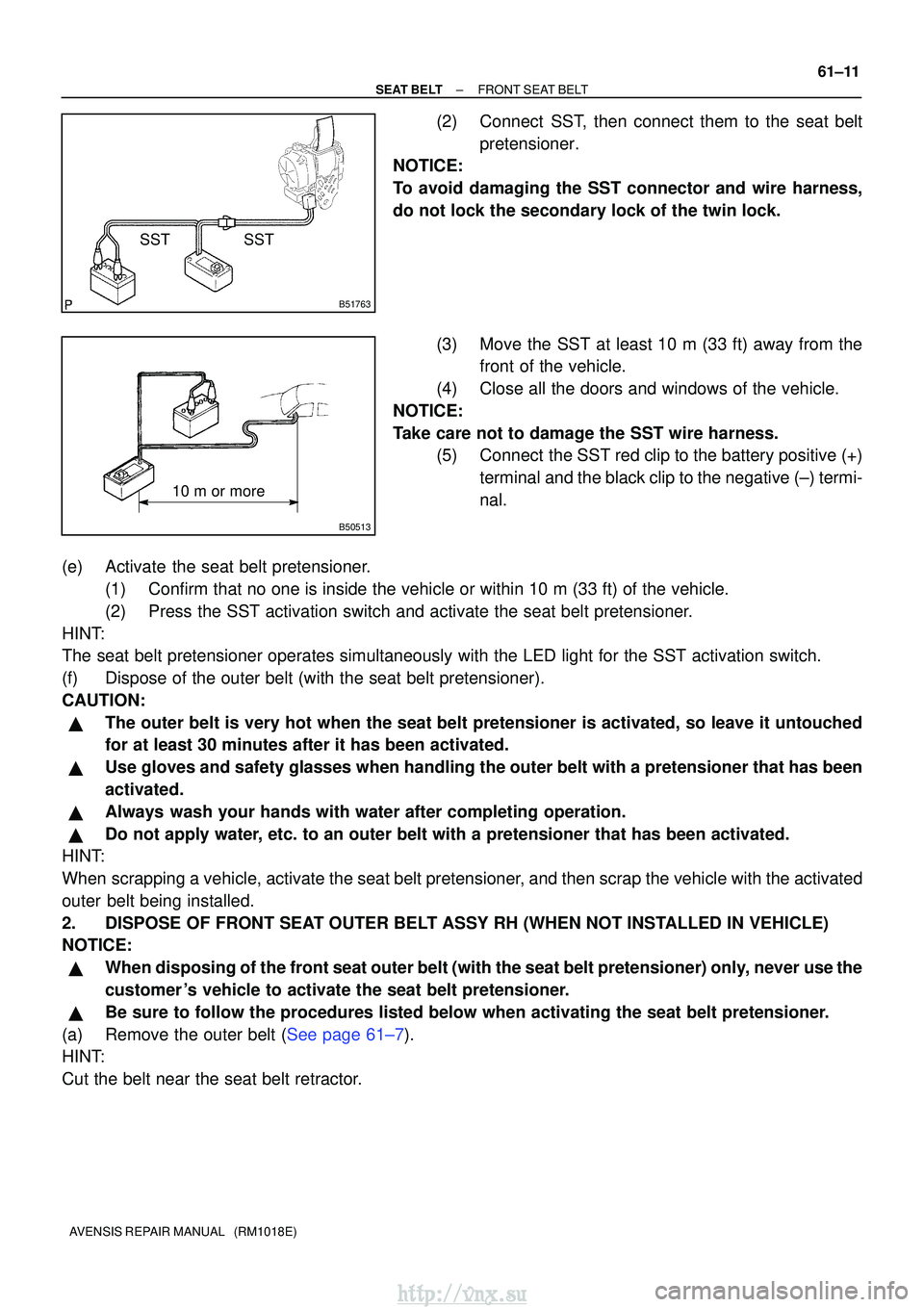

(2) Connect SST, then connect them to the seat belt
pretensioner.
NOTICE:
To avoid damaging th

Page 1467 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B50511
SSTBattery
B65030
SST
SST
B65031SST
SST
B50541
10 m or More
B65005
61±12
±
SEAT BELT FRONT SEAT BELT
AVENSIS REPAIR MANUAL (RM1018E)

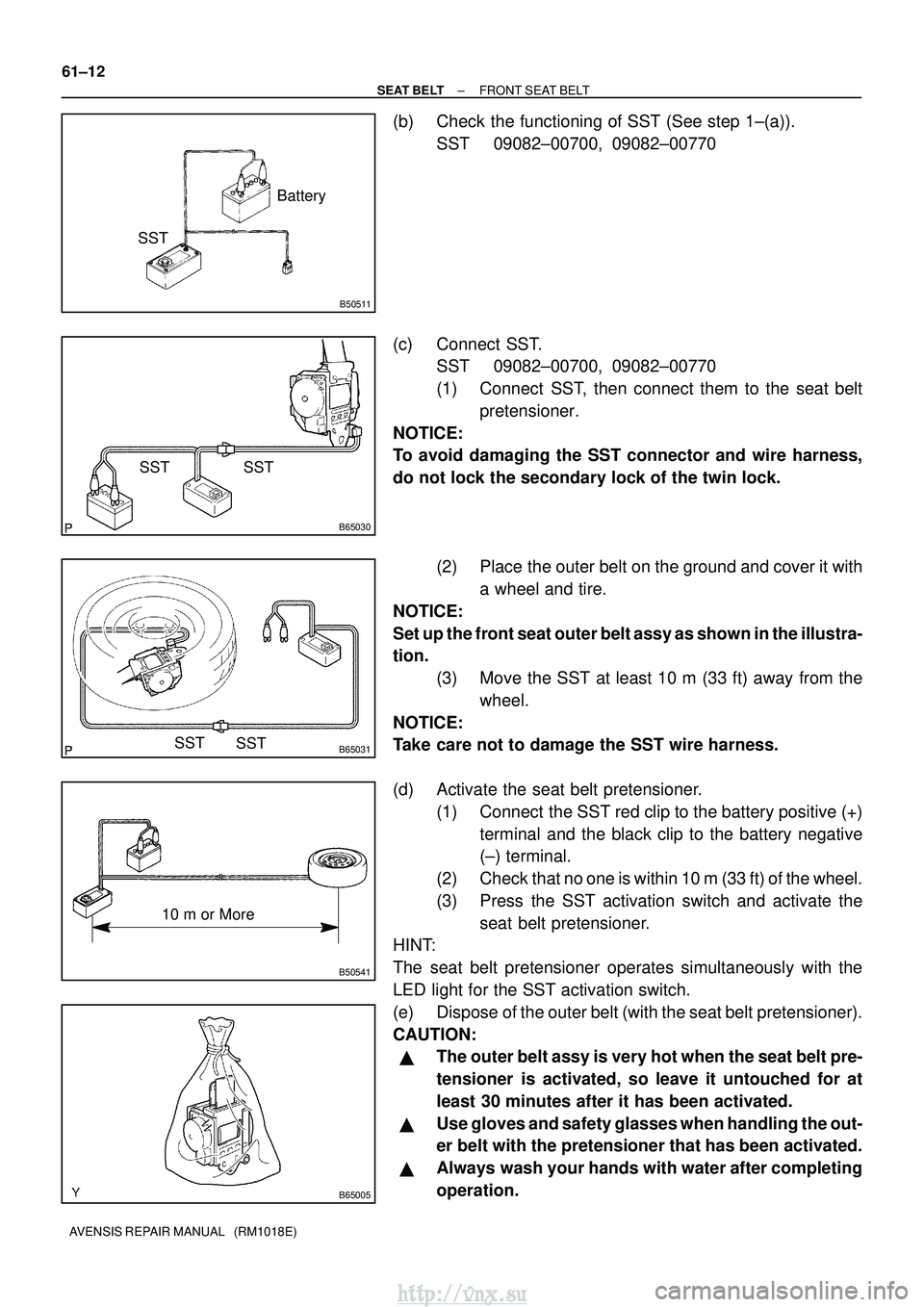

(b) Check the functioning of SST (See step 1±(a)). SST

Page 1468 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual ±
SEAT BELT FRONT SEAT BELT
61±13
AVENSIS REPAIR MANUAL (RM1018E)

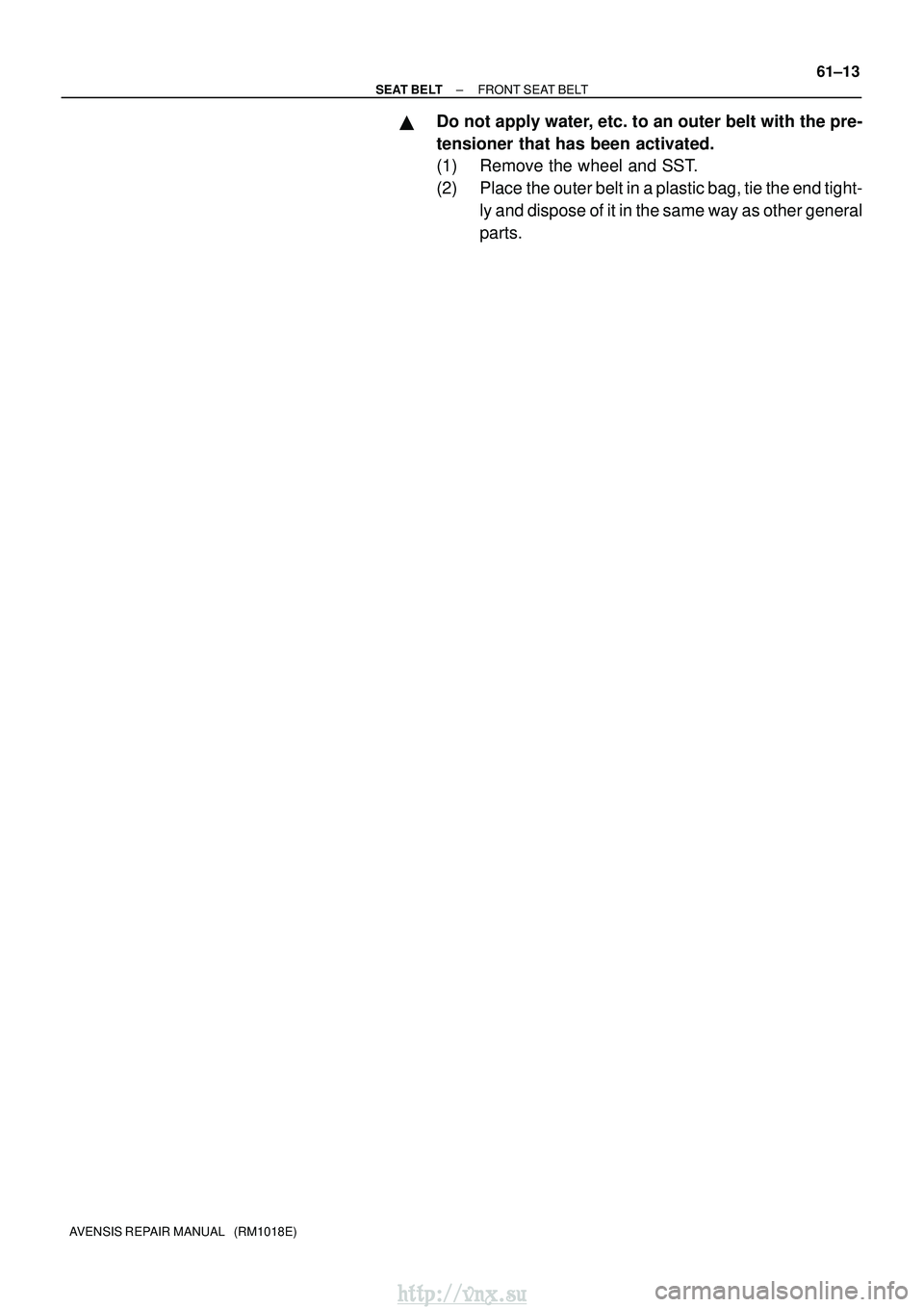

Do not apply water, etc. to an outer belt with the pre-
tensioner that has been activated.
(1) Remove the wheel and SST.
(2) Plac

Page 1469 of 2234

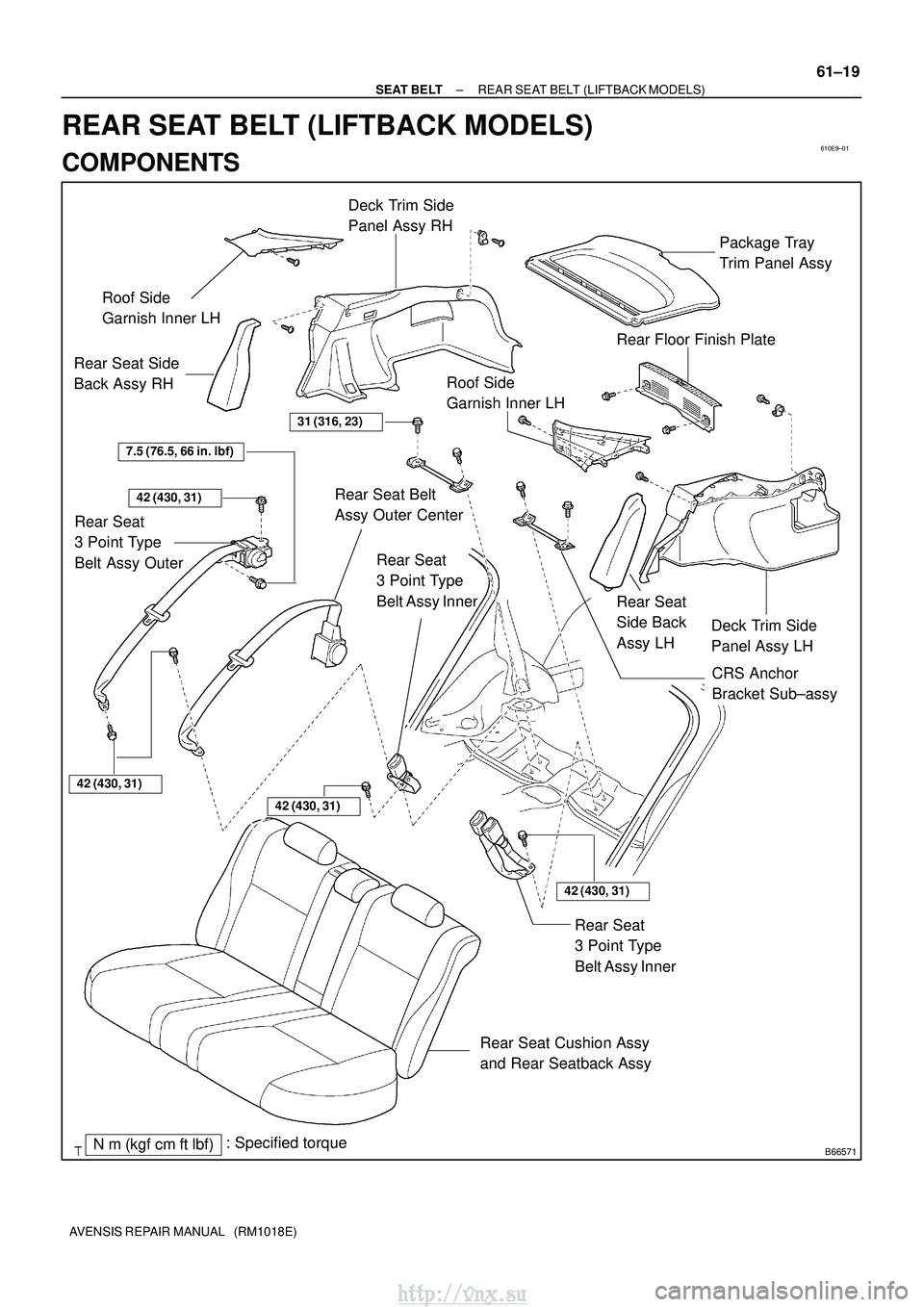

TOYOTA AVENSIS 2003 Service Repair Manual 610E9±01
B66571Nm (kgf cm ftlbf): Specified torque Deck Trim Side
Panel Assy RH
Package Tray
Trim Panel Assy
Roof Side
Garnish Inner LH
Deck Trim Side
Panel Assy LH
Rear Floor Finish Plate
Rear S

Page 1470 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 610EA±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
61±20
±
SEAT BELT REAR SEAT BELT (LIFTBACK MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

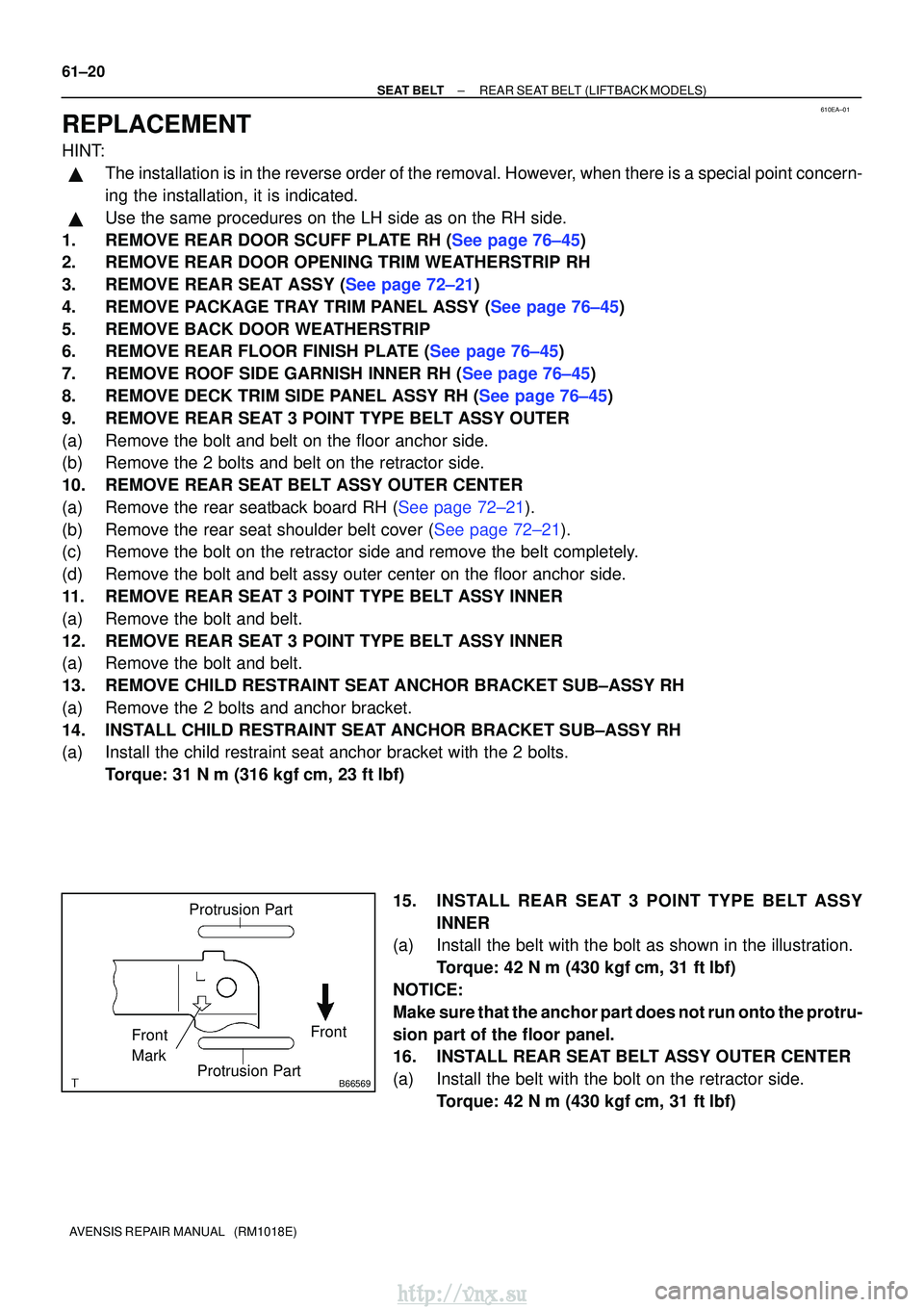

REPLACEMENT
HINT:
The installation is in the r

610EA±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
61±20
±
SEAT BELT REAR SEAT BELT (LIFTBACK MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.
Use the same procedures on the LH side as on the RH side.
1.REMOVE REAR DOOR SCUFF PLATE RH (See page 76±45)
2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
3.REMOVE REAR SEAT ASSY (See page 72±21)
4.REMOVE PACKAGE TRAY TRIM PANEL ASSY (See page 76±45)
5. REMOVE BACK DOOR WEATHERSTRIP
6.REMOVE REAR FLOOR FINISH PLATE (See page 76±45)
7.REMOVE ROOF SIDE GARNISH INNER RH (See page 76±45)
8.REMOVE DECK TRIM SIDE PANEL ASSY RH (See page 76±45)
9. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
(a) Remove the bolt and belt on the floor anchor side.
(b) Remove the 2 bolts and belt on the retractor side.
10. REMOVE REAR SEAT BELT ASSY OUTER CENTER
(a)Remove the rear seatback board RH (See page 72±21).
(b)Remove the rear seat shoulder belt cover (See page 72±21).
(c) Remove the bolt on the retractor side and remove the belt completely.
(d) Remove the bolt and belt assy outer center on the floor anchor side.
11. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
12. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
13. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Remove the 2 bolts and anchor bracket.
14. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Install the child restraint seat anchor bracket with the 2 bolts. Torque: 31 N m (316 kgf cm, 23 ftlbf)
15. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Install the belt with the bolt as shown in the illustration.
Torque: 42 N m (430 kgf cm, 31 ftlbf)
NOTICE:
Make sure that the anchor part does not run onto the protru-
sion part of the floor panel.
16. INSTALL REAR SEAT BELT ASSY OUTER CENTER
(a) Install the belt with the bolt on the retractor side. Torque: 42 N m (430 kgf cm, 31 ftlbf)
http://vnx.su

Page 1471 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B70206
LockUnlock
45
B66570
Protrusion Part
Front
Front
Mark
Protrusion Part
B66568Lock
Unlock
45
±
SEAT BELT REAR SEAT BELT (LIFTBACK MODELS)
61±21
AVENSIS REPAIR MANUAL (RM1018E)

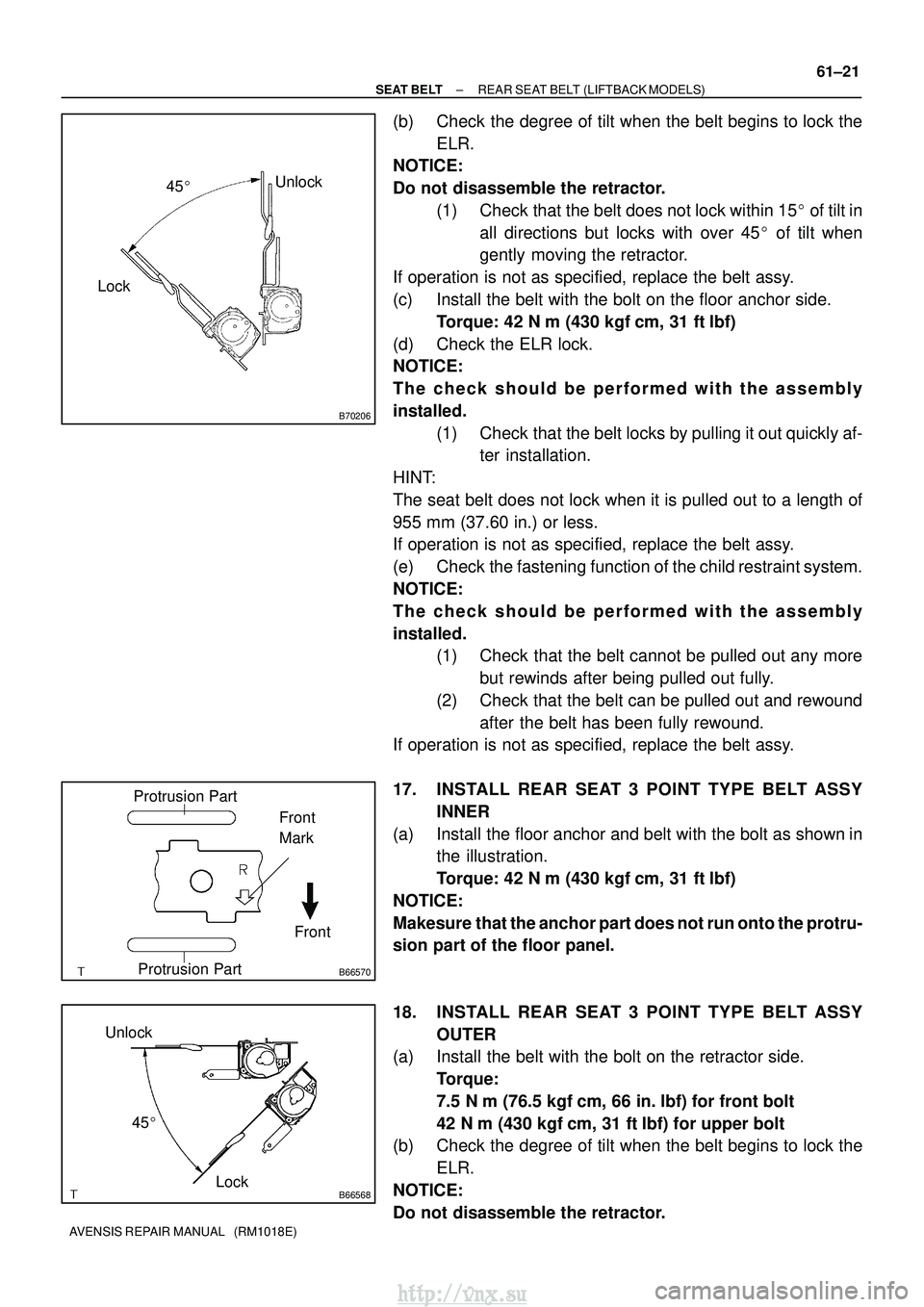

(b) Check th

Page 1472 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 61±22
±
SEAT BELTREAR SEAT BELT(LIFTBACK MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

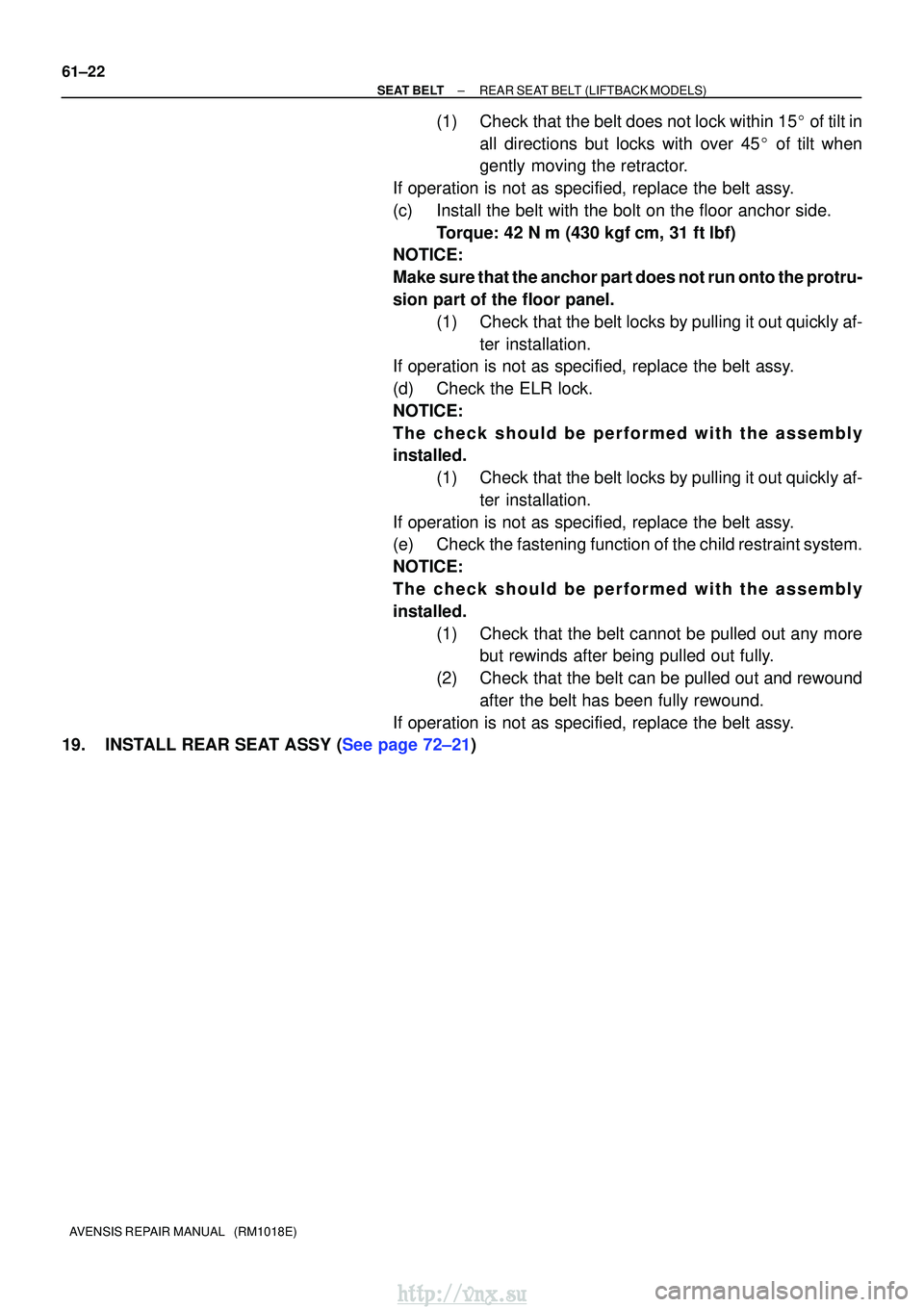

(1)Check that the belt does not lock within 15 of tilt in all directions but locks with over 45 of tilt when
gent
