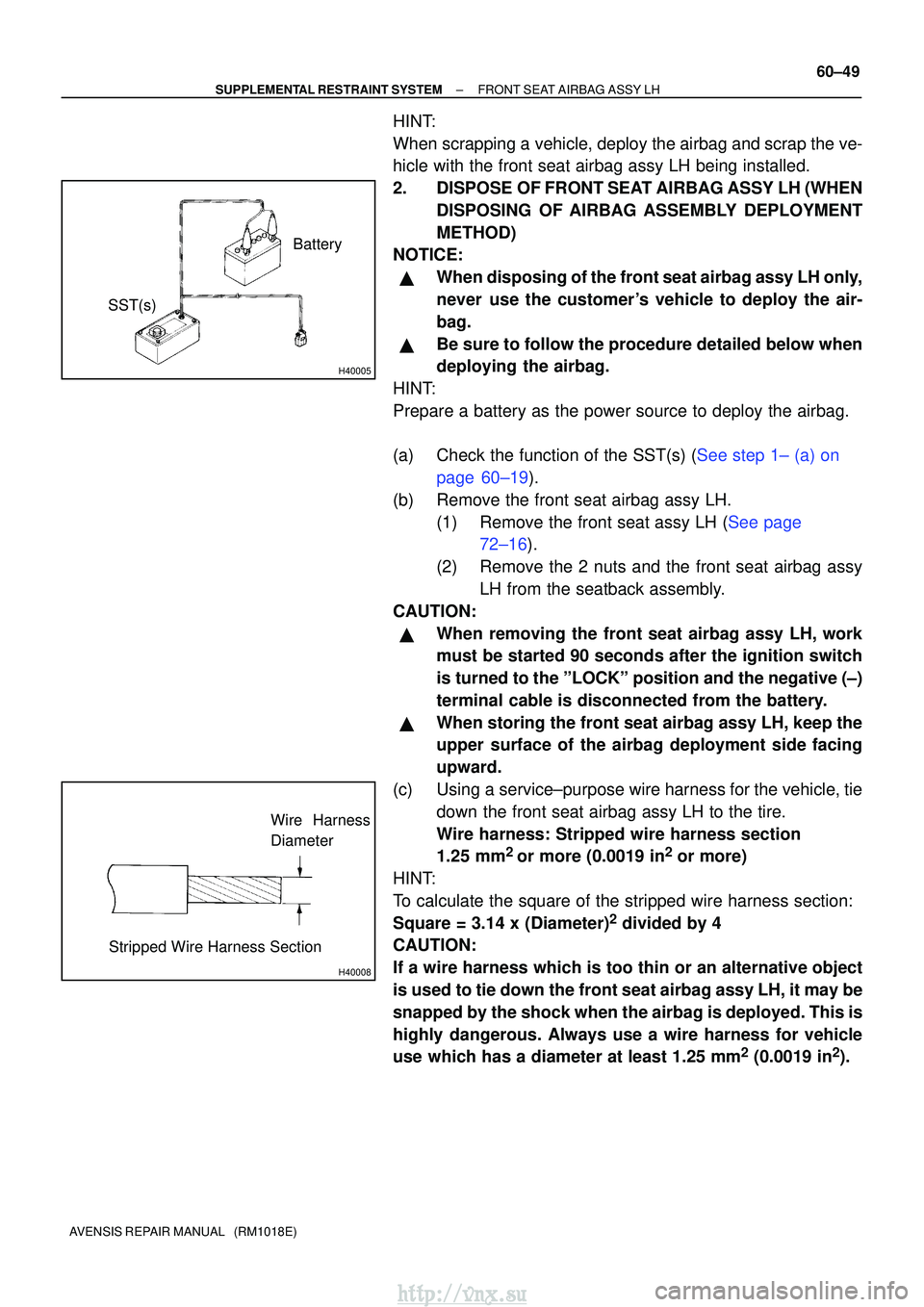

Page 1409 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H40005 SST(s)Battery H40008 Wire Harness Diameter Stripped Wire Harness Section ± SUPPLEMENTAL RESTRAINT SYSTEM FRONT SEAT AIRBAG ASSY LH 60±49 AVENSIS REPAIR MANUAL (RM1018E) HINT: When scrapping

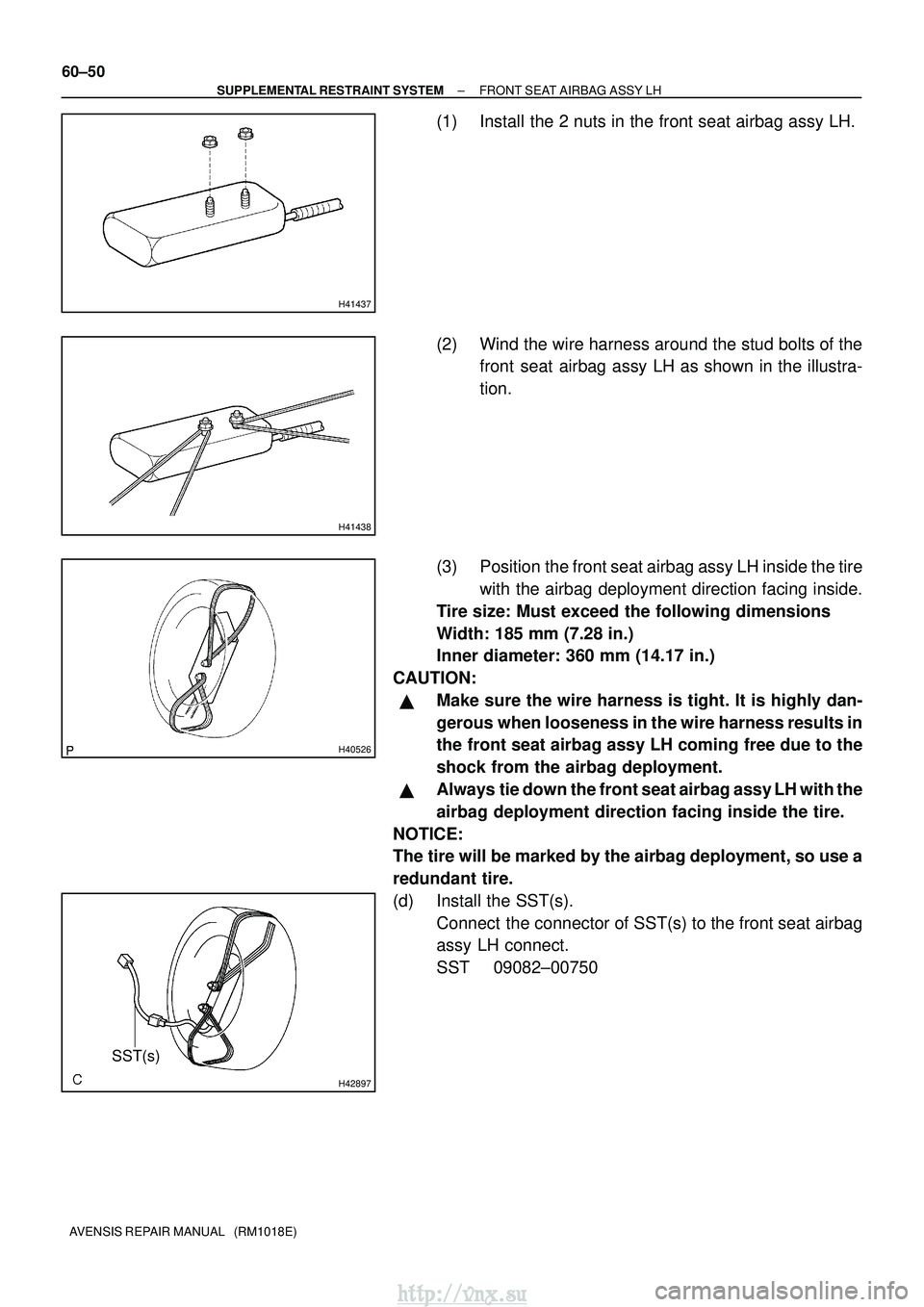

Page 1410 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H41437 H41438 H40526 H42897 SST(s) 60±50 ± SUPPLEMENTAL RESTRAINT SYSTEM FRONT SEAT AIRBAG ASSY LH AVENSIS REPAIR MANUAL (RM1018E) (1) Install the 2 nuts in the front seat airbag assy LH. (2) Wind

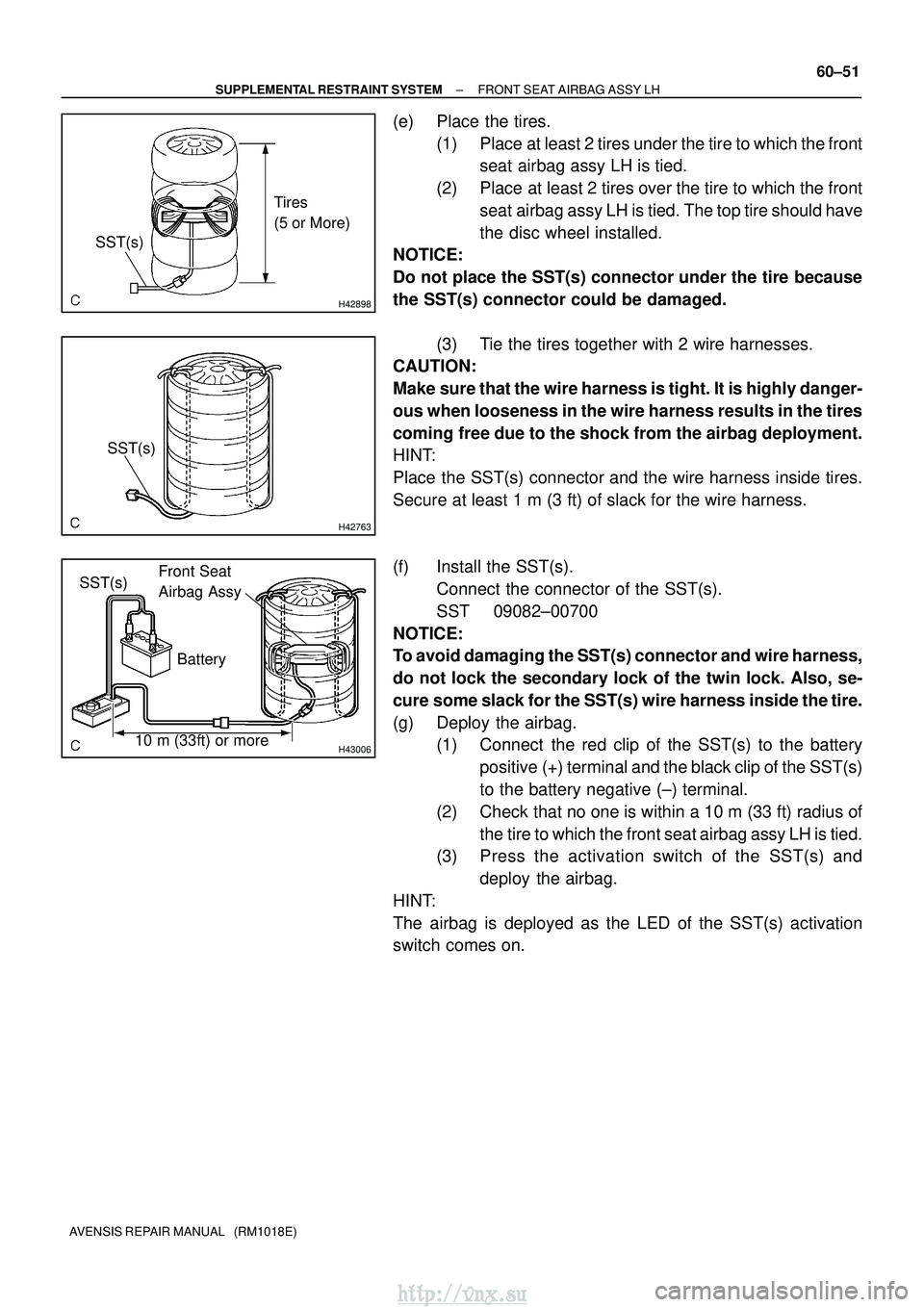

Page 1411 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H42898 Tires (5 or More) SST(s) H42763 SST(s) H43006 Front Seat Airbag Assy SST(s) 10 m (33ft) or more Battery ± SUPPLEMENTAL RESTRAINT SYSTEM FRONT SEAT AIRBAG ASSY LH 60±51 AVENSIS REPAIR MANUAL

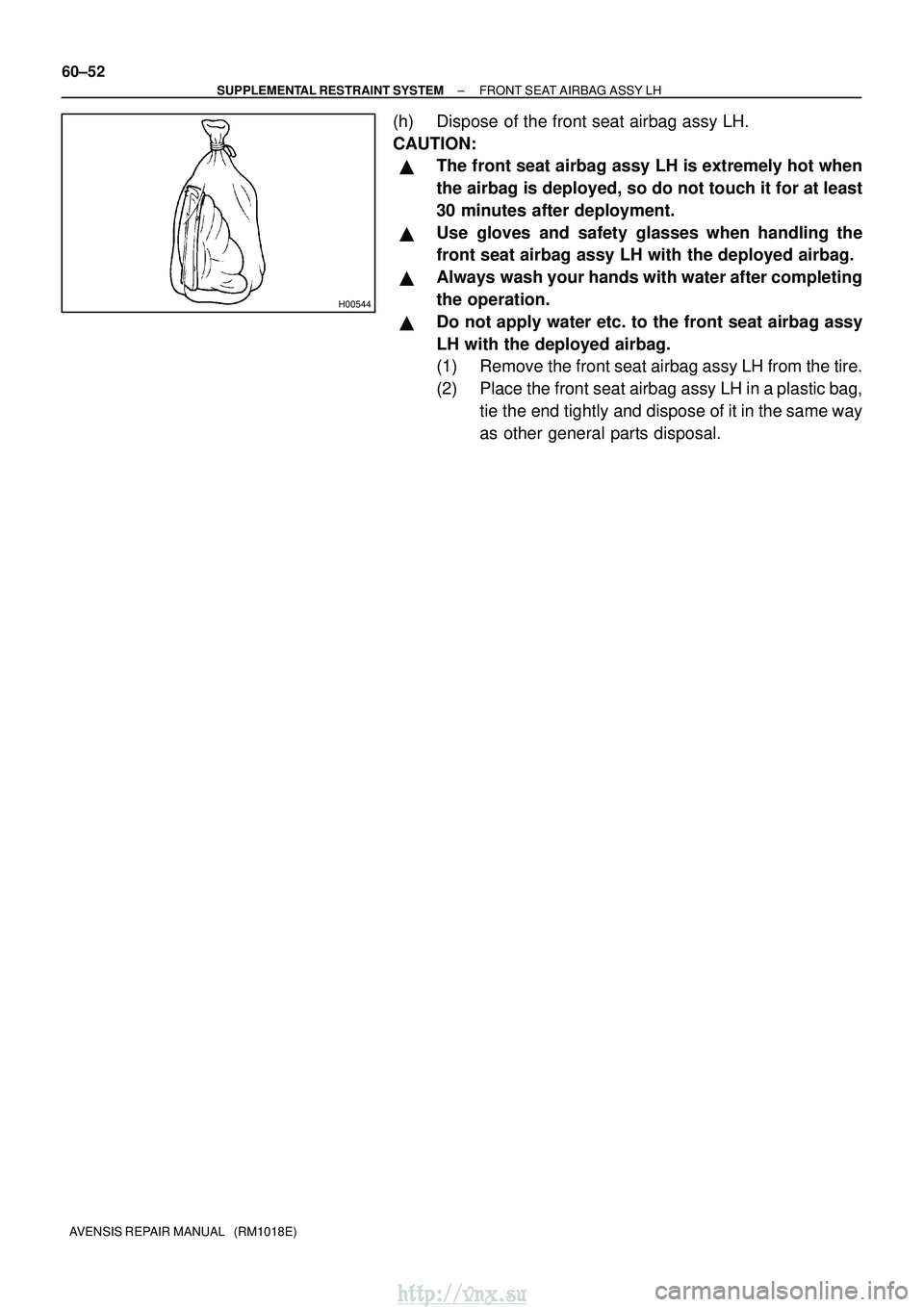

Page 1412 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H00544 60±52 ± SUPPLEMENTAL RESTRAINT SYSTEM FRONT SEAT AIRBAG ASSY LH AVENSIS REPAIR MANUAL (RM1018E) (h) Dispose of the front seat airbag assy LH. CAUTION: The front seat airbag assy LH is extr

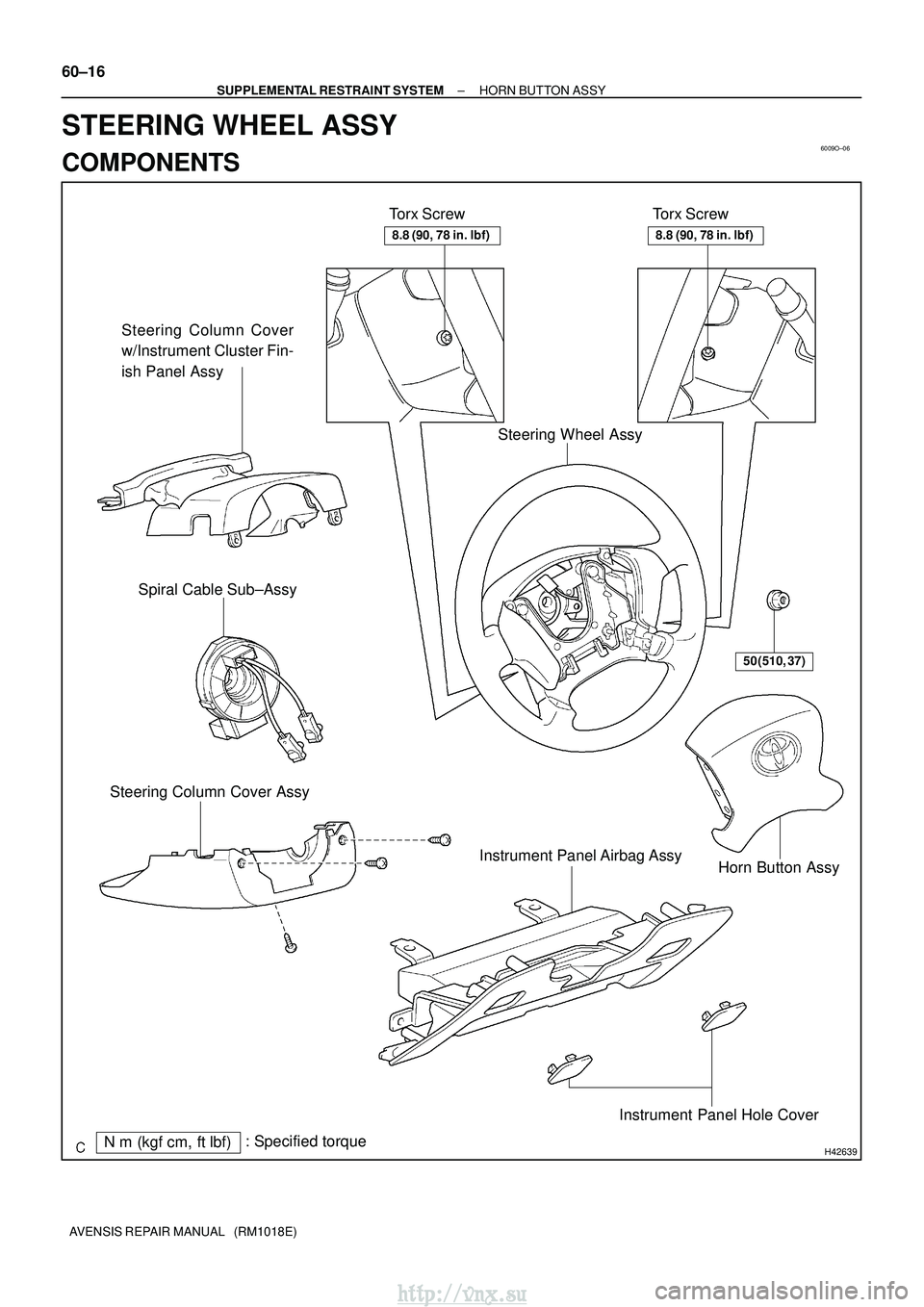

Page 1413 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 6009O±06 H42639Nm (kgf cm, ftlbf): Specified torque Torx Screw Steering Column Cover w/Instrument Cluster Fin- ish Panel Assy Torx Screw Horn Button Assy Steering Column Cover Assy Spiral Cable Su

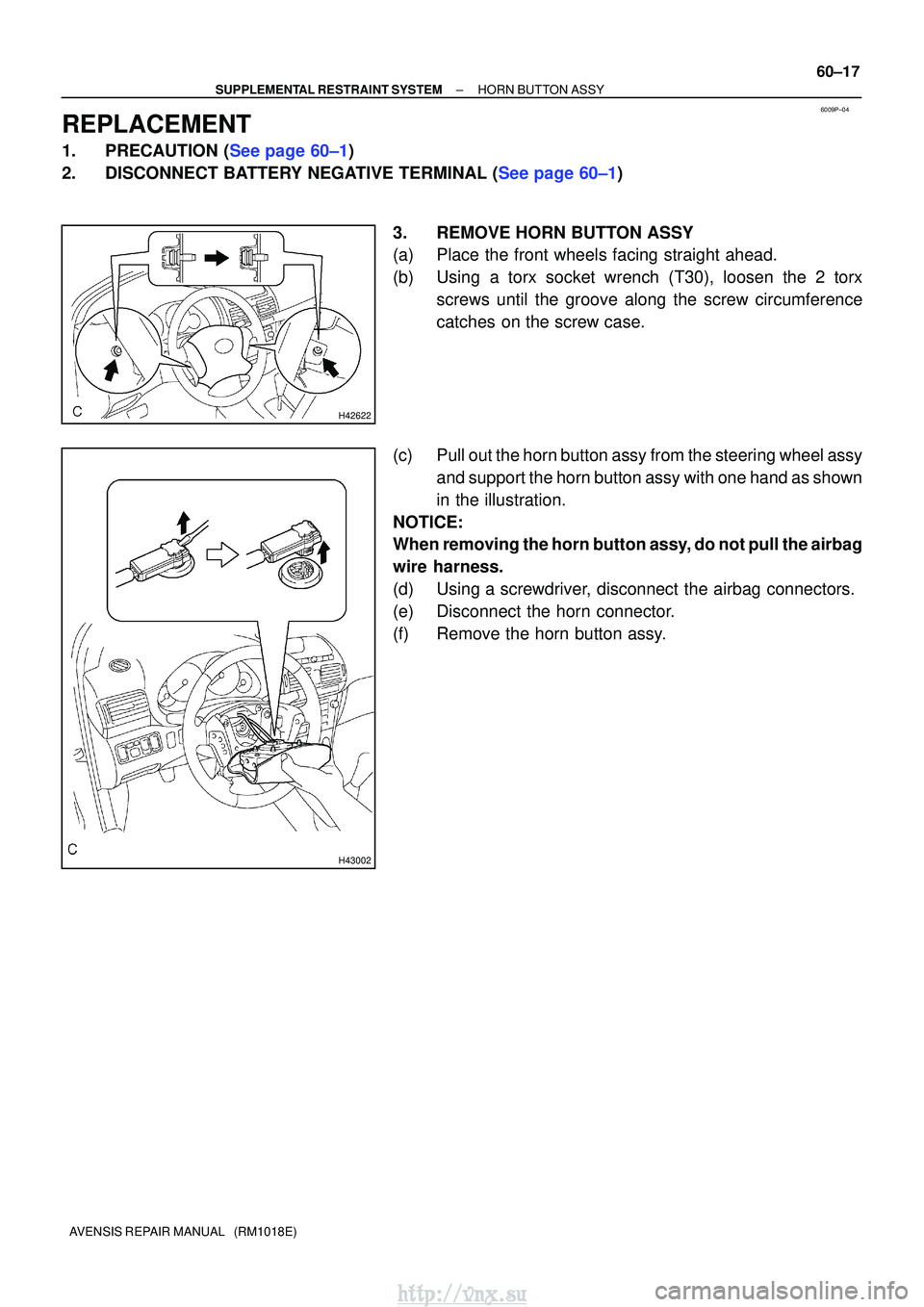

Page 1414 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 6009P±04 H42622 H43002 ± SUPPLEMENTAL RESTRAINT SYSTEM HORN BUTTON ASSY 60±17 AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT 1.PRECAUTION (See page 60±1) 2.DISCONNECT BATTERY NEGATIVE TERMINAL (See

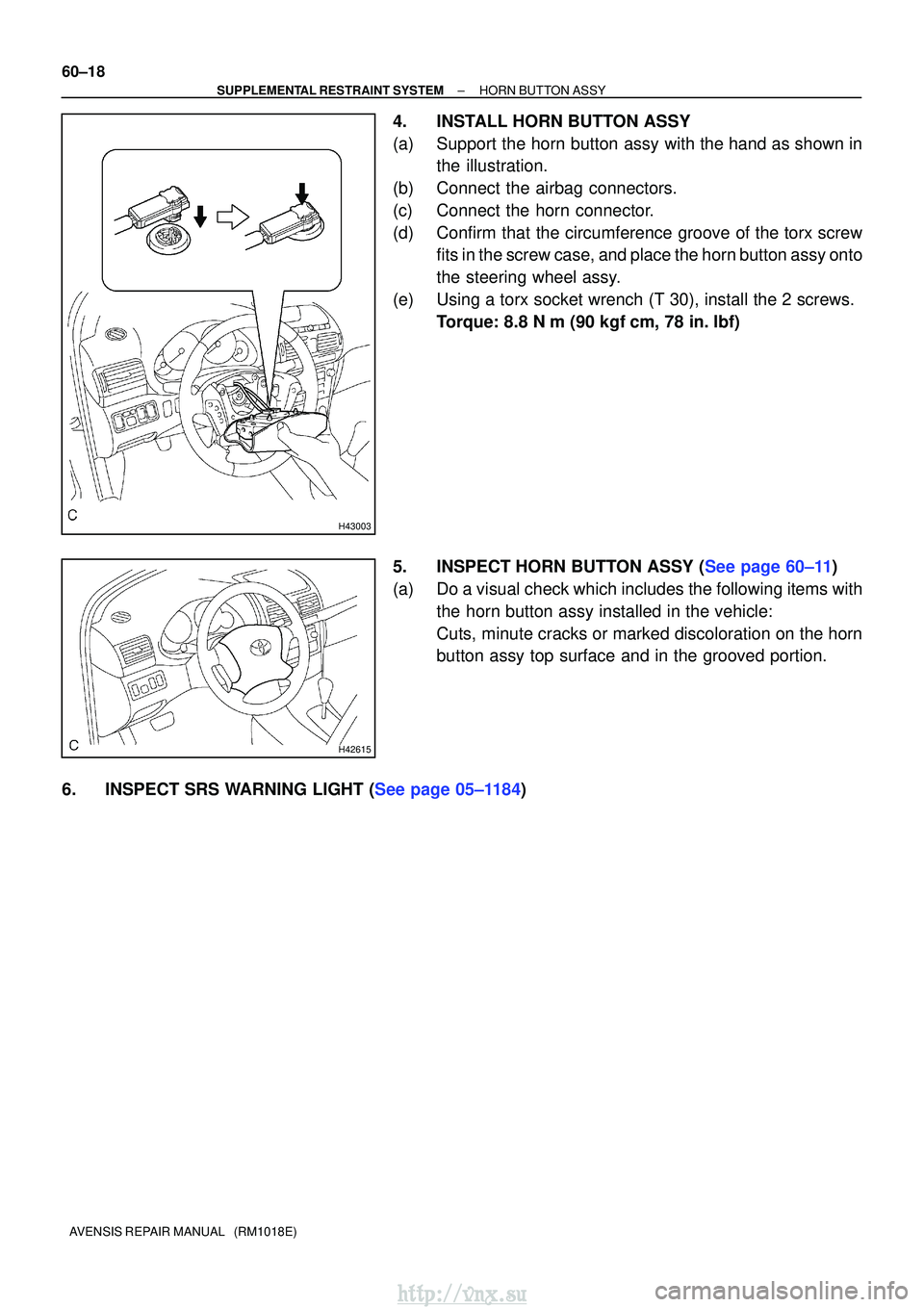

Page 1415 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual H43003 H42615 60±18 ± SUPPLEMENTAL RESTRAINT SYSTEM HORN BUTTON ASSY AVENSIS REPAIR MANUAL (RM1018E) 4. INSTALL HORN BUTTON ASSY (a) Support the horn button assy with the hand as shown in the illu

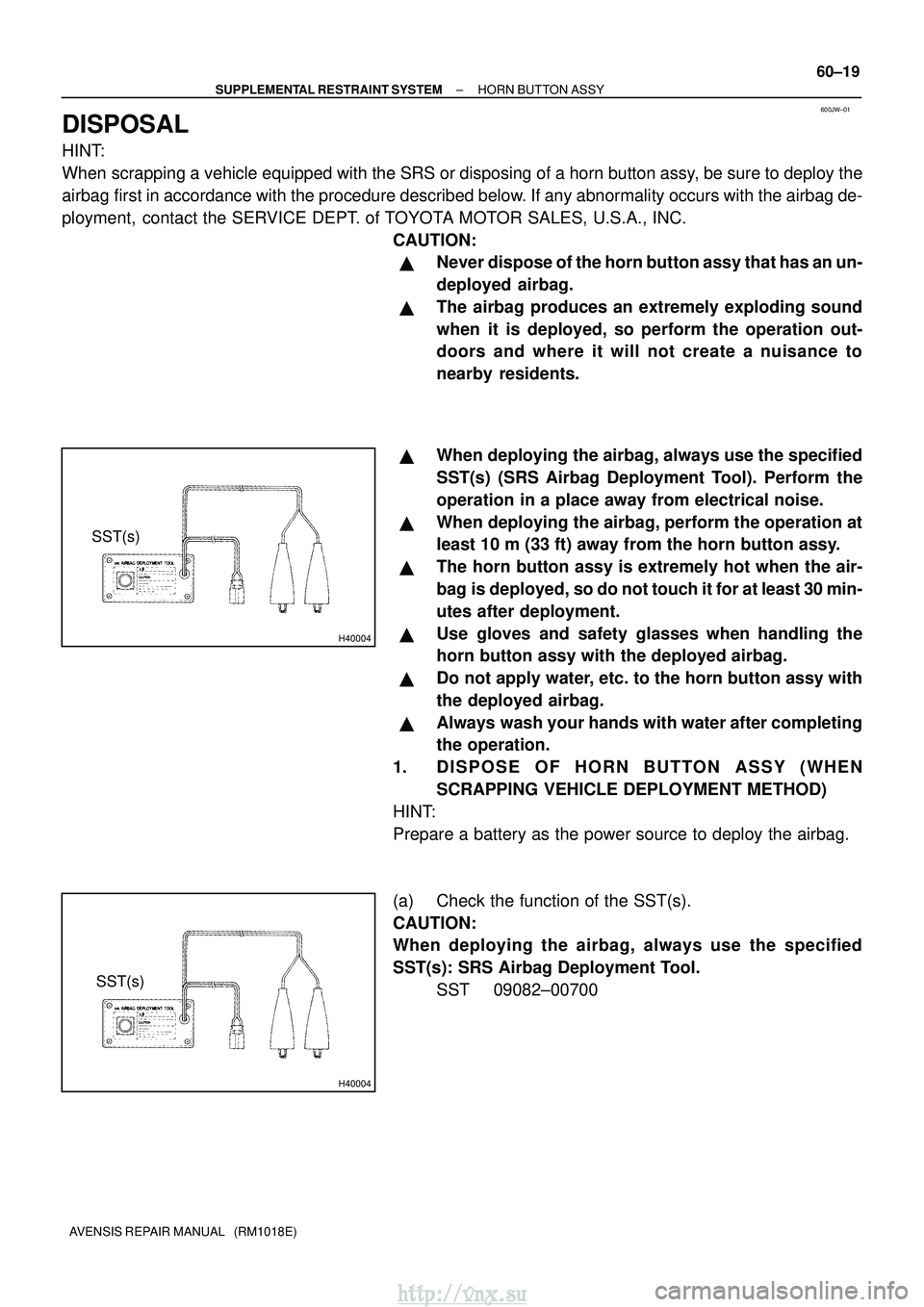

Page 1416 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 600JW±01 H40004 SST(s) H40004 SST(s) ± SUPPLEMENTAL RESTRAINT SYSTEM HORN BUTTON ASSY 60±19 AVENSIS REPAIR MANUAL (RM1018E) DISPOSAL HINT: When scrapping a vehicle equipped with the SRS or dispos
