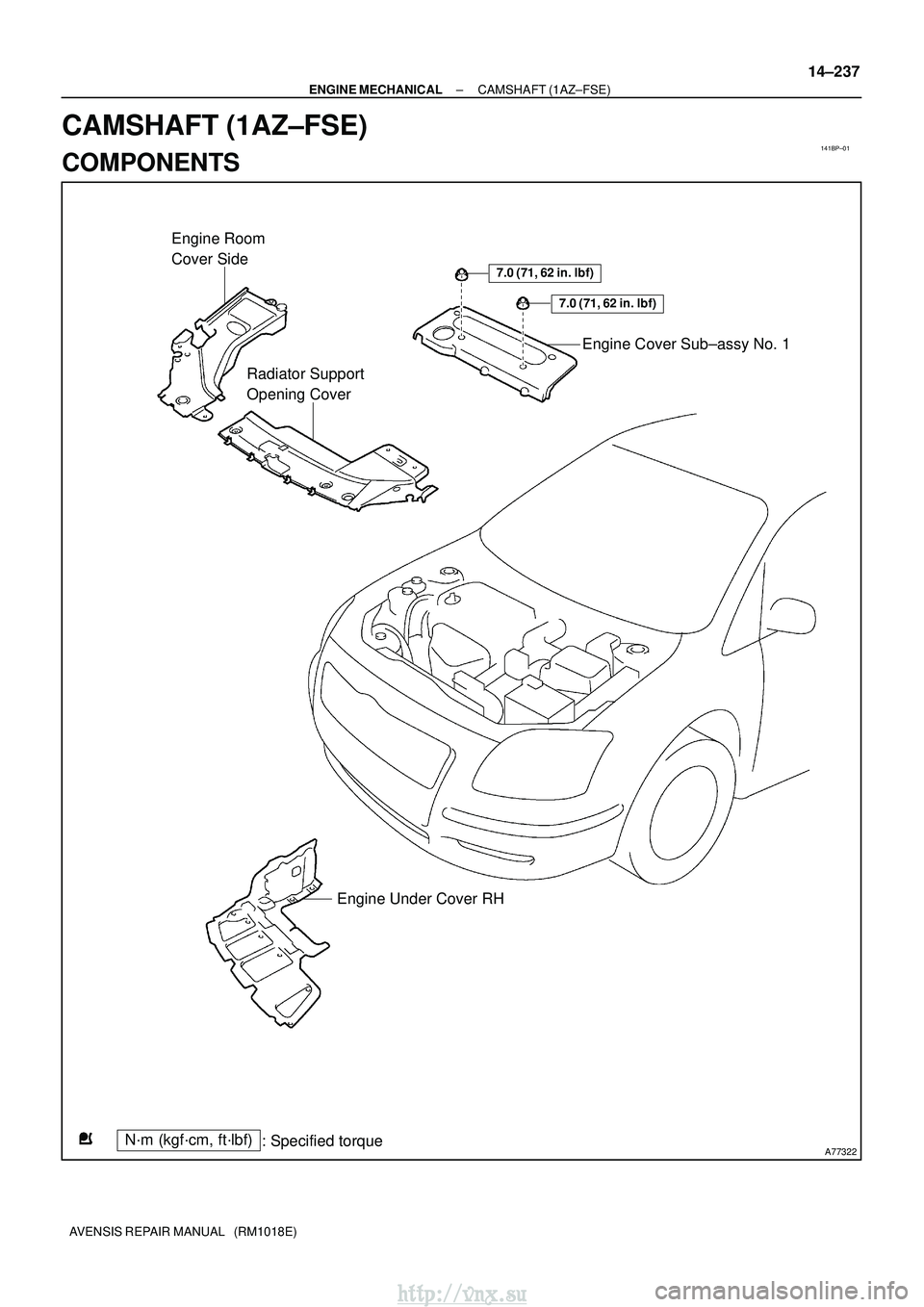

TOYOTA AVENSIS 2003 Service Repair Manual 141BP±01 A77322 7.0 (71, 62 in.lbf) 7.0 (71, 62 in. lbf) Engine Room Cover Side Radiator Support Opening Cover Engine Cover Sub±assy No. 1 Engine Under Cover RH N´m (kgf´cm, ft´lbf) : Specifi

Page 458 of 2234

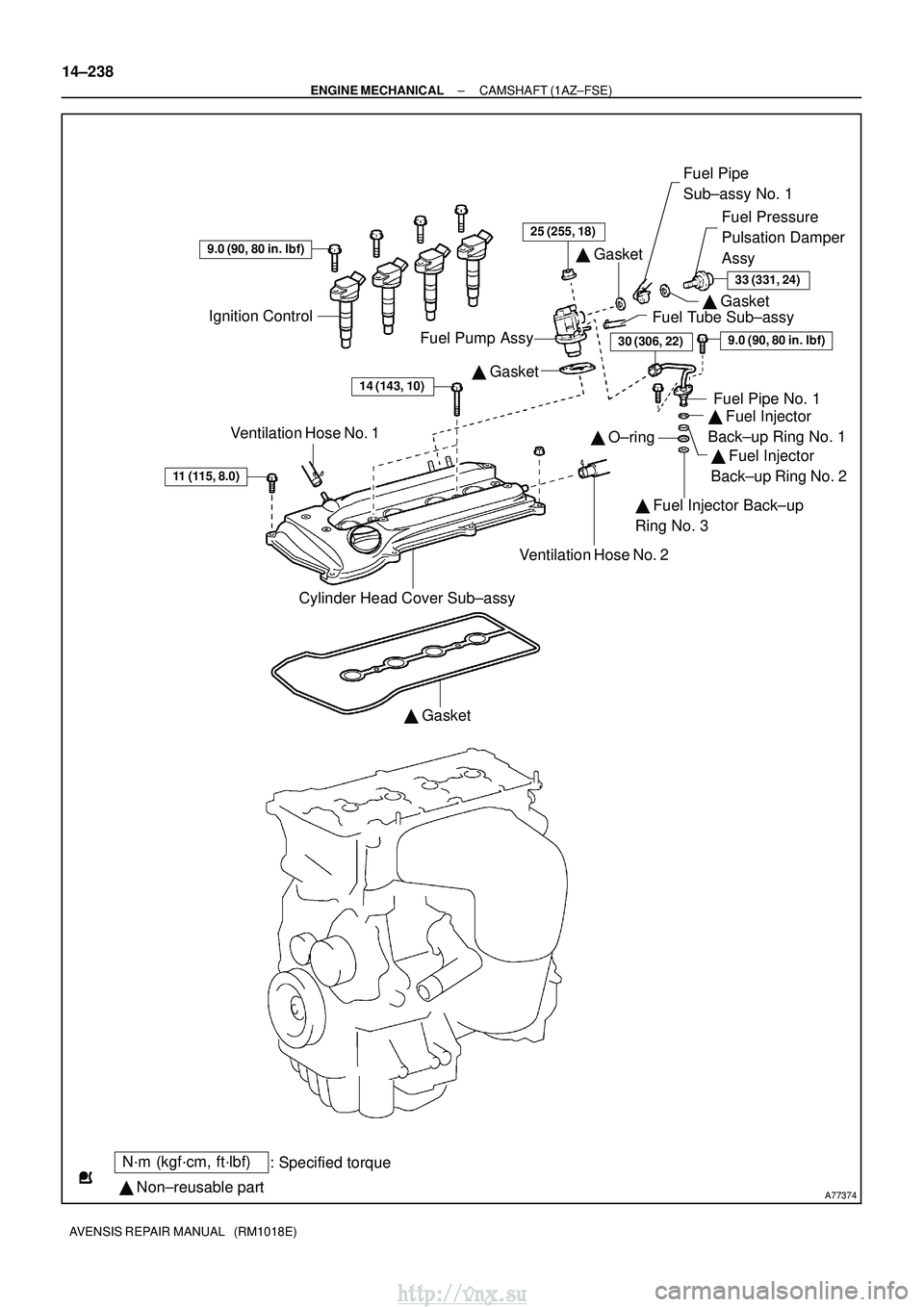

TOYOTA AVENSIS 2003 Service Repair Manual A77374 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part  Gasket Cylinder Head Cover Sub±assy 11 (115, 8.0) Ventilation Hose No. 1  Gasket Fuel Tube Sub±assy  Gasket Fuel Pipe S

Page 459 of 2234

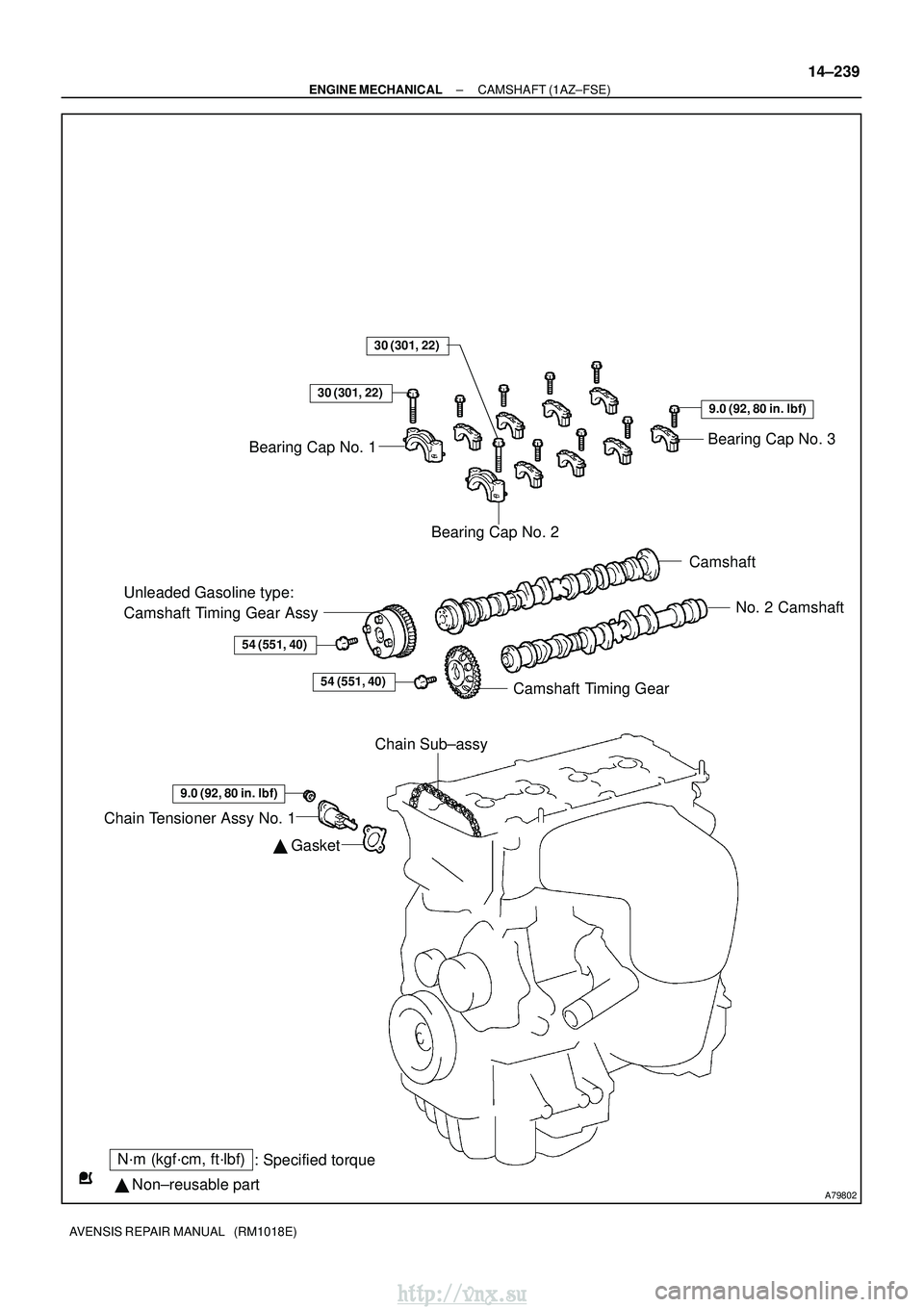

TOYOTA AVENSIS 2003 Service Repair Manual A79802 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part  Gasket Bearing Cap No. 3 Bearing Cap No. 2 Camshaft No. 2 Camshaft Camshaft Timing Gear Unleaded Gasoline type: Camshaft Timi

Page 460 of 2234

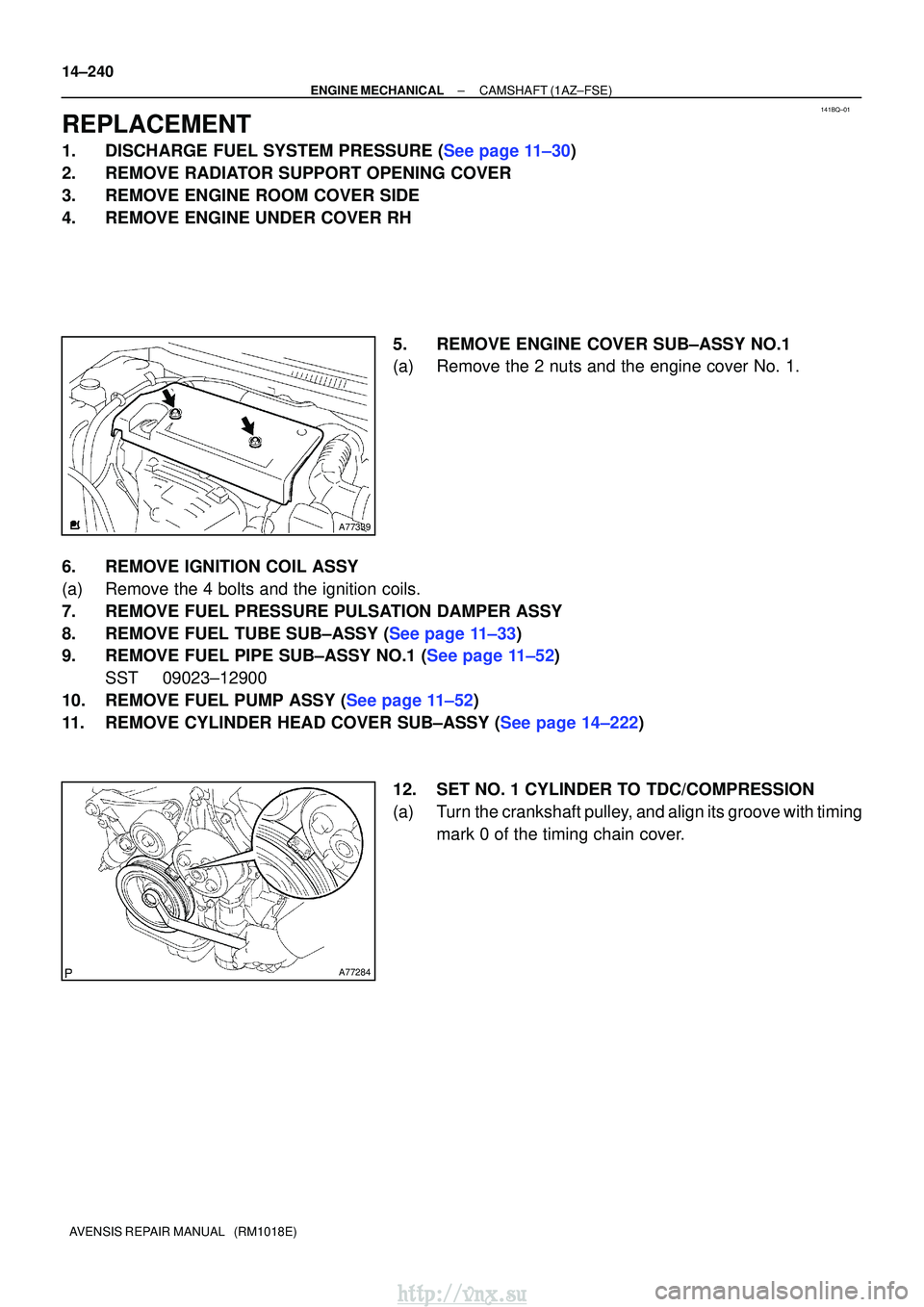

TOYOTA AVENSIS 2003 Service Repair Manual 141BQ±01 A77339 A77284 14±240 ± ENGINE MECHANICALCAMSHAFT(1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT 1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±30) 2.REMOVE RADIATOR SUPPORT OPENIN

Page 461 of 2234

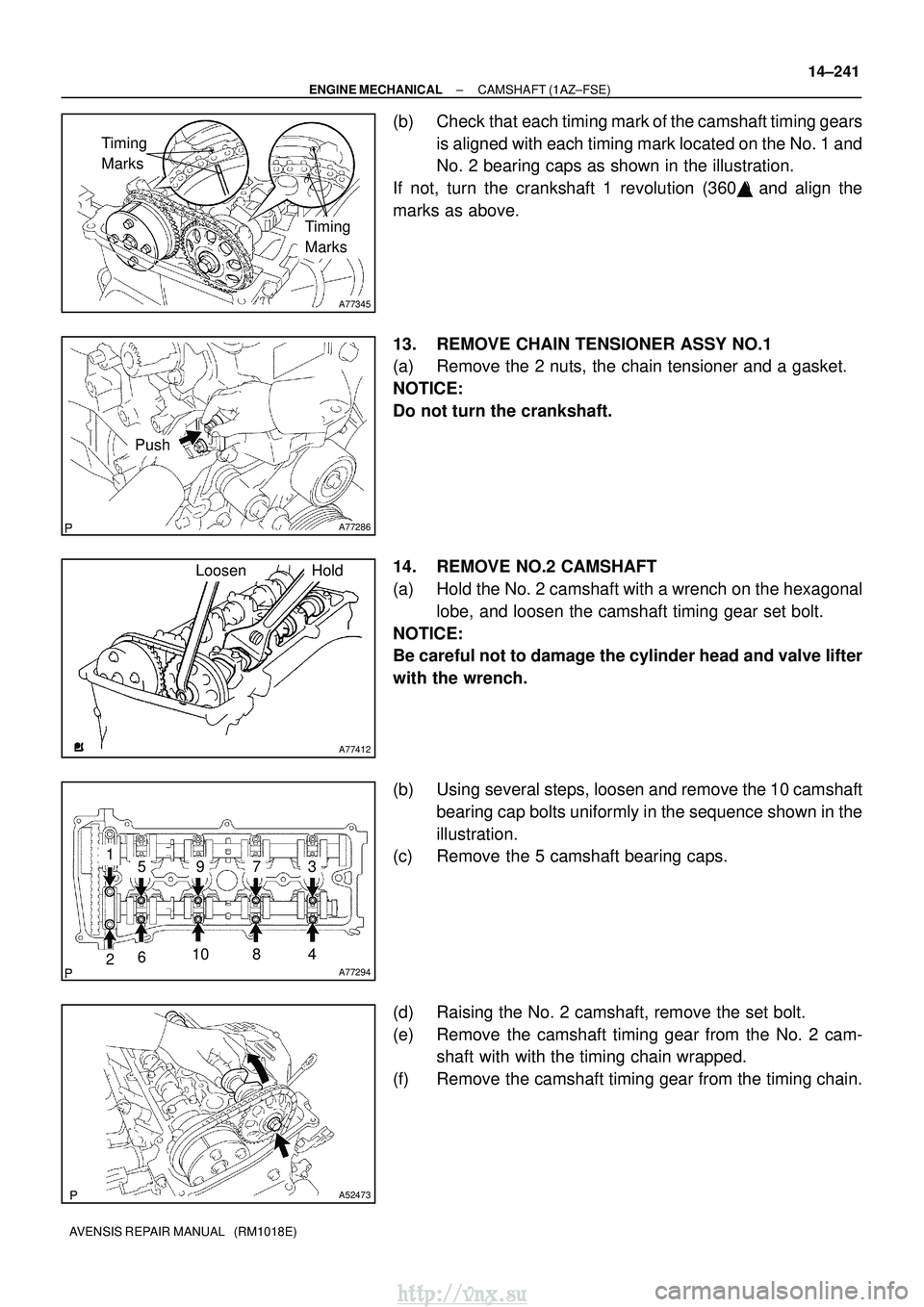

TOYOTA AVENSIS 2003 Service Repair Manual A77345 Timing Marks Timing Marks A77286 Push A77412 HoldLoosen A77294 15973 481062 A52473 ± ENGINE MECHANICAL CAMSHAFT (1AZ±FSE) 14±241 AVENSIS REPAIR MANUAL (RM1018E) (b) Check that each timin

Page 462 of 2234

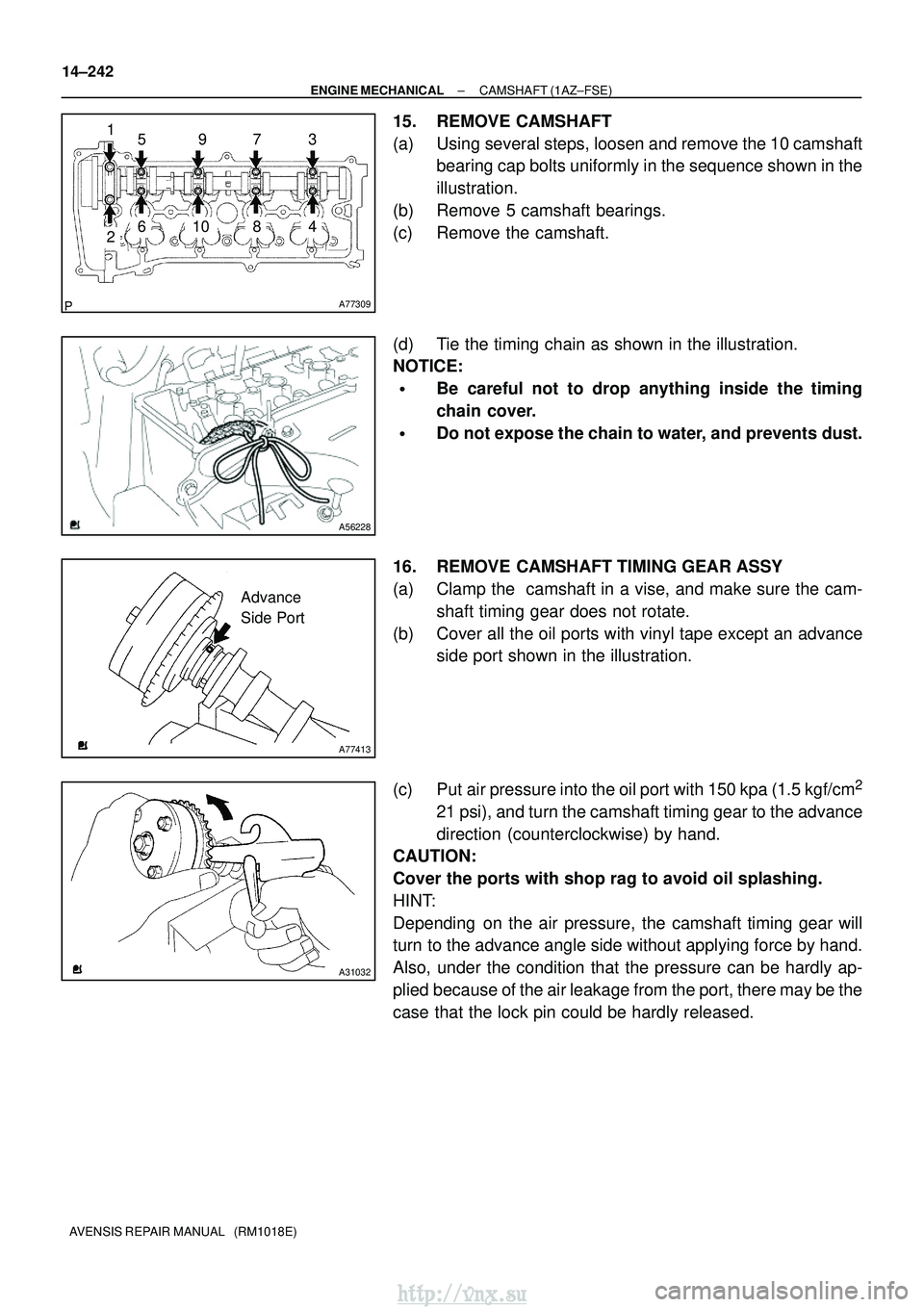

TOYOTA AVENSIS 2003 Service Repair Manual A77309 15973 481062 A56228 A77413 Advance Side Port A31032 14±242 ± ENGINE MECHANICAL CAMSHAFT (1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) 15. REMOVE CAMSHAFT (a) Using several steps, loosen and re

Page 463 of 2234

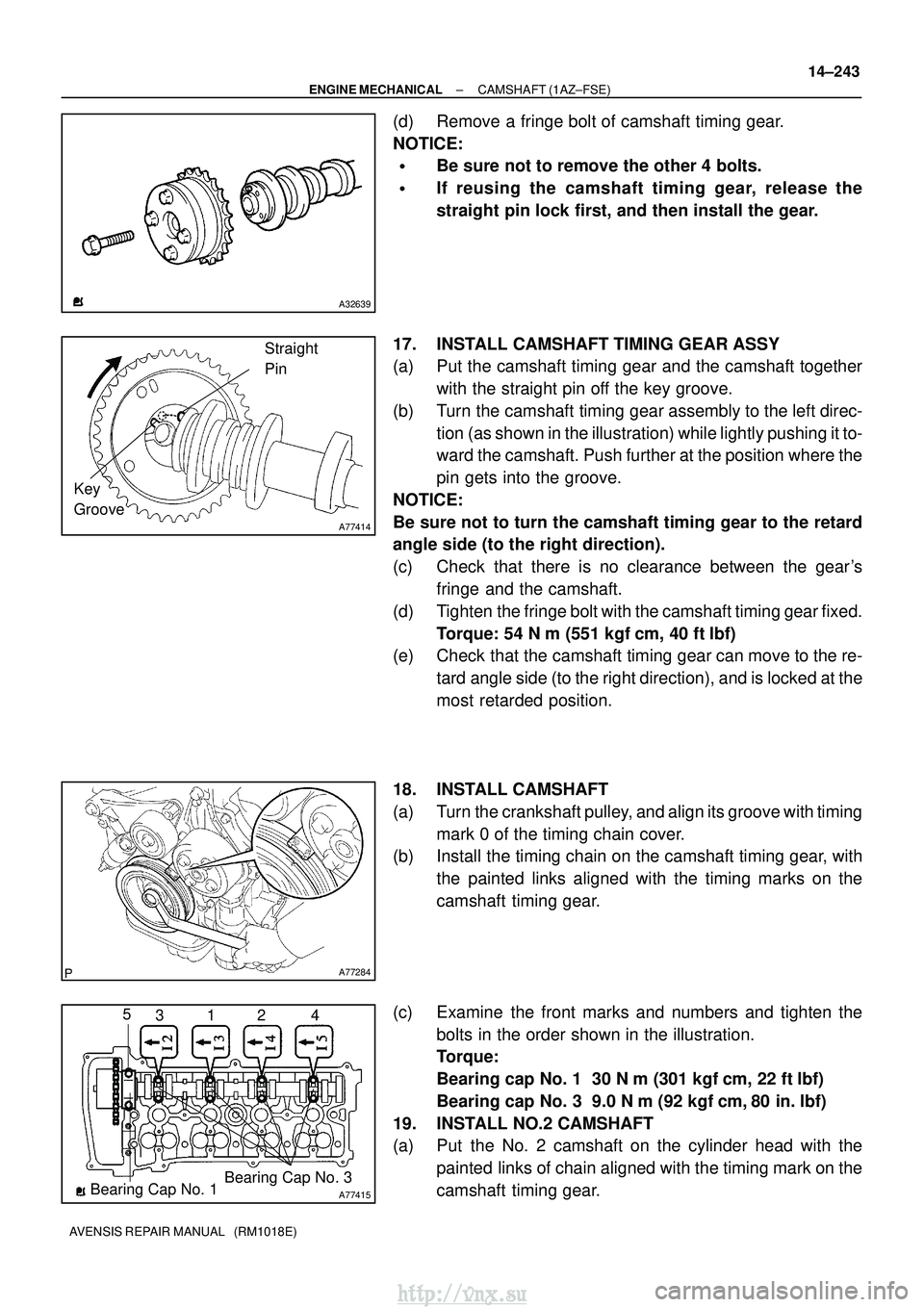

TOYOTA AVENSIS 2003 Service Repair Manual A32639 A77414 Straight Pin Key Groove A77284 A77415Bearing Cap No. 1 Bearing Cap No. 3 5 312 4 ± ENGINE MECHANICAL CAMSHAFT (1AZ±FSE) 14±243 AVENSIS REPAIR MANUAL (RM1018E) (d) Remove a fringe bo

Page 464 of 2234

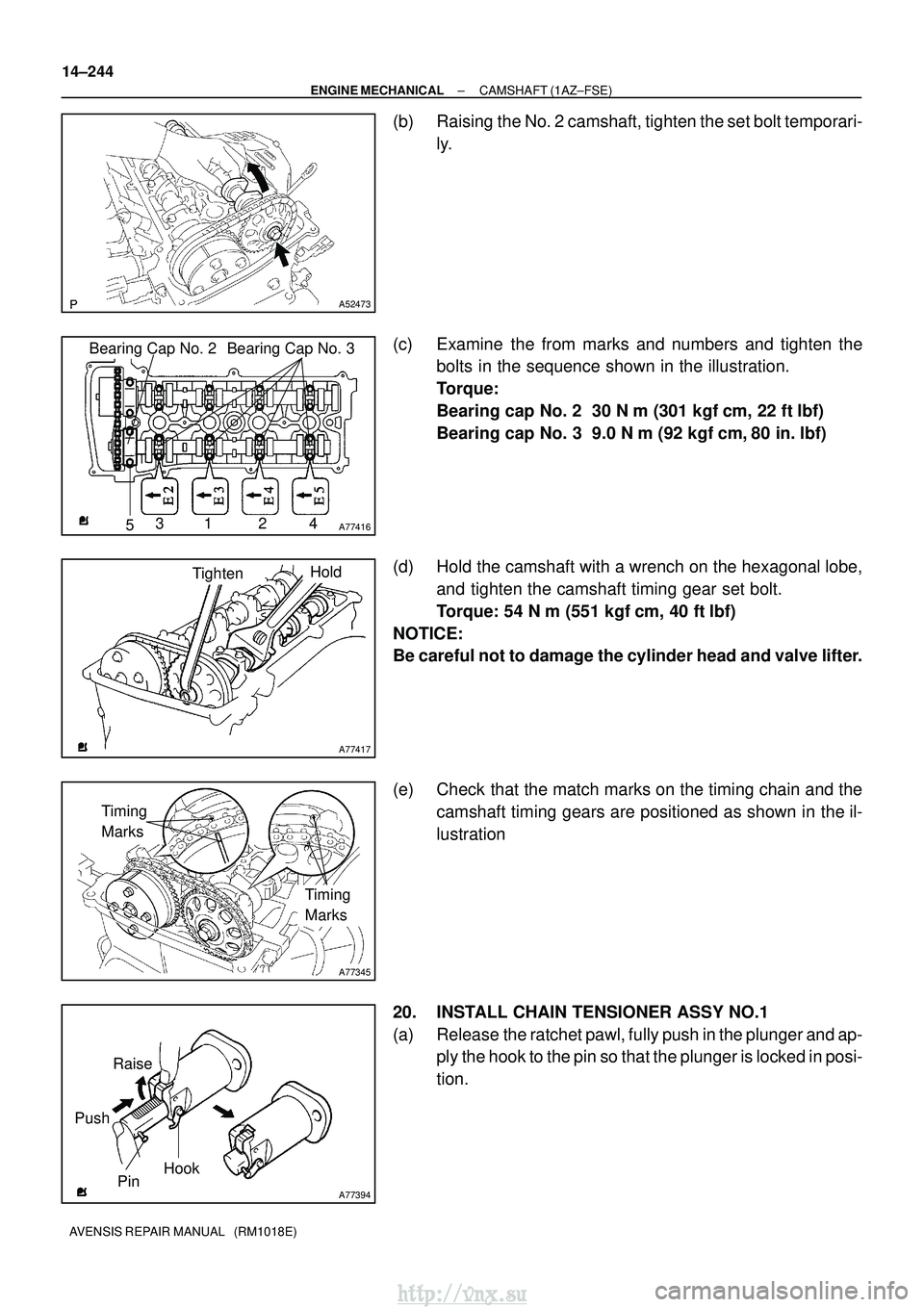

TOYOTA AVENSIS 2003 Service Repair Manual A52473 A77416 Bearing Cap No. 2 Bearing Cap No. 3 531 2 4 A77417 TightenHold A77345 Timing Marks Timing Marks A77394 Raise Pin Hook Push 14±244 ± ENGINE MECHANICAL CAMSHAFT (1AZ±FSE) AVENSIS REPA
