Page 537 of 2234

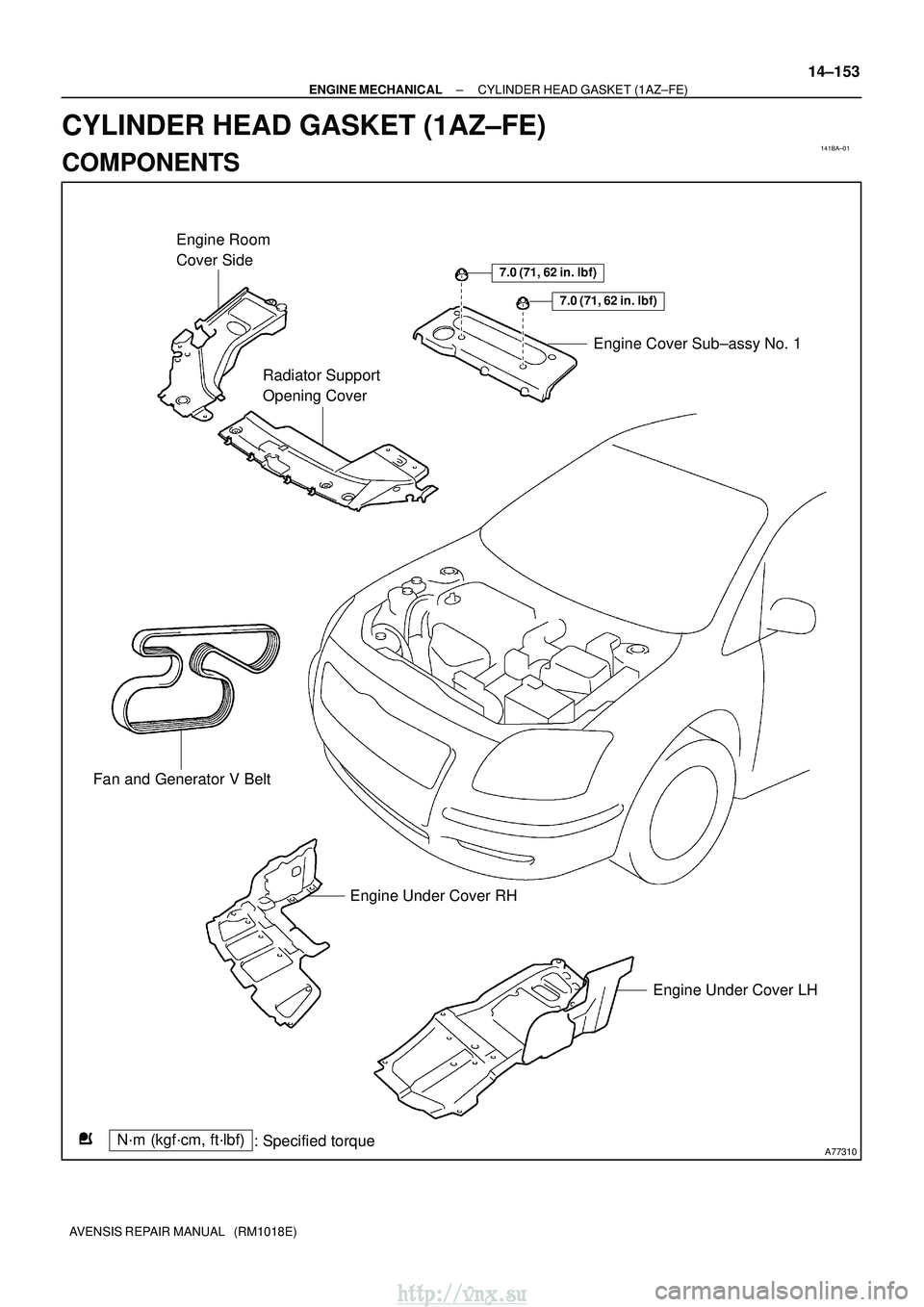

TOYOTA AVENSIS 2003 Service Repair Manual 141BA±01 A77310 Engine Room Cover SideRadiator Support Opening Cover Engine Cover Sub±assy No. 1 Fan and Generator V Belt Engine Under Cover RH Engine Under Cover LH 7.0 (71, 62 in.lbf) 7.0 (71,

Page 538 of 2234

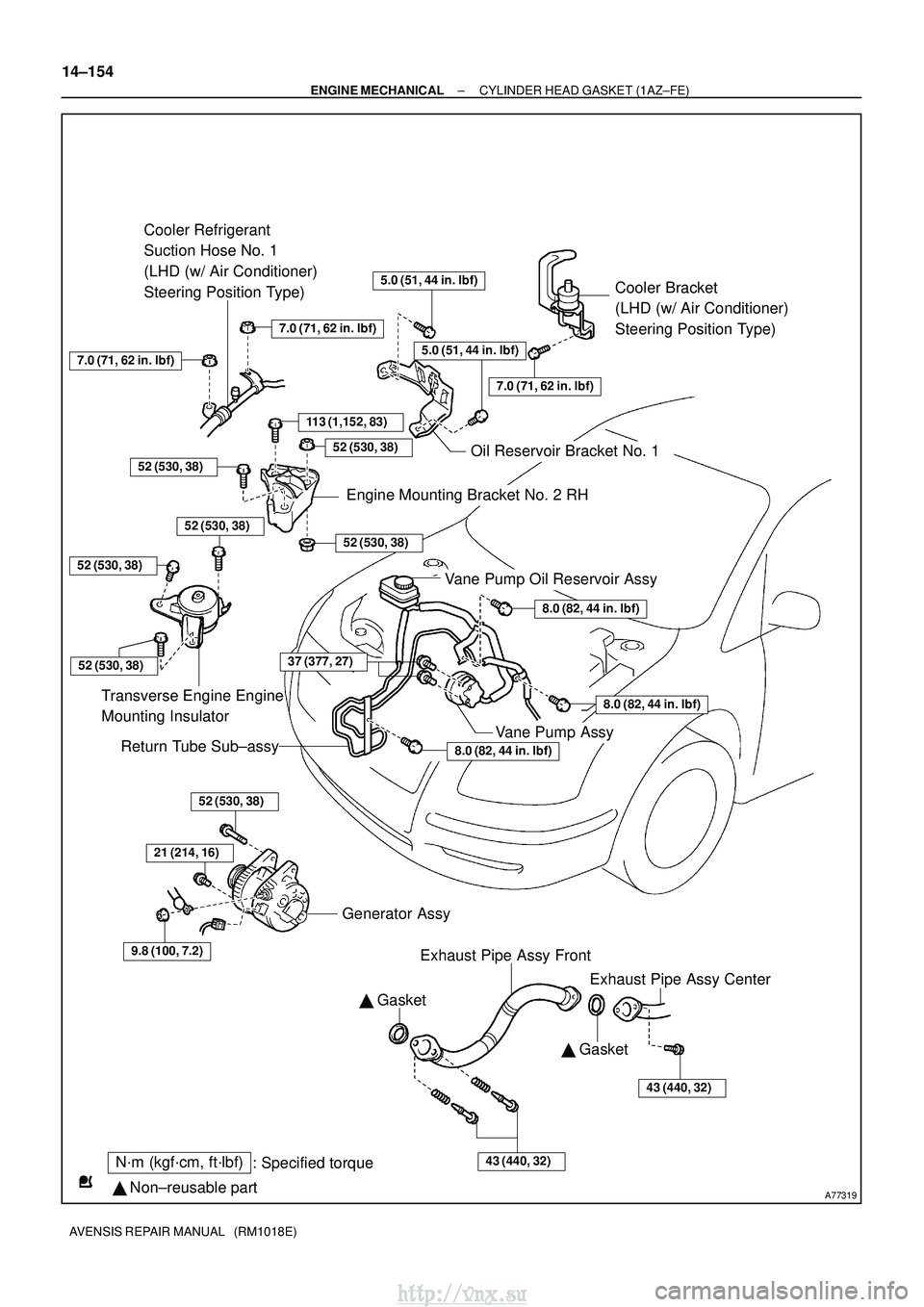

TOYOTA AVENSIS 2003 Service Repair Manual A77319 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part  Gasket Cooler Bracket (LHD (w/ Air Conditioner) Steering Position Type) 113 (1,152, 83) Cooler Refrigerant Suction Hose No.

Page 539 of 2234

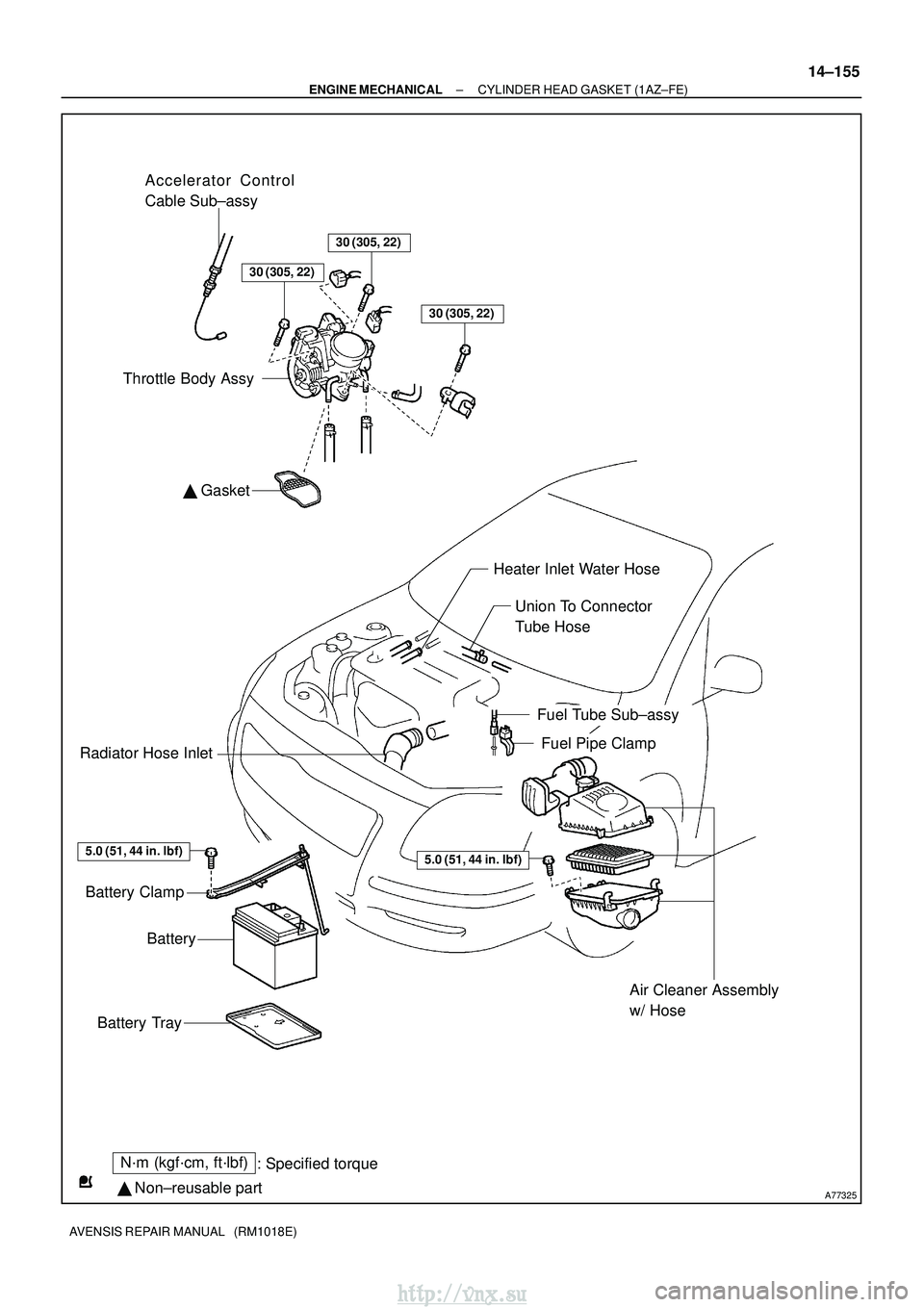

TOYOTA AVENSIS 2003 Service Repair Manual A77325 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part  Gasket Accelerator Control Cable Sub±assy 30 (305, 22) 30 (305, 22) Throttle Body Assy Heater Inlet Water Hose Union To Conne

Page 540 of 2234

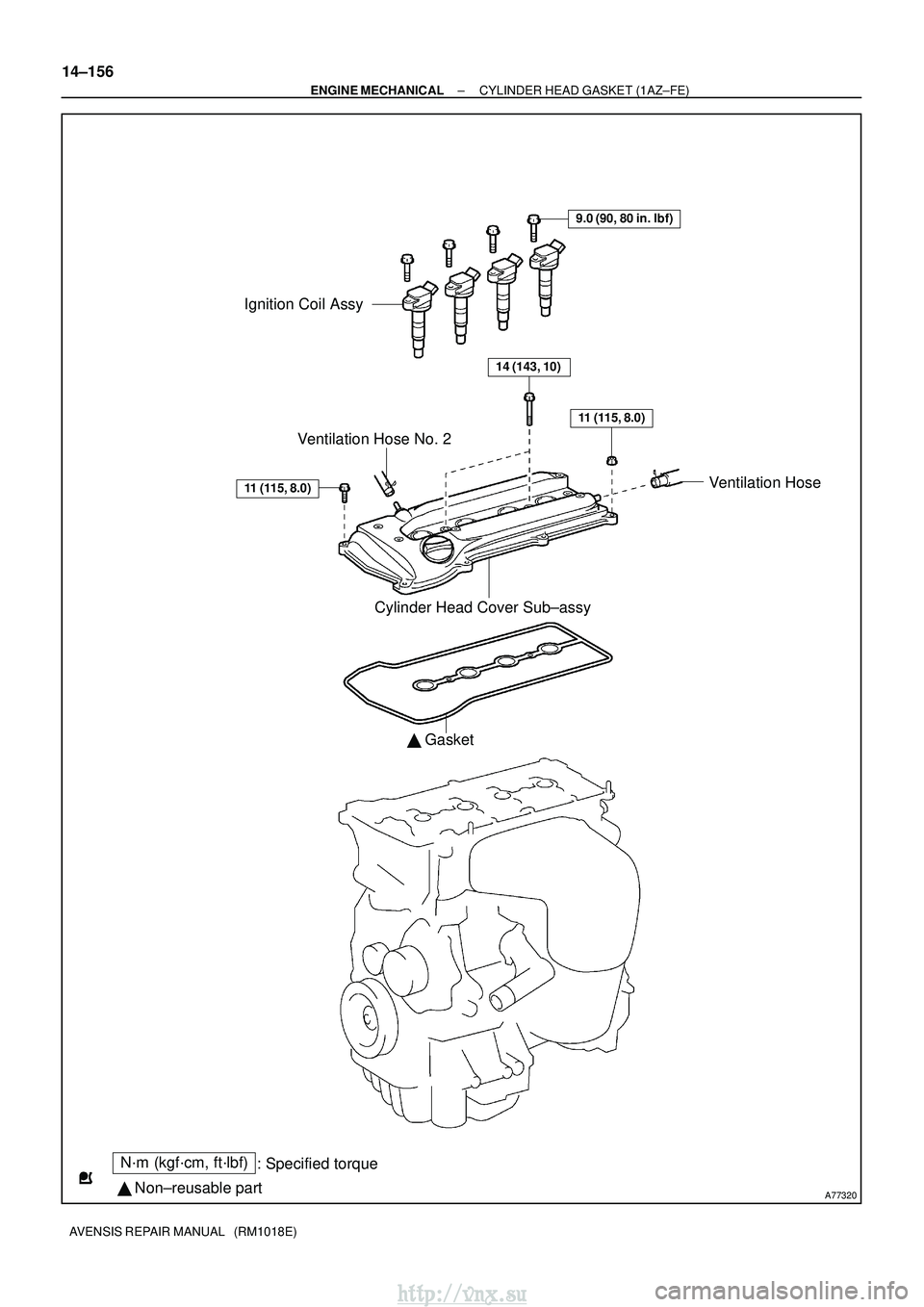

TOYOTA AVENSIS 2003 Service Repair Manual A77320 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part Ignition Coil Assy 9.0 (90, 80 in. lbf) 14 (143, 10) 11 (115, 8.0) Cylinder Head Cover Sub±assy  Gasket 11 (115, 8.0) Ventilat

Page 541 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A77327 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part  Gasket 9.0 (90, 80 in. lbf) Chain Tensioner Assy No. 1 Timing Chain or Belt Cover Sub±assy Crank Position Sensor 9.0 (90, 80

Page 542 of 2234

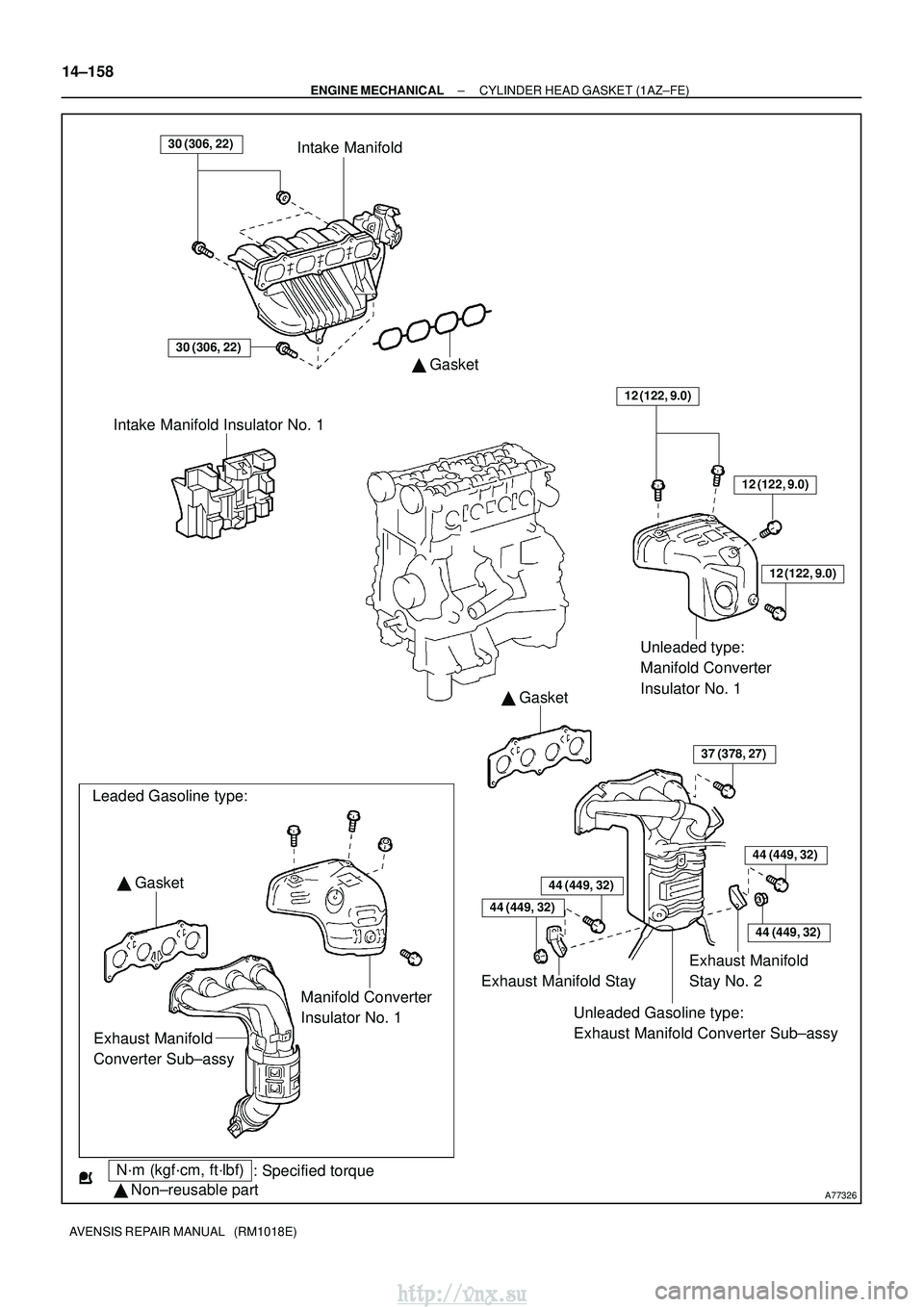

TOYOTA AVENSIS 2003 Service Repair Manual A77326 Intake Manifold N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part 30 (306, 22)  Gasket 30 (306, 22) Intake Manifold Insulator No. 1 12 (122, 9.0) Unleaded type: Manifold Convert

Page 543 of 2234

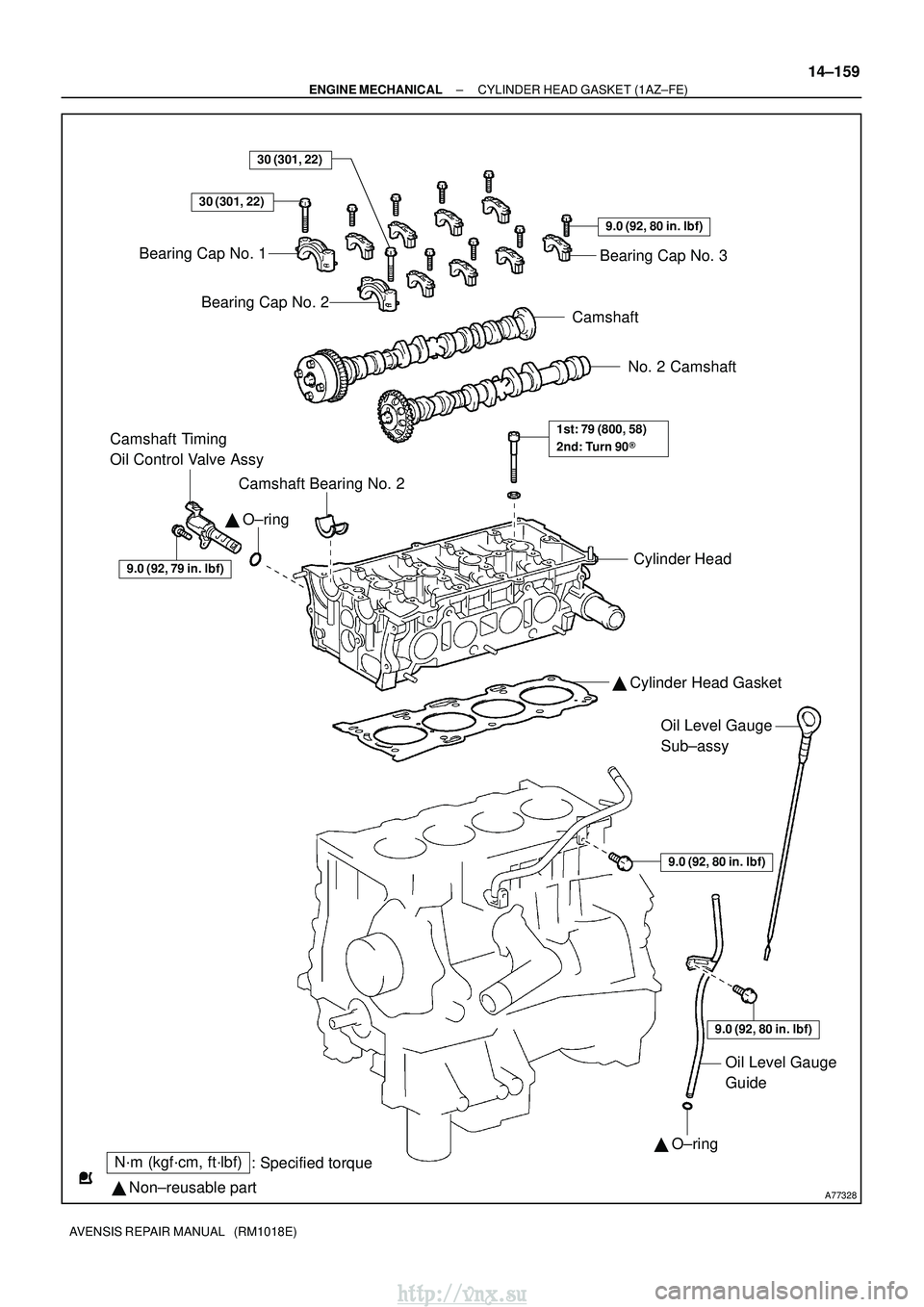

TOYOTA AVENSIS 2003 Service Repair Manual A77328 N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part 30 (301, 22)  O±ring Bearing Cap No. 1 Bearing Cap No. 2 9.0 (92, 80 in. lbf) Bearing Cap No. 3 Camshaft No. 2 Camshaft Camsha

Page 544 of 2234

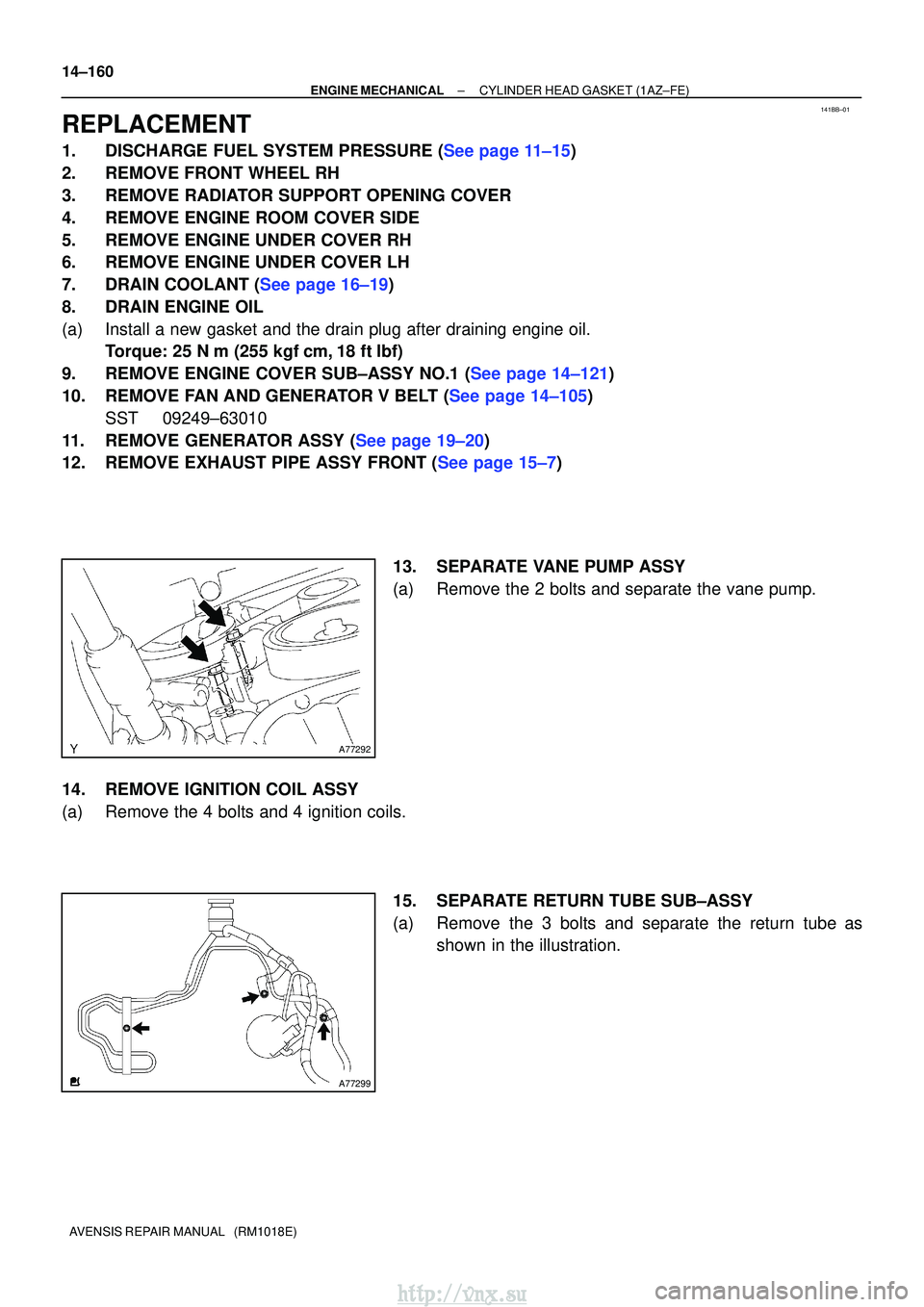

TOYOTA AVENSIS 2003 Service Repair Manual 141BB±01 A77292 A77299 14±160 ± ENGINE MECHANICAL CYLINDER HEAD GASKET (1AZ±FE) AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT 1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±15) 2. REMOVE FRONT WHE
