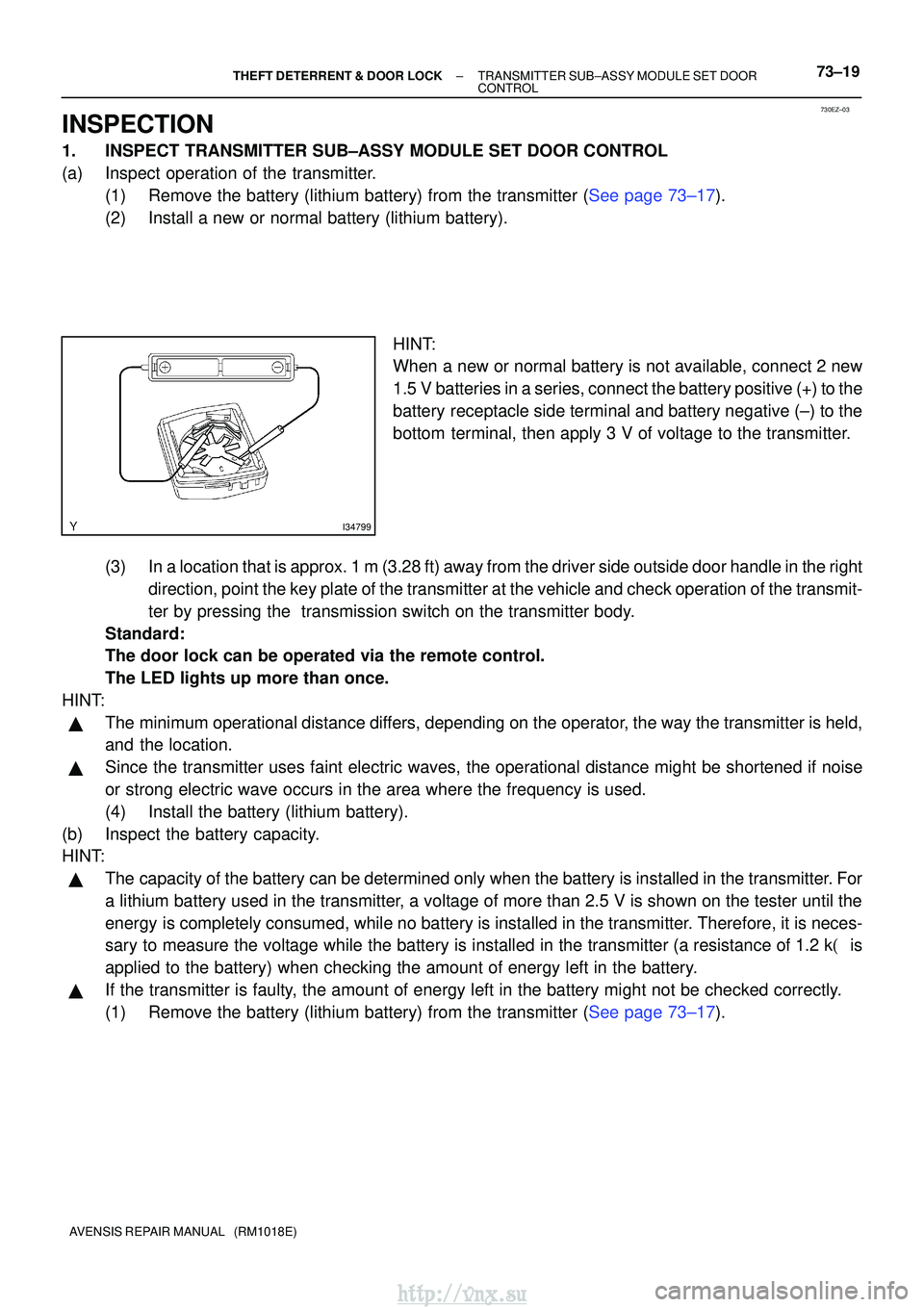

TOYOTA AVENSIS 2003 Service Repair Manual 730EZ±03
I34799
±
THEFT DETERRENT & DOOR LOCKTRANSMITTER SUB±ASSY MODULE SET DOOR
CONTROL73±19
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1.INSPECT TRANSMITTER SUB±ASSY MODULE SET DOOR CONTROL

730EZ±03
I34799
±
THEFT DETERRENT & DOOR LOCKTRANSMITTER SUB±ASSY MODULE SET DOOR
CONTROL73±19
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1.INSPECT TRANSMITTER SUB±ASSY MODULE SET DOOR CONTROL
(a)Inspect operation of the transmitter.
(1)Remove the battery (lithium battery) from the transmitter (See page 73±17).
(2)Install a new or normal battery (lithium battery).
HINT:
When a new or normal battery is not available, connect 2 new
1.5 V batteries in a series, connect the battery positive (+) to the
battery receptacle side terminal and battery negative (±) to the
bottom terminal, then apply 3 V of voltage to the transmitter.
(3)In a location that is approx. 1 m (3.28 ft) away from the driver side ou\
tside door handle in the right direction, point the key plate of the transmitter at the vehicle and che\
ck operation of the transmit-
ter by pressing the transmission switch on the transmitter body.
Standard:
The door lock can be operated via the remote control.
The LED lights up more than once.
HINT:
The minimum operational distance differs, depending on the operator, the way the transmitter is held,
and the location.
Since the transmitter uses faint electric waves, the operational distanc\
e might be shortened if noise
or strong electric wave occurs in the area where the frequency is used.
(4)Install the battery (lithium battery).
(b)Inspect the battery capacity.
HINT:
The capacity of the battery can be determined only when the battery is inst\
alled in the transmitter. For
a lithium battery used in the transmitter, a voltage of more than 2.5 V is shown on the tester until the
energy is completely consumed, while no battery is installed in the transmitte\
r. Therefore, it is neces-
sary to measure the voltage while the battery is installed in the transmitte\
r (a resistance of 1.2 kis
applied to the battery) when checking the amount of energy left in the \
battery.
If the transmitter is faulty, the amount of energy left in the battery might not be checked correctl\
y.
(1)Remove the battery (lithium battery) from the transmitter (See page 73±17).
http://vnx.su

Page 1730 of 2234

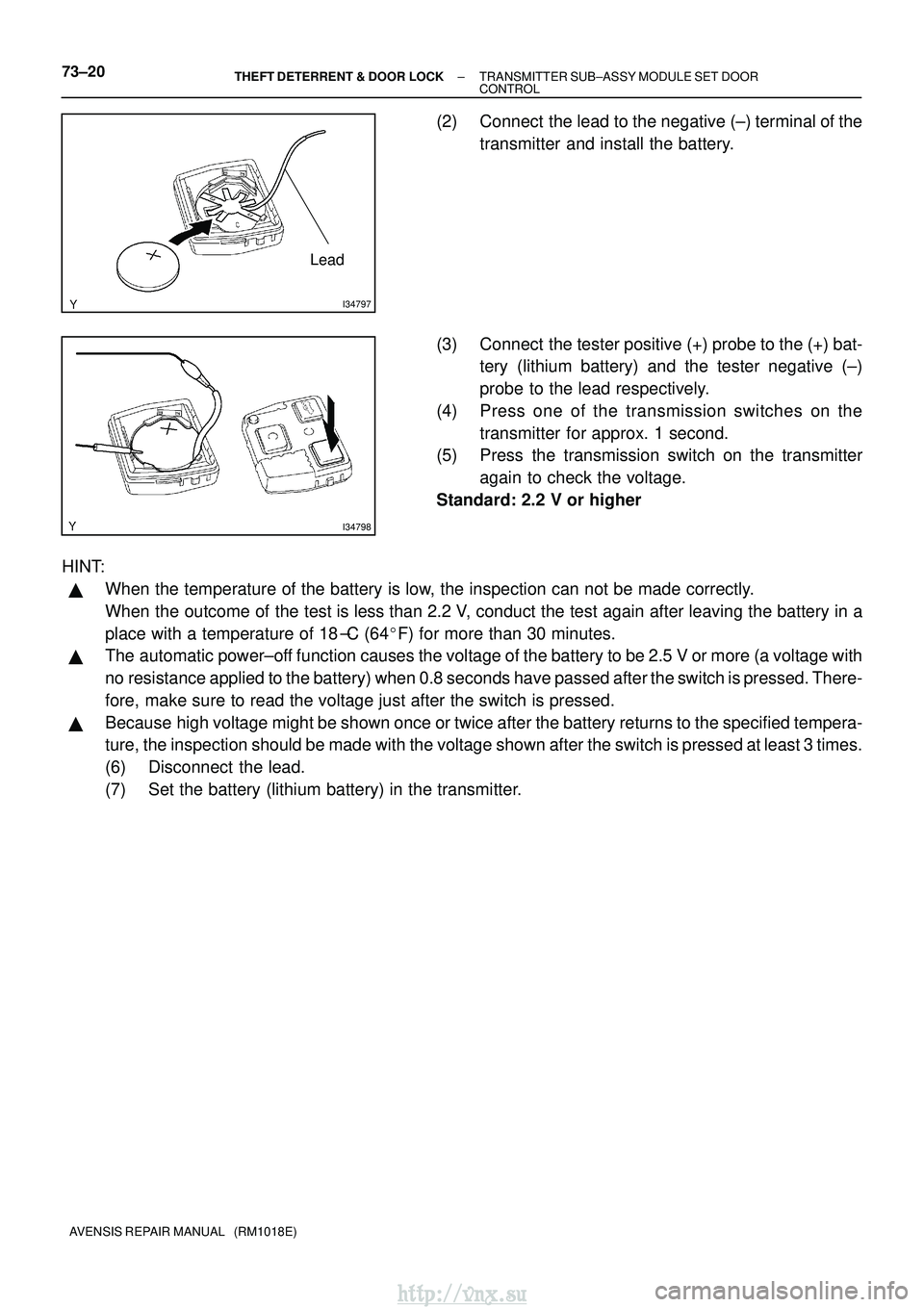

TOYOTA AVENSIS 2003 Service Repair Manual I34797
Lead
I34798
73±20±
THEFT DETERRENT & DOOR LOCK TRANSMITTER SUB±ASSY MODULE SET DOOR
CONTROL
AVENSIS REPAIR MANUAL (RM1018E)
(2) Connect the lead to the negative (±) terminal of the trans

Page 1731 of 2234

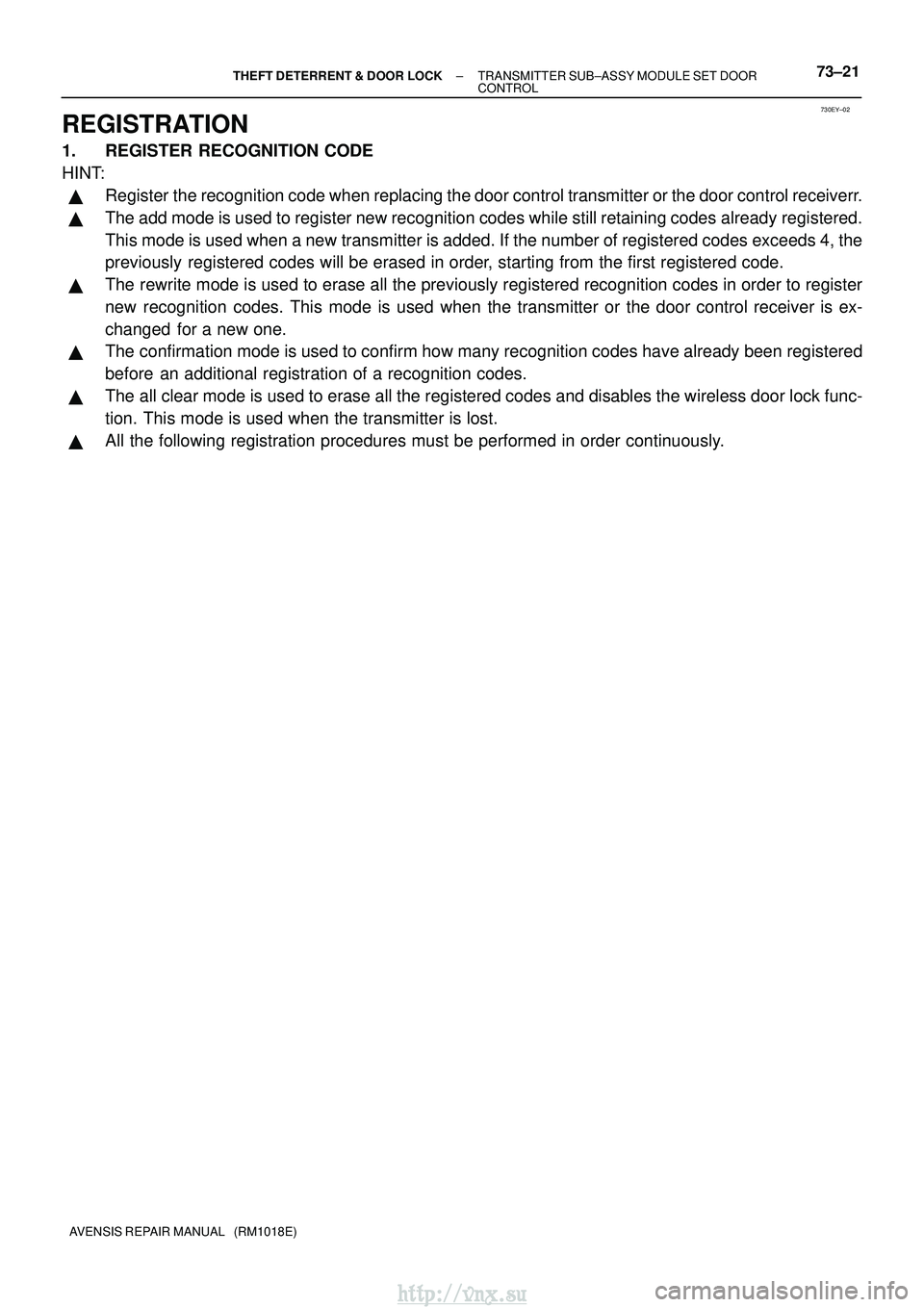

TOYOTA AVENSIS 2003 Service Repair Manual 730EY±02
±
THEFT DETERRENT & DOOR LOCK TRANSMITTER SUB±ASSY MODULE SET DOOR
CONTROL73±21
AVENSIS REPAIR MANUAL (RM1018E)
REGISTRATION
1. REGISTER RECOGNITION CODE
HINT:
Register the recognition

Page 1732 of 2234

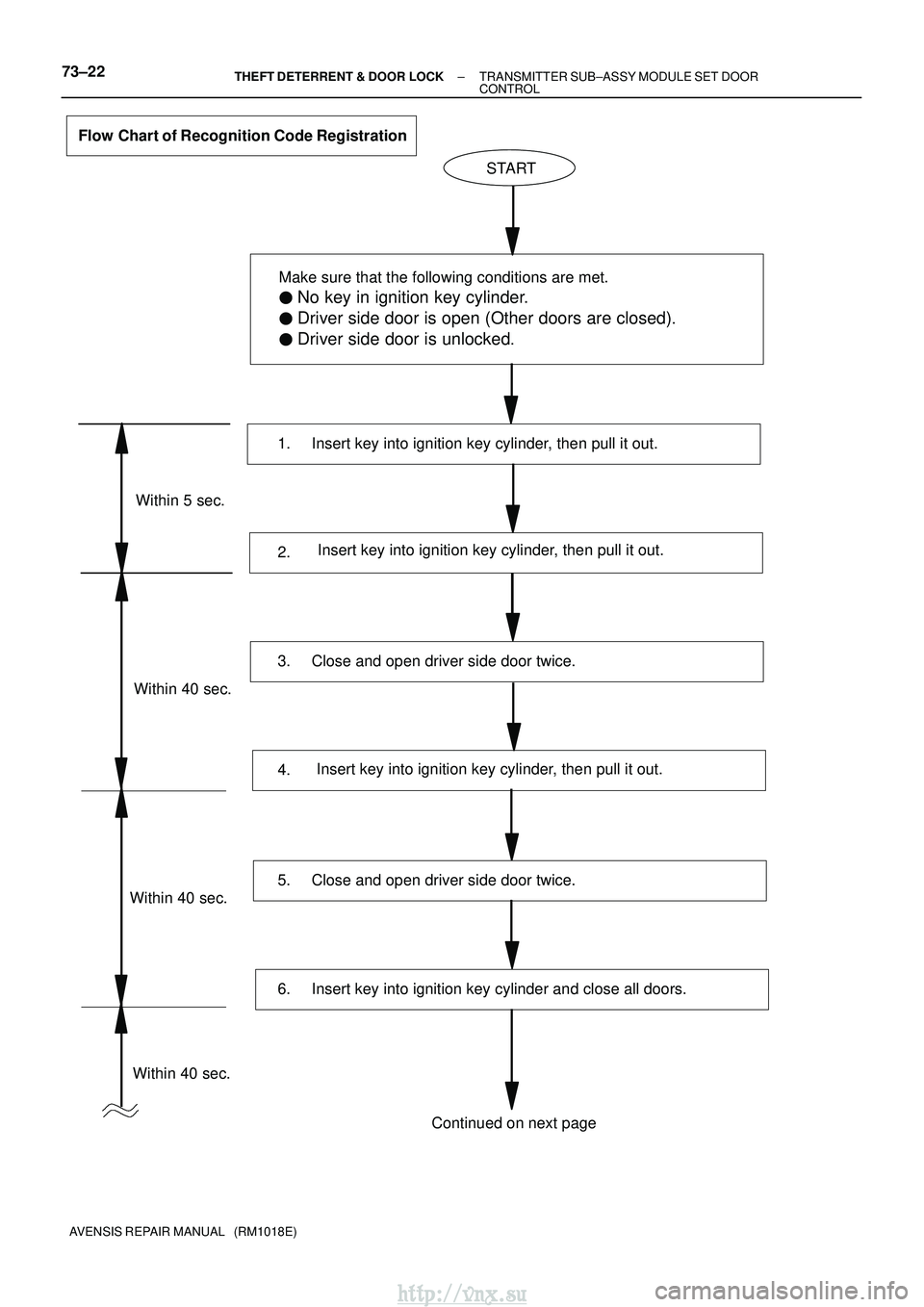

TOYOTA AVENSIS 2003 Service Repair Manual Within 5 sec.
Within 40 sec.
Continued on next page
1.
2.
3.
4.
5.
6.
Insert key into ignition key cylinder, then pull it out.
Close and open driver side door twice.
Close and open driver side door tw

Page 1733 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual Within 40 sec.
ON
LOCK
ON±LOCK operation: 1 time
Add Mode
Rewrite Mode
ON±LOCK operation: 2 times
Confirmation Mode
ON±LOCK operation: 3 times
All Clear Mode
ON±LOCK operation: 5 times
Number of

Page 1734 of 2234

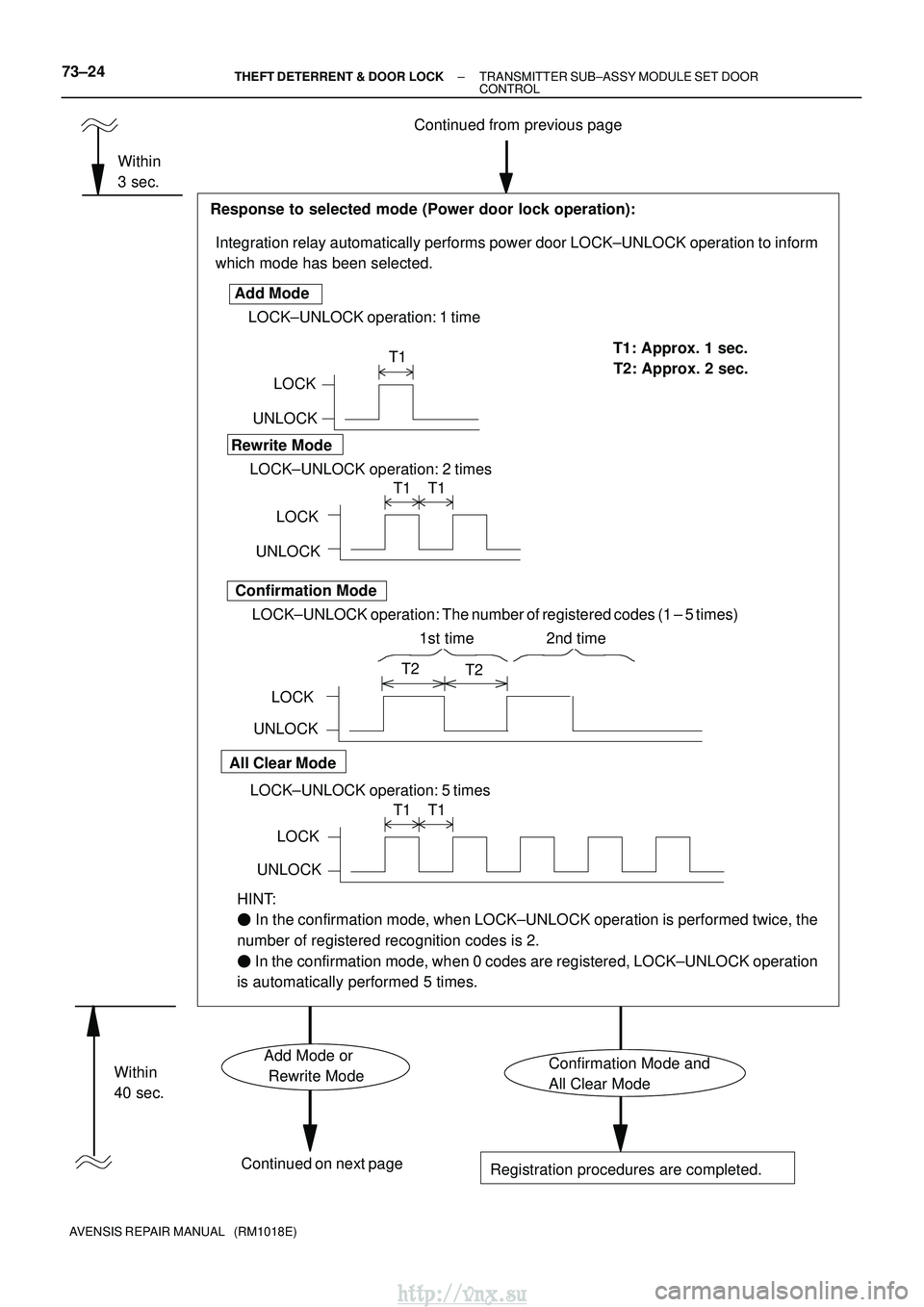

$TOYOTA AVENSIS 2003 Service Repair Manual Continued from previous page Integration relay automatically performs power door LOCK±UNLOCK opera\ tion to inform which mode has been selected. Response to selected mode (Power door lock operation):$

Page 1735 of 2234

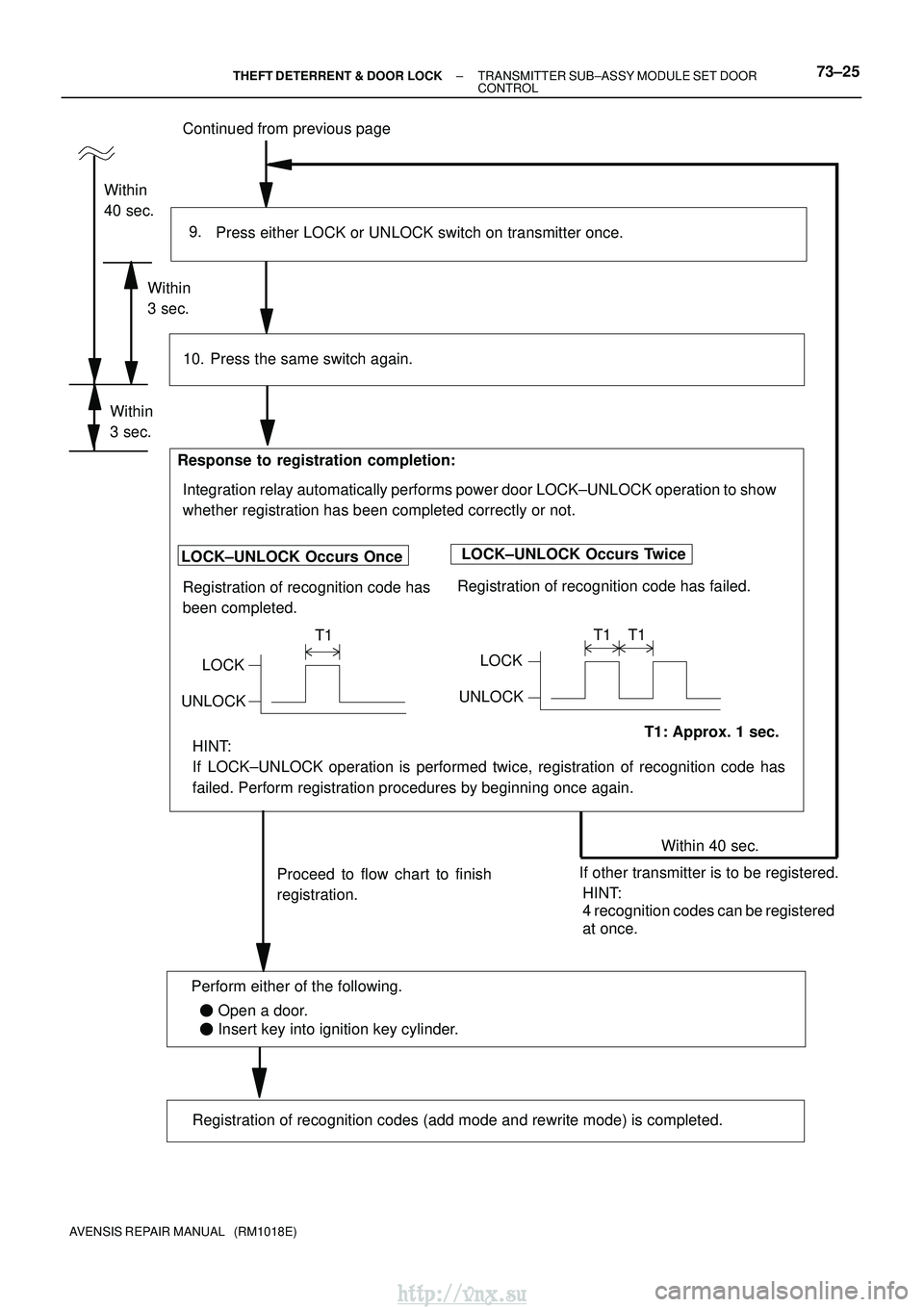

TOYOTA AVENSIS 2003 Service Repair Manual Continued from previous page
Press either LOCK or UNLOCK switch on transmitter once.
9.
Within 40 sec.
Proceed to flow chart to finish
registration.
Press the same switch again.
LOCK±UNLOCK Occurs On

Page 1736 of 2234

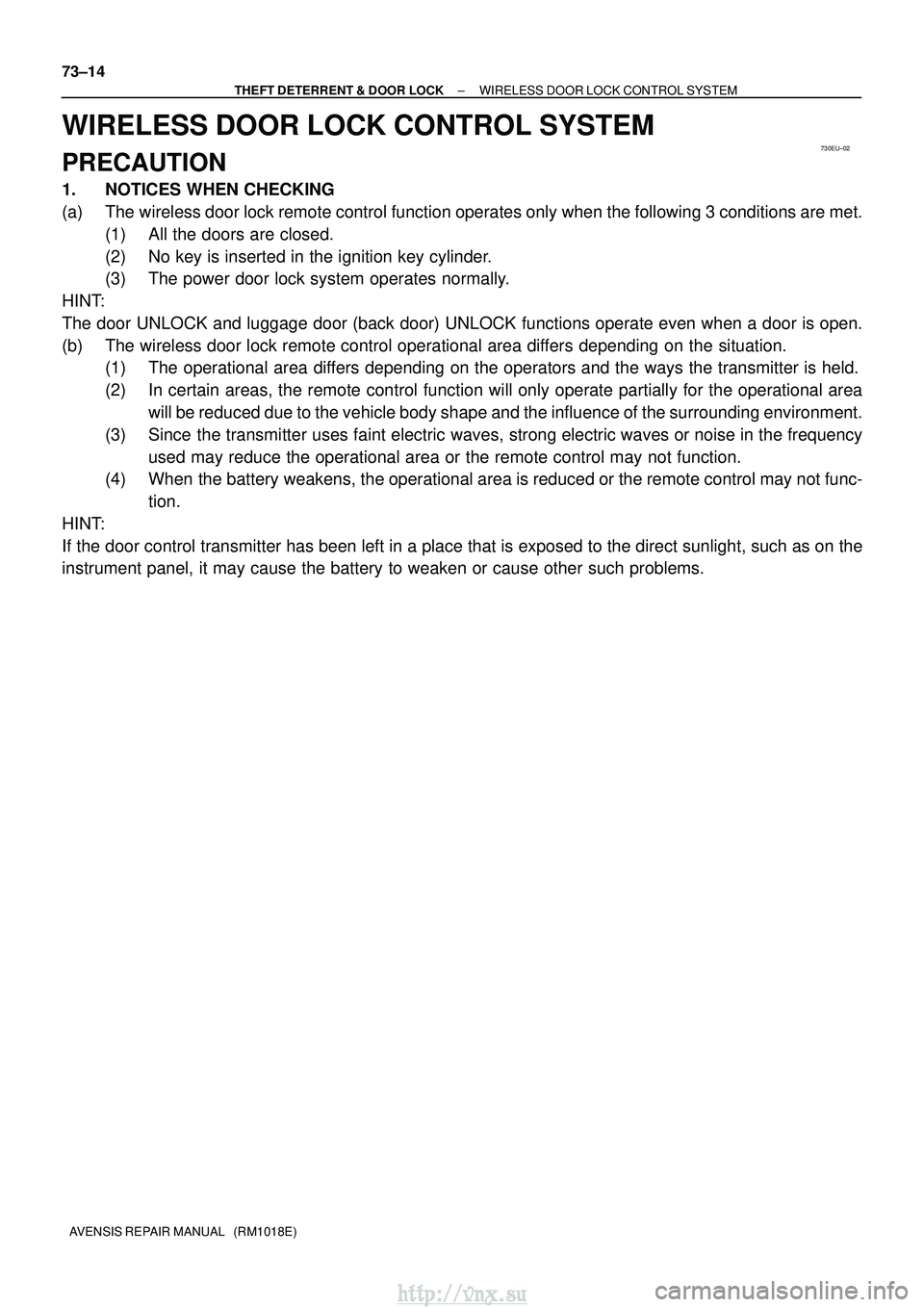

TOYOTA AVENSIS 2003 Service Repair Manual 730EU±02
73±14
±
THEFT DETERRENT & DOOR LOCK WIRELESS DOOR LOCK CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
WIRELESS DOOR LOCK CONTROL SYSTEM
PRECAUTION
1. NOTICES WHEN CHECKING
(a) The wirele
