Page 1849 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 80028±04
B68363
ACCON
START
LOCK
55
35
35
80±2
±

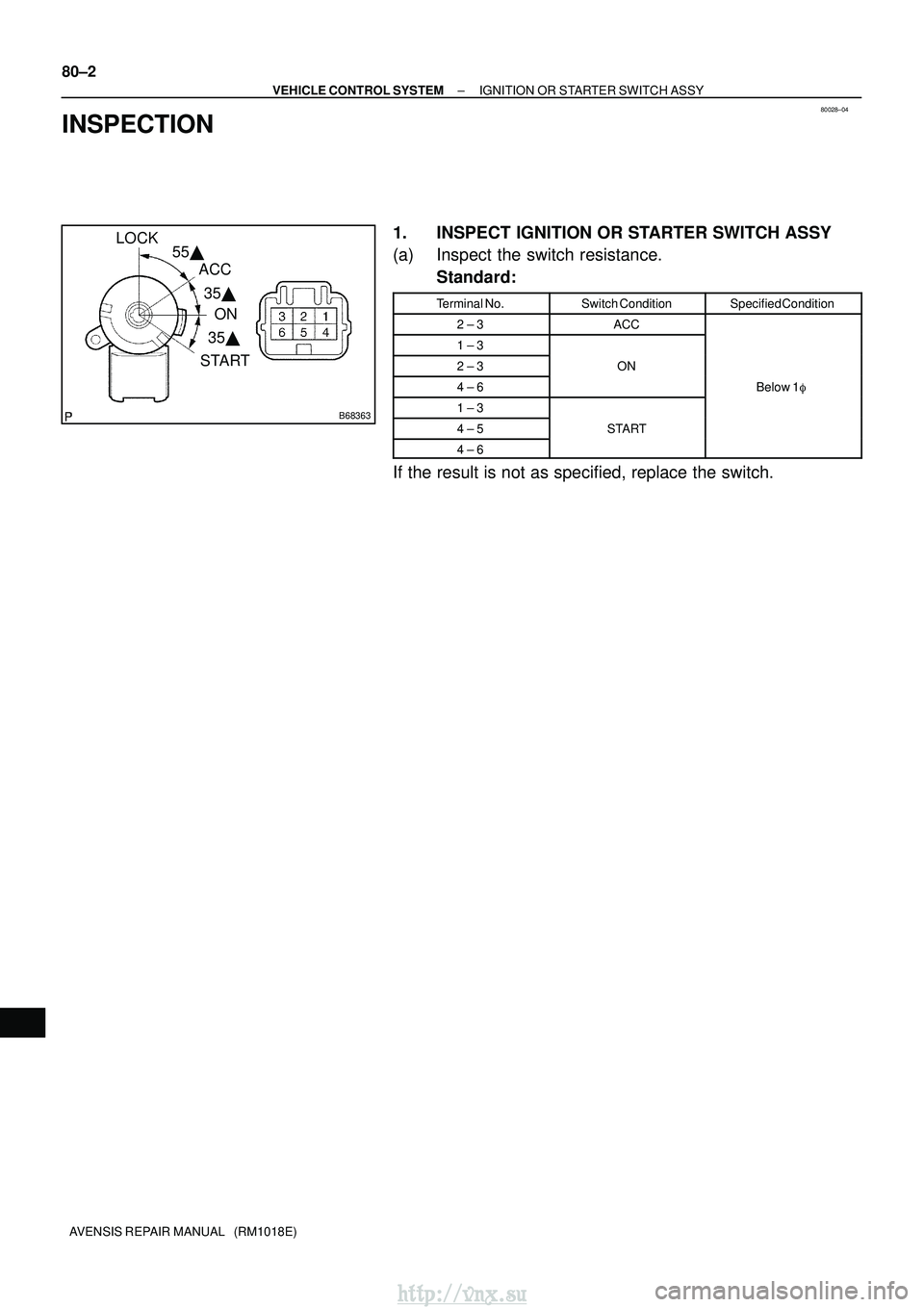

VEHICLE CONTROL SYSTEM IGNITION OR STARTER SWITCH ASSY
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1. INSPECT IGNITION OR STARTER SWITCH ASSY

Page 1850 of 2234

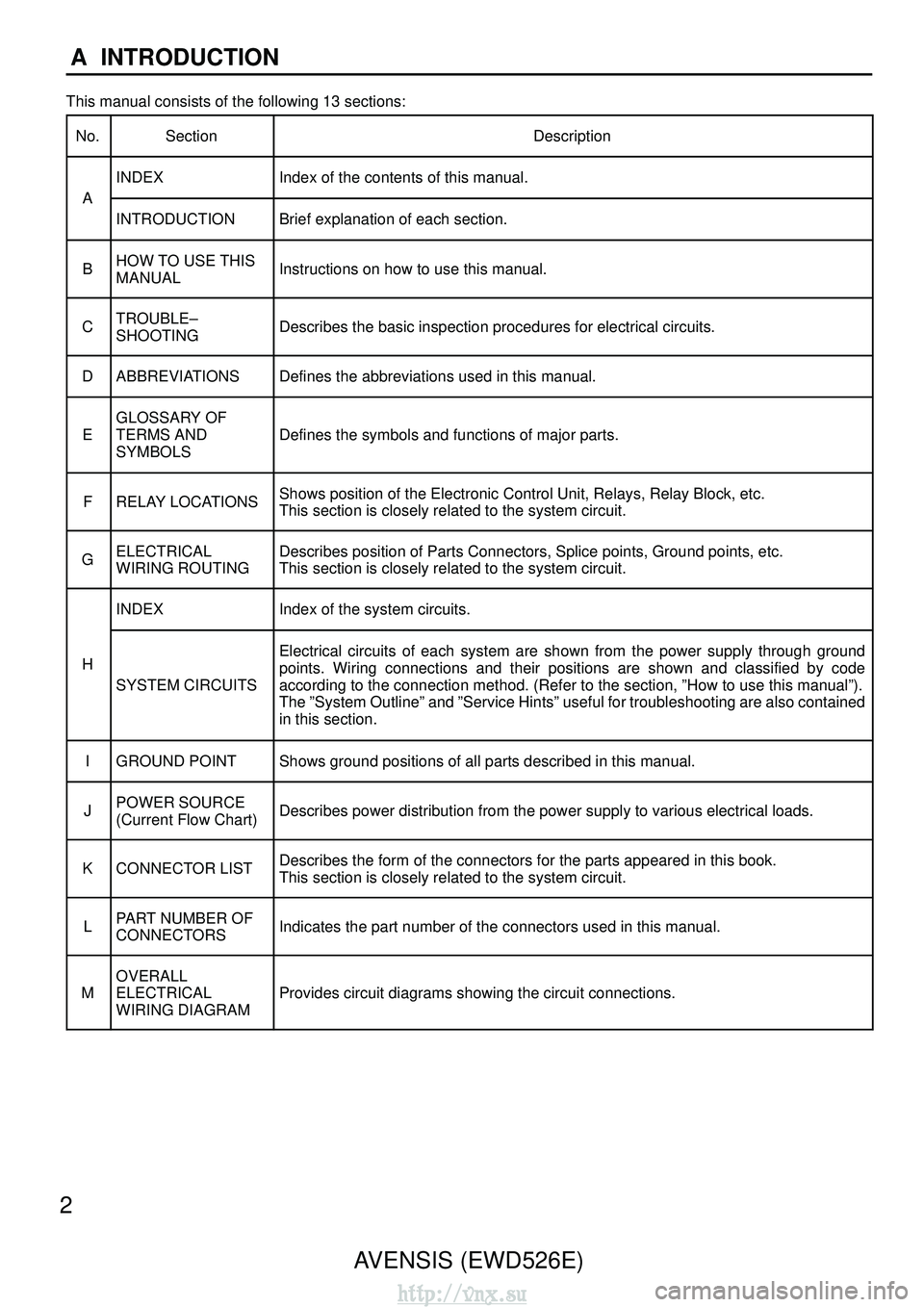

TOYOTA AVENSIS 2003 Service Repair Manual 2AVENSIS (EWD526E)
A INTRODUCTION
This manual consists of the following 13 sections:
No.
SectionDescription
INDEXIndex of the contents of this manual.
A
INTRODUCTIONBrief explanation of each section.

Page 1851 of 2234

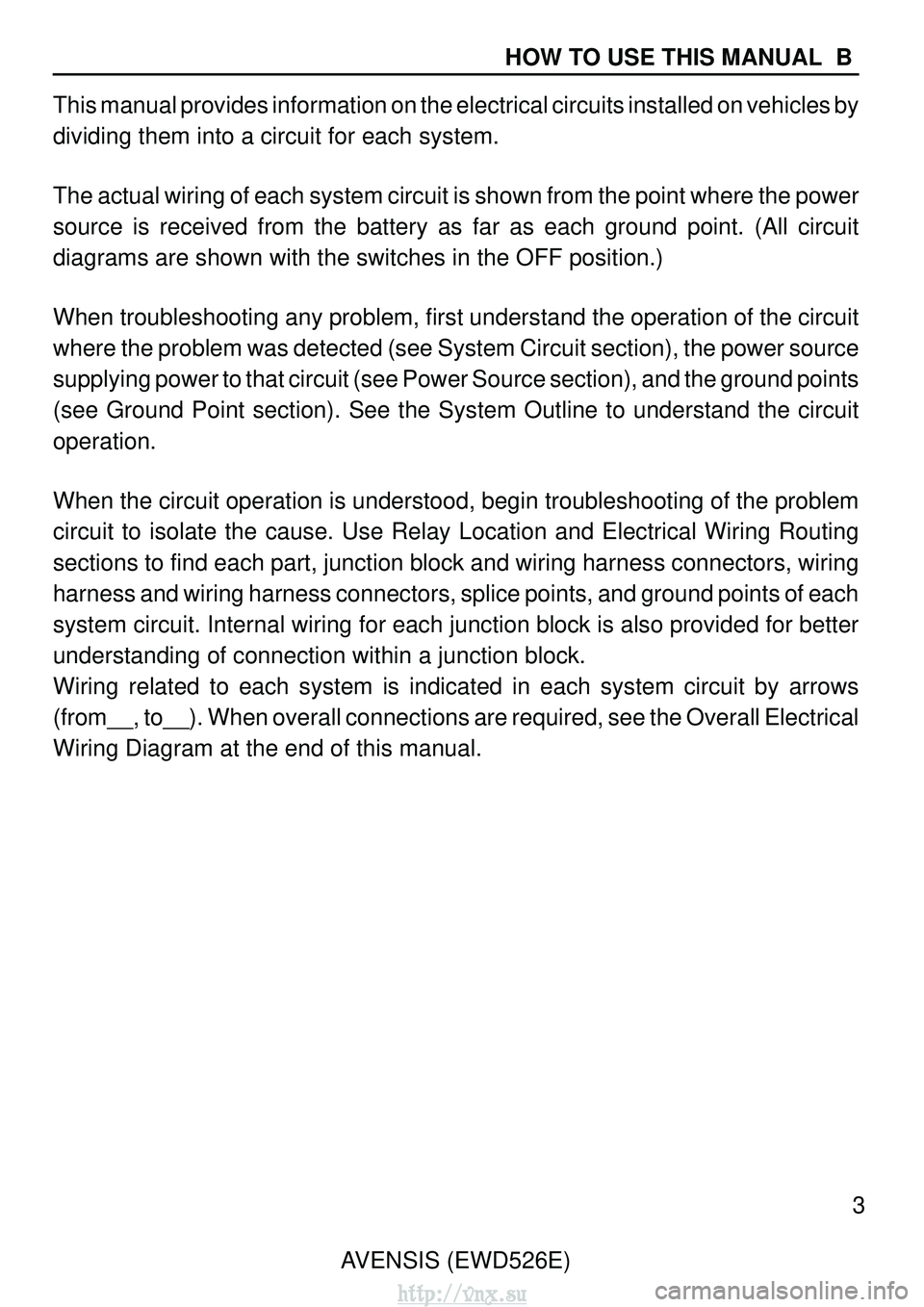

$TOYOTA AVENSIS 2003 Service Repair Manual AVENSIS (EWD526E)3 HOW TO USE THIS MANUAL B This manual provides information on the electrical circuits installed on\ vehicles by dividing them into a circuit for each system. The actual wiring of e$

Page 1852 of 2234

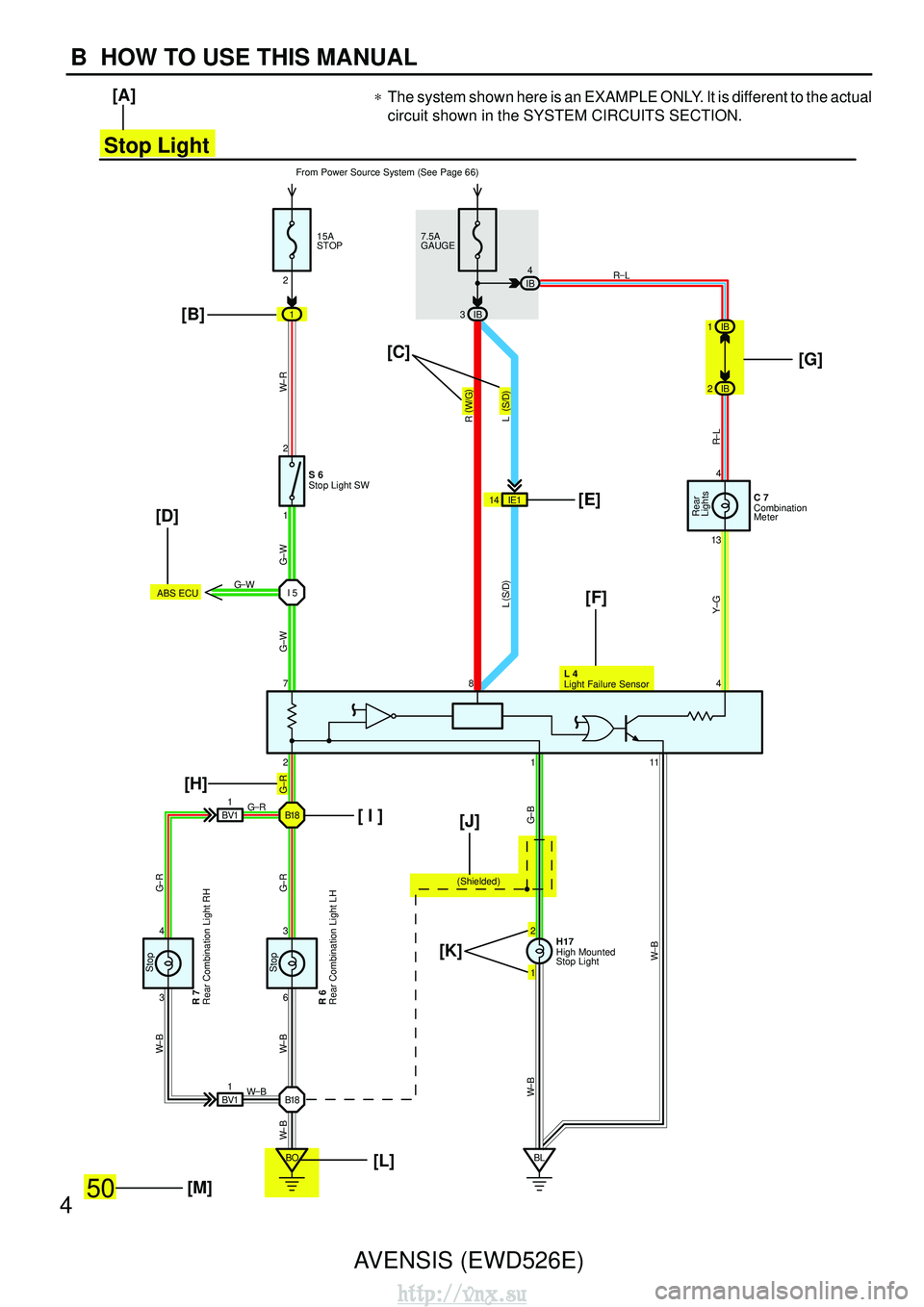

TOYOTA AVENSIS 2003 Service Repair Manual
[A][B]
[H]
[D]
[F]
[E]
[ I ]
[L]
[M] [J]
[K] [G]
[C]
1
2
IBIB
3 4
4
7
2111 13
4
1 2
6 3 1 2
B18 BLRL
GR
B18
GR
3 4
Rear Combination Light RH R 7
Rear Combination Light LH R 6
High Mounted
Stop Ligh

Page 1853 of 2234

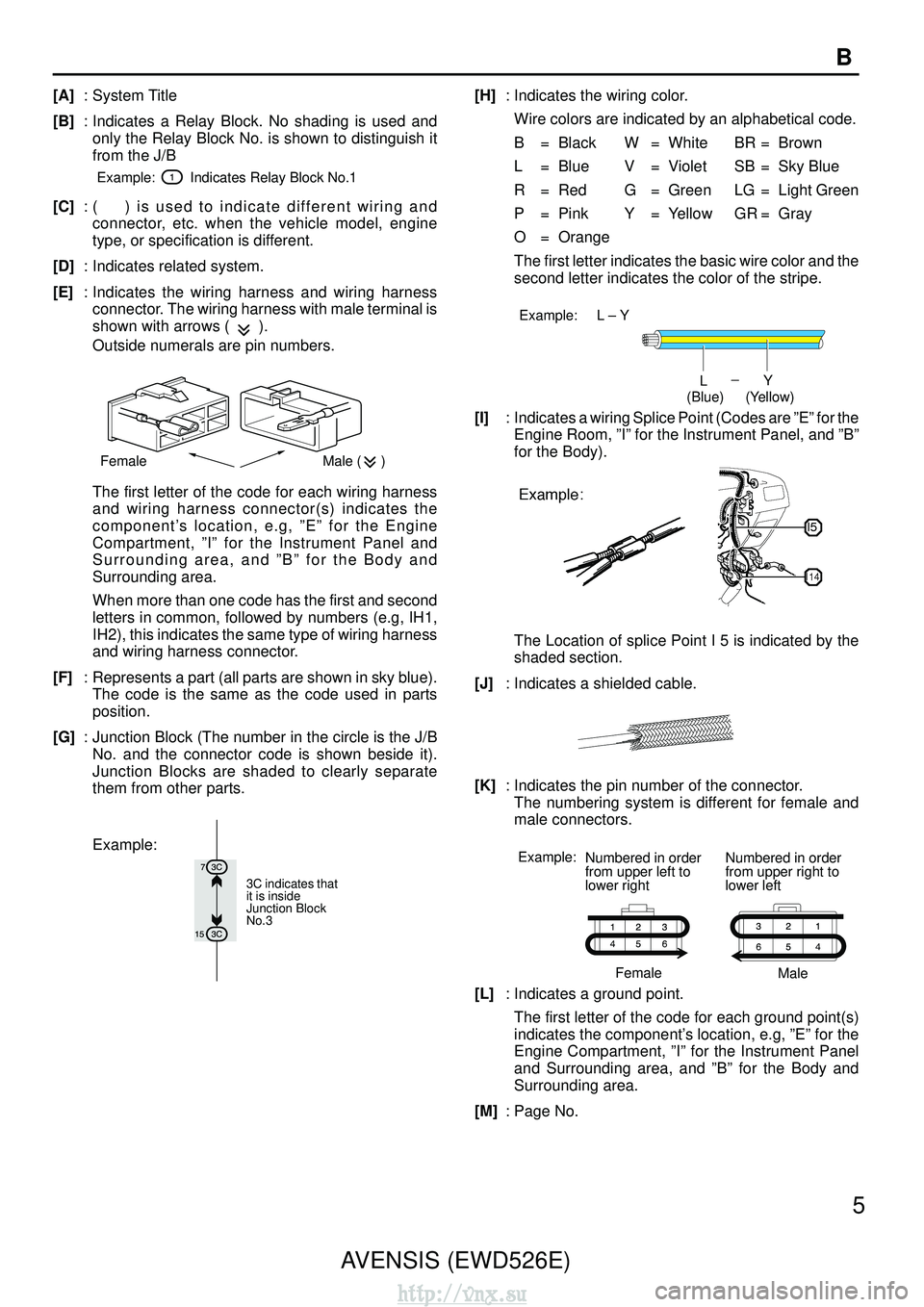

TOYOTA AVENSIS 2003 Service Repair Manual AVENSIS (EWD526E)5
B
[A]
: System Title
[B] : Indicates a Relay Block. No shading is used and
only the Relay Block No. is shown to distinguish it
from the J/B
Example: Indicates Relay Block No

AVENSIS (EWD526E)5
B
[A]
: System Title
[B] : Indicates a Relay Block. No shading is used and
only the Relay Block No. is shown to distinguish it
from the J/B
Example: Indicates Relay Block No.1
[C] : ( ) is used to indicate different wiring and
connector, etc. when the vehicle model, engine
type, or specification is different.
[D] : Indicates related system.
[E] : Indicates the wiring harness and wiring harness
connector. The wiring harness with male terminal is
shown with arrows (
).
Outside numerals are pin numbers.
Female Male ( )
The first letter of the code for each wiring harness
and wiring harness connector(s) indicates the
component’s location, e.g, ”E” for the Engine
Compartment, ”I” for the Instrument Panel and
Surrounding area, and ”B” for the Body and
Surrounding area.
When more than one code has the first and second
letters in common, followed by numbers (e.g, IH1,
IH2), this indicates the same type of wiring harness
and wiring harness connector.
[F] : Represents a part (all parts are shown in sky blue).
The code is the same as the code used in parts
position.
[G] : Junction Block (The number in the circle is the J/B
No. and the connector code is shown beside it).
Junction Blocks are shaded to clearly separate
them from other parts.
3C indicates that
it is inside
Junction Block
No.3
Example:
[H] : Indicates the wiring color.
Wire colors are indicated by an alphabetical code.
B = Black W = White BR = Brown
L = Blue V = Violet SB = Sky Blue
R = Red G = Green LG = Light Green
P = Pink Y = Yellow GR = Gray
O = Orange
The first letter indicates the basic wire color and the
second letter indicates the color of the stripe.
Example: L – Y
L
(Blue) Y
(Yellow)
[I] : Indicates a wiring Splice Point (Codes are ”E” for the
Engine Room, ”I” for the Instrument Panel, and ”B”
for the Body).
The Location of splice Point I 5 is indicated by the
shaded section.
[J] : Indicates a shielded cable.
[K]: Indicates the pin number of the connector.
The numbering system is different for female and
male connectors.
Example: Numbered in order
from upper left to
lower right Numbered in order
from upper right to
lower left
Female Male
[L]: Indicates a ground point.
The first letter of the code for each ground point(s)
indicates the component’s location, e.g, ”E” for the
Engine Compartment, ”I” for the Instrument Panel
and Surrounding area, and ”B” for the Body and
Surrounding area.
[M] : Page No.
http://vnx.su

Page 1854 of 2234

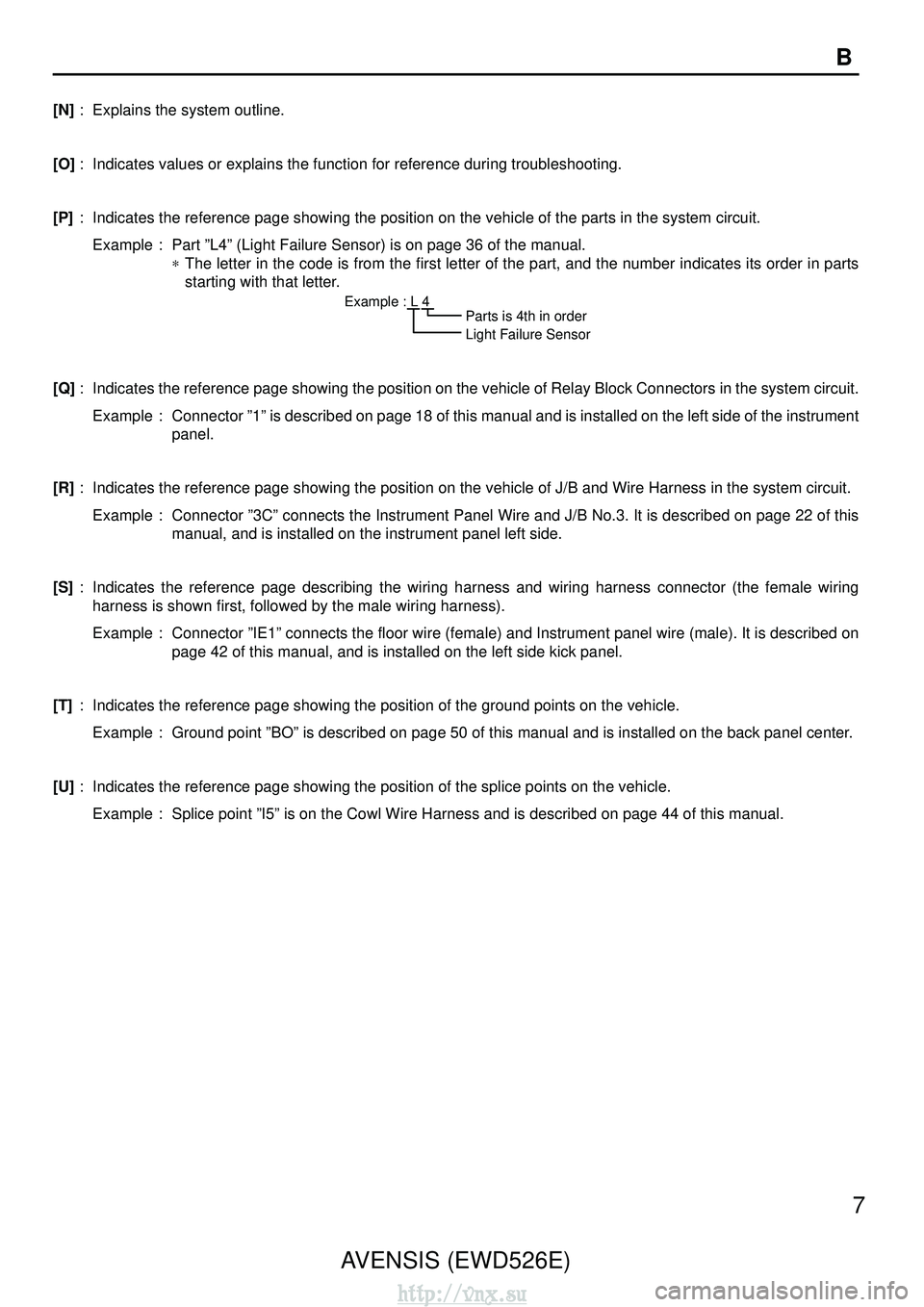

TOYOTA AVENSIS 2003 Service Repair Manual [N]
[O] [P]
[Q] [R]
[S]
[T]
[U]

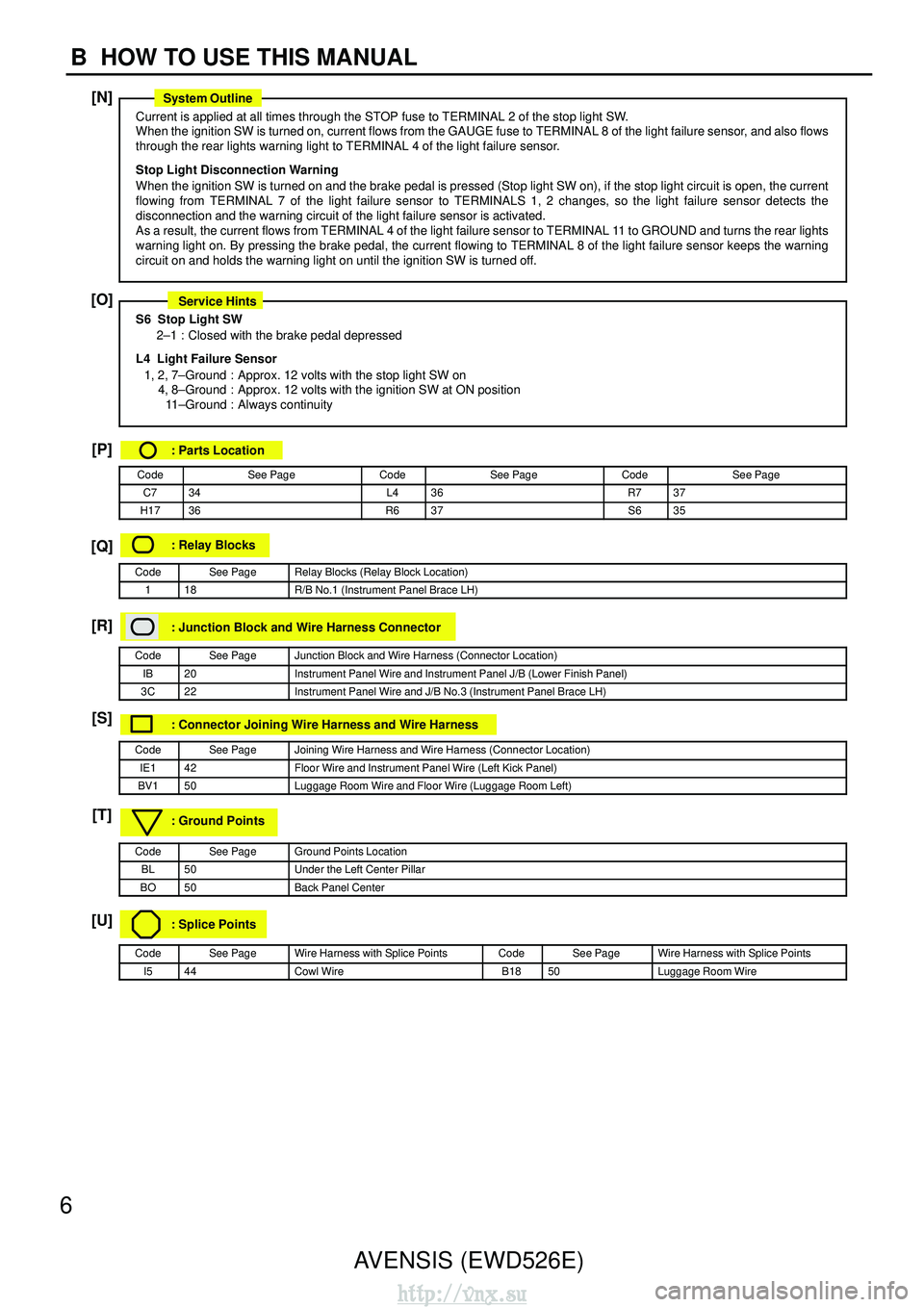

6 AVENSIS (EWD526E)
B HOW TO USE THIS MANUAL
Current is applied at all times through the STOP fuse to TERMINAL 2 of the stop light SW.
When the ignition SW is turned o

[N]
[O] [P]
[Q] [R]
[S]
[T]
[U]
6 AVENSIS (EWD526E)
B HOW TO USE THIS MANUAL
Current is applied at all times through the STOP fuse to TERMINAL 2 of the stop light SW.
When the ignition SW is turned on, current flows from the GAUGE fuse to TERM\
INAL 8 of the light failure sensor, and also flows
through the rear lights warning light to TERMINAL 4 of the light failure sensor\
.
Stop Light Disconnection Warning
When the ignition SW is turned on and the brake pedal is pressed (Stop ligh\
t SW on), if the stop light circuit is open, the cur
rent
flowing from TERMINAL 7 of the light failure sensor to TERMINALS 1, 2 changes, \
so the light failure sensor detects the
disconnection and the warning circuit of the light failure sensor is activated.
As a result, the current flows from TERMINAL 4 of the light failure sens\
or to TERMINAL 11 to GROUND and turns the rear lights
warning light on. By pressing the brake pedal, the current flowing to TERMINAL \
8 of the light failure sensor keeps the warning
circuit on and holds the warning light on until the ignition SW is turne\
d off.
S6 Stop Light SW
2–1 : Closed with the brake pedal depressed
L4 Light Failure Sensor 1, 2, 7–Ground : Approx. 12 volts with the stop light SW on 4, 8–Ground : Approx. 12 volts with the ignition SW at ON position11 –Ground : Always continuity
: Parts Location
CodeSee PageCodeSee PageCodeSee Page
C734L436R737
H1736R637S635
: Relay Blocks
CodeSee PageRelay Blocks (Relay Block Location)
118R/B No.1 (Instrument Panel Brace LH)
: Junction Block and Wire Harness Connector
CodeSee PageJunction Block and Wire Harness (Connector Location)
IB20Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)
3C22Instrument Panel Wire and J/B No.3 (Instrument Panel Brace LH)
: Connector Joining Wire Harness and Wire Harness
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
IE142Floor Wire and Instrument Panel Wire (Left Kick Panel)
BV150Luggage Room Wire and Floor Wire (Luggage Room Left)
: Ground Points
CodeSee PageGround Points Location
BL50Under the Left Center Pillar
BO50Back Panel Center
: Splice Points
CodeSee PageWire Harness with Splice PointsCodeSee PageWire Harness with Splice Points
I544Cowl WireB1850Luggage Room Wire
System Outline
Service Hints
http://vnx.su

Page 1855 of 2234

$TOYOTA AVENSIS 2003 Service Repair Manual AVENSIS (EWD526E)7 B [N] : Explains the system outline. [O] : Indicates values or explains the function for reference during troublesh\ ooting. [P] : Indicates the reference page showing the position$

Page 1856 of 2234

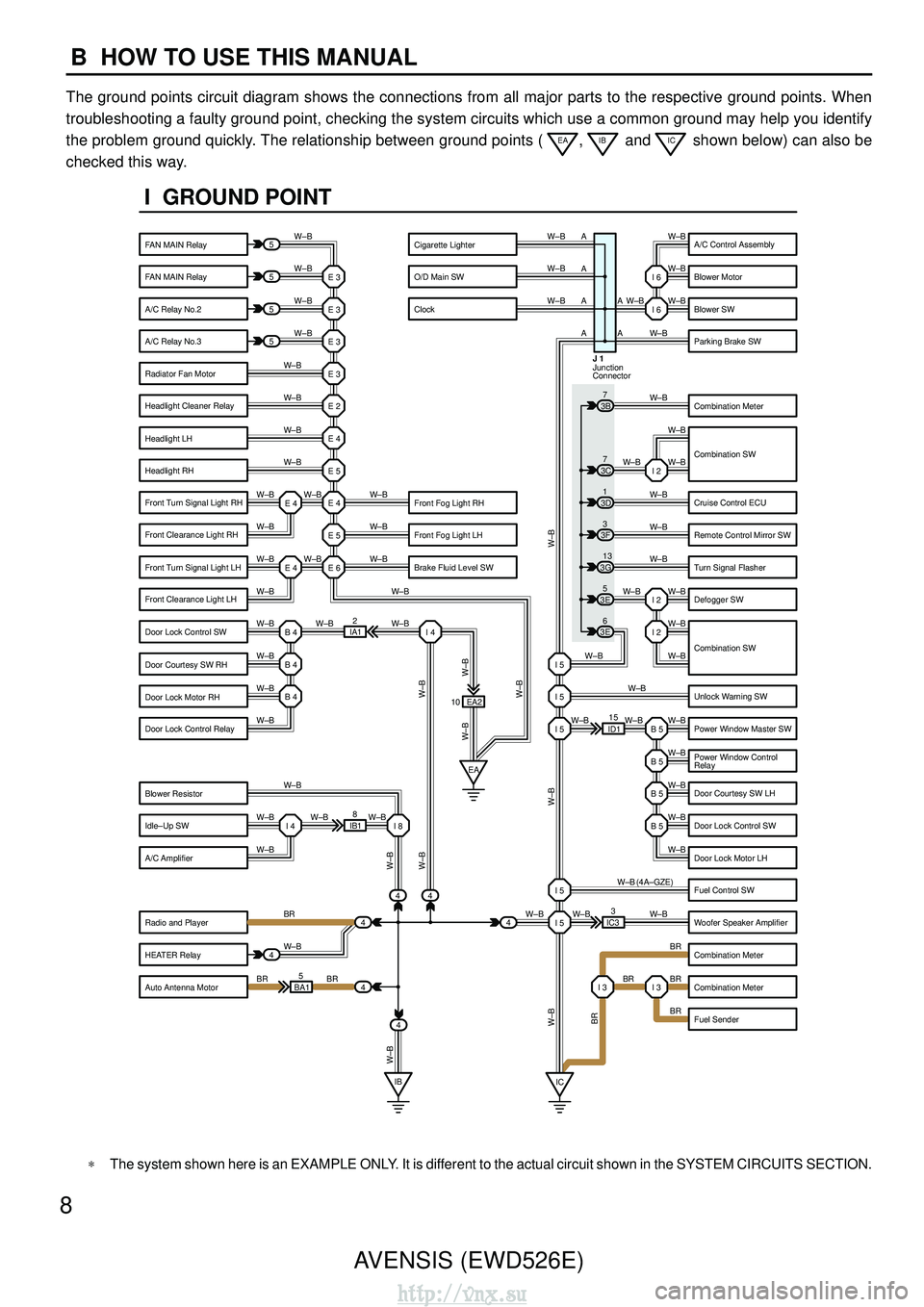

$TOYOTA AVENSIS 2003 Service Repair Manual 8AVENSIS (EWD526E) B HOW TO USE THIS MANUAL The ground points circuit diagram shows the connections from all major p\ arts to the respective ground points. When troubleshooting a faulty ground point,$

8AVENSIS (EWD526E)
B HOW TO USE THIS MANUAL
The ground points circuit diagram shows the connections from all major p\
arts to the respective ground points. When
troubleshooting a faulty ground point, checking the system circuits which use a common \
ground may help you identify
the problem ground quickly. The relationship between ground points (
EA, IB and IC shown below) can also be
checked this way.
5
5
5
5
44 4
4
4
BA1 5 IB1
8 EA2
ID115
IC3 3
IA1
2
E 3
W–B W–B W–B
W–B
W–B
W–B
W–B
W–B
W–BW –B
W–B
W–BW –B
W–B
W–BW –BW –B
W–B
W–B W–B
W–B
W–B
W–B
W–B
W–BW –BW–B
W–B
BR
W–B
BR BR
W–B W–B
W–B
W–B
W–B
W–B
W–B
W–BW –B
W–B
W–B
W–B
W–B
W–BBR
W–B
BR
BR
BR
W–B (4A–GZE)
W–B
W–B I 2
I 2
B 5
I 5 I 5
I 5
B 5
B 5
B 5
I 5
I 5 I 3
I 3
E 3
E 3
E 3
E 2
E 4
E 5
E 4
E 5
E 6
E 4 E 4
B 4
EA
I 4
B 4
B 4
I 4 I 8
IB IC
4
4 3E
5
3E 6
3G
13
3F
3
3D
1
3B
7 W–B
W–B
W–B
W–B
W–B
W–B
W–B
W–B
W–BW–B
W–B
W–B
W–B
W–B
W–B I 6
I 6
I 2
3C 7
10 A A
A
A
A
A
Junction
Connector J 1
W–B
W–B
W–BW –B
BR
W–B
W–B
W–B
W–B
W–B
W–B
I GROUND POINT
FAN MAIN Relay
FAN MAIN Relay
A/C Relay No.2
A/C Relay No.3
Radiator Fan Motor
Headlight Cleaner Relay
Headlight LH
Headlight RH
Front Fog Light LH
Brake Fluid Level SW Front Fog Light RH
Front Turn Signal Light RH
Front Clearance Light RH
Front Turn Signal Light LH
Front Clearance Light LH
Door Lock Control SW
Door Courtesy SW RH
Door Lock Motor RH
Door Lock Control Relay
Blower Resistor
Idle–Up SW
A/C Amplifier
Radio and Player
HEATER Relay
Auto Antenna Motor A/C Control Assembly
Blower Motor
Blower SW
Parking Brake SW
Combination Meter
Combination SW
Cruise Control ECU
Remote Control Mirror SW
Turn Signal Flasher
Defogger SW
Unlock Warning SW
Power Window Master SW
Power Window Control
Relay
Door Courtesy SW LH
Door Lock Control SW
Door Lock Motor LH
Fuel Control SW
Woofer Speaker Amplifier
Combination Meter
Combination Meter
Fuel Sender
Cigarette Lighter
O/D Main SW
Clock
Combination SW
∗The system shown here is an EXAMPLE ONLY. It is different to the actual circuit shown in the SYSTEM CIRCUITS SECTION.
