Page 905 of 2234

A79148
SST
A79149
SST
16±48
±
COOLINGWATER PUMP ASSY(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

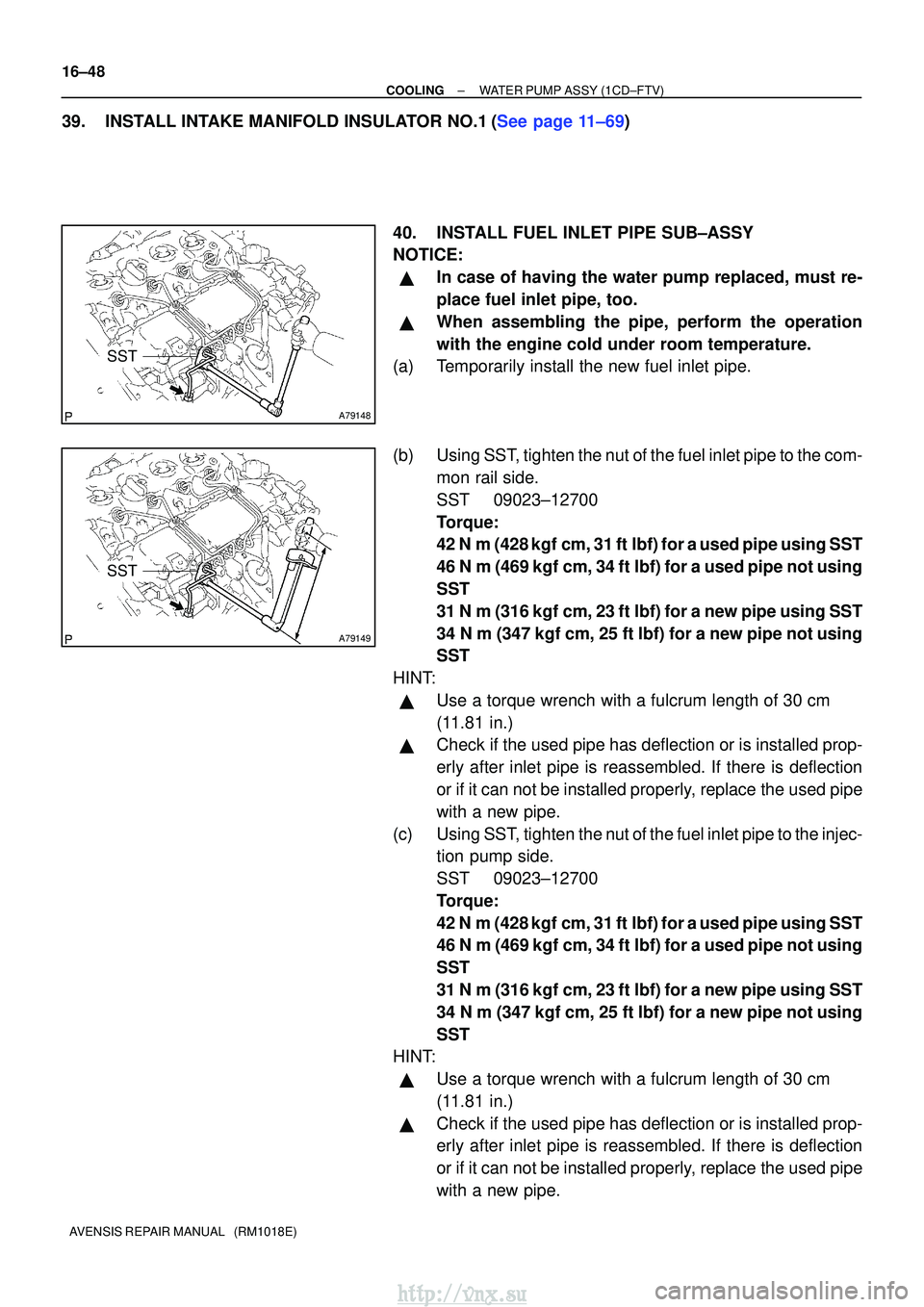

39.INSTALL INTAKE MANIFOLD INSULATOR NO.1(See page 11±69) 40. INSTALL FUEL INLET PIPE SUB±ASSY
NOTICE:
In case of having the water pump replaced, must re-
place fuel inlet pipe, too.
When assembling the pipe, perform the operation
with the engine cold under room temperature.
(a) Temporarily install the new fuel inlet pipe.
(b) Using SST, tighten the nut of the fuel inlet pipe to the com-
mon rail side.
SST 09023±12700
Torque:
42 Nm (428 kgf cm, 31 ftlbf) for a used pipe using SST
46 N m (469 kgf cm, 34 ftlbf) for a used pipe not using
SST
31 N m (316 kgf cm, 23 ftlbf) for a new pipe using SST
34 N m (347 kgf cm, 25 ft lbf) for a new pipe not using
SST
HINT:
Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)
Check if the used pipe has deflection or is installed prop-
erly after inlet pipe is reassembled. If there is deflection
or if it can not be installed properly, replace the used pipe
with a new pipe.
(c) Using SST, tighten the nut of the fuel inlet pipe to the injec- tion pump side.
SST 09023±12700
Torque:
42 Nm (428 kgf cm, 31 ftlbf) for a used pipe using SST
46 N m (469 kgf cm, 34 ftlbf) for a used pipe not using
SST
31 N m (316 kgf cm, 23 ftlbf) for a new pipe using SST
34 N m (347 kgf cm, 25 ft lbf) for a new pipe not using
SST
HINT:
Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.)
Check if the used pipe has deflection or is installed prop-
erly after inlet pipe is reassembled. If there is deflection
or if it can not be installed properly, replace the used pipe
with a new pipe.
http://vnx.su
Page 906 of 2234

±
COOLINGWATER PUMP ASSY(1CD±FTV)
16±49
AVENSIS REPAIR MANUAL (RM1018E)

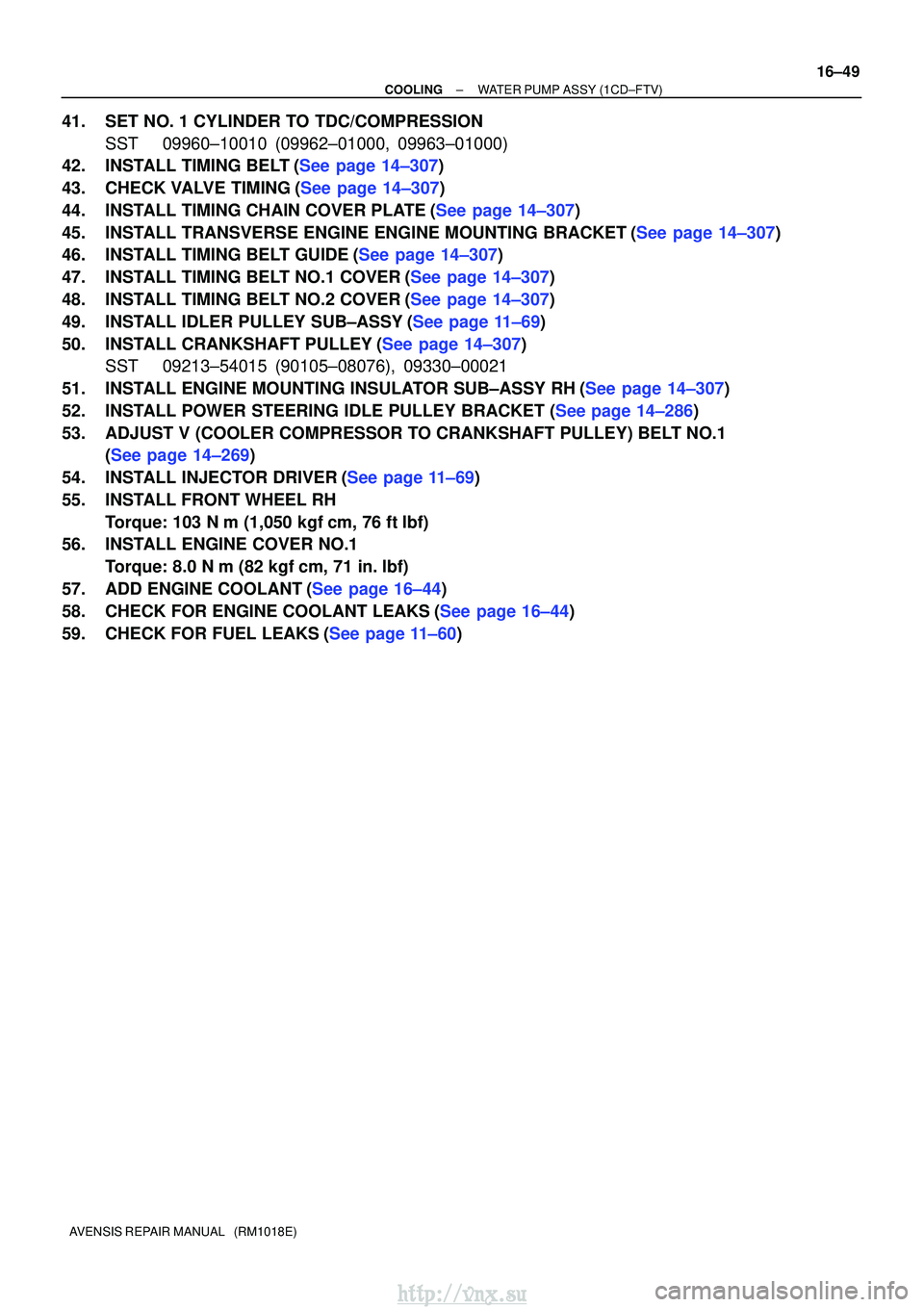

41.SET NO. 1 CYLINDER TO TDC/COMPRESSION
SST09960±10010 (09962±01000, 09963±01000)
42.INSTALL TIMING BELT(See page 14±307)
43.CHECK VALVE TIMING(See page 14±307)
44.INSTALL TIMING CHAIN COVER PLATE(See page 14±307)
45.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING BRACKET(See page 14±307)
46.INSTALL TIMING BELT GUIDE(See page 14±307)
47.INSTALL TIMING BELT NO.1 COVER(See page 14±307)
48.INSTALL TIMING BELT NO.2 COVER(See page 14±307)
49.INSTALL IDLER PULLEY SUB±ASSY(See page 11±69)
50.INSTALL CRANKSHAFT PULLEY(See page 14±307) SST 09213±54015 (90105±08076), 09330±00021
51.INSTALL ENGINE MOUNTING INSULATOR SUB±ASSY RH(See page 14±307)
52.INSTALL POWER STEERING IDLE PULLEY BRACKET (See page 14±286)
53.ADJUST V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 14±269)
54.INSTALL INJECTOR DRIVER(See page 11±69)
55. INSTALL FRONT WHEEL RH Torque: 103 N m (1,050 kgfcm, 76 ft lbf)
56. INSTALL ENGINE COVER NO.1
Torque: 8.0 N m (82 kgf cm, 71 in. lbf)
57.ADD ENGINE COOLANT(See page 16±44)
58.CHECK FOR ENGINE COOLANT LEAKS(See page 16±44)
59.CHECK FOR FUEL LEAKS(See page 11±60)
http://vnx.su
Page 907 of 2234
160MI±01
B00150
AB ABB
B
A32555
±
COOLINGWATER PUMP ASSY(1ZZ±FE/3ZZ±FE)
16±9
AVENSIS REPAIR MANUAL (RM1018E)

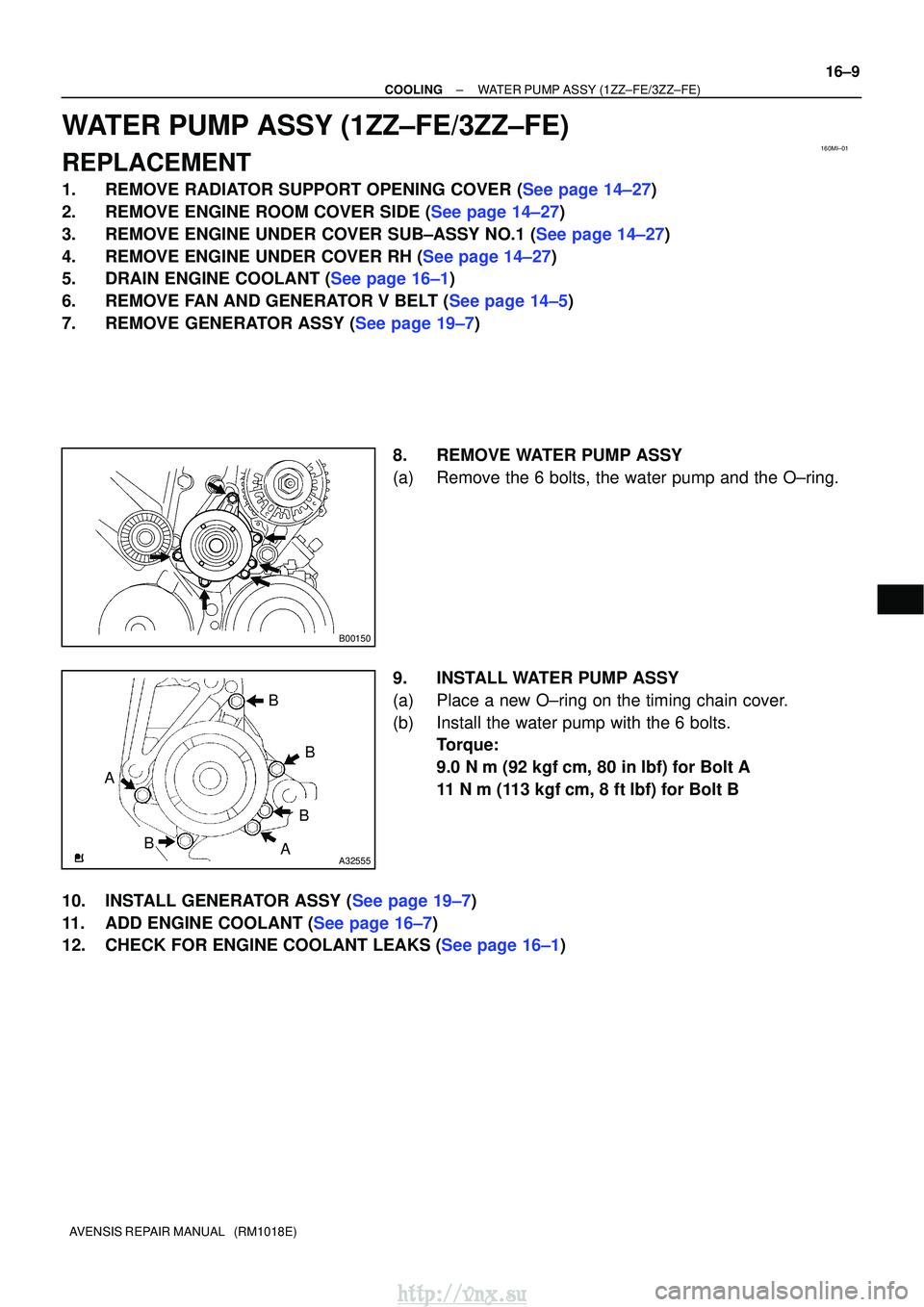

WATER PUMP ASSY(1ZZ±FE/3ZZ±FE)
REPLACEMENT
1.REMOVE RADIATOR SUPPORT OPENING COVER (See page 14±27)
2.REMOVE ENGINE ROOM COVER SIDE (See page 14±27)
3.REMOVE ENGINE UNDER COVER SUB±ASSY NO.1 (See page 14±27)
4.REMOVE ENGINE UNDER COVER RH (See page 14±27)
5.DRAIN ENGINE COOLANT (See page 16±1)
6.REMOVE FAN AND GENERATOR V BELT (See page 14±5)
7.REMOVE GENERATOR ASSY (See page 19±7)
8.REMOVE WATER PUMP ASSY
(a)Remove the 6 bolts, the water pump and the O±ring.
9.INSTALL WATER PUMP ASSY
(a)Place a new O±ring on the timing chain cover.
(b)Install the water pump with the 6 bolts.Torque:
9.0 Nm (92 kgf cm, 80 inlbf) for Bolt A
11 Nm (113 kgfcm, 8 ftlbf) for Bolt B
10.INSTALL GENERATOR ASSY (See page 19±7)
11.ADD ENGINE COOLANT (See page 16±7)
12.CHECK FOR ENGINE COOLANT LEAKS (See page 16±1)
http://vnx.su
Page 908 of 2234

1700F±09
A56466
Recommended Viscosity (SAE)
BEFORE NEXT OIL CHANGE TEMPERATURE RANGE ANTICiPATED416 2738
0 20 40 60 80 100
±29
±20 ±18 ±7
C
F 20 W ± 50
15 W ± 40
10 W ± 30
5 W ± 30 PREFERRED
Oil Pressure Switch
B11410
Oil Pressure Switch
Oil Pressure Gauge
B11411
Oil Pressure Gauge
17±6
±

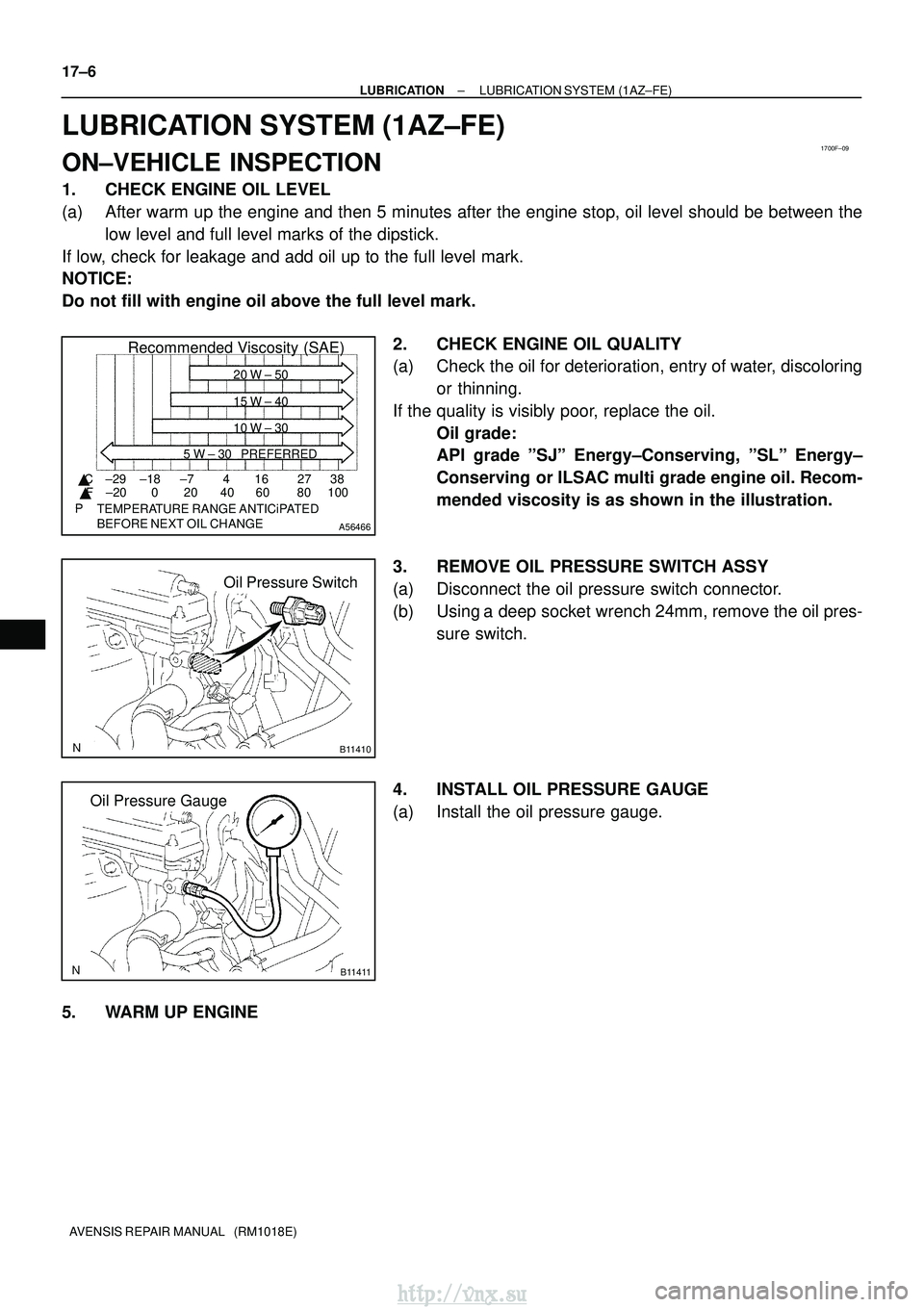

LUBRICATION LUBRICATION SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
LUBRICATION SYSTEM (1AZ±FE)
ON±VEHICLE INSPECTION
1. CHECK ENGINE OIL LEVEL
(a) After warm up the engine and then 5 minutes after the engine stop, oil l\
evel should be between the low level and full level marks of the dipstick.
If low, check for leakage and add oil up to the full level mark.
NOTICE:
Do not fill with engine oil above the full level mark.
2. CHECK ENGINE OIL QUALITY
(a) Check the oil for deterioration, entry of water, discoloringor thinning.
If the quality is visibly poor, replace the oil. Oil grade:
API grade ºSJº Energy±Conserving, ºSLº Energy±
Conserving or ILSAC multi grade engine oil. Recom-
mended viscosity is as shown in the illustration.
3. REMOVE OIL PRESSURE SWITCH ASSY
(a) Disconnect the oil pressure switch connector.
(b) Using a deep socket wrench 24mm, remove the oil pres- sure switch.
4. INSTALL OIL PRESSURE GAUGE
(a) Install the oil pressure gauge.
5. WARM UP ENGINE
http://vnx.su
Page 909 of 2234
Adhesive
A50082
±
LUBRICATION LUBRICATION SYSTEM (1AZ±FE)
17±7
AVENSIS REPAIR MANUAL (RM1018E)

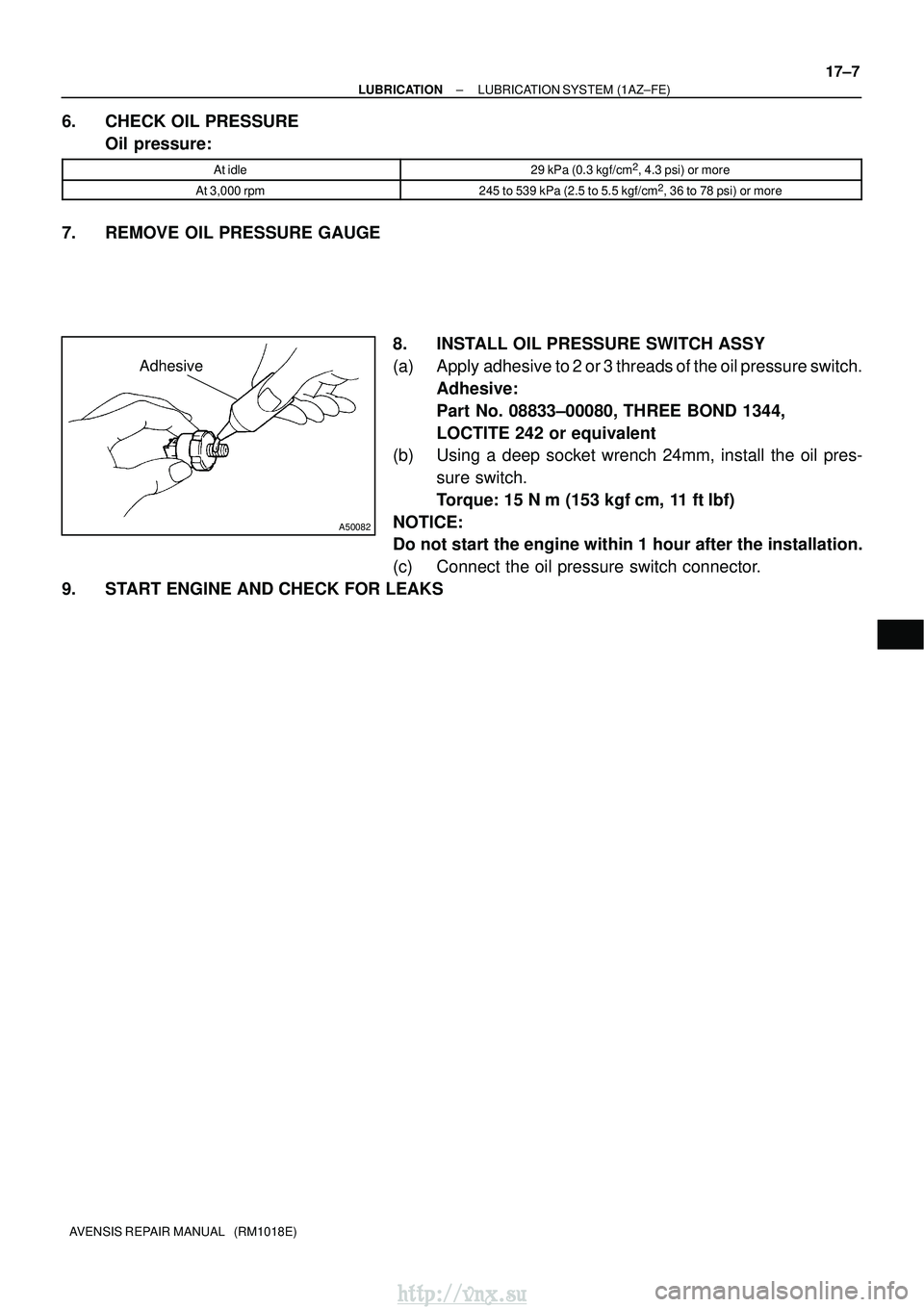

6. CHECK OIL PRESSURE
Oil pressure:
At idle29 kPa (0.3 kgf/cm2, 4.3 psi) or more
At 3,000 rpm245 to 539 kPa (2.5 to 5.5 kgf/cm2, 36 to 78 psi) or more
7. REMOVE OIL PRESSURE GAUGE
8. INSTALL OIL PRESSURE SWITCH ASSY
(a) Apply adhesive to 2 or 3 threads of the oil pressure switch.Adhesive:
Part No. 08833±00080, THREE BOND 1344,
LOCTITE 242 or equivalent
(b) Using a deep socket wrench 24mm, install the oil pres-
sure switch.
Torque: 15 N m (153 kgf cm, 11 ftlbf)
NOTICE:
Do not start the engine within 1 hour after the installation.
(c) Connect the oil pressure switch connector.
9. START ENGINE AND CHECK FOR LEAKS
http://vnx.su
Page 910 of 2234

1700E±07
A56466
Recommended Viscosity (SAE)
BEFORE NEXT OIL CHANGE TEMPERATURE RANGE ANTICiPATED416 2738
0 20 40 60 80 100
±29
±20 ±18 ±7
C
F 20 W ± 50
15 W ± 40
10 W ± 30
5 W ± 30 PREFERRED
B67536
B67537Oil Pressure Gauge
±

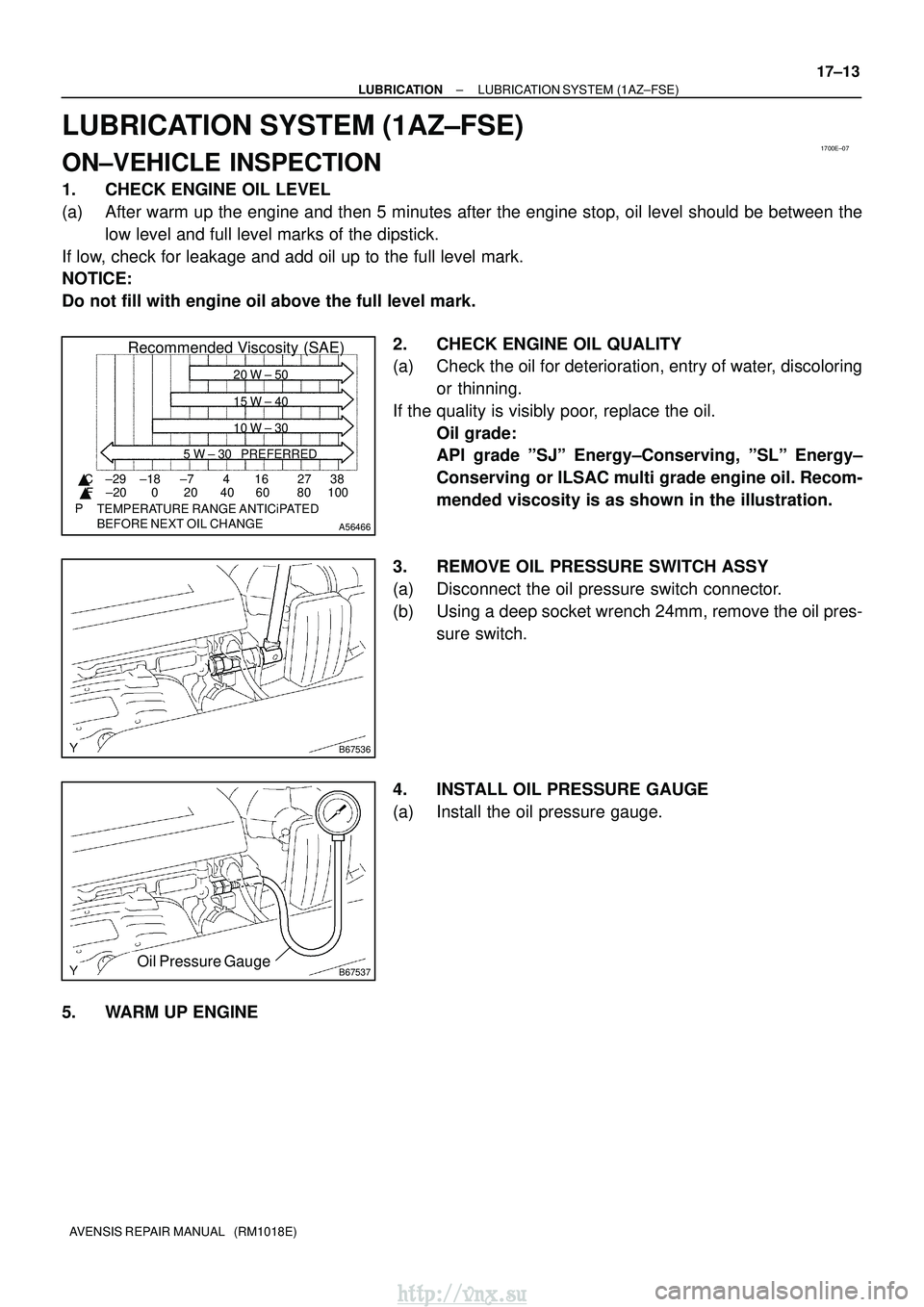

LUBRICATION LUBRICATION SYSTEM (1AZ±FSE)
17±13
AVENSIS REPAIR MANUAL (RM1018E)
LUBRICATION SYSTEM (1AZ±FSE)
ON±VEHICLE INSPECTION
1. CHECK ENGINE OIL LEVEL
(a) After warm up the engine and then 5 minutes after the engine stop, oil l\
evel should be between the
low level and full level marks of the dipstick.
If low, check for leakage and add oil up to the full level mark.
NOTICE:
Do not fill with engine oil above the full level mark.
2. CHECK ENGINE OIL QUALITY
(a) Check the oil for deterioration, entry of water, discoloringor thinning.
If the quality is visibly poor, replace the oil. Oil grade:
API grade ºSJº Energy±Conserving, ºSLº Energy±
Conserving or ILSAC multi grade engine oil. Recom-
mended viscosity is as shown in the illustration.
3. REMOVE OIL PRESSURE SWITCH ASSY
(a) Disconnect the oil pressure switch connector.
(b) Using a deep socket wrench 24mm, remove the oil pres- sure switch.
4. INSTALL OIL PRESSURE GAUGE
(a) Install the oil pressure gauge.
5. WARM UP ENGINE
http://vnx.su
Page 911 of 2234
Adhesive
A50082
17±14
±
LUBRICATION LUBRICATION SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

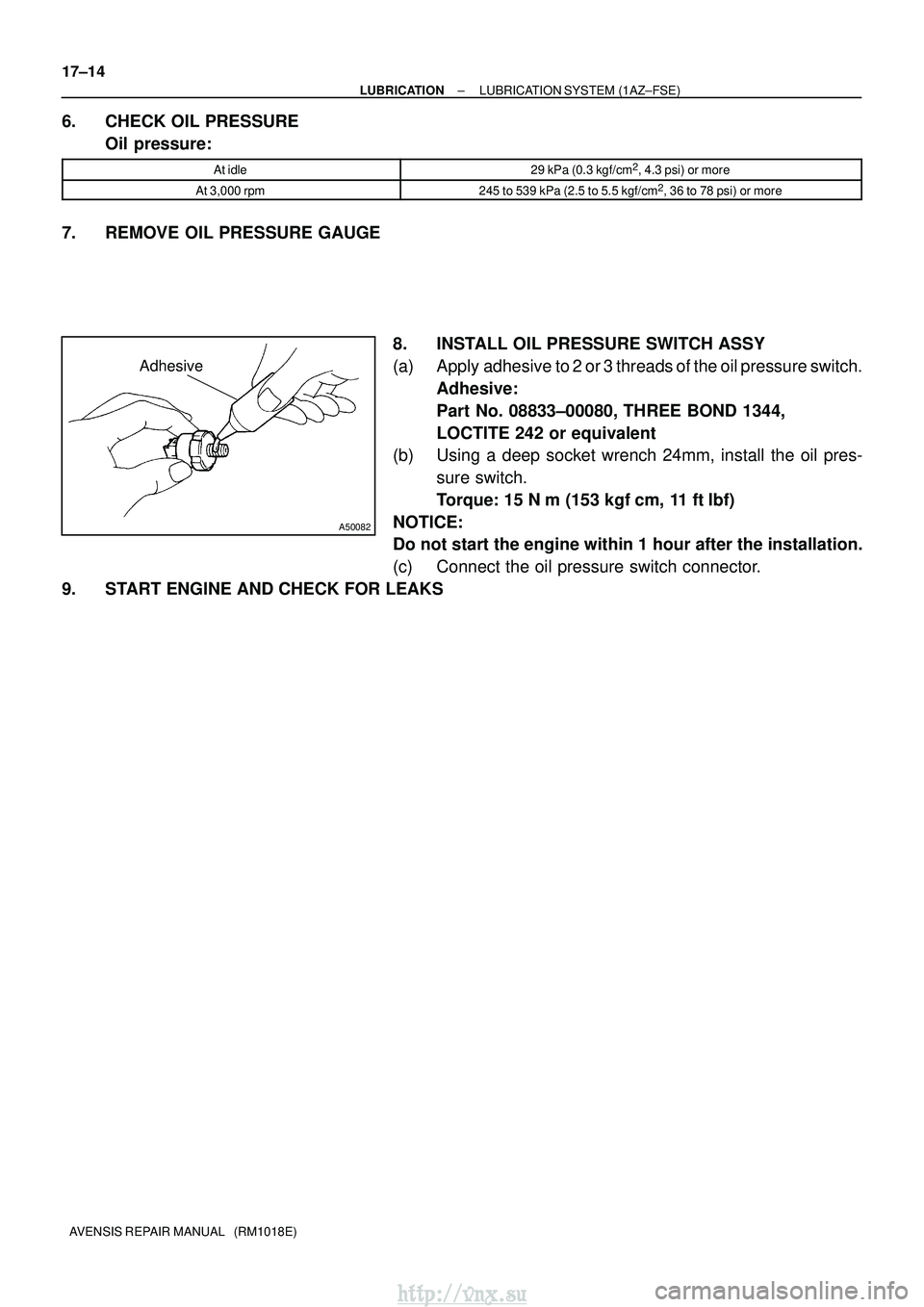

6. CHECK OIL PRESSURE Oil pressure:
At idle29 kPa (0.3 kgf/cm2, 4.3 psi) or more
At 3,000 rpm245 to 539 kPa (2.5 to 5.5 kgf/cm2, 36 to 78 psi) or more
7. REMOVE OIL PRESSURE GAUGE
8. INSTALL OIL PRESSURE SWITCH ASSY
(a) Apply adhesive to 2 or 3 threads of the oil pressure switch.Adhesive:
Part No. 08833±00080, THREE BOND 1344,
LOCTITE 242 or equivalent
(b) Using a deep socket wrench 24mm, install the oil pres-
sure switch.
Torque: 15 N m (153 kgf cm, 11 ftlbf)
NOTICE:
Do not start the engine within 1 hour after the installation.
(c) Connect the oil pressure switch connector.
9. START ENGINE AND CHECK FOR LEAKS
http://vnx.su
Page 912 of 2234

17045±03
A56466
Recommended Viscosity (SAE)
BEFORE NEXT OIL CHANGE TEMPERATURE RANGE ANTICiPATED416 2738
0 20 40 60 80 100
±29
±20 ±18 ±7
C
F 20 W ± 50
15 W ± 40
10 W ± 30
5 W ± 30 PREFERRED
B14332
Oil Pressure Switch
B14333
Oil Pressure Gauge
17±20
±

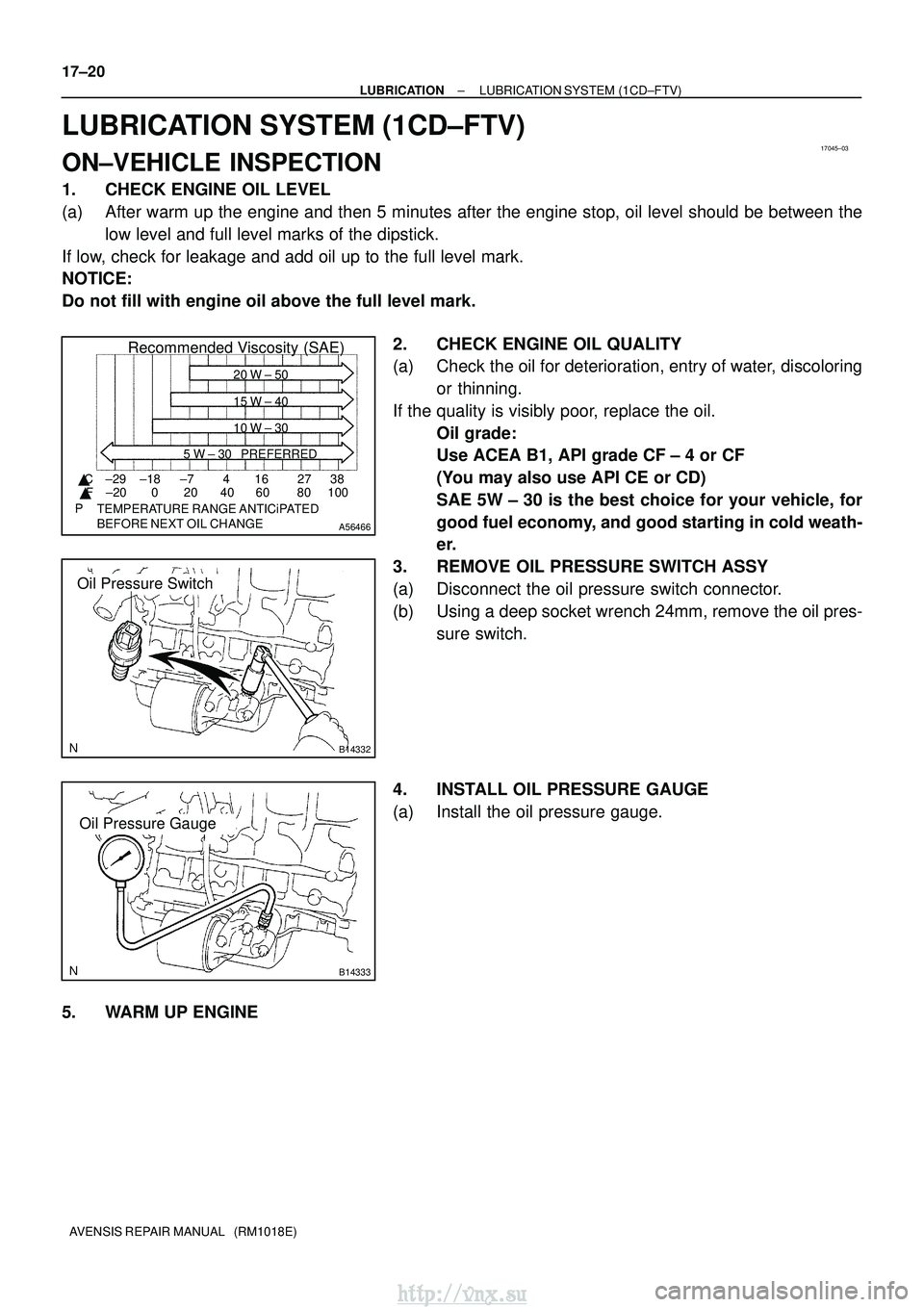

LUBRICATION LUBRICATION SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
LUBRICATION SYSTEM (1CD±FTV)
ON±VEHICLE INSPECTION
1. CHECK ENGINE OIL LEVEL
(a) After warm up the engine and then 5 minutes after the engine stop, oil l\
evel should be between the low level and full level marks of the dipstick.
If low, check for leakage and add oil up to the full level mark.
NOTICE:
Do not fill with engine oil above the full level mark.
2. CHECK ENGINE OIL QUALITY
(a) Check the oil for deterioration, entry of water, discoloringor thinning.
If the quality is visibly poor, replace the oil. Oil grade:
Use ACEA B1, API grade CF ± 4 or CF
(You may also use API CE or CD)
SAE 5W ± 30 is the best choice for your vehicle, for
good fuel economy, and good starting in cold weath-
er.
3. REMOVE OIL PRESSURE SWITCH ASSY
(a) Disconnect the oil pressure switch connector.
(b) Using a deep socket wrench 24mm, remove the oil pres- sure switch.
4. INSTALL OIL PRESSURE GAUGE
(a) Install the oil pressure gauge.
5. WARM UP ENGINE
