Page 1281 of 2234

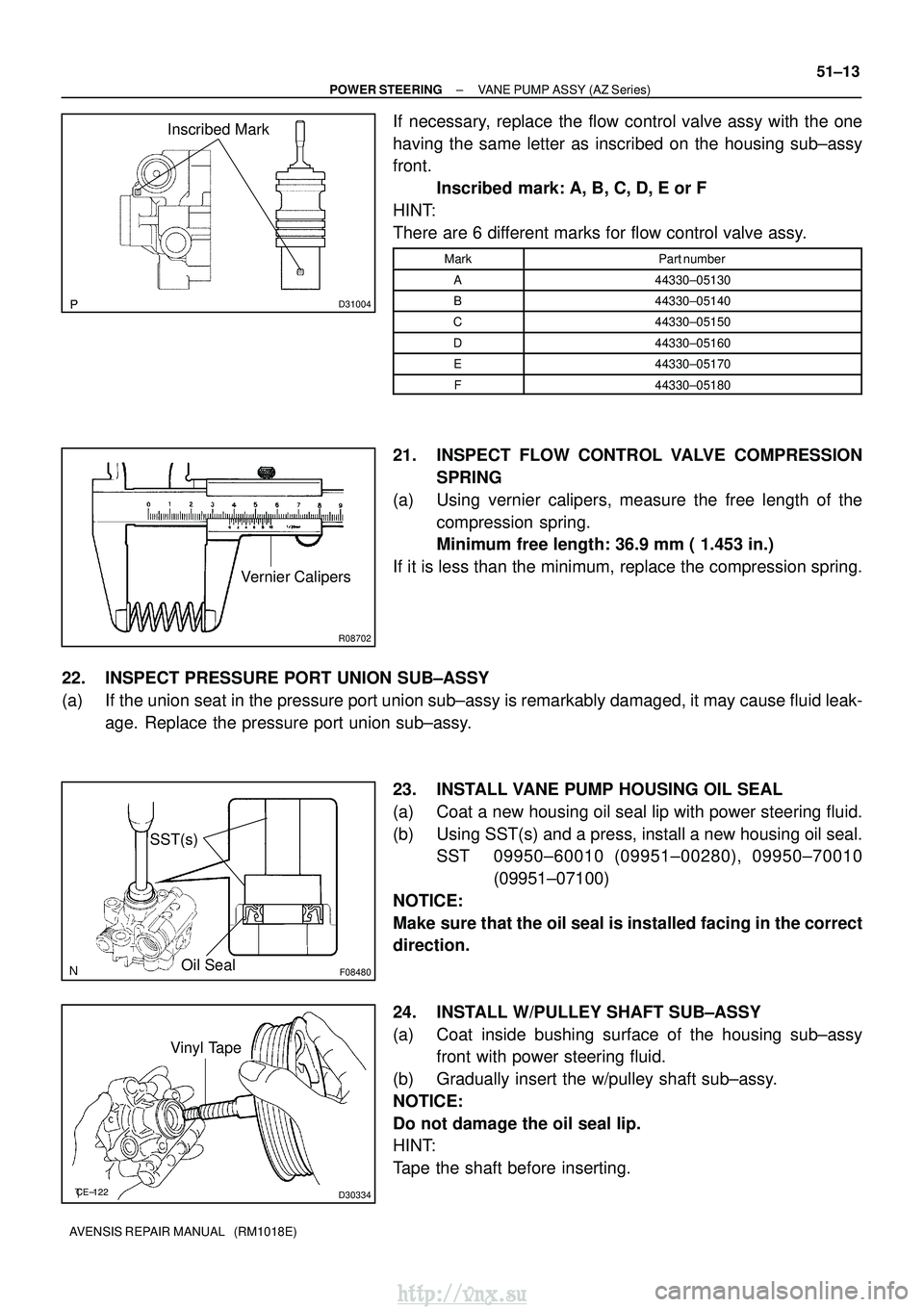

TOYOTA AVENSIS 2003 Service Repair Manual D31004 Inscribed Mark R08702 Vernier Calipers F08480 SST(s) Oil Seal D30334 Vinyl Tape ± POWER STEERING VANE PUMP ASSY (AZ Series) 51±13 AVENSIS REPAIR MANUAL (RM1018E) If necessary, replace

Page 1282 of 2234

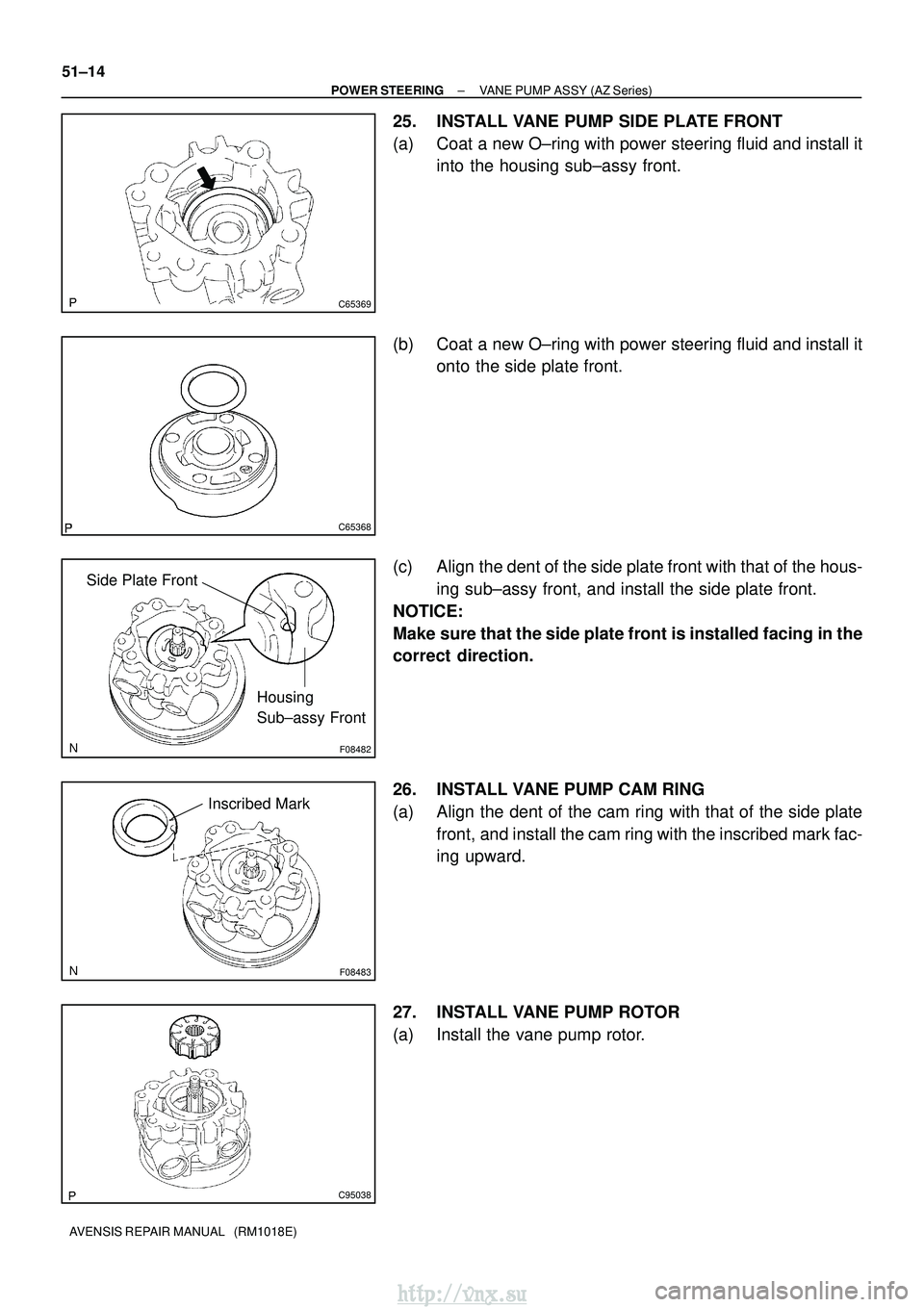

TOYOTA AVENSIS 2003 Service Repair Manual C65369 C65368 F08482 Housing Sub±assy Front Side Plate Front F08483 Inscribed Mark C95038 51±14 ± POWER STEERING VANE PUMP ASSY (AZ Series) AVENSIS REPAIR MANUAL (RM1018E) 25. INSTALL VANE PUMP S

Page 1283 of 2234

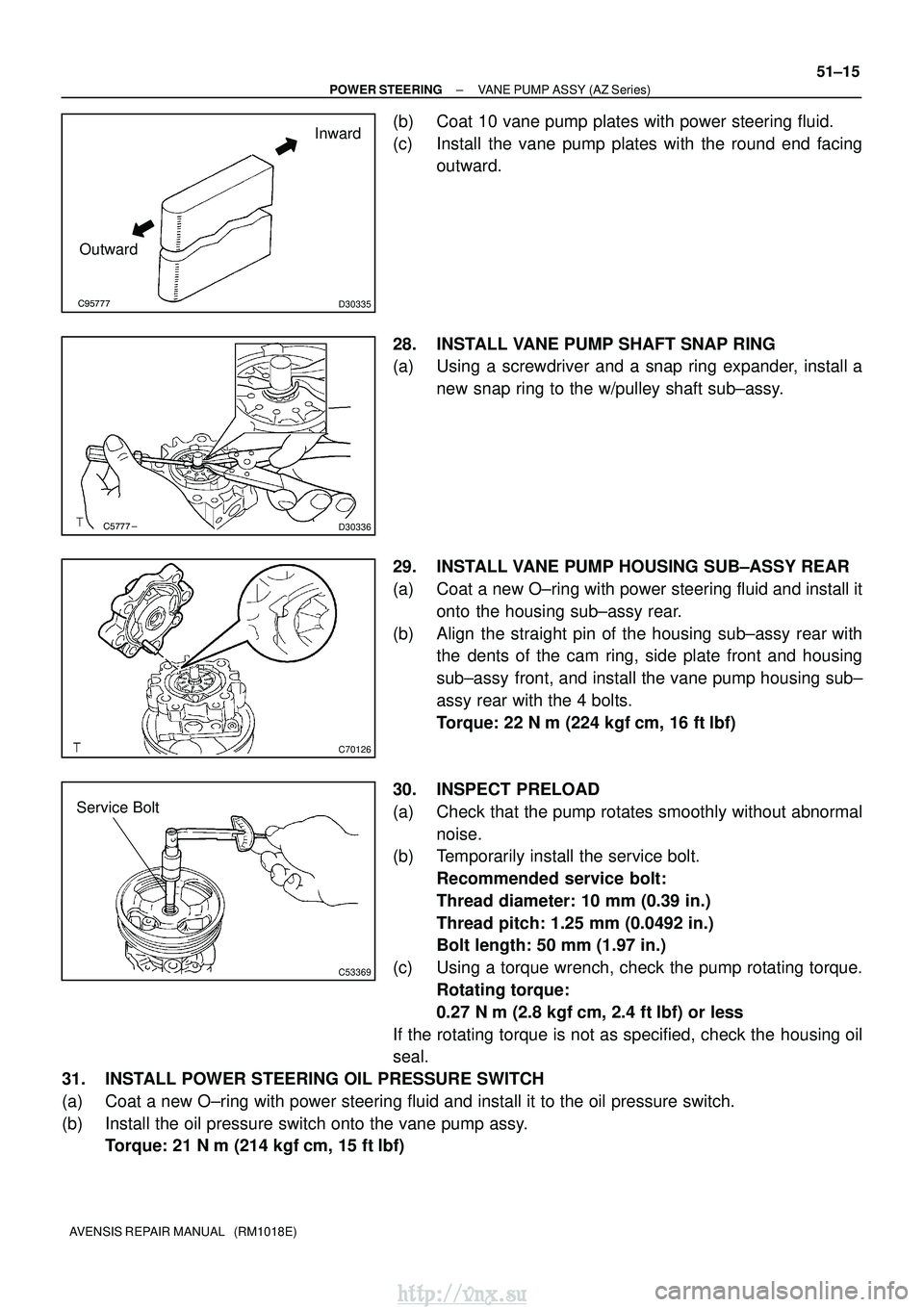

TOYOTA AVENSIS 2003 Service Repair Manual D30335 Inward Outward D30336 C70126 C53369 Service Bolt ± POWER STEERING VANE PUMP ASSY (AZ Series) 51±15 AVENSIS REPAIR MANUAL (RM1018E) (b) Coat 10 vane pump plates with power steeri

Page 1284 of 2234

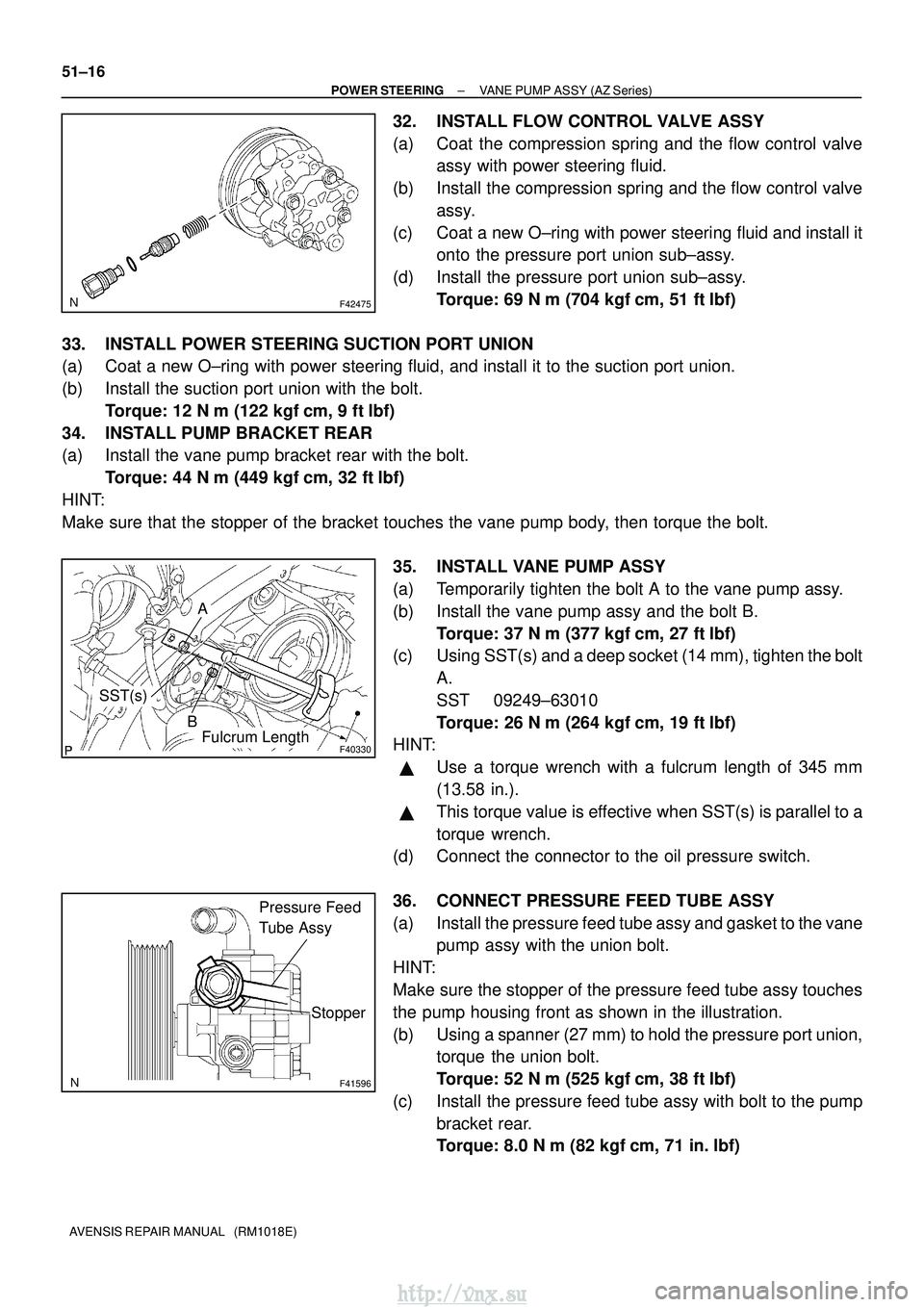

TOYOTA AVENSIS 2003 Service Repair Manual F42475 F40330 A SST(s) BFulcrum Length F41596 Pressure Feed Tube Assy Stopper 51±16 ± POWER STEERING VANE PUMP ASSY (AZ Series) AVENSIS REPAIR MANUAL (RM1018E) 32. INSTALL FLOW CONTROL VALVE ASSY

Page 1285 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual ± POWER STEERING VANE PUMP ASSY (AZ Series) 51±17 AVENSIS REPAIR MANUAL (RM1018E) 37. CONNECT OIL RESERVOIR TO PUMP HOSE NO.1 (a) Connect the oil reservoir to pump hose No.1 with the clip. NOTICE:

Page 1286 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 550YT±01 I35273 Manual A/C:Heater Control HousingAir Conditioning Control Assy Air Conditioning Control Bulb Heater Control Housing Sub±assy Heater Control Lens Assy Heater Control Housing Heater Co

Page 1287 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual I35274 Auto A/C:Air Conditioning Control Assy Cooler Wire No.1 Heater Control Housing Control Knob Sub±assy Air Conditioning Panel Sub±assy ± HEATER & AIR CONDITIONER AIR CONDITIONING CONTROL ASSY

Page 1288 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 550YU±01 I37428 I352826 Claws I352864 Claws 55±50 ± HEATER & AIR CONDITIONER AIR CONDITIONING CONTROL ASSY AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL HINT: COMPONENTS: See page 55±48 1.REMOVE INST
