2003 TOYOTA AVENSIS Service Repair Manual

roofchange wheelwindshield wipersservice indicatorreset infotainment systemair condition
Popular search:
checking oiloil dipstickhood releasetheft deterrentsteering wheelheadlight aimingcooling
Previous
Next
Load previous 8 pages

Page 377 of 2234

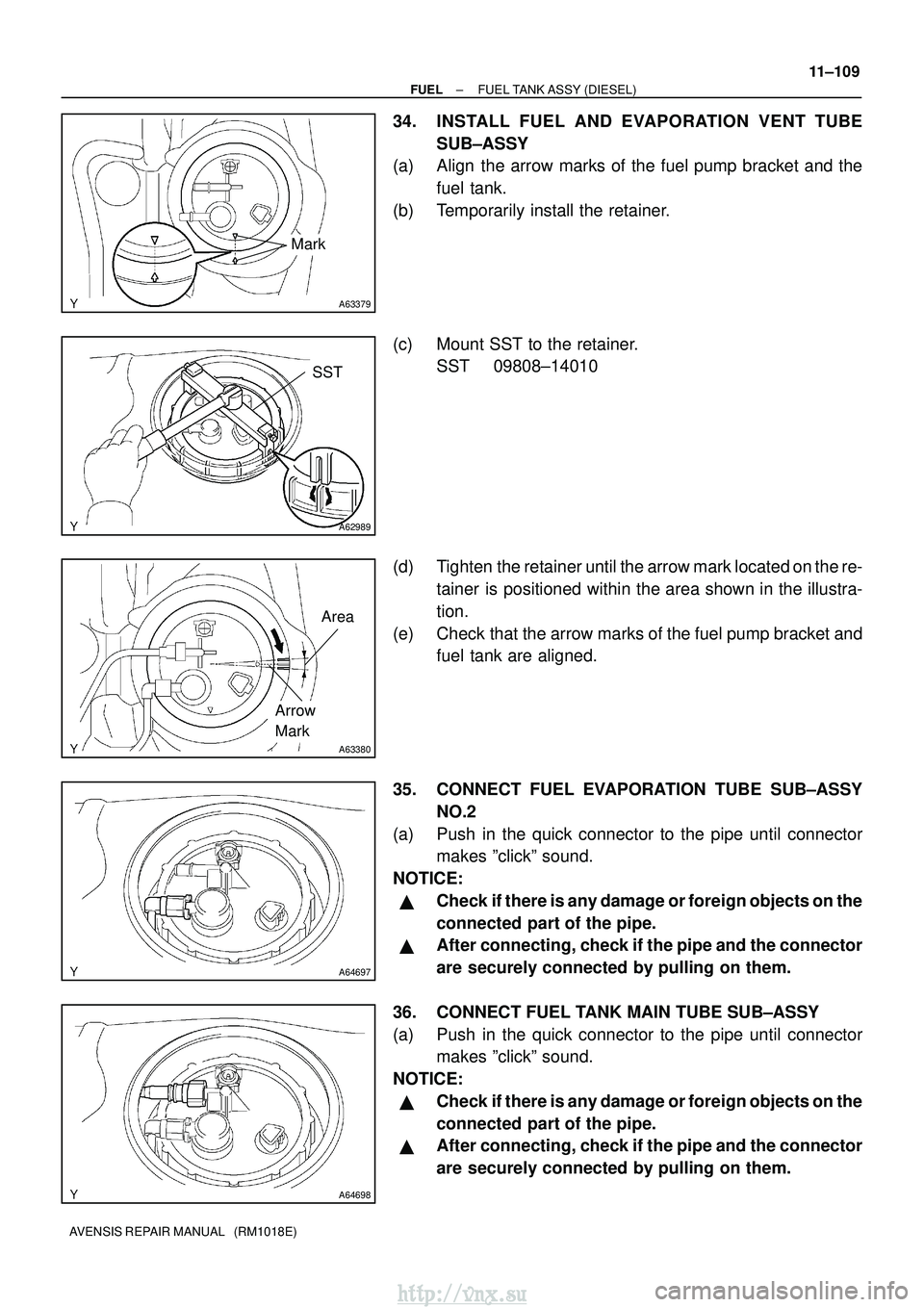

TOYOTA AVENSIS 2003 Service Repair Manual A63379 Mark A62989 SST A63380 Area Arrow Mark A64697 A64698 ± FUEL FUEL TANK ASSY (DIESEL) 11±109 AVENSIS REPAIR MANUAL (RM1018E) 34. INSTALL FUEL AND EVAPORATION VENT TUBE SUB±ASSY (a) Align the

Page 378 of 2234

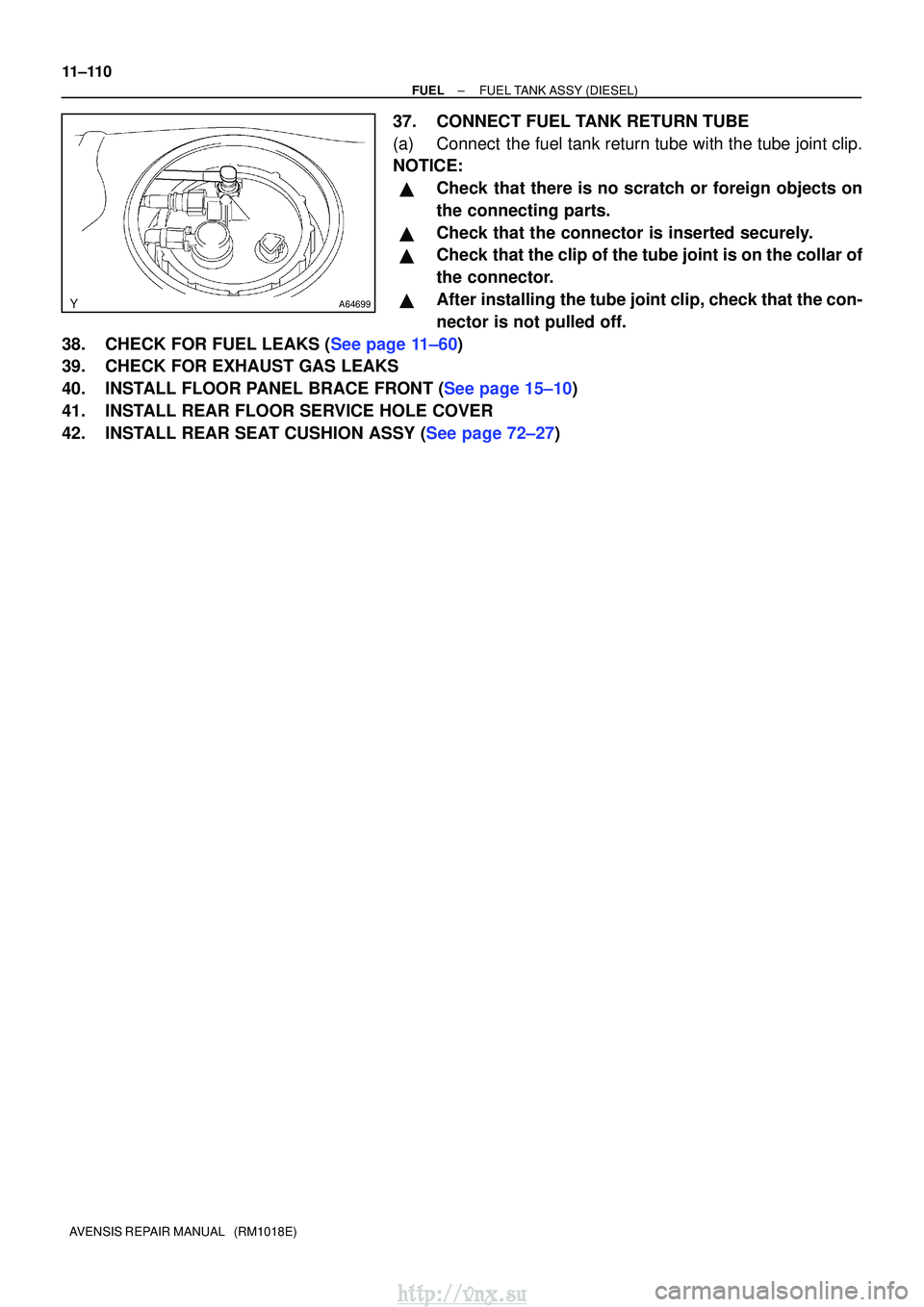

TOYOTA AVENSIS 2003 Service Repair Manual A64699 11±110 ± FUELFUEL TANK ASSY(DIESEL) AVENSIS REPAIR MANUAL (RM1018E) 37.CONNECT FUEL TANK RETURN TUBE (a)Connect the fuel tank return tube with the tube joint clip. NOTICE: Check that there

Page 379 of 2234

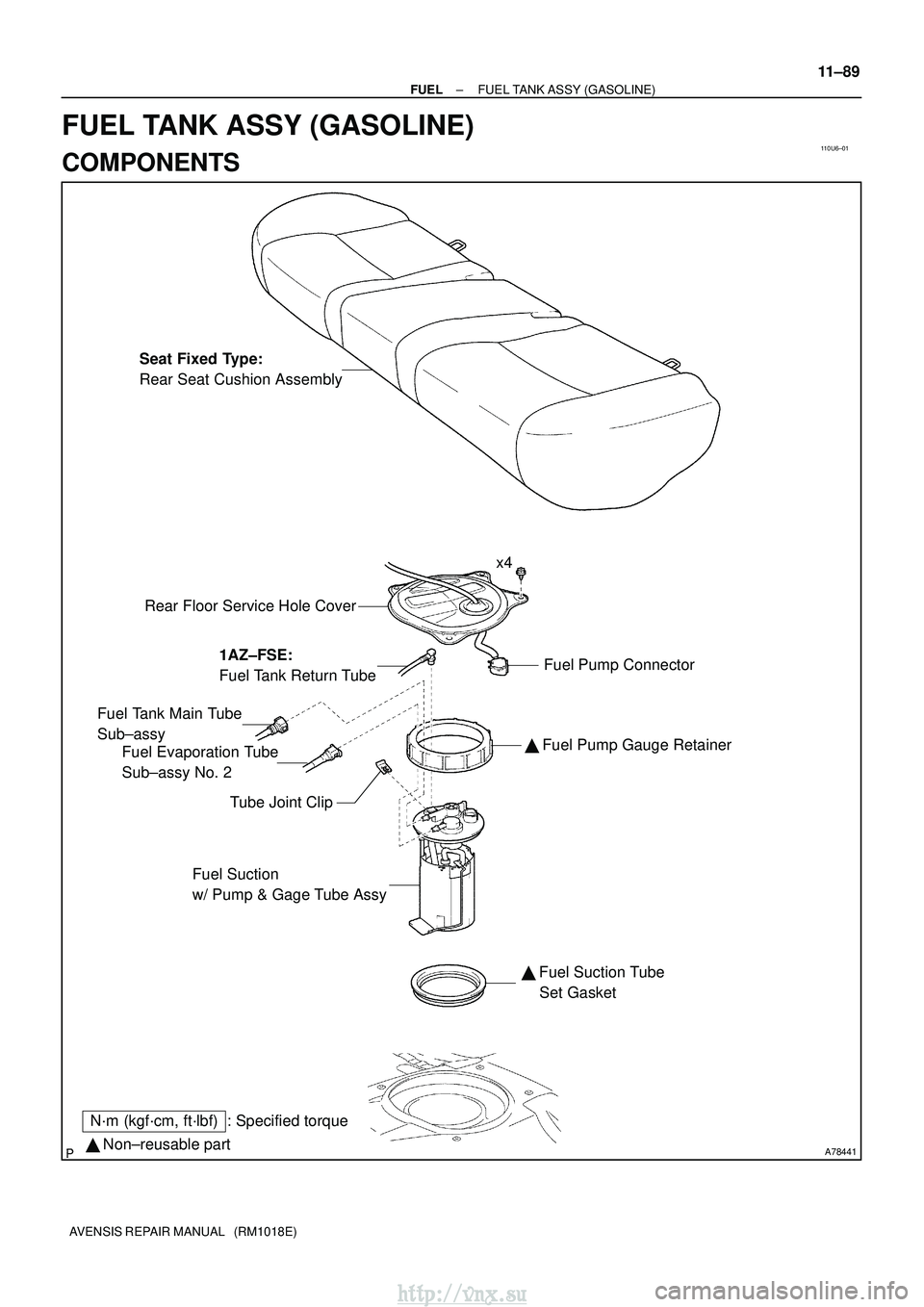

TOYOTA AVENSIS 2003 Service Repair Manual 110U6±01 A78441 Non±reusable part N´m (kgf´cm, ft´lbf) : Specified torque Seat Fixed Type: Rear Seat Cushion Assembly Rear Floor Service Hole Cover Fuel Pump Connector Fuel Evaporation Tube Su

Page 380 of 2234

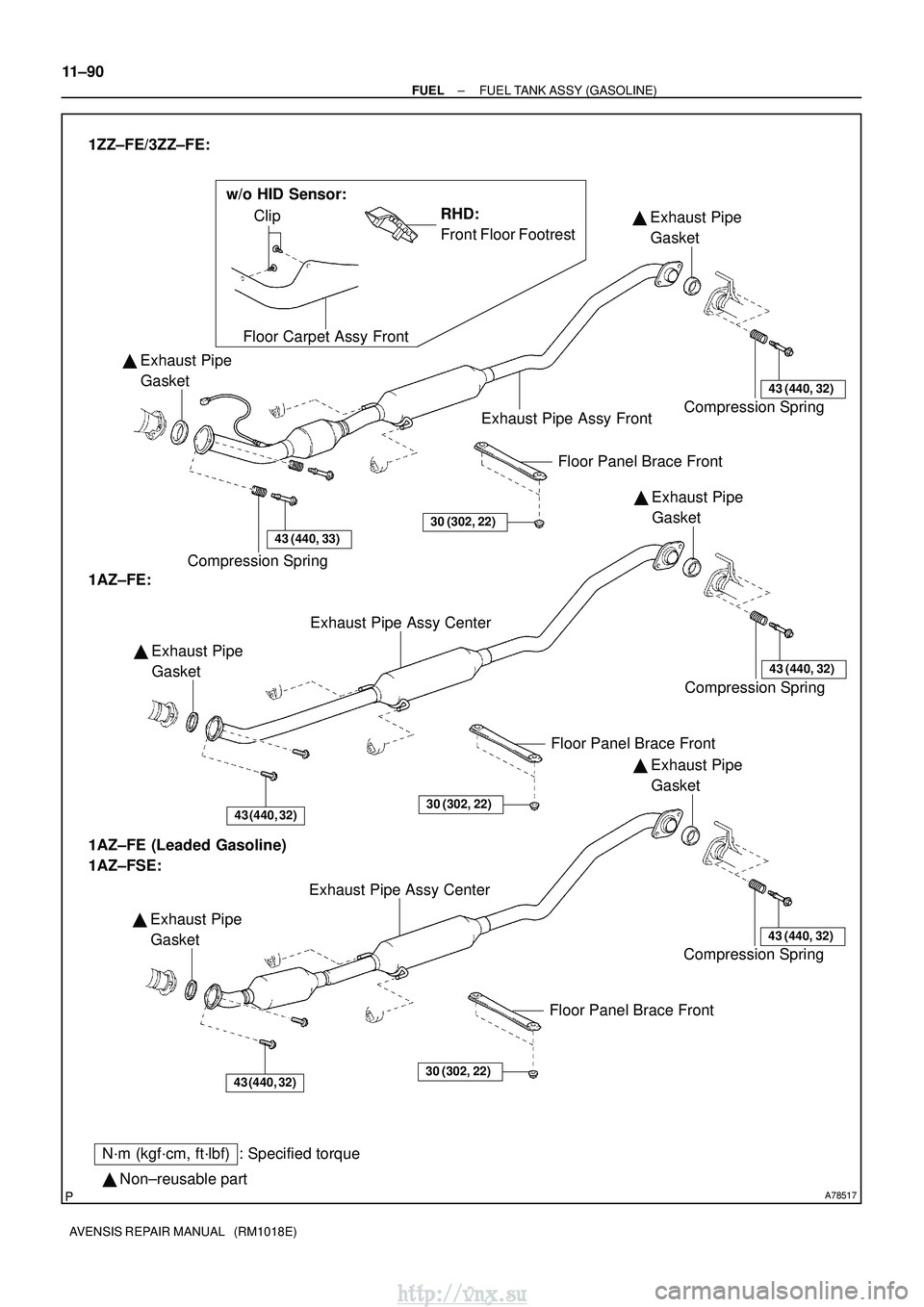

TOYOTA AVENSIS 2003 Service Repair Manual A78517 N´m (kgf´cm, ft´lbf) : Specified torque  Non±reusable part RHD: Front Floor Footrest 1ZZ±FE/3ZZ±FE: Floor Carpet Assy FrontClip Compression Spring  Exhaust Pipe Gasket Exhaust Pip

Page 381 of 2234

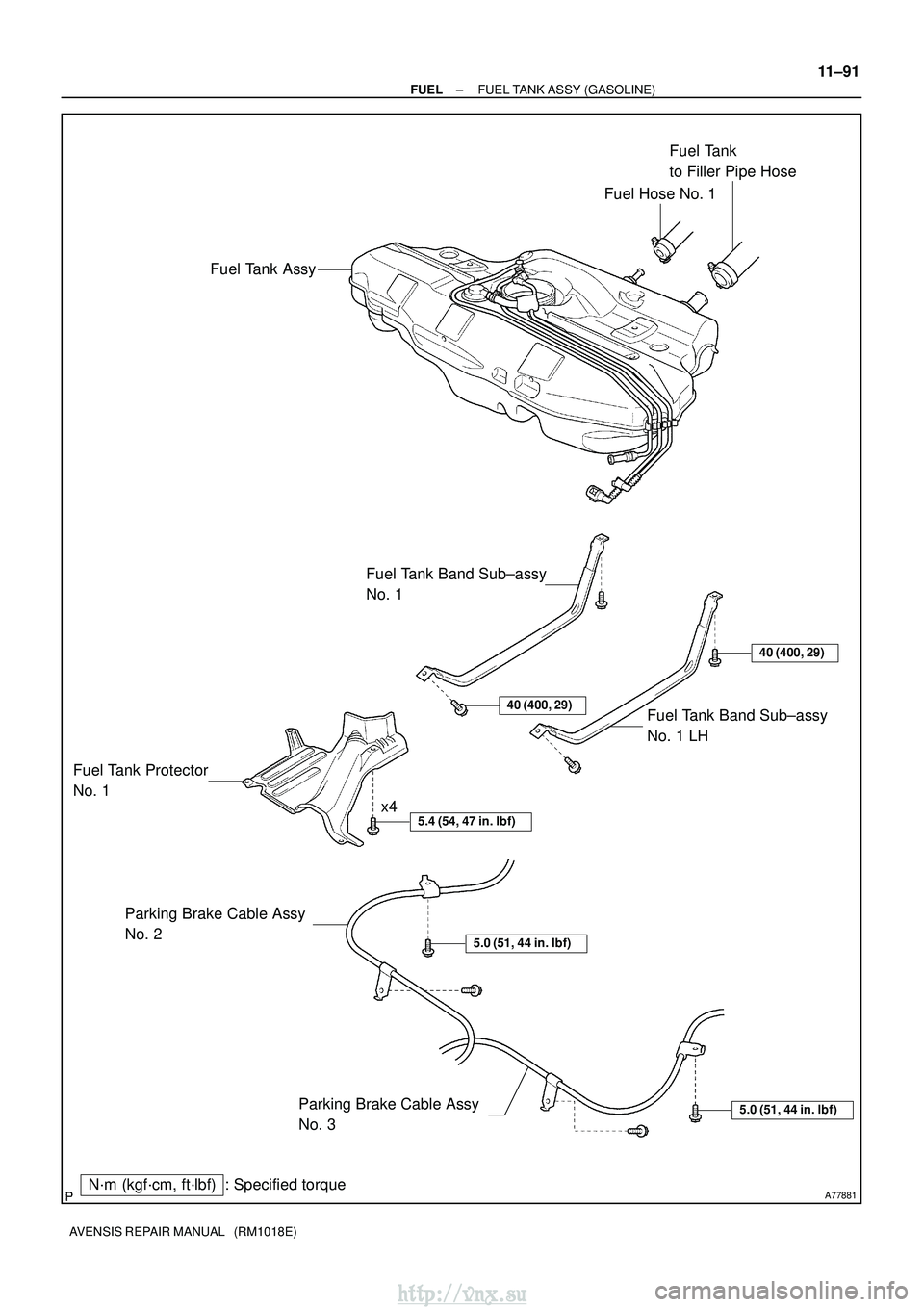

TOYOTA AVENSIS 2003 Service Repair Manual A77881 Fuel Tank AssyFuel Hose No. 1 Fuel Tank to Filler Pipe Hose Fuel Tank Band Sub±assy No. 1 Fuel Tank Band Sub±assy No. 1 LH Fuel Tank Protector No. 1 Parking Brake Cable Assy No. 2 Parkin

Page 382 of 2234

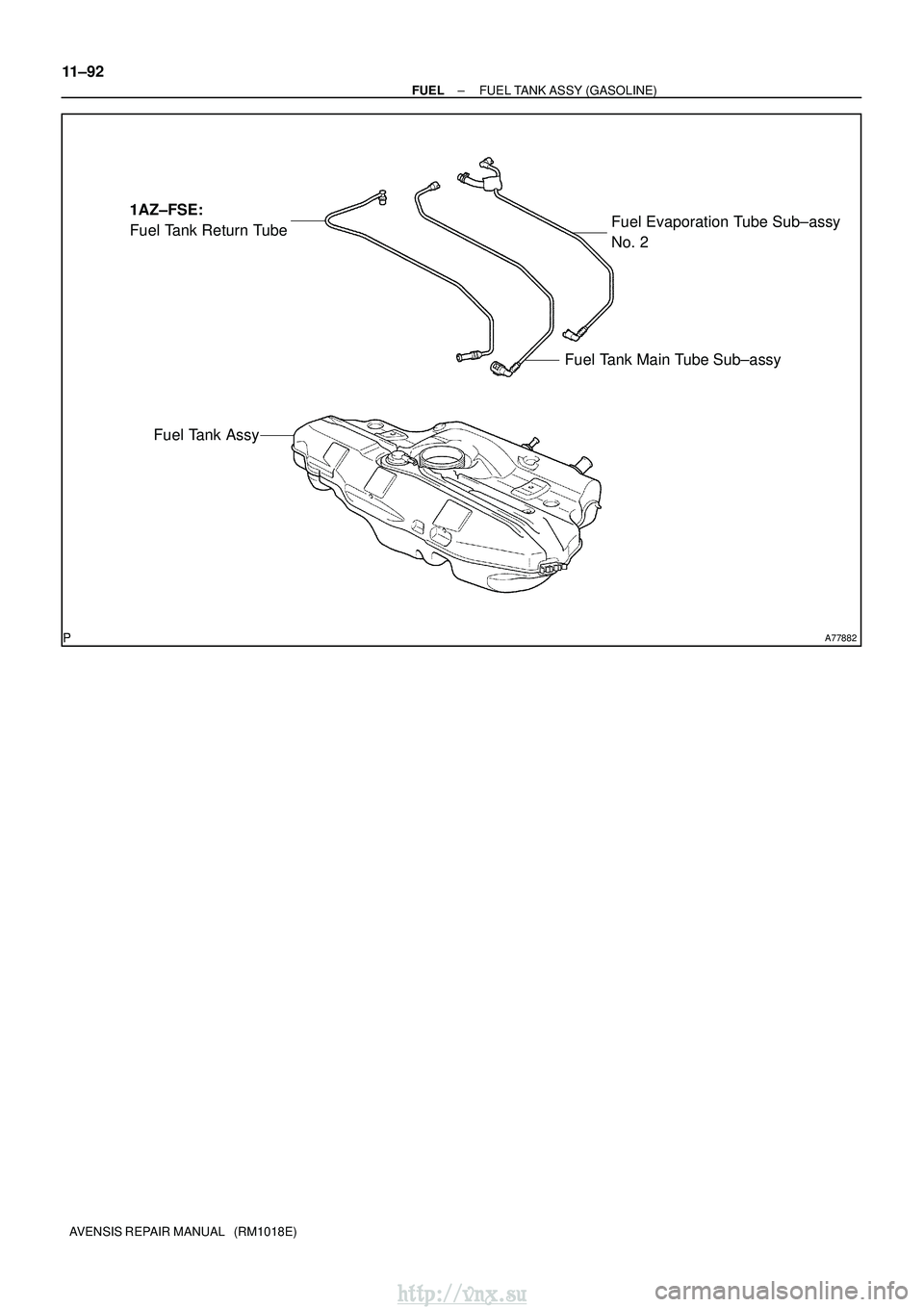

TOYOTA AVENSIS 2003 Service Repair Manual A77882 1AZ±FSE: Fuel Tank Return TubeFuel Evaporation Tube Sub±assy No. 2 Fuel Tank Main Tube Sub±assy Fuel Tank Assy 11±92 ± FUEL FUEL TANK ASSY (GASOLINE) AVENSIS REPAIR MANUAL (RM1018E) htt

Page 383 of 2234

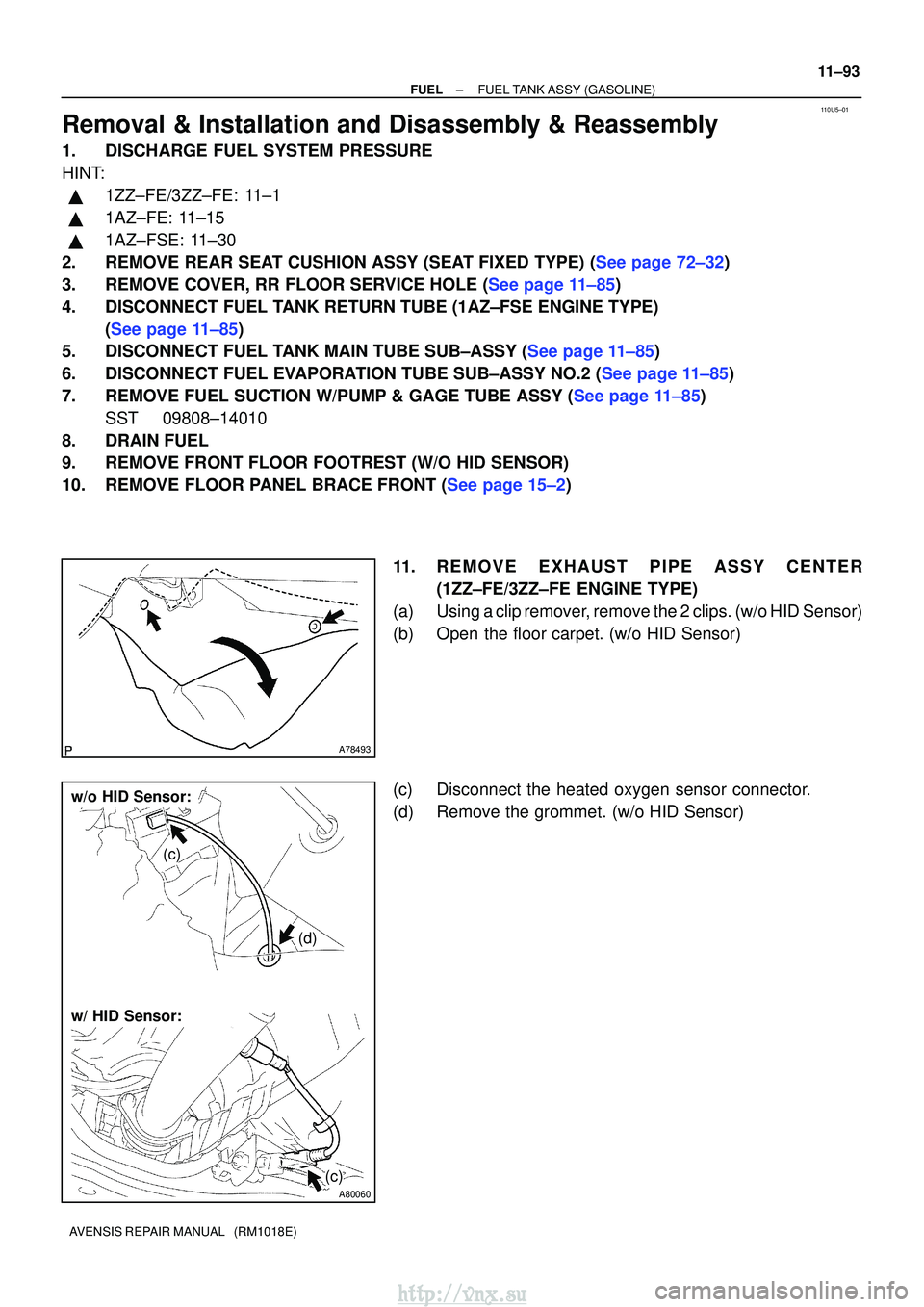

TOYOTA AVENSIS 2003 Service Repair Manual 110U5±01 A78493 A80060 w/o HID Sensor: w/ HID Sensor: (c) (d) (c) ± FUELFUEL TANK ASSY(GASOLINE) 11±93 AVENSIS REPAIR MANUAL (RM1018E) Removal & Installation and Disassembly & Reassembly 1.DISCHA

Page 384 of 2234

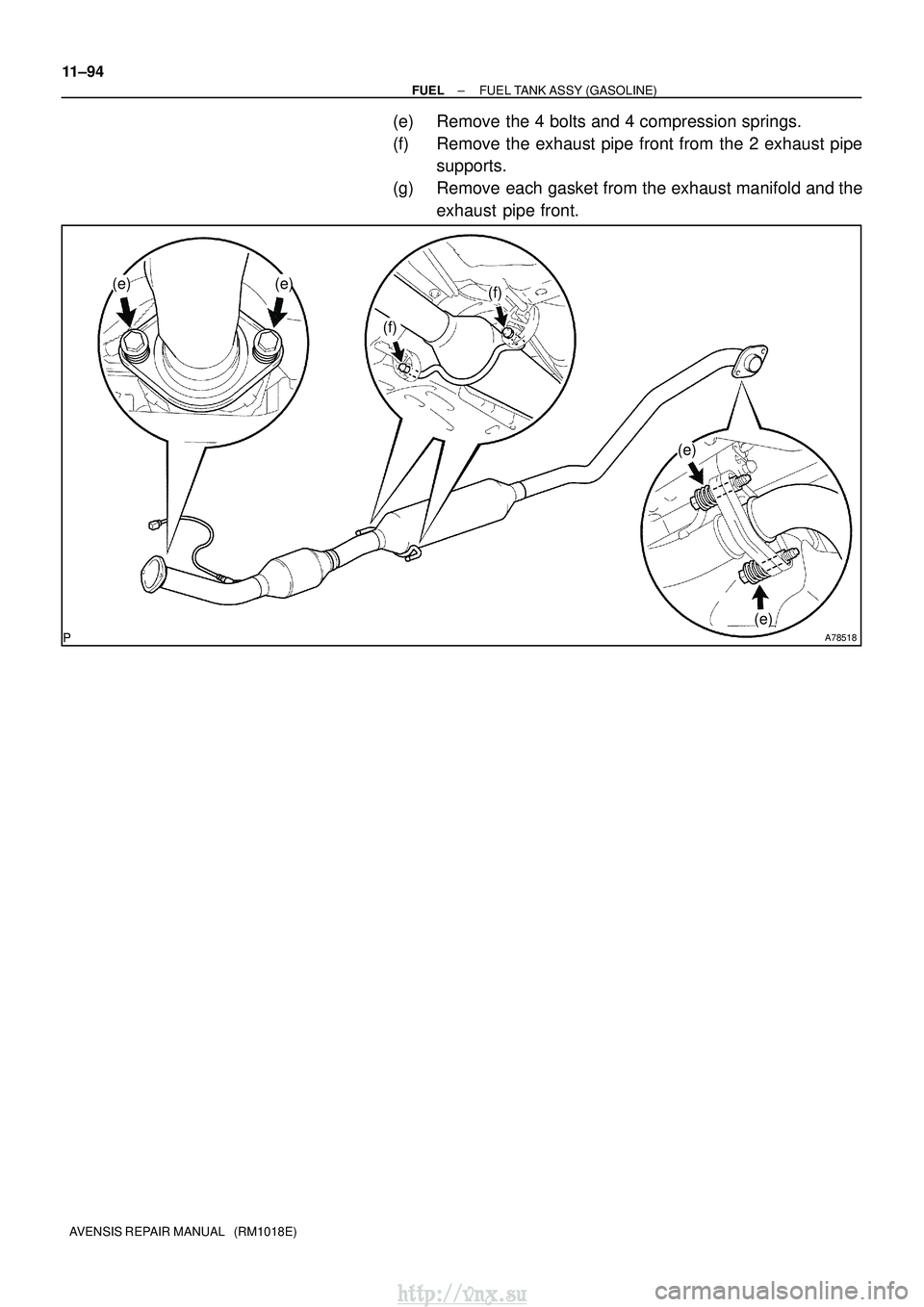

TOYOTA AVENSIS 2003 Service Repair Manual A78518 (e)(e) (e) (e) (f) (f) 11±94 ± FUEL FUEL TANK ASSY (GASOLINE) AVENSIS REPAIR MANUAL (RM1018E) (e) Remove the 4 bolts and 4 compression springs. (f) Remove the exhaust pipe front from the 2
