Page 361 of 2234

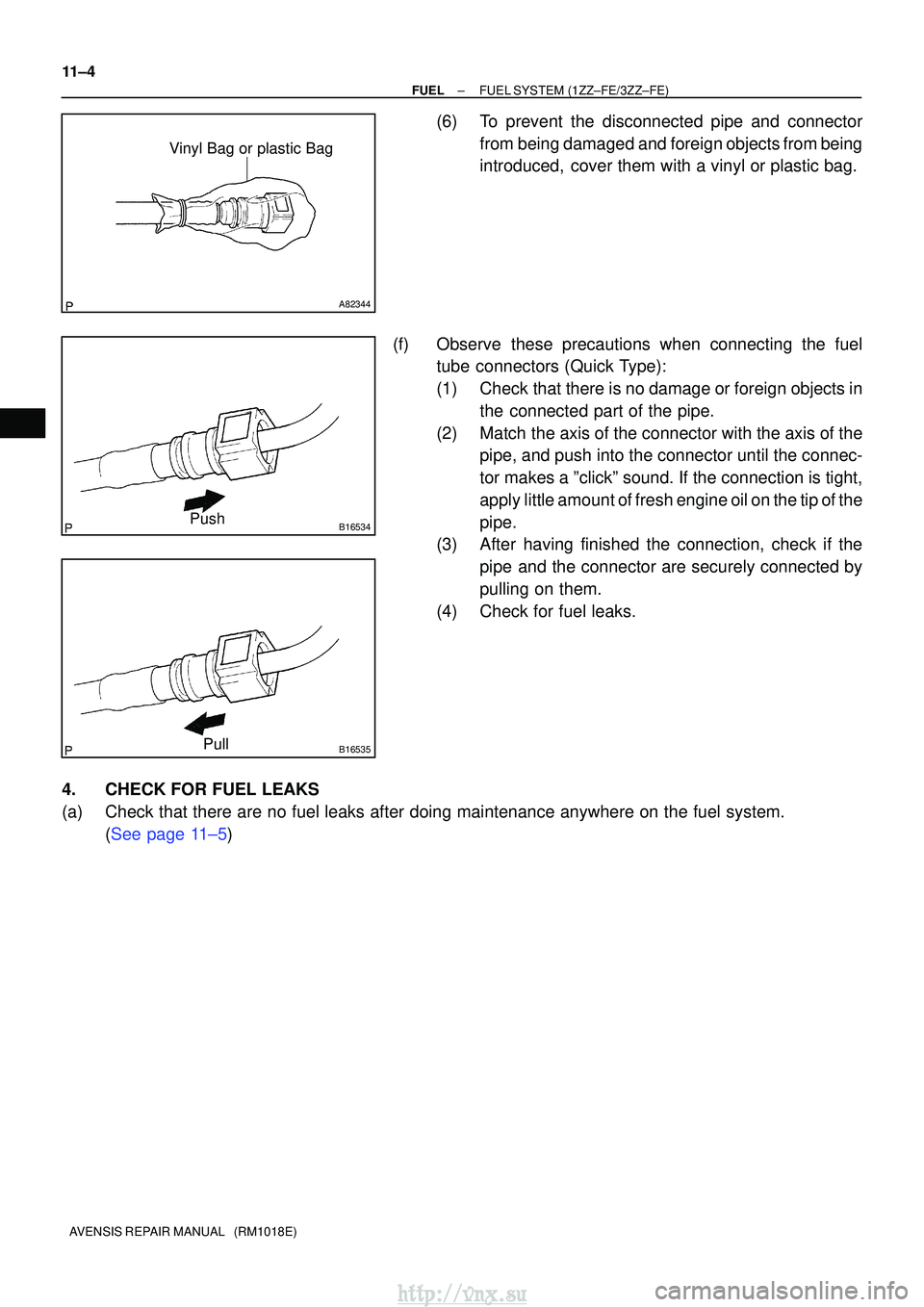

TOYOTA AVENSIS 2003 Service Repair Manual A82344 Vinyl Bag or plastic Bag B16534Push B16535Pull 11±4 ± FUELFUEL SYSTEM(1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) (6)To prevent the disconnected pipe and connector from being damaged a

Page 362 of 2234

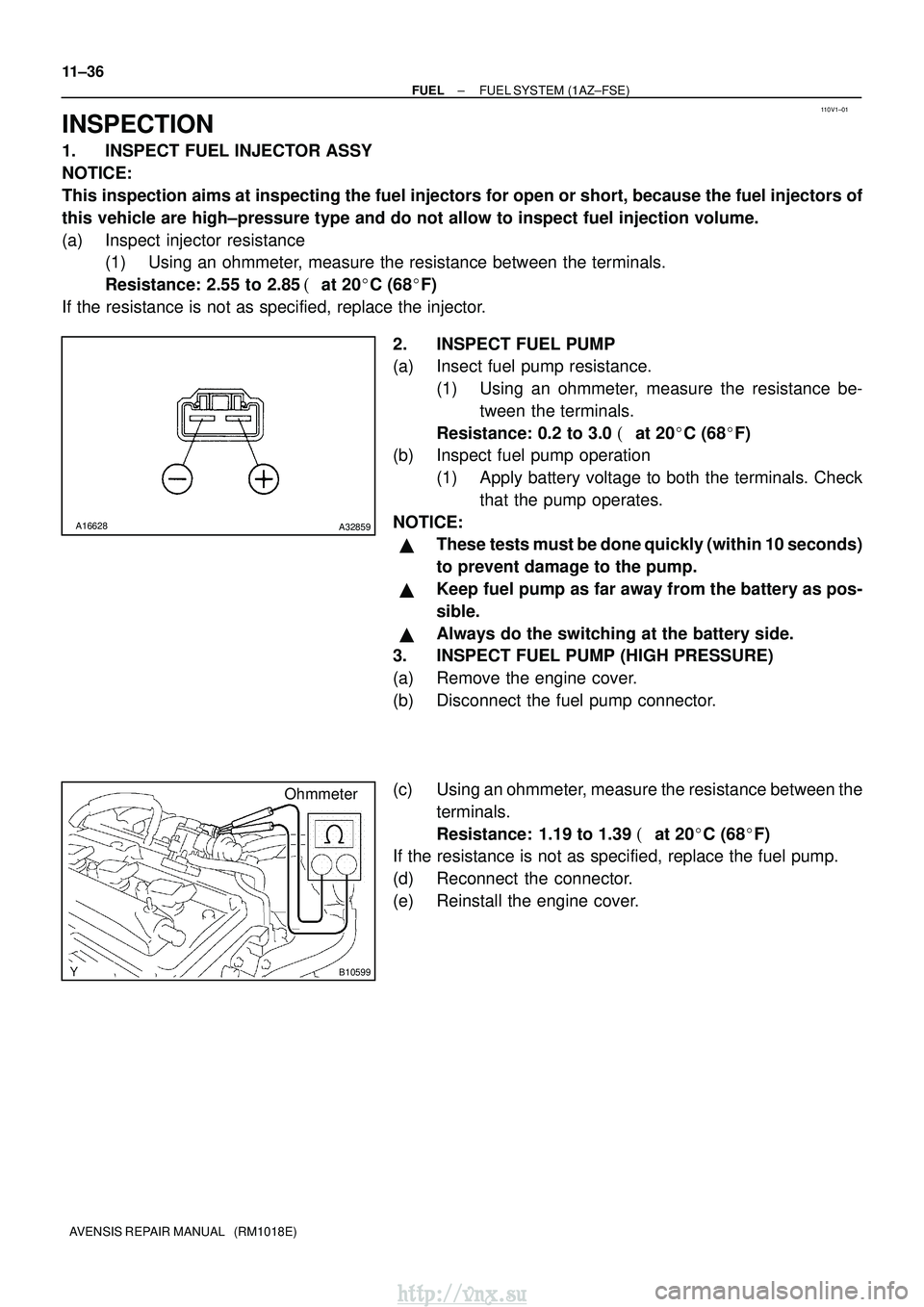

TOYOTA AVENSIS 2003 Service Repair Manual 110V1±01 A16628A32859 B10599 Ohmmeter 11±36 ± FUEL FUEL SYSTEM (1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) INSPECTION 1. INSPECT FUEL INJECTOR ASSY NOTICE: This inspection aims at inspecting the f

Page 363 of 2234

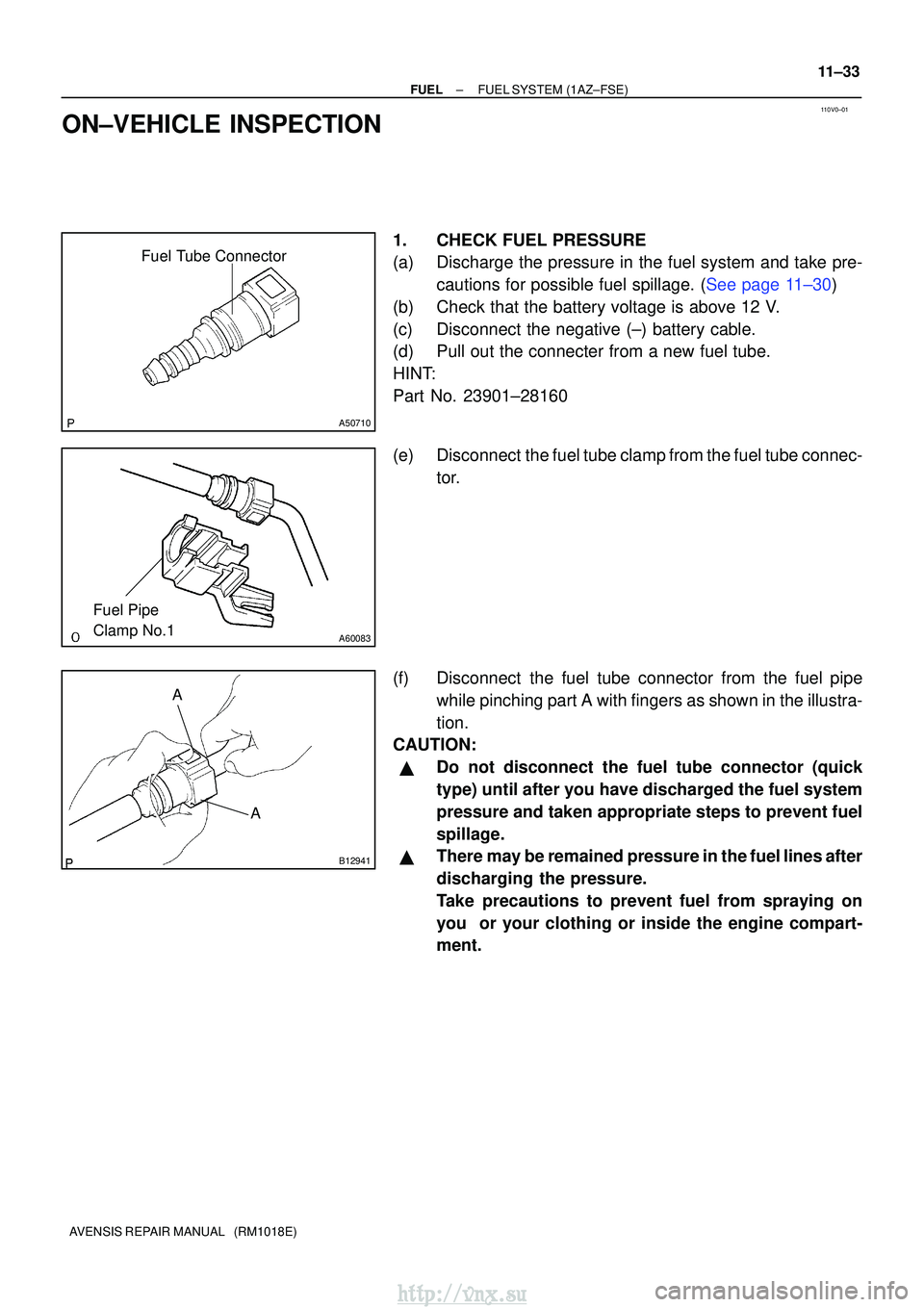

TOYOTA AVENSIS 2003 Service Repair Manual 110V0±01 Fuel Tube Connector A50710 A60083 Fuel Pipe Clamp No.1 AA B12941 ± FUELFUEL SYSTEM(1AZ±FSE) 11±33 AVENSIS REPAIR MANUAL (RM1018E) ON±VEHICLE INSPECTION 1.CHECK FUEL PRESSURE (a)Discha

Page 364 of 2234

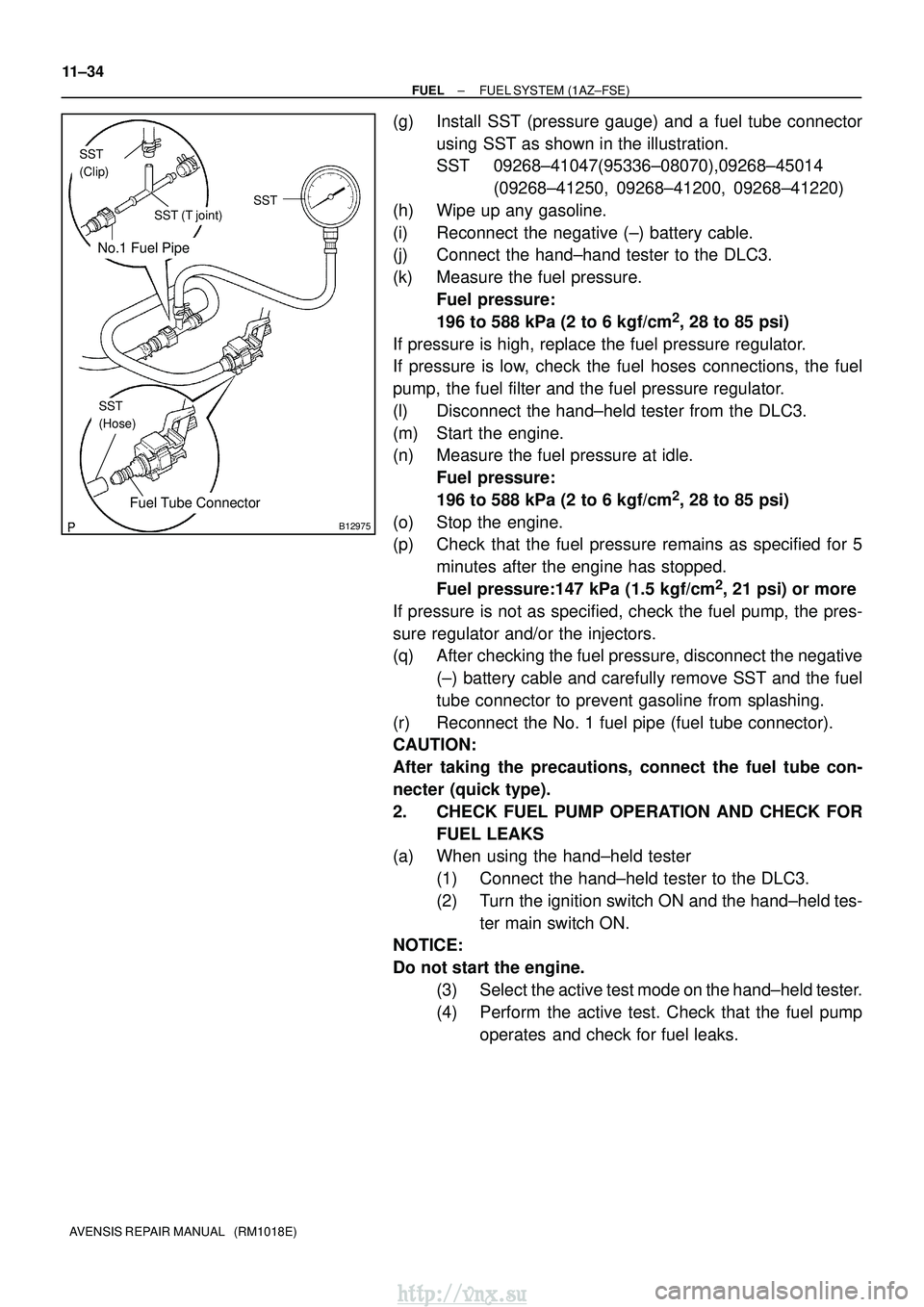

TOYOTA AVENSIS 2003 Service Repair Manual No.1 Fuel Pipe Fuel Tube Connector SST (Clip) SST (T joint)SST SST (Hose) B12975 11±34 ± FUEL FUEL SYSTEM (1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) (g) Install SST (pressure gauge) and a fuel tub

Page 365 of 2234

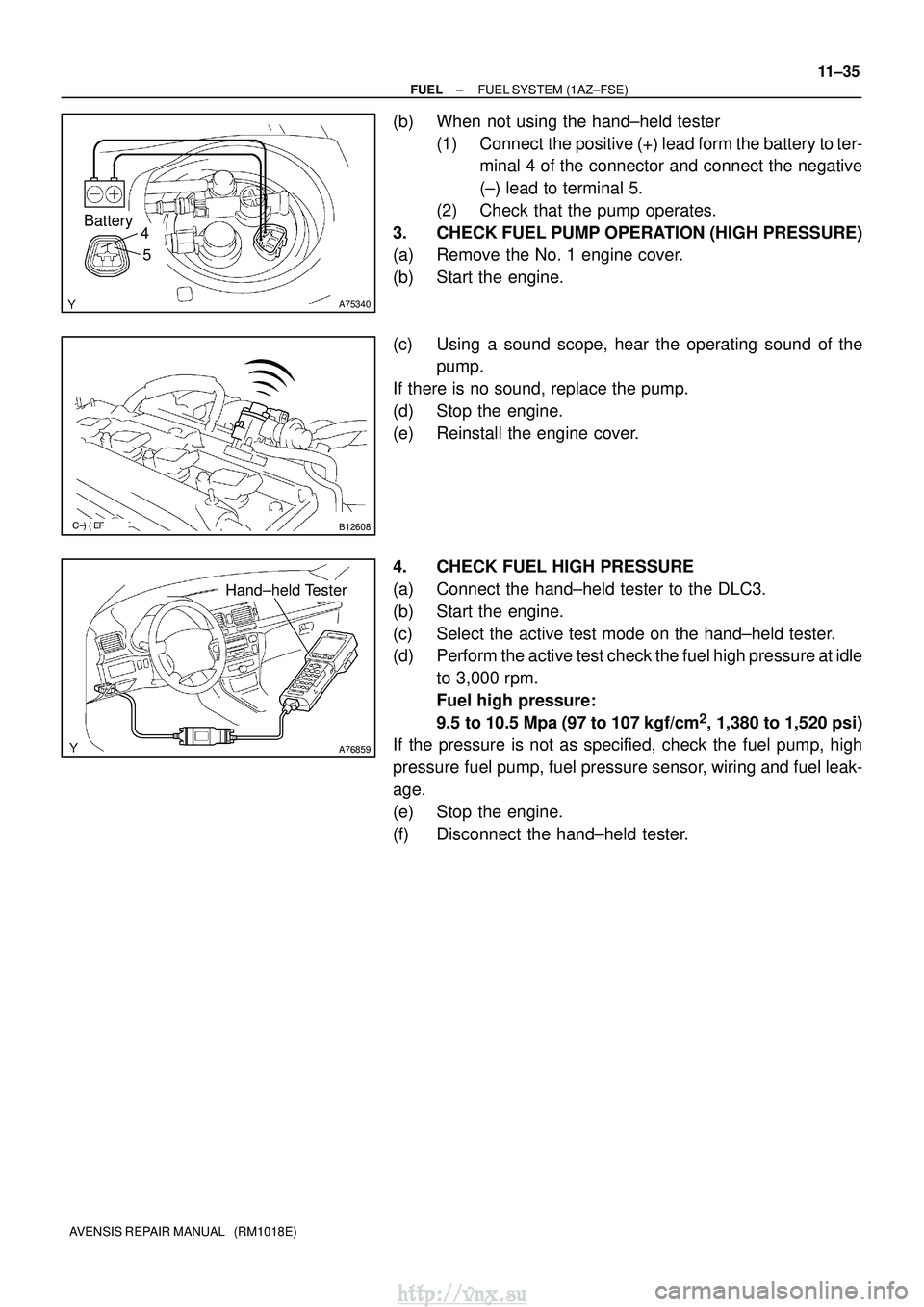

TOYOTA AVENSIS 2003 Service Repair Manual A75340 Battery4 5 B12608 A76859 Hand±held Tester ± FUEL FUEL SYSTEM (1AZ±FSE) 11±35 AVENSIS REPAIR MANUAL (RM1018E) (b) When not using the hand±held tester (1) Connect the positive (+) l

Page 366 of 2234

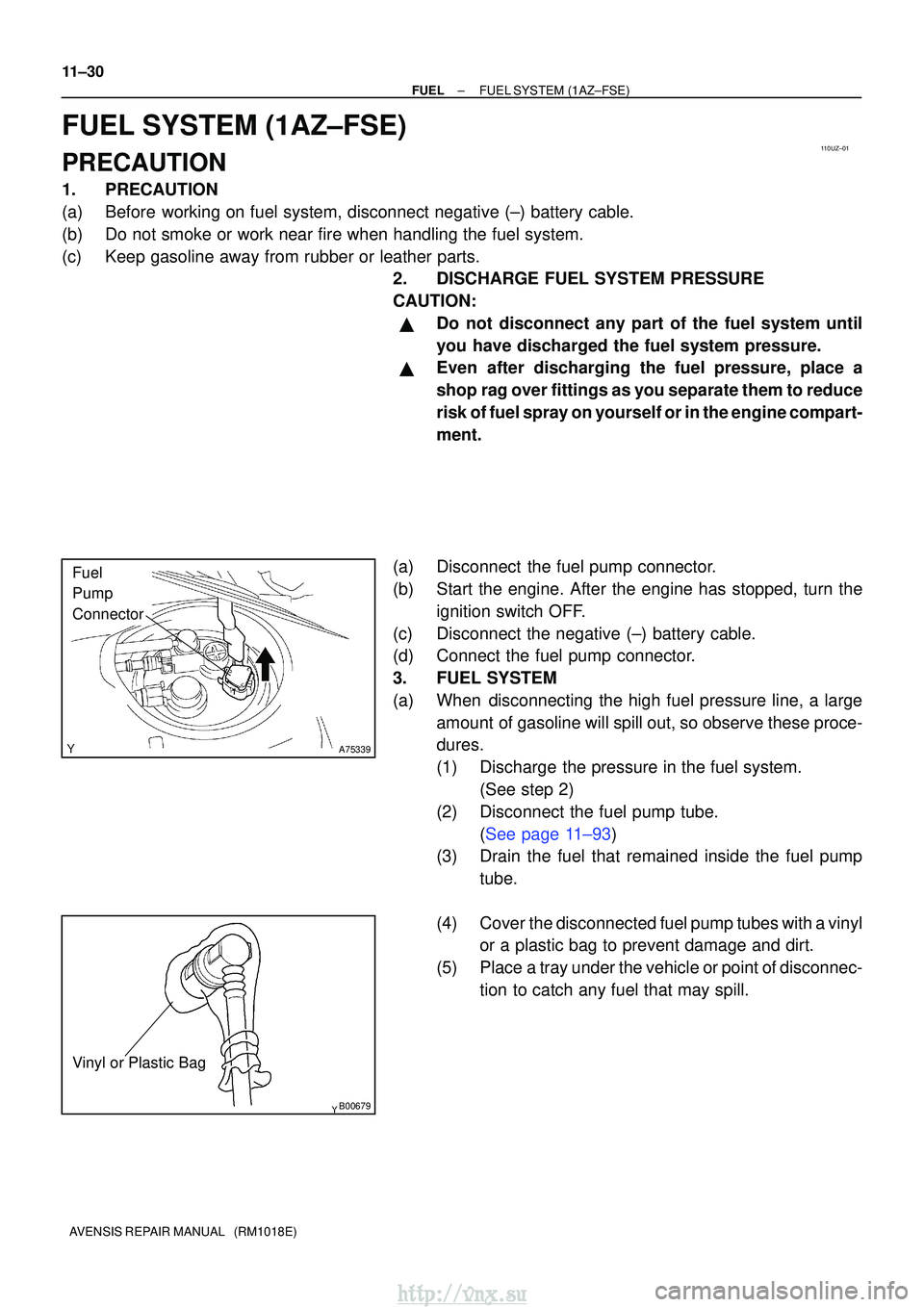

TOYOTA AVENSIS 2003 Service Repair Manual 110UZ±01 A75339 Fuel Pump Connector B00679 Vinyl or Plastic Bag 11±30 ± FUELFUEL SYSTEM(1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) FUEL SYSTEM(1AZ±FSE) PRECAUTION 1.PRECAUTION (a)Before working o

Page 367 of 2234

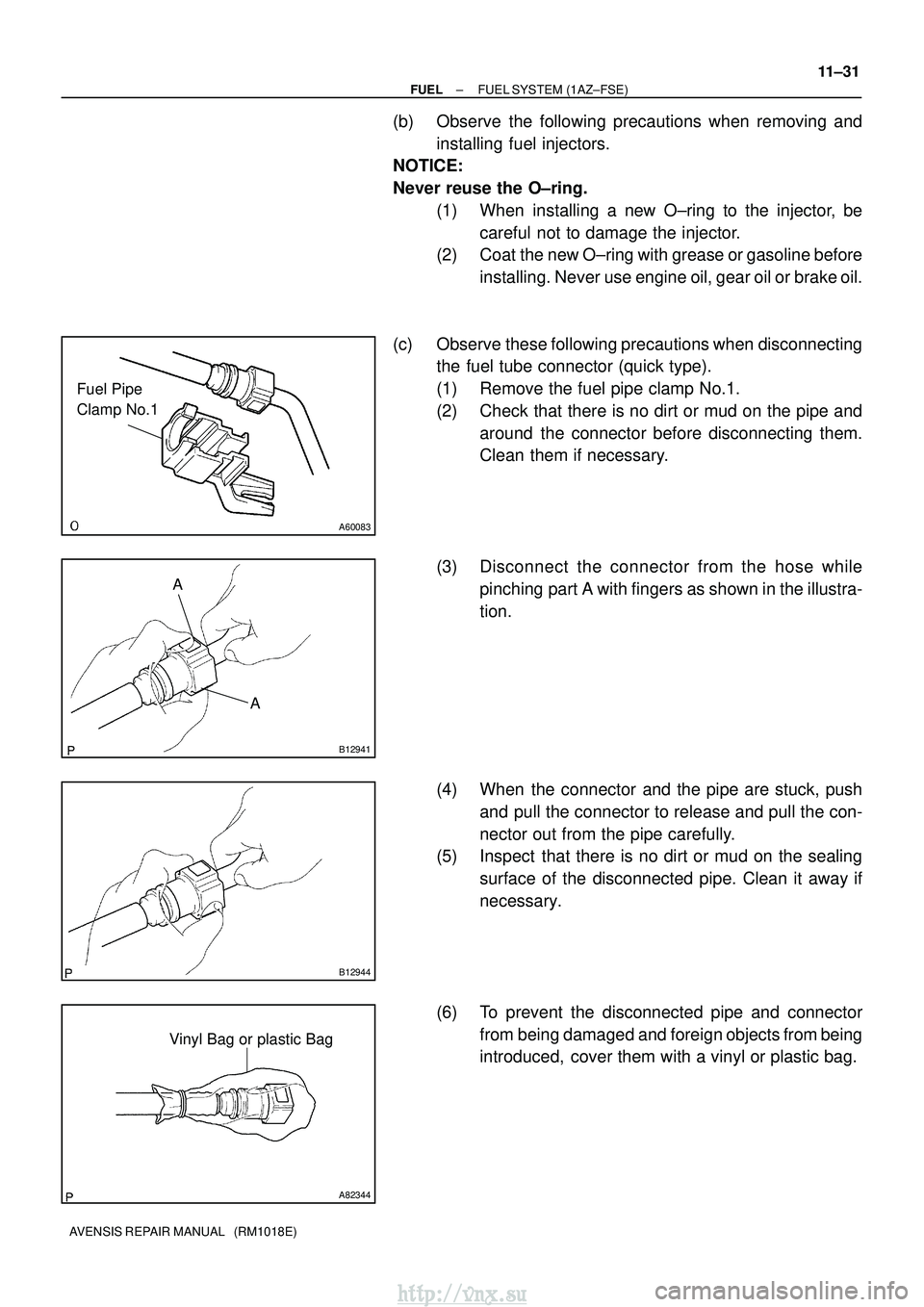

TOYOTA AVENSIS 2003 Service Repair Manual A60083 Fuel Pipe Clamp No.1 AA B12941 B12944 A82344 Vinyl Bag or plastic Bag ± FUEL FUEL SYSTEM (1AZ±FSE) 11±31 AVENSIS REPAIR MANUAL (RM1018E) (b) Observe the following precautions when removin

Page 368 of 2234

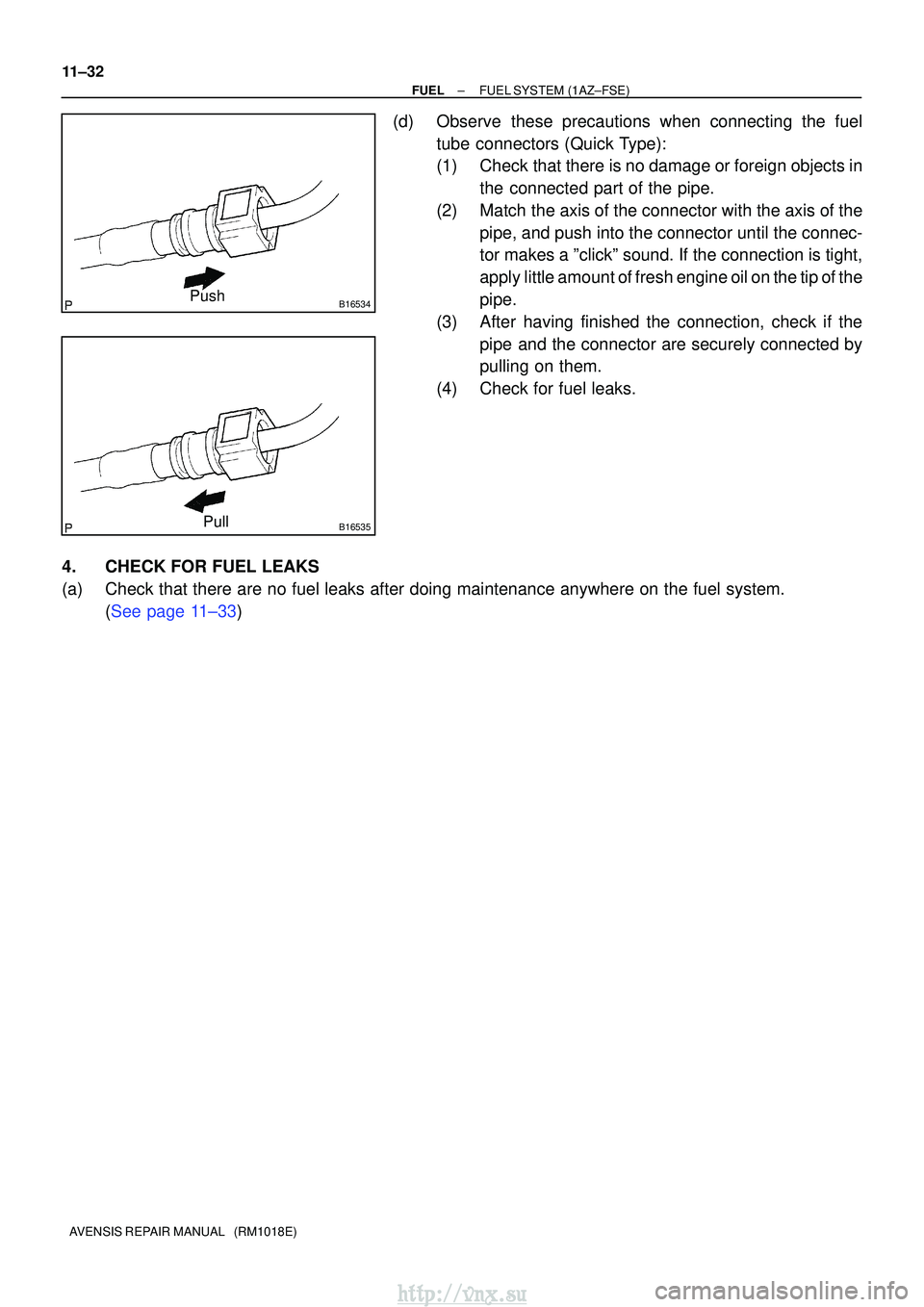

TOYOTA AVENSIS 2003 Service Repair Manual B16534Push B16535Pull 11±32 ± FUELFUEL SYSTEM(1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) (d)Observe these precautions when connecting the fuel tube connectors (Quick Type): (1)Check that there is n
