Page 1049 of 2234
C80976
28±2
±
TIRE & WHEEL WHEEL AND TIRE SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

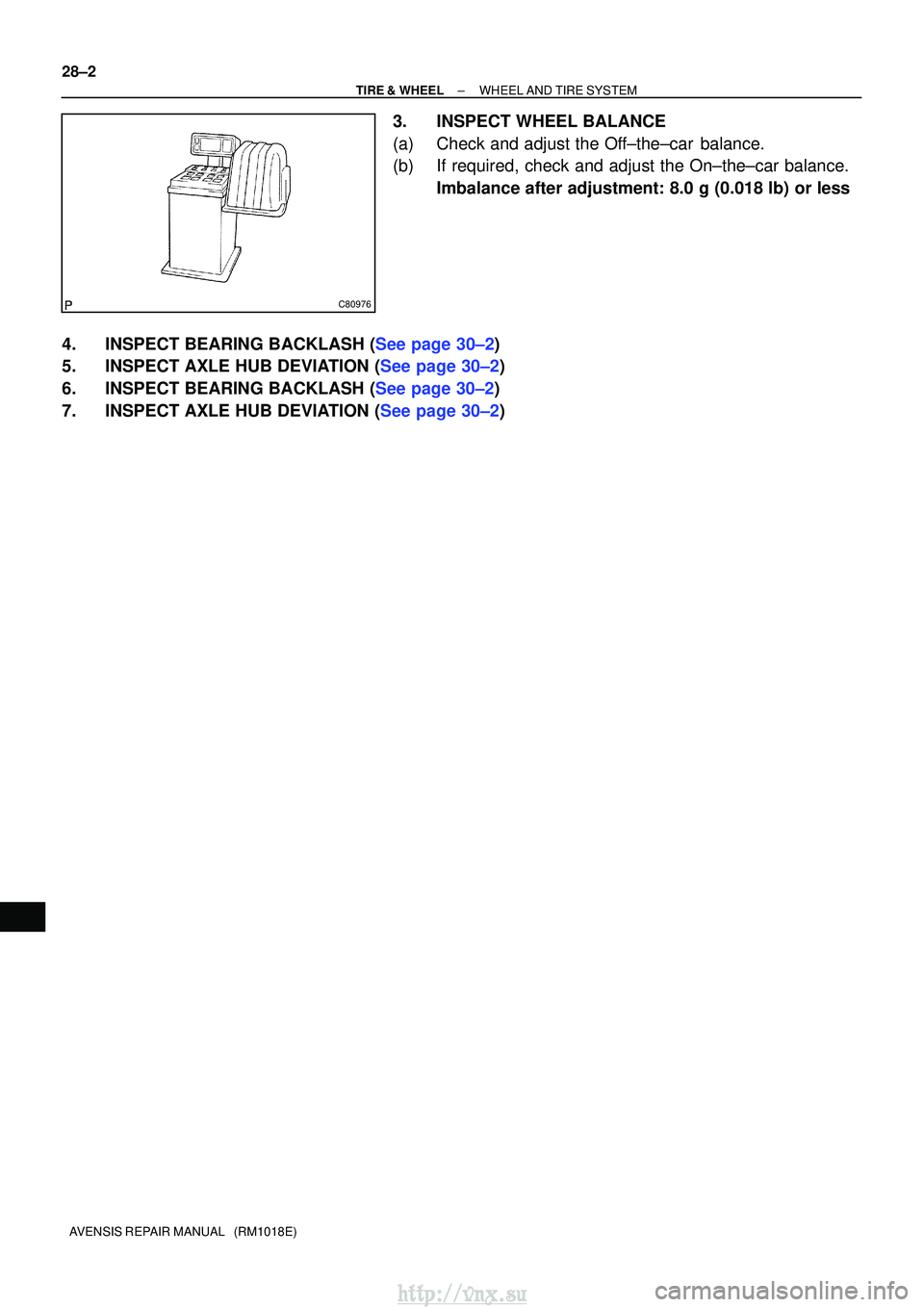

3. INSPECT WHEEL BALANCE
(a) Check and adjust the Off±the±car balance.
(b) If required, check and adjust the On±the±car balance. Imbalance after adjustment: 8.0 g (0.018 lb) or less
4.INSPECT BEARING BACKLASH (See page 30±2)
5.INSPECT AXLE HUB DEVIATION (See page 30±2)
6.INSPECT BEARING BACKLASH (See page 30±2)
7.INSPECT AXLE HUB DEVIATION (See page 30±2)
http://vnx.su
Page 1050 of 2234
3005C±02
±
DRIVE SHAFT / PROPELLER SHAFT DRIVE SHAFT, PROPELLER SHAFT, AXLE
30±1
AVENSIS REPAIR MANUAL (RM1018E)

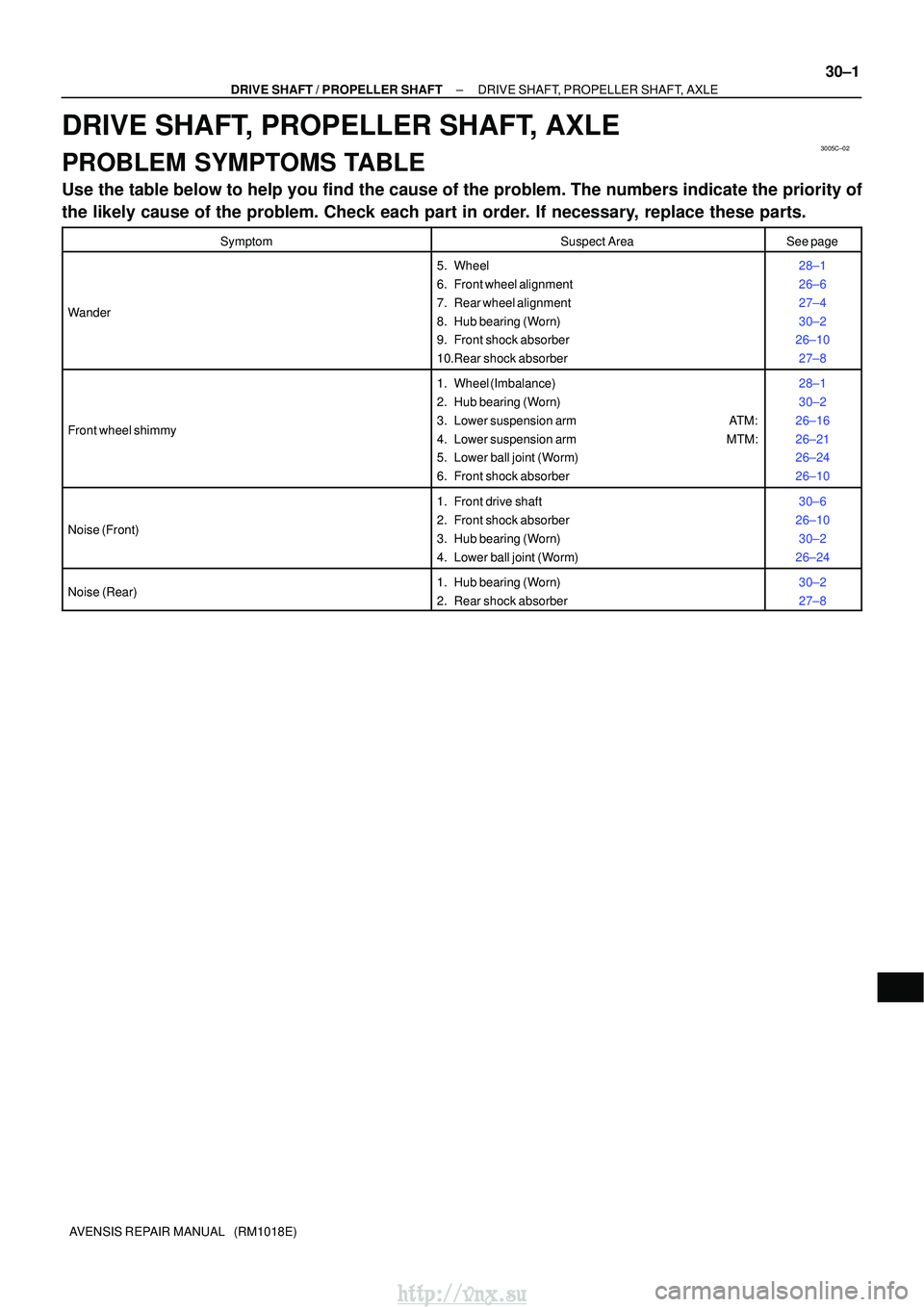

DRIVE SHAFT, PROPELLER SHAFT, AXLE
PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem. The numbers \
indicate the priority of
the likely cause of the problem. Check each part in order. If necessary, replace these parts.
SymptomSuspect AreaSee page
Wander
5. Wheel
6. Front wheel alignment
7. Rear wheel alignment
8. Hub bearing (Worn)
9. Front shock absorber
10.Rear shock absorber28±1
26±6
27±4
30±2
26±10
27±8
Front wheel shimmy
1. Wheel (Imbalance)
2. Hub bearing (Worn)
3. Lower suspension arm ATM:
4. Lower suspension arm MTM:
5. Lower ball joint (Worm)
6. Front shock absorber28±1
30±2
26±16
26±21
26±24
26±10
Noise (Front)
1. Front drive shaft
2. Front shock absorber
3. Hub bearing (Worn)
4. Lower ball joint (Worm)30±6
26±10 30±2
26±24
Noise (Rear)1. Hub bearing (Worn)
2. Rear shock absorber30±2
27±8
http://vnx.su
Page 1051 of 2234

3005B±02
D26919
D26920
C98714
C98715
30±2
±
DRIVE SHAFT / PROPELLER SHAFT DRIVE SHAFT, PROPELLER SHAFT, AXLE
AVENSIS REPAIR MANUAL (RM1018E)

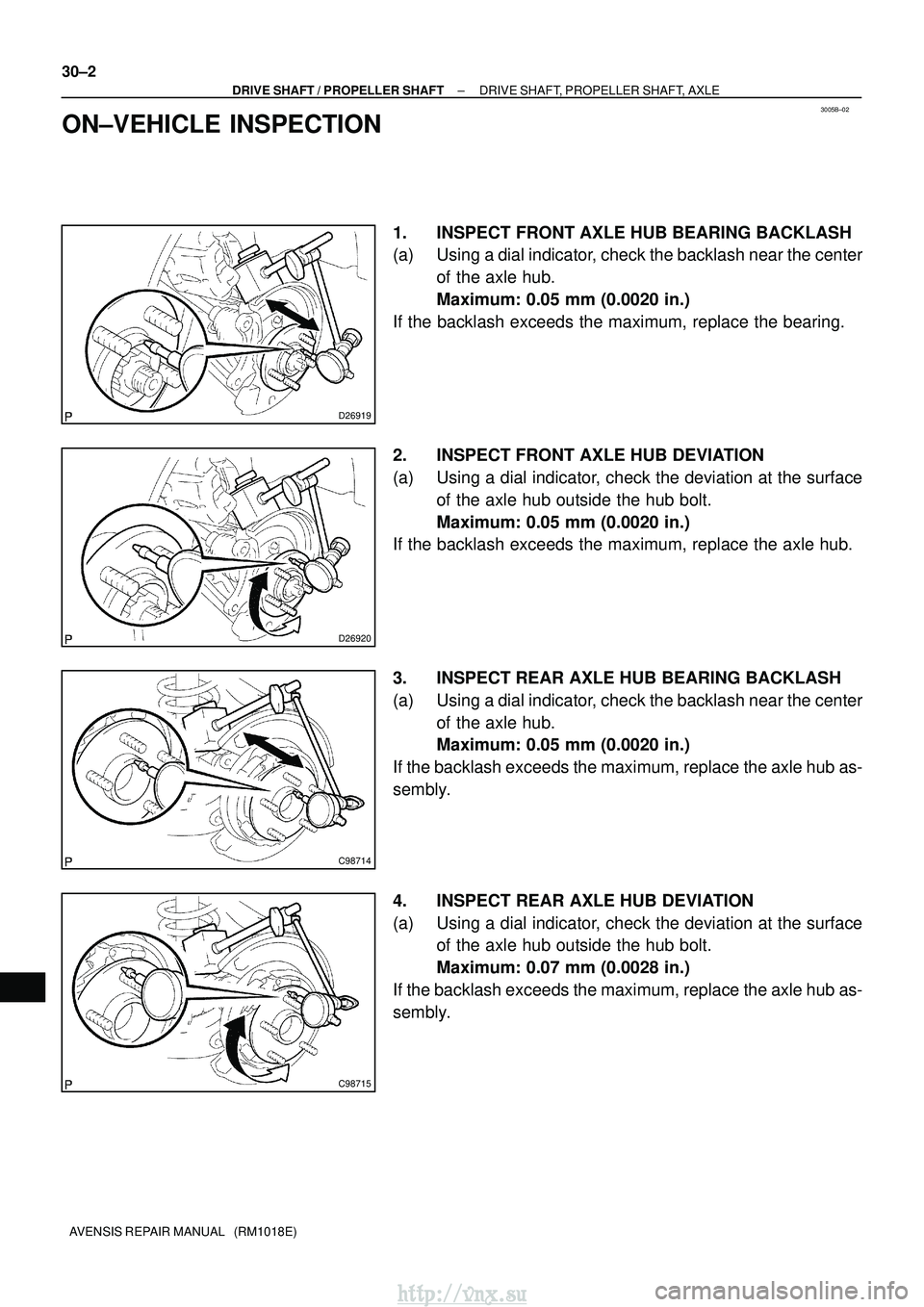

ON±VEHICLE INSPECTION
1. INSPECT FRONT AXLE HUB BEARING BACKLASH
(a) Using a dial indicator, check the backlash near the center of the axle hub.
Maximum: 0.05 mm (0.0020 in.)
If the backlash exceeds the maximum, replace the bearing.
2. INSPECT FRONT AXLE HUB DEVIATION
(a) Using a dial indicator, check the deviation at the surface of the axle hub outside the hub bolt.
Maximum: 0.05 mm (0.0020 in.)
If the backlash exceeds the maximum, replace the axle hub.
3. INSPECT REAR AXLE HUB BEARING BACKLASH
(a) Using a dial indicator, check the backlash near the center
of the axle hub.
Maximum: 0.05 mm (0.0020 in.)
If the backlash exceeds the maximum, replace the axle hub as-
sembly.
4. INSPECT REAR AXLE HUB DEVIATION
(a) Using a dial indicator, check the deviation at the surface of the axle hub outside the hub bolt.
Maximum: 0.07 mm (0.0028 in.)
If the backlash exceeds the maximum, replace the axle hub as-
sembly.
http://vnx.su
Page 1052 of 2234
30091±02
D30592
Speed Sensor Front LH
Lower Ball Joint
Assy Front LH
N m (kgf cm, ftlbf): Specified torque
8.0 (82, 71 in.
lbf)
49 (500, 36)
Tie Rod End Sub±assy LH
Cotter Pin
Front Disc
Front Axle Assy LH
19 (194, 14)
Front Stabilizer Link Assy LH
74 (755, 55)
220 (2,243, 162)
Front Drive Shaft
Assy LH
Front Axle Hub LH Nut
216 (2,200, 159) Front Axle
LH Hub Bolt
89 (908, 66)
Steering Knuckle LH
Disc Brake Dust Cover Front LH
8.3 (85, 73 in. lbf)
8.3 (85, 73 in.lbf)Front Axle
Hub Sub±assy LH
Front Disc Brake
Caliper Assy LH
Front Suspension Arm
Sub±assy Lower No. 1 LH
Front Axle Hub
LH Bearing
Cotter Pin
103 (1,050, 76)
102 (1,040, 75)
Non±reusable parts
Front Axle Hub
LH Snap Ring
±
DRIVE SHAFT / PROPELLER SHAFT FRONT AXLE HUB SUB±ASSY LH
30±21
AVENSIS REPAIR MANUAL (RM1018E)

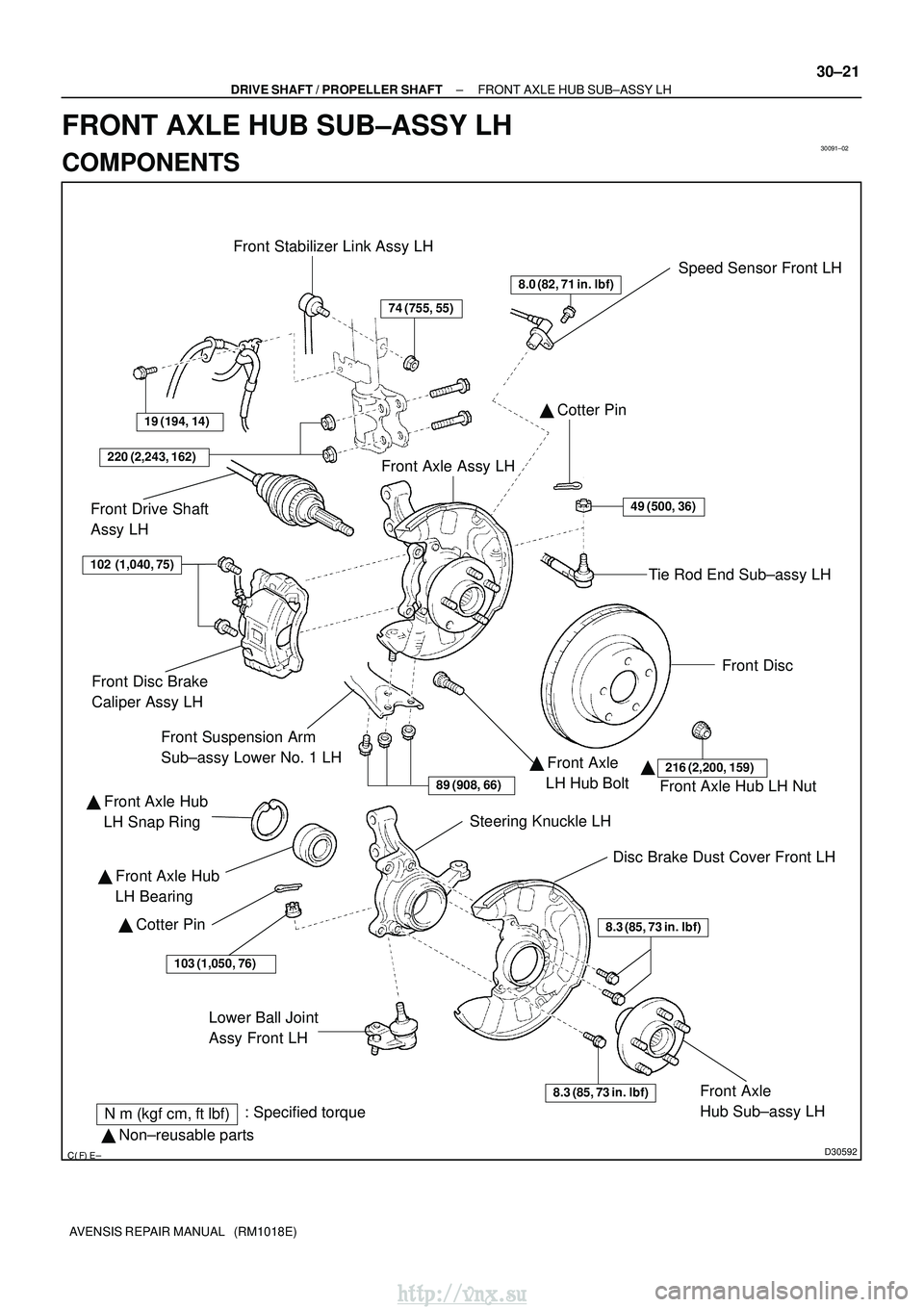

FRONT AXLE HUB SUB±ASSY LH
COMPONENTS
http://vnx.su
Page 1053 of 2234

300JY±01
F45751
SST
C80291
F44775
C67088
30±22
±
DRIVE SHAFT / PROPELLER SHAFT FRONT AXLE HUB SUB±ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

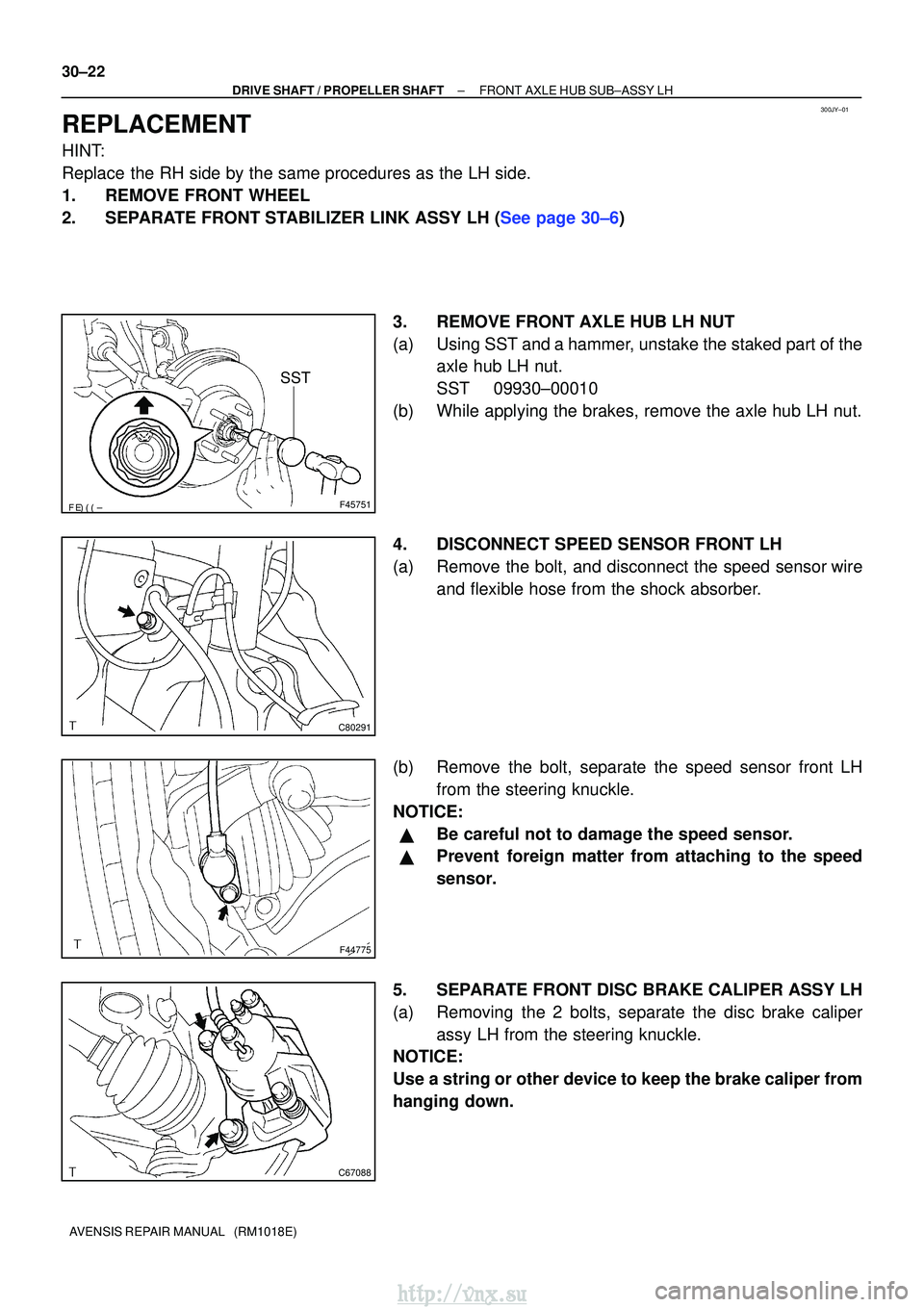

REPLACEMENT
HINT:
Replace the RH side by the same procedures as the LH side.
1. REMOVE FRONT WHEEL
2.SEPARATE FRONT STABILIZER LINK ASSY LH (See page 30±6) 3. REMOVE FRONT AXLE HUB LH NUT
(a) Using SST and a hammer, unstake the staked part of theaxle hub LH nut.
SST 09930±00010
(b) While applying the brakes, remove the axle hub LH nut.
4. DISCONNECT SPEED SENSOR FRONT LH
(a) Remove the bolt, and disconnect the speed sensor wire and flexible hose from the shock absorber.
(b) Remove the bolt, separate the speed sensor front LH from the steering knuckle.
NOTICE:
Be careful not to damage the speed sensor.
Prevent foreign matter from attaching to the speed
sensor.
5. SEPARATE FRONT DISC BRAKE CALIPER ASSY LH
(a) Removing the 2 bolts, separate the disc brake caliper assy LH from the steering knuckle.
NOTICE:
Use a string or other device to keep the brake caliper from
hanging down.
http://vnx.su
Page 1054 of 2234
F40217
SSTTurn
Hold
C80293
D27403
C83023
±
DRIVE SHAFT / PROPELLER SHAFT FRONT AXLE HUB SUB±ASSY LH
30±23
AVENSIS REPAIR MANUAL (RM1018E)

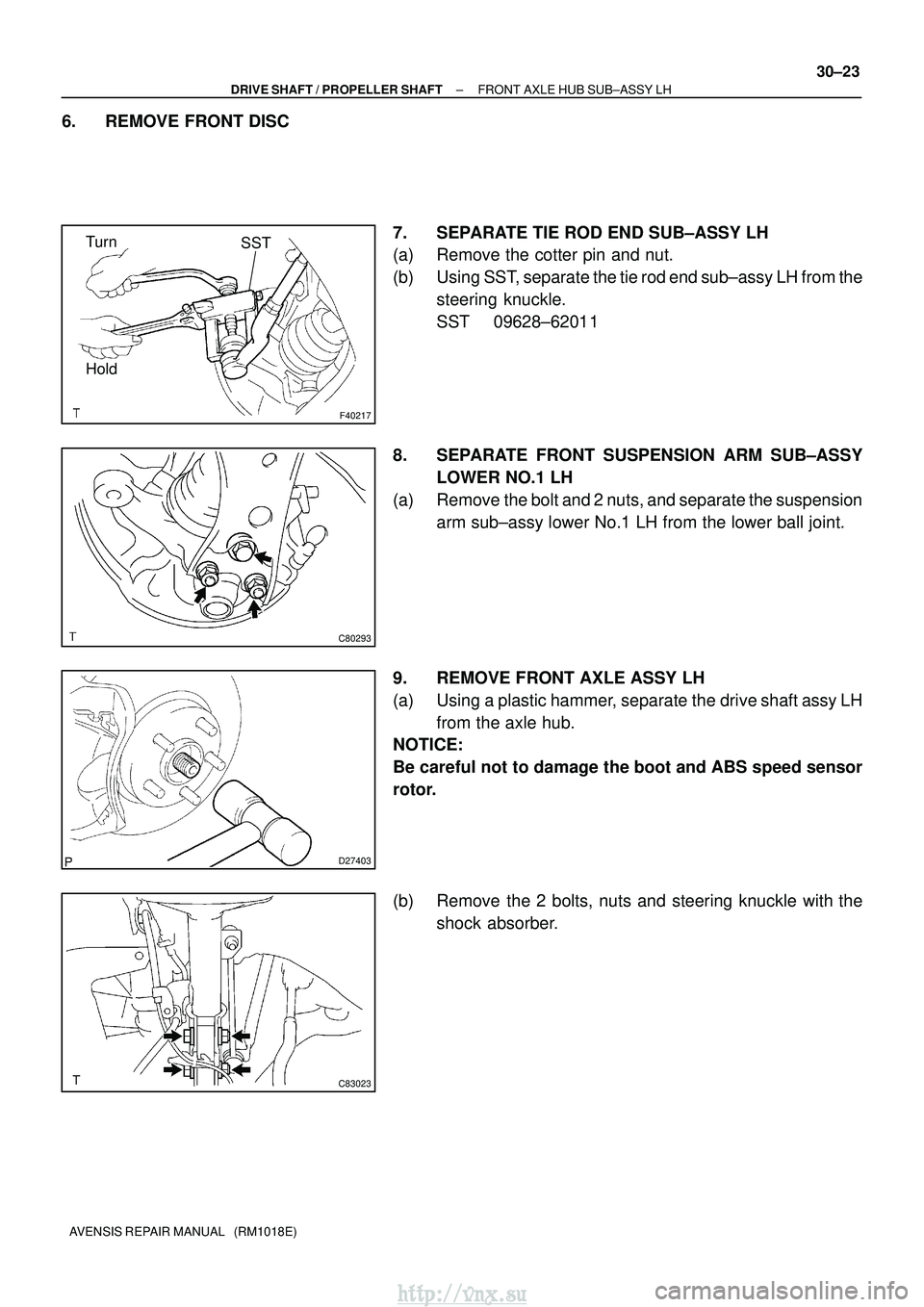

6. REMOVE FRONT DISC
7. SEPARATE TIE ROD END SUB±ASSY LH
(a) Remove the cotter pin and nut.
(b) Using SST, separate the tie rod end sub±assy LH from thesteering knuckle.
SST 09628±62011
8. SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH
(a) Remove the bolt and 2 nuts, and separate the suspension arm sub±assy lower No.1 LH from the lower ball joint.
9. REMOVE FRONT AXLE ASSY LH
(a) Using a plastic hammer, separate the drive shaft assy LH from the axle hub.
NOTICE:
Be careful not to damage the boot and ABS speed sensor
rotor.
(b) Remove the 2 bolts, nuts and steering knuckle with the
shock absorber.
http://vnx.su
Page 1055 of 2234
F40228
SST
F40229
F40156
SST
F45153
Turn
SST
SST
Hold
30±24
±
DRIVE SHAFT / PROPELLER SHAFT FRONT AXLE HUB SUB±ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

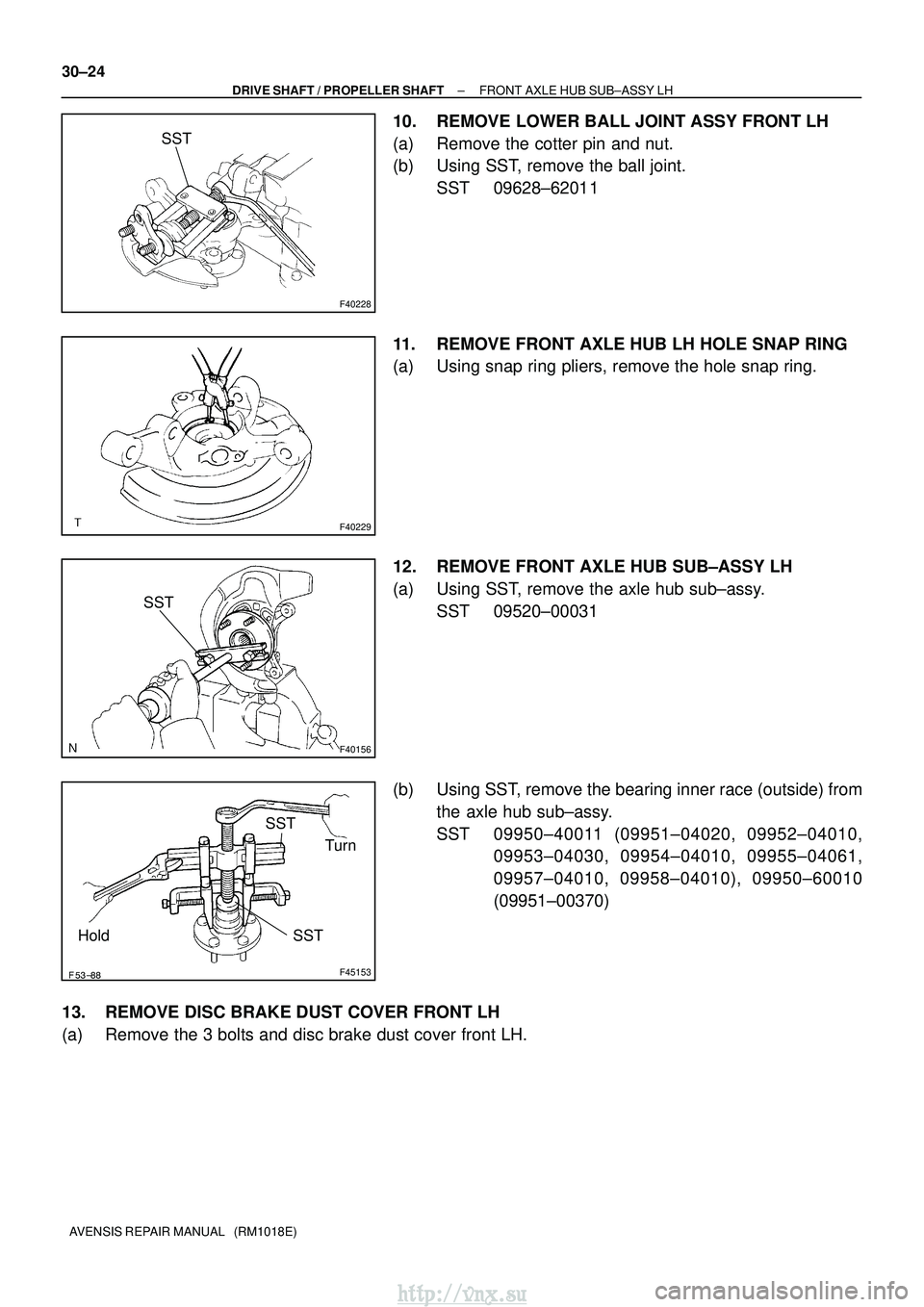

10. REMOVE LOWER BALL JOINT ASSY FRONT LH
(a) Remove the cotter pin and nut.
(b) Using SST, remove the ball joint. SST 09628±62011
11. REMOVE FRONT AXLE HUB LH HOLE SNAP RING
(a) Using snap ring pliers, remove the hole snap ring.
12. REMOVE FRONT AXLE HUB SUB±ASSY LH
(a) Using SST, remove the axle hub sub±assy. SST 09520±00031
(b) Using SST, remove the bearing inner race (outside) from the axle hub sub±assy.
SST 09950±40011 (09951±04020, 09952±04010, 09953±04030, 09954±04010, 09955±04061,
09957±04010, 09958±04010), 09950±60010
(09951±00370)
13. REMOVE DISC BRAKE DUST COVER FRONT LH
(a) Remove the 3 bolts and disc brake dust cover front LH.
http://vnx.su
Page 1056 of 2234

F40230
SST
SST
F40231
SST
F40232
SST
SST
F40229
±
DRIVE SHAFT / PROPELLER SHAFT FRONT AXLE HUB SUB±ASSY LH
30±25
AVENSIS REPAIR MANUAL (RM1018E)

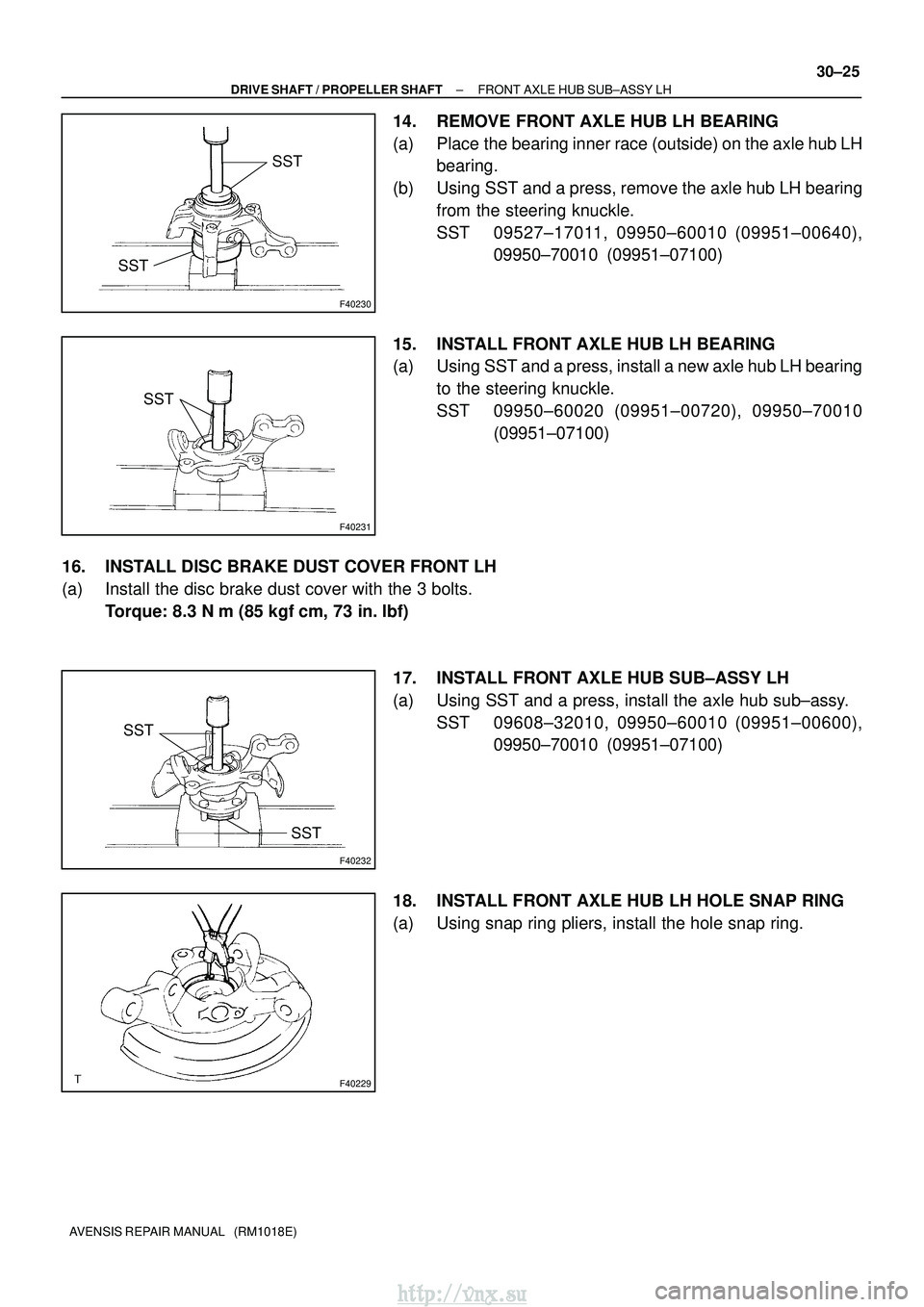

14. REMOVE FRONT AXLE HUB LH BEARING
(a) Place the bearing inner race (outside) on the axle hub LH
bearing.
(b) Using SST and a press, remove the axle hub LH bearing from the steering knuckle.
SST 09527±17011, 09950±60010 (09951±00640), 09950±70010 (09951±07100)
15. INSTALL FRONT AXLE HUB LH BEARING
(a) Using SST and a press, install a new axle hub LH bearing to the steering knuckle.
SST 09950±60020 (09951±00720), 09950±70010 (09951±07100)
16. INSTALL DISC BRAKE DUST COVER FRONT LH
(a) Install the disc brake dust cover with the 3 bolts. Torque: 8.3 N m (85 kgf cm, 73 in. lbf)
17. INSTALL FRONT AXLE HUB SUB±ASSY LH
(a) Using SST and a press, install the axle hub sub±assy. SST 09608±32010, 09950±60010 (09951±00600), 09950±70010 (09951±07100)
18. INSTALL FRONT AXLE HUB LH HOLE SNAP RING
(a) Using snap ring pliers, install the hole snap ring.
