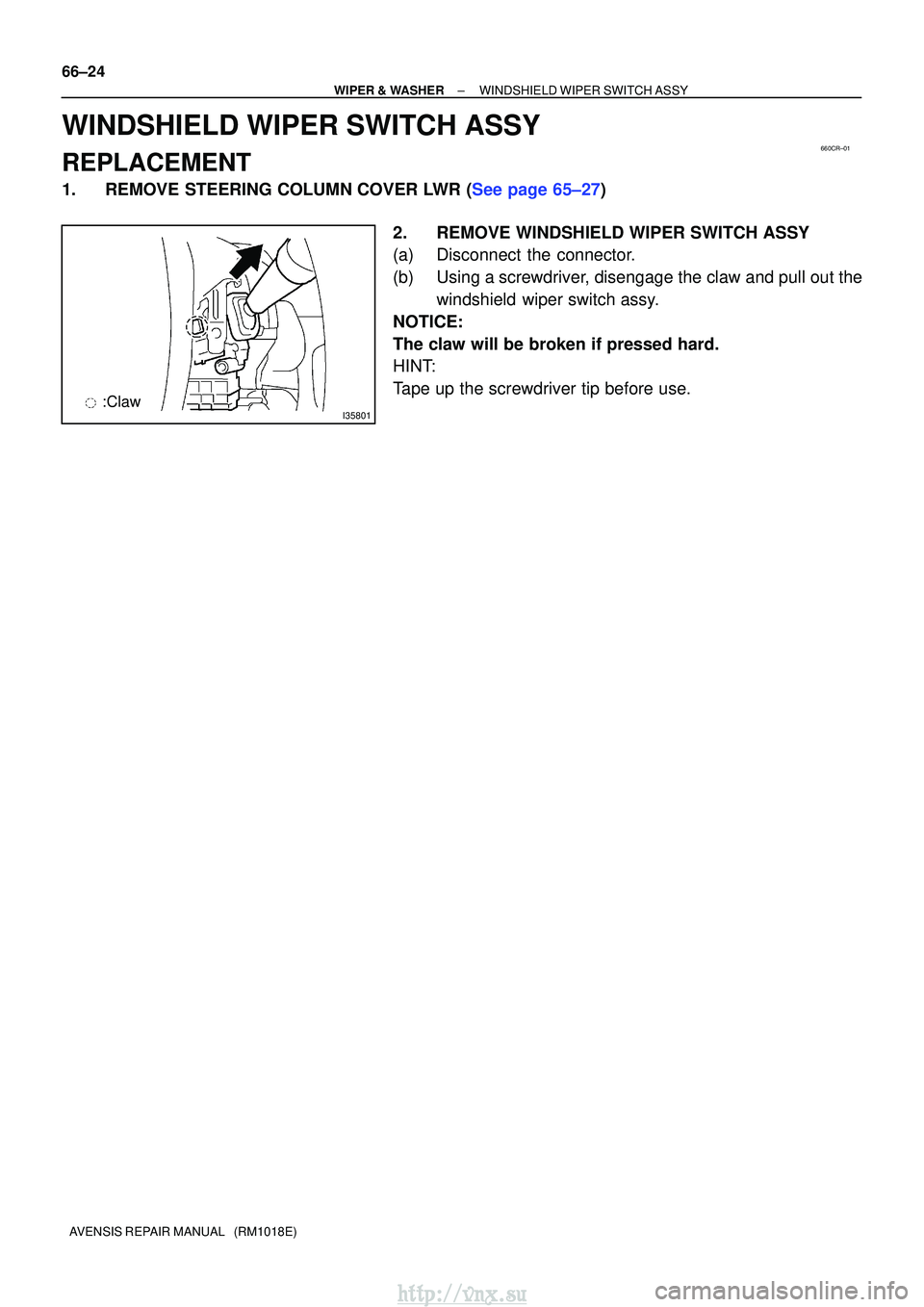

Page 1529 of 2234
660CR±01
I35801:Claw
66±24
±
WIPER & WASHERWINDSHIELD WIPER SWITCH ASSY
AVENSIS REPAIR MANUAL (RM1018E)
WINDSHIELD WIPER SWITCH ASSY
REPLACEMENT
1.REMOVE STEERING COLUMN COVER LWR (See page 65±27) 2. REMOVE WINDSHIELD WIPER SWITCH ASSY
(a) Disconnect the connector.
(b) Using a screwdriver, disengage the claw and pull out thewindshield wiper switch assy.
NOTICE:
The claw will be broken if pressed hard.
HINT:
Tape up the screwdriver tip before use.
http://vnx.su

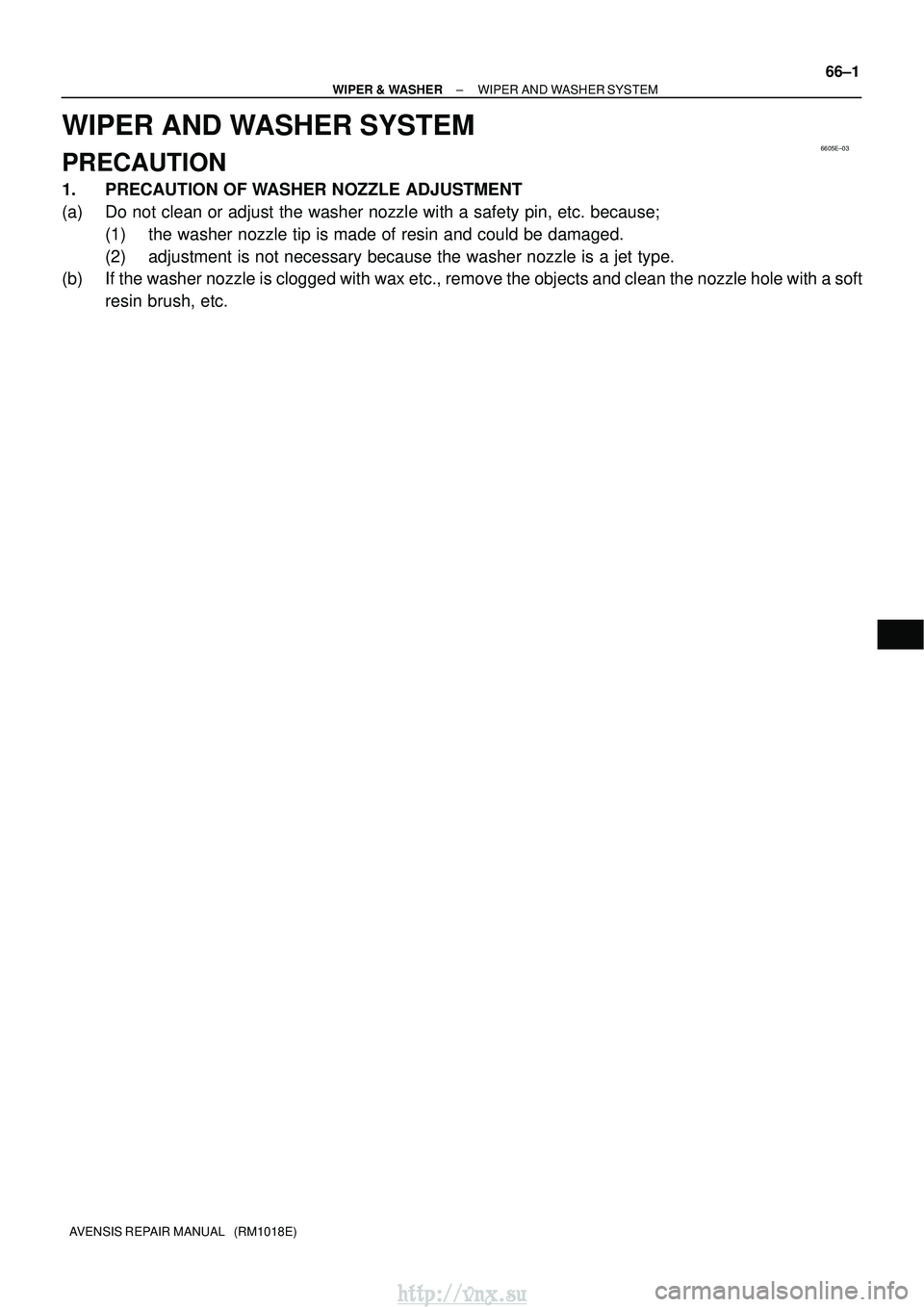

Page 1530 of 2234
6605E±03
±
WIPER & WASHER WIPER AND WASHER SYSTEM
66±1
AVENSIS REPAIR MANUAL (RM1018E)
WIPER AND WASHER SYSTEM
PRECAUTION
1. PRECAUTION OF WASHER NOZZLE ADJUSTMENT
(a) Do not clean or adjust the washer nozzle with a safety pin, etc. because\
;
(1) the washer nozzle tip is made of resin and could be damaged.
(2) adjustment is not necessary because the washer nozzle is a jet type.
(b) If the washer nozzle is clogged with wax etc., remove the objects and clean the nozzle hole with a soft
resin brush, etc.
http://vnx.su

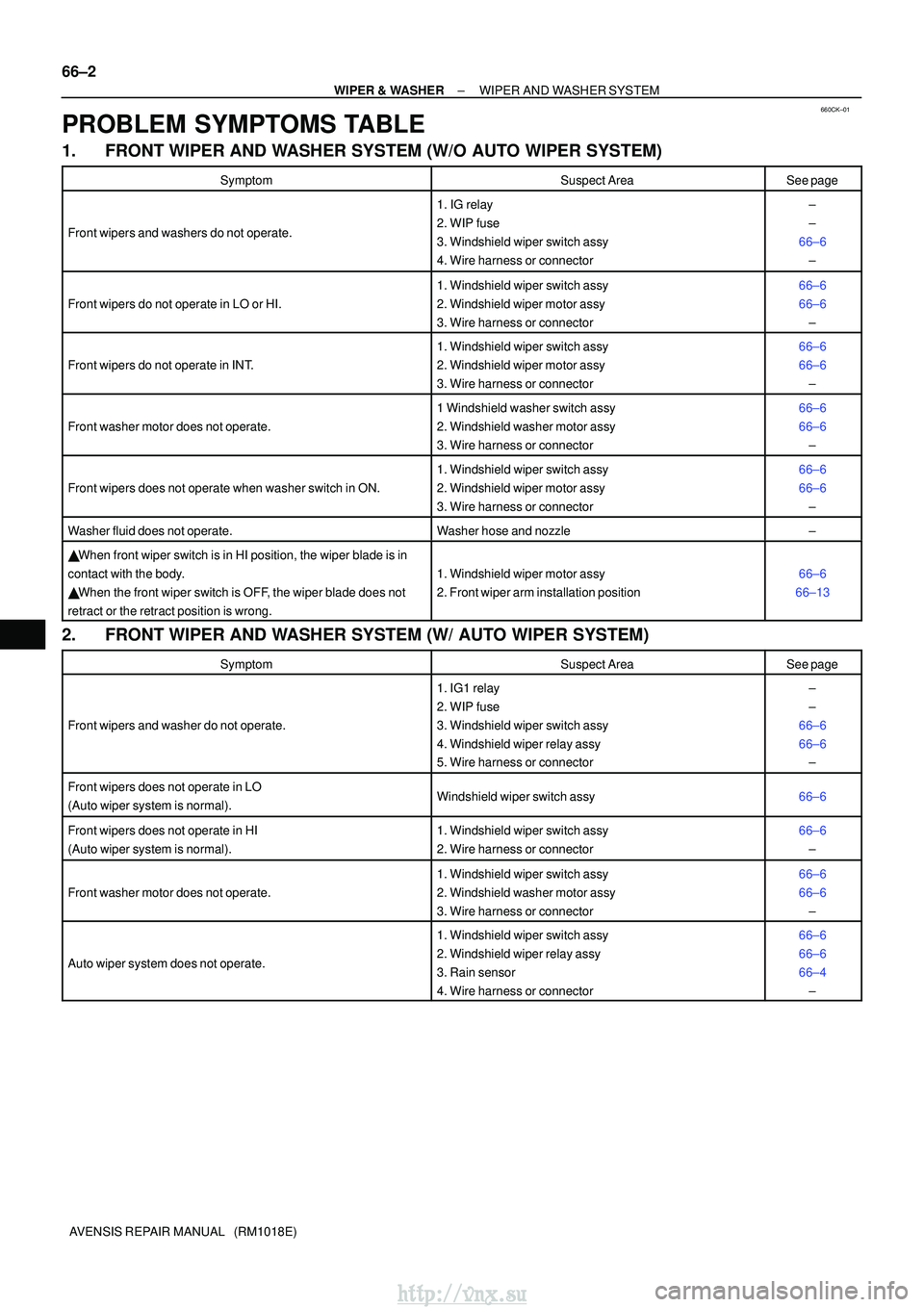

Page 1531 of 2234

660CK±01
66±2
±
WIPER & WASHERWIPER AND WASHER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
PROBLEM SYMPTOMS TABLE
1.FRONT WIPER AND WASHER SYSTEM (W/O AUTO WIPER SYSTEM)
SymptomSuspect AreaSee page
Front wipers and washers do not operate.
1. IG relay
2. WIP fuse
3. Windshield wiper switch assy
4. Wire harness or connector±
±
66±6 ±
Front wipers do not operate in LO or HI.
1. Windshield wiper switch assy
2. Windshield wiper motor assy
3. Wire harness or connector66±6
66±6±
Front wipers do not operate in INT.
1. Windshield wiper switch assy
2. Windshield wiper motor assy
3. Wire harness or connector66±6
66±6±
Front washer motor does not operate.
1 Windshield washer switch assy
2. Windshield washer motor assy
3. Wire harness or connector66±6
66±6±
Front wipers does not operate when washer switch in ON.
1. Windshield wiper switch assy
2. Windshield wiper motor assy
3. Wire harness or connector66±6
66±6±
Washer fluid does not operate.Washer hose and nozzle±
When front wiper switch is in HI position, the wiper blade is in
contact with the body.
When the front wiper switch is OFF, the wiper blade does not
retract or the retract position is wrong.
1. Windshield wiper motor assy
2. Front wiper arm installation position66±6
66±13
2. FRONT WIPER AND WASHER SYSTEM (W/ AUTO WIPER SYSTEM)
SymptomSuspect AreaSee page
Front wipers and washer do not operate.
1. IG1 relay
2. WIP fuse
3. Windshield wiper switch assy
4. Windshield wiper relay assy
5. Wire harness or connector±
±
66±6
66±6 ±
Front wipers does not operate in LO
(Auto wiper system is normal).Windshield wiper switch assy66±6
Front wipers does not operate in HI
(Auto wiper system is normal).1. Windshield wiper switch assy
2. Wire harness or connector66±6
±
Front washer motor does not operate.
1. Windshield wiper switch assy
2. Windshield washer motor assy
3. Wire harness or connector66±6
66±6±
Auto wiper system does not operate.
1. Windshield wiper switch assy
2. Windshield wiper relay assy
3. Rain sensor
4. Wire harness or connector66±6
66±6
66±4±
http://vnx.su

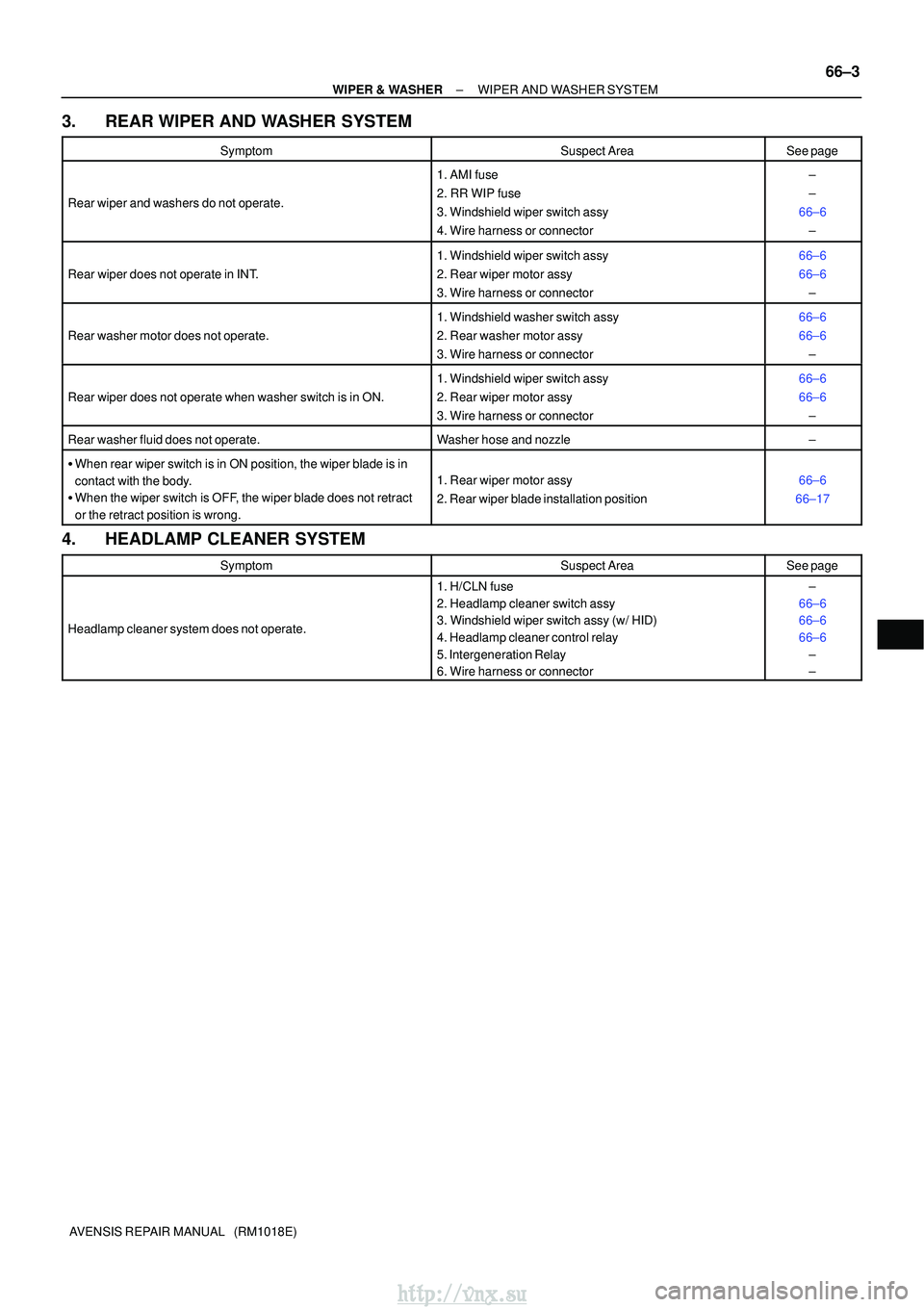

Page 1532 of 2234

±
WIPER & WASHER WIPER AND WASHER SYSTEM
66±3
AVENSIS REPAIR MANUAL (RM1018E)
3. REAR WIPER AND WASHER SYSTEM
SymptomSuspect AreaSee page
Rear wiper and washers do not operate.
1. AMI fuse
2. RR WIP fuse
3. Windshield wiper switch assy
4. Wire harness or connector±
±
66±6 ±
Rear wiper does not operate in INT.
1. Windshield wiper switch assy
2. Rear wiper motor assy
3. Wire harness or connector66±6
66±6±
Rear washer motor does not operate.
1. Windshield washer switch assy
2. Rear washer motor assy
3. Wire harness or connector66±6
66±6±
Rear wiper does not operate when washer switch is in ON.
1. Windshield wiper switch assy
2. Rear wiper motor assy
3. Wire harness or connector66±6
66±6±
Rear washer fluid does not operate.Washer hose and nozzle±
When rear wiper switch is in ON position, the wiper blade is in
contact with the body.
When the wiper switch is OFF, the wiper blade does not retract
or the retract position is wrong.
1. Rear wiper motor assy
2. Rear wiper blade installation position66±6
66±17
4. HEADLAMP CLEANER SYSTEM
SymptomSuspect AreaSee page
Headlamp cleaner system does not operate.
1. H/CLN fuse
2. Headlamp cleaner switch assy
3. Windshield wiper switch assy (w/ HID)
4. Headlamp cleaner control relay
5. Intergeneration Relay
6. Wire harness or connector±
66±6
66±6
66±6 ±
±
http://vnx.su

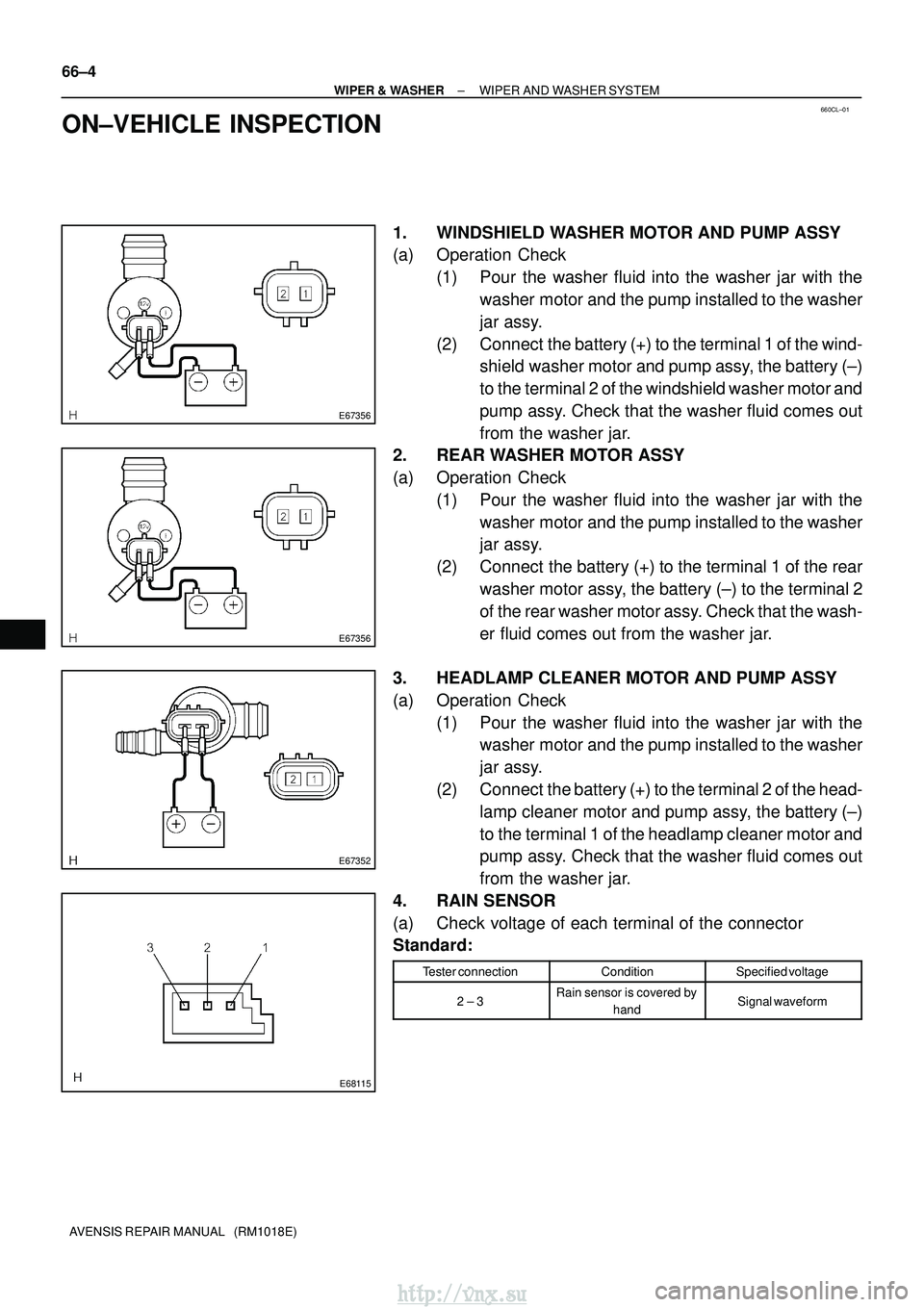

Page 1533 of 2234

660CL±01
E67356
E67356
E67352
E68115
66±4
±
WIPER & WASHER WIPER AND WASHER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
ON±VEHICLE INSPECTION
1. WINDSHIELD WASHER MOTOR AND PUMP ASSY
(a) Operation Check (1) Pour the washer fluid into the washer jar with thewasher motor and the pump installed to the washer
jar assy.
(2) Connect the battery (+) to the terminal 1 of the wind- shield washer motor and pump assy, the battery (±)
to the terminal 2 of the windshield washer motor and
pump assy. Check that the washer fluid comes out
from the washer jar.
2. REAR WASHER MOTOR ASSY
(a) Operation Check
(1) Pour the washer fluid into the washer jar with thewasher motor and the pump installed to the washer
jar assy.
(2) Connect the battery (+) to the terminal 1 of the rear washer motor assy, the battery (±) to the terminal 2
of the rear washer motor assy. Check that the wash-
er fluid comes out from the washer jar.
3. HEADLAMP CLEANER MOTOR AND PUMP ASSY
(a) Operation Check (1) Pour the washer fluid into the washer jar with thewasher motor and the pump installed to the washer
jar assy.
(2) Connect the battery (+) to the terminal 2 of the head- lamp cleaner motor and pump assy, the battery (±)
to the terminal 1 of the headlamp cleaner motor and
pump assy. Check that the washer fluid comes out
from the washer jar.
4. RAIN SENSOR
(a) Check voltage of each terminal of the connector
Standard:
Tester connectionConditionSpecified voltage
2 ± 3Rain sensor is covered by
handSignal waveform
http://vnx.su

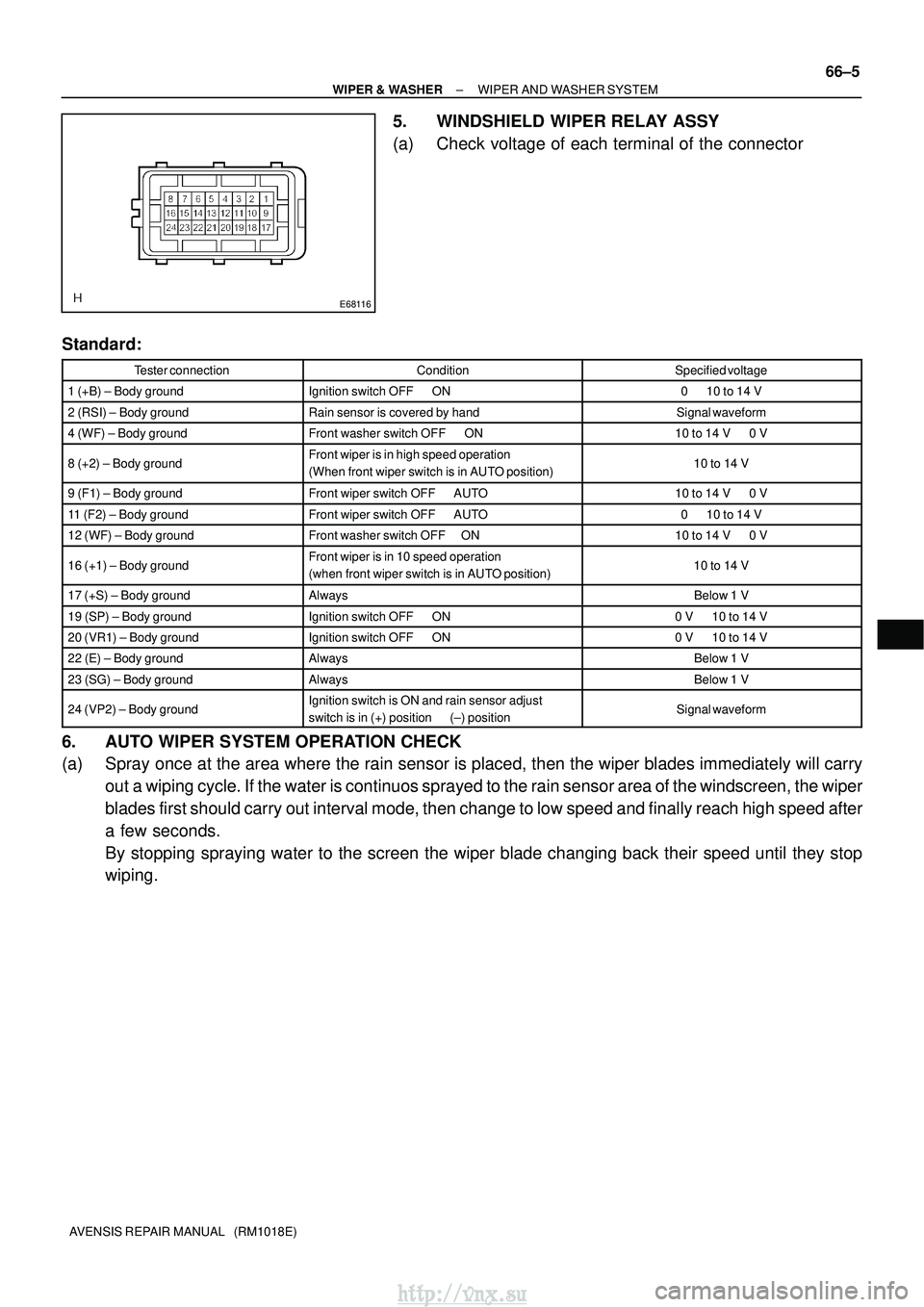

Page 1534 of 2234

E68116
±
WIPER & WASHER WIPER AND WASHER SYSTEM
66±5
AVENSIS REPAIR MANUAL (RM1018E)
5. WINDSHIELD WIPER RELAY ASSY
(a) Check voltage of each terminal of the connector
Standard:
Tester connectionConditionSpecified voltage
1 (+B) ± Body groundIgnition switch OFF ON0 10 to 14 V
2 (RSI) ± Body groundRain sensor is covered by handSignal waveform
4 (WF) ± Body groundFront washer switch OFF ON10 to 14 V 0 V
8 (+2) ± Body groundFront wiper is in high speed operation
(When front wiper switch is in AUTO position)10 to 14 V
9 (F1) ± Body groundFront wiper switch OFF AUTO10 to 14 V 0 V
11 (F2) ± Body groundFront wiper switch OFF AUTO0 10 to 14 V
12 (WF) ± Body groundFront washer switch OFF ON10 to 14 V 0 V
16 (+1) ± Body groundFront wiper is in 10 speed operation
(when front wiper switch is in AUTO position)10 to 14 V
17 (+S) ± Body groundAlwaysBelow 1 V
19 (SP) ± Body groundIgnition switch OFF ON0 V 10 to 14 V
20 (VR1) ± Body groundIgnition switch OFF ON0 V 10 to 14 V
22 (E) ± Body groundAlwaysBelow 1 V
23 (SG) ± Body groundAlwaysBelow 1 V
24 (VP2) ± Body groundIgnition switch is ON and rain sensor adjust
switch is in (+) position (±) positionSignal waveform
6. AUTO WIPER SYSTEM OPERATION CHECK
(a) Spray once at the area where the rain sensor is placed, then the wiper blades\
immediately will carry
out a wiping cycle. If the water is continuos sprayed to the rain sensor ar\
ea of the windscreen, the wiper
blades first should carry out interval mode, then change to low speed an\
d finally reach high speed after
a few seconds.
By stopping spraying water to the screen the wiper blade changing back t\
heir speed until they stop
wiping.
http://vnx.su

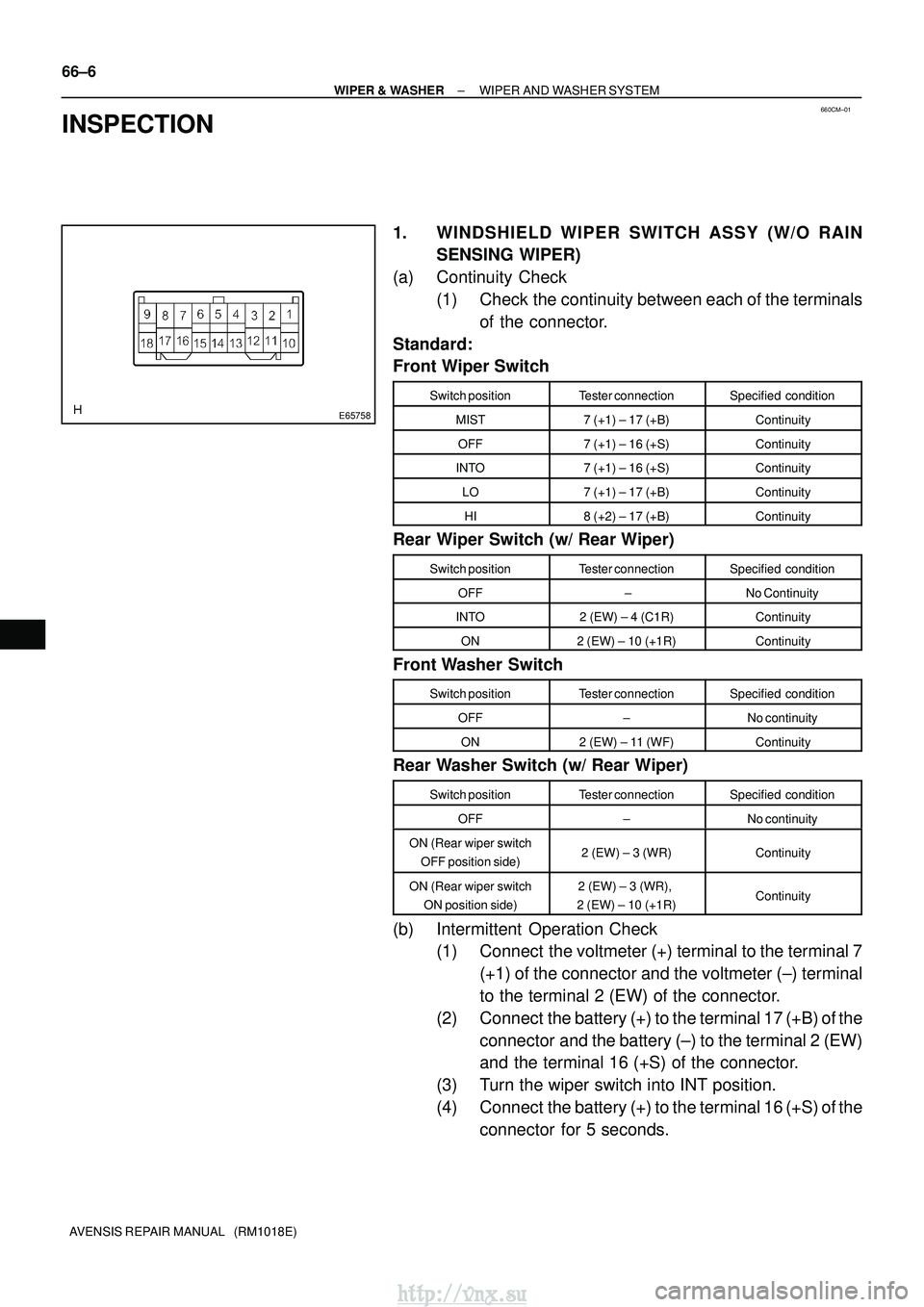

Page 1535 of 2234

660CM±01
E65758
66±6
±
WIPER & WASHER WIPER AND WASHER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1. WINDSHIELD WIPER SWITCH ASSY (W/O RAIN SENSING WIPER)
(a) Continuity Check (1) Check the continuity between each of the terminalsof the connector.
Standard:
Front Wiper Switch
Switch positionTester connectionSpecified condition
MIST7 (+1) ± 17 (+B)Continuity
OFF7 (+1) ± 16 (+S)Continuity
INTO7 (+1) ± 16 (+S)Continuity
LO7 (+1) ± 17 (+B)Continuity
HI8 (+2) ± 17 (+B)Continuity
Rear Wiper Switch (w/ Rear Wiper)
Switch positionTester connectionSpecified condition
OFF ±No Continuity
INTO2 (EW) ± 4 (C1R)Continuity
ON2 (EW) ± 10 (+1R)Continuity
Front Washer Switch
Switch positionTester connectionSpecified condition
OFF±No continuity
ON2 (EW) ± 11 (WF)Continuity
Rear Washer Switch (w/ Rear Wiper)
Switch positionTester connectionSpecified condition
OFF±No continuity
ON (Rear wiper switch
OFF position side)2 (EW) ± 3 (WR)Continuity
ON (Rear wiper switch ON position side)2 (EW) ± 3 (WR),
2 (EW) ± 10 (+1R)Continuity
(b) Intermittent Operation Check (1) Connect the voltmeter (+) terminal to the terminal 7
(+1) of the connector and the voltmeter (±) terminal
to the terminal 2 (EW) of the connector.
(2) Connect the battery (+) to the terminal 17 (+B) of the connector and the battery (±) to the terminal 2 (EW)
and the terminal 16 (+S) of the connector.
(3) Turn the wiper switch into INT position.
(4) Connect the battery (+) to the terminal 16 (+S) of the connector for 5 seconds.
http://vnx.su

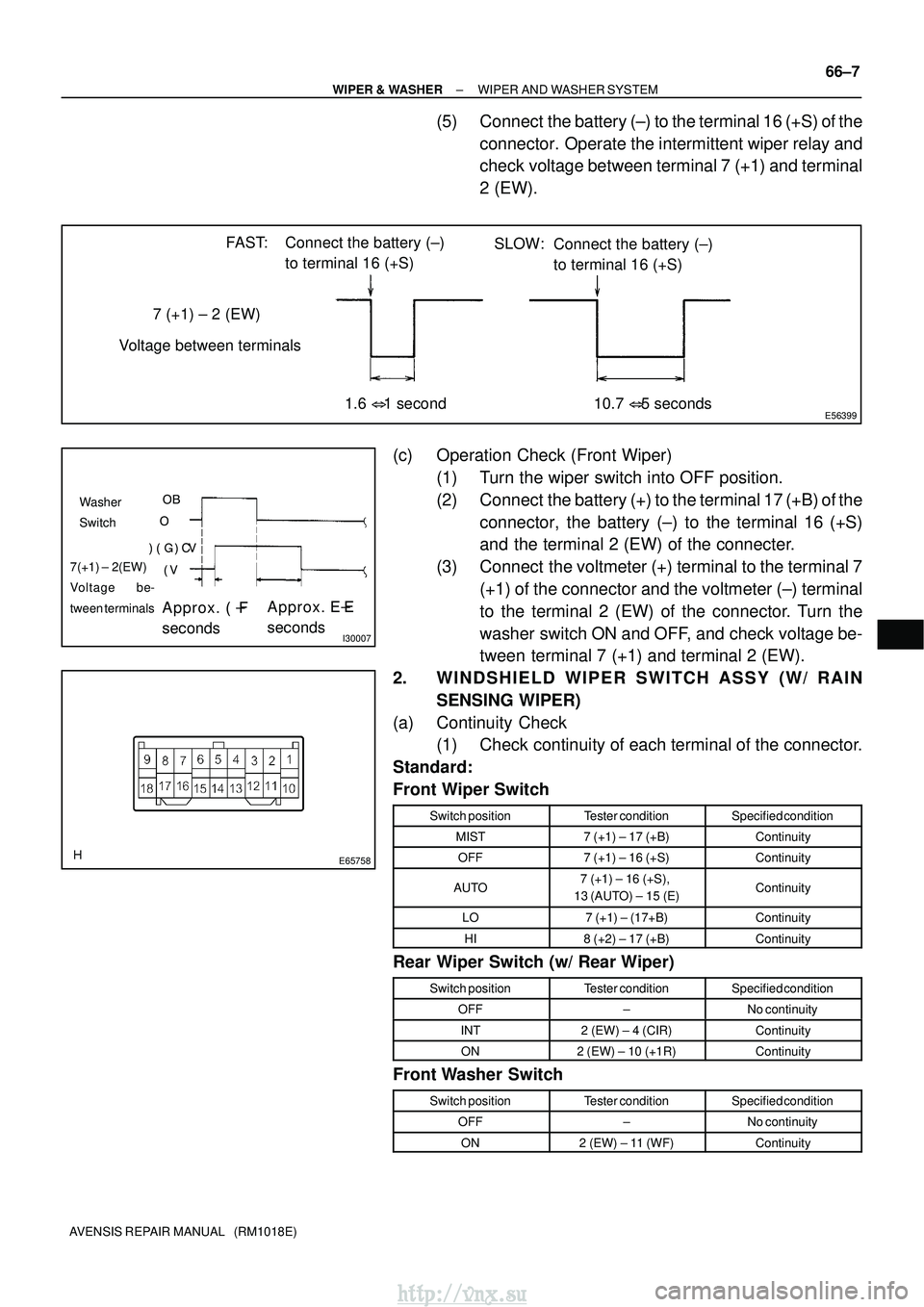

Page 1536 of 2234

E56399
7 (+1) ± 2 (EW)
Voltage between terminals
10.7 5 seconds
Connect the battery (±)
to terminal 16 (+S)
FAST:
1.6 1 second SLOW:
Connect the battery (±)
to terminal 16 (+S)
\b
I30007
Washer
Switch
7(+1) ± 2(EW)
Voltage be-
tween terminals
Approx.
\f onds Approx.
\f onds
E65758
±
WIPER & WASHER WIPER AND WASHER SYSTEM
66±7
AVENSIS REPAIR MANUAL (RM1018E)
(5) Connect the battery (±) to the terminal 16 (+S) of the
connector. Operate the intermittent wiper relay and
check voltage between terminal 7 (+1) and terminal
2 (EW).
(c) Operation Check (Front Wiper) (1) Turn the wiper switch into OFF position.
(2) Connect the battery (+) to the terminal 17 (+B) of theconnector, the battery (±) to the terminal 16 (+S)
and the terminal 2 (EW) of the connecter.
(3) Connect the voltmeter (+) terminal to the terminal 7 (+1) of the connector and the voltmeter (±) terminal
to the terminal 2 (EW) of the connector. Turn the
washer switch ON and OFF, and check voltage be-
tween terminal 7 (+1) and terminal 2 (EW).
2. WINDSHIELD WIPER SWITCH ASSY (W/ RAIN SENSING WIPER)
(a) Continuity Check (1) Check continuity of each terminal of the connector.
Standard:
Front Wiper Switch
Switch positionTester conditionSpecified condition
MIST7 (+1) ± 17 (+B)Continuity
OFF7 (+1) ± 16 (+S)Continuity
AUTO7 (+1) ± 16 (+S),
13 (AUTO) ± 15 (E)Continuity
LO7 (+1) ± (17+B)Continuity
HI8 (+2) ± 17 (+B)Continuity
Rear Wiper Switch (w/ Rear Wiper)
Switch positionTester conditionSpecified condition
OFF±No continuity
INT2 (EW) ± 4 (CIR)Continuity
ON2 (EW) ± 10 (+1R)Continuity
Front Washer Switch
Switch positionTester conditionSpecified condition
OFF±No continuity
ON2 (EW) ± 11 (WF)Continuity
