DRIVE SHAFT / PROPELLER SHAFT REAR AXLE CARRIER SUB±ASSY LH
30±31
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:
Replace the RH side by the same procedures as the LH side.

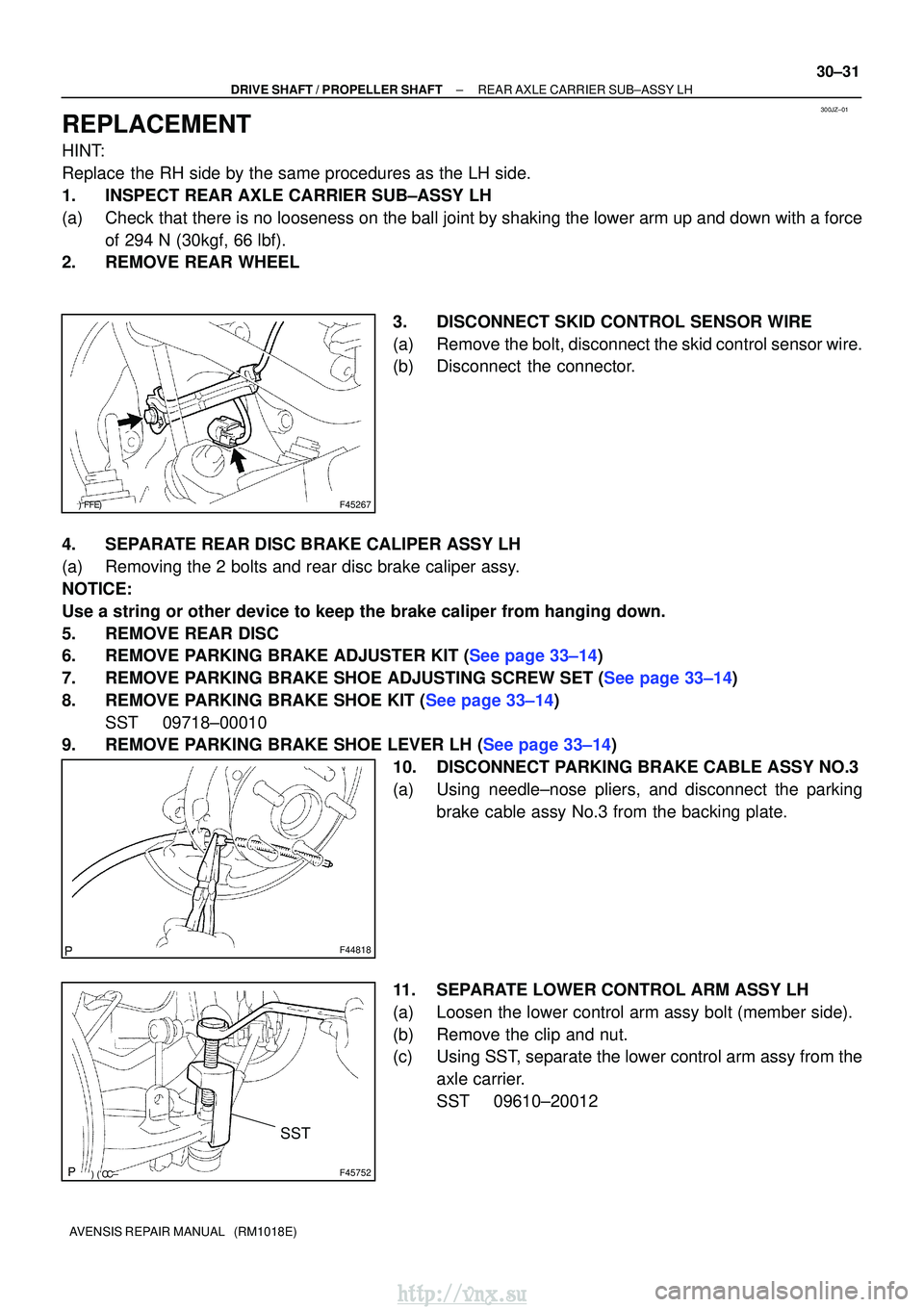

1. INSPECT REAR AXLE CARRIER SUB±ASSY LH
(a) Check that there is no looseness on the ball joint by shaking the lower arm up and down with a force
of 294 N (30kgf, 66 lbf).
2. REMOVE REAR WHEEL
3. DISCONNECT SKID CONTROL SENSOR WIRE
(a) Remove the bolt, disconnect the skid control sensor wire.
(b) Disconnect the connector.
4. SEPARATE REAR DISC BRAKE CALIPER ASSY LH
(a) Removing the 2 bolts and rear disc brake caliper assy.
NOTICE:
Use a string or other device to keep the brake caliper from hanging down\
.
5. REMOVE REAR DISC
6.REMOVE PARKING BRAKE ADJUSTER KIT (See page 33±14)
7.REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET (See page 33±14)
8.REMOVE PARKING BRAKE SHOE KIT (See page 33±14) SST 09718±00010
9.REMOVE PARKING BRAKE SHOE LEVER LH (See page 33±14)
10. DISCONNECT PARKING BRAKE CABLE ASSY NO.3
(a) Using needle±nose pliers, and disconnect the parkingbrake cable assy No.3 from the backing plate.
11. SEPARATE LOWER CONTROL ARM ASSY LH
(a) Loosen the lower control arm assy bolt (member side).
(b) Remove the clip and nut.
(c) Using SST, separate the lower control arm assy from the axle carrier.
SST 09610±20012
http://vnx.su
Page 1066 of 2234
F45753HoldTurn
SST
G21537
G21542
G20965
30±32
±
DRIVE SHAFT / PROPELLER SHAFT REAR AXLE CARRIER SUB±ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

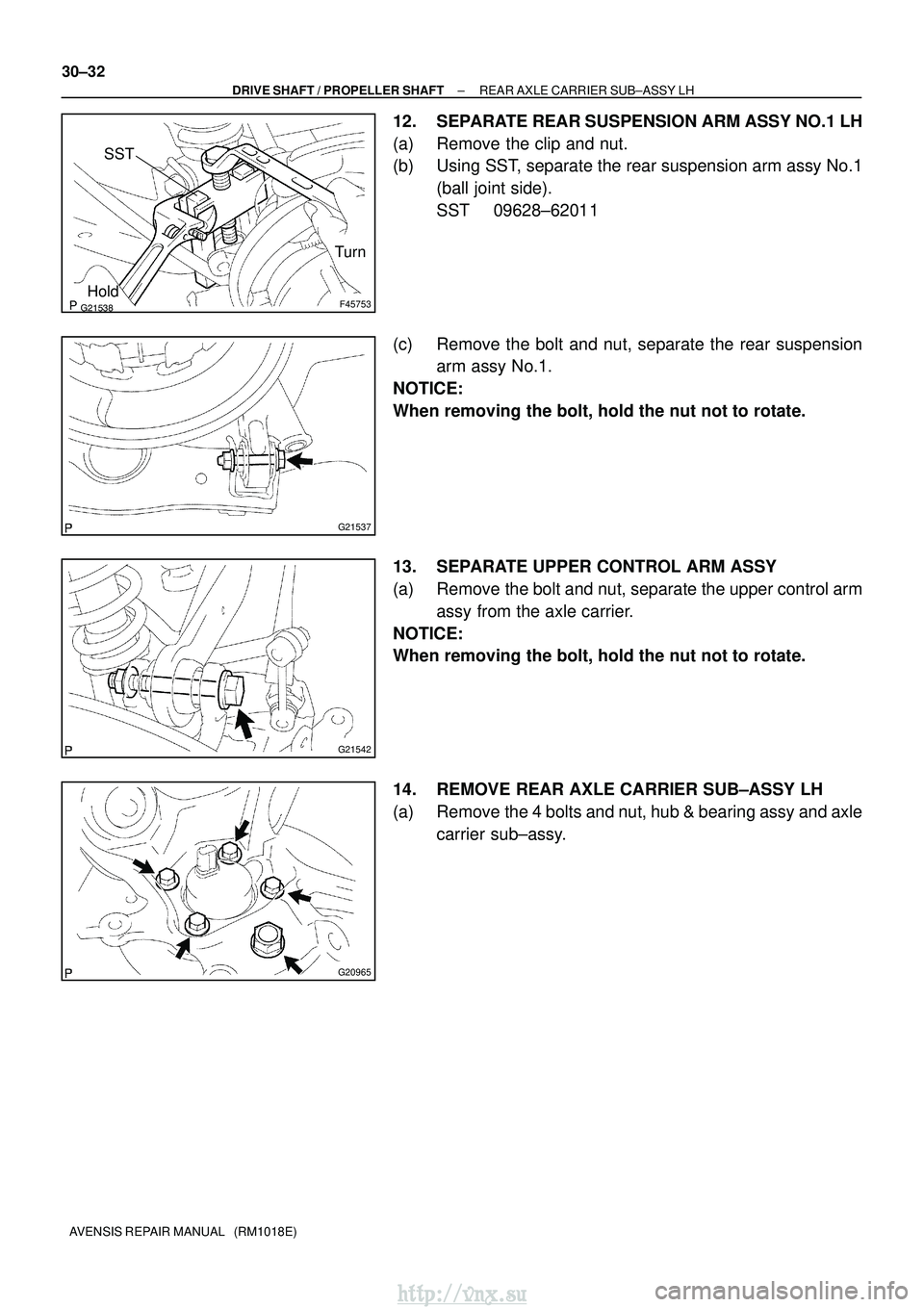

12. SEPARATE REAR SUSPENSION ARM ASSY NO.1 LH
(a) Remove the clip and nut.
(b) Using SST, separate the rear suspension arm assy No.1 (ball joint side).
SST 09628±62011
(c) Remove the bolt and nut, separate the rear suspension arm assy No.1.
NOTICE:
When removing the bolt, hold the nut not to rotate.
13. SEPARATE UPPER CONTROL ARM ASSY
(a) Remove the bolt and nut, separate the upper control arm assy from the axle carrier.
NOTICE:
When removing the bolt, hold the nut not to rotate.
14. REMOVE REAR AXLE CARRIER SUB±ASSY LH
(a) Remove the 4 bolts and nut, hub & bearing assy and axle carrier sub±assy.
http://vnx.su
Page 1067 of 2234

G21613
G20965
G21542
G21537
±
DRIVE SHAFT / PROPELLER SHAFT REAR AXLE CARRIER SUB±ASSY LH
30±33
AVENSIS REPAIR MANUAL (RM1018E)

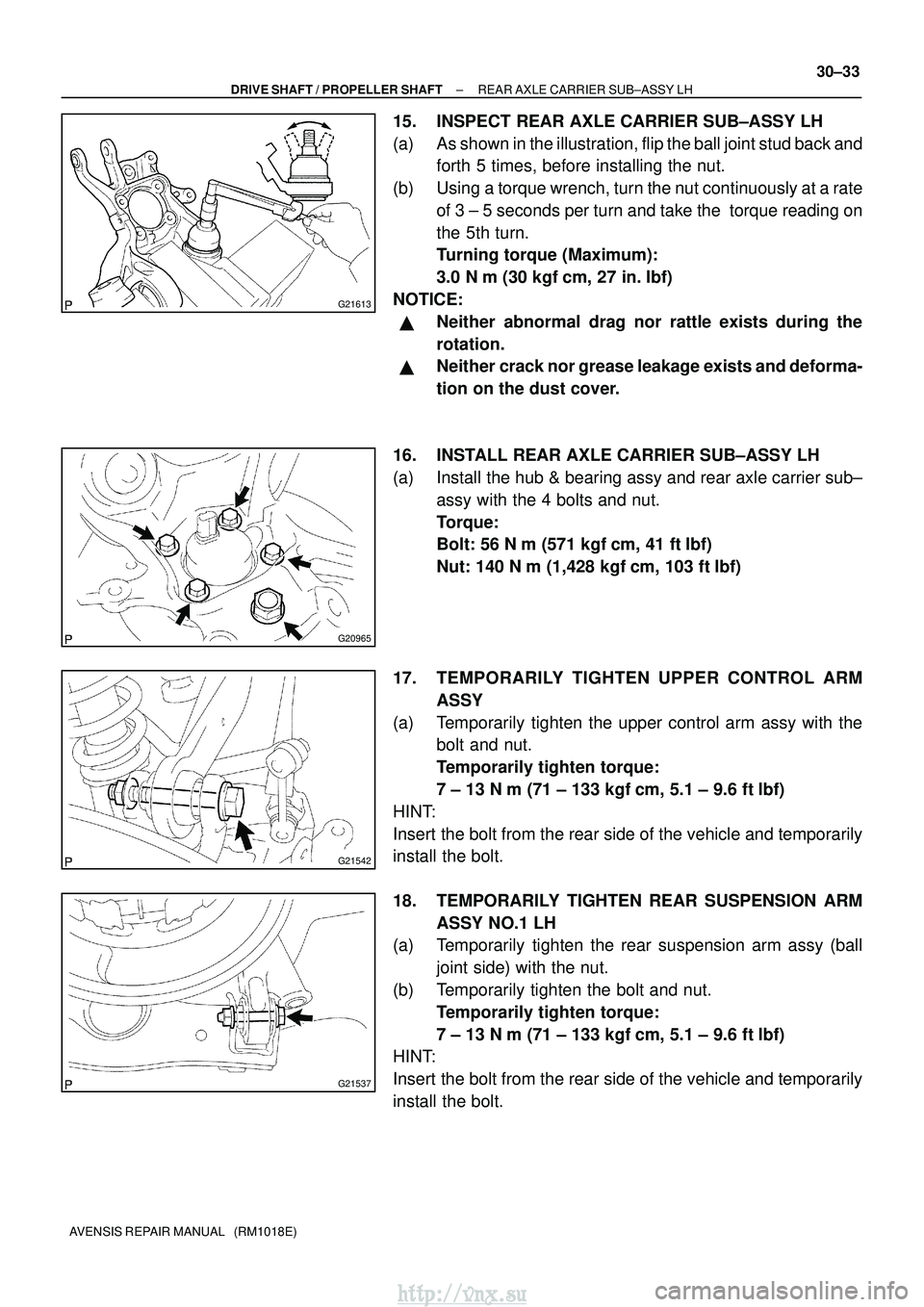

15. INSPECT REAR AXLE CARRIER SUB±ASSY LH
(a) As shown in the illustration, flip the ball joint stud back and
forth 5 times, before installing the nut.
(b) Using a torque wrench, turn the nut continuously at a rate of 3 ± 5 seconds per turn and take the torque reading on
the 5th turn.
Turning torque (Maximum):
3.0 N m (30 kgf cm, 27 in. lbf)
NOTICE:
Neither abnormal drag nor rattle exists during the
rotation.
Neither crack nor grease leakage exists and deforma-
tion on the dust cover.
16. INSTALL REAR AXLE CARRIER SUB±ASSY LH
(a) Install the hub & bearing assy and rear axle carrier sub± assy with the 4 bolts and nut.
Torque:
Bolt: 56 N m (571 kgf cm, 41 ftlbf)
Nut: 140 N m (1,428 kgf cm, 103 ft lbf)
17. TEMPORARILY TIGHTEN U PPER CONTROL ARM
ASSY
(a) Temporarily tighten the upper control arm assy with the bolt and nut.
Temporarily tighten torque:
7 ± 13 N m (71 ± 133 kgf cm, 5.1 ± 9.6 ftlbf)
HINT:
Insert the bolt from the rear side of the vehicle and temporarily
install the bolt.
18. TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSY NO.1 LH
(a) Temporarily tighten the rear suspension arm assy (ball
joint side) with the nut.
(b) Temporarily tighten the bolt and nut. Temporarily tighten torque:
7 ± 13 N m (71 ± 133 kgf cm, 5.1 ± 9.6 ftlbf)
HINT:
Insert the bolt from the rear side of the vehicle and temporarily
install the bolt.
http://vnx.su
Page 1068 of 2234

G21543
F44820
F45267
30±34
±
DRIVE SHAFT / PROPELLER SHAFTREAR AXLE CARRIER SUB±ASSY LH
AVENSIS REPAIR MANUAL (RM1018E)

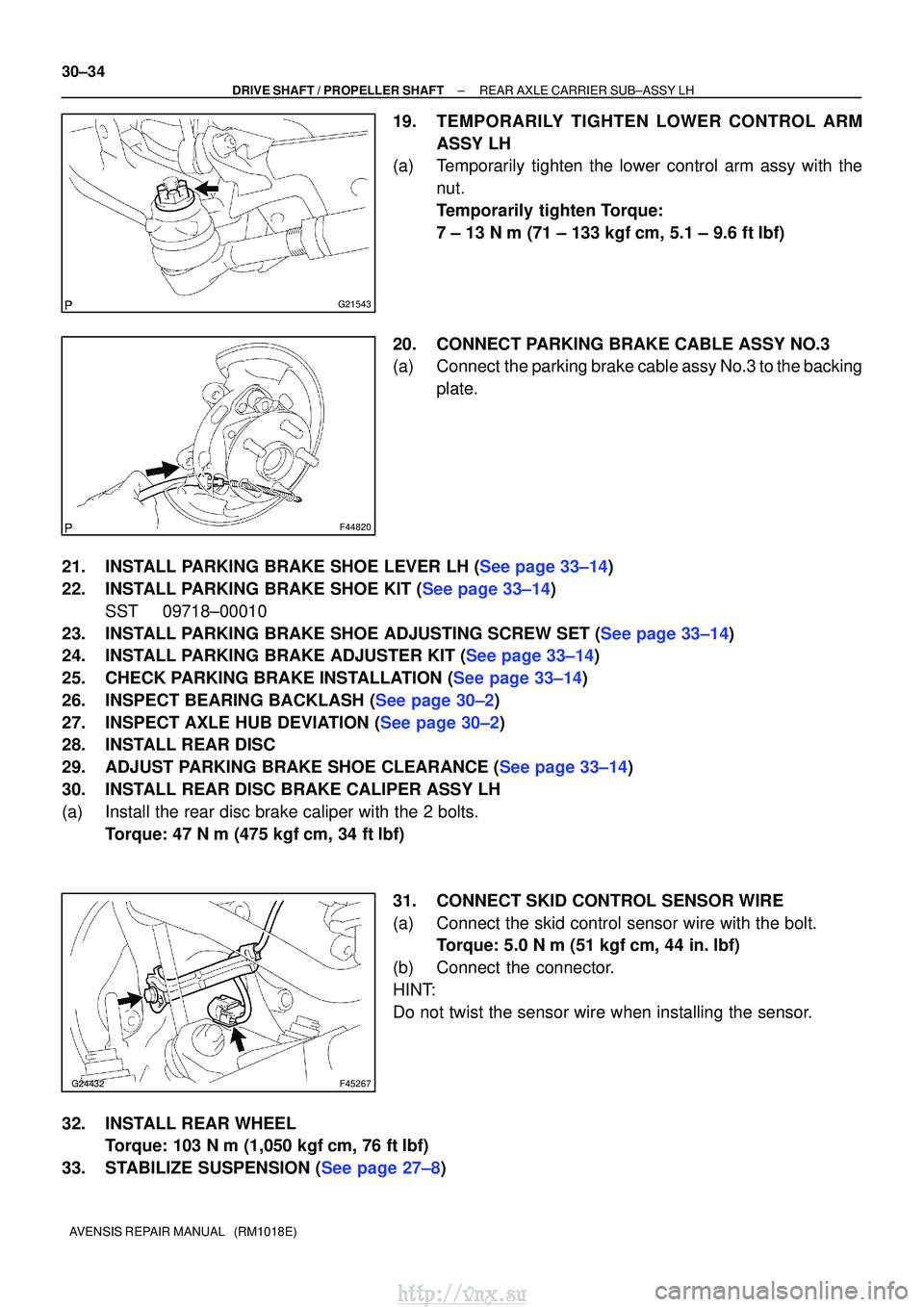

19.TEMPORARILY TIGHTEN LOWER CONTROL ARM ASSY LH
(a)Temporarily tighten the lower control arm assy with the
nut.
Temporarily tighten Torque:
7 ± 13 Nm (71 ± 133 kgf cm, 5.1 ± 9.6 ftlbf)
20.CONNECT PARKING BRAKE CABLE ASSY NO.3
(a)Connect the parking brake cable assy No.3 to the backing plate.
21.INSTALL PARKING BRAKE SHOE LEVER LH (See page 33±14)
22.INSTALL PARKING BRAKE SHOE KIT (See page 33±14) SST 09718±00010
23.INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET (See page 33±14)
24.INSTALL PARKING BRAKE ADJUSTER KIT (See page 33±14)
25.CHECK PARKING BRAKE INSTALLATION (See page 33±14)
26.INSPECT BEARING BACKLASH (See page 30±2)
27.INSPECT AXLE HUB DEVIATION (See page 30±2)
28. INSTALL REAR DISC
29.ADJUST PARKING BRAKE SHOE CLEARANCE (See page 33±14)
30. INSTALL REAR DISC BRAKE CALIPER ASSY LH
(a) Install the rear disc brake caliper with the 2 bolts. Torque: 47 N m (475 kgf cm, 34 ftlbf)
31. CONNECT SKID CONTROL SENSOR WIRE
(a) Connect the skid control sensor wire with the bolt. Torque: 5.0 N m (51 kgf cm, 44 in. lbf)
(b) Connect the connector.
HINT:
Do not twist the sensor wire when installing the sensor.
32. INSTALL REAR WHEEL Torque: 103 N m (1,050 kgfcm, 76 ft lbf)
33.STABILIZE SUSPENSION (See page 27±8)
http://vnx.su
Page 1069 of 2234

±
DRIVE SHAFT / PROPELLER SHAFT REAR AXLE CARRIER SUB±ASSY LH
30±35
AVENSIS REPAIR MANUAL (RM1018E)
34. FULLY TIGHTEN UPPER CONTROL ARM ASSY
(a) Fully tighten the bolt.
Torque: 74 N m (755 kgf cm, 55 ftlbf)
NOTICE:
When installing the bolt, hold the nut not to rotate.
35. FULLY TIGHTEN REAR SUSPENSION ARM ASSY NO.1 LH
(a) Fully tighten the nut (ball joint side). Torque: 105 N m (1,071 kgfcm, 77 ft lbf)
(b) Install the clip.
NOTICE:
If the holes for the clip are not aligned, tighten the nut up to 60 further.
(c) Fully tighten the bolt and nut.
Torque: 74 N m (755 kgf cm, 55 ftlbf)
NOTICE:
When installing the bolt, hold the nut not to rotate.
36. FULLY TIGHTEN LOWER CONTROL ARM ASSY LH
(a) Fully tighten the nut. Torque: 60 N m (612 kgf cm, 44 ftlbf)
(b) Install the clip.
NOTICE:
If the holes for the clip are not aligned, tighten the nut up to 60 further.
(c) Fully tighten the bolt (member side). Torque: 105 N m (1,071 kgfcm, 77 ft lbf)
NOTICE:
When installing the bolt, hold the nut not to rotate.
37.INSPECT AND ADJUST PARKING BRAKE LEVER TRAVEL (See page 33±2)
38.INSPECT AND ADJUST REAR WHEEL ALIGNMENT (See page 27±4)
39. CHECK ABS SPEED SENSOR SIGNAL
(a)ABD WITH EBD SYSTEM (See page 05±699)
(b)ABD WITH EBD & BA & TRC & VSC SYSTEM ( See page 05±756)
http://vnx.su
Page 1070 of 2234

300K0±01
F45577
Hold
Turn
SST
F45578
Hold
Turn
Nut
Washer
30±36
±
DRIVE SHAFT / PROPELLER SHAFT REAR AXLE LH HUB BOLT
AVENSIS REPAIR MANUAL (RM1018E)

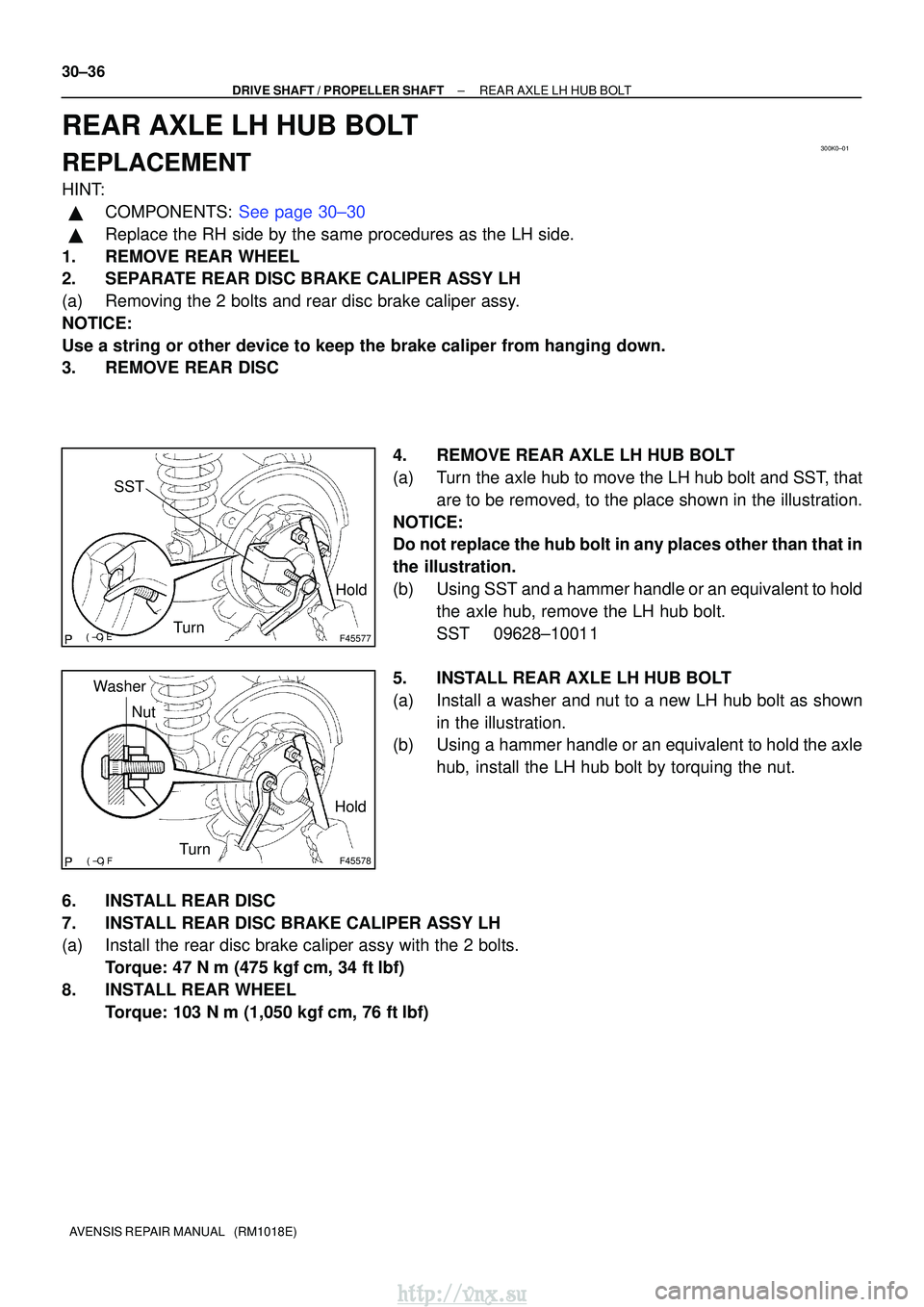

REAR AXLE LH HUB BOLT
REPLACEMENT
HINT:
COMPONENTS: See page 30±30
Replace the RH side by the same procedures as the LH side.
1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSY LH
(a) Removing the 2 bolts and rear disc brake caliper assy.
NOTICE:
Use a string or other device to keep the brake caliper from hanging down\
.
3. REMOVE REAR DISC
4. REMOVE REAR AXLE LH HUB BOLT
(a) Turn the axle hub to move the LH hub bolt and SST, thatare to be removed, to the place shown in the illustration.
NOTICE:
Do not replace the hub bolt in any places other than that in
the illustration.
(b) Using SST and a hammer handle or an equivalent to hold the axle hub, remove the LH hub bolt.
SST 09628±10011
5. INSTALL REAR AXLE LH HUB BOLT
(a) Install a washer and nut to a new LH hub bolt as shown in the illustration.
(b) Using a hammer handle or an equivalent to hold the axle
hub, install the LH hub bolt by torquing the nut.
6. INSTALL REAR DISC
7. INSTALL REAR DISC BRAKE CALIPER ASSY LH
(a) Install the rear disc brake caliper assy with the 2 bolts. Torque: 47 N m (475 kgf cm, 34 ftlbf)
8. INSTALL REAR WHEEL Torque: 103 N m (1,050 kgfcm, 76 ft lbf)
http://vnx.su
Page 1071 of 2234

320VW±01
F45949
32±56
±
BRAKE BRAKE ACTUATOR ASSY (W/ VSC)
AVENSIS REPAIR MANUAL (RM1018E)

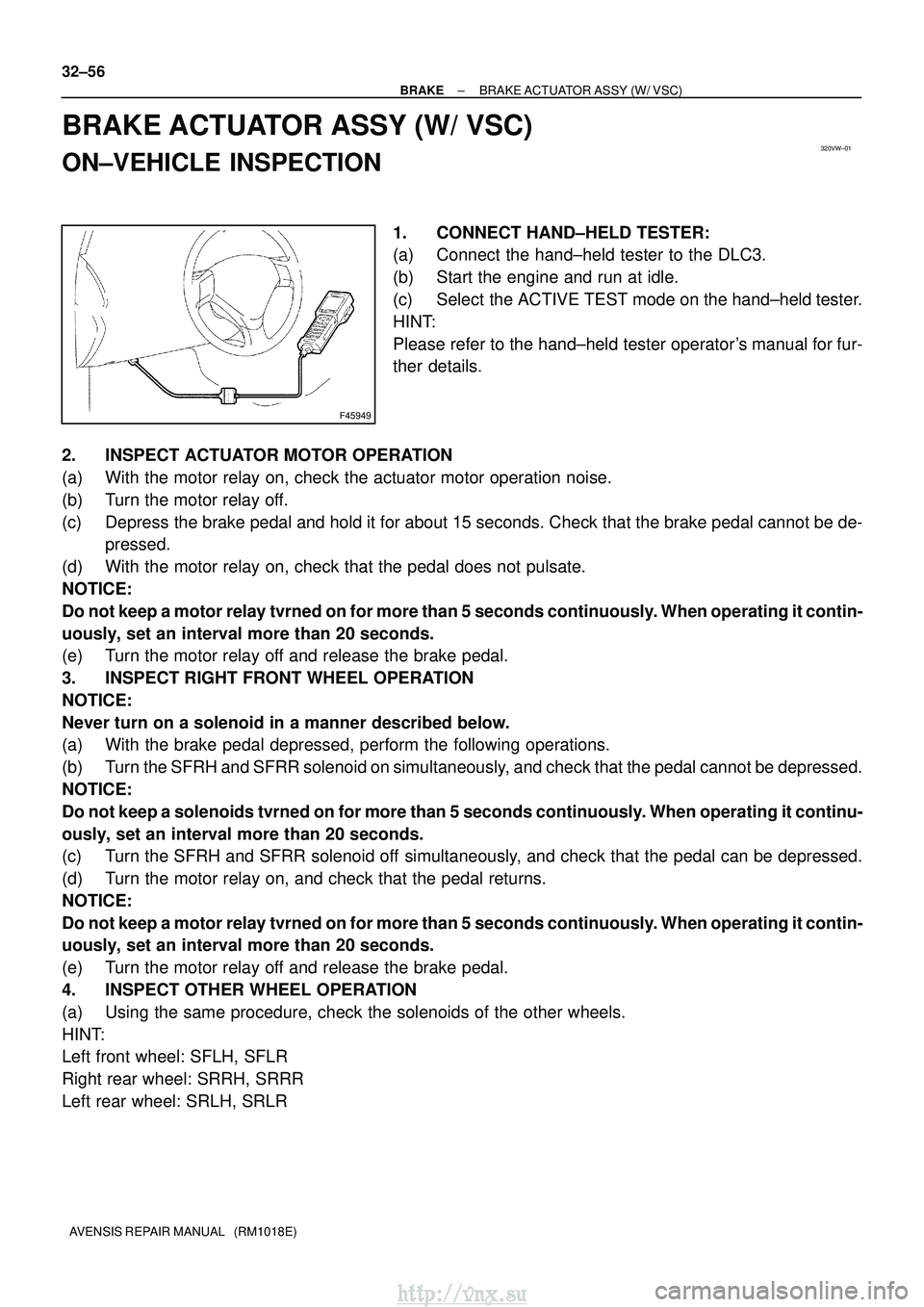

BRAKE ACTUATOR ASSY (W/ VSC)
ON±VEHICLE INSPECTION
1. CONNECT HAND±HELD TESTER:
(a) Connect the hand±held tester to the DLC3.
(b) Start the engine and run at idle.
(c) Select the ACTIVE TEST mode on the hand±held tester.
HINT:
Please refer to the hand±held tester operator's manual for fur-
ther details.
2. INSPECT ACTUATOR MOTOR OPERATION
(a) With the motor relay on, check the actuator motor operation noise.
(b) Turn the motor relay off.
(c) Depress the brake pedal and hold it for about 15 seconds. Check that the brake \
pedal cannot be de- pressed.
(d) With the motor relay on, check that the pedal does not pulsate.
NOTICE:
Do not keep a motor relay tvrned on for more than 5 seconds continuously\
. When operating it contin-
uously, set an interval more than 20 seconds.
(e) Turn the motor relay off and release the brake pedal.
3. INSPECT RIGHT FRONT WHEEL OPERATION
NOTICE:
Never turn on a solenoid in a manner described below.
(a) With the brake pedal depressed, perform the following operations.
(b) Turn the SFRH and SFRR solenoid on simultaneously, and check that the pedal cannot be depressed.
NOTICE:
Do not keep a solenoids tvrned on for more than 5 seconds continuously. When operating it continu-
ously, set an interval more than 20 seconds.
(c) Turn the SFRH and SFRR solenoid off simultaneously, and check that the pedal can be depressed.
(d) Turn the motor relay on, and check that the pedal returns.
NOTICE:
Do not keep a motor relay tvrned on for more than 5 seconds continuously\
. When operating it contin-
uously, set an interval more than 20 seconds.
(e) Turn the motor relay off and release the brake pedal.
4. INSPECT OTHER WHEEL OPERATION
(a) Using the same procedure, check the solenoids of the other wheels.
HINT:
Left front wheel: SFLH, SFLR
Right rear wheel: SRRH, SRRR
Left rear wheel: SRLH, SRLR
http://vnx.su
Page 1072 of 2234

320VY±01
F45949
±
BRAKE BRAKE ACTUATOR ASSY (W/O VSC)
32±53
AVENSIS REPAIR MANUAL (RM1018E)

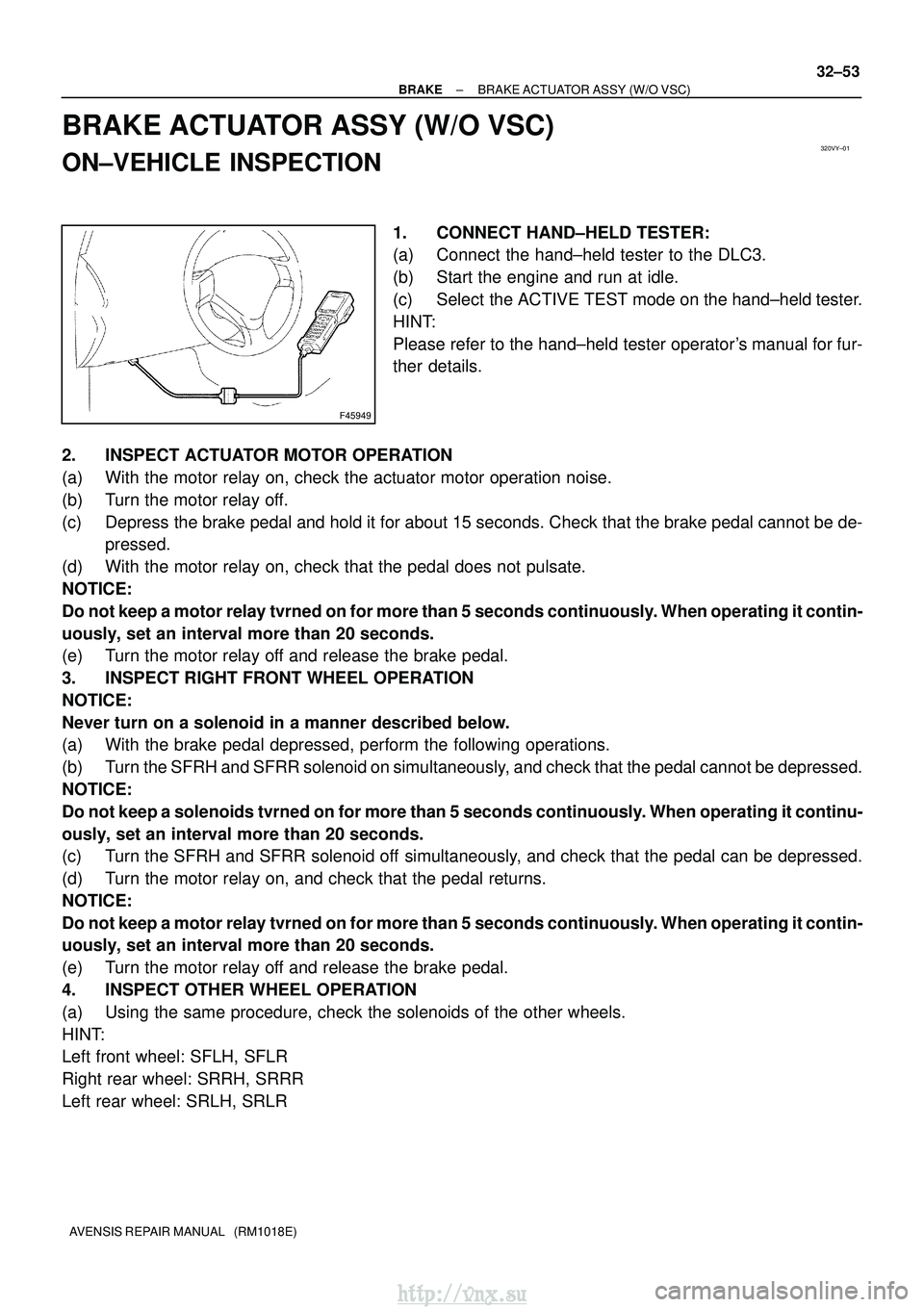

BRAKE ACTUATOR ASSY (W/O VSC)
ON±VEHICLE INSPECTION
1. CONNECT HAND±HELD TESTER:
(a) Connect the hand±held tester to the DLC3.
(b) Start the engine and run at idle.
(c) Select the ACTIVE TEST mode on the hand±held tester.
HINT:
Please refer to the hand±held tester operator's manual for fur-
ther details.
2. INSPECT ACTUATOR MOTOR OPERATION
(a) With the motor relay on, check the actuator motor operation noise.
(b) Turn the motor relay off.
(c) Depress the brake pedal and hold it for about 15 seconds. Check that the brake \
pedal cannot be de- pressed.
(d) With the motor relay on, check that the pedal does not pulsate.
NOTICE:
Do not keep a motor relay tvrned on for more than 5 seconds continuously\
. When operating it contin-
uously, set an interval more than 20 seconds.
(e) Turn the motor relay off and release the brake pedal.
3. INSPECT RIGHT FRONT WHEEL OPERATION
NOTICE:
Never turn on a solenoid in a manner described below.
(a) With the brake pedal depressed, perform the following operations.
(b) Turn the SFRH and SFRR solenoid on simultaneously, and check that the pedal cannot be depressed.
NOTICE:
Do not keep a solenoids tvrned on for more than 5 seconds continuously. When operating it continu-
ously, set an interval more than 20 seconds.
(c) Turn the SFRH and SFRR solenoid off simultaneously, and check that the pedal can be depressed.
(d) Turn the motor relay on, and check that the pedal returns.
NOTICE:
Do not keep a motor relay tvrned on for more than 5 seconds continuously\
. When operating it contin-
uously, set an interval more than 20 seconds.
(e) Turn the motor relay off and release the brake pedal.
4. INSPECT OTHER WHEEL OPERATION
(a) Using the same procedure, check the solenoids of the other wheels.
HINT:
Left front wheel: SFLH, SFLR
Right rear wheel: SRRH, SRRR
Left rear wheel: SRLH, SRLR
http://vnx.su
