Page 17 of 2234

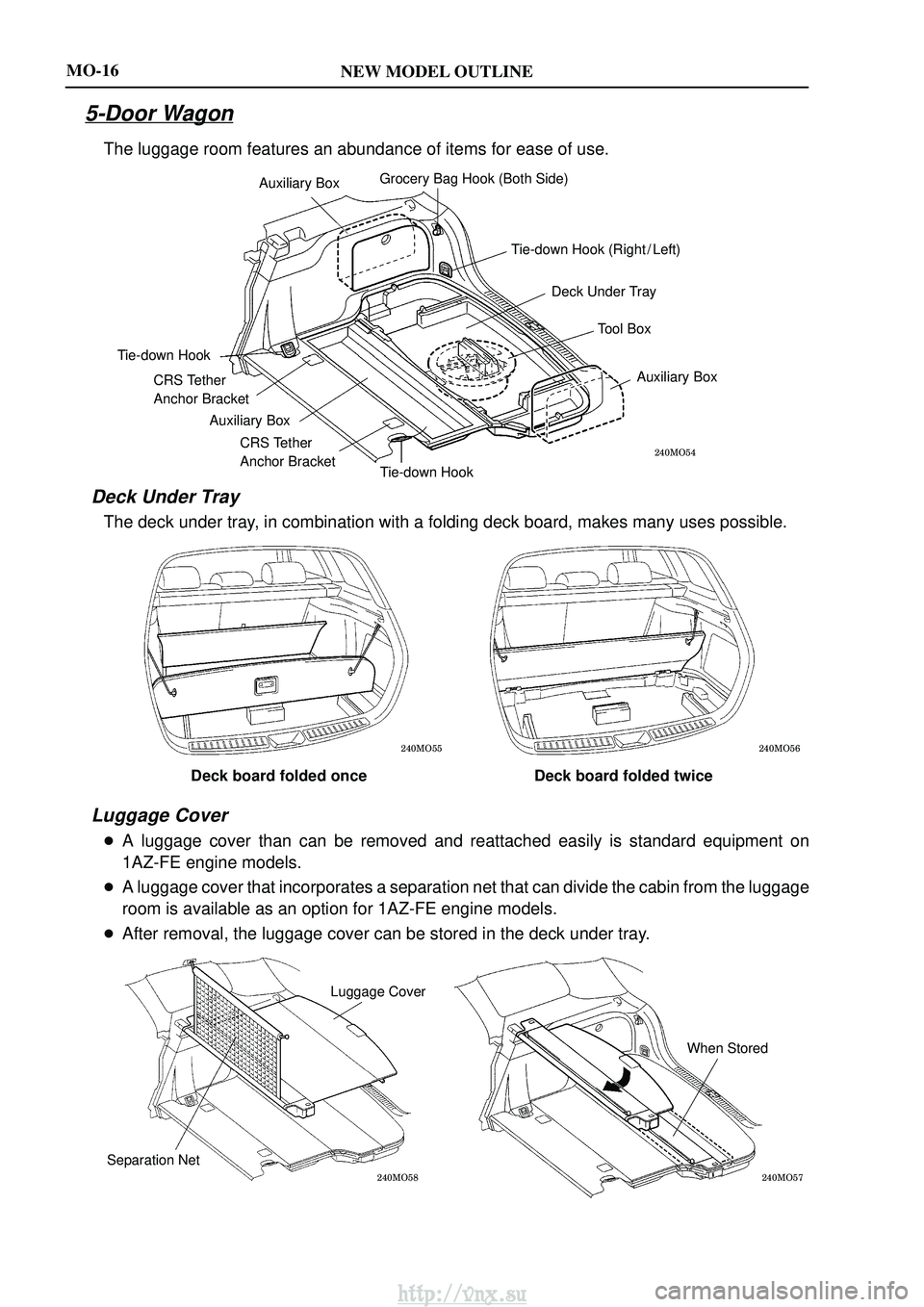

$TOYOTA AVENSIS 2003 Service Repair Manual NEW MODEL OUTLINE \b Auxiliary BoxGrocery Bag Hook (Both Side) Tie-down Hook Auxiliary Box Tie-down Hook Auxiliary Box Tool Box Deck Under Tray Tie-down Hook (Right / Left) CRS Tether Anchor Br$

Page 18 of 2234

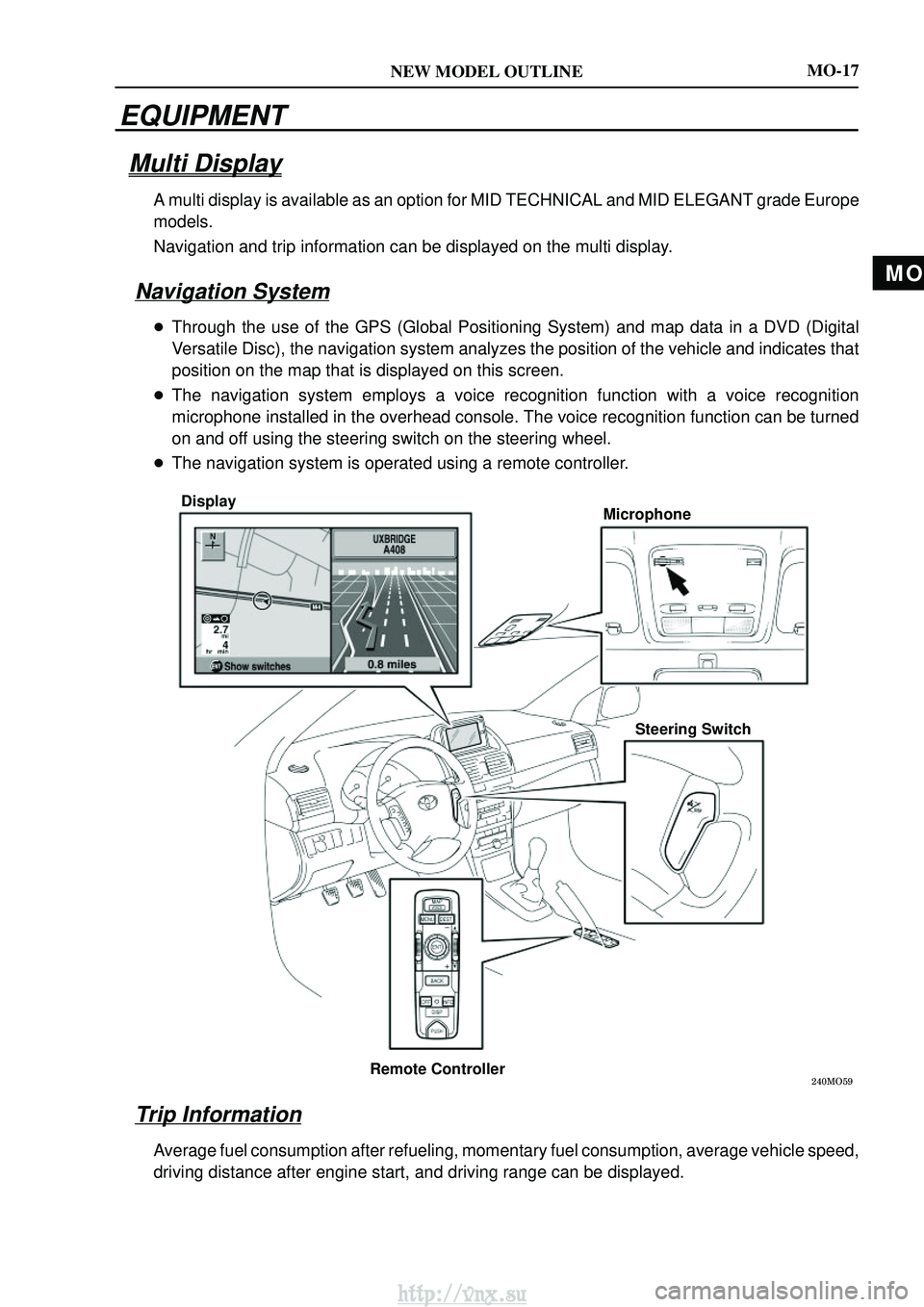

$TOYOTA AVENSIS 2003 Service Repair Manual MO NEW MODEL OUTLINE DisplayMicrophone Steering Switch Remote Controller MO-17 EQUIPMENT Multi Display A multi display is available as an option for MID TECHNICAL and MID ELEG\ ANT grade Europ$

Page 19 of 2234

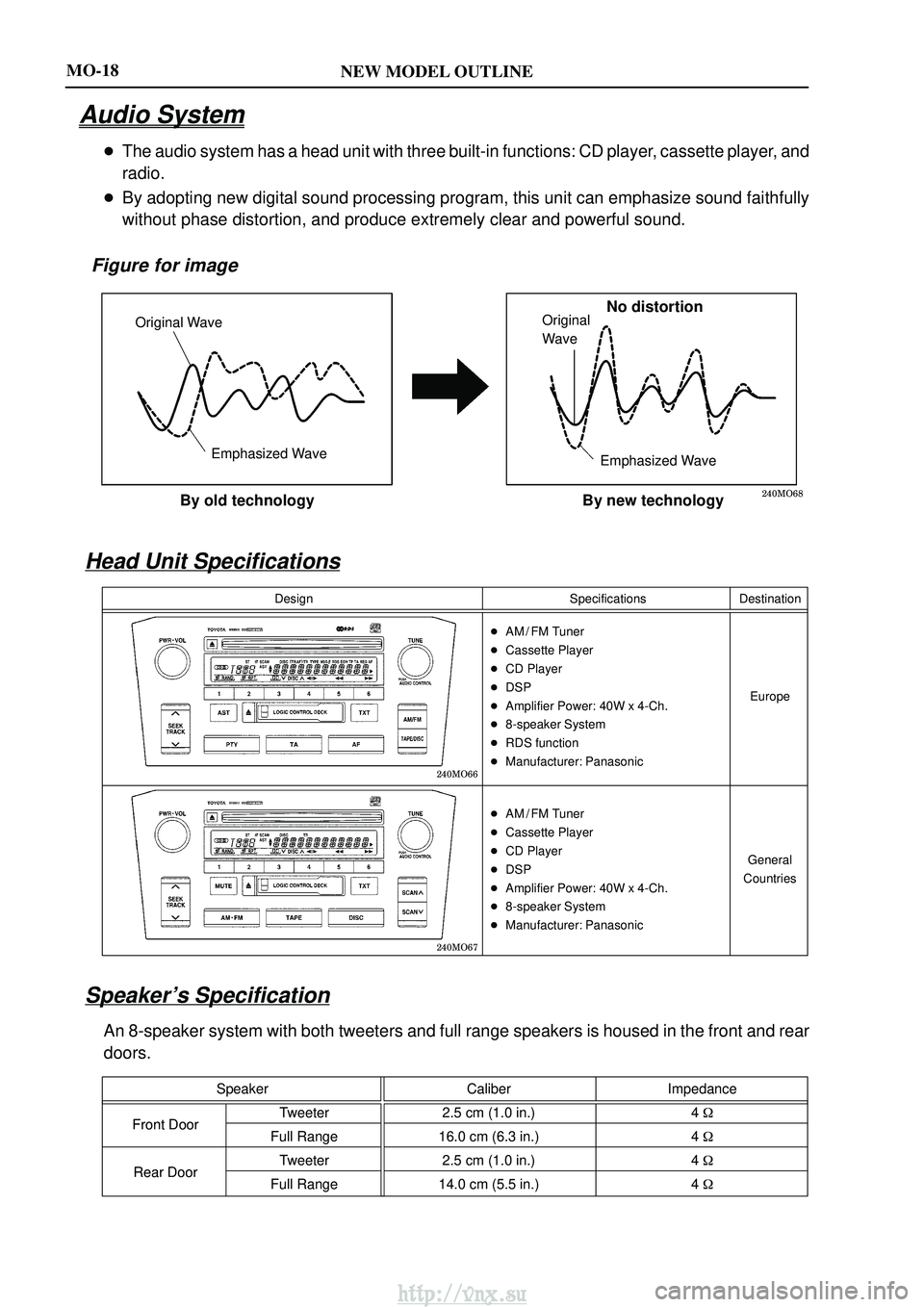

$TOYOTA AVENSIS 2003 Service Repair Manual NEW MODEL OUTLINE \b Original WaveEmphasized Wave By old technology No distortion Original Wave Emphasized Wave By new technology MO-18 Audio System The audio system has a head unit with three$

Page 20 of 2234

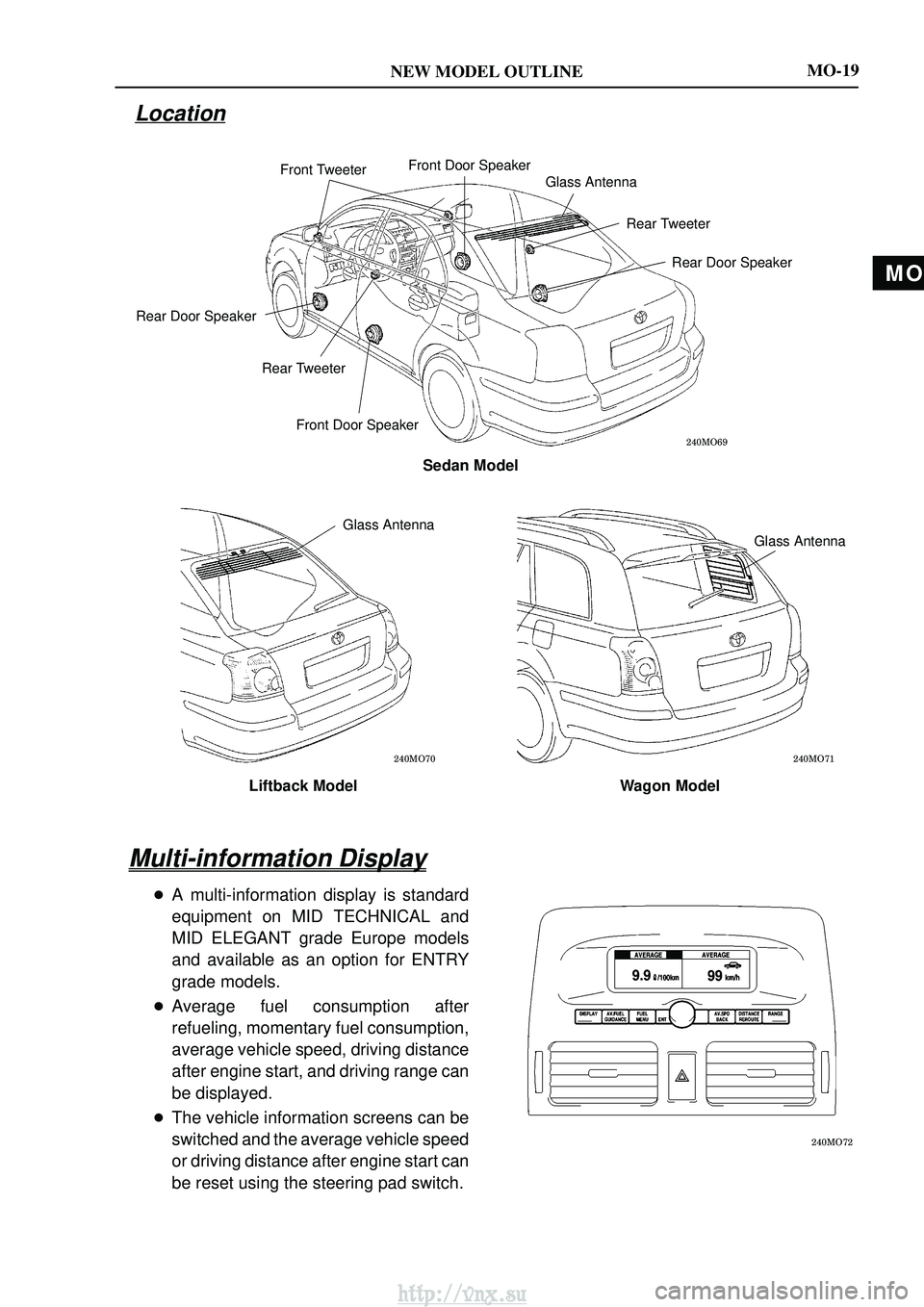

$TOYOTA AVENSIS 2003 Service Repair Manual MO NEW MODEL OUTLINE \b \b \b Front TweeterFront Door Speaker Glass Antenna Rear TweeterRear Door Speaker Front Door Speaker Rear Tweeter Rear Door Speaker Sedan Model Glass Antenna$

Page 21 of 2234

Page 22 of 2234

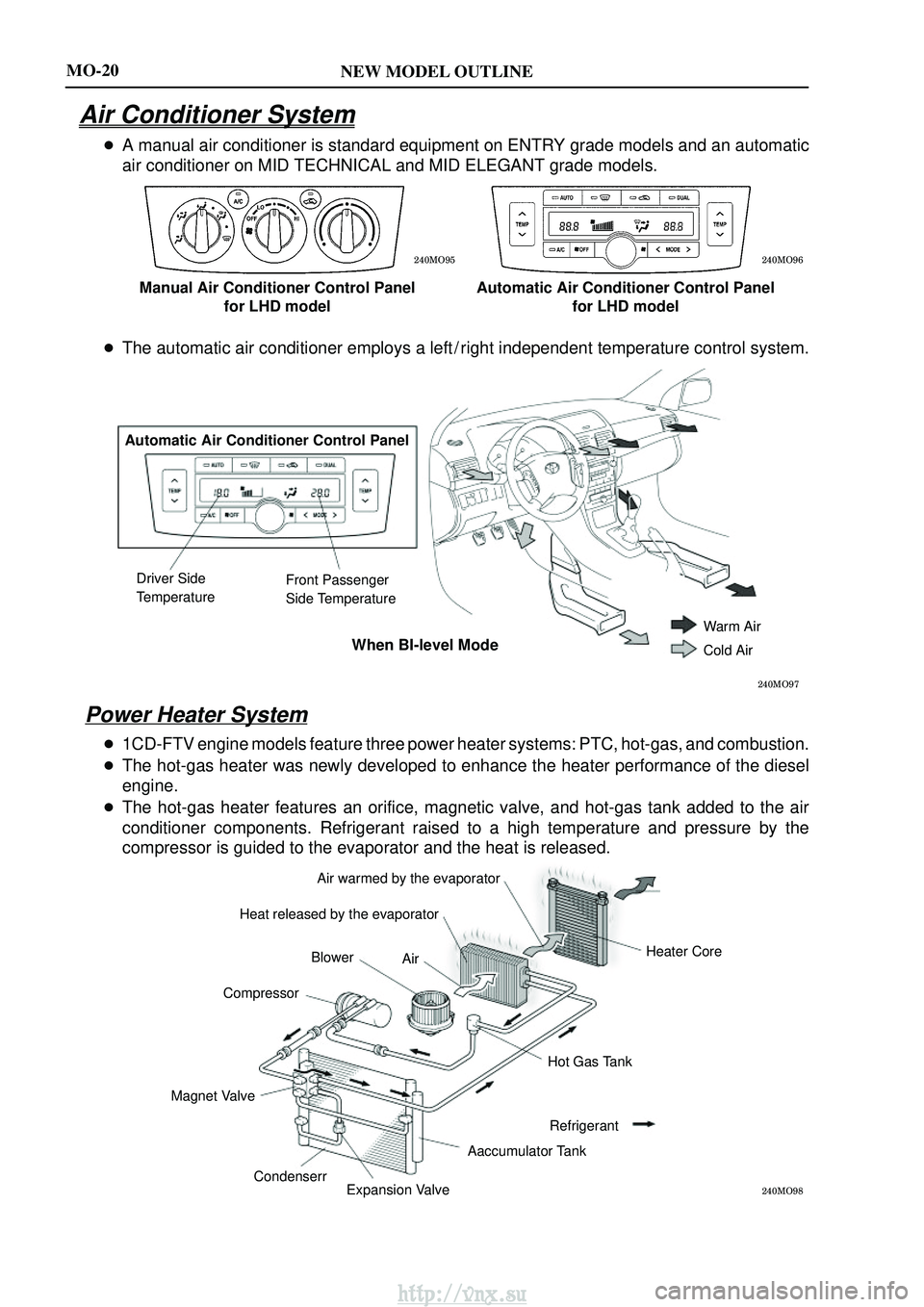

$TOYOTA AVENSIS 2003 Service Repair Manual NEW MODEL OUTLINE \b \b Manual Air Conditioner Control Panel for LHD model Automatic Air Conditioner Control Panel for LHD model \b Automatic Air Conditioner Control Panel Driver Sid$

Page 23 of 2234

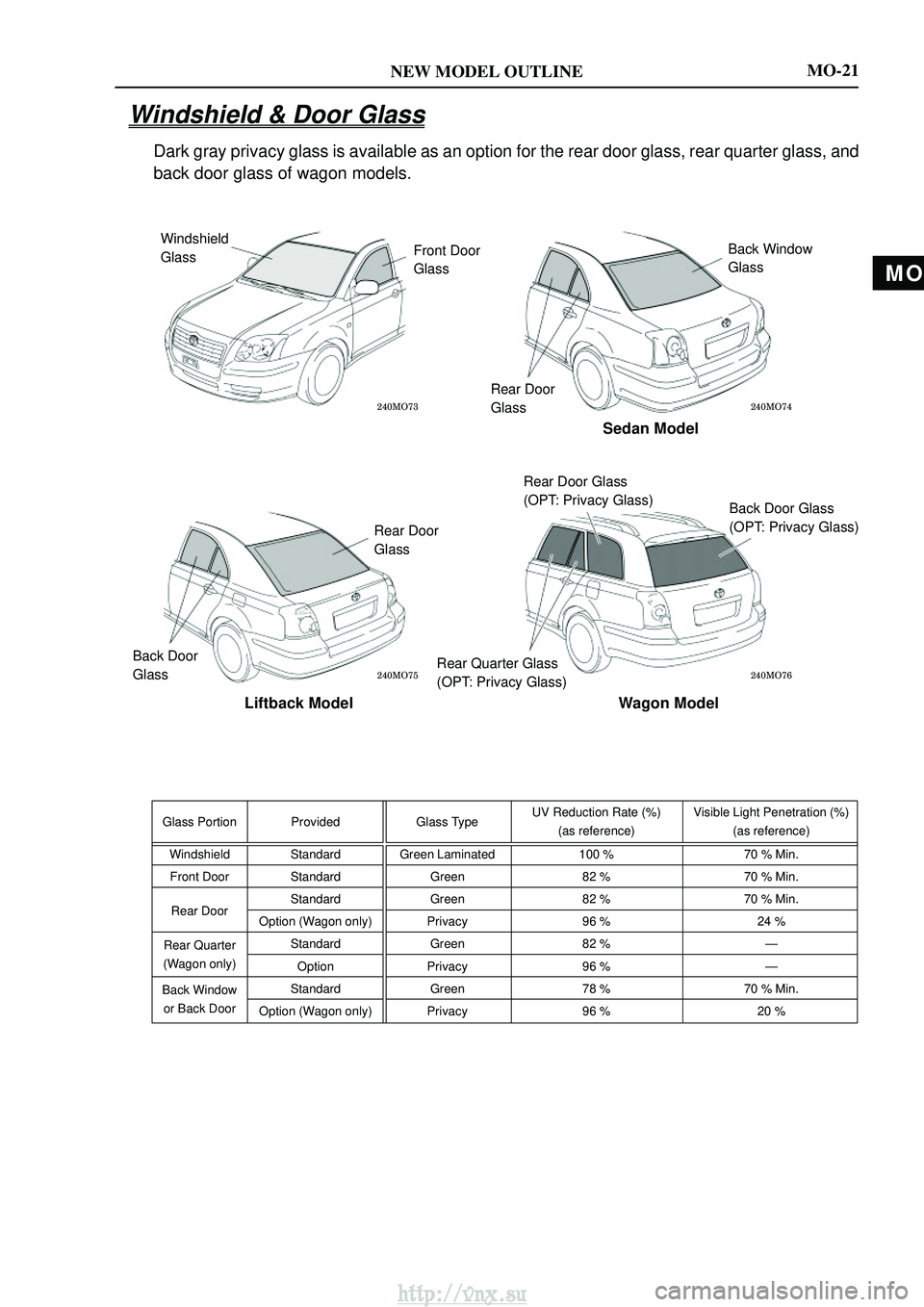

$TOYOTA AVENSIS 2003 Service Repair Manual MO NEW MODEL OUTLINE \b \b \b \b Windshield Glass Front Door Glass Back Window Glass Rear Door Glass Sedan Model Rear Door Glass Back Door Glass Liftback Model Rear Quarter Gla$

Page 24 of 2234

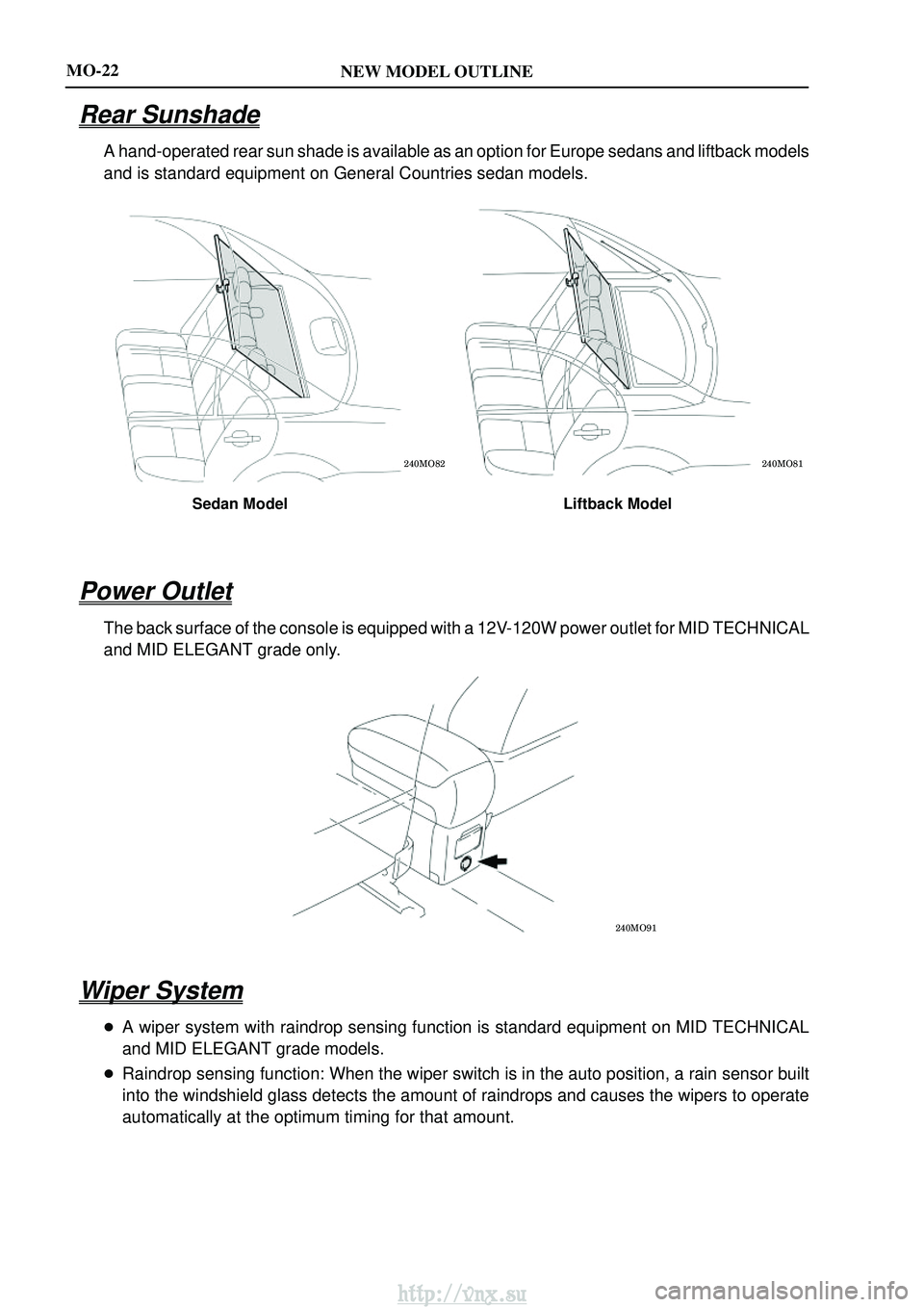

$TOYOTA AVENSIS 2003 Service Repair Manual NEW MODEL OUTLINE \b \b Sedan Model Liftback Model \b MO-22 Rear Sunshade A hand-operated rear sun shade is available as an option for Europe sedans and liftback \ models and is stan$
