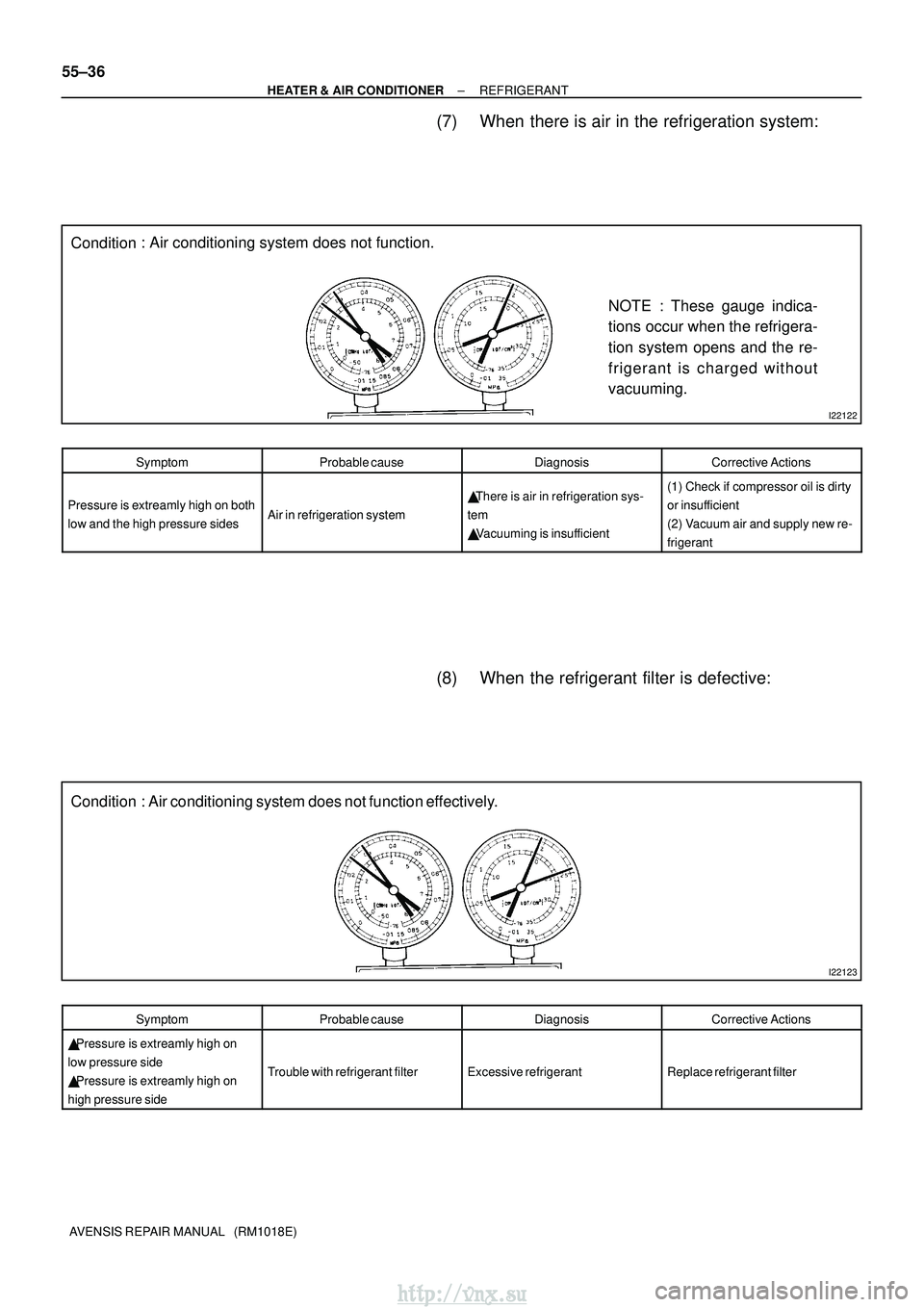

Page 1337 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual I22122 ConditionNOTE : These gauge indica- tions occur when the refrigera- tion system opens and the re- frigerant is charged without vacuuming. : Air conditioning system does not function. I22123 Con

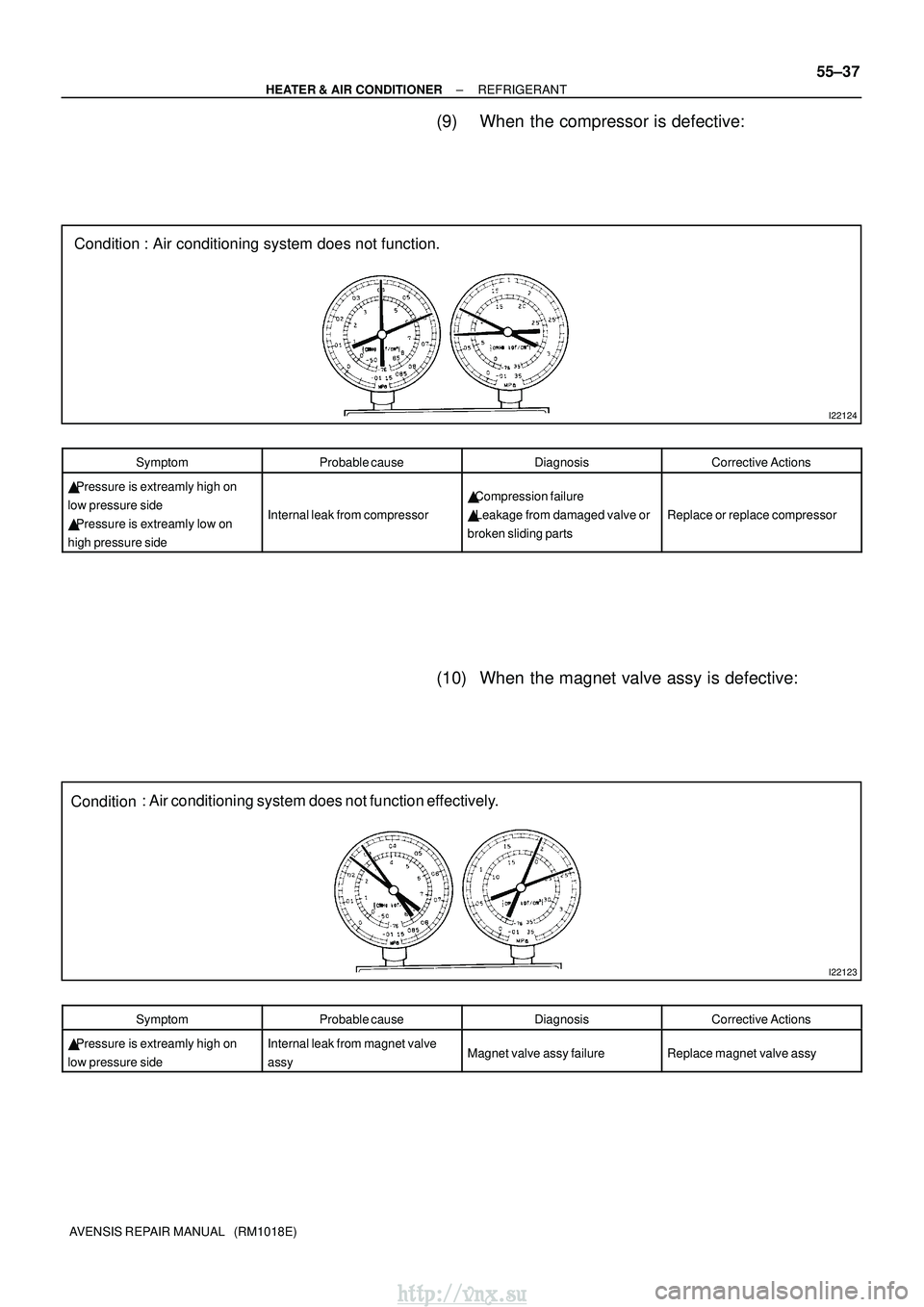

Page 1338 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual I22124 Condition : Air conditioning system does not function. I22123 Condition: Air conditioning system does not function effectively. ± HEATER & AIR CONDITIONER REFRIGERANT 55±37 AVENSIS REPAIR MAN

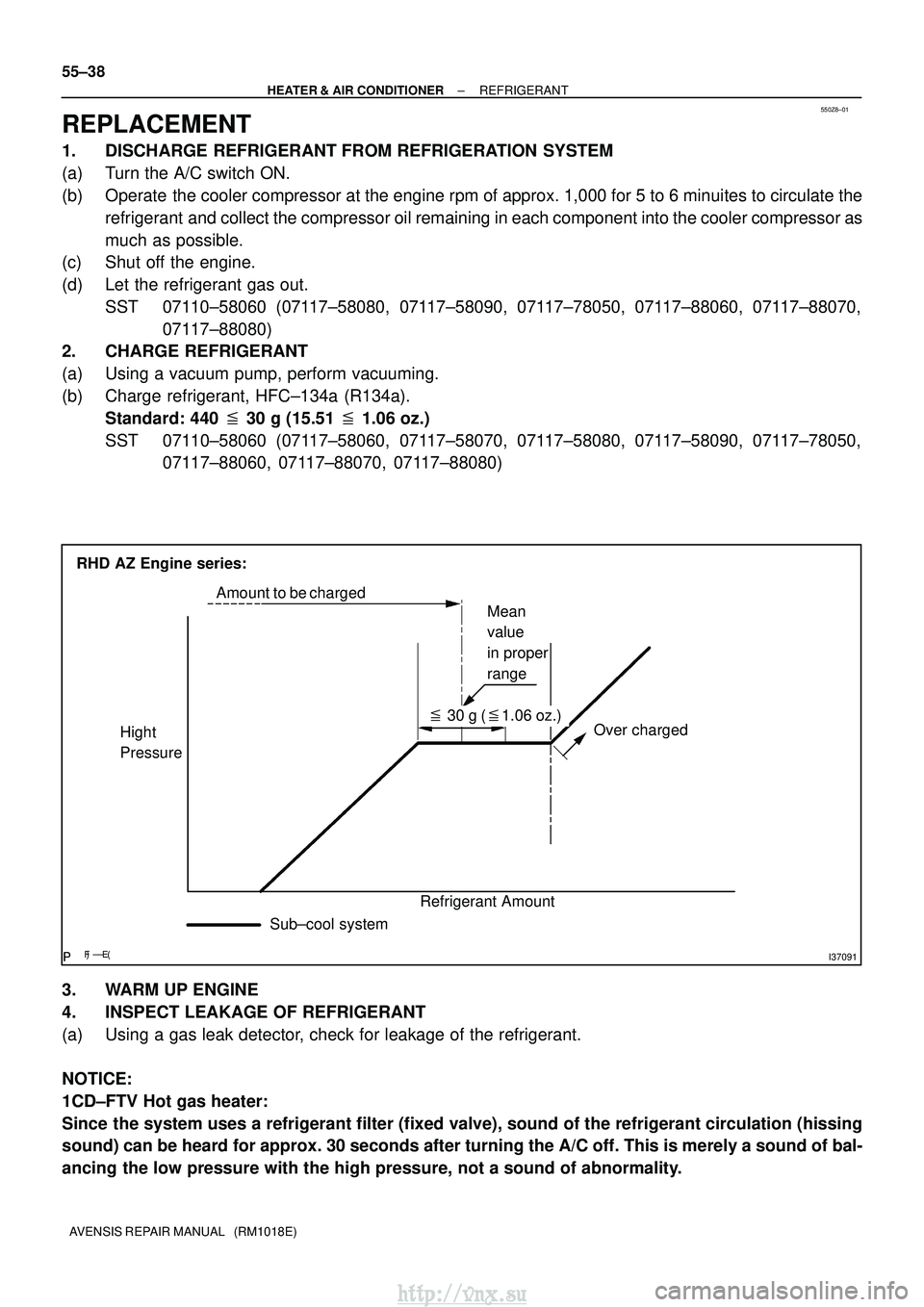

Page 1339 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 550Z8±01 I37091 Over charged Mean value in proper range Hight Pressure Refrigerant Amount 30 g ( 1.06 oz.) Amount to be charged Sub±cool system RHD AZ Engine series: 55±38 ± HEATER & AIR C

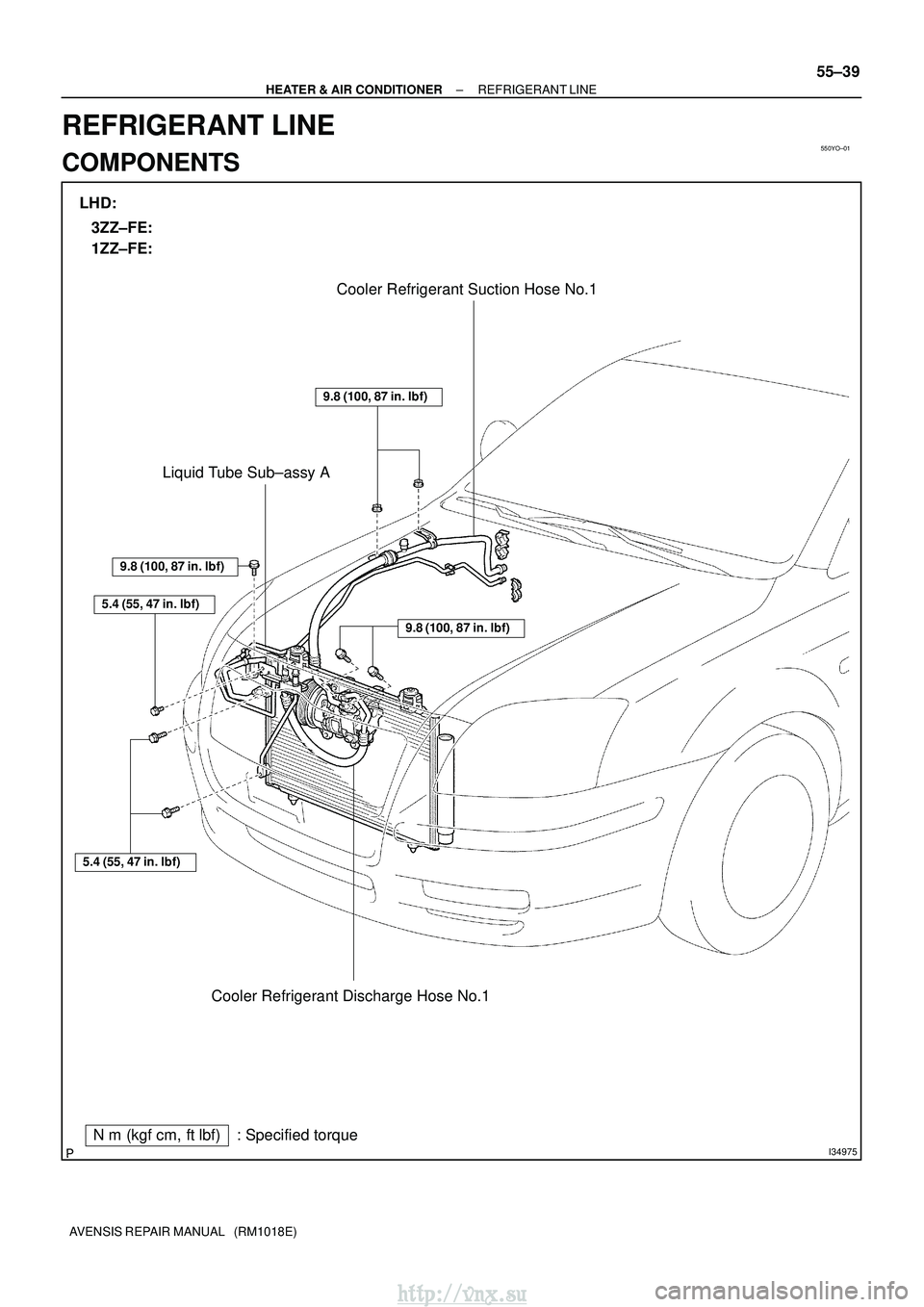

Page 1340 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 550YO±01 I34975Nm (kgf cm, ftlbf) : Specified torque Cooler Refrigerant Suction Hose No.1 Liquid Tube Sub±assy A Cooler Refrigerant Discharge Hose No.1 9.8 (100, 87 in. lbf) 5.4 (55, 47 in. lbf

Page 1341 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual I34976 Nm (kgf cm, ftlbf) : Specified torque Cooler Refrigerant Suction Hose No.1 Liquid Tube Sub±assy A Cooler Refrigerant Discharge Hose No.1 9.8 (100, 87 in. lbf) 9.8 (100, 87 in. lbf) RHD: 3

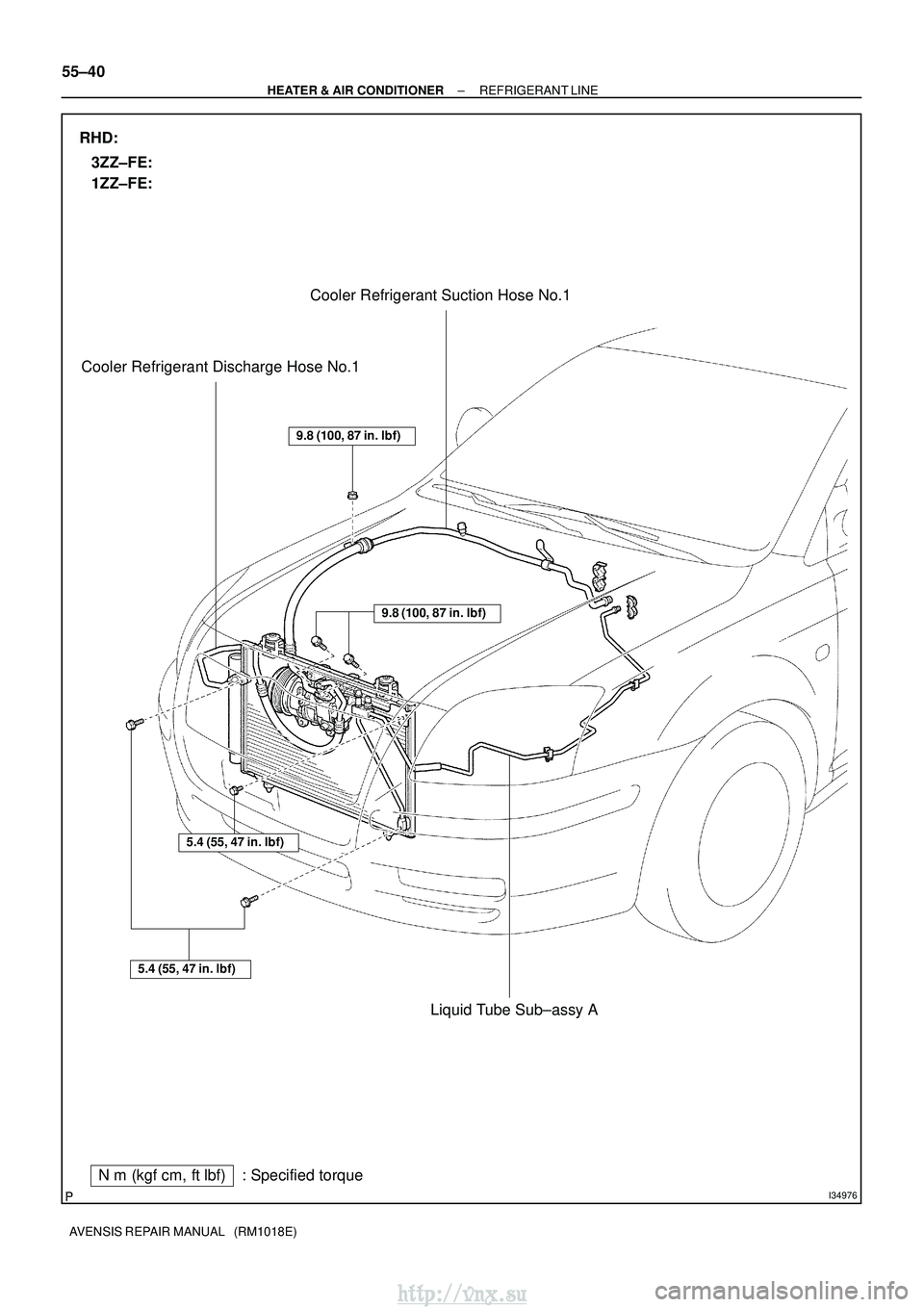

Page 1342 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual I34977 Nm (kgf cm, ftlbf) : Specified torque Cooler Refrigerant Suction Hose No.1 Liquid Tube Sub±assy A Cooler Refrigerant Discharge Hose No.1 5.4 (55, 47 in. lbf) 5.4 (55, 47 in.lbf) 9.8 (100,

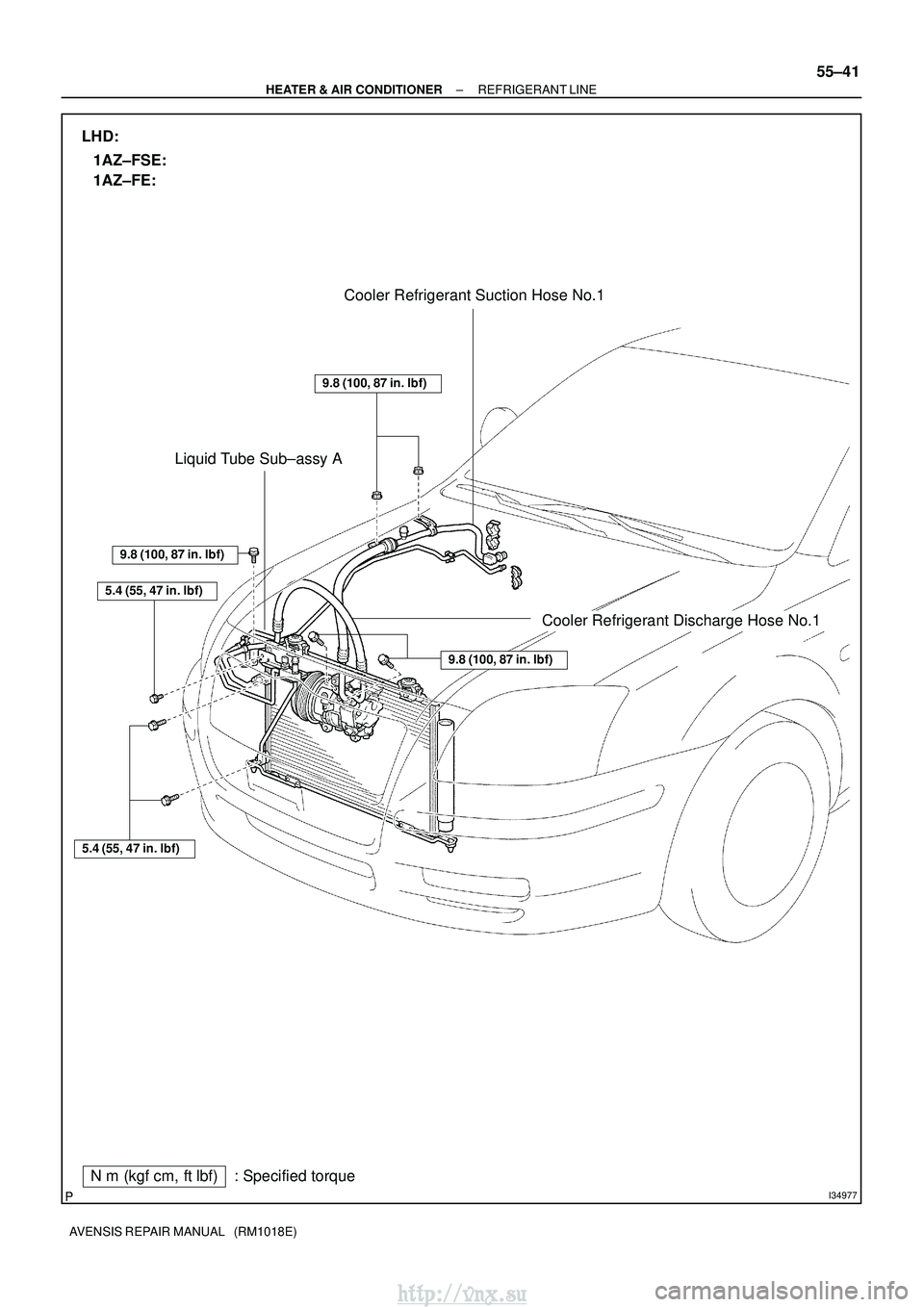

Page 1343 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual I34978 Nm (kgf cm, ftlbf) : Specified torque Cooler Refrigerant Suction Hose No.1 Liquid Tube Sub±assy A Cooler Refrigerant Discharge Hose No.1 9.8 (100, 87 in. lbf) RHD: 1AZ±FSE: 5.4 (55, 47 in

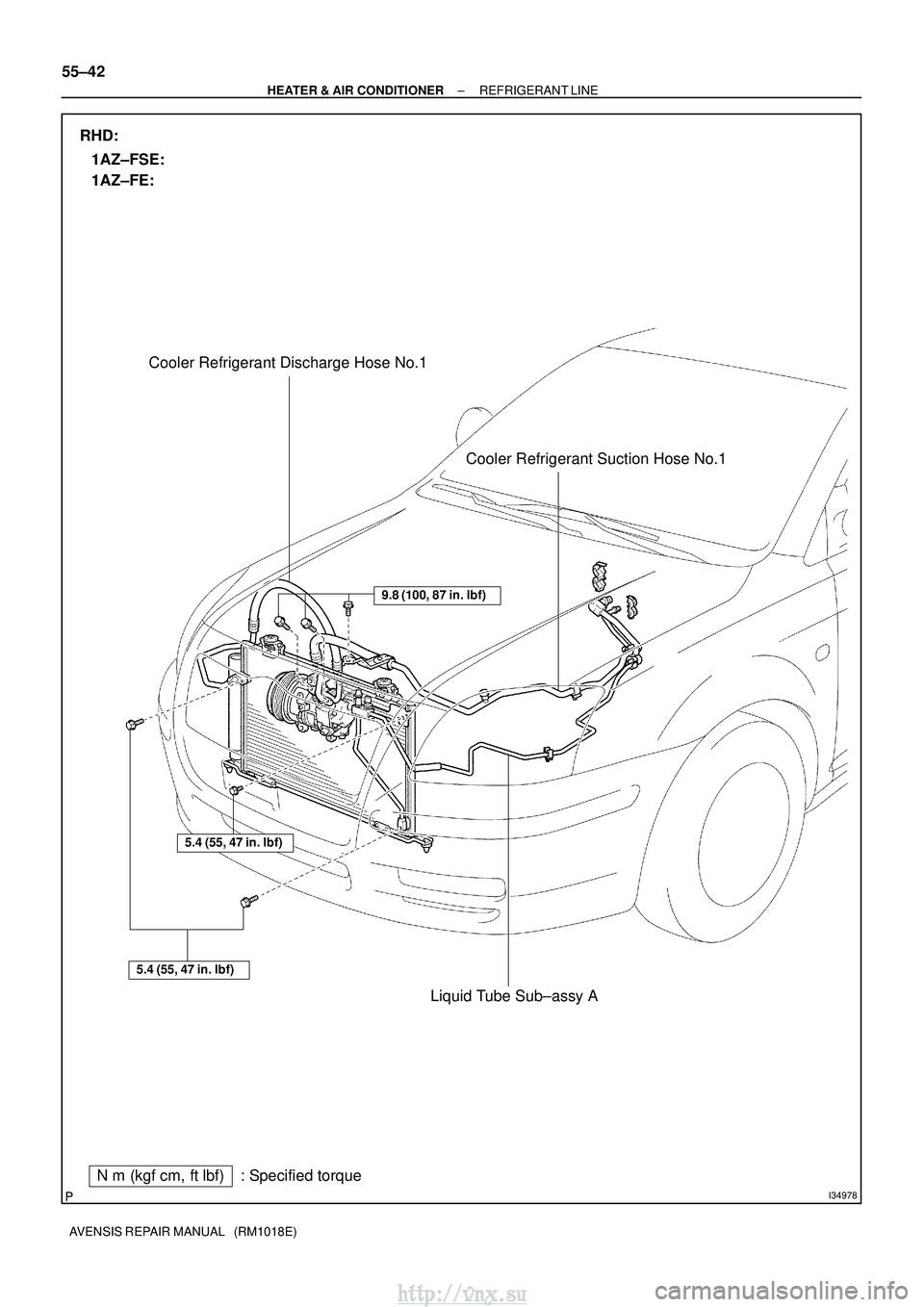

Page 1344 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual I34979 Nm (kgf cm, ftlbf) : Specified torque Cooler Refrigerant Suction Hose No.1 Liquid Tube Sub±assy A Cooler Refrigerant Discharge Hose No.1 5.4 (55, 47 in. lbf) 5.4 (55, 47 in.lbf) 9.8 (100,
