Page 1689 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 720J9±01 B70320 Rear Seat Headrest Assy RHRear Seat Headrest Assy Center  Hog Ring Nm (kgf cm, ftlbf) : Specified torque  Non±reusable part Rear Seat Headrest Support Assy  Hog Ring Rear Sea

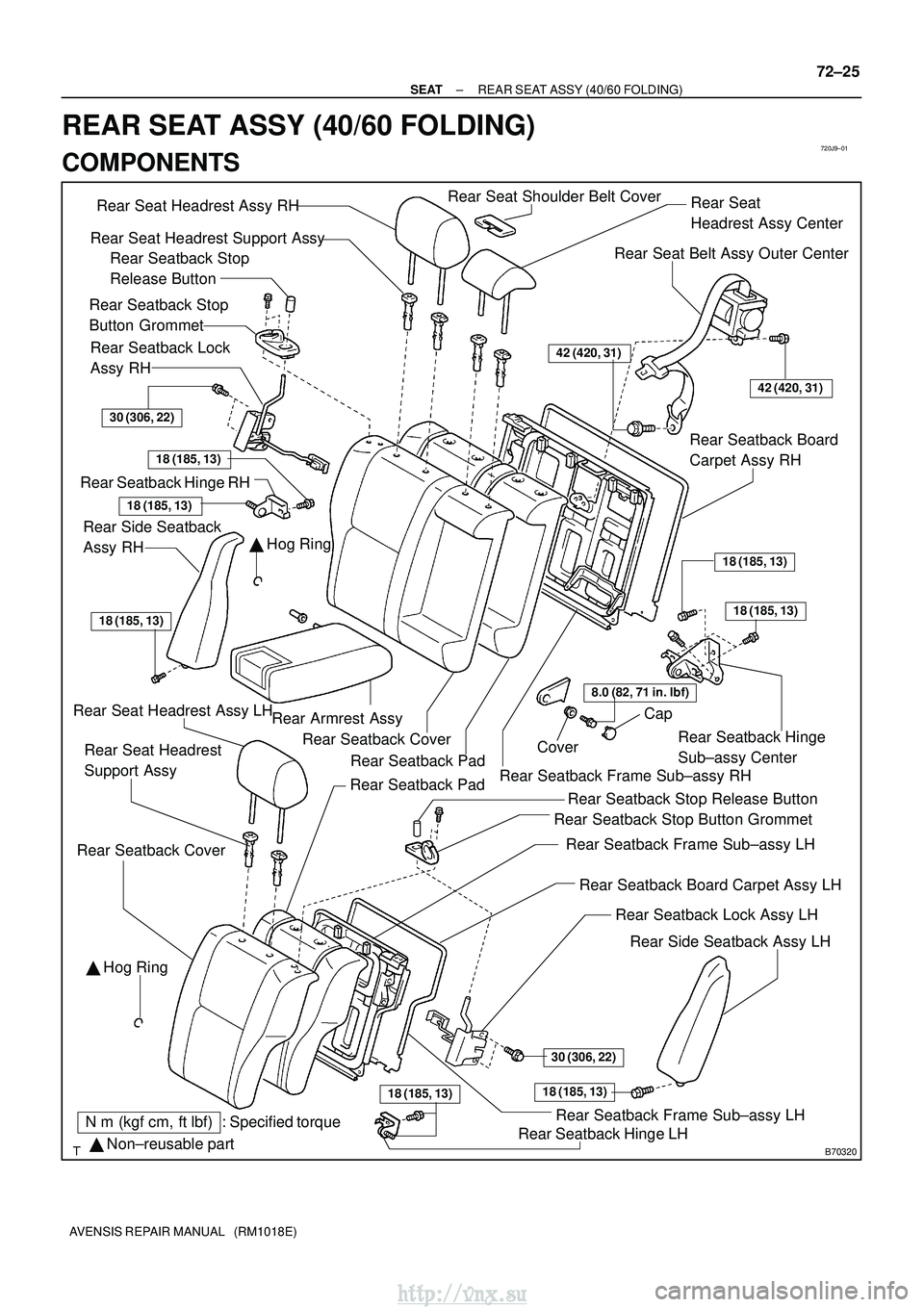

Page 1690 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B68225 Bench Type Rear Seat Cushion CoverBench Type Rear Seat Cushion Pad Hog Ring  Non±reusable part 72±26 ± SEAT REAR SEAT ASSY (40/60 FOLDING) AVENSIS REPAIR MANUAL (RM1018E) http://vnx.su

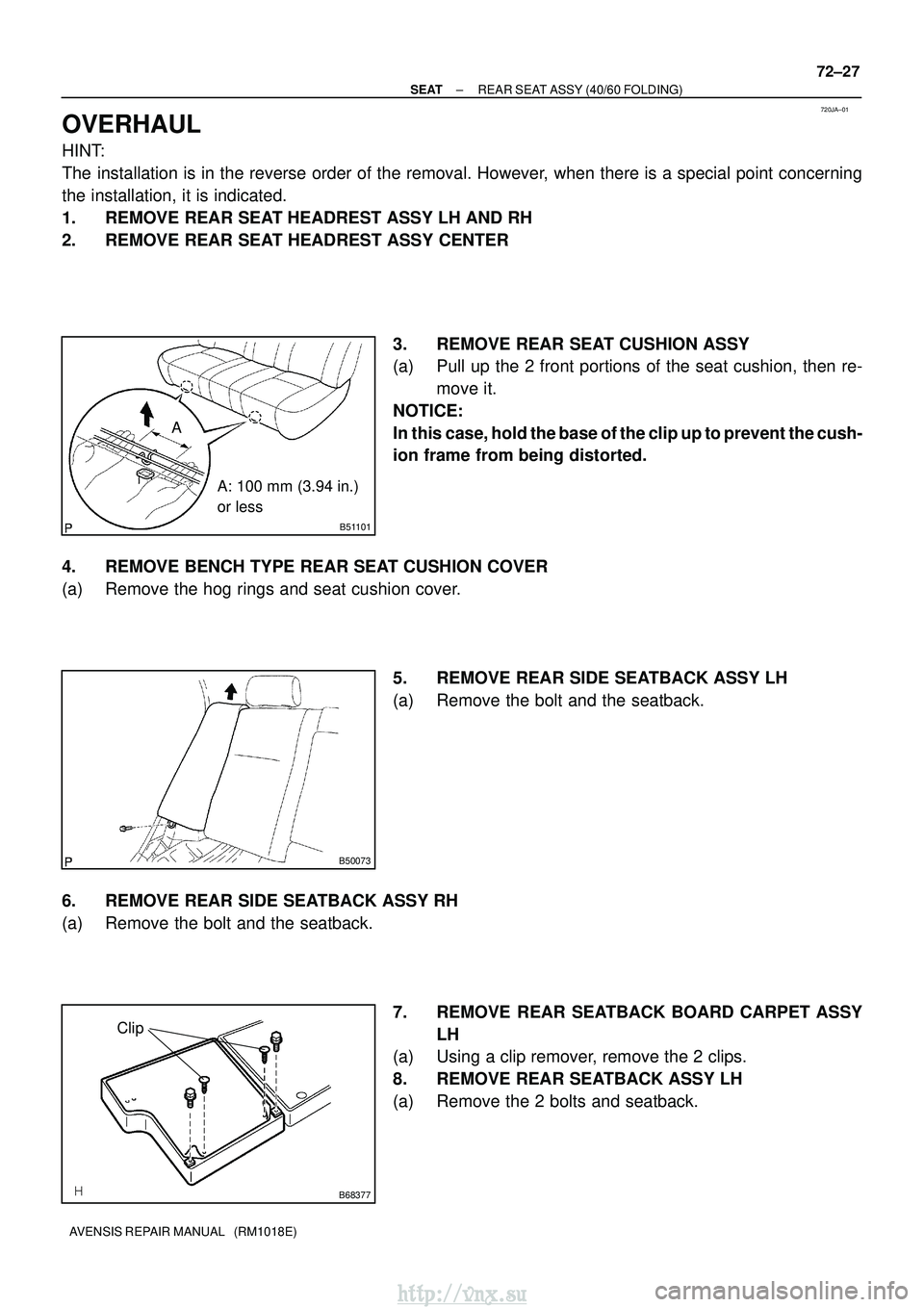

Page 1691 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 720JA±01 B51101 AA: 100 mm (3.94 in.) or less B50073 B68377 Clip ± SEAT REAR SEAT ASSY (40/60 FOLDING) 72±27 AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL HINT: The installation is in the reverse orde

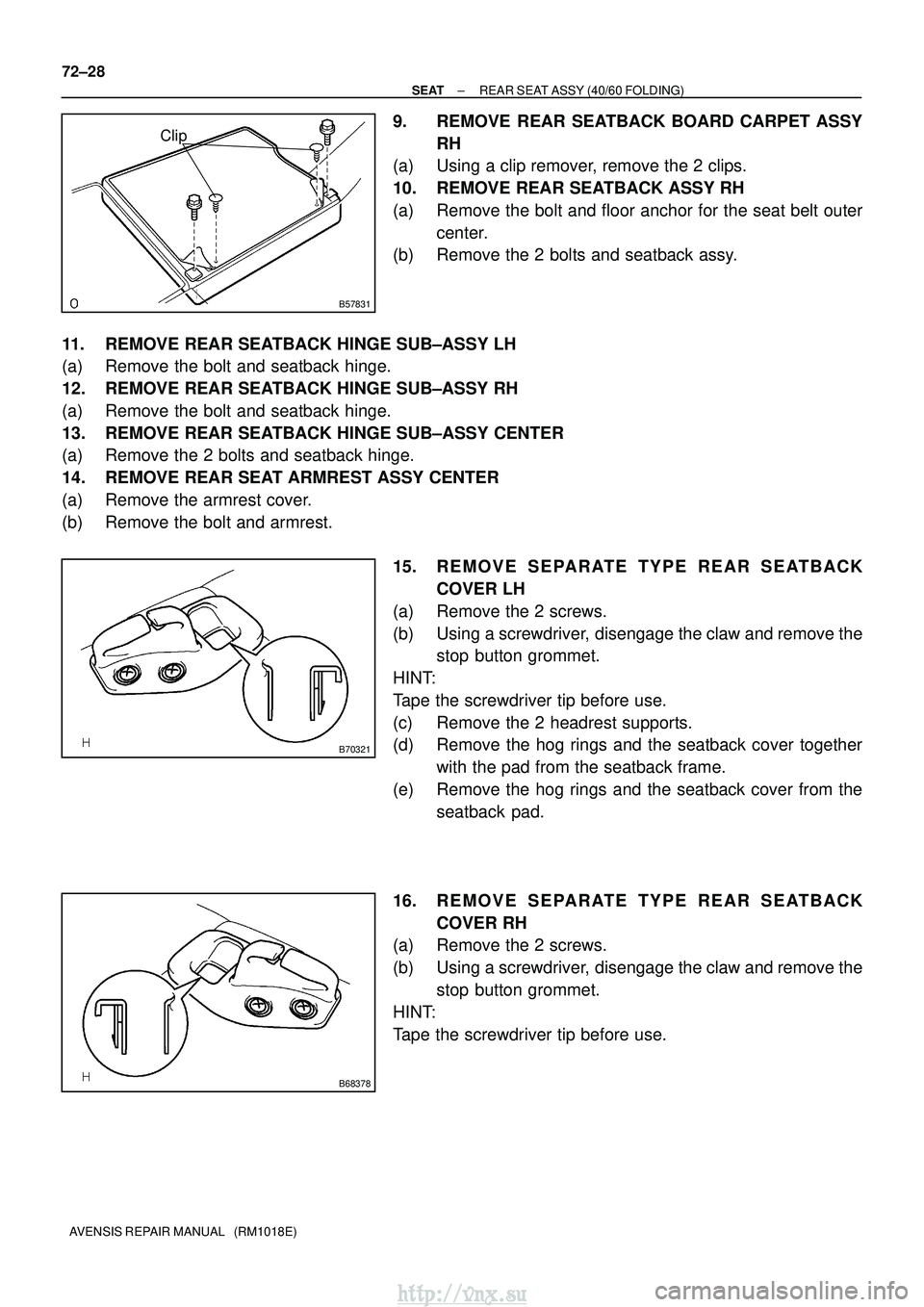

Page 1692 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B57831 Clip B70321 B68378 72±28 ± SEAT REAR SEAT ASSY (40/60 FOLDING) AVENSIS REPAIR MANUAL (RM1018E) 9. REMOVE REAR SEATBACK BOARD CARPET ASSY RH (a) Using a clip remover, remove the 2 clips. 10.

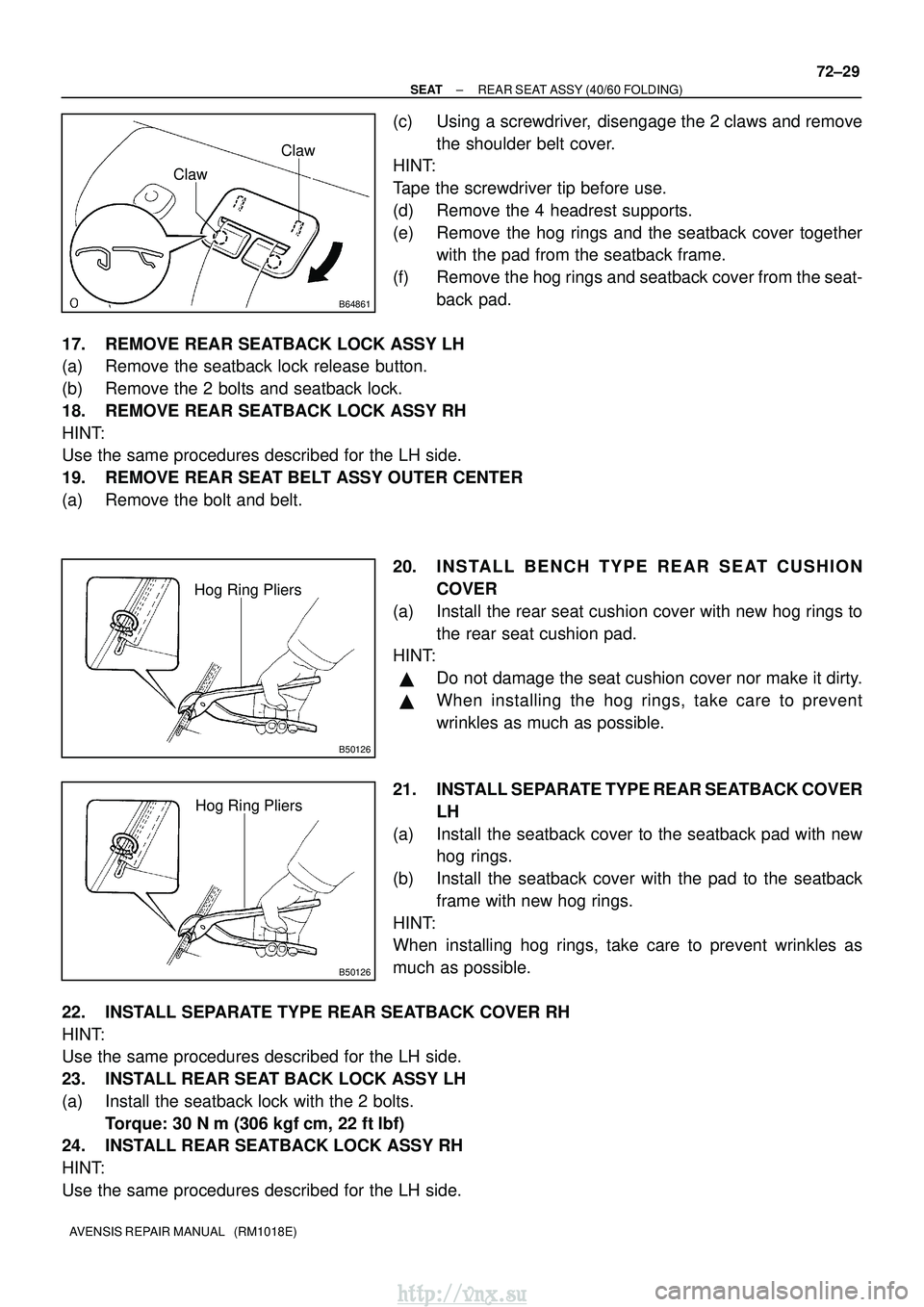

Page 1693 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B64861 Claw Claw B50126 Hog Ring Pliers B50126 Hog Ring Pliers ± SEAT REAR SEAT ASSY (40/60 FOLDING) 72±29 AVENSIS REPAIR MANUAL (RM1018E) (c) Using a screwdriver, disengage the 2 claws and remov

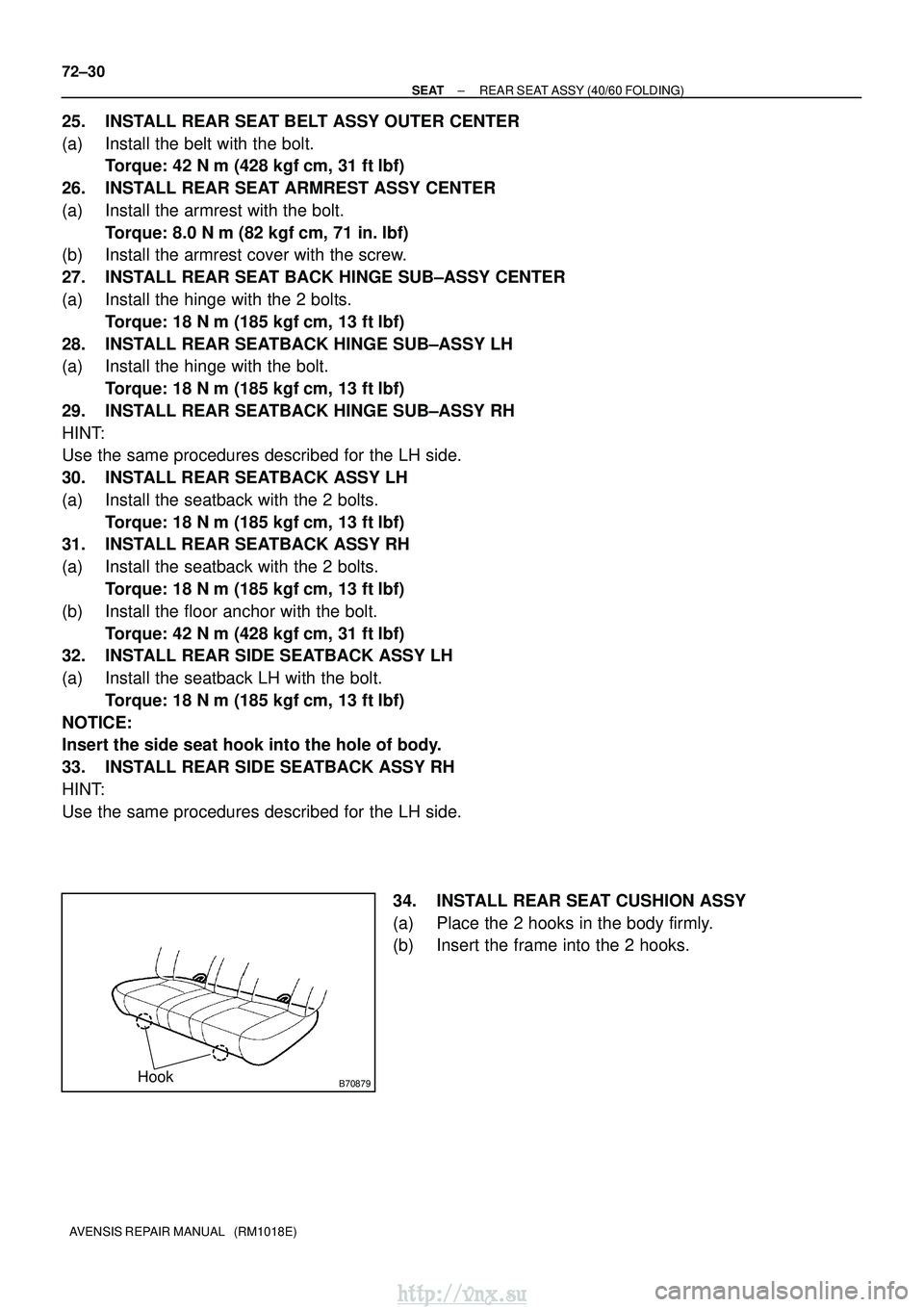

Page 1694 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B70879Hook 72±30 ± SEAT REAR SEAT ASSY (40/60 FOLDING) AVENSIS REPAIR MANUAL (RM1018E) 25. INSTALL REAR SEAT BELT ASSY OUTER CENTER (a) Install the belt with the bolt. Torque: 42 N m (428 kgf cm

Page 1695 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 720JD±01 B70148 Bench Type Rear Seatback CoverBench Type Rear Seat Cushion Cover Rear Seat Headrest Assy Rear Seat Headrest Assy Center Bench Type Rear Seatback Pad Bench Type Rear Seat Cushion Pad

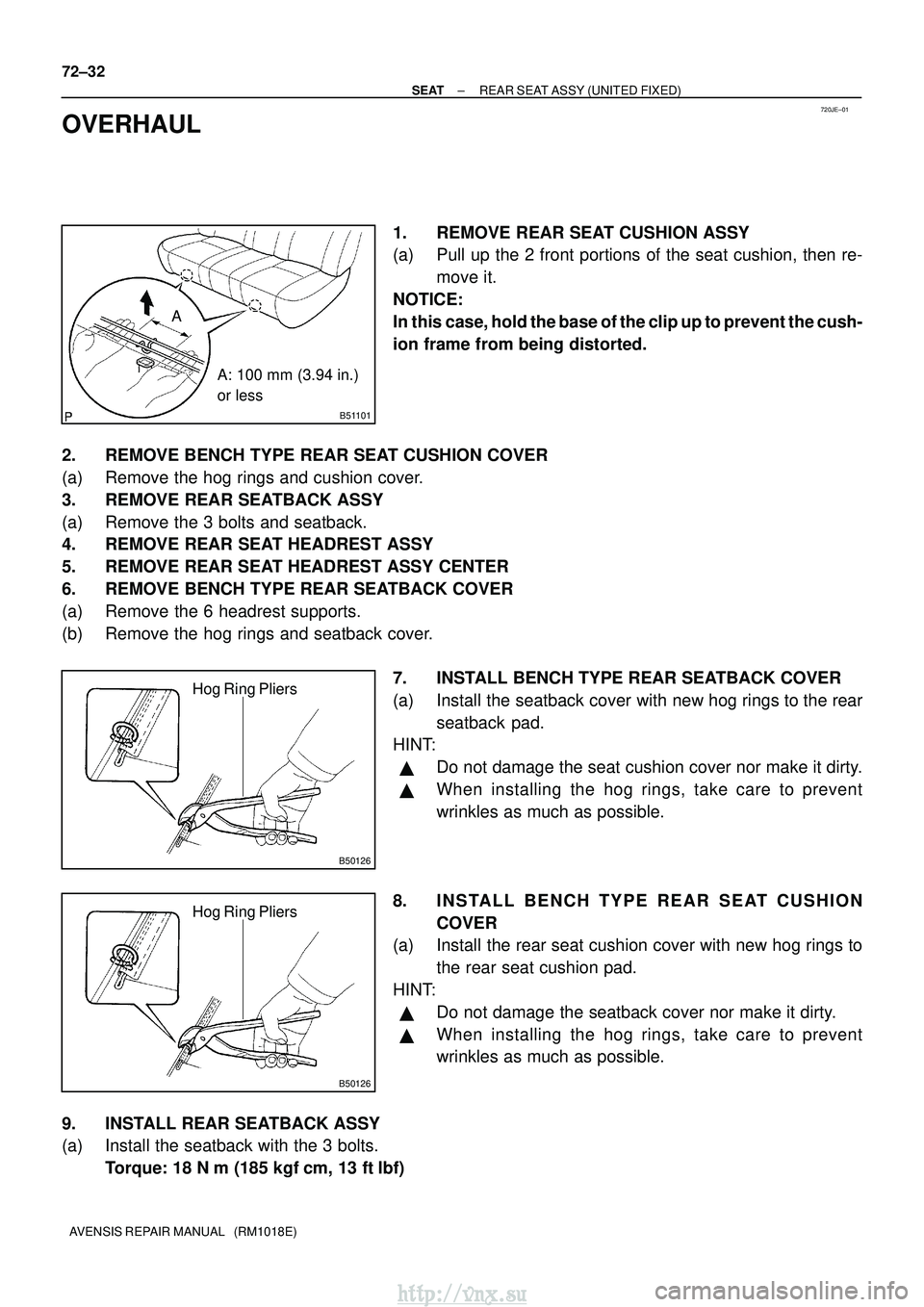

Page 1696 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 720JE±01 B51101 AA: 100 mm (3.94 in.) or less B50126 Hog Ring Pliers B50126 Hog Ring Pliers 72±32 ± SEAT REAR SEAT ASSY (UNITED FIXED) AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL 1. REMOVE REAR SEAT
