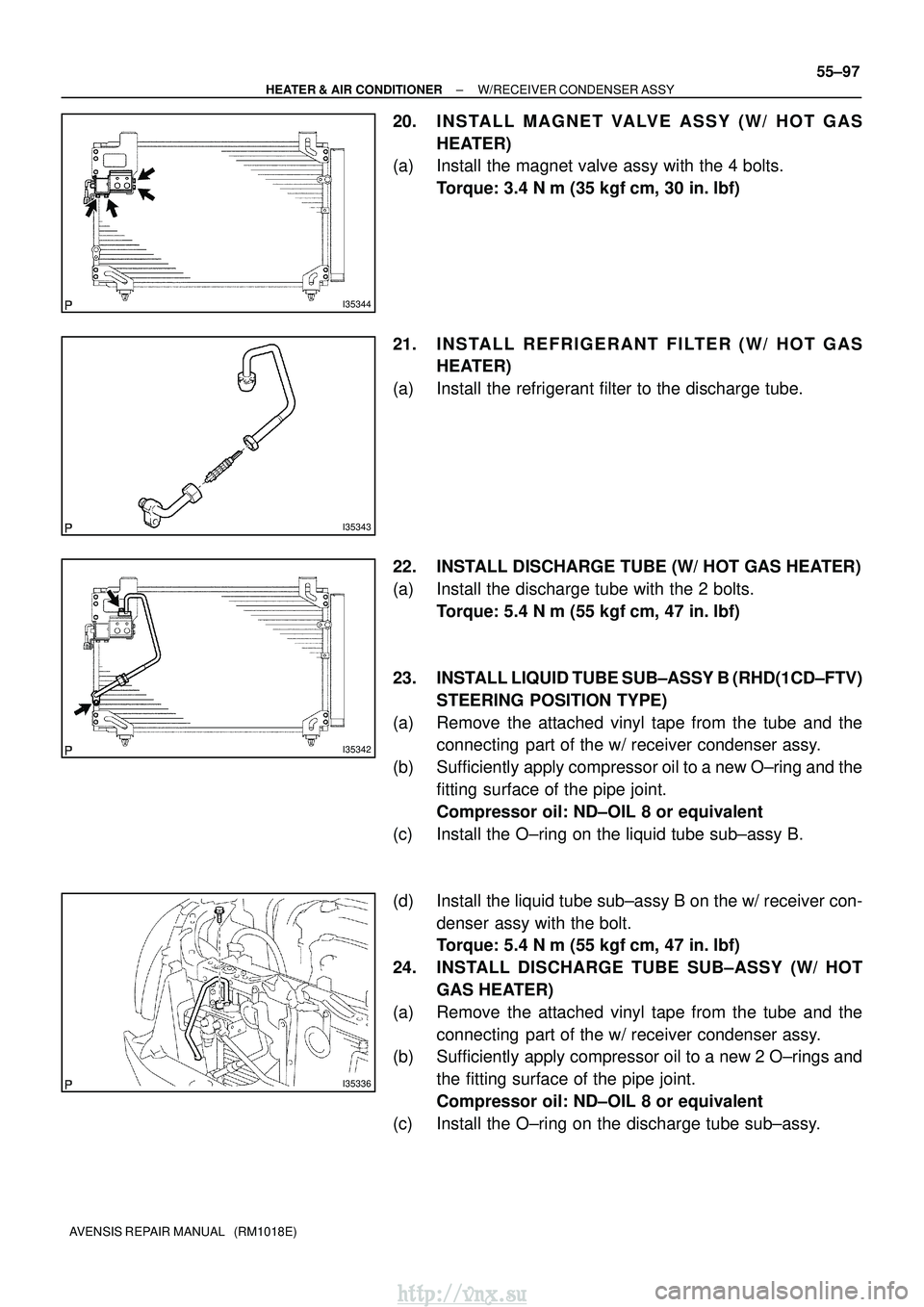

TOYOTA AVENSIS 2003 Service Repair Manual I35344 I35343 I35342 I35336 ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY 55±97 AVENSIS REPAIR MANUAL (RM1018E) 20. I N S TA L L M A G N E T VA LV E A S S Y ( W / H O T G A S HEATER) (a) In

Page 1378 of 2234

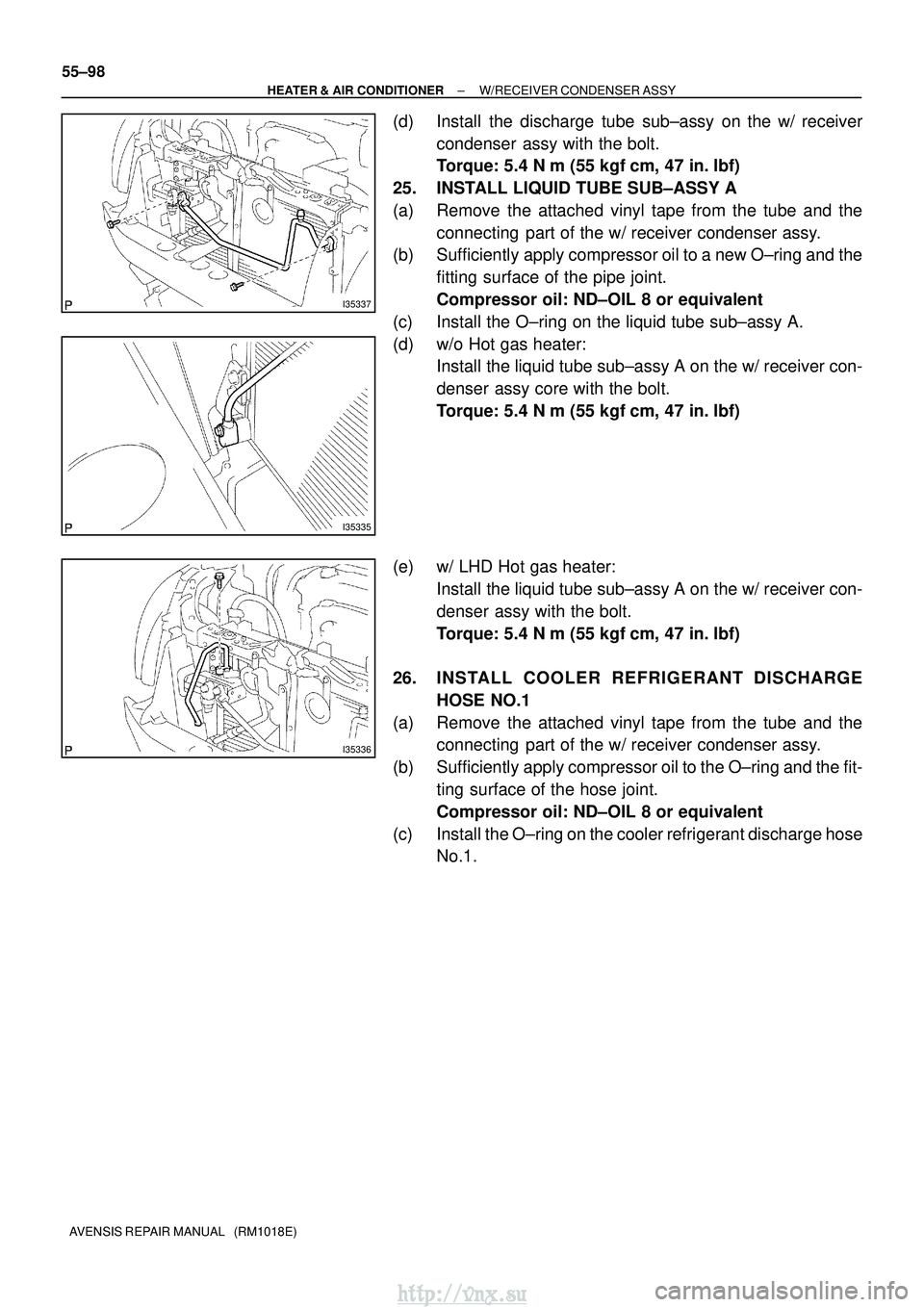

TOYOTA AVENSIS 2003 Service Repair Manual I35337 I35335 I35336 55±98 ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY AVENSIS REPAIR MANUAL (RM1018E) (d) Install the discharge tube sub±assy on the w/ receiver condenser assy with the

Page 1379 of 2234

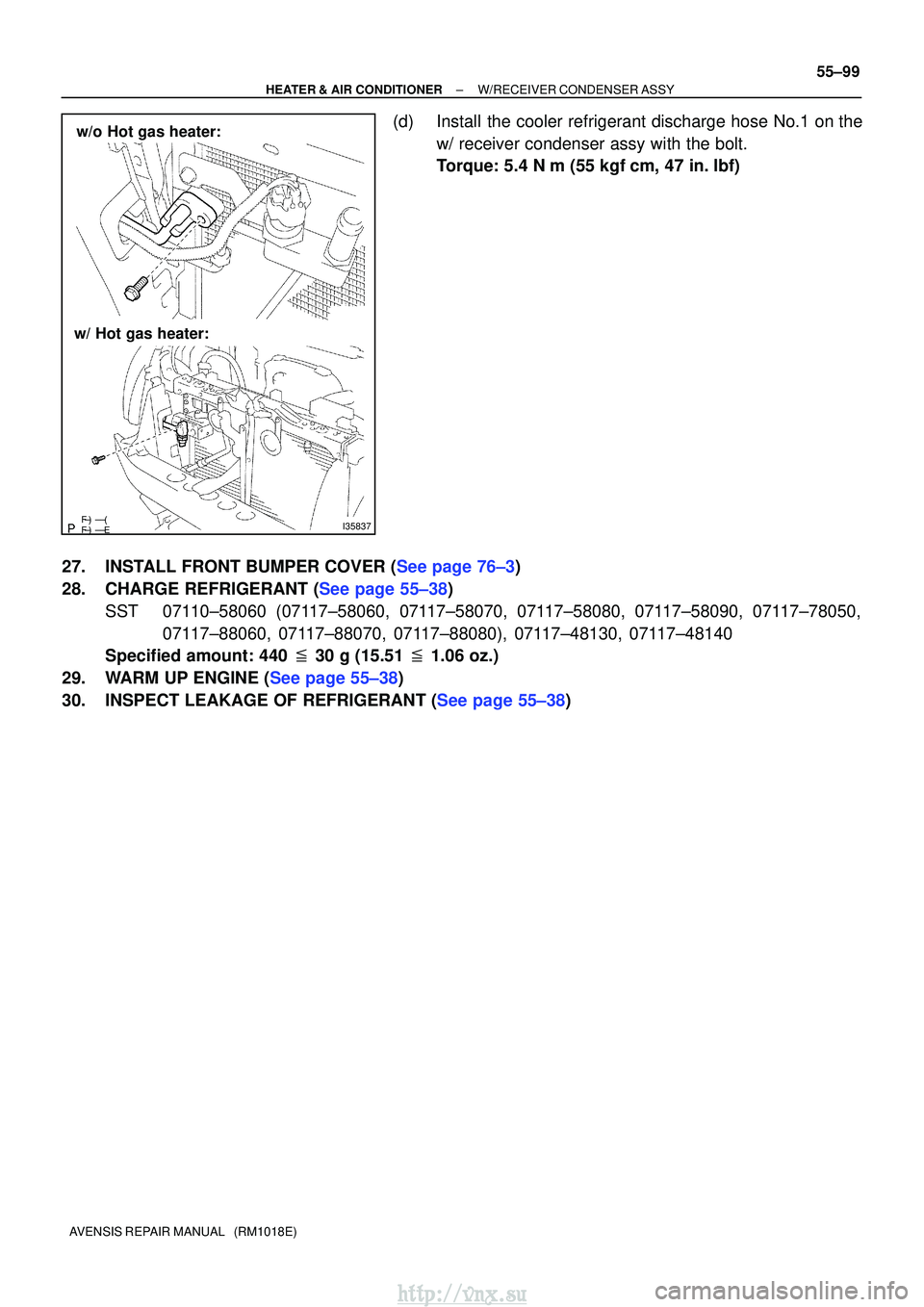

TOYOTA AVENSIS 2003 Service Repair Manual I35837 w/o Hot gas heater: w/ Hot gas heater: ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY 55±99 AVENSIS REPAIR MANUAL (RM1018E) (d) Install the cooler refrigerant discharge ho

Page 1380 of 2234

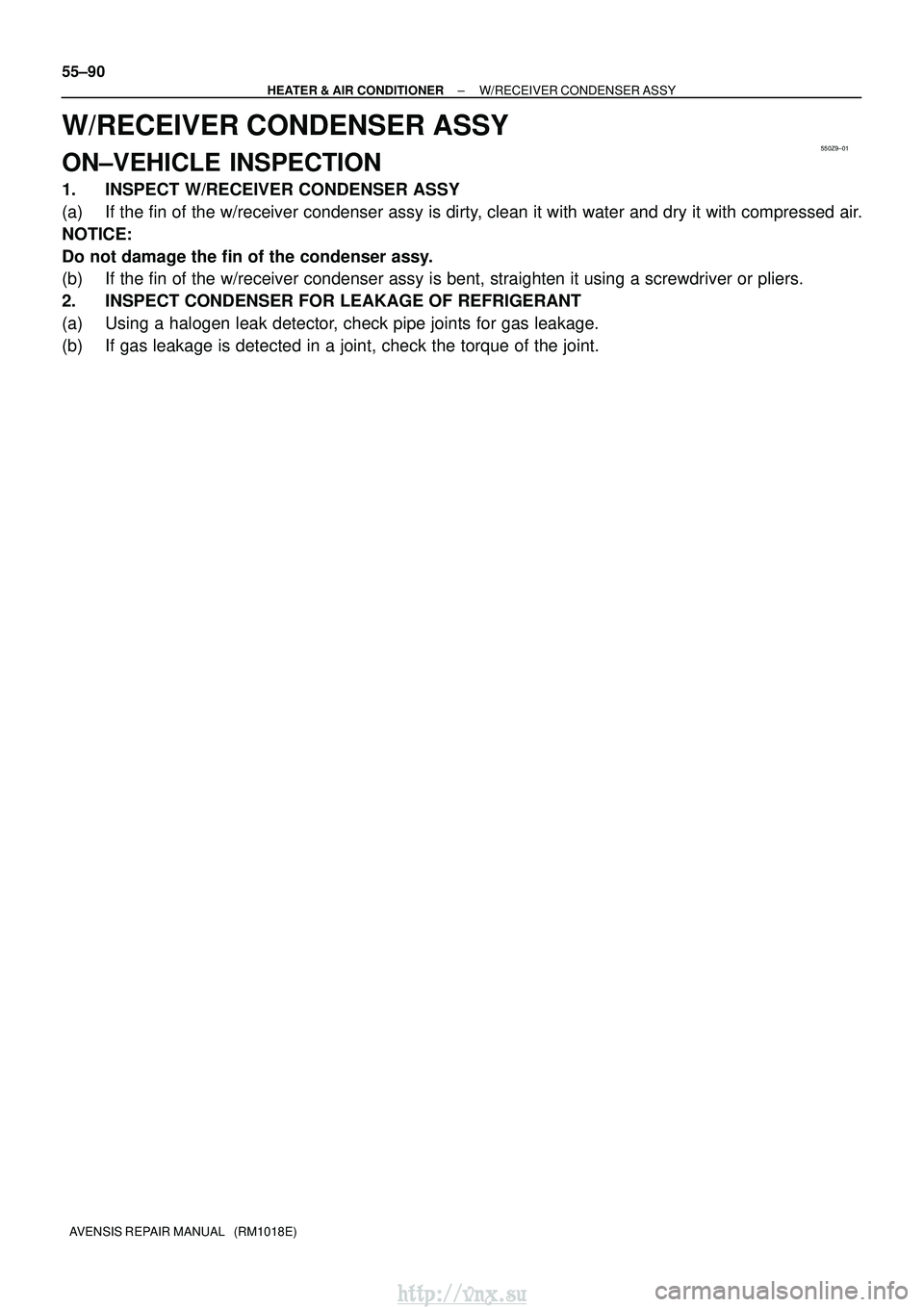

TOYOTA AVENSIS 2003 Service Repair Manual 550Z9±01 55±90 ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY AVENSIS REPAIR MANUAL (RM1018E) W/RECEIVER CONDENSER ASSY ON±VEHICLE INSPECTION 1. INSPECT W/RECEIVER CONDENSER ASSY (a) If th

Page 1381 of 2234

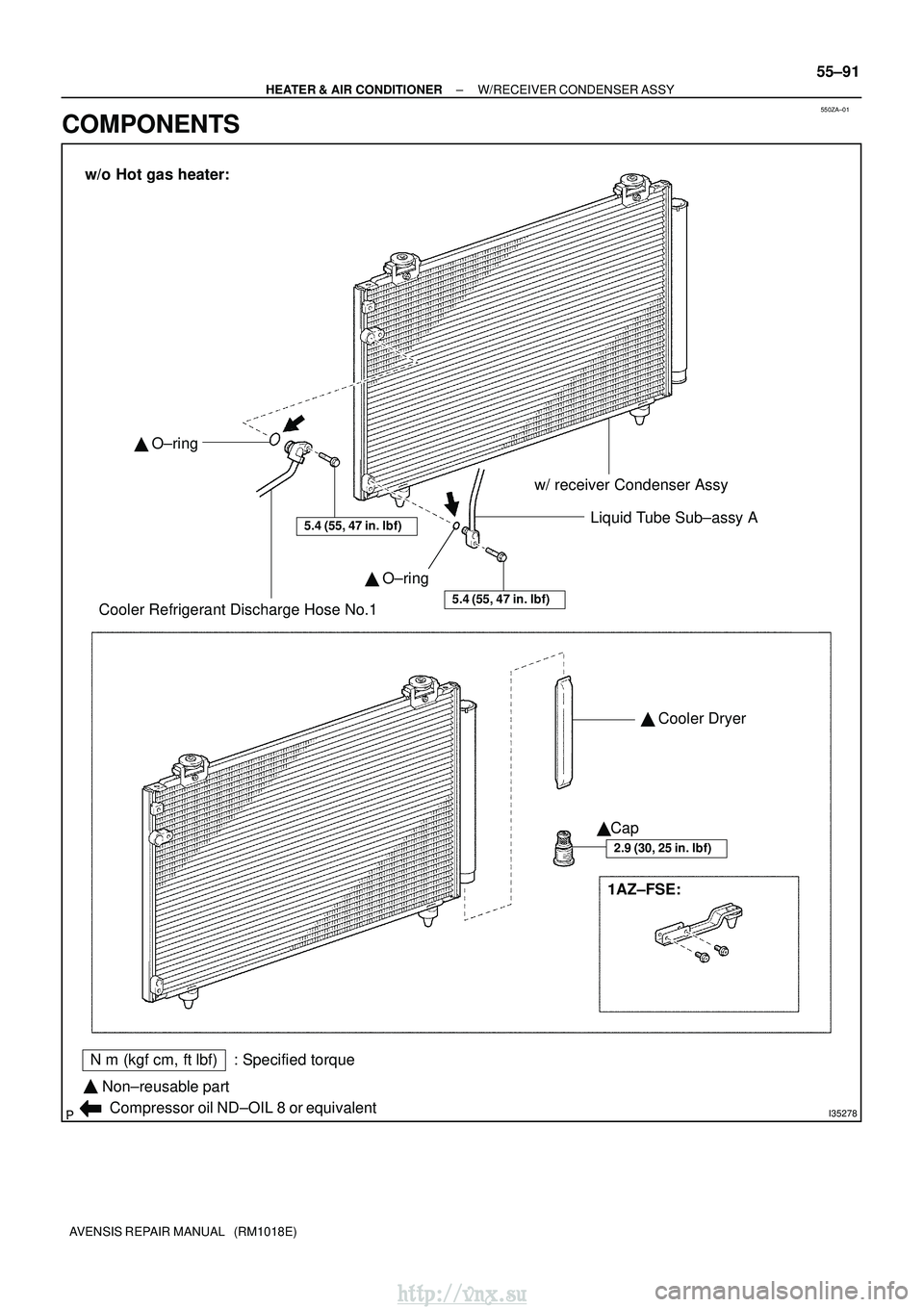

TOYOTA AVENSIS 2003 Service Repair Manual 550ZA±01 I35278 Nm (kgf cm, ftlbf) : Specified torque Non±reusable part  Compressor oil ND±OIL 8 or equivalent w/ receiver Condenser Assy Liquid Tube Sub±assy A Cooler Refrigerant Discharge Ho

Page 1382 of 2234

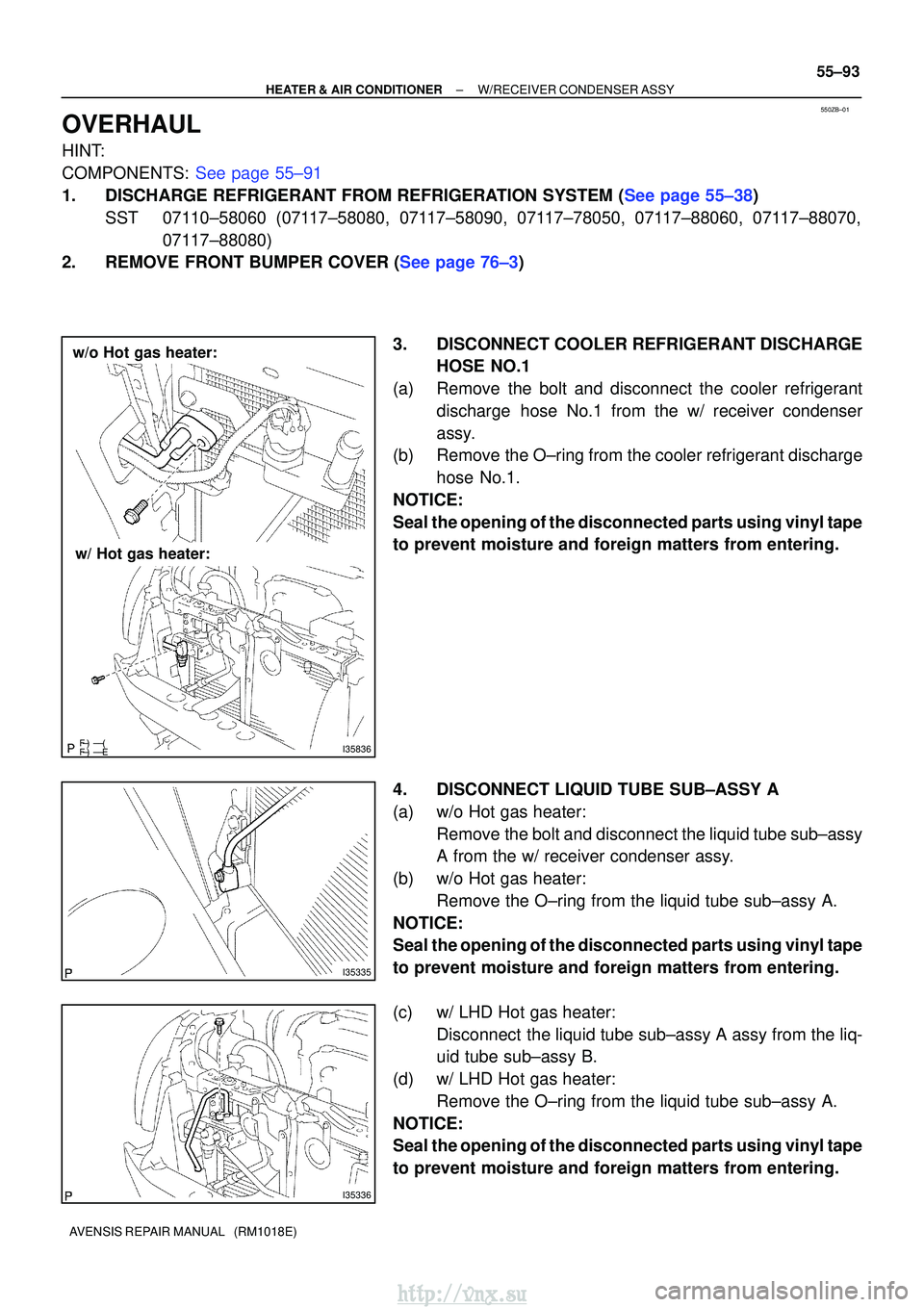

TOYOTA AVENSIS 2003 Service Repair Manual I35279 Nm (kgf cm, ftlbf) : Specified torque Non±reusable part  Compressor oil ND±OIL 8 or equivalent w/ receiver Condenser Assy Liquid Tube Sub±assy A Cooler Refrigerant Discharge Hose No.1 O

Page 1383 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 550ZB±01 I35836 w/o Hot gas heater: w/ Hot gas heater: I35335 I35336 ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY 55±93 AVENSIS REPAIR MANUAL (RM1018E) OVERHAUL HINT: COMPONEN

Page 1384 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual I35337 I35336 I35339 I35340 55±94 ± HEATER & AIR CONDITIONER W/RECEIVER CONDENSER ASSY AVENSIS REPAIR MANUAL (RM1018E) 5. REMOVE DISCHARGE TUBE SUB±ASSY (W/ HOT GAS HEATER) (a) Remove the 2 bolts
