Rain Sensor Adjust Switch
E34081
66±8
±
WIPER & WASHER WIPER AND WASHER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
Rear Washer Switch (w/ Rear Wiper)
Switch positionTester conditionSpecified condition
OFF±No continuity
ON (Rear wiper switch OFF position side)2 (EW) ± 3 (WR)Continuity
ON (Rear wiper switch ON position side)2 (EW) ± 3 (WR),
2 (EW) ± 10 (+1R)Continuity

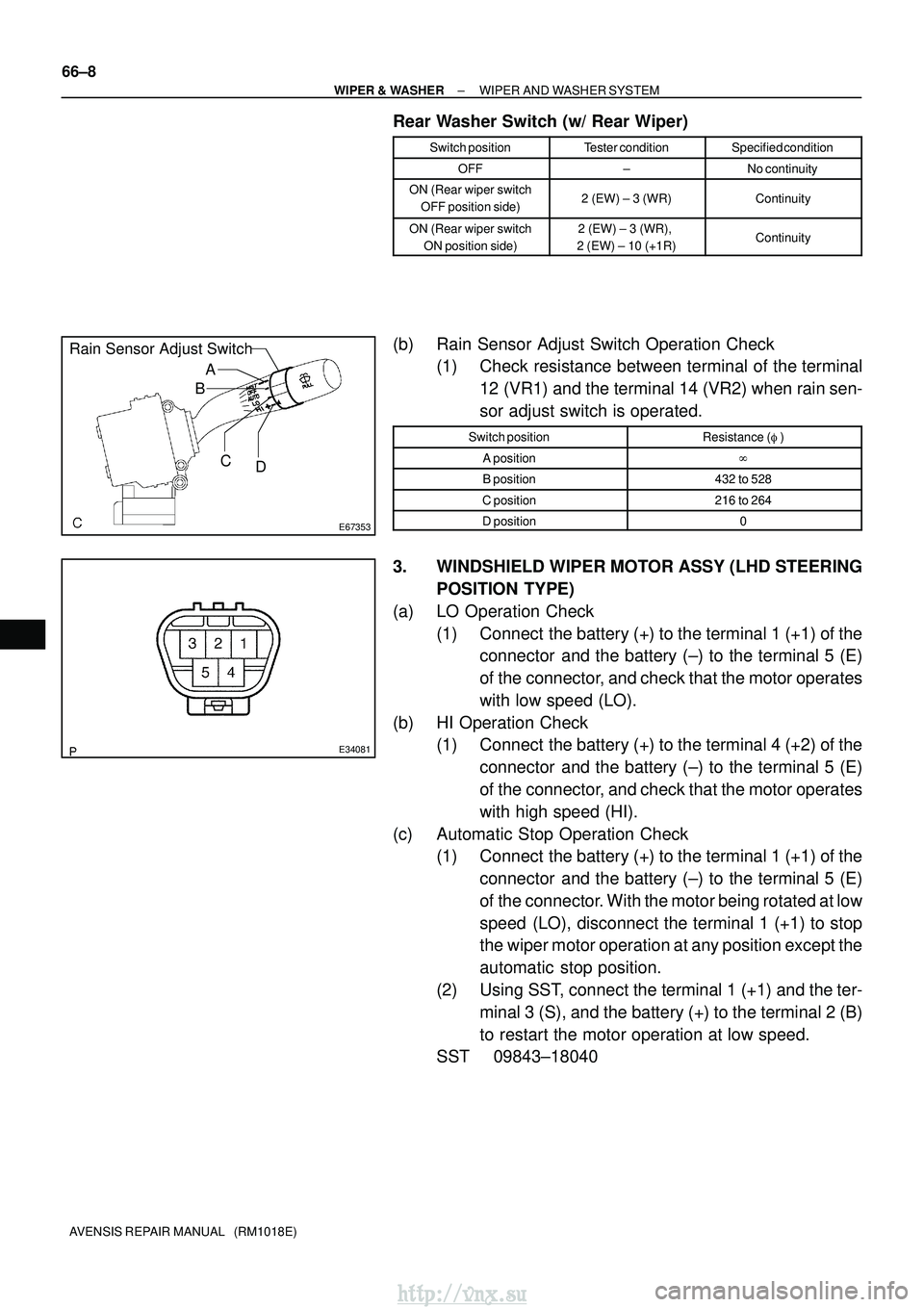

(b) Rain Sensor Adjust Switch Operation Check (1) Check resistance between terminal of the terminal
12 (VR1) and the terminal 14 (VR2) when rain sen-
sor adjust switch is operated.
Switch positionResistance ( )
A position
B position432 to 528
C position216 to 264
D position0
3. WINDSHIELD WIPER MOTOR ASSY (LHD STEERING
POSITION TYPE)
(a) LO Operation Check (1) Connect the battery (+) to the terminal 1 (+1) of theconnector and the battery (±) to the terminal 5 (E)
of the connector, and check that the motor operates
with low speed (LO).
(b) HI Operation Check (1) Connect the battery (+) to the terminal 4 (+2) of the
connector and the battery (±) to the terminal 5 (E)
of the connector, and check that the motor operates
with high speed (HI).
(c) Automatic Stop Operation Check (1) Connect the battery (+) to the terminal 1 (+1) of the
connector and the battery (±) to the terminal 5 (E)
of the connector. With the motor being rotated at low
speed (LO), disconnect the terminal 1 (+1) to stop
the wiper motor operation at any position except the
automatic stop position.
(2) Using SST, connect the terminal 1 (+1) and the ter- minal 3 (S), and the battery (+) to the terminal 2 (B)
to restart the motor operation at low speed.
SST 09843±18040
http://vnx.su
Page 1538 of 2234

E65740Automatic Stop Position
E34081
E67354
Automatic Stop Position
9
+5
±10
±
WIPER & WASHER WIPER AND WASHER SYSTEM
66±9
AVENSIS REPAIR MANUAL (RM1018E)

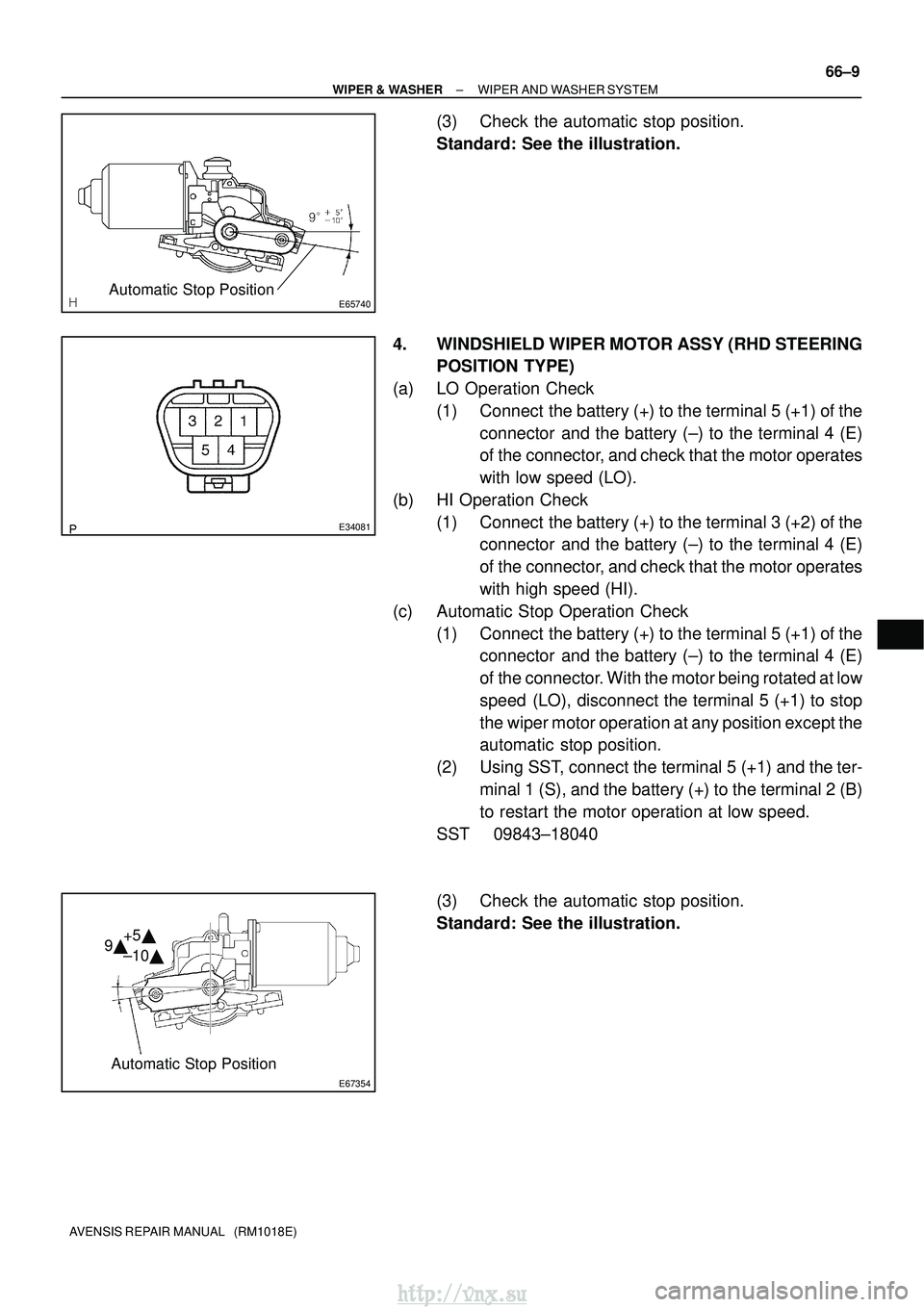

(3) Check the automatic stop position.
Standard: See the illustration.
4. WINDSHIELD WIPER MOTOR ASSY (RHD STEERING POSITION TYPE)
(a) LO Operation Check (1) Connect the battery (+) to the terminal 5 (+1) of theconnector and the battery (±) to the terminal 4 (E)
of the connector, and check that the motor operates
with low speed (LO).
(b) HI Operation Check (1) Connect the battery (+) to the terminal 3 (+2) of theconnector and the battery (±) to the terminal 4 (E)
of the connector, and check that the motor operates
with high speed (HI).
(c) Automatic Stop Operation Check (1) Connect the battery (+) to the terminal 5 (+1) of theconnector and the battery (±) to the terminal 4 (E)
of the connector. With the motor being rotated at low
speed (LO), disconnect the terminal 5 (+1) to stop
the wiper motor operation at any position except the
automatic stop position.
(2) Using SST, connect the terminal 5 (+1) and the ter- minal 1 (S), and the battery (+) to the terminal 2 (B)
to restart the motor operation at low speed.
SST 09843±18040
(3) Check the automatic stop position.
Standard: See the illustration.
http://vnx.su
Page 1539 of 2234

E68141
E67355
Wagon Type:Automatic Stop Position
Automatic Stop Position
Lift Back Type: 170
3
160 3
E68111
66±10
±
WIPER & WASHER WIPER AND WASHER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

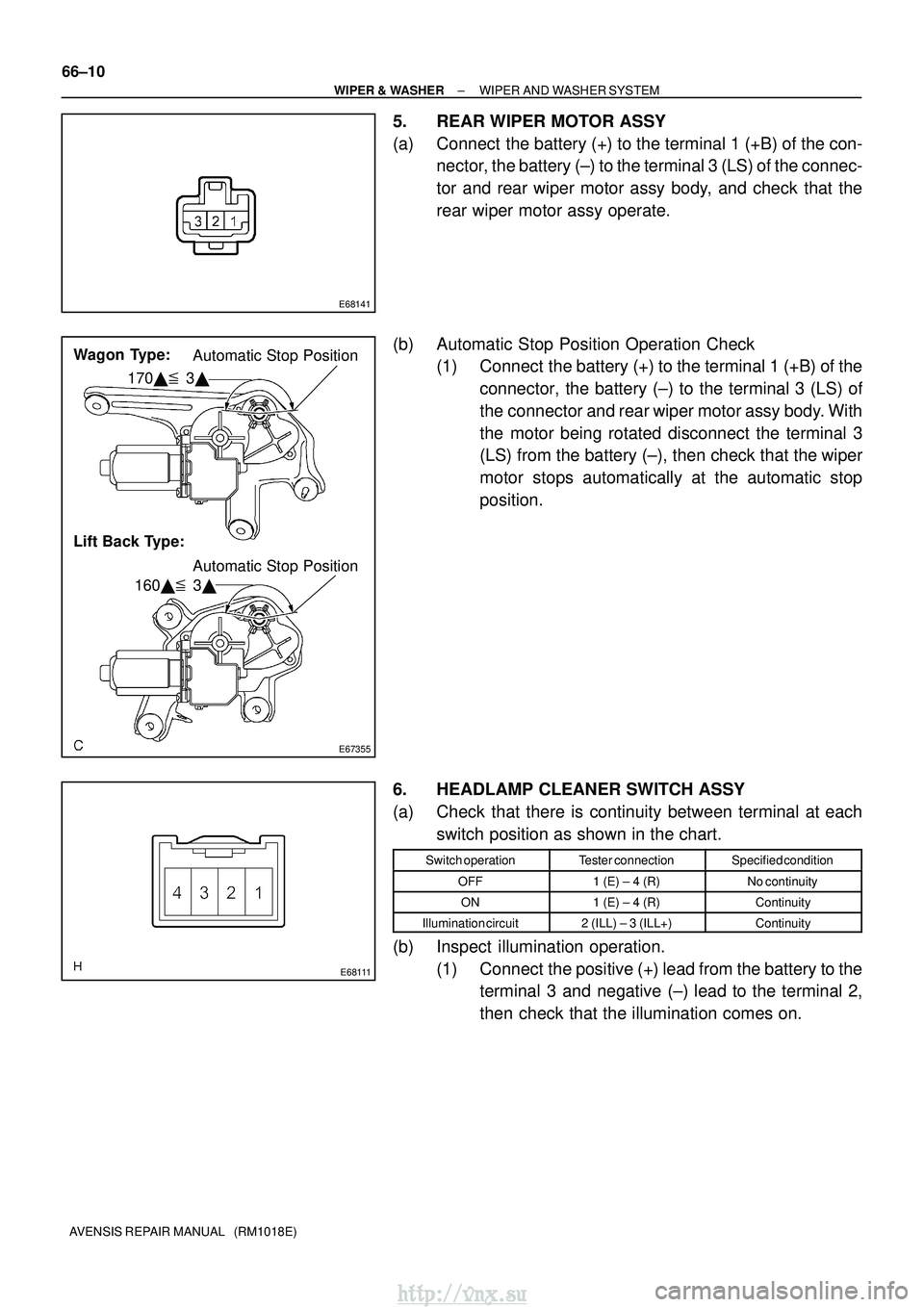

5. REAR WIPER MOTOR ASSY
(a) Connect the battery (+) to the terminal 1 (+B) of the con- nector, the battery (±) to the terminal 3 (LS) of the connec-
tor and rear wiper motor assy body, and check that the
rear wiper motor assy operate.
(b) Automatic Stop Position Operation Check (1) Connect the battery (+) to the terminal 1 (+B) of the
connector, the battery (±) to the terminal 3 (LS) of
the connector and rear wiper motor assy body. With
the motor being rotated disconnect the terminal 3
(LS) from the battery (±), then check that the wiper
motor stops automatically at the automatic stop
position.
6. HEADLAMP CLEANER SWITCH ASSY
(a) Check that there is continuity between terminal at each switch position as shown in the chart.
Switch operationTester connectionSpecified condition
OFF1 (E) ± 4 (R)No continuity
ON1 (E) ± 4 (R)Continuity
Illumination circuit2 (ILL) ± 3 (ILL+)Continuity
(b) Inspect illumination operation.(1) Connect the positive (+) lead from the battery to theterminal 3 and negative (±) lead to the terminal 2,
then check that the illumination comes on.
http://vnx.su
Page 1540 of 2234

E68112
E69072
±
WIPER & WASHER WIPER AND WASHER SYSTEM
66±11
AVENSIS REPAIR MANUAL (RM1018E)

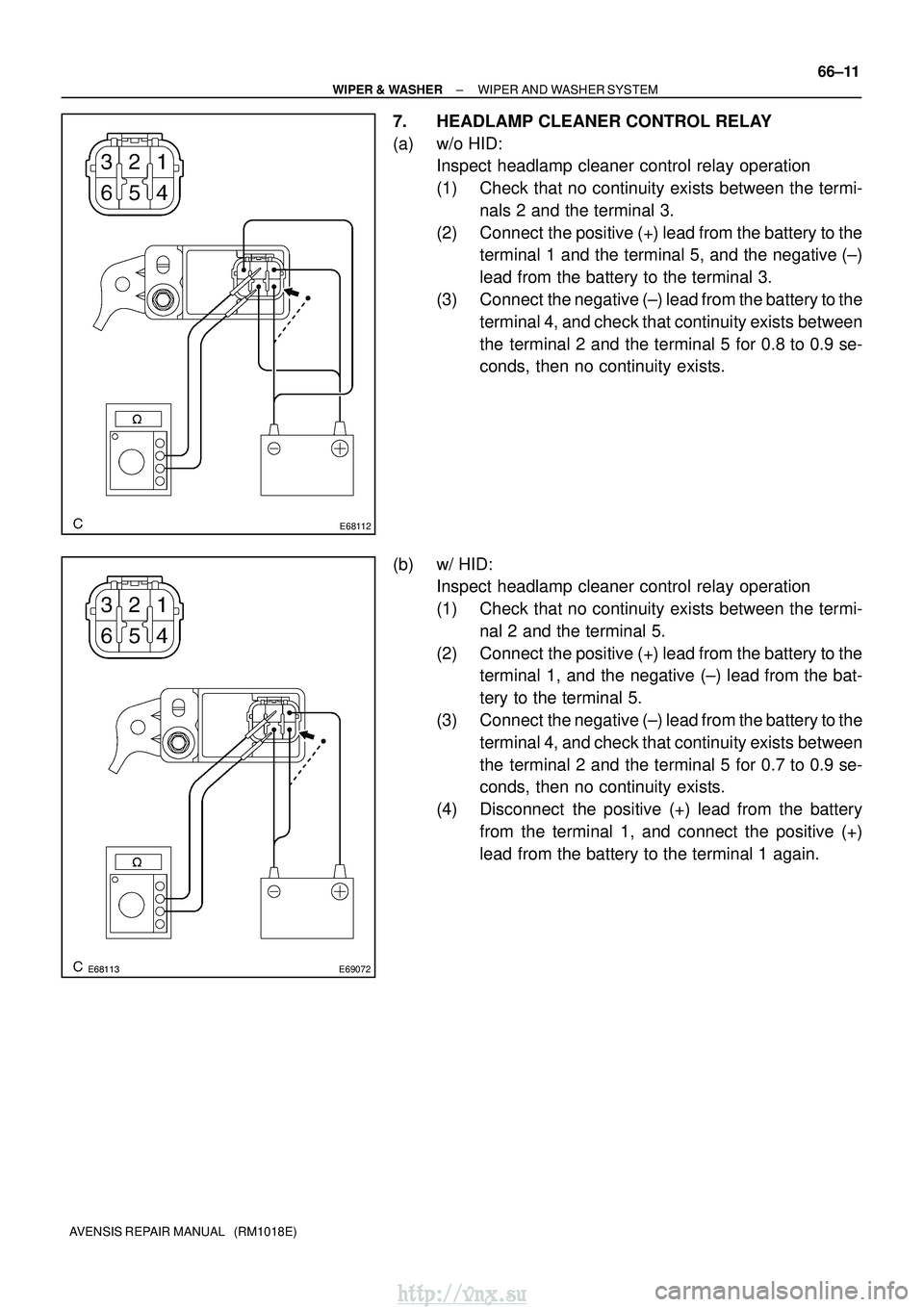

7. HEADLAMP CLEANER CONTROL RELAY
(a) w/o HID:
Inspect headlamp cleaner control relay operation
(1) Check that no continuity exists between the termi-
nals 2 and the terminal 3.
(2) Connect the positive (+) lead from the battery to the terminal 1 and the terminal 5, and the negative (±)
lead from the battery to the terminal 3.
(3) Connect the negative (±) lead from the battery to the terminal 4, and check that continuity exists between
the terminal 2 and the terminal 5 for 0.8 to 0.9 se-
conds, then no continuity exists.
(b) w/ HID: Inspect headlamp cleaner control relay operation
(1) Check that no continuity exists between the termi-
nal 2 and the terminal 5.
(2) Connect the positive (+) lead from the battery to the terminal 1, and the negative (±) lead from the bat-
tery to the terminal 5.
(3) Connect the negative (±) lead from the battery to the terminal 4, and check that continuity exists between
the terminal 2 and the terminal 5 for 0.7 to 0.9 se-
conds, then no continuity exists.
(4) Disconnect the positive (+) lead from the battery from the terminal 1, and connect the positive (+)
lead from the battery to the terminal 1 again.
http://vnx.su
Page 1541 of 2234
E68114
66±12
±
WIPER & WASHER WIPER AND WASHER SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
(5) Connect the negative (±) lead from the battery to the terminal 3.
(6) Connect the negative (±) lead from the battery to the
terminal 6, and check that continuity exists between
the terminal 2 and the terminal 5 for 0.7 to 0.9 se-
conds, then no continuity exists.
http://vnx.su
Page 1542 of 2234
660CP±01
E59361
Curve
E57398
±

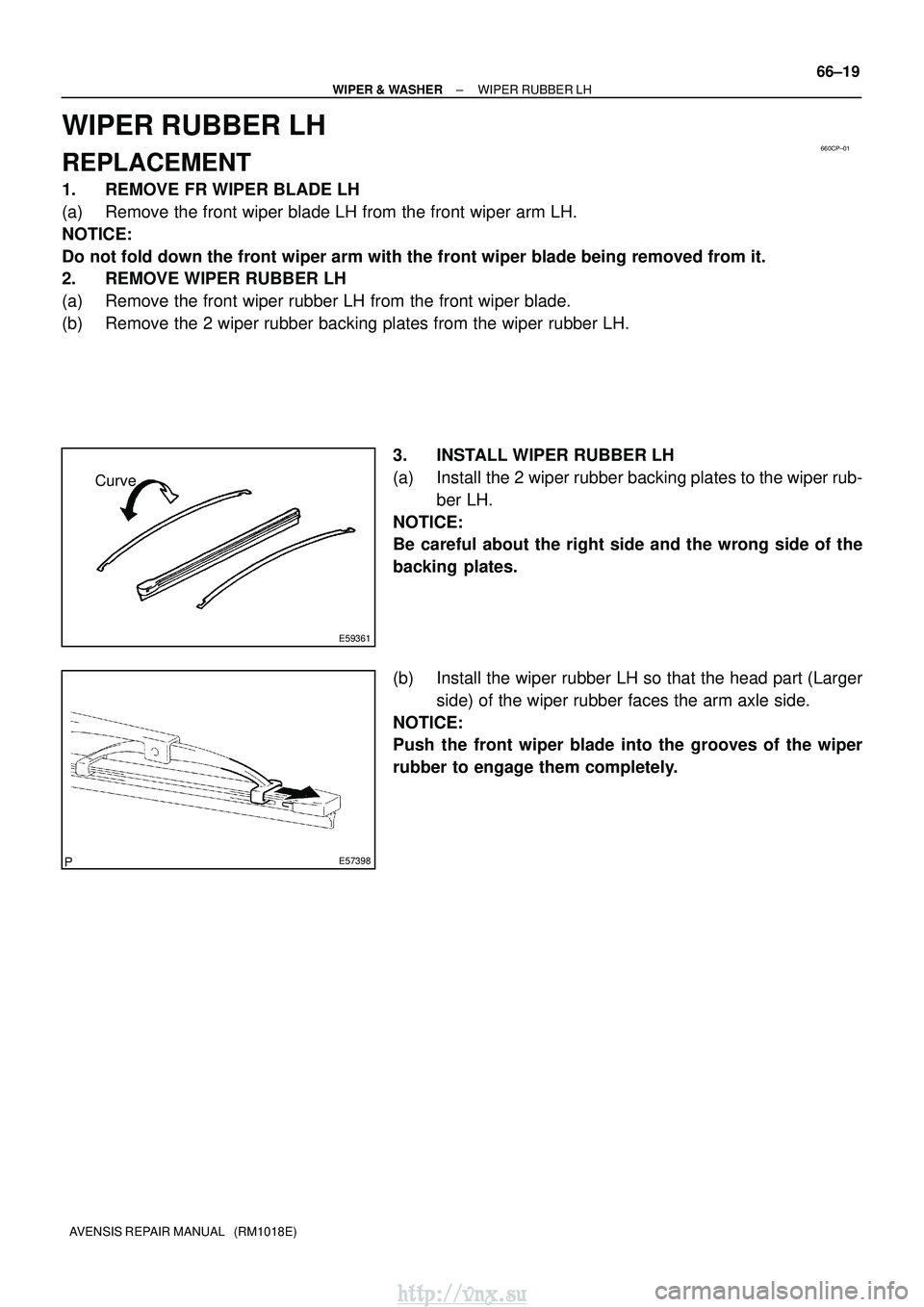

WIPER & WASHER WIPER RUBBER LH
66±19
AVENSIS REPAIR MANUAL (RM1018E)
WIPER RUBBER LH
REPLACEMENT
1. REMOVE FR WIPER BLADE LH
(a) Remove the front wiper blade LH from the front wiper arm LH.
NOTICE:
Do not fold down the front wiper arm with the front wiper blade being re\
moved from it.
2. REMOVE WIPER RUBBER LH
(a) Remove the front wiper rubber LH from the front wiper blade.
(b) Remove the 2 wiper rubber backing plates from the wiper rubber LH.
3. INSTALL WIPER RUBBER LH
(a) Install the 2 wiper rubber backing plates to the wiper rub-ber LH.
NOTICE:
Be careful about the right side and the wrong side of the
backing plates.
(b) Install the wiper rubber LH so that the head part (Larger side) of the wiper rubber faces the arm axle side.
NOTICE:
Push the front wiper blade into the grooves of the wiper
rubber to engage them completely.
http://vnx.su
Page 1543 of 2234
670SE±01
I35216: Clamps
67±22
±
AUDIO & VISUAL SYSTEMAMPLIFIER ANTENNA ASSY(LIFTBACK MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

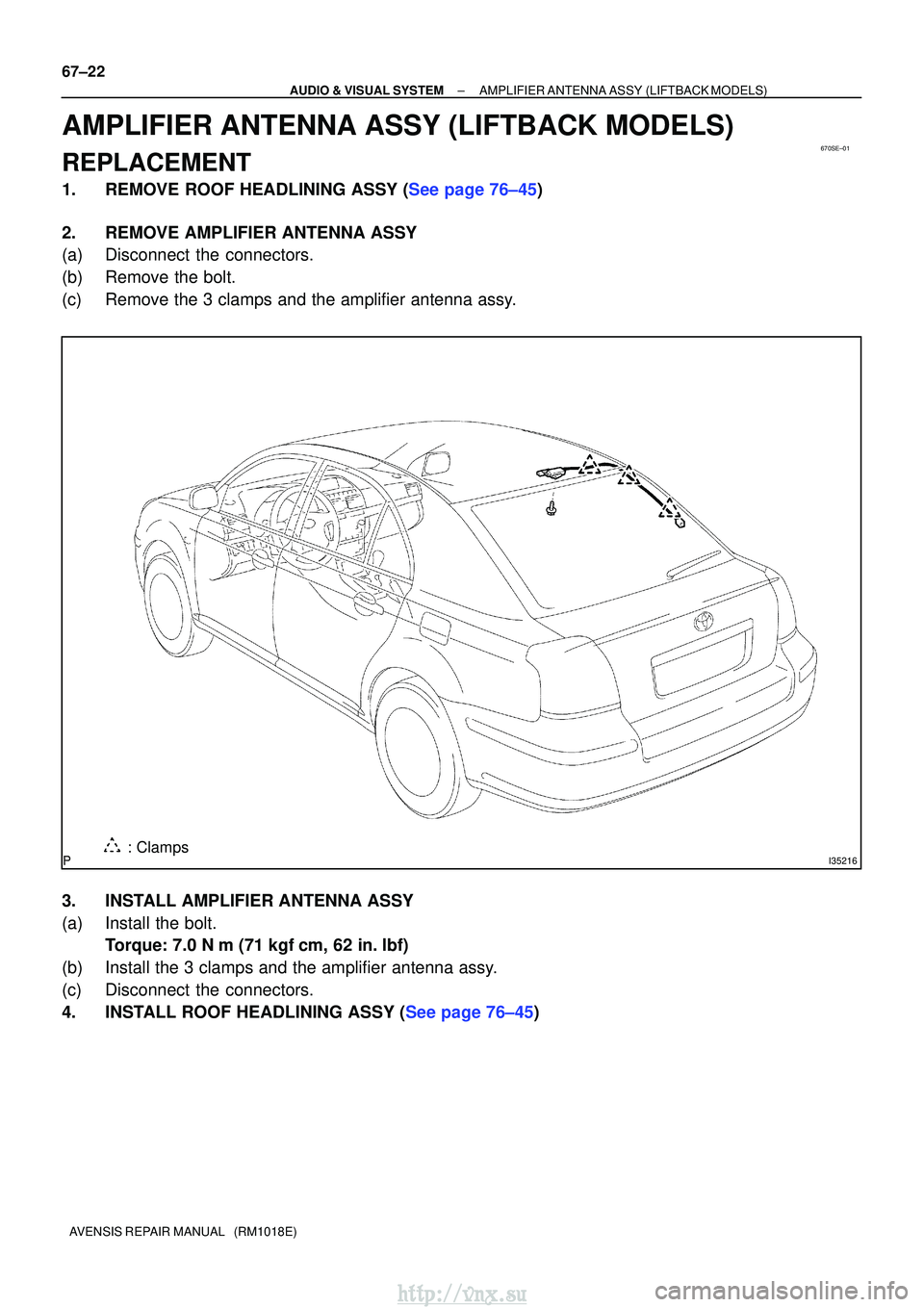

AMPLIFIER ANTENNA ASSY(LIFTBACK MODELS)
REPLACEMENT
1.REMOVE ROOF HEADLINING ASSY (See page 76±45)
2.REMOVE AMPLIFIER ANTENNA ASSY
(a)Disconnect the connectors.
(b)Remove the bolt.
(c)Remove the 3 clamps and the amplifier antenna assy.
3.INSTALL AMPLIFIER ANTENNA ASSY
(a)Install the bolt. Torque: 7.0 N m (71 kgfcm, 62 in. lbf)
(b)Install the 3 clamps and the amplifier antenna assy.
(c)Disconnect the connectors.
4.INSTALL ROOF HEADLINING ASSY (See page 76±45)
http://vnx.su
Page 1544 of 2234

670SC±03
67±16
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (SEDAN MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

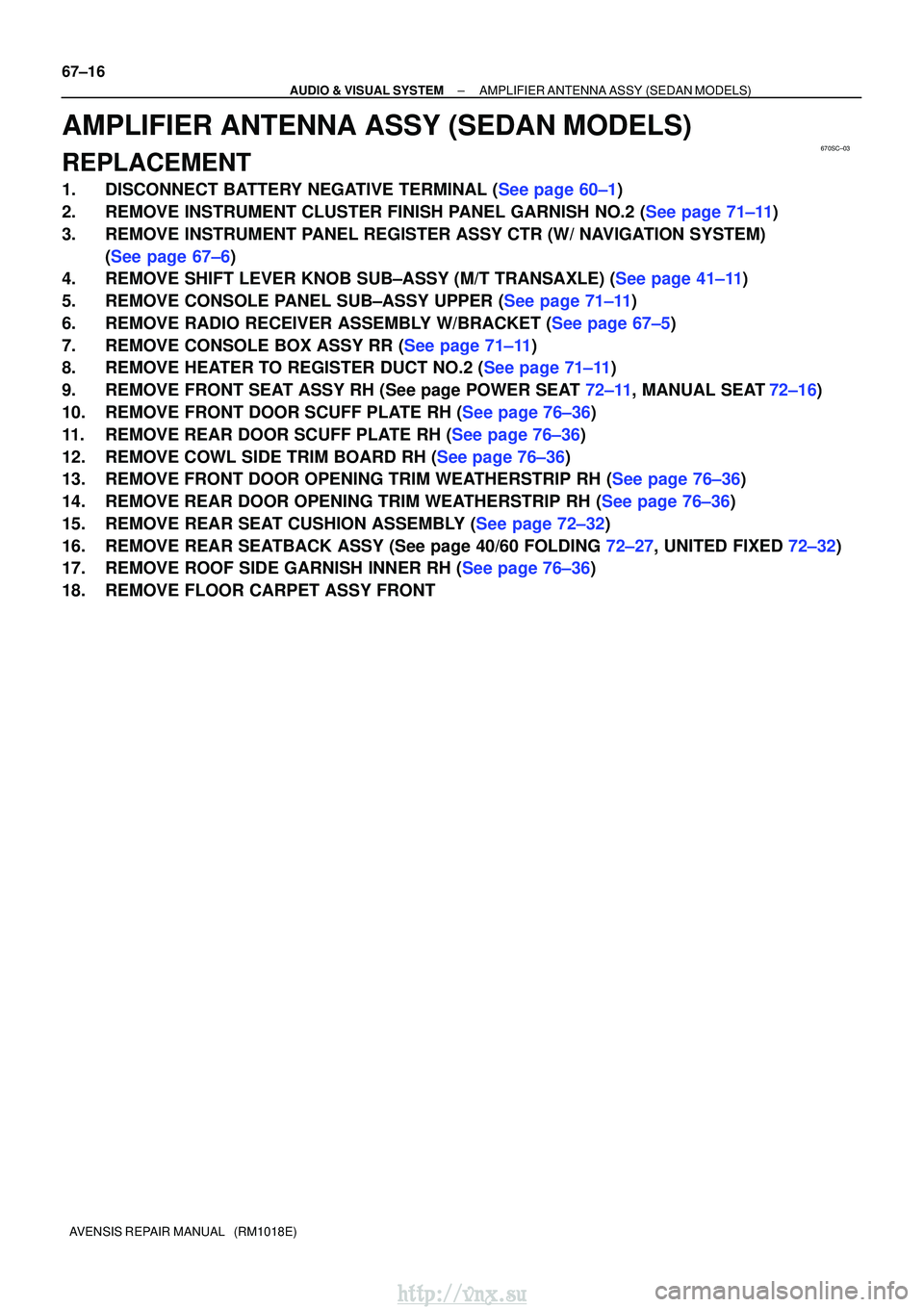

AMPLIFIER ANTENNA ASSY (SEDAN MODELS)
REPLACEMENT
1.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
2.REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (See page 71±11)
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6)
4.REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) (See page 41±11)
5.REMOVE CONSOLE PANEL SUB±ASSY UPPER (See page 71±11)
6.REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (See page 67±5)
7.REMOVE CONSOLE BOX ASSY RR (See page 71±11)
8.REMOVE HEATER TO REGISTER DUCT NO.2 (See page 71±11)
9.REMOVE FRONT SEAT ASSY RH (See page POWER SEAT 72±11, MANUAL SEAT72±16)
10.REMOVE FRONT DOOR SCUFF PLATE RH (See page 76±36)
11.REMOVE REAR DOOR SCUFF PLATE RH (See page 76±36)
12.REMOVE COWL SIDE TRIM BOARD RH (See page 76±36)
13.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH (See page 76±36)
14.REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (See page 76±36)
15.REMOVE REAR SEAT CUSHION ASSEMBLY (See page 72±32)
16.REMOVE REAR SEATBACK ASSY (See page 40/60 FOLDING 72±27, UNITED FIXED 72±32)
17.REMOVE ROOF SIDE GARNISH INNER RH (See page 76±36)
18. REMOVE FLOOR CARPET ASSY FRONT
