Page 609 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 140KR±02 A62199 TCCG A62200 ± ENGINE MECHANICALENGINE(1ZZ±FE/3ZZ±FE) 14±1 AVENSIS REPAIR MANUAL (RM1018E) ENGINE(1ZZ±FE/3ZZ±FE) INSPECTION 1.INSPECT COOLANT (See page 16±1) 2.INSPECT ENGINE

Page 610 of 2234

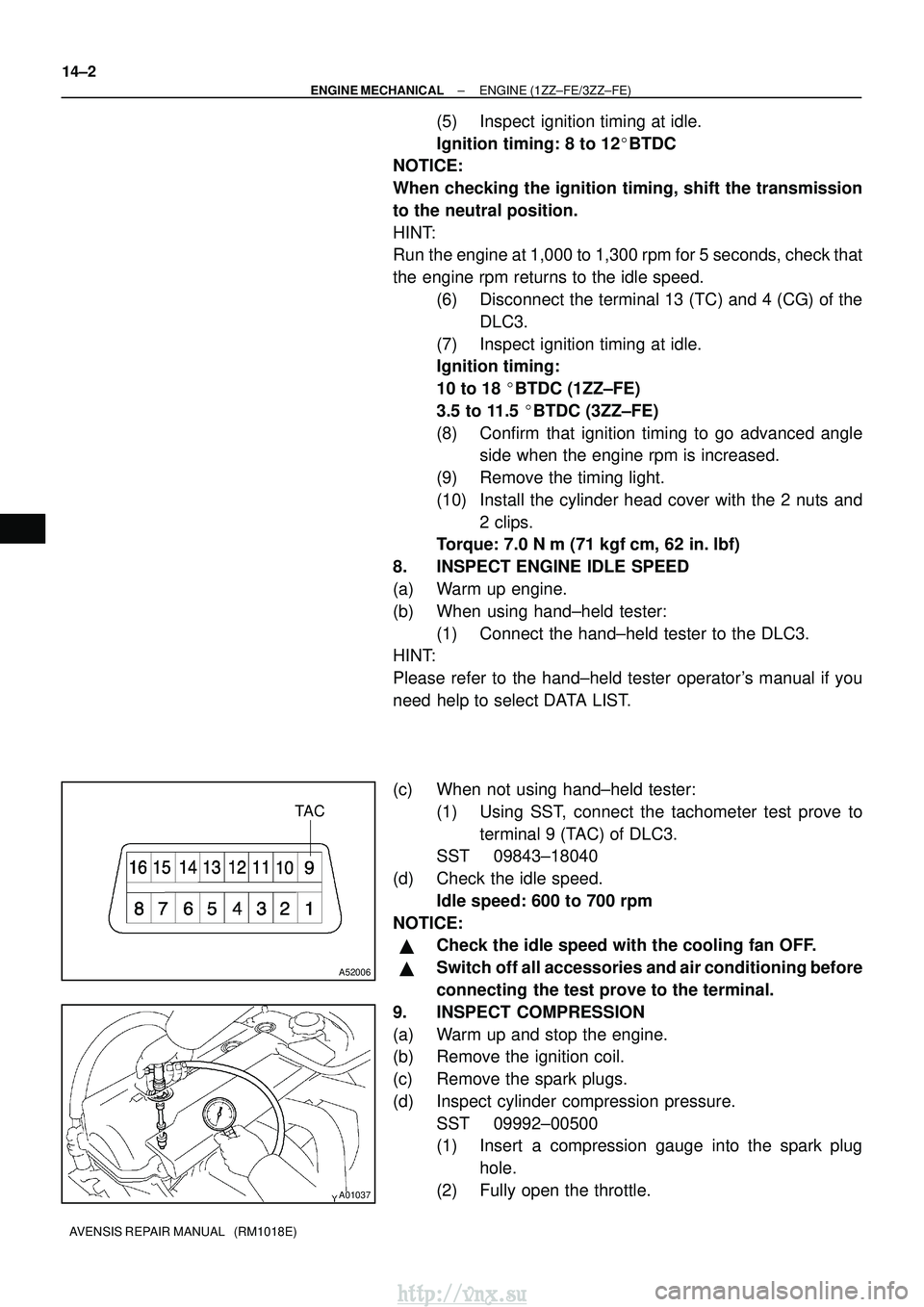

TOYOTA AVENSIS 2003 Service Repair Manual TA C A52006 A01037 14±2 ± ENGINE MECHANICAL ENGINE (1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) (5) Inspect ignition timing at idle. Ignition timing: 8 to 12 BTDC NOTICE: When checking the i

Page 611 of 2234

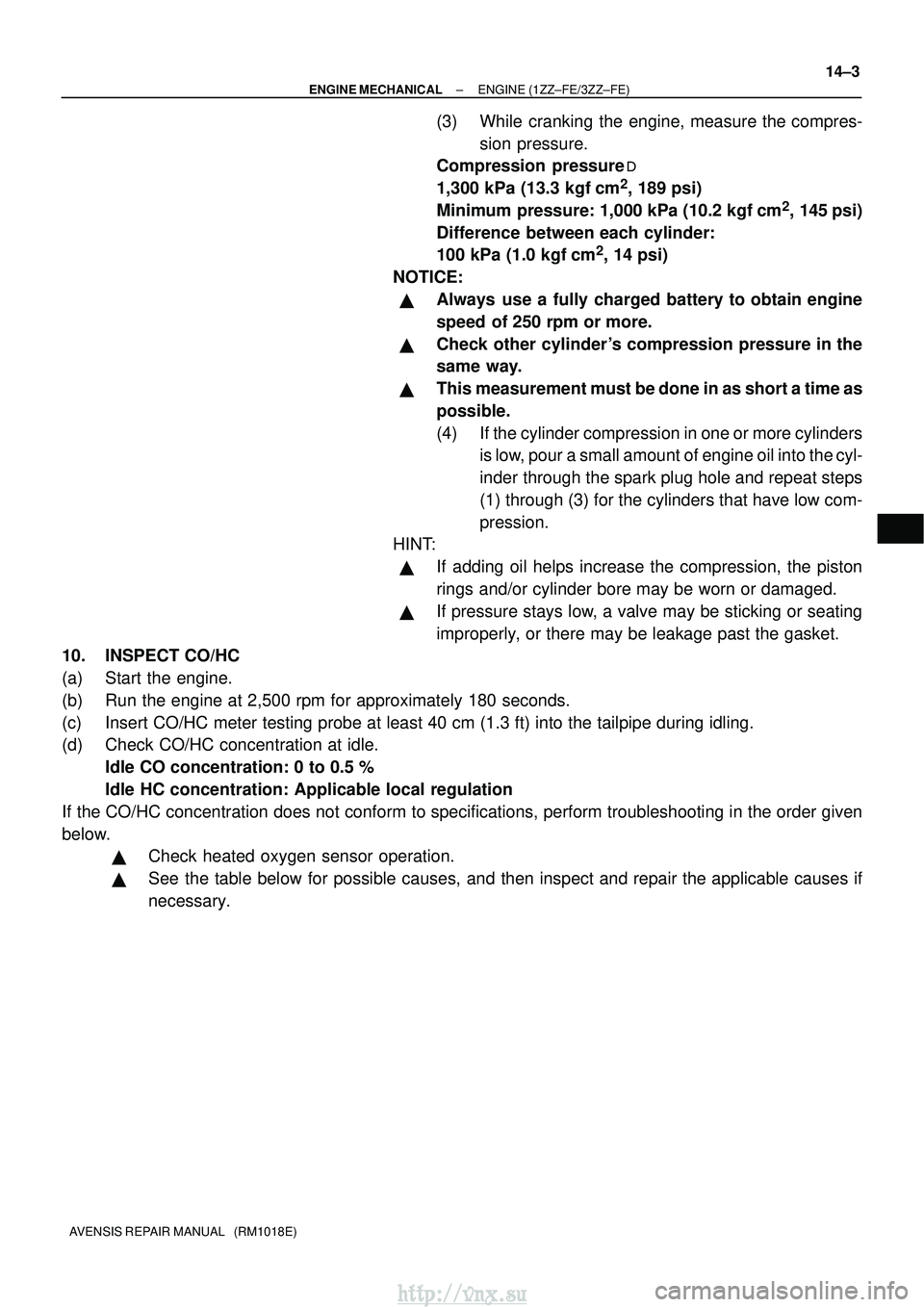

TOYOTA AVENSIS 2003 Service Repair Manual ± ENGINE MECHANICAL ENGINE (1ZZ±FE/3ZZ±FE) 14±3 AVENSIS REPAIR MANUAL (RM1018E) (3) While cranking the engine, measure the compres- sion pressure. Compression pressure  1,300 kPa (13.3 kgf cm

Page 612 of 2234

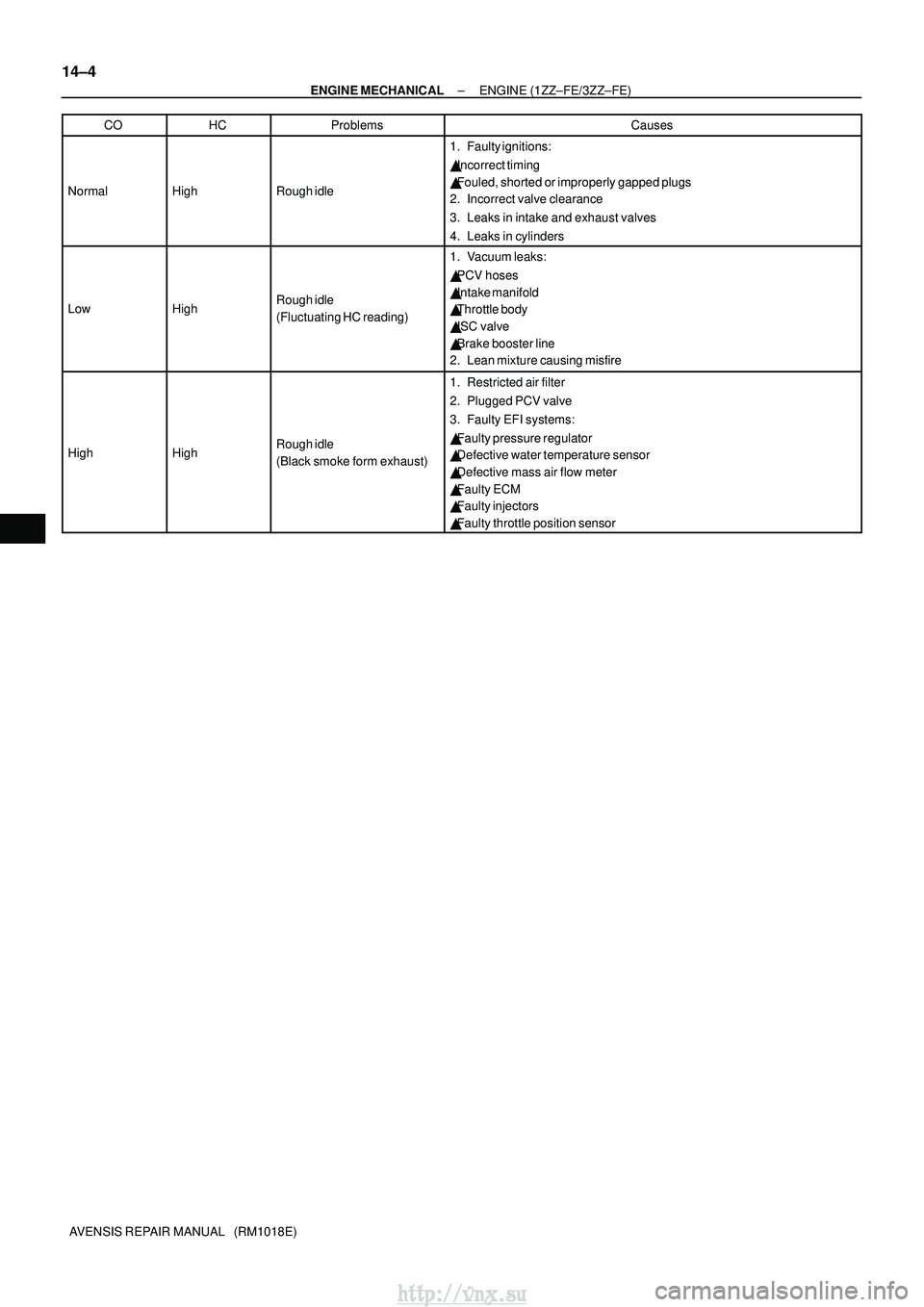

TOYOTA AVENSIS 2003 Service Repair Manual 14±4 ± ENGINE MECHANICAL ENGINE (1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) CO HCProblemsCauses NormalHighRough idle 1. Faulty ignitions:  Incorrect timing  Fouled, shorted or improperly g

Page 613 of 2234

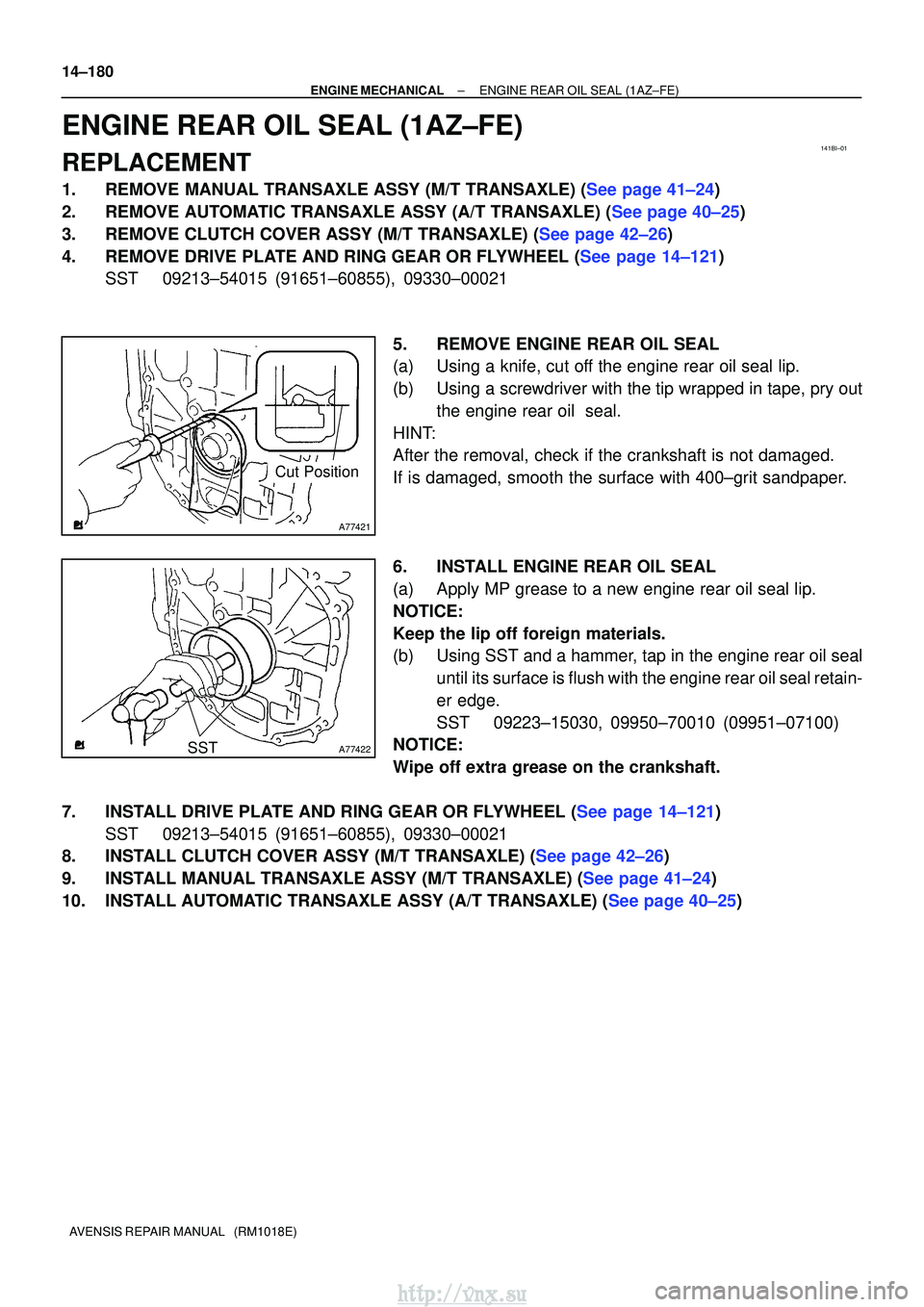

TOYOTA AVENSIS 2003 Service Repair Manual 141BI±01 A77421 Cut Position A77422SST 14±180 ± ENGINE MECHANICALENGINE REAR OIL SEAL(1AZ±FE) AVENSIS REPAIR MANUAL (RM1018E) ENGINE REAR OIL SEAL(1AZ±FE) REPLACEMENT 1.REMOVE MANUAL TRANSAXLE

Page 614 of 2234

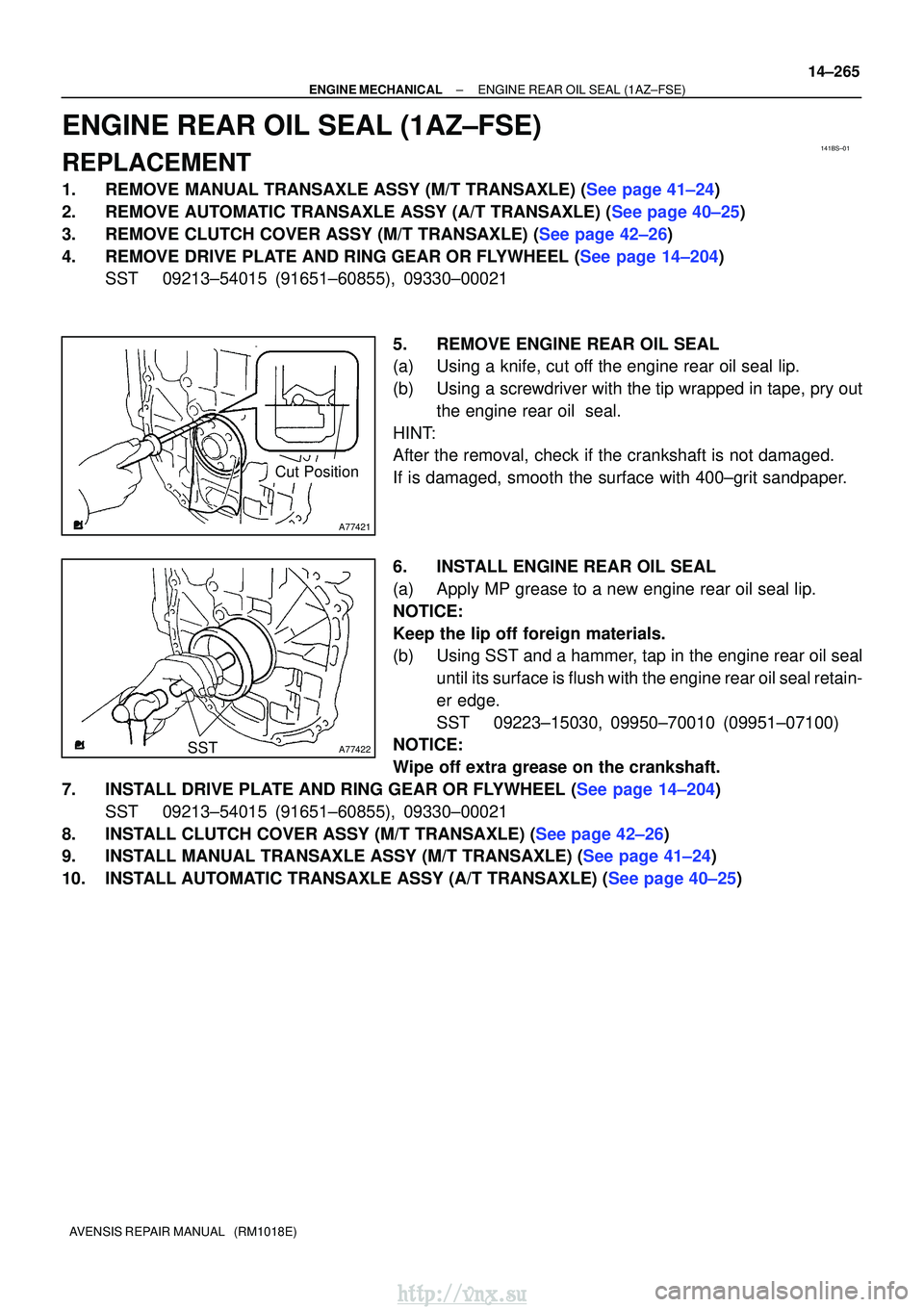

TOYOTA AVENSIS 2003 Service Repair Manual 141BS±01 A77421 Cut Position A77422SST ± ENGINE MECHANICALENGINE REAR OIL SEAL(1AZ±FSE) 14±265 AVENSIS REPAIR MANUAL (RM1018E) ENGINE REAR OIL SEAL(1AZ±FSE) REPLACEMENT 1.REMOVE MANUAL TRANSAXL

Page 615 of 2234

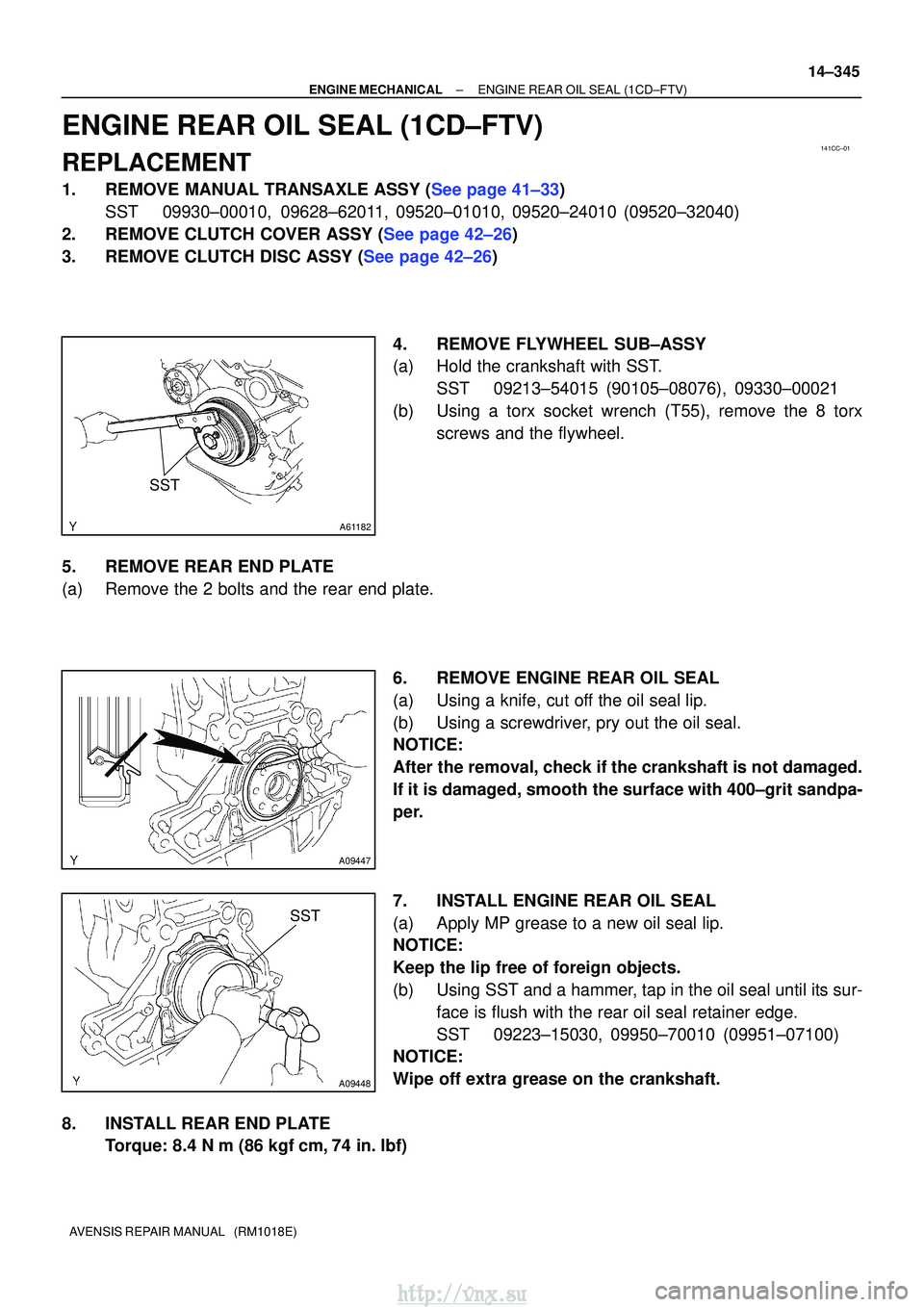

TOYOTA AVENSIS 2003 Service Repair Manual 141CC±01 A61182 SST A09447 SST A09448 ± ENGINE MECHANICALENGINE REAR OIL SEAL(1CD±FTV) 14±345 AVENSIS REPAIR MANUAL (RM1018E) ENGINE REAR OIL SEAL(1CD±FTV) REPLACEMENT 1.REMOVE MANUAL TRANSAXLE

Page 616 of 2234

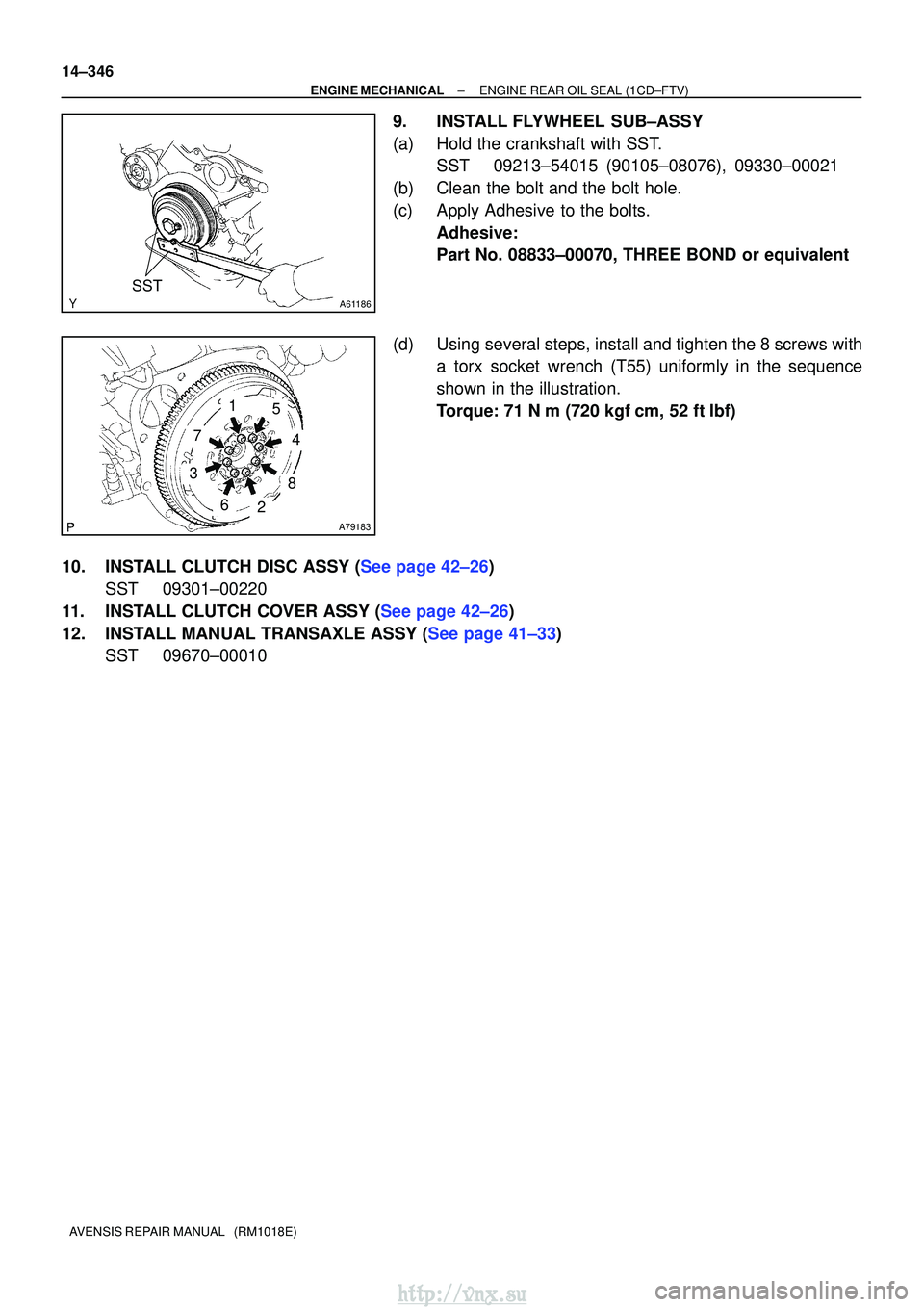

TOYOTA AVENSIS 2003 Service Repair Manual A61186 SST A79183 1 7 5 8 4 3 26 14±346 ± ENGINE MECHANICALENGINE REAR OIL SEAL(1CD±FTV) AVENSIS REPAIR MANUAL (RM1018E) 9.INSTALL FLYWHEEL SUB±ASSY (a)Hold the crankshaft with SST. SST09213±54
