Page 153 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual ±
PREPARATION SUPPLEMENTAL RESTRAINT SYSTEM
02±53
AVENSIS REPAIR MANUAL (RM1018E)
Recomended Tools
09042±00010Torx Socket T30HORN BUTTON ASSY
SPIRAL CABLE SUB±ASSY
09070±20010Moulding RemoverAI

Page 154 of 2234

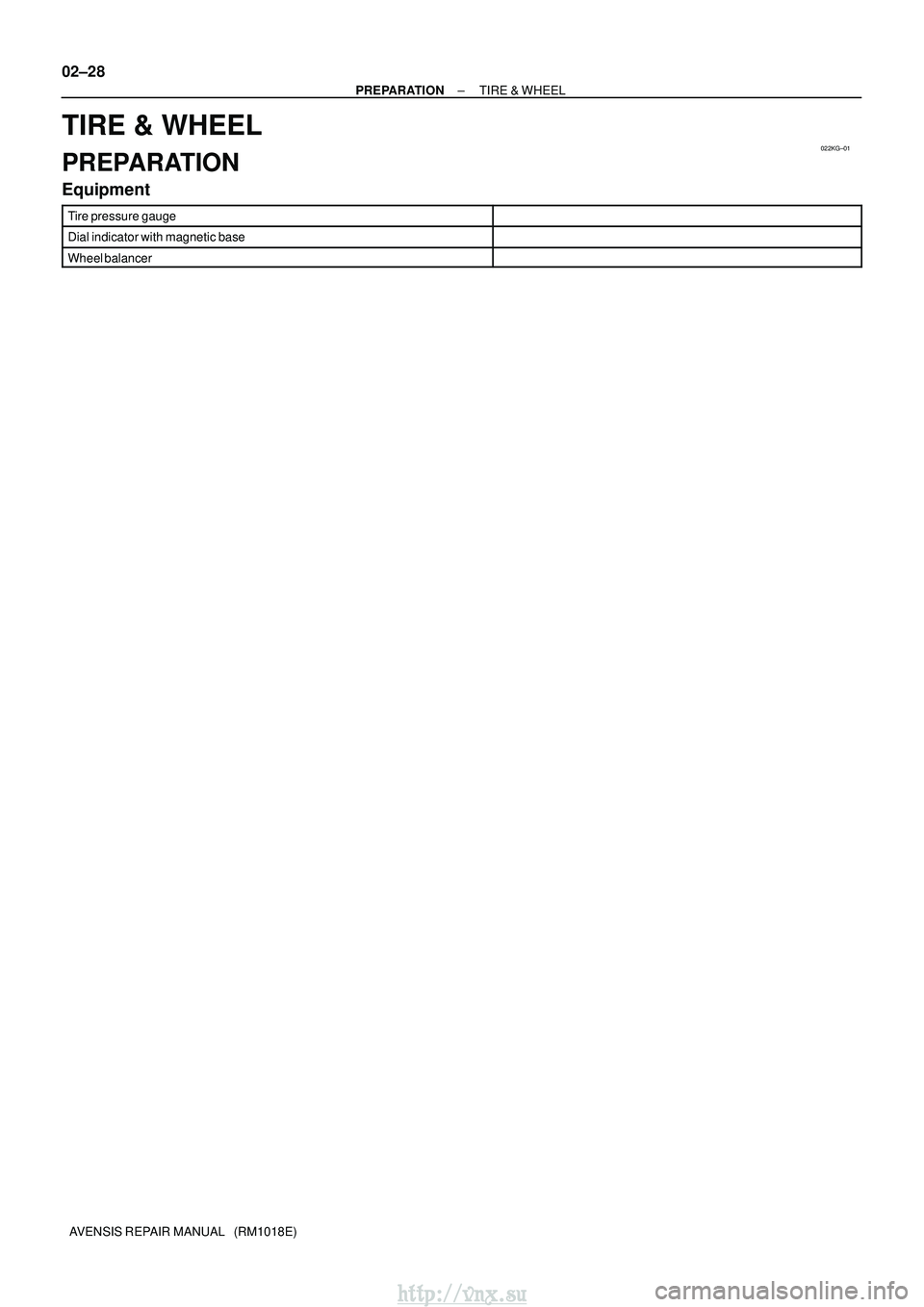

TOYOTA AVENSIS 2003 Service Repair Manual 022KG±01
02±28
±
PREPARATION TIRE & WHEEL
AVENSIS REPAIR MANUAL (RM1018E)
TIRE & WHEEL
PREPARATION
Equipment
Tire pressure gauge
Dial indicator with magnetic base
Wheel balancer
http://vnx.su

Page 155 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 022L3±01
±
PREPARATION VEHICLE CONTROL SYSTEM
02±63
AVENSIS REPAIR MANUAL (RM1018E)
VEHICLE CONTROL SYSTEM
PREPARATION
Recomended Tools
09082±00040TOYOTA Electrical TesterIGNITION OR STARTER SW

Page 156 of 2234

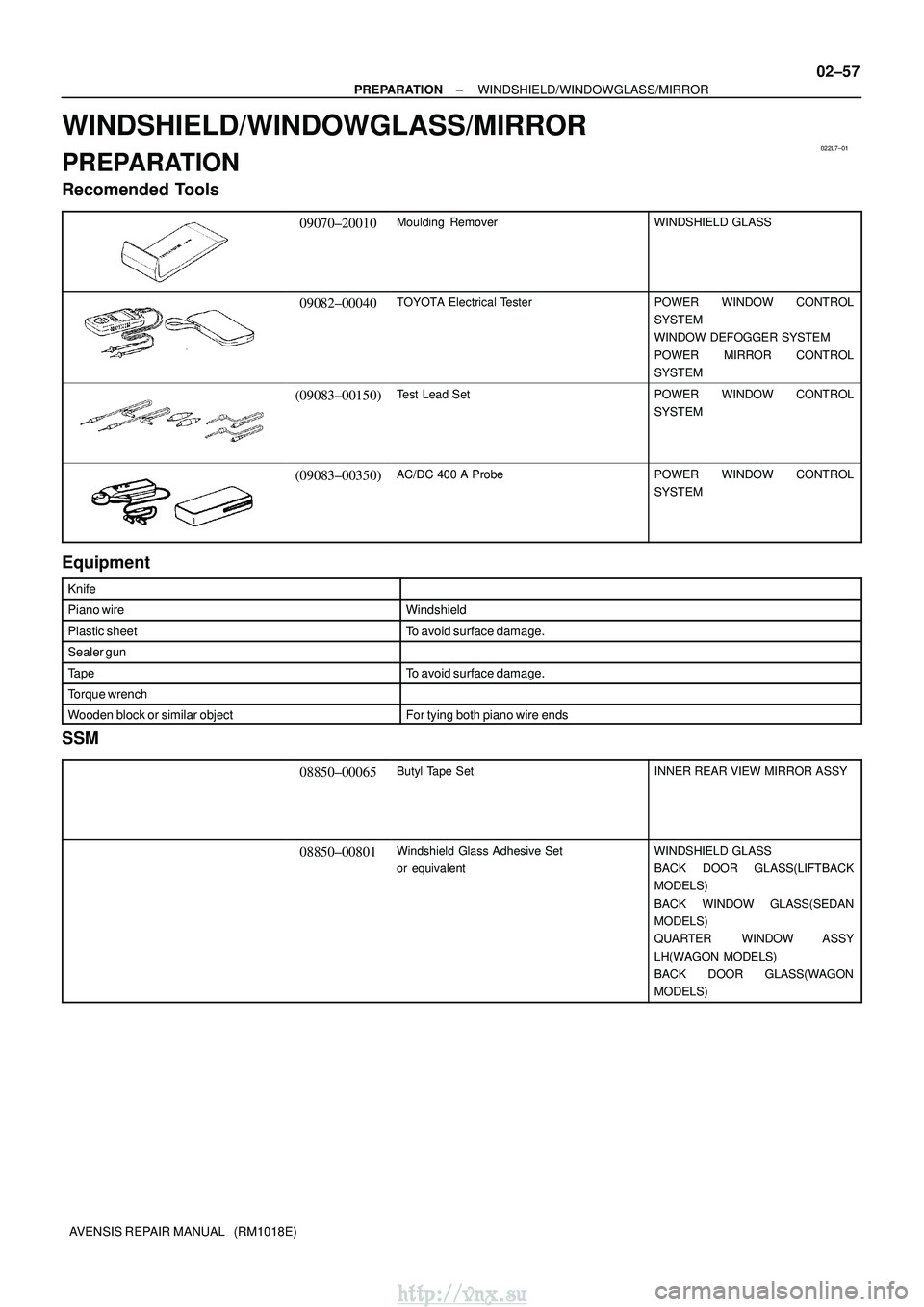

TOYOTA AVENSIS 2003 Service Repair Manual 022L7±01
±
PREPARATION WINDSHIELD/WINDOWGLASS/MIRROR
02±57
AVENSIS REPAIR MANUAL (RM1018E)
WINDSHIELD/WINDOWGLASS/MIRROR
PREPARATION
Recomended Tools
09070±20010Moulding RemoverWINDSHIELD GLASS

Page 157 of 2234

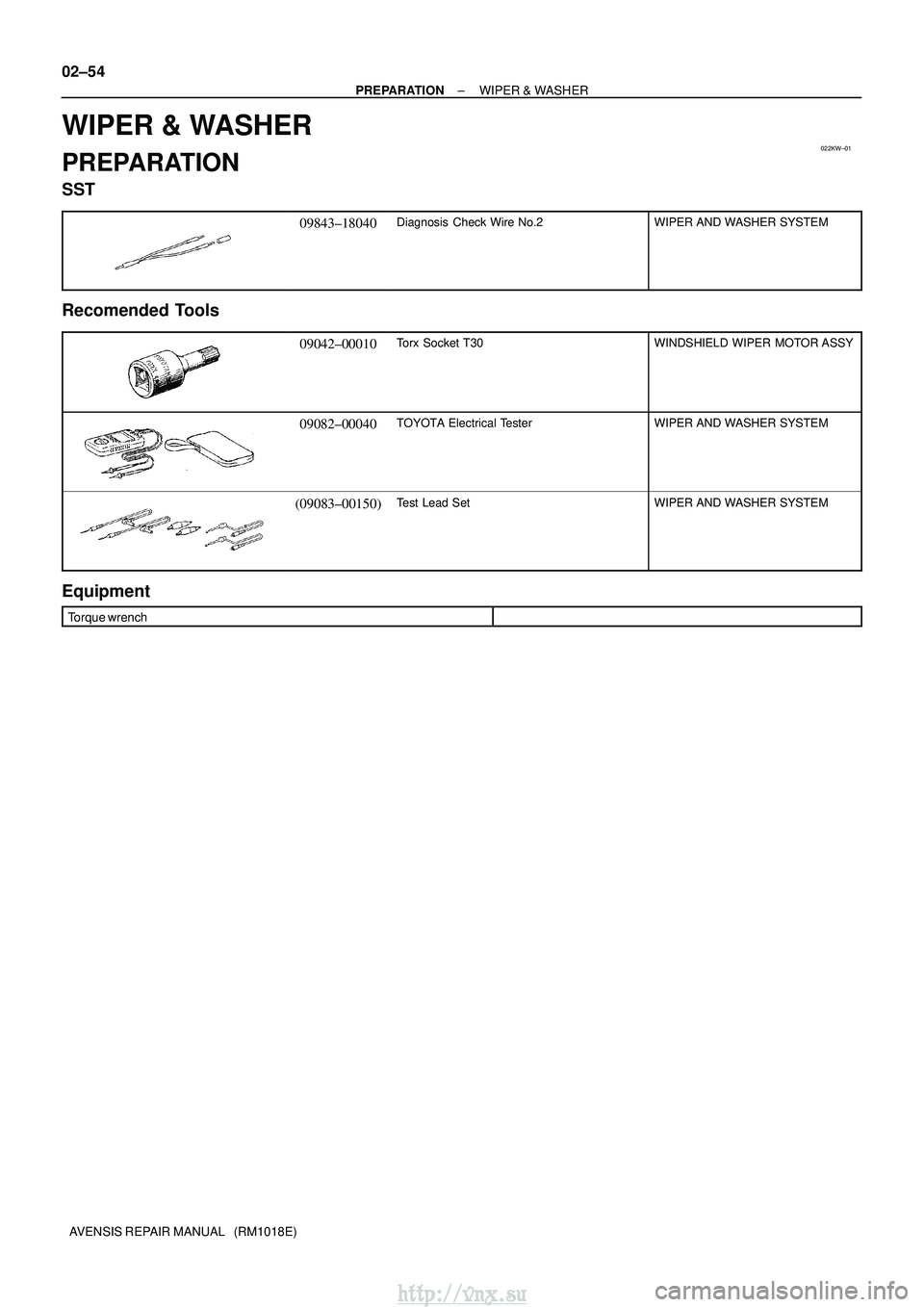

TOYOTA AVENSIS 2003 Service Repair Manual 022KW±01
02±54
±
PREPARATION WIPER & WASHER
AVENSIS REPAIR MANUAL (RM1018E)
WIPER & WASHER
PREPARATION
SST
09843±18040Diagnosis Check Wire No.2WIPER AND WASHER SYSTEM
Recomended Tools
09042±00

Page 158 of 2234

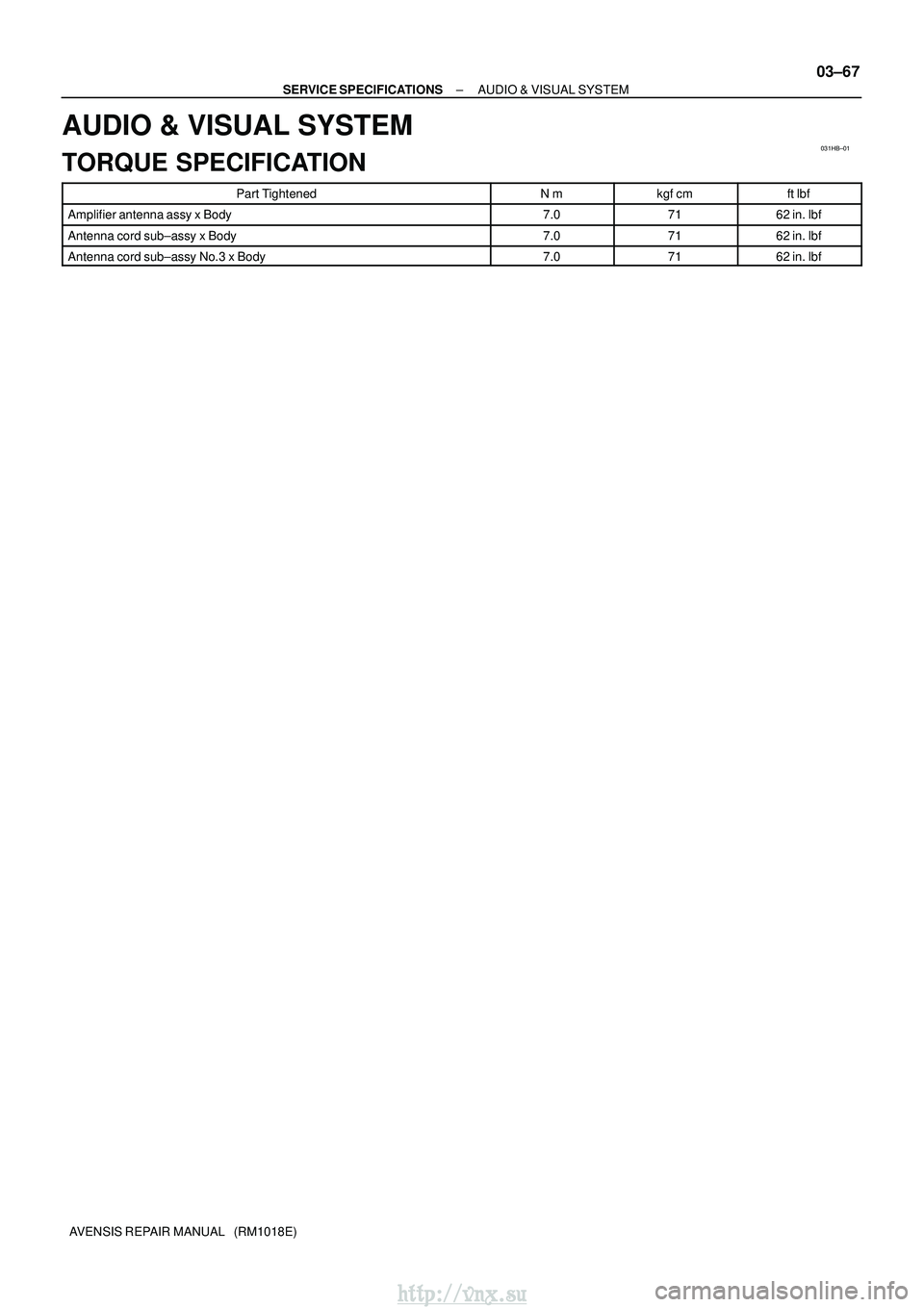

TOYOTA AVENSIS 2003 Service Repair Manual 031HB±01
±
SERVICE SPECIFICATIONS AUDIO & VISUAL SYSTEM
03±67
AVENSIS REPAIR MANUAL (RM1018E)
AUDIO & VISUAL SYSTEM
TORQUE SPECIFICATION
Part TightenedNmkgf cmft lbf
Amplifier antenna assy x B

Page 159 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 030A9±10
±
SERVICE SPECIFICATIONS AUTOMATIC TRANSMISSION / TRANSAXLE
03±45
AVENSIS REPAIR MANUAL (RM1018E)
AUTOMATIC TRANSMISSION / TRANSAXLE
SERVICE DATA
U341E (RHD)
Line pressure (Wheel locked)

030A9±10
±
SERVICE SPECIFICATIONS AUTOMATIC TRANSMISSION / TRANSAXLE
03±45
AVENSIS REPAIR MANUAL (RM1018E)
AUTOMATIC TRANSMISSION / TRANSAXLE
SERVICE DATA
U341E (RHD)
Line pressure (Wheel locked)
Engine idlingD range
R range
AT stall (Throttle valve fully opened) D range
R range
370 ± 410 kPa (3.8 ± 4.2 kgf cm2, 54 ± 60 psi)
540 ± 640 kPa (5.5 ± 6.5 kgf cm2, 78 ± 92 psi)
1,110 ± 1,230 kPa (11.3 ± 12.5 kgf cm
2, 161 ± 178 psi)
1,700 ± 1,810 kPa (17.3 ± 18.5 kgf cm2, 246 ± 263 psi)
Engine stall revolution D and R range2,400 150 rpm
Time lag N D range
N R rangeLess than 1.2 seconds
Less than 1.5 seconds
Engine idle speed
(A/C OFF) N range
650 50 rpm
Drive plate runout Max.
Torque converter clutch runout Max.0.20 mm (0.0079 in.)
0.30 mm (0.0118 in.)
Differential oil seal drive in depthLH side
RH side2.7 0.5 mm (0.106 0.020 in.)
0 0.5 mm (0 0.020 in.)
Shift schedule
D range
(Throttle valve fully opened) 1 2
2 3
3 4
4 3
3 2
2 1
(Throttle valve fully closed) 3 4
4 3
2 range
(Throttle valve fully opened) 1 2
3 2
2 1
L range
(Throttle valve fully opened) 3 2
2 1
53 ± 59 km/h (33 ± 37 mph)
100 ± 108 km/h (62 ± 67 mph)
156 ± 165 km/h (97 ± 103 mph)
151 ± 159 km/h (94 ± 99 mph)
91 ± 99 km/h (57 ± 62 mph)
43 ± 47 km/h (27 ± 29 mph)
36 ± 40 km/h (22 ± 25 mph)
31 ± 35 km/h (19 ± 22 mph)
53 ± 59 km/h (33 ± 37 mph)
96 ± 103 km/h (60 ± 64 mph)
43 ± 47 km/h (27 ± 29 mph)
96 ± 103 km/h (60 ± 64 mph)
48 ± 52 km/h (30 ± 32 mph)
Lock±up point Throttle valve opening 5 %
O/D gear Lock±up ON
Lock±up OFF
3rd gear (3 position only) Lock±up ON
Lock±up OFF
67 ± 71 km/h (42 ± 44 mph)
61 ± 66 km/h (38 ± 41 mph)
114 ± 123 km/h (71 ± 76 mph)
109 ± 117 km/h (67 ± 73 mph)
U341E (LHD)
Line pressure (Wheel locked) Engine idlingD range
R range
AT stall (Throttle valve fully opened) D range
R range
370 ± 410 kPa (3.8 ± 4.2 kgf cm2, 54 ± 60 psi)
540 ± 640 kPa (5.5 ± 6.5 kgf cm2, 78 ± 92 psi)
1,110 ± 1,230 kPa (11.3 ± 12.5 kgf cm
2, 161 ± 178 psi)
1,700 ± 1,810 kPa (17.3 ± 18.5 kgf cm2, 246 ± 263 psi)
Engine stall revolution D and R range2,400 150 rpm
Time lag N D range
N R rangeLess than 1.2 seconds
Less than 1.5 seconds
Engine idle speed
(A/C OFF) N range
650 50 rpm
Drive plate runout Max.
Torque converter clutch runout Max.0.20 mm (0.0079 in.)
0.30 mm (0.0118 in.)
Differential oil seal drive in depthLH side
RH side2.7 0.5 mm (0.106 0.020 in.)
0 0.5 mm (0 0.020 in.)
http://vnx.su

Page 160 of 2234

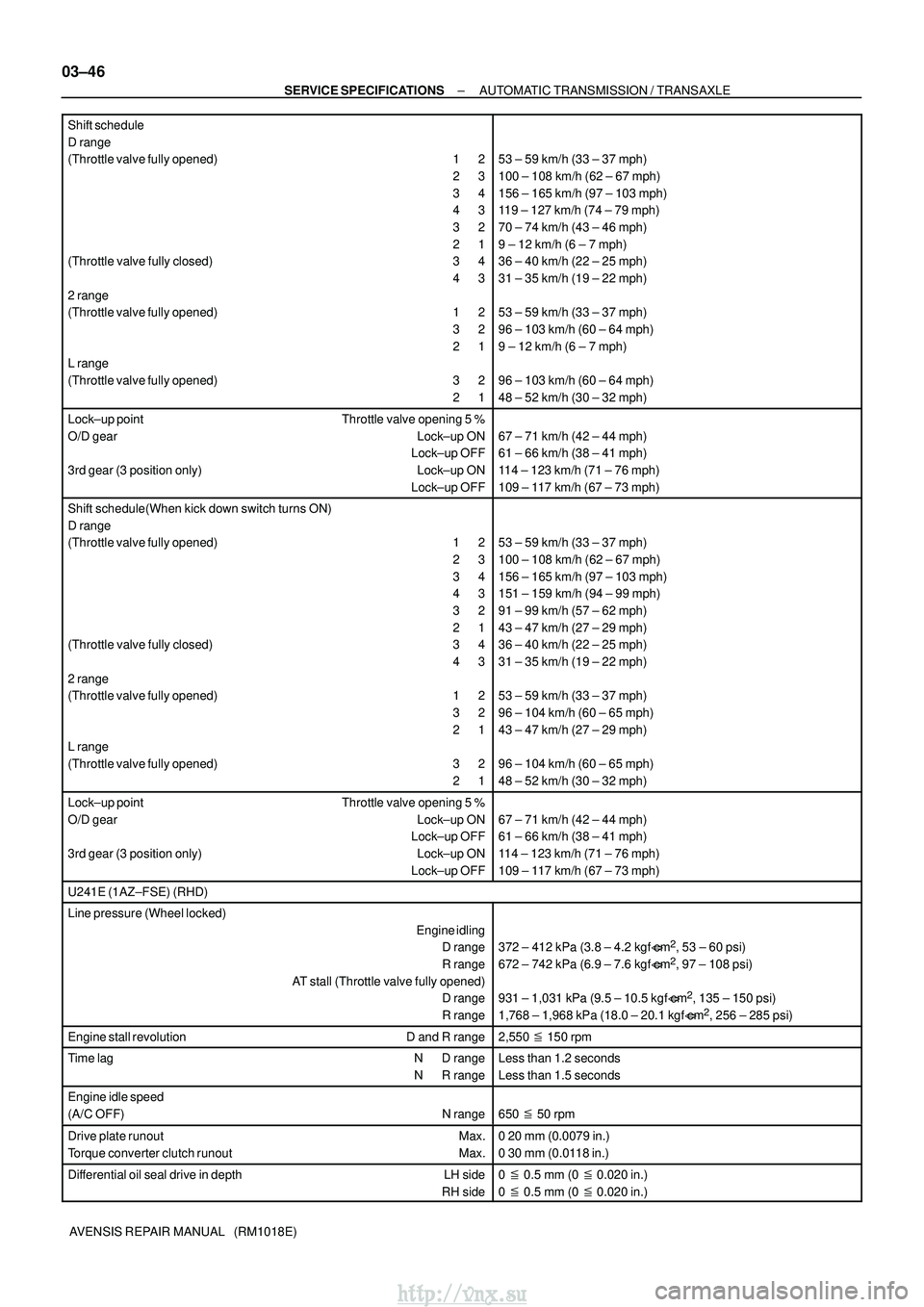

TOYOTA AVENSIS 2003 Service Repair Manual 03±46
±
SERVICE SPECIFICATIONS AUTOMATIC TRANSMISSION / TRANSAXLE
AVENSIS REPAIR MANUAL (RM1018E)
Shift schedule
D range
(Throttle valve fully opened) 1
2
2 3
3 4
4 3
3 2
2

03±46
±
SERVICE SPECIFICATIONS AUTOMATIC TRANSMISSION / TRANSAXLE
AVENSIS REPAIR MANUAL (RM1018E)
Shift schedule
D range
(Throttle valve fully opened) 1
2
2 3
3 4
4 3
3 2
2 1
(Throttle valve fully closed) 3 4
4 3
2 range
(Throttle valve fully opened) 1 2
3 2
2 1
L range
(Throttle valve fully opened) 3 2
2 1
53 ± 59 km/h (33 ± 37 mph)
100 ± 108 km/h (62 ± 67 mph)
156 ± 165 km/h (97 ± 103 mph)
119 ± 127 km/h (74 ± 79 mph)
70 ± 74 km/h (43 ± 46 mph)
9 ± 12 km/h (6 ± 7 mph)
36 ± 40 km/h (22 ± 25 mph)
31 ± 35 km/h (19 ± 22 mph)
53 ± 59 km/h (33 ± 37 mph)
96 ± 103 km/h (60 ± 64 mph)
9 ± 12 km/h (6 ± 7 mph)
96 ± 103 km/h (60 ± 64 mph)
48 ± 52 km/h (30 ± 32 mph)
Lock±up point Throttle valve opening 5 %
O/D gear Lock±up ON
Lock±up OFF
3rd gear (3 position only) Lock±up ON
Lock±up OFF
67 ± 71 km/h (42 ± 44 mph)
61 ± 66 km/h (38 ± 41 mph)
114 ± 123 km/h (71 ± 76 mph)
109 ± 117 km/h (67 ± 73 mph)
Shift schedule(When kick down switch turns ON)
D range
(Throttle valve fully opened) 1 2
2 3
3 4
4 3
3 2
2 1
(Throttle valve fully closed) 3 4
4 3
2 range
(Throttle valve fully opened) 1 2
3 2
2 1
L range
(Throttle valve fully opened) 3 2
2 1
53 ± 59 km/h (33 ± 37 mph)
100 ± 108 km/h (62 ± 67 mph)
156 ± 165 km/h (97 ± 103 mph)
151 ± 159 km/h (94 ± 99 mph)
91 ± 99 km/h (57 ± 62 mph)
43 ± 47 km/h (27 ± 29 mph)
36 ± 40 km/h (22 ± 25 mph)
31 ± 35 km/h (19 ± 22 mph)
53 ± 59 km/h (33 ± 37 mph)
96 ± 104 km/h (60 ± 65 mph)
43 ± 47 km/h (27 ± 29 mph)
96 ± 104 km/h (60 ± 65 mph)
48 ± 52 km/h (30 ± 32 mph)
Lock±up point Throttle valve opening 5 %
O/D gear Lock±up ON
Lock±up OFF
3rd gear (3 position only) Lock±up ON
Lock±up OFF
67 ± 71 km/h (42 ± 44 mph)
61 ± 66 km/h (38 ± 41 mph)
114 ± 123 km/h (71 ± 76 mph)
109 ± 117 km/h (67 ± 73 mph)
U241E (1AZ±FSE) (RHD)
Line pressure (Wheel locked) Engine idlingD range
R range
AT stall (Throttle valve fully opened) D range
R range
372 ± 412 kPa (3.8 ± 4.2 kgf cm2, 53 ± 60 psi)
672 ± 742 kPa (6.9 ± 7.6 kgf cm2, 97 ± 108 psi)
931 ± 1,031 kPa (9.5 ± 10.5 kgf cm
2, 135 ± 150 psi)
1,768 ± 1,968 kPa (18.0 ± 20.1 kgf cm2, 256 ± 285 psi)
Engine stall revolution D and R range2,550 150 rpm
Time lag N D range
N R rangeLess than 1.2 seconds
Less than 1.5 seconds
Engine idle speed
(A/C OFF) N range
650 50 rpm
Drive plate runout Max.
Torque converter clutch runout Max.0 20 mm (0.0079 in.)
0 30 mm (0.0118 in.)
Differential oil seal drive in depthLH side
RH side0 0.5 mm (0 0.020 in.)
0 0.5 mm (0 0.020 in.)
http://vnx.su
