Page 1793 of 2234

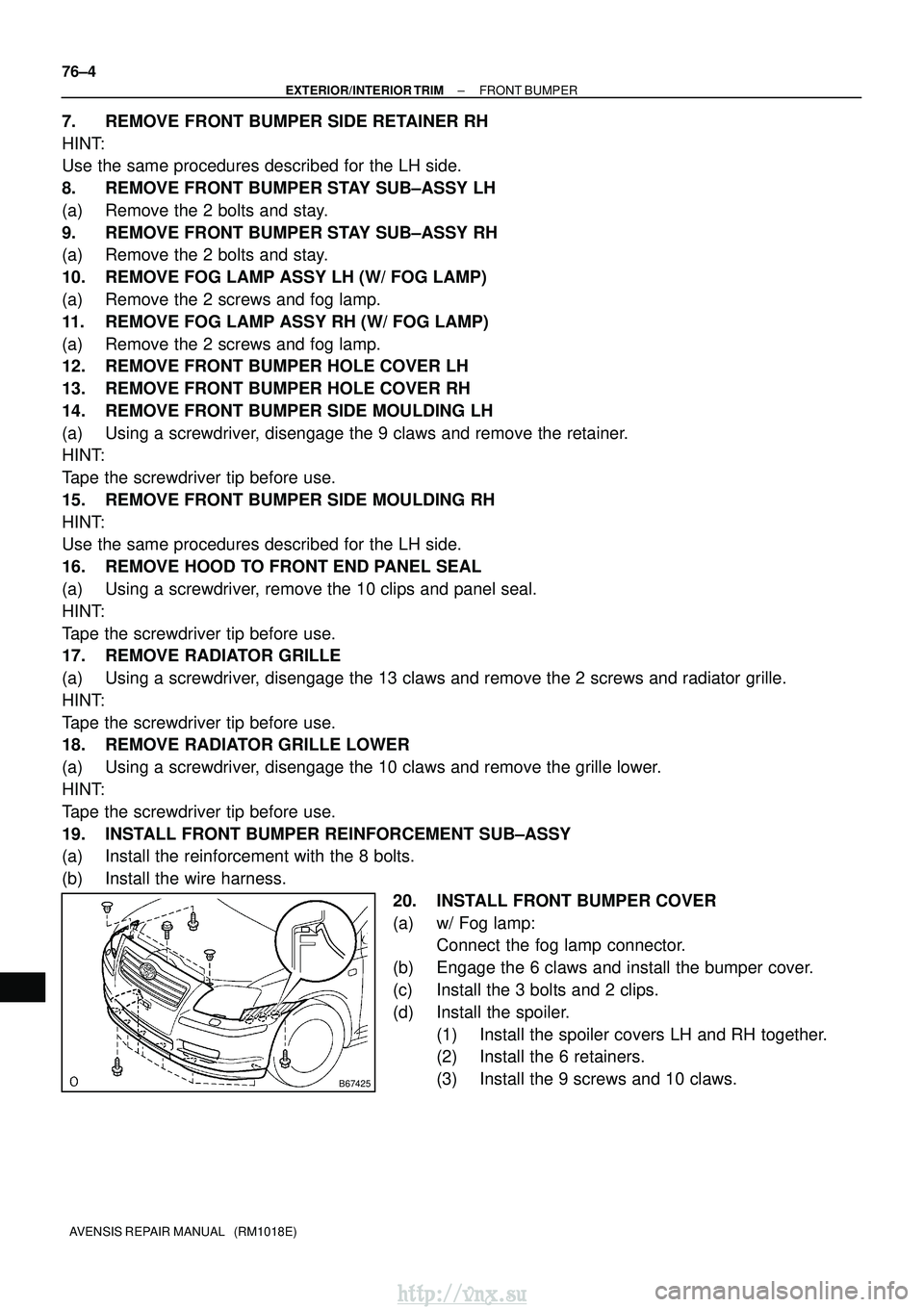

TOYOTA AVENSIS 2003 Service Repair Manual B67425 76±4 ± EXTERIOR/INTERIOR TRIM FRONT BUMPER AVENSIS REPAIR MANUAL (RM1018E) 7. REMOVE FRONT BUMPER SIDE RETAINER RH HINT: Use the same procedures described for the LH side. 8. REMOVE FRONT B

Page 1794 of 2234

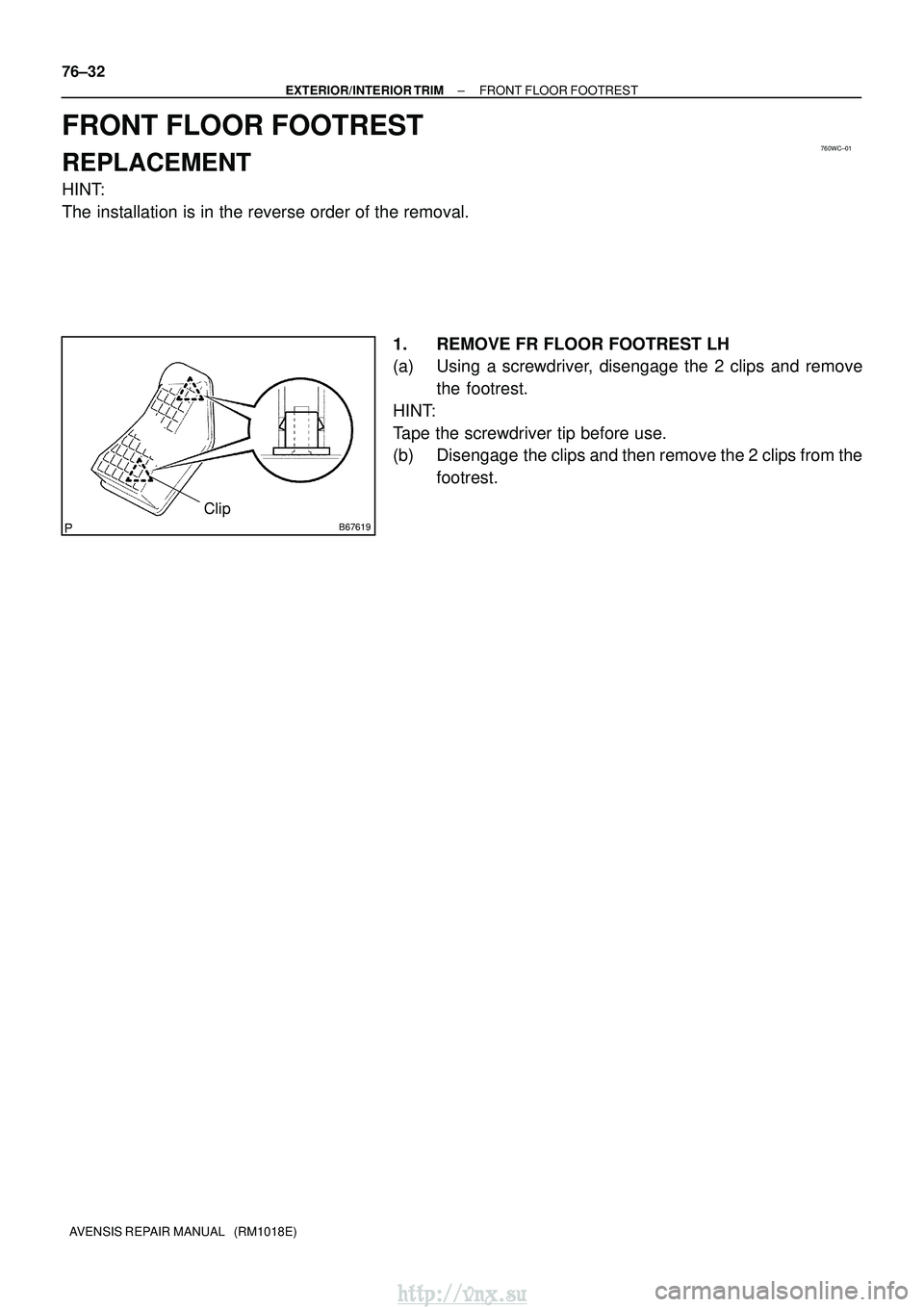

TOYOTA AVENSIS 2003 Service Repair Manual 760WC±01 B67619 Clip 76±32 ± EXTERIOR/INTERIOR TRIM FRONT FLOOR FOOTREST AVENSIS REPAIR MANUAL (RM1018E) FRONT FLOOR FOOTREST REPLACEMENT HINT: The installation is in the reverse order of the rem

Page 1795 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 760WC±01 B67619 Clip 76±32 ± EXTERIOR/INTERIOR TRIM FRONT FLOOR FOOTREST AVENSIS REPAIR MANUAL (RM1018E) FRONT FLOOR FOOTREST REPLACEMENT HINT: The installation is in the reverse order of the rem

Page 1796 of 2234

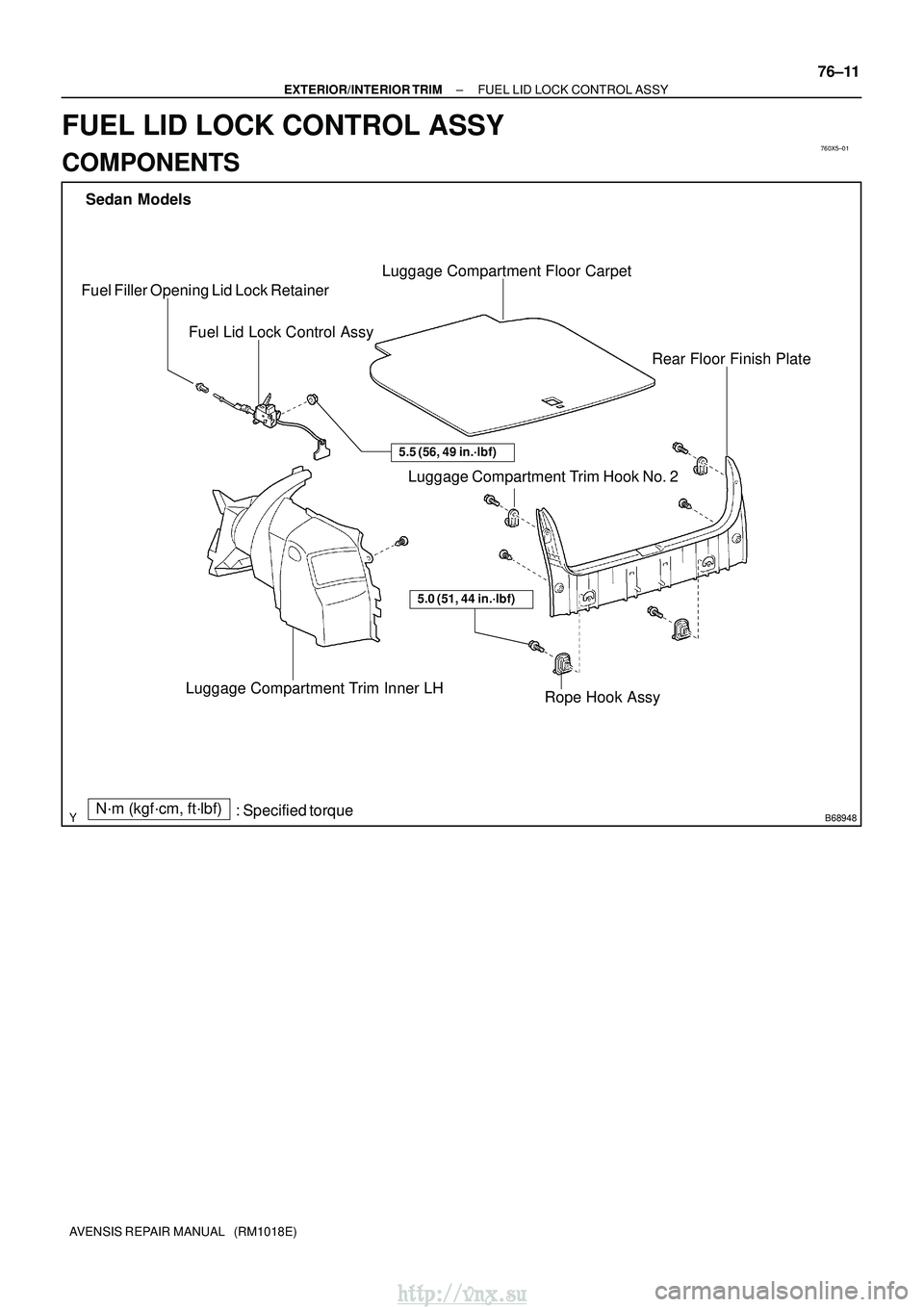

TOYOTA AVENSIS 2003 Service Repair Manual 760X5±01 B68948 Sedan ModelsLuggage Compartment Trim Hook No. 2Rope Hook Assy Luggage Compartment Floor Carpet Luggage Compartment Trim Inner LH 5.0 (51, 44 in.´lbf) : Specified torqueN´m (kgf´cm,

Page 1797 of 2234

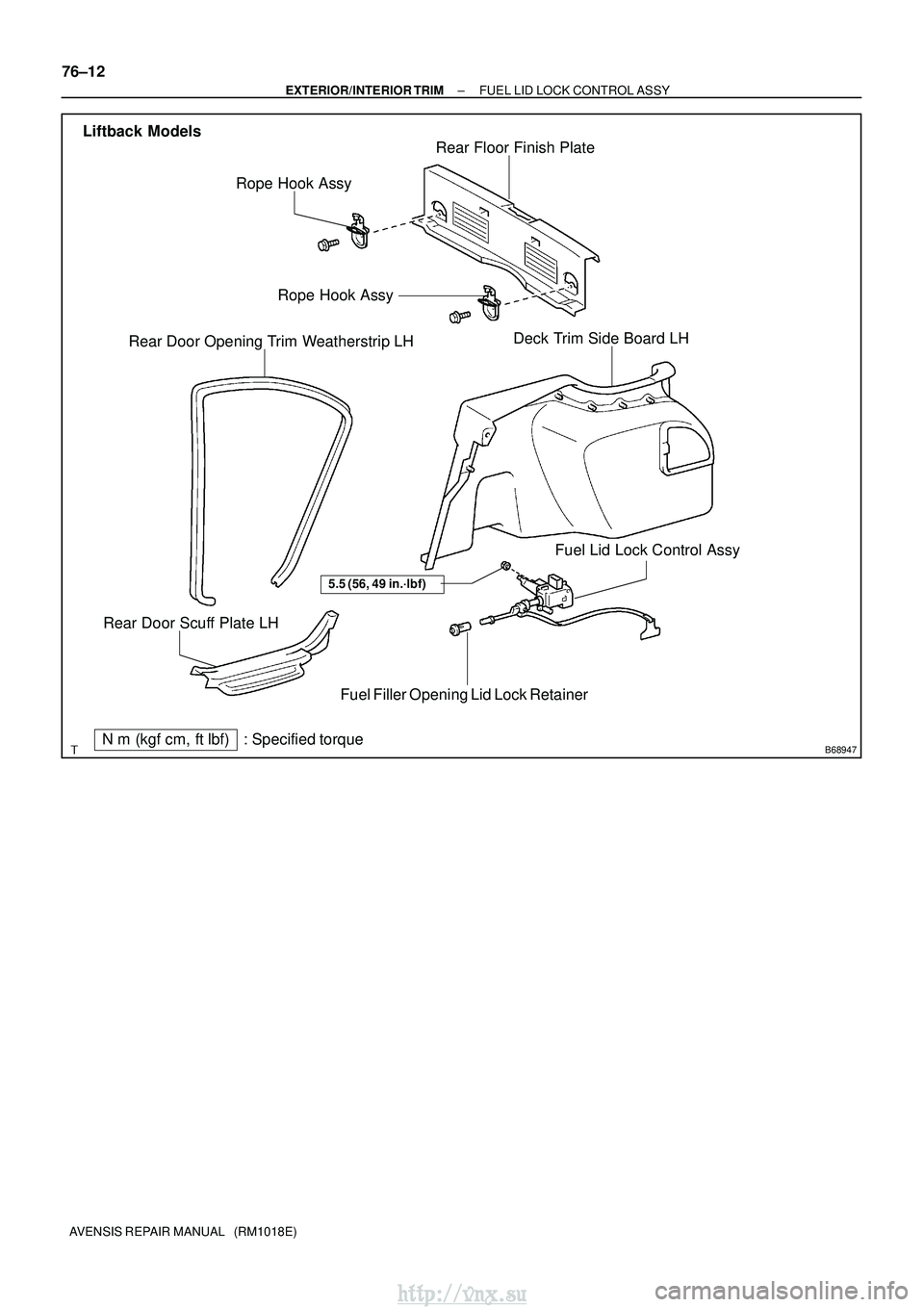

TOYOTA AVENSIS 2003 Service Repair Manual B68947 Liftback ModelsFuel Lid Lock Control Assy Fuel Filler Opening Lid Lock Retainer Rear Floor Finish Plate Rear Door Opening Trim Weatherstrip LH Rear Door Scuff Plate LH Deck Trim Side Board LH R

Page 1798 of 2234

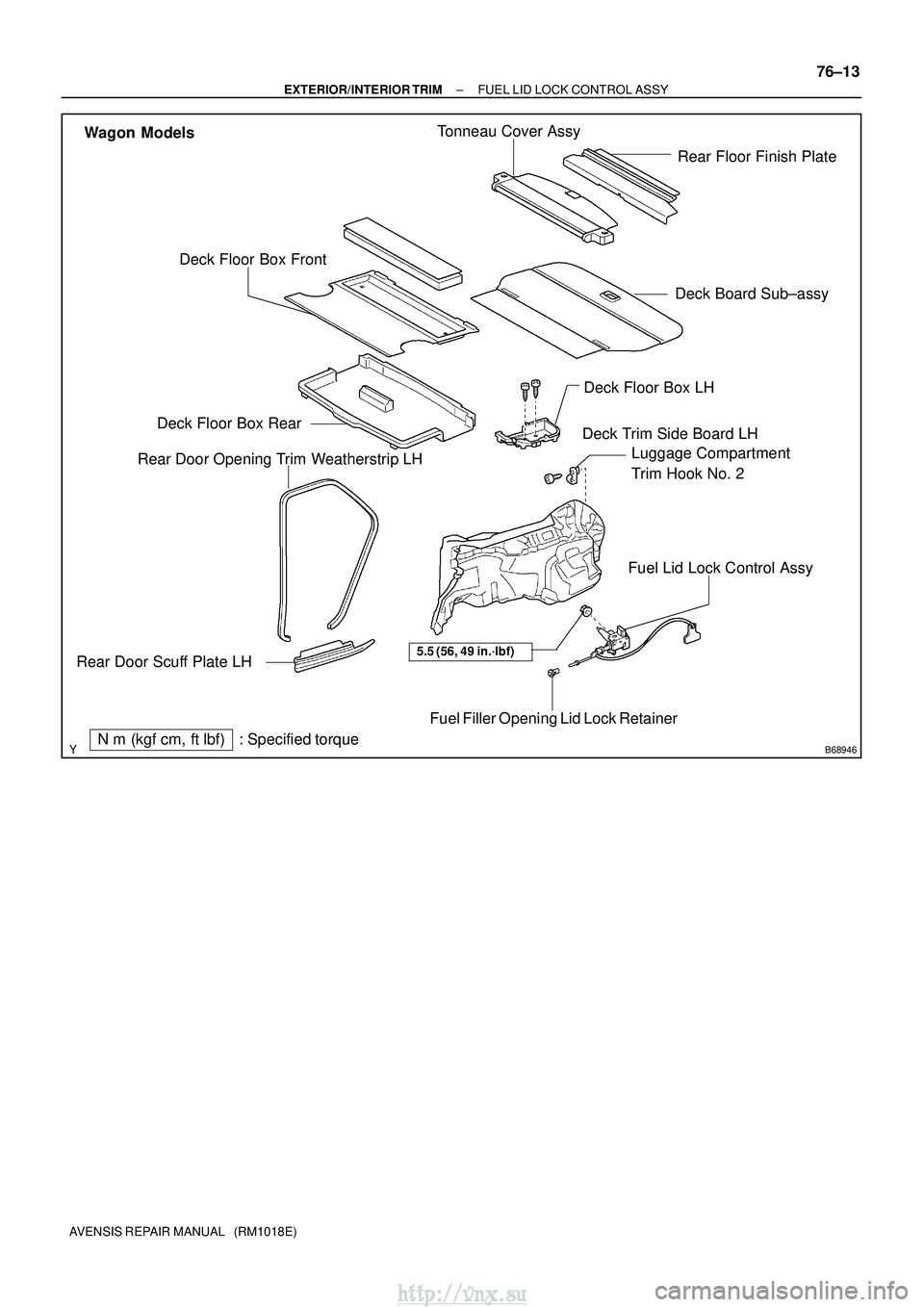

TOYOTA AVENSIS 2003 Service Repair Manual B68946 Wagon ModelsFuel Lid Lock Control Assy Fuel Filler Opening Lid Lock Retainer Deck Trim Side Board LH Luggage Compartment Trim Hook No. 2 Tonneau Cover Assy Deck Board Sub±assy Deck Floor Box

Page 1799 of 2234

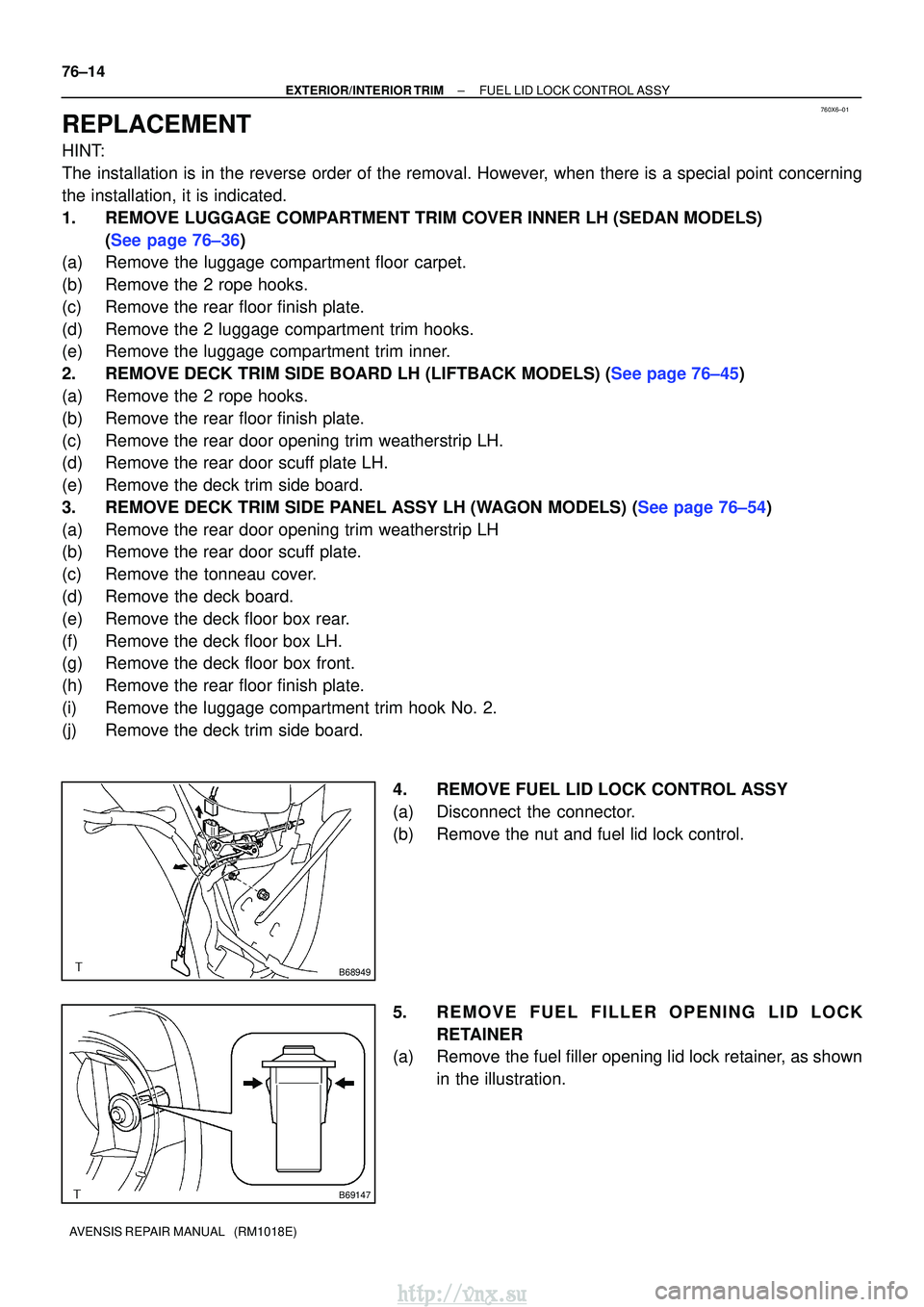

TOYOTA AVENSIS 2003 Service Repair Manual 760X6±01 B68949 B69147 76±14 ± EXTERIOR/INTERIOR TRIMFUEL LID LOCK CONTROL ASSY AVENSIS REPAIR MANUAL (RM1018E) REPLACEMENT HINT: The installation is in the reverse order of the removal. However,

Page 1800 of 2234

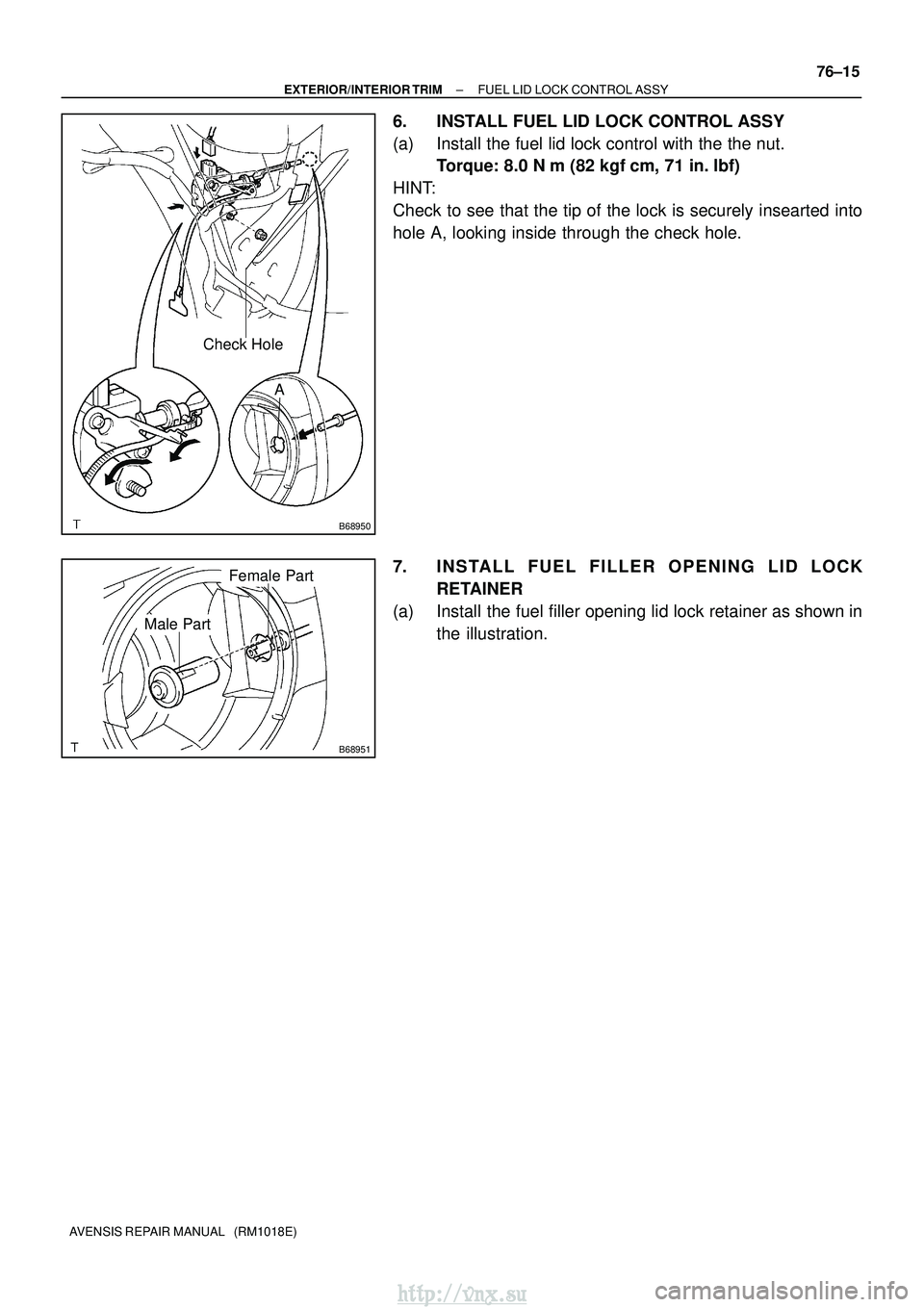

TOYOTA AVENSIS 2003 Service Repair Manual B68950 A Check Hole B68951 Male Part Female Part ± EXTERIOR/INTERIOR TRIM FUEL LID LOCK CONTROL ASSY 76±15 AVENSIS REPAIR MANUAL (RM1018E) 6. INSTALL FUEL LID LOCK CONTROL ASSY (a) Install the fue
