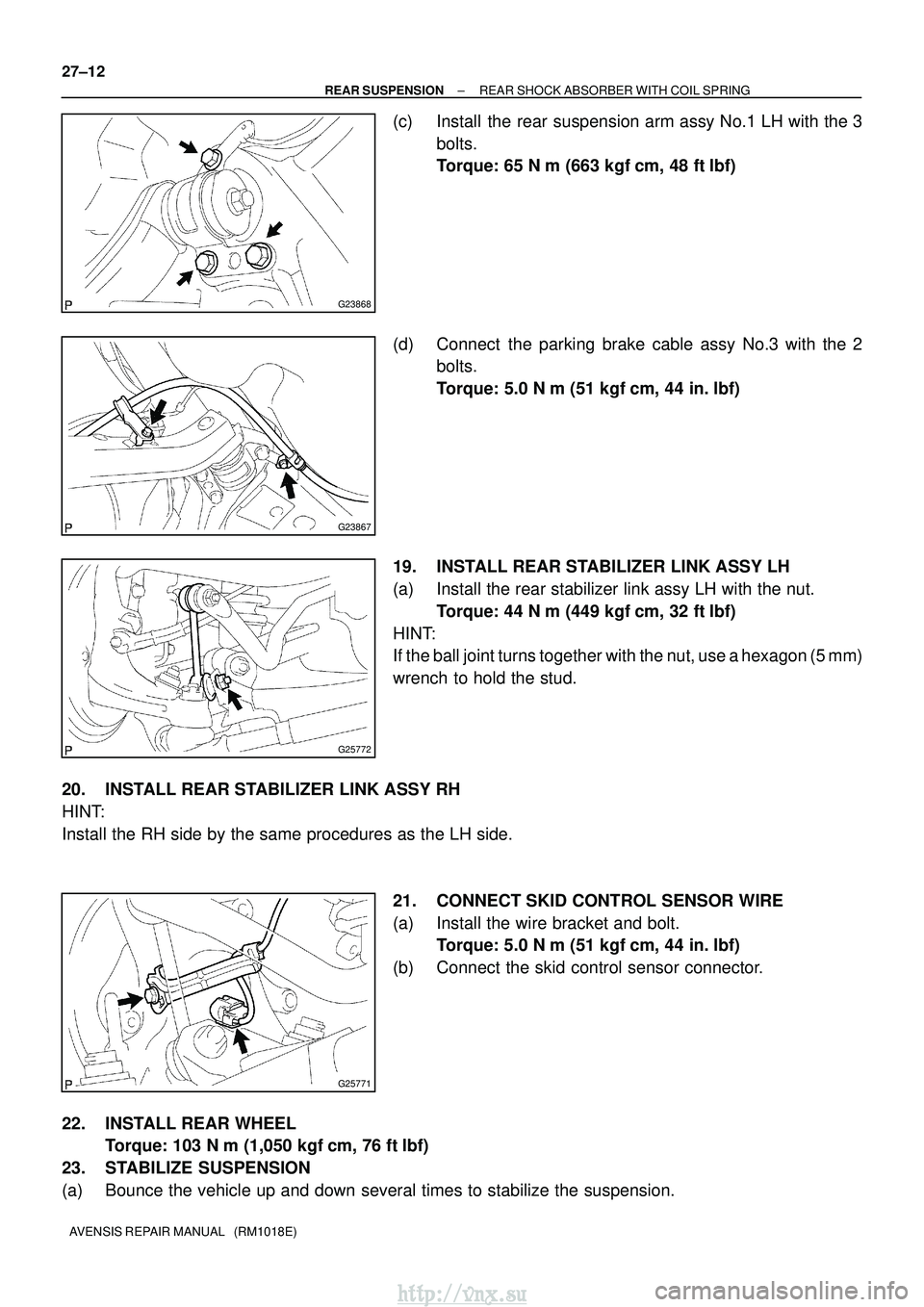

(c) Install the rear suspension arm assy No.1 LH with the 3 bolts.
Torque: 65 N m (663 kgf cm, 48 ftlbf)
(d) Connect the parking brake cable assy No.3 with the 2 bolts.
Torque: 5.0 N m (51 kgfcm, 44 in. lbf)
19. INSTALL REAR STABILIZER LINK ASSY LH
(a) Install the rear stabilizer link assy LH with the nut. Torque: 44 N m (449 kgf cm, 32 ftlbf)
HINT:
If the ball joint turns together with the nut, use a hexagon (5 mm)
wrench to hold the stud.
20. INSTALL REAR STABILIZER LINK ASSY RH
HINT:
Install the RH side by the same procedures as the LH side. 21. CONNECT SKID CONTROL SENSOR WIRE
(a) Install the wire bracket and bolt.Torque: 5.0 N m (51 kgf cm, 44 in. lbf)
(b) Connect the skid control sensor connector.
22. INSTALL REAR WHEEL Torque: 103 N m (1,050 kgfcm, 76 ft lbf)
23. STABILIZE SUSPENSION
(a) Bounce the vehicle up and down several times to stabilize the suspension\
.
http://vnx.su
Page 1026 of 2234
G23865
±
REAR SUSPENSION REAR SHOCK ABSORBER WITH COIL SPRING
27±13
AVENSIS REPAIR MANUAL (RM1018E)

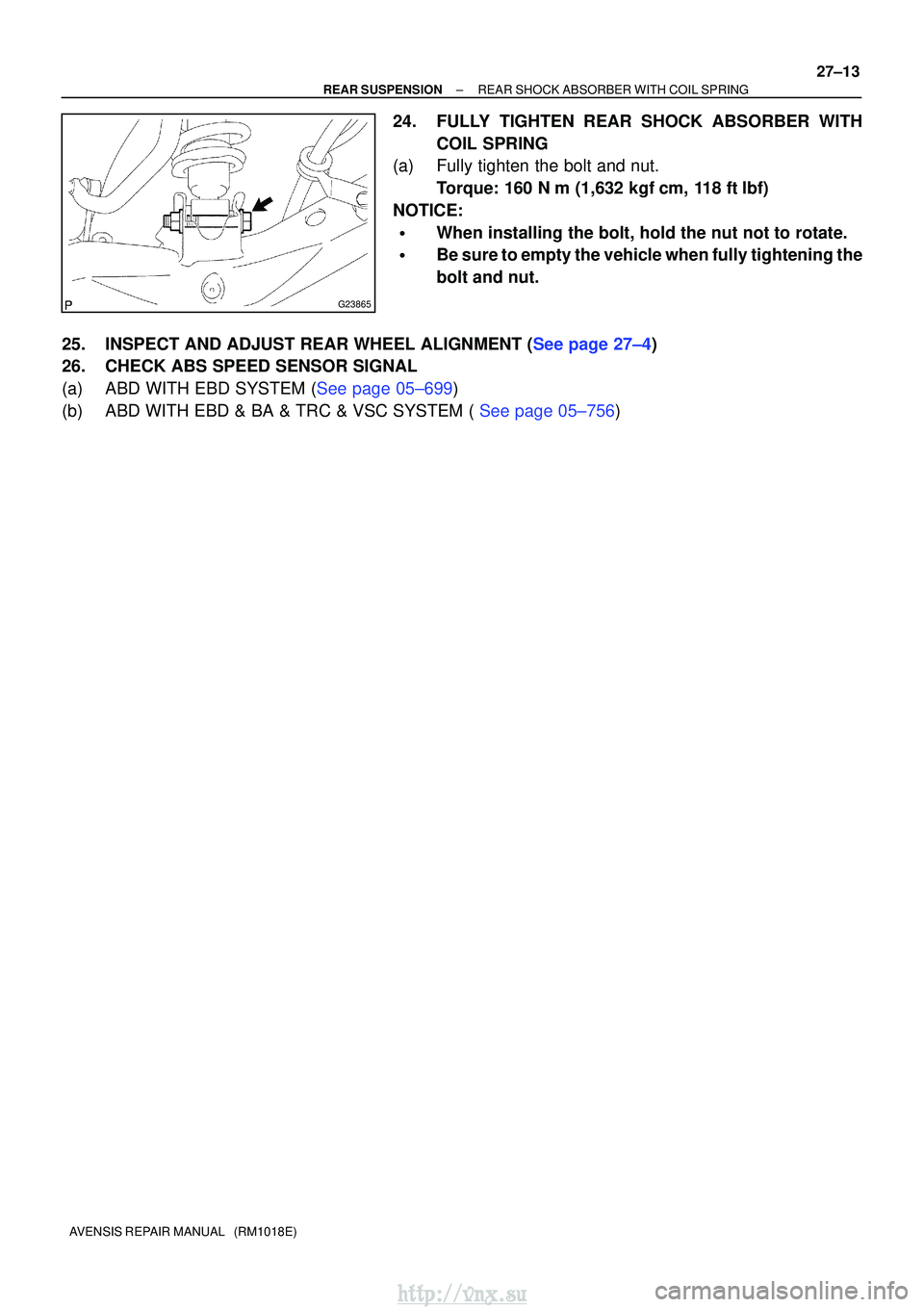

24. FULLY TIGHTEN REAR SHOCK ABSORBER WITH
COIL SPRING
(a) Fully tighten the bolt and nut.
Torque: 160 N m (1,632 kgfcm, 118 ft lbf)
NOTICE:
When installing the bolt, hold the nut not to rotate.
Be sure to empty the vehicle when fully tightening the
bolt and nut.
25.INSPECT AND ADJUST REAR WHEEL ALIGNMENT (See page 27±4)
26. CHECK ABS SPEED SENSOR SIGNAL
(a)ABD WITH EBD SYSTEM (See page 05±699)
(b)ABD WITH EBD & BA & TRC & VSC SYSTEM ( See page 05±756)
http://vnx.su
Page 1027 of 2234
270E2±01
G23870
27±14
±
REAR SUSPENSION REAR SHOCK ABSORBER WITH COIL SPRING
AVENSIS REPAIR MANUAL (RM1018E)

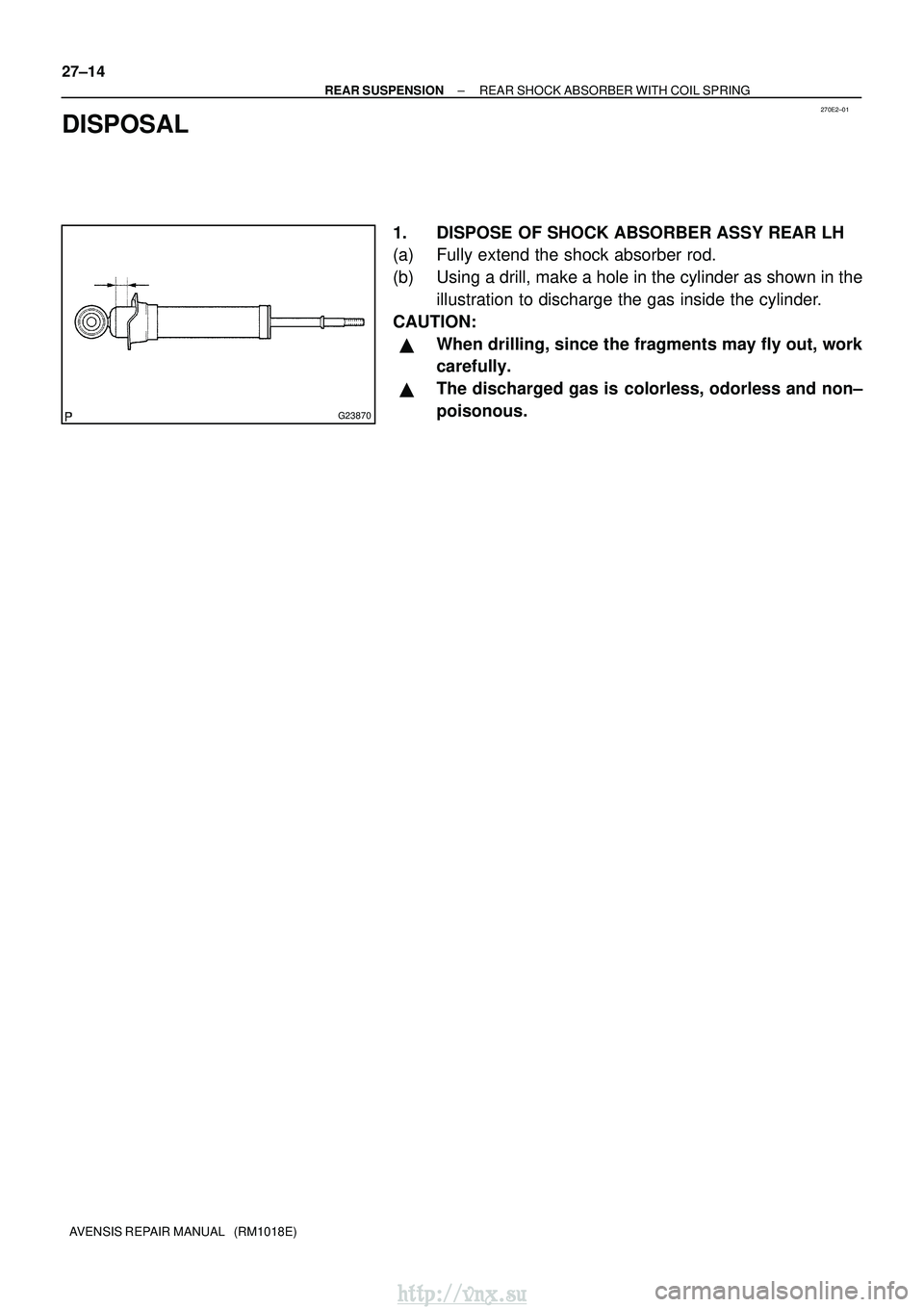

DISPOSAL
1. DISPOSE OF SHOCK ABSORBER ASSY REAR LH
(a) Fully extend the shock absorber rod.
(b) Using a drill, make a hole in the cylinder as shown in the illustration to discharge the gas inside the cylinder.
CAUTION:
When drilling, since the fragments may fly out, work
carefully.
The discharged gas is colorless, odorless and non±
poisonous.
http://vnx.su
Page 1028 of 2234

270E0±01
G26285
w/ Height Control Sensor:
5.8 (59, 51 in.lbf)
80 (816, 59)
Rear Suspension Member Sub±assy
Rear Shock Absorber
Cushion Washer No.1
Coil Rear Spring
Rear Coil Spring Insulator Upper LH
Rear Spring Bumper No.1 LH
Rear Suspension Support Assy LH
Rear Spring Front Bracket
Sub±assy LH
Rear Shock
Absorber Cushion No.1
Lower Control Arm Assy RH
Rear Shock Absorber
Assy LH
160 (1,632, 118)
110 (1,122, 81)
65 (663, 48)
Rear Suspension
Support Stopper
Rear Suspension Arm
Bracket Assy LH
Rear Suspension
Arm Bush No.1 Camber Adjust Cam Assy
Rear Suspension Arm Assy No.1 LH
74 (755, 55)
105 (1,071, 77)
44 (449, 32)
74 (755, 55)
74 (755, 55)
Parking Brake Cable Assy No.3
5.0 (51, 44 in. lbf)Rear Axle Carrier Sub±assy LH
Skid Control Sensor Wire
74 (755, 55)
Upper Control Arm Assy
Camber Adjust Cam No.2
Lower Control Arm Assy LH
105 (1,071, 77)
5.0 (51, 44 in.lbf)
60 (612, 44)
N m (kgf cm, ftlbf) : Specified torque
Non±reusable part
56 (571, 41)
56 (571, 41)
Clip
Clip
27±2
±
REAR SUSPENSION REAR SUSPENSION
AVENSIS REPAIR MANUAL (RM1018E)
REAR SUSPENSION

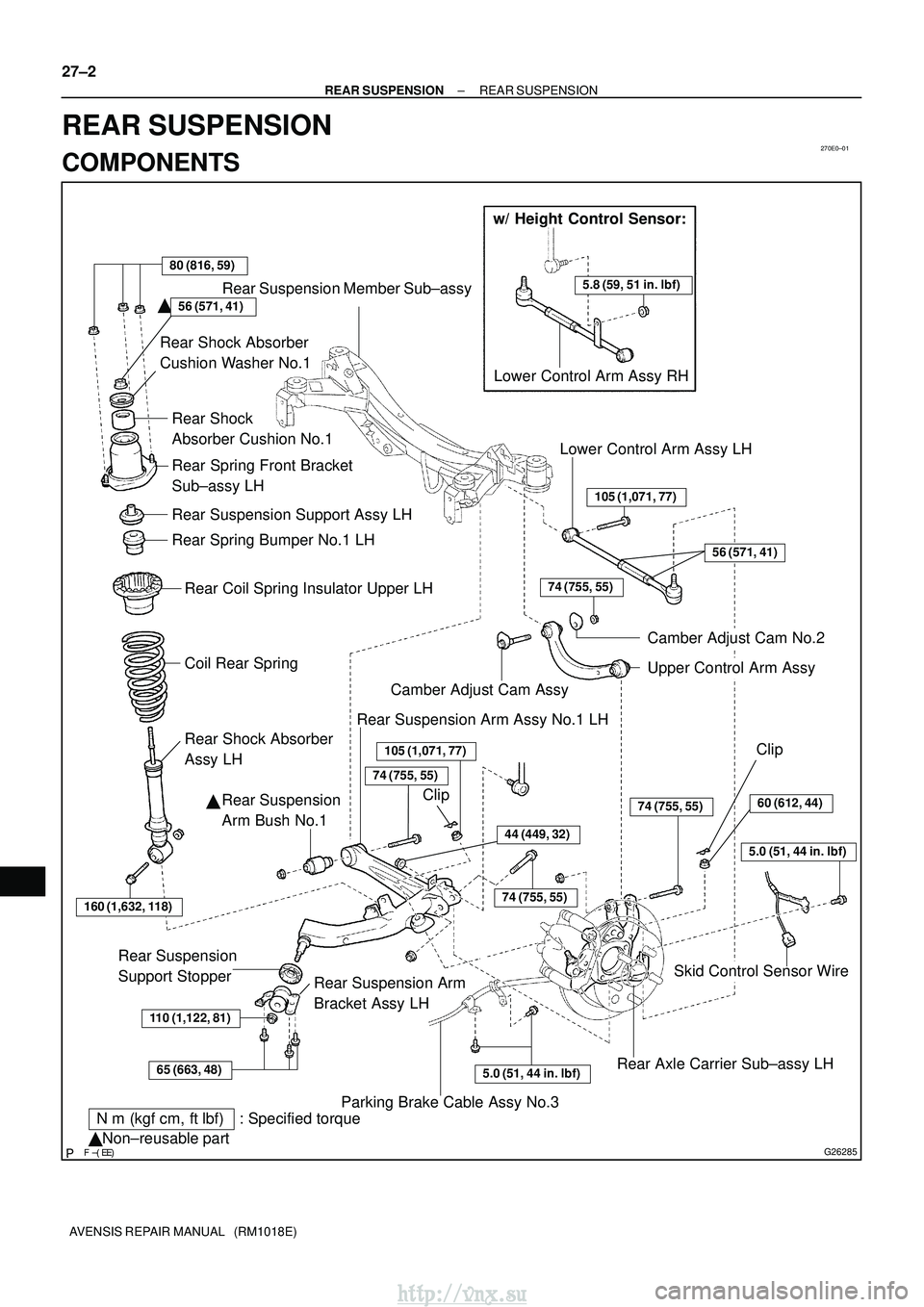

COMPONENTS
http://vnx.su
Page 1029 of 2234
G23885

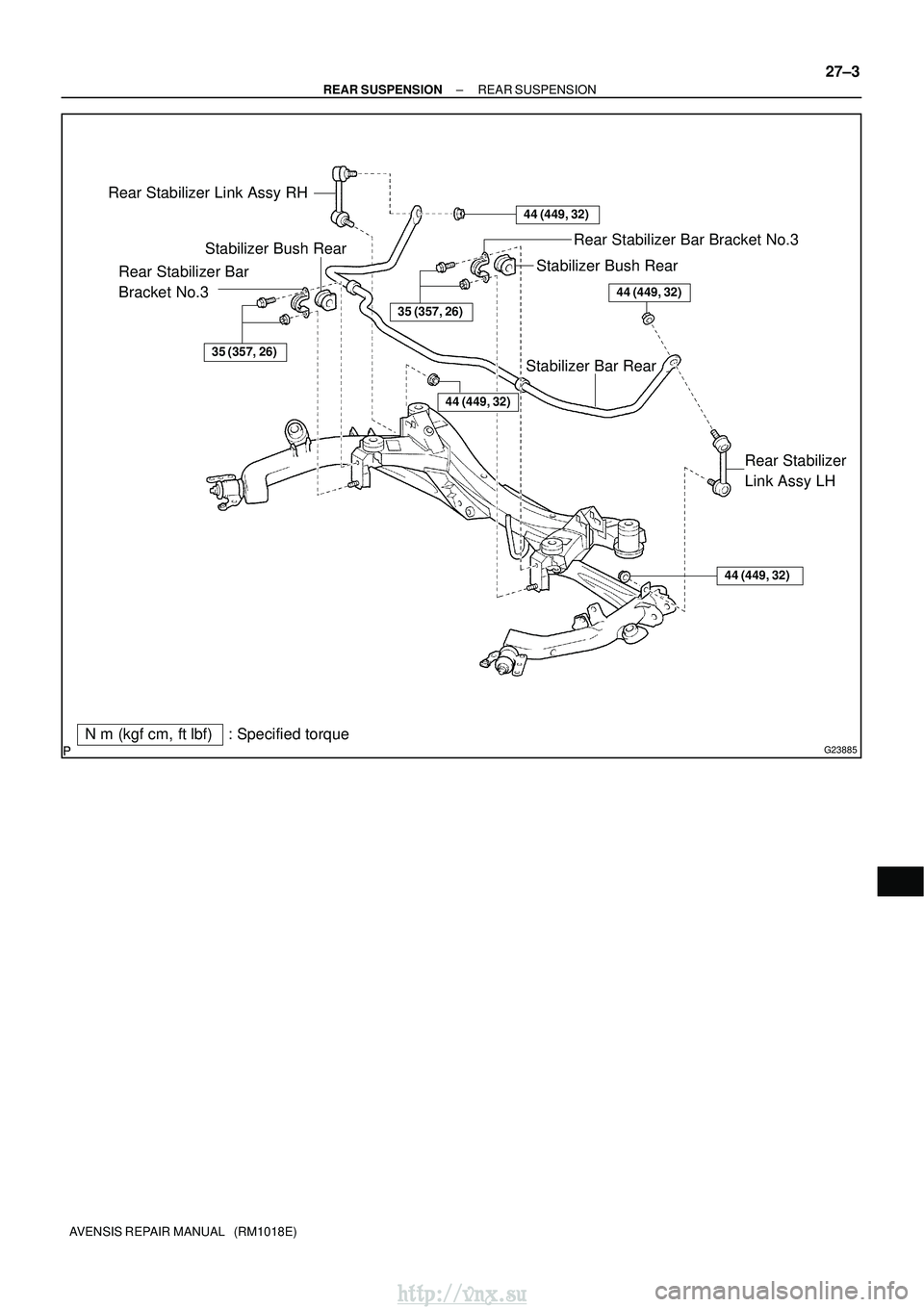

Rear Stabilizer Link Assy RHStabilizer Bush Rear
Rear Stabilizer Bar
Bracket No.3
Rear Stabilizer
Link Assy LH
Rear Stabilizer Bar Bracket No.3
Stabilizer Bush Rear
Stabilizer Bar Rear
35 (357, 26)
44 (449, 32)
35 (357, 26)
44 (449, 32)
44 (449, 32)
44 (449, 32)
N m (kgf cm, ftlbf) : Specified torque
±
REAR SUSPENSION REAR SUSPENSION
27±3
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su
Page 1030 of 2234
270E3±01
G23867
G25771
G25772
G25775
±
REAR SUSPENSION REAR SUSPENSION ARM ASSY NO.1 LH
27±15
AVENSIS REPAIR MANUAL (RM1018E)
REAR SUSPENSION ARM ASSY NO.1 LH
OVERHAUL
HINT:
COMPONENTS: See page 27±2.

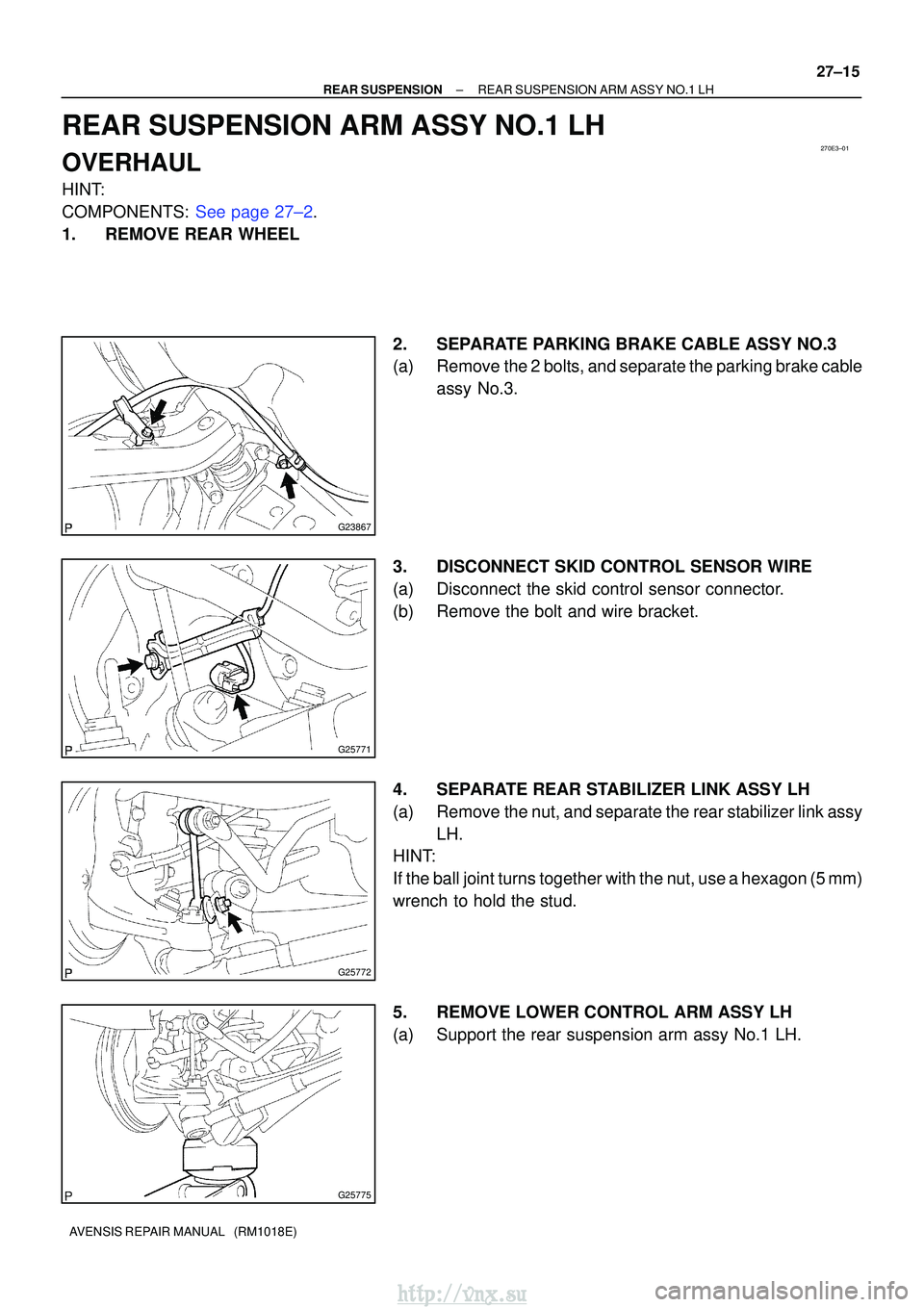

1. REMOVE REAR WHEEL
2. SEPARATE PARKING BRAKE CABLE ASSY NO.3
(a) Remove the 2 bolts, and separate the parking brake cableassy No.3.
3. DISCONNECT SKID CONTROL SENSOR WIRE
(a) Disconnect the skid control sensor connector.
(b) Remove the bolt and wire bracket.
4. SEPARATE REAR STABILIZER LINK ASSY LH
(a) Remove the nut, and separate the rear stabilizer link assy LH.
HINT:
If the ball joint turns together with the nut, use a hexagon (5 mm)
wrench to hold the stud.
5. REMOVE LOWER CONTROL ARM ASSY LH
(a) Support the rear suspension arm assy No.1 LH.
http://vnx.su
Page 1031 of 2234
G23871
G23872
G23873
SST
G23880
G23883
SST
27±16
±
REAR SUSPENSION REAR SUSPENSION ARM ASSY NO.1 LH
AVENSIS REPAIR MANUAL (RM1018E)

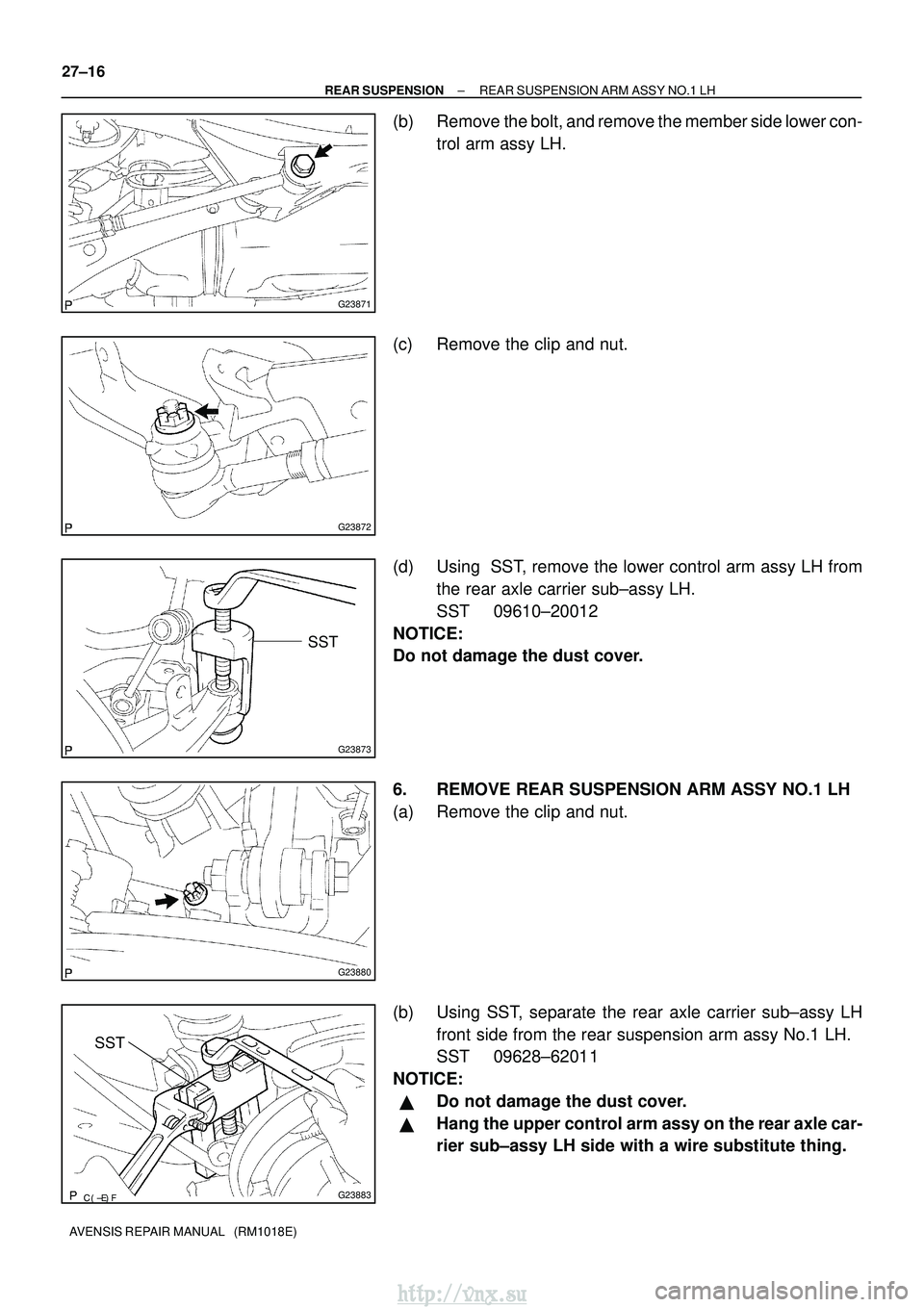

(b) Remove the bolt, and remove the member side lower con- trol arm assy LH.
(c) Remove the clip and nut.
(d) Using SST, remove the lower control arm assy LH from the rear axle carrier sub±assy LH.
SST 09610±20012
NOTICE:
Do not damage the dust cover.
6. REMOVE REAR SUSPENSION ARM ASSY NO.1 LH
(a) Remove the clip and nut.
(b) Using SST, separate the rear axle carrier sub±assy LH front side from the rear suspension arm assy No.1 LH.
SST 09628±62011
NOTICE:
Do not damage the dust cover.
Hang the upper control arm assy on the rear axle car-
rier sub±assy LH side with a wire substitute thing.
http://vnx.su
Page 1032 of 2234
G23881
G23865
G23874
G23868
G24531
±
REAR SUSPENSION REAR SUSPENSION ARM ASSY NO.1 LH
27±17
AVENSIS REPAIR MANUAL (RM1018E)

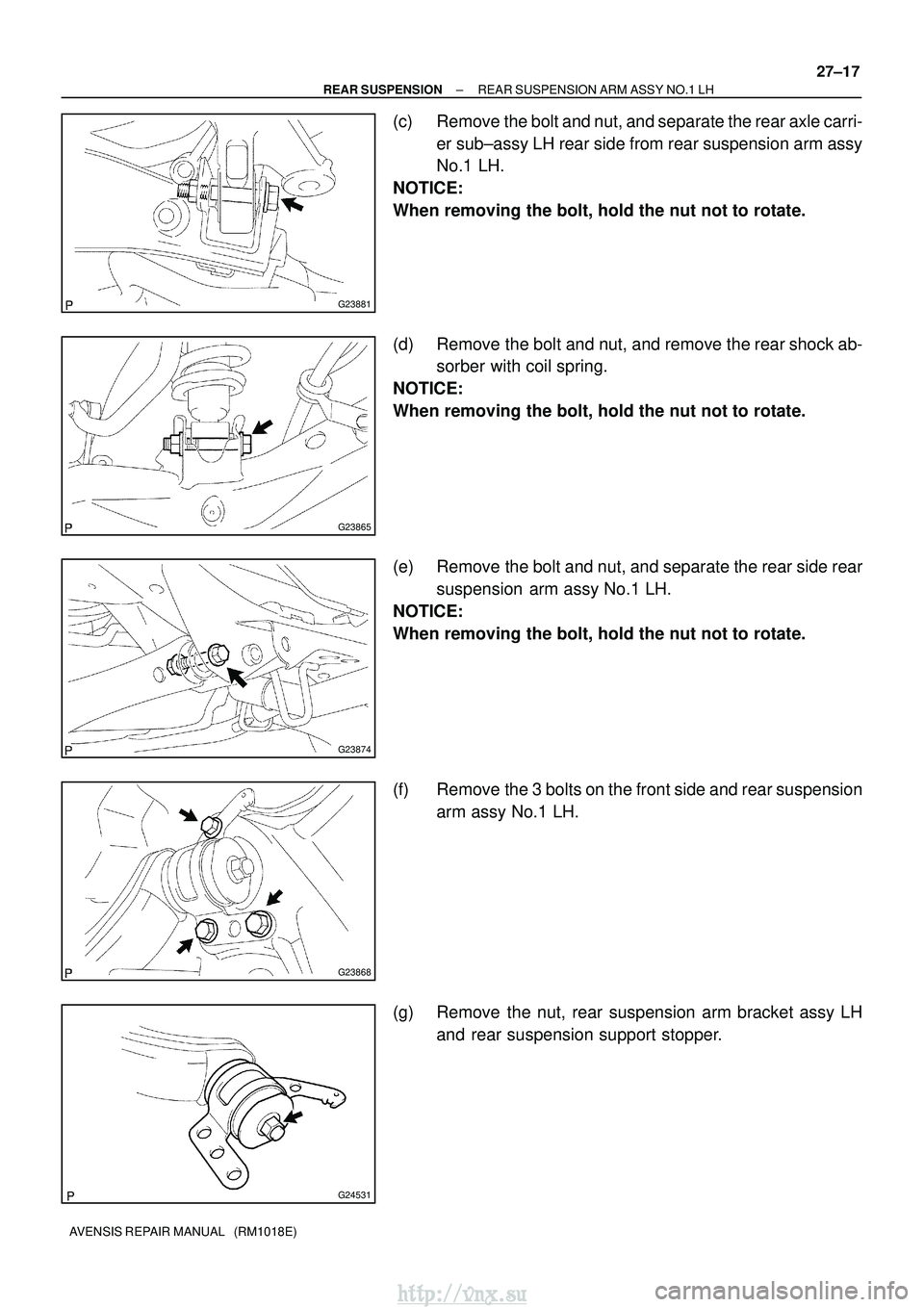

(c) Remove the bolt and nut, and separate the rear axle carri-
er sub±assy LH rear side from rear suspension arm assy
No.1 LH.
NOTICE:
When removing the bolt, hold the nut not to rotate.
(d) Remove the bolt and nut, and remove the rear shock ab- sorber with coil spring.
NOTICE:
When removing the bolt, hold the nut not to rotate.
(e) Remove the bolt and nut, and separate the rear side rear suspension arm assy No.1 LH.
NOTICE:
When removing the bolt, hold the nut not to rotate.
(f) Remove the 3 bolts on the front side and rear suspension arm assy No.1 LH.
(g) Remove the nut, rear suspension arm bracket assy LH and rear suspension support stopper.
http://vnx.su
