Page 865 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A79301 Upper Hook Fan Shroud Radiator 16±12 ± COOLINGRADIATOR ASSY(1ZZ±FE/3ZZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 10.INSTALL RADIATOR ASSY (a)Align the 2 keyways of the fan shroud with the 2 ke

Page 866 of 2234

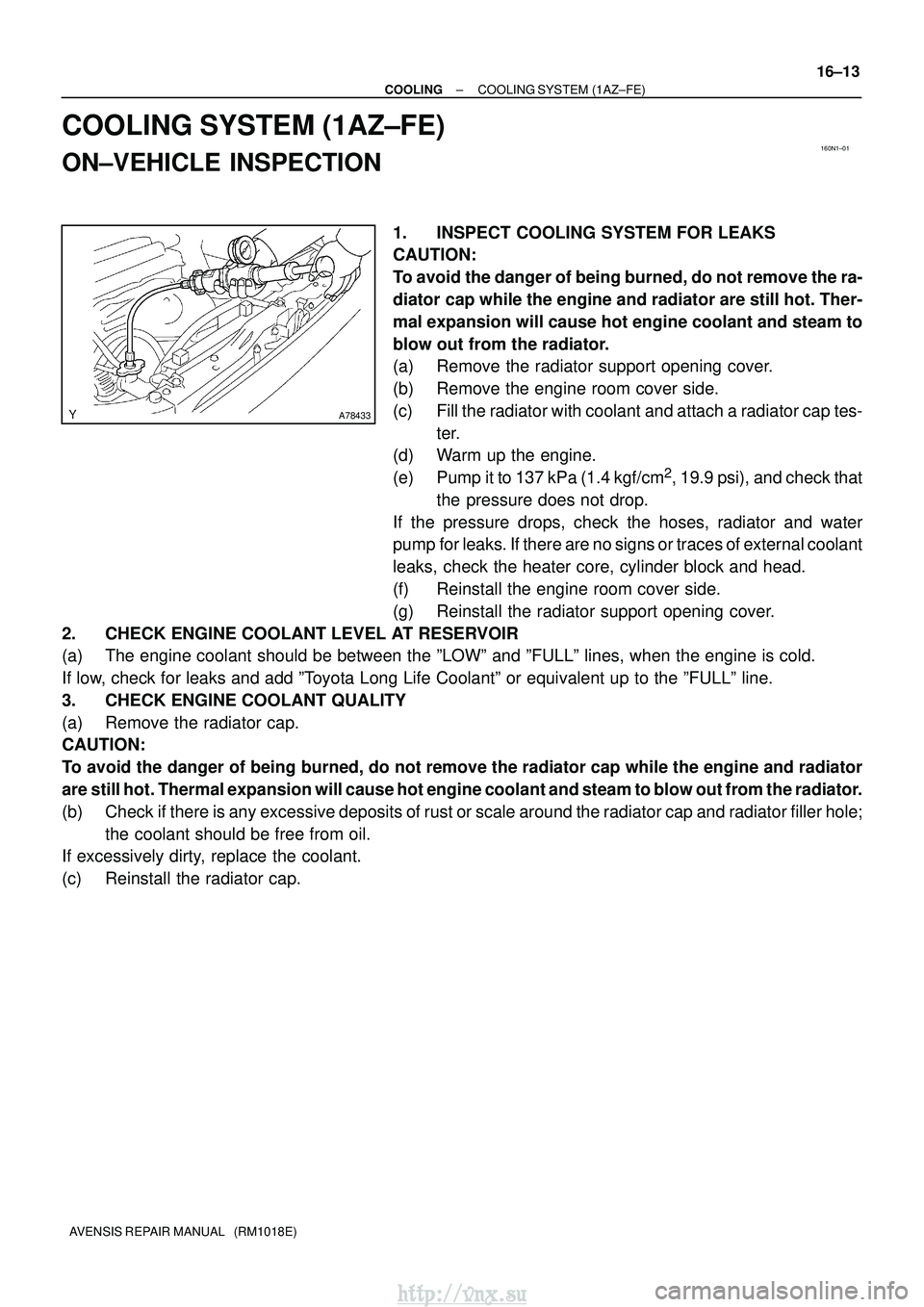

TOYOTA AVENSIS 2003 Service Repair Manual 160N1±01 A78433 ± COOLING COOLING SYSTEM (1AZ±FE) 16±13 AVENSIS REPAIR MANUAL (RM1018E) COOLING SYSTEM (1AZ±FE) ON±VEHICLE INSPECTION 1. INSPECT COOLING SYSTEM FOR LEAKS CAUTION: To avoid the

Page 867 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A73603 16±14 ± COOLING COOLING SYSTEM (1AZ±FE) AVENSIS REPAIR MANUAL (RM1018E) 4. INSPECT FINS BLOCKAGE (a) If fins are clogged, wash them with water or a steam cleaner and dry with compressed ai

Page 868 of 2234

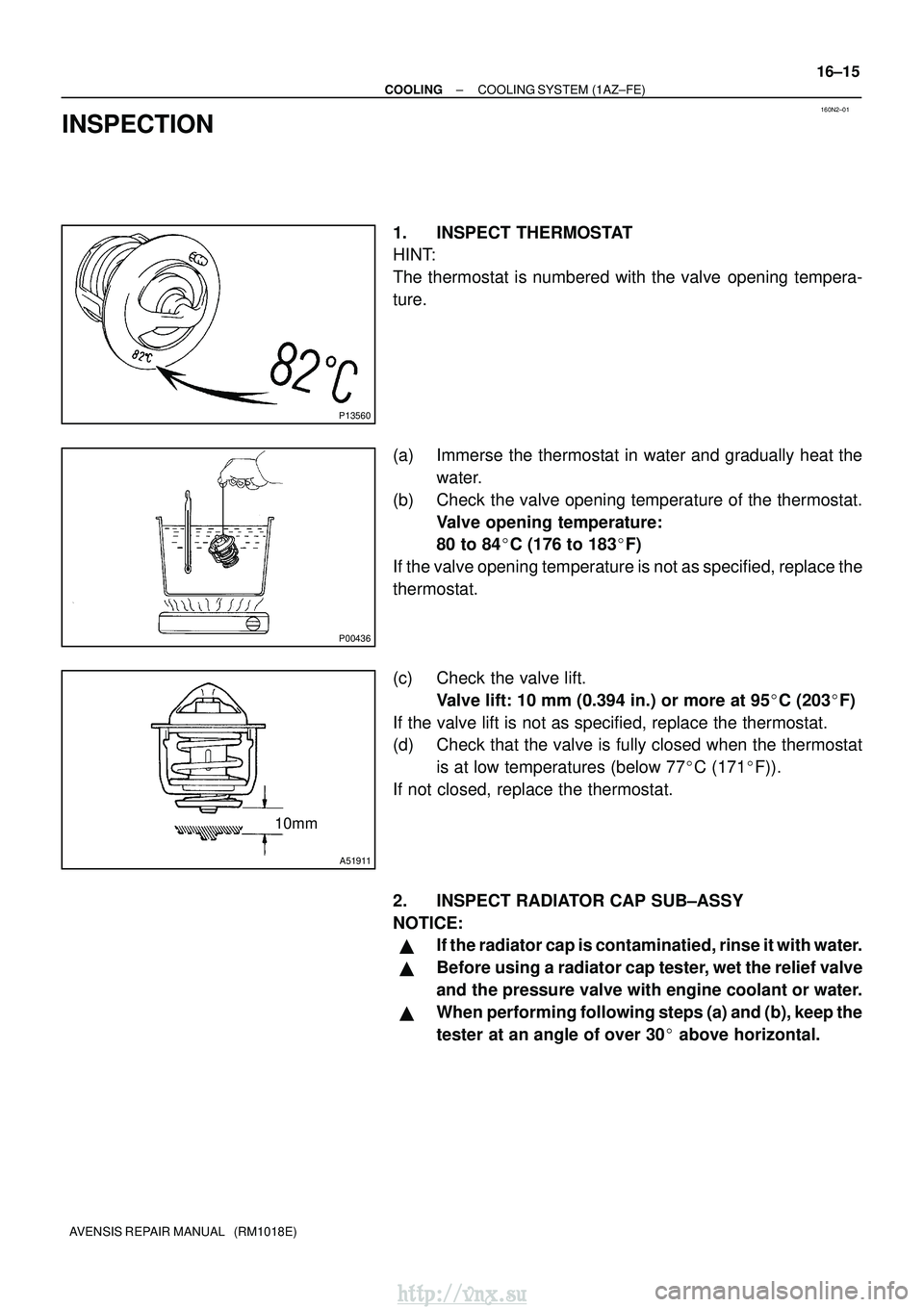

TOYOTA AVENSIS 2003 Service Repair Manual 160N2±01 P13560 P00436 10mm A51911 ± COOLING COOLING SYSTEM (1AZ±FE) 16±15 AVENSIS REPAIR MANUAL (RM1018E) INSPECTION 1. INSPECT THERMOSTAT HINT: The thermostat is numbered with the valve openi

Page 869 of 2234

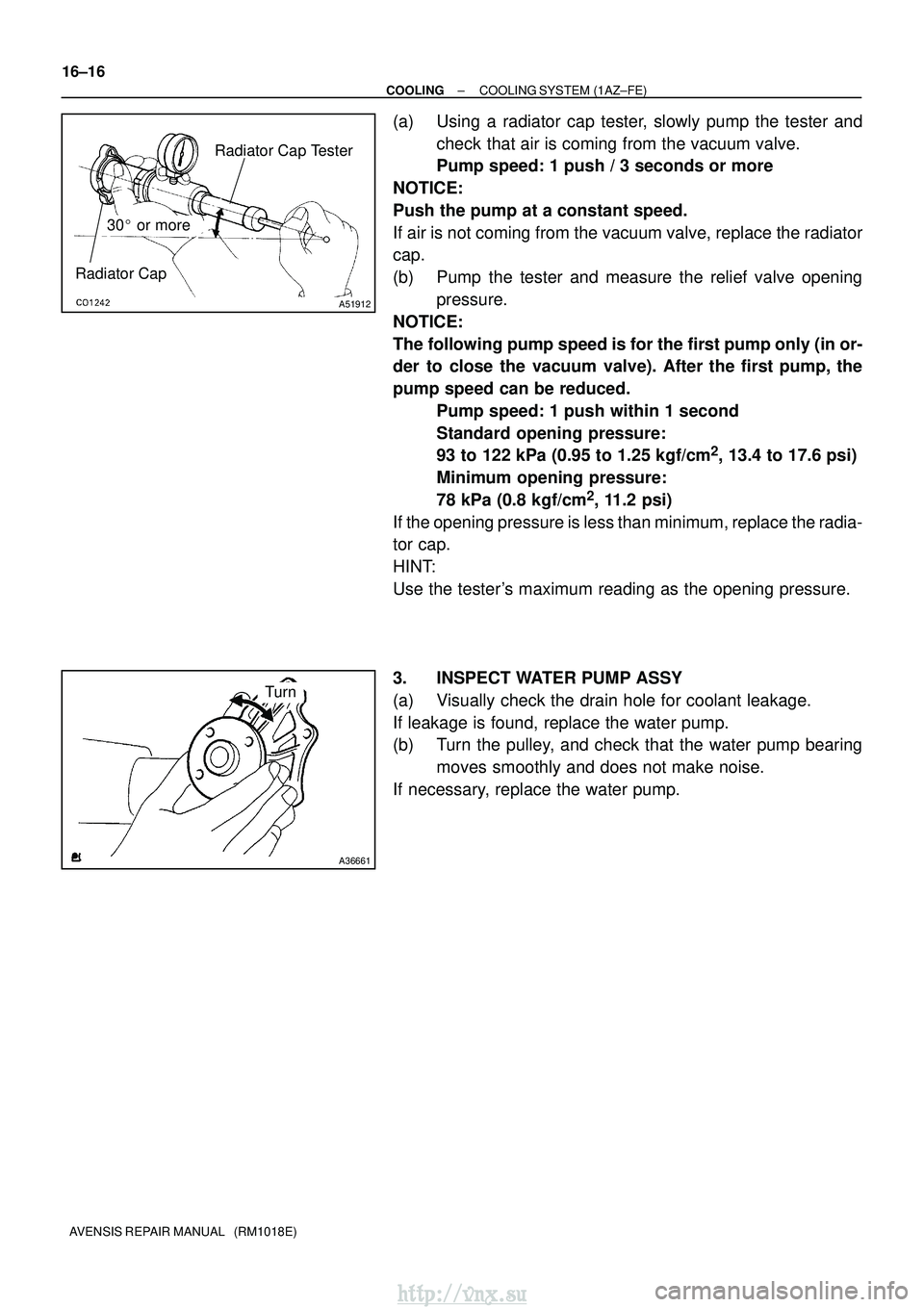

TOYOTA AVENSIS 2003 Service Repair Manual Radiator CapRadiator Cap Tester 30  or more A51912 A36661 Turn 16±16 ± COOLING COOLING SYSTEM (1AZ±FE) AVENSIS REPAIR MANUAL (RM1018E) (a) Using a radiator cap tester, slowly pump the tester and

Page 870 of 2234

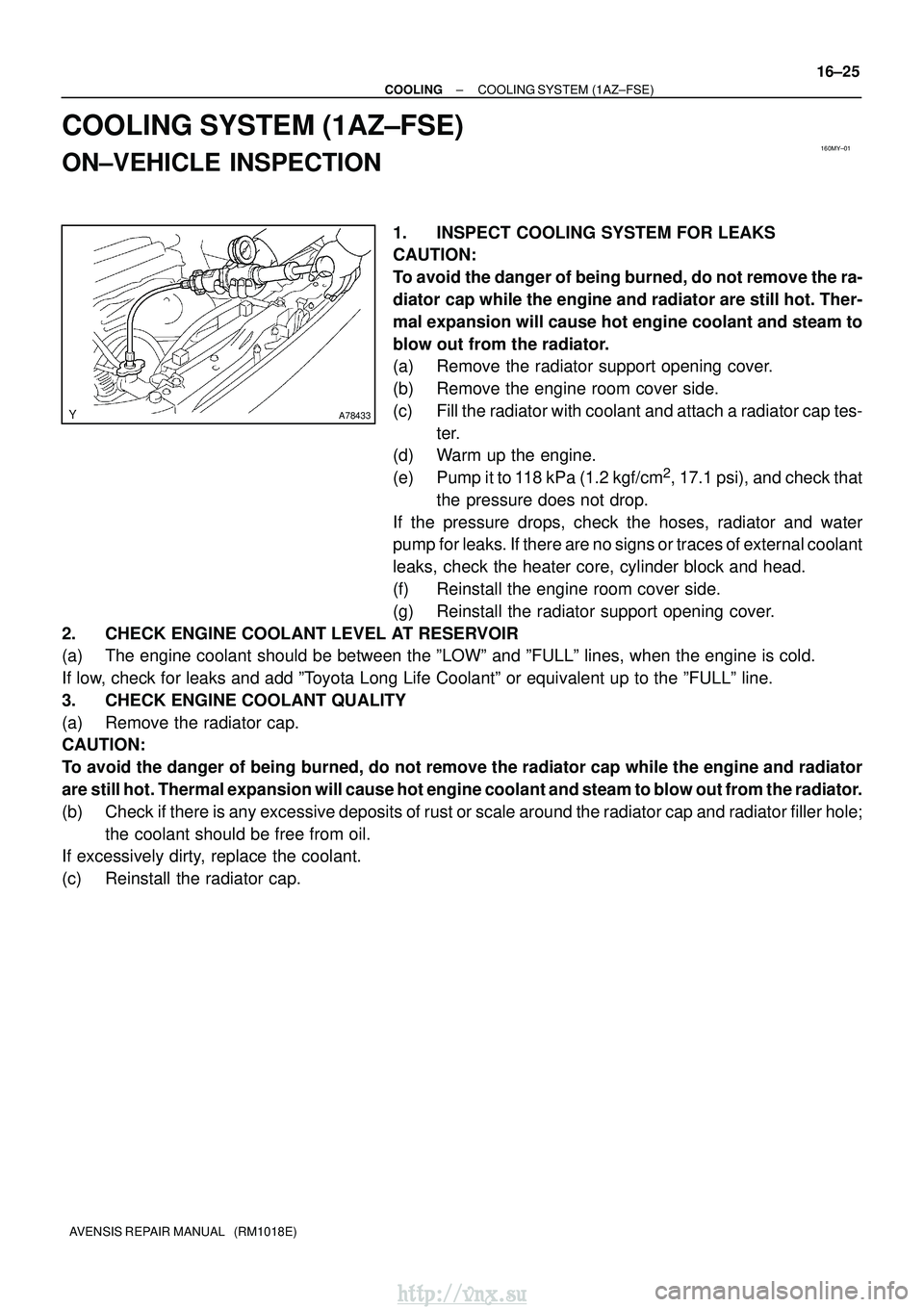

TOYOTA AVENSIS 2003 Service Repair Manual 160MY±01 A78433 ± COOLING COOLING SYSTEM (1AZ±FSE) 16±25 AVENSIS REPAIR MANUAL (RM1018E) COOLING SYSTEM (1AZ±FSE) ON±VEHICLE INSPECTION 1. INSPECT COOLING SYSTEM FOR LEAKS CAUTION: To avoid th

Page 871 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual A73603 16±26 ± COOLING COOLING SYSTEM (1AZ±FSE) AVENSIS REPAIR MANUAL (RM1018E) 4. INSPECT FINS BLOCKAGE (a) If fins are clogged, wash them with water or a steam cleaner and dry with compressed a

Page 872 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 160MZ±01 P35001 P00436 10mm A51911 ± COOLING COOLING SYSTEM (1AZ±FSE) 16±27 AVENSIS REPAIR MANUAL (RM1018E) INSPECTION 1. INSPECT THERMOSTAT HINT: The thermostat is numbered with the valve open
