Page 1745 of 2234

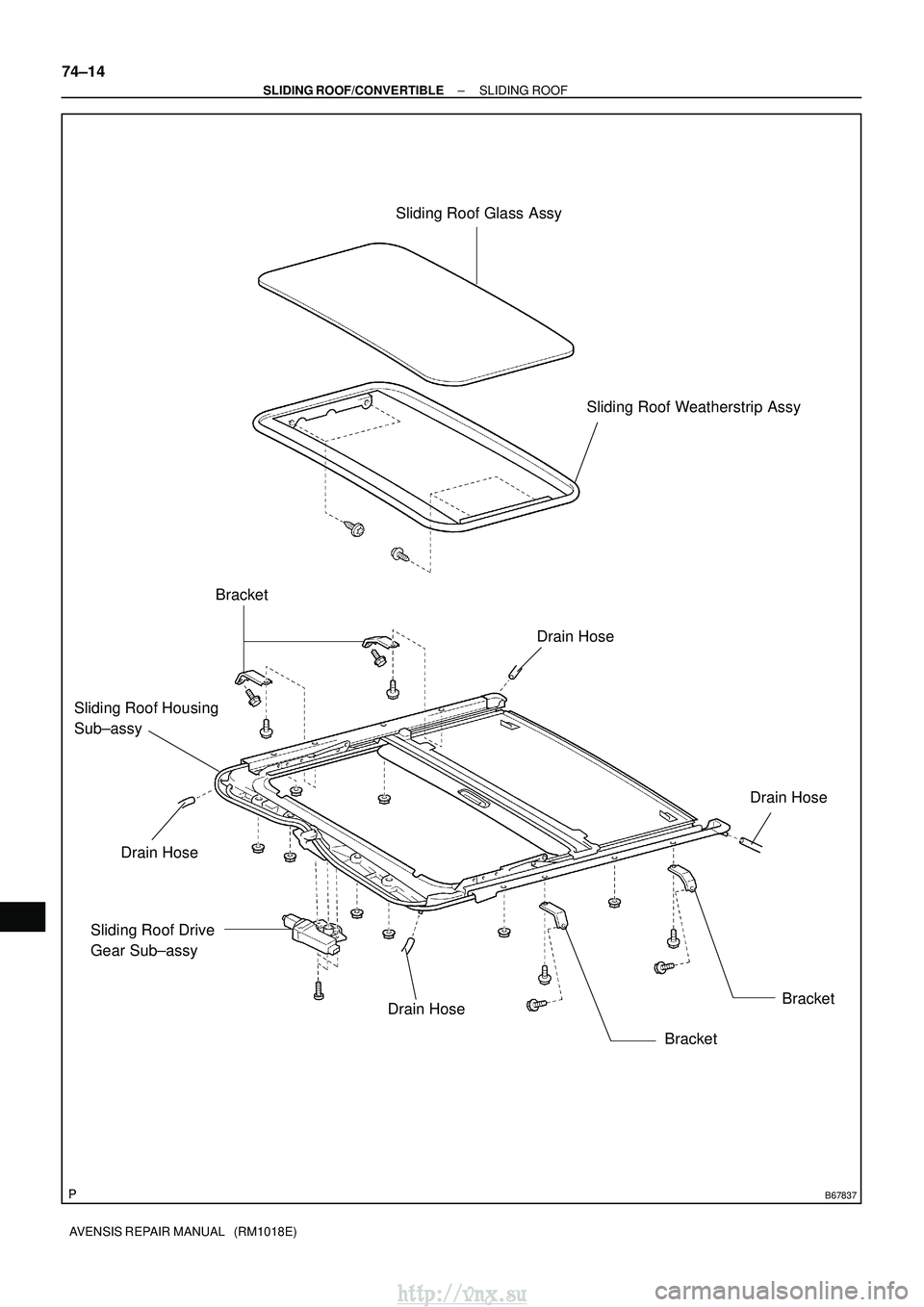

TOYOTA AVENSIS 2003 Service Repair Manual B67837
Sliding Roof Glass AssySliding Roof Weatherstrip Assy
Bracket
Bracket Bracket
Sliding Roof Drive
Gear Sub±assy
Sliding Roof Housing
Sub±assy
Drain Hose
Drain Hose
Drain Hose
Drain Hose
74±14

Page 1746 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 7408Y±01
±
SLIDING ROOF/CONVERTIBLESLIDING ROOF
74±15
AVENSIS REPAIR MANUAL (RM1018E)

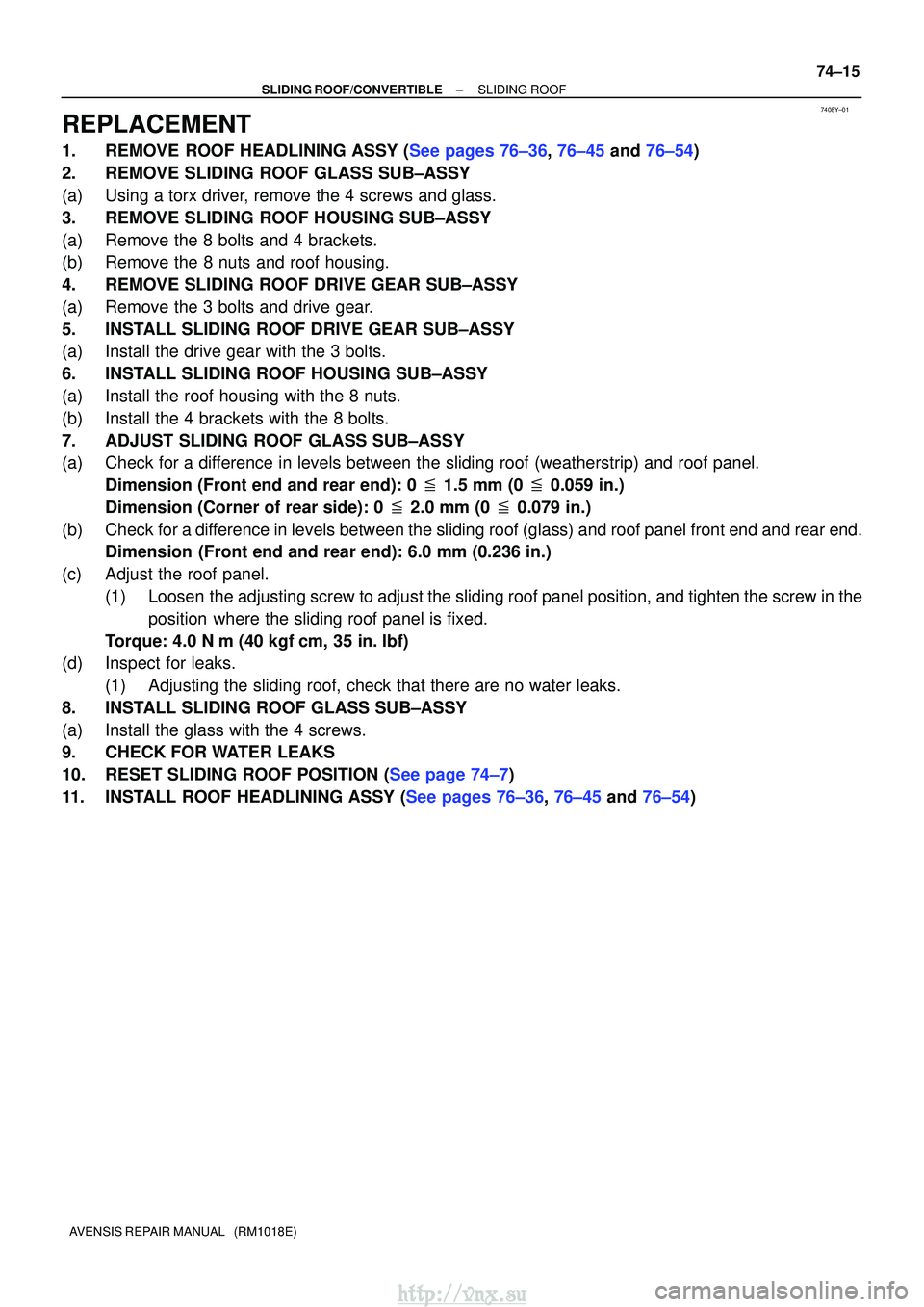

REPLACEMENT
1.REMOVE ROOF HEADLINING ASSY (See pages 76±36, 76±45 and 76±54)
2.REMOVE SLIDING ROOF GLASS S

Page 1747 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 7408S±01
B67836
Combination Meter AssyRoof Console Box

Sliding Roof Motor Switch Assy
Sliding Roof Drive
Gear Sub±assy
±
SLIDING ROOF/CONVERTIBLE SLIDING ROOF SYSTEM
74±1
AVENSIS REPAIR MANUAL

Page 1748 of 2234

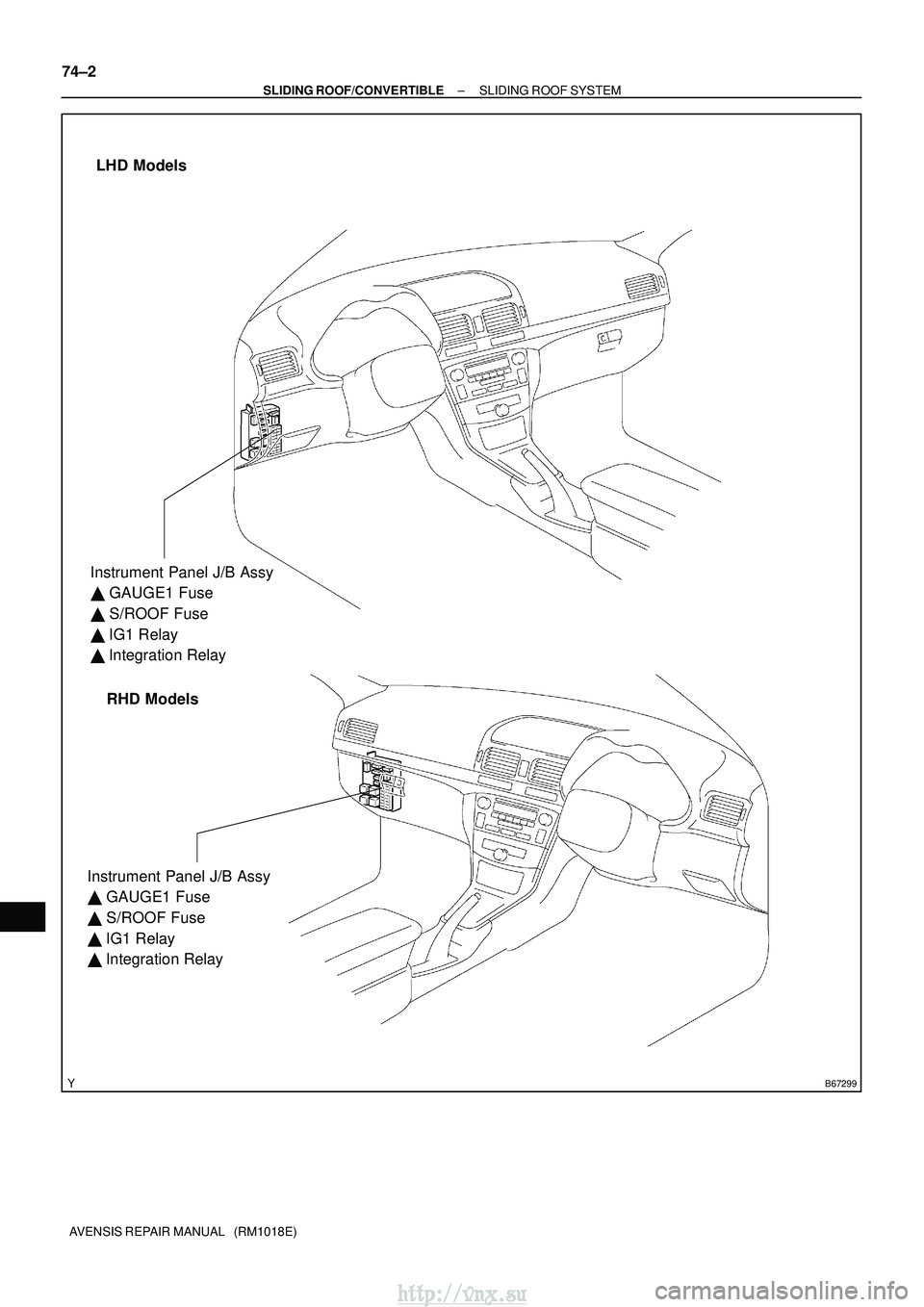

TOYOTA AVENSIS 2003 Service Repair Manual B67299
LHD ModelsRHD Models
Instrument Panel J/B Assy
GAUGE1 Fuse
S/ROOF Fuse
IG1 Relay
Integration Relay
Instrument Panel J/B Assy
GAUGE1 Fuse
S/ROOF Fuse
IG1 Relay
Integration

Page 1749 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 7408T±01
±
SLIDING ROOF/CONVERTIBLE SLIDING ROOF SYSTEM
74±3
AVENSIS REPAIR MANUAL (RM1018E)
ON±VEHICLE INSPECTION
1. CHECK WINDOW LOCK SWITCH
(a) Check that operation of the power windows exclu

7408T±01
±
SLIDING ROOF/CONVERTIBLE SLIDING ROOF SYSTEM
74±3
AVENSIS REPAIR MANUAL (RM1018E)

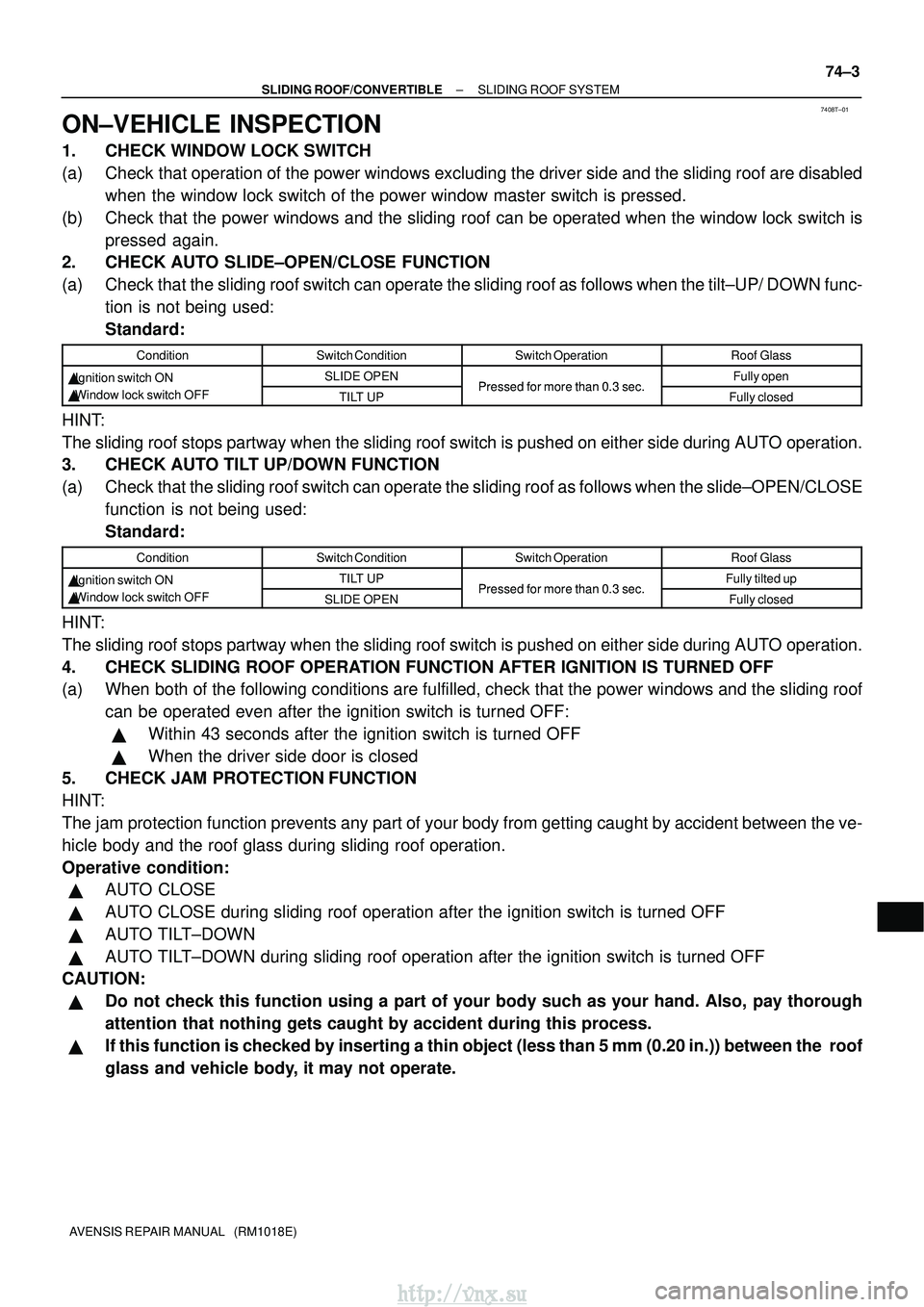

ON±VEHICLE INSPECTION
1. CHECK WINDOW LOCK SWITCH
(a) Check that operation of the power windows excluding the driver side and the s\
liding roof are disabled
when the window lock switch of the power window master switch is pressed.
(b) Check that the power windows and the sliding roof can be operated when the window lock switch is pressed again.
2. CHECK AUTO SLIDE±OPEN/CLOSE FUNCTION
(a) Check that the sliding roof switch can operate the sliding roof as follows when the tilt±UP/ DOWN func-
tion is not being used:
Standard:
ConditionSwitch ConditionSwitch OperationRoof Glass
Ignition switch ONSLIDE OPENPressed for more than 0 3 secFully openIgnition switch ON
Window lock switch OFFTILT UPPressed for more than 0.3 sec.Fully closed
HINT:
The sliding roof stops partway when the sliding roof switch is pushed on\
either side during AUTO operation.
3. CHECK AUTO TILT UP/DOWN FUNCTION
(a) Check that the sliding roof switch can operate the sliding roof as follows wh\
en the slide±OPEN/CLOSE
function is not being used:
Standard:
ConditionSwitch ConditionSwitch OperationRoof Glass
Ignition switch ONTILT UPPressed for more than 0 3 secFully tilted upIgnition switch ON
Window lock switch OFFSLIDE OPENPressed for more than 0.3 sec.Fully closed
HINT:
The sliding roof stops partway when the sliding roof switch is pushed on\
either side during AUTO operation.
4. CHECK SLIDING ROOF OPERATION FUNCTION AFTER IGNITION IS TURNED OFF
(a) When both of the following conditions are fulfilled, check that the power wi\
ndows and the sliding roof
can be operated even after the ignition switch is turned OFF:
Within 43 seconds after the ignition switch is turned OFF
When the driver side door is closed
5. CHECK JAM PROTECTION FUNCTION
HINT:
The jam protection function prevents any part of your body from getting caught by accident between the ve-
hicle body and the roof glass during sliding roof operation.
Operative condition:
AUTO CLOSE
AUTO CLOSE during sliding roof operation after the ignition switch is turne\
d OFF
AUTO TILT±DOWN
AUTO TILT±DOWN during sliding roof operation after the ignition switch is tur\
ned OFF
CAUTION:
Do not check this function using a part of your body such as your hand. \
Also, pay thorough
attention that nothing gets caught by accident during this process.
If this function is checked by inserting a thin object (less than 5 mm \
(0.20 in.)) between the roof
glass and vehicle body, it may not operate.
http://vnx.su

Page 1750 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B68295
B68296
74±4
±
SLIDING ROOF/CONVERTIBLE SLIDING ROOF SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

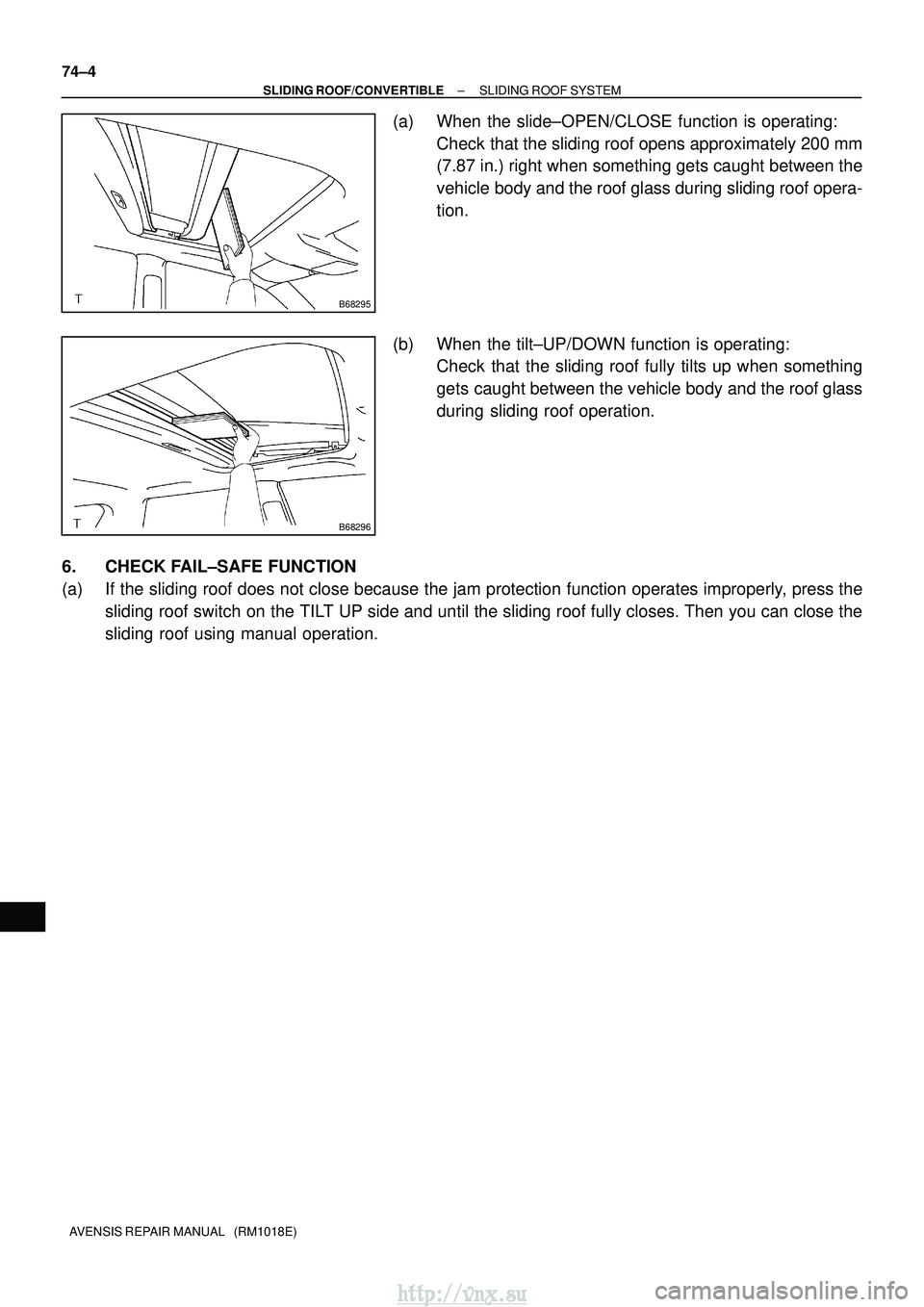

(a) When the slide±OPEN/CLOSE function is operating: Check that the sliding roof opens approximat

Page 1751 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 7408U±01
±
SLIDING ROOF/CONVERTIBLE SLIDING ROOF SYSTEM
74±5
AVENSIS REPAIR MANUAL (RM1018E)

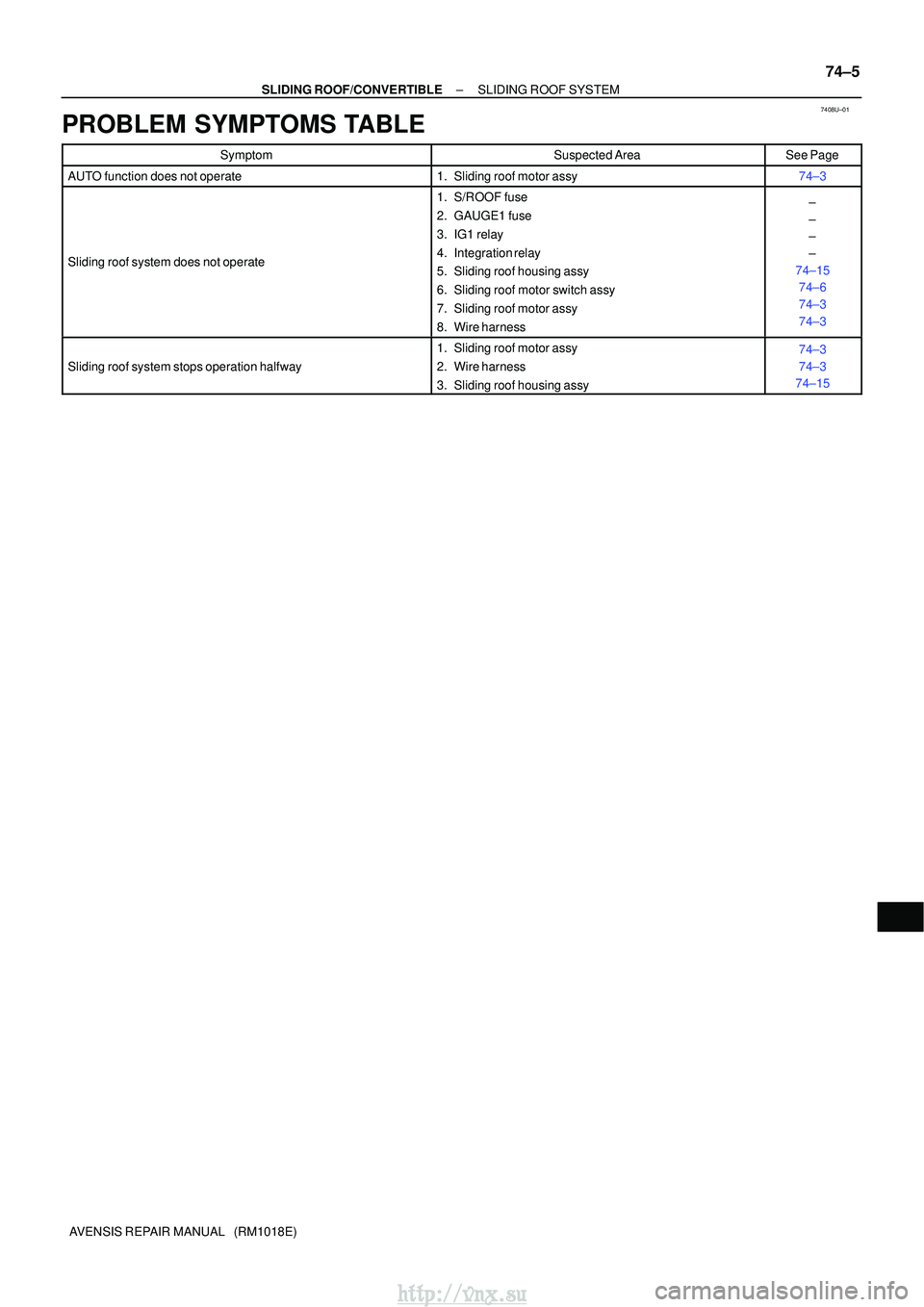

PROBLEM SYMPTOMS TABLE
SymptomSuspected AreaSee Page
AUTO function does not operate1. Sliding roof mot

Page 1752 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 7408V±01
B67892
1
4 3
2
B67891
10
9876 54321

A05115
74±6
±
SLIDING ROOF/CONVERTIBLESLIDING ROOF SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

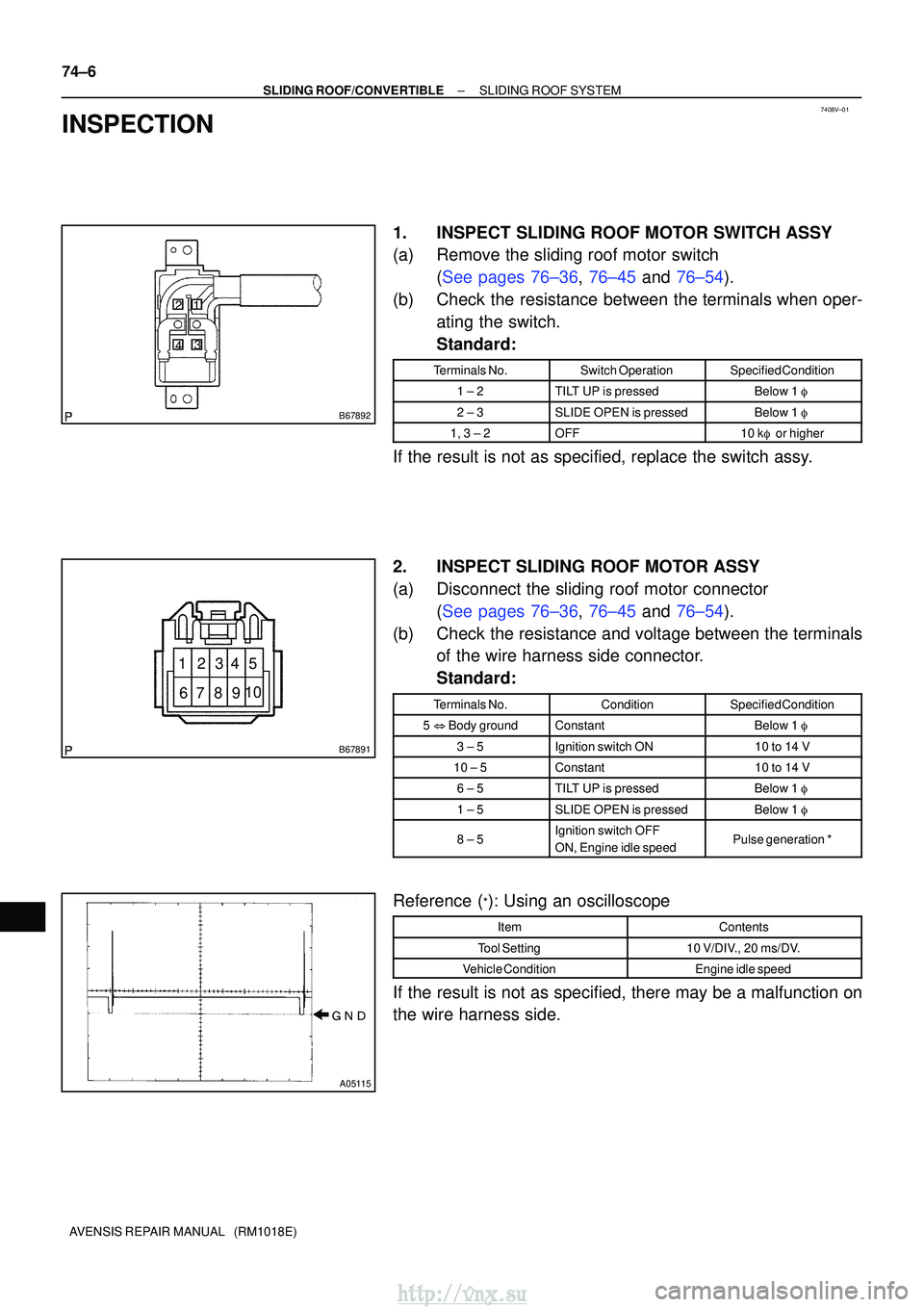

INSPECTION
1.INSPECT SLIDING ROOF MOTOR SWITCH ASSY
(a)R
