Page 953 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 1807O±01
CHECK POWER SUPPLY TO IGNITION COIL WITHSENSOR (See page 18±3)
SPARK TEST
Replace crankshaft position sensor.
CHECK RESISTANCE OF CAMSHAFT POSITION
1. Turn ignition switch ON.
2. Check that

1807O±01
CHECK POWER SUPPLY TO IGNITION COIL WITHSENSOR (See page 18±3)
SPARK TEST
Replace crankshaft position sensor.
CHECK RESISTANCE OF CAMSHAFT POSITION
1. Turn ignition switch ON.
2. Check that there is battery voltage at ignition coil positive (+) terminal.
CHECK CONNECTION OF IGNITION COIL WITH IGNITER
Resistance: ColdHot
1,060 to 1,645
CHECK RESISTANCE OF CRANKSHAFT POSITION
Resistance: ColdHot
1,630 to 2,740 2,065 to 3,225
CHECK IGT SIGNAL FROM ECM
(See page 05±103)
REPAIR WIRING BETWEEN IGNITION COIL AND ECM Connect securely.
Check wiring between ignition switch to ignition coil with igniter.
Check ECM (See page 01±32)
NG
OK
OK
OK
OK NG
NG
NG
NG
NG
SENSOR (See page 18±3)
835 to 1,400

IGNITER
CHANGE IT TO NORMAL IGNITION COIL WITH IGNITER
AND PERFORM SPARK TEST AGAIN
OK
Replace ignition coil with igniter.
NG
OK
CONNECTOR
Replace camshaft position sensor.
±
IGNITIONIGNITION SYSTEM(1ZZ±FE/3ZZ±FE)
18±1
AVENSIS REPAIR MANUAL (RM1018E)
IGNITION SYSTEM(1ZZ±FE/3ZZ±FE)
ON±VEHICLE INSPECTION
NOTICE:
ºColdº and ºHotº in this section mean the temperature of the coils thems\
elves.ºColdº is from ±10C
(14F) to 50 C (122 F) and ºHotº is from 50 C (122 F) to 100 C (212 F).
1.INSPECT IGNITION COIL (WITH IGNITER) AND SPARK TEST
(a)Check for DTCs.
NOTICE:
If DTC is present, perform a troubleshooting in accordance with a proced\
ure for that DTC.
(b)Check that spark occurs. (1)Remove the cylinder head cover No. 2. (See page 14±6)
(2) Remove the ignition coils (with igniter).
(3) Using a 16mm (0.63 in) plug wrench, remove the spark plugs.
(4) Install the spark plugs to each ignition coil (with igniter) and connect the \
ignition coil connectors.
(5) Disconnect the 4 injector connectors.
(6) Ground the spark plugs.
(7) Check if spark occurs at each spark plug while engine is being cranked.
NOTICE:
Be sure to ground the spark plug when checking.
Replace the ignition coil it is given physical impact.
Do not crank the engine for more than 2 seconds.
If the sparks do not occur, do the following test:
http://vnx.su

Page 954 of 2234

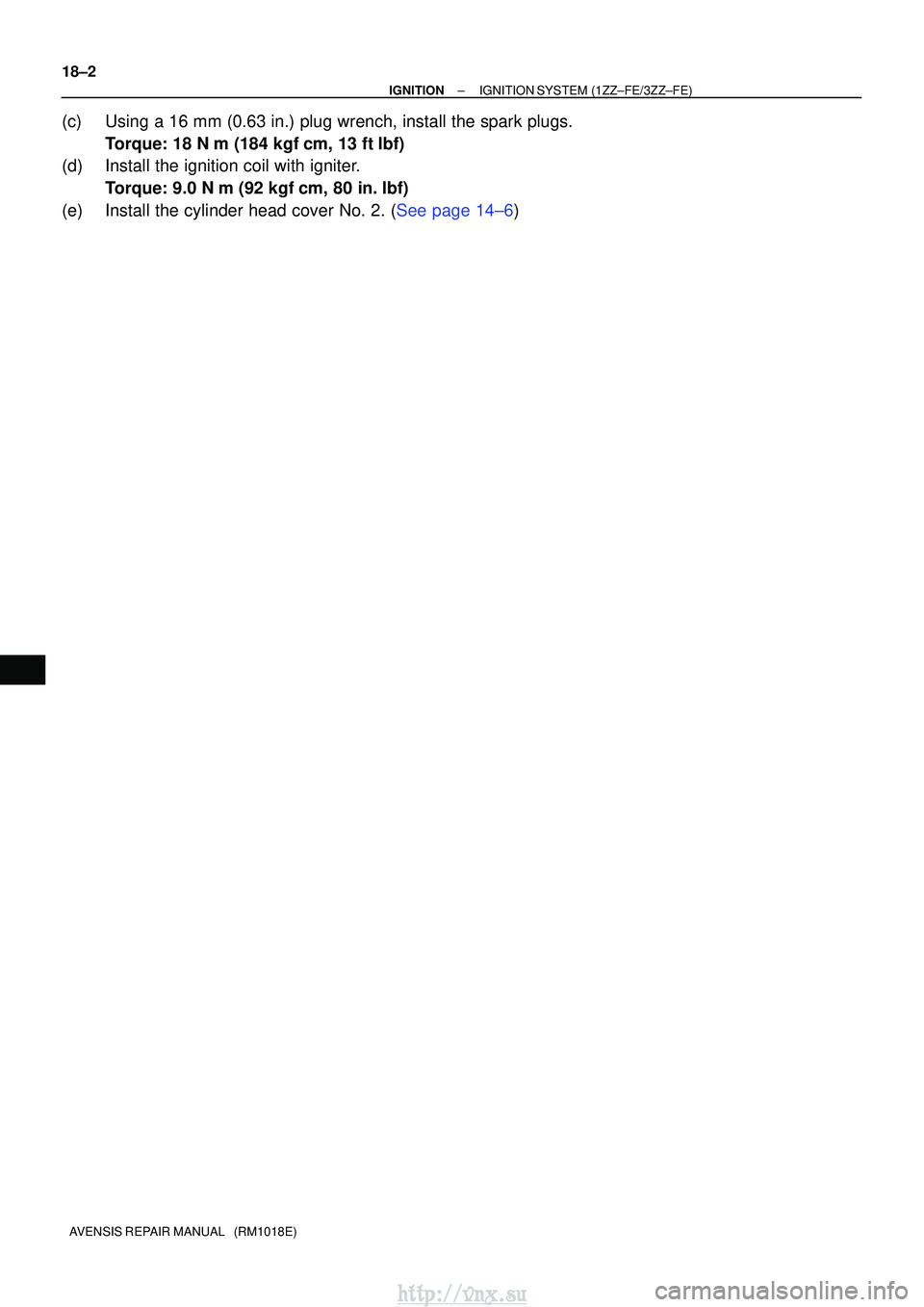

TOYOTA AVENSIS 2003 Service Repair Manual 18±2
±
IGNITIONIGNITION SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(c)Using a 16 mm (0.63 in.) plug wrench, install the spark plugs. Torque: 18 N m (184 kgfcm, 13 ftlbf)
(d)Install

Page 955 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 1807P±01
A50033
P03783
P03792
±
IGNITION IGNITION SYSTEM (1ZZ±FE/3ZZ±FE)

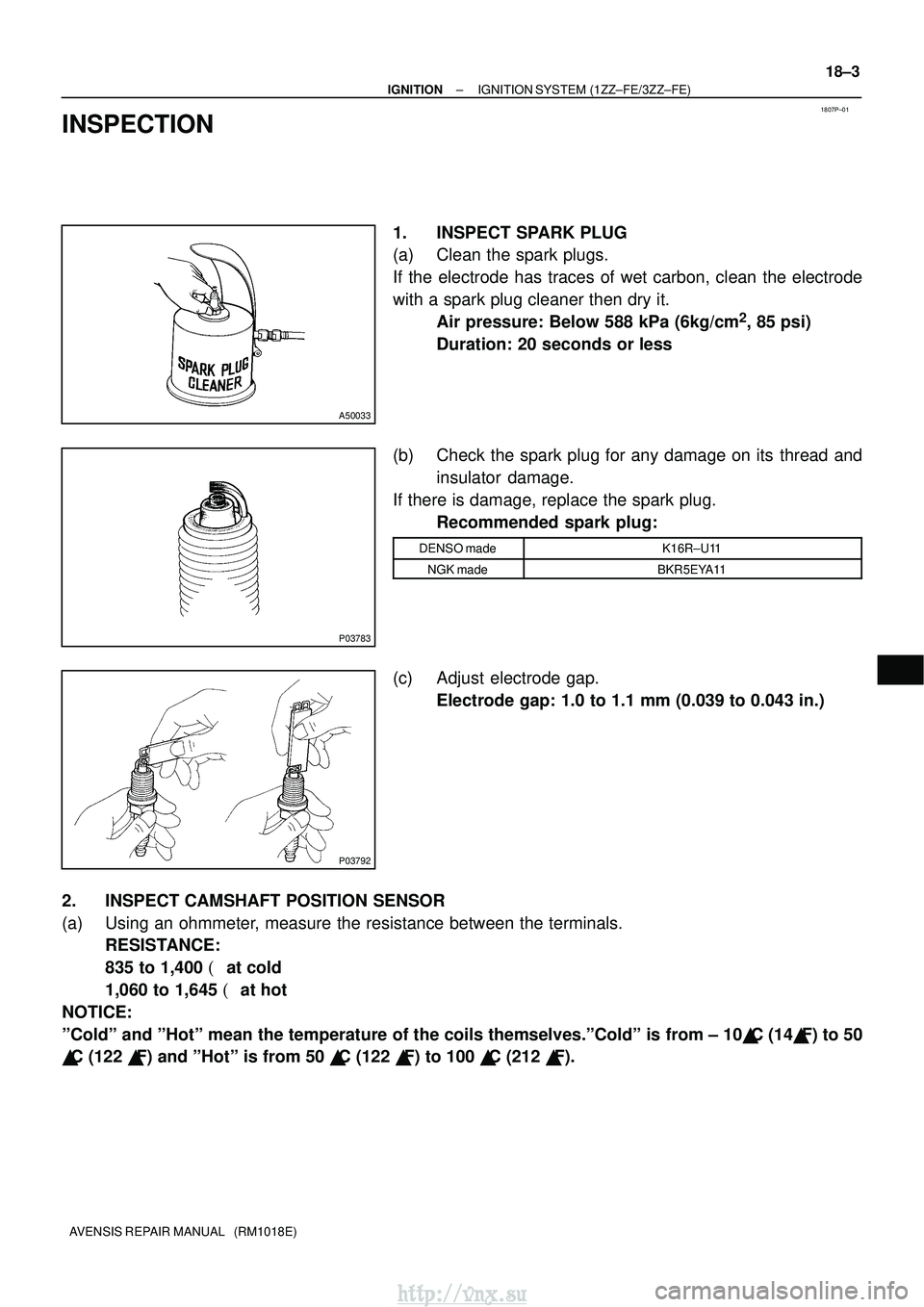

18±3
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION
1. INSPECT SPARK PLUG
(a) Clean the spark plugs.
If the electrode has tr

Page 956 of 2234

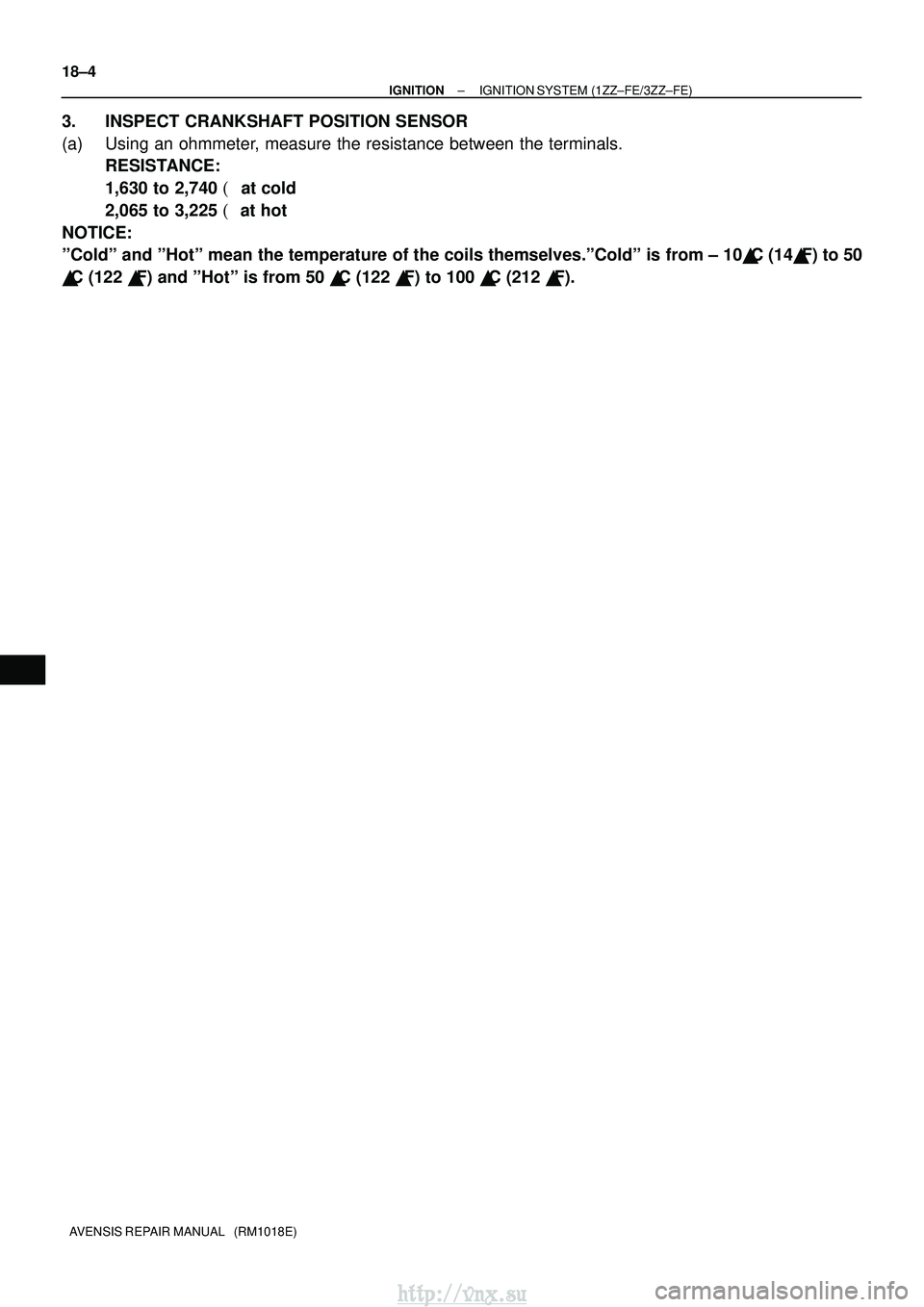

TOYOTA AVENSIS 2003 Service Repair Manual 18±4
±
IGNITION IGNITION SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
3. INSPECT CRANKSHAFT POSITION SENSOR
(a) Using an ohmmeter, measure the resistance between the terminals. RESISTA

Page 957 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 190NV±01

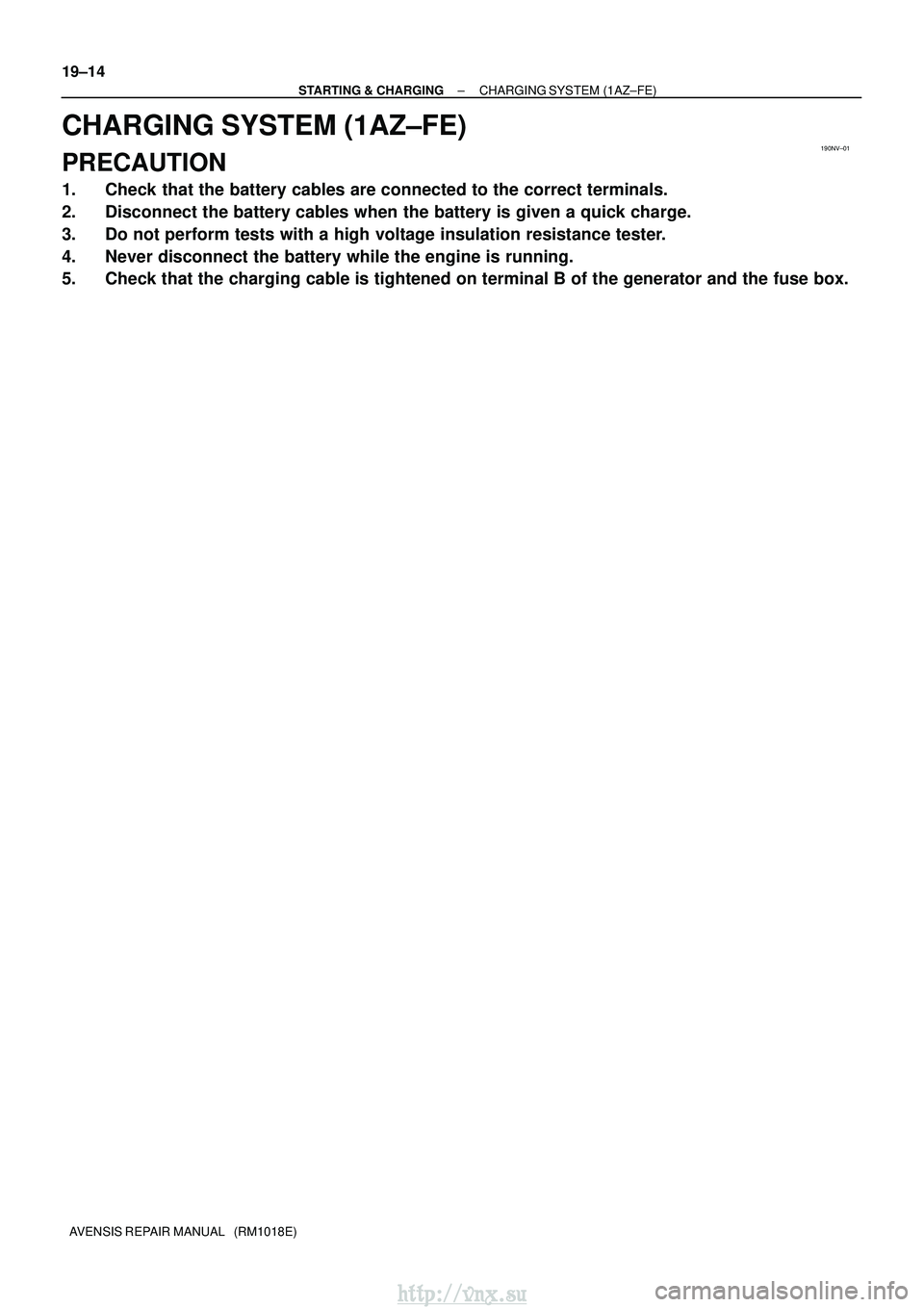

19±14
±
STARTING & CHARGING CHARGING SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
CHARGING SYSTEM (1AZ±FE)
PRECAUTION
1. Check that the battery cables are connected to the correct t

Page 958 of 2234

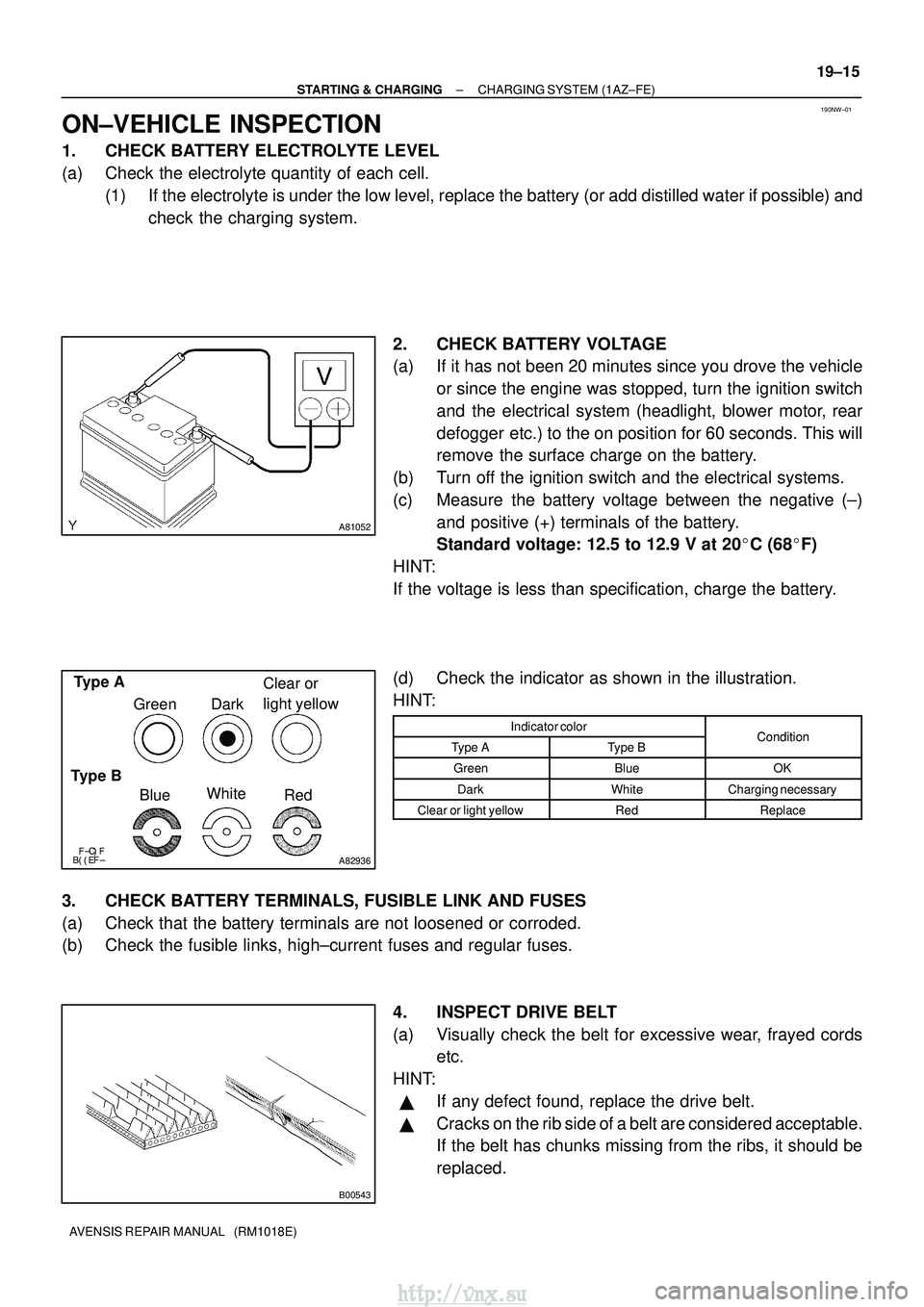

$TOYOTA AVENSIS 2003 Service Repair Manual 190NW±01 A81052 \bA82936 Type A Type B BlueWhite Red Green Dark Clear or light yellow B00543 ± STARTING & CHARGING CHARGING SYSTEM (1AZ±FE) 19±15 AVENSIS REPAIR MANUAL (RM1018E) ON±$

Page 959 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual B00540
A75980
Disconnect Wire
from Terminal B
Generator
Voltmeter
Battery Ammeter

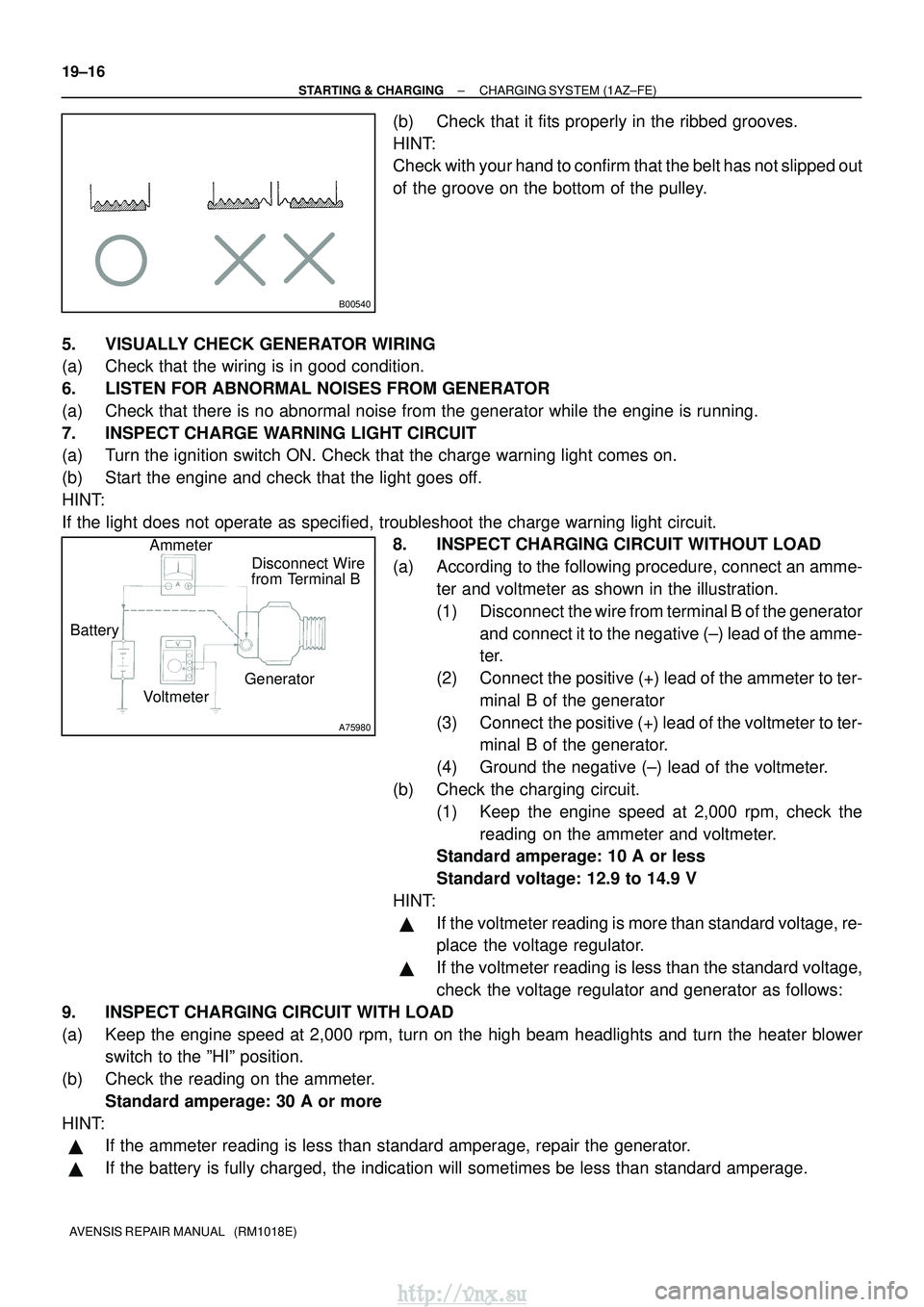

19±16
±
STARTING & CHARGING CHARGING SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(b) Check that it fits prope

B00540
A75980
Disconnect Wire
from Terminal B
Generator
Voltmeter
Battery Ammeter
19±16
±
STARTING & CHARGING CHARGING SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(b) Check that it fits properly in the ribbed grooves.
HINT:
Check with your hand to confirm that the belt has not slipped out
of the groove on the bottom of the pulley.
5. VISUALLY CHECK GENERATOR WIRING
(a) Check that the wiring is in good condition.
6. LISTEN FOR ABNORMAL NOISES FROM GENERATOR
(a) Check that there is no abnormal noise from the generator while the engin\
e is running.
7. INSPECT CHARGE WARNING LIGHT CIRCUIT
(a) Turn the ignition switch ON. Check that the charge warning light comes on\
.
(b) Start the engine and check that the light goes off.
HINT:
If the light does not operate as specified, troubleshoot the charge warn\
ing light circuit. 8. INSPECT CHARGING CIRCUIT WITHOUT LOAD
(a) According to the following procedure, connect an amme-
ter and voltmeter as shown in the illustration.
(1) Disconnect the wire from terminal B of the generatorand connect it to the negative (±) lead of the amme-
ter.
(2) Connect the positive (+) lead of the ammeter to ter- minal B of the generator
(3) Connect the positive (+) lead of the voltmeter to ter- minal B of the generator.
(4) Ground the negative (±) lead of the voltmeter.
(b) Check the charging circuit. (1) Keep the engine speed at 2,000 rpm, check thereading on the ammeter and voltmeter.
Standard amperage: 10 A or less
Standard voltage: 12.9 to 14.9 V
HINT:
If the voltmeter reading is more than standard voltage, re-
place the voltage regulator.
If the voltmeter reading is less than the standard voltage,
check the voltage regulator and generator as follows:
9. INSPECT CHARGING CIRCUIT WITH LOAD
(a) Keep the engine speed at 2,000 rpm, turn on the high beam headlights and\
turn the heater blower switch to the ºHIº position.
(b) Check the reading on the ammeter. Standard amperage: 30 A or more
HINT:
If the ammeter reading is less than standard amperage, repair the genera\
tor.
If the battery is fully charged, the indication will sometimes be less t\
han standard amperage.
http://vnx.su

Page 960 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 190NS±01
±
STARTING & CHARGING CHARGING SYSTEM (1AZ±FSE)
19±17
AVENSIS REPAIR MANUAL (RM1018E)
CHARGING SYSTEM (1AZ±FSE)
PRECAUTION
1. Check that the battery cables are connected to the correct
