Page 137 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 022K9±01 02±20 ± PREPARATION LUBRICATION AVENSIS REPAIR MANUAL (RM1018E) LUBRICATION PREPARATION SST 09023±12900Union Nut Wrench 19mmOIL PUMP ASSY(1AZ±FSE) 09032±00100Oil Pan Seal CutterOIL P

Page 138 of 2234

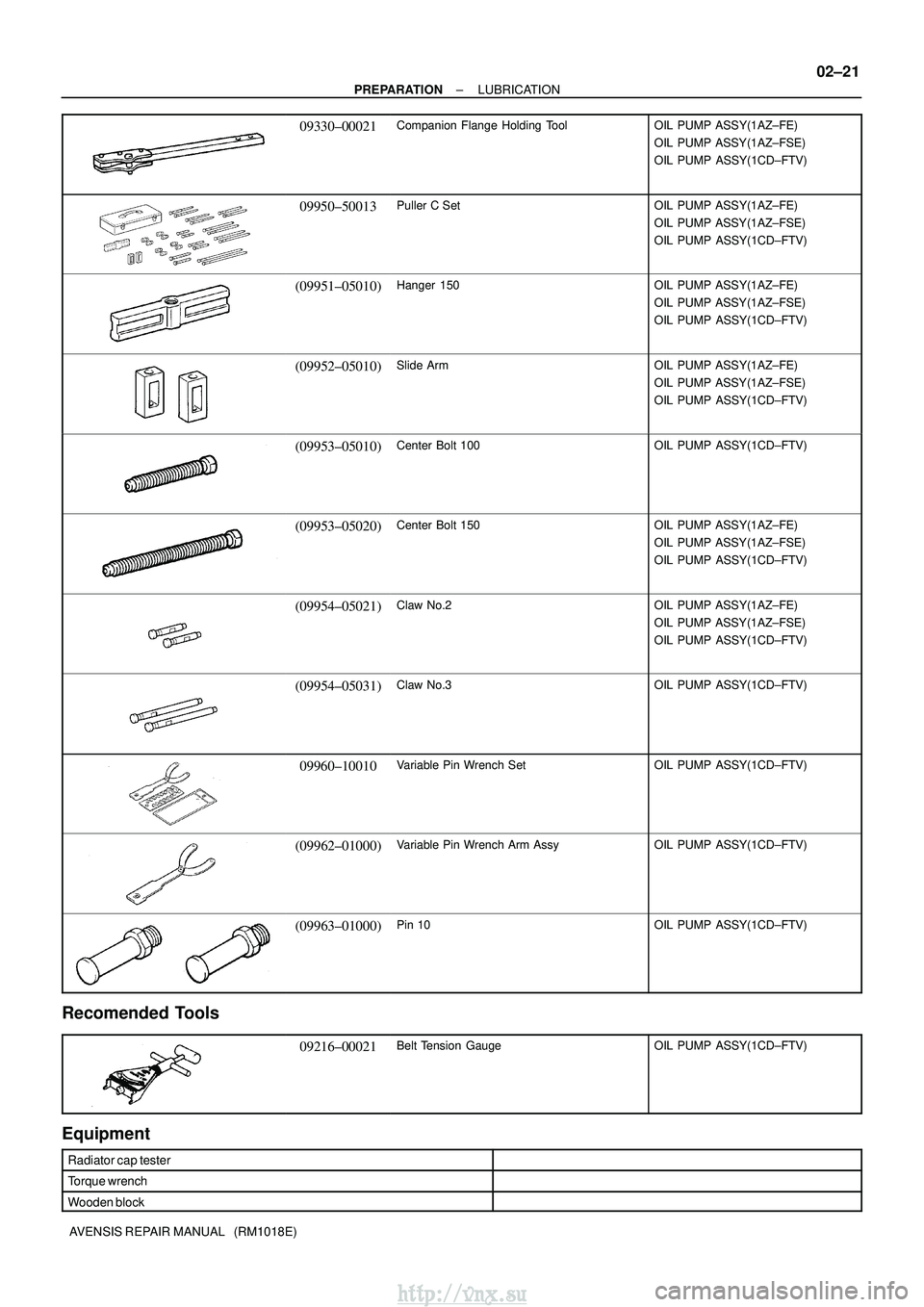

TOYOTA AVENSIS 2003 Service Repair Manual ± PREPARATION LUBRICATION 02±21 AVENSIS REPAIR MANUAL (RM1018E) 09330±00021Companion Flange Holding ToolOIL PUMP ASSY(1AZ±FE) OIL PUMP ASSY(1AZ±FSE) OIL PUMP ASSY(1CD±FTV) 09950±50013Puller C

Page 139 of 2234

TOYOTA AVENSIS 2003 Service Repair Manual 02±22 ± PREPARATION LUBRICATION AVENSIS REPAIR MANUAL (RM1018E) SSM 08826±00080Seal Packing Black or equivalent (FIPG)OIL PUMP ASSY(1CD±FTV) Lubricant ItemCapacityClassification Oil grade (gasol

Page 140 of 2234

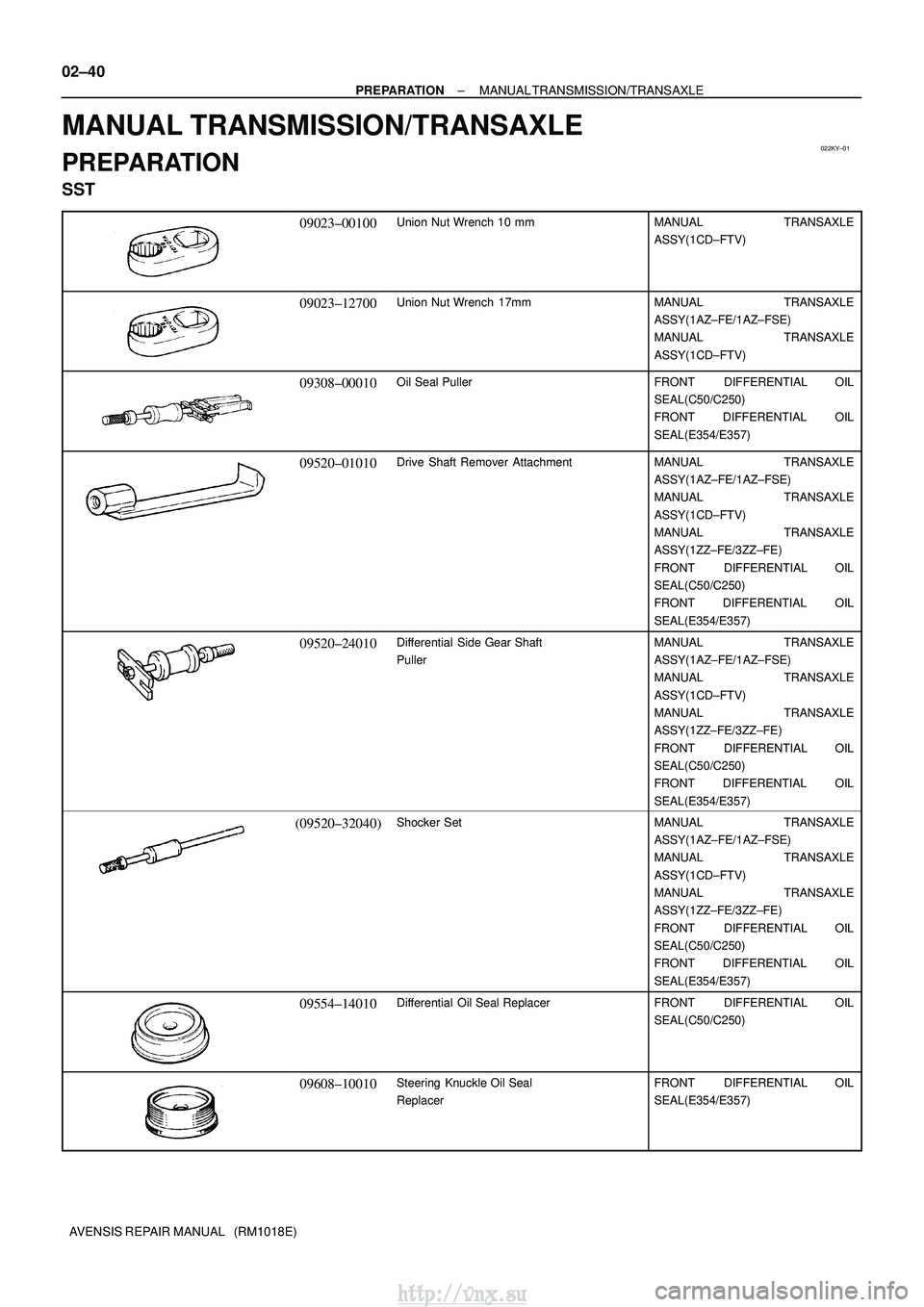

TOYOTA AVENSIS 2003 Service Repair Manual 022KY±01 02±40 ± PREPARATION MANUAL TRANSMISSION/TRANSAXLE AVENSIS REPAIR MANUAL (RM1018E) MANUAL TRANSMISSION/TRANSAXLE PREPARATION SST 09023±00100Union Nut Wrench 10 mmMANUAL TRANSAXLE ASSY(1C

Page 141 of 2234

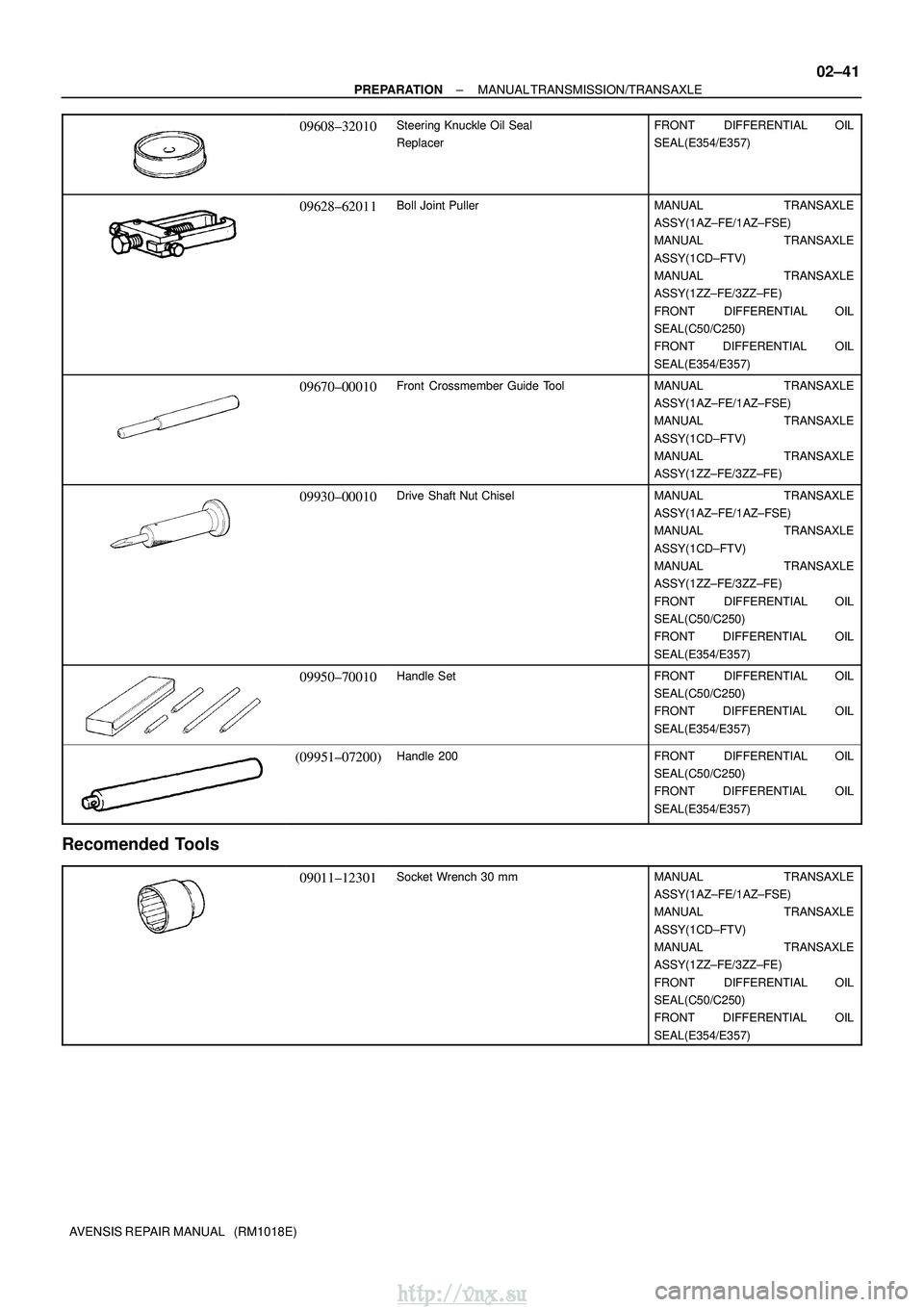

TOYOTA AVENSIS 2003 Service Repair Manual ± PREPARATION MANUAL TRANSMISSION/TRANSAXLE 02±41 AVENSIS REPAIR MANUAL (RM1018E) 09608±32010Steering Knuckle Oil Seal ReplacerFRONT DIFFERENTIAL OIL SEAL(E354/E357) 09628±62011Boll Joint Pulle

Page 142 of 2234

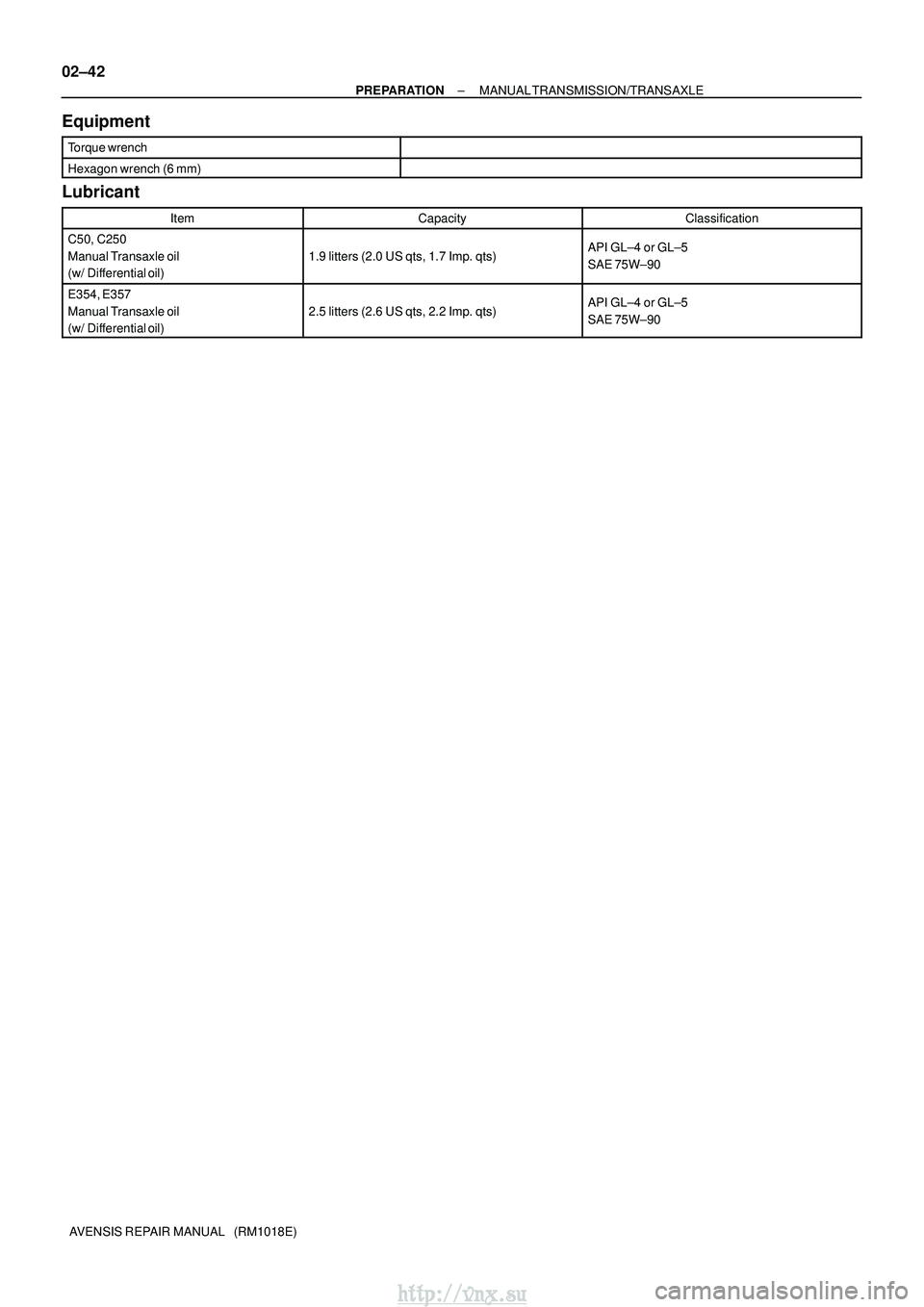

TOYOTA AVENSIS 2003 Service Repair Manual 02±42 ± PREPARATION MANUAL TRANSMISSION/TRANSAXLE AVENSIS REPAIR MANUAL (RM1018E) Equipment Torque wrench Hexagon wrench (6 mm) Lubricant ItemCapacityClassification C50, C250 Manual Transaxle oil

Page 143 of 2234

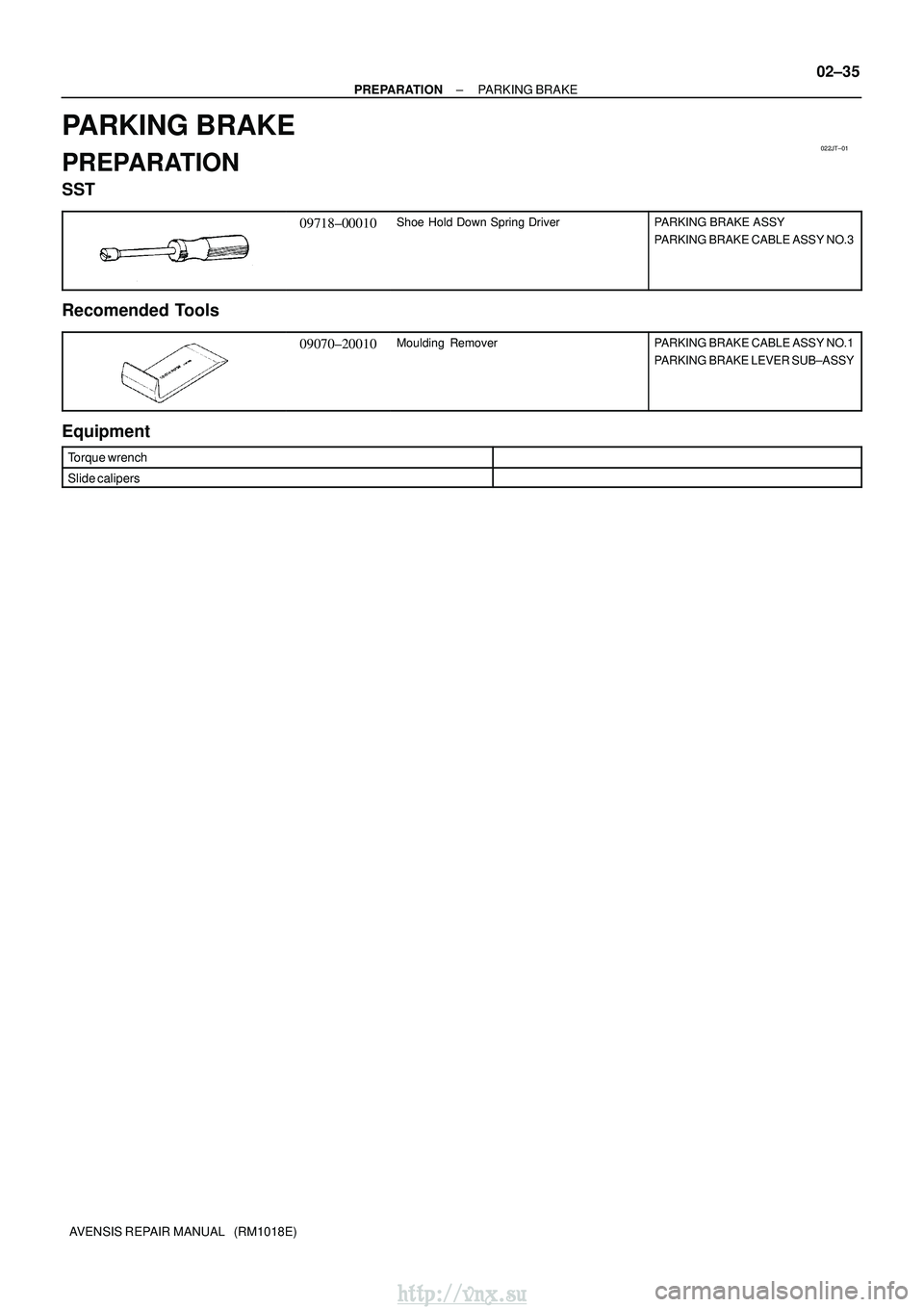

TOYOTA AVENSIS 2003 Service Repair Manual 022JT±01 ± PREPARATION PARKING BRAKE 02±35 AVENSIS REPAIR MANUAL (RM1018E) PARKING BRAKE PREPARATION SST 09718±00010Shoe Hold Down Spring DriverPARKING BRAKE ASSY PARKING BRAKE CABLE ASSY NO.3 R

Page 144 of 2234

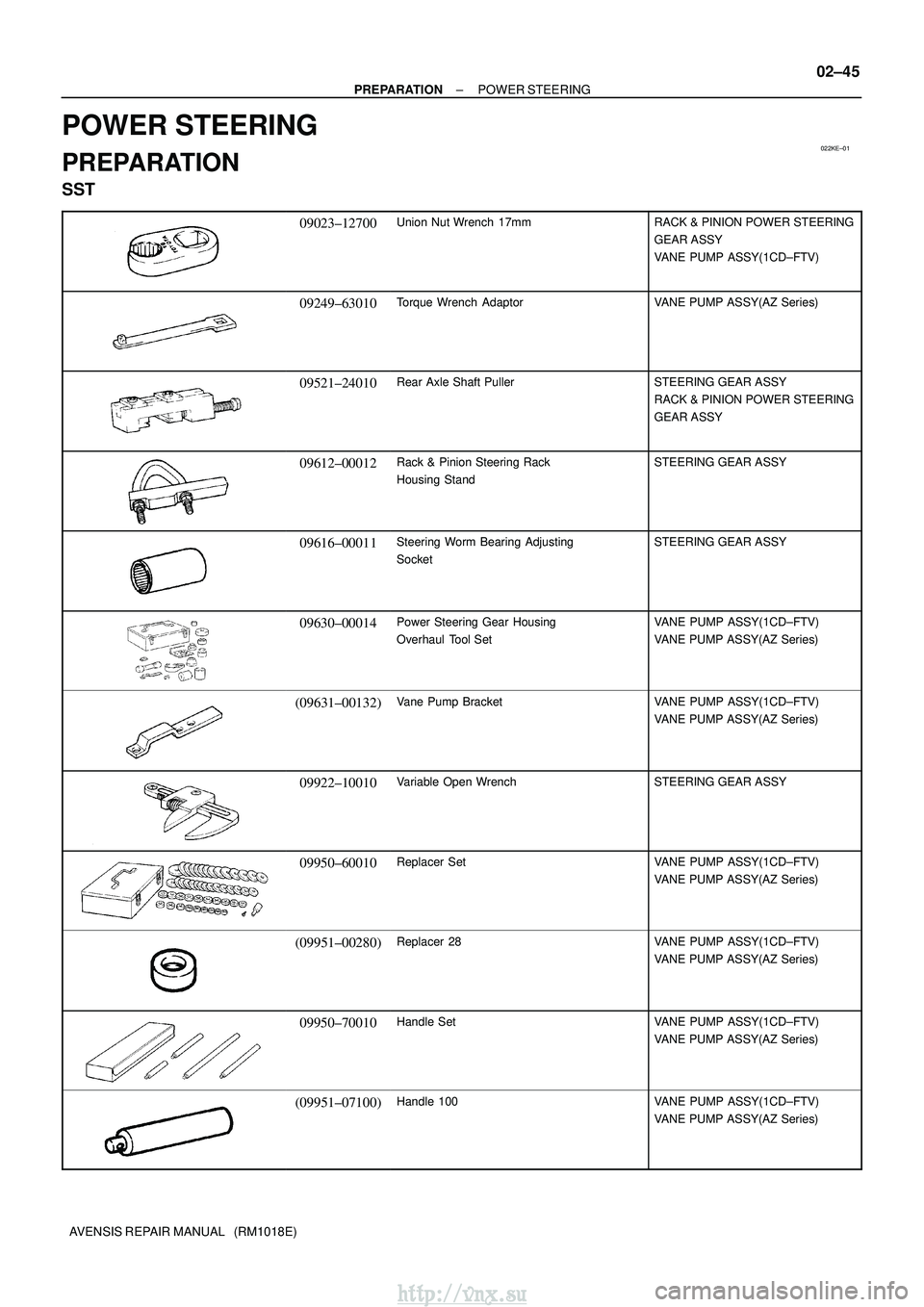

TOYOTA AVENSIS 2003 Service Repair Manual 022KE±01 ± PREPARATION POWER STEERING 02±45 AVENSIS REPAIR MANUAL (RM1018E) POWER STEERING PREPARATION SST 09023±12700Union Nut Wrench 17mmRACK & PINION POWER STEERING GEAR ASSY VANE PUMP ASSY(
